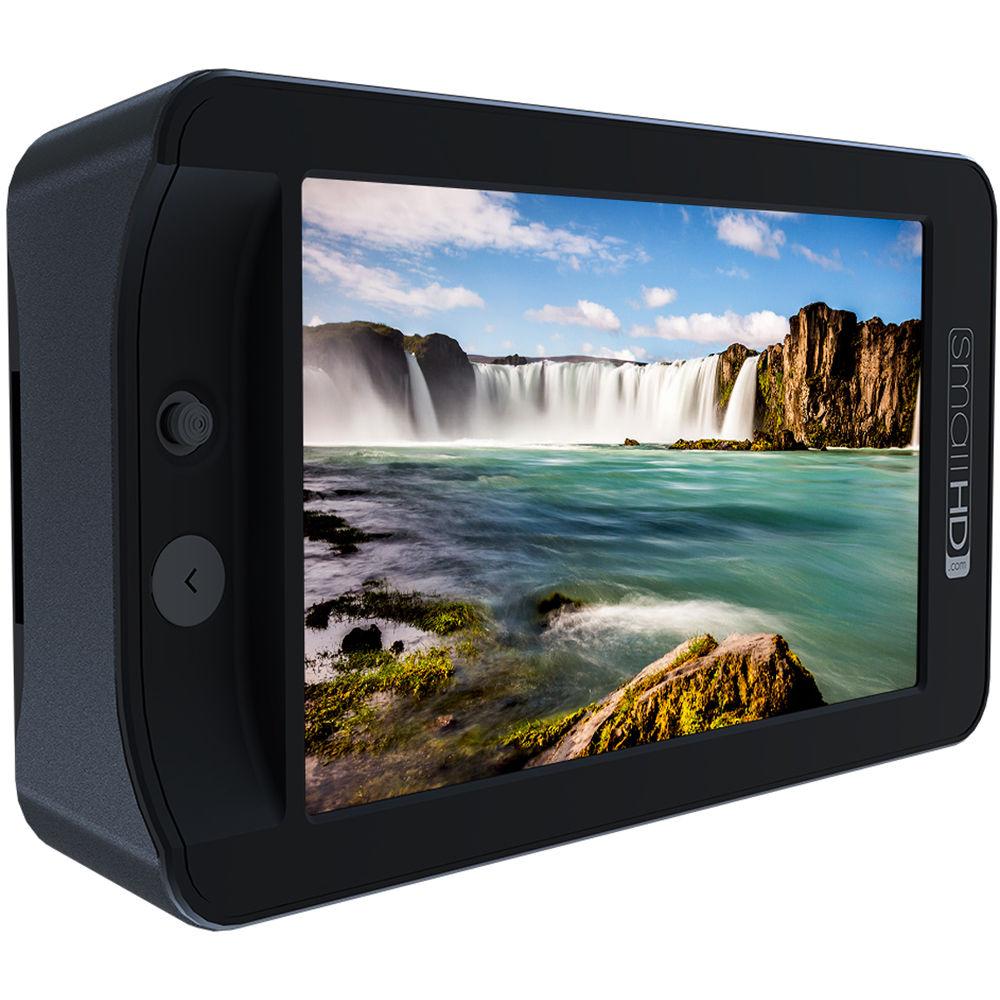

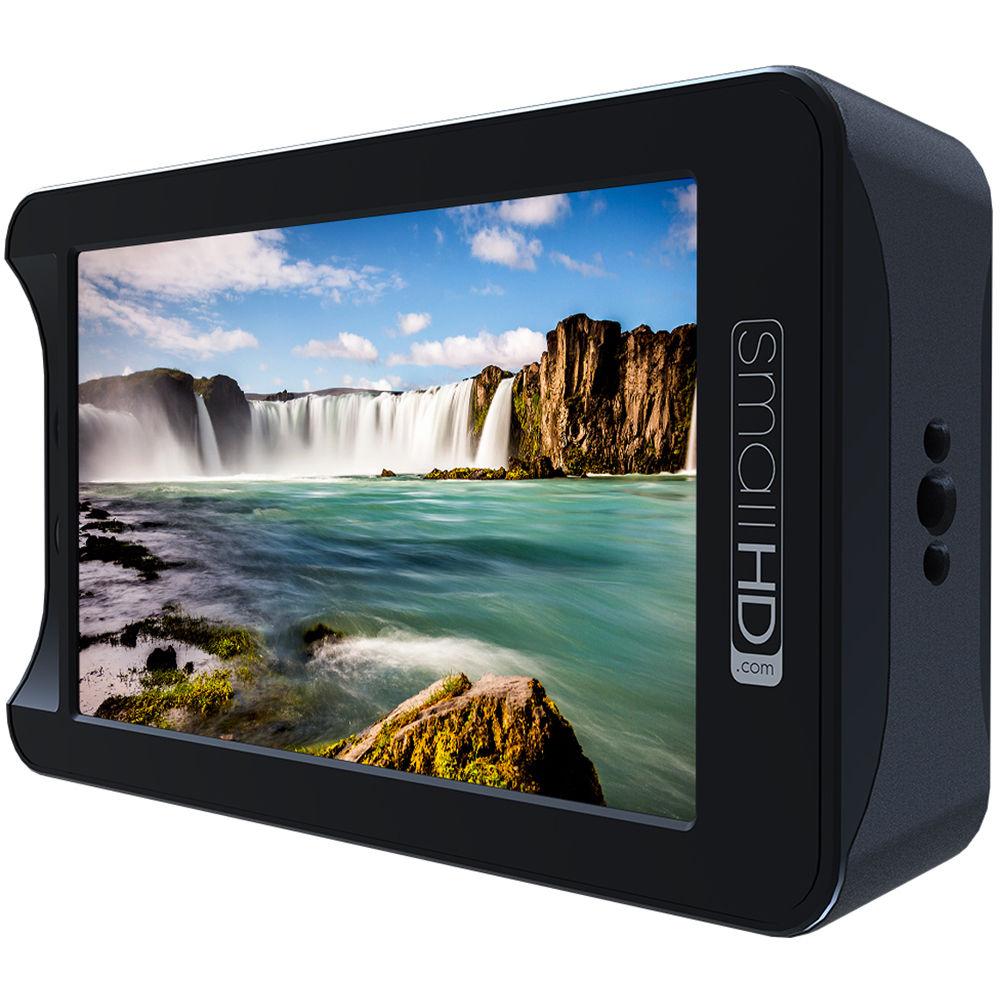

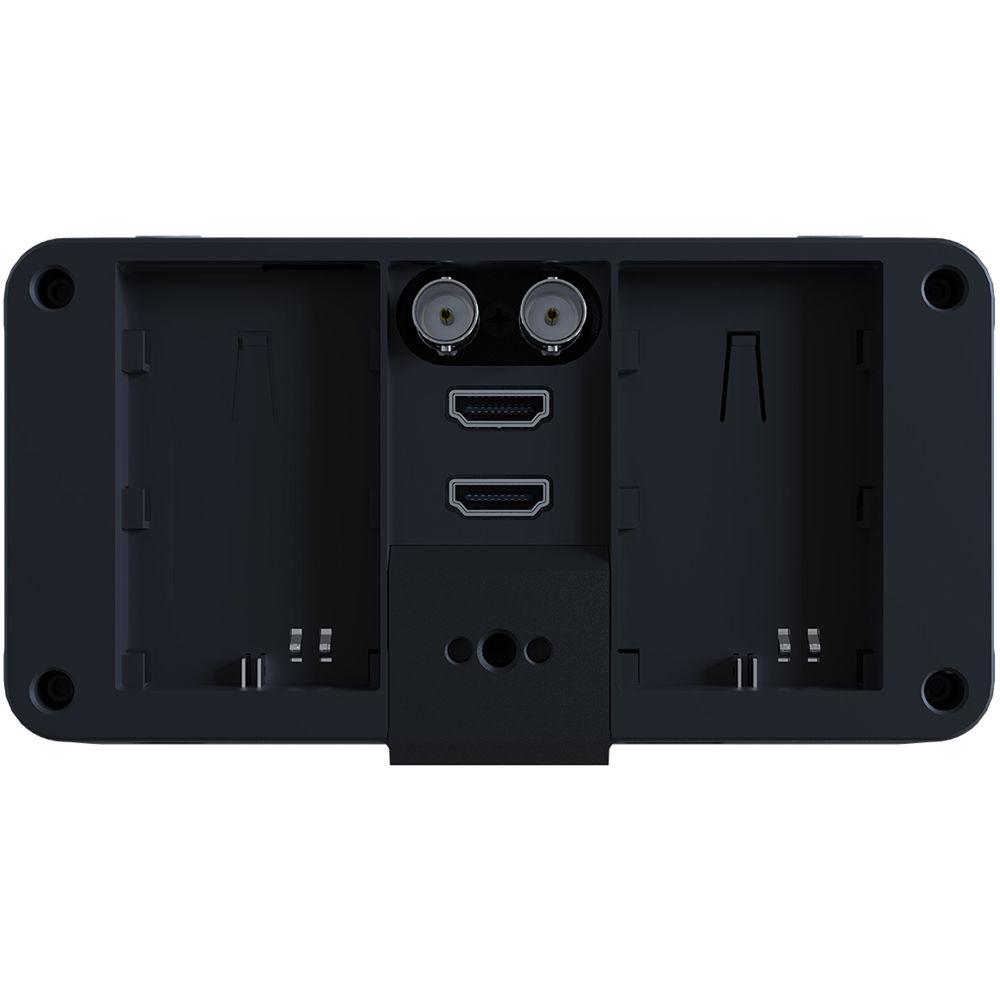

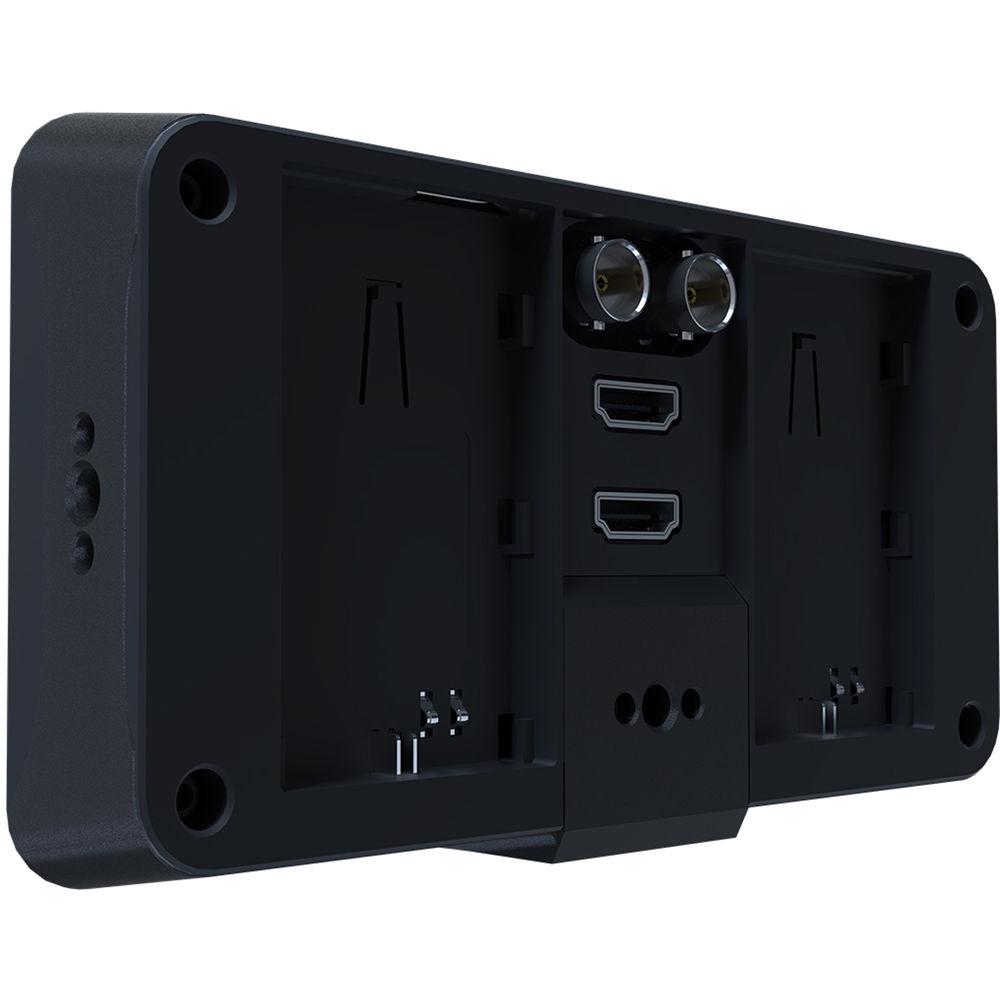

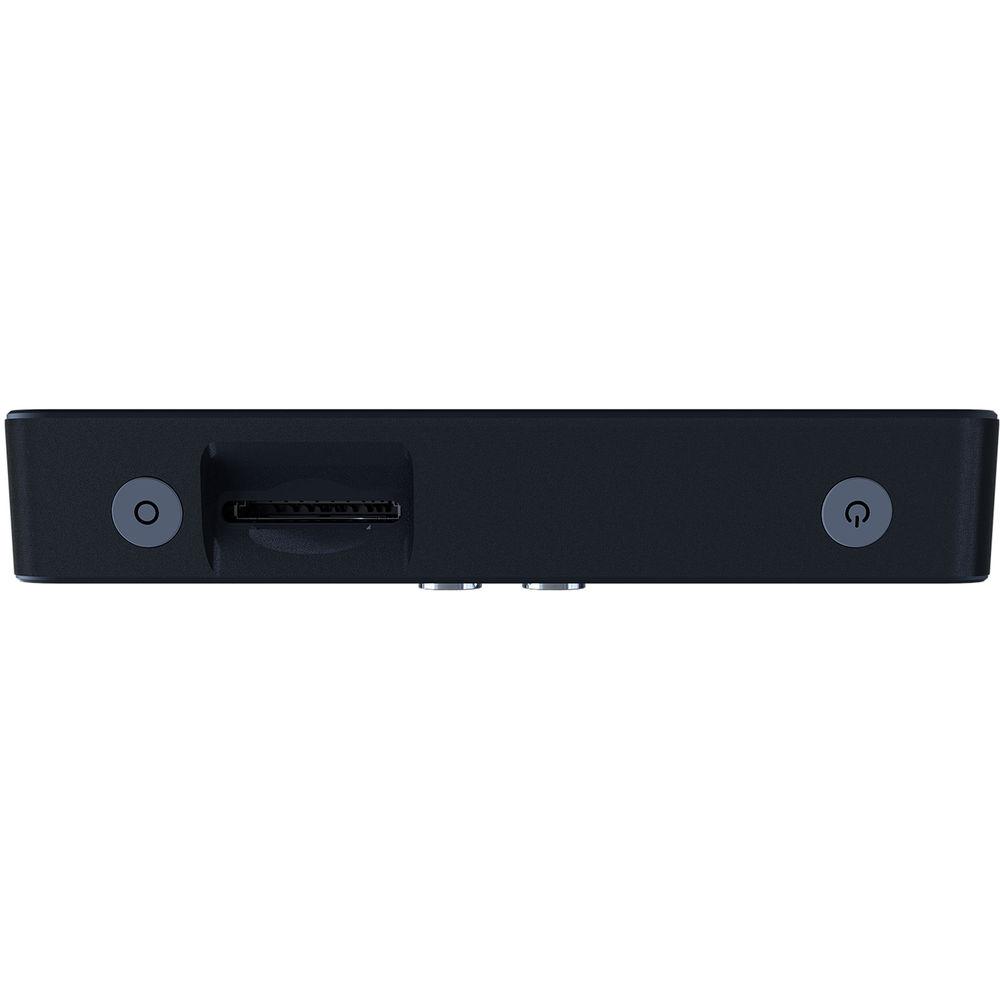

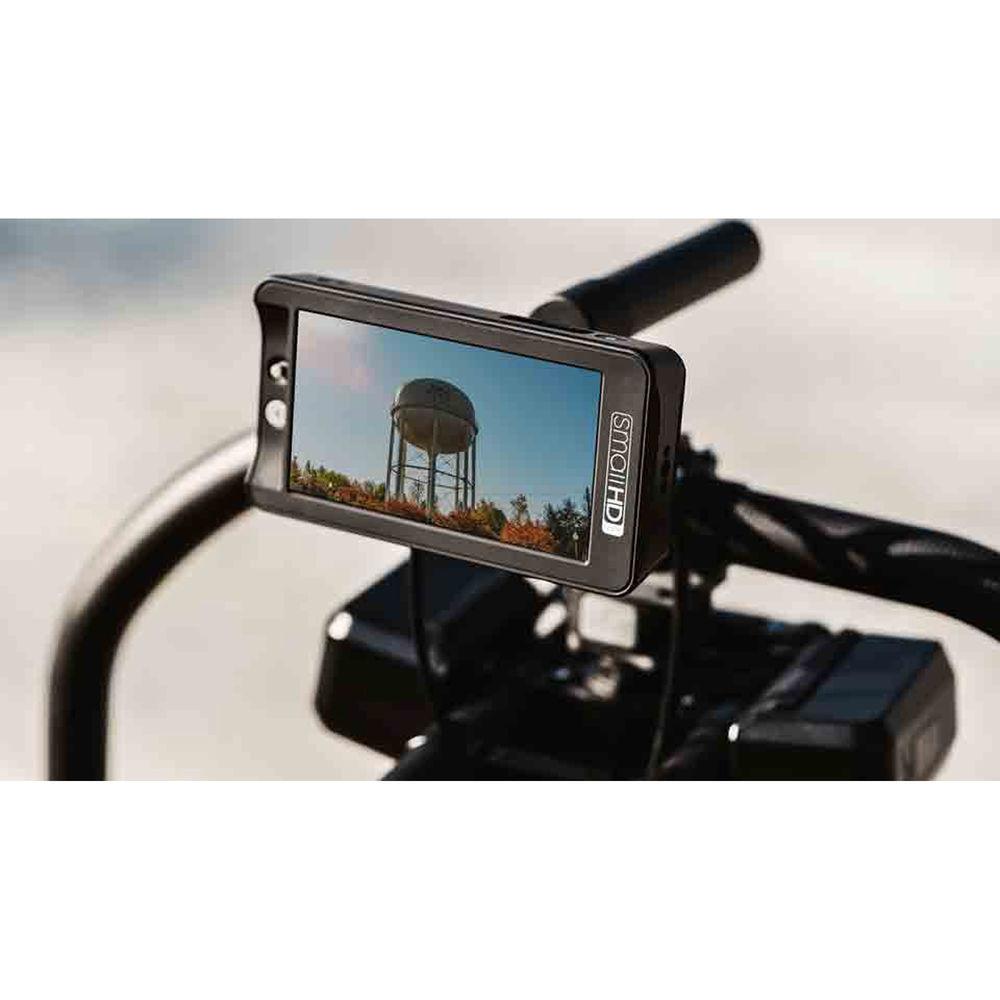

Product description The SmallHD 502 Bright Value Bundle offers a monitor kit that includes monitor, support arm arrangement, battery power, a monitor cage with sun hood, hard case, microfiber cleaning cloth, and both SDI and HDMI cables. The 502 Bright monitor features 1920 x 1080 native resolution and is suitable for use on exteriors and interiors. It features SmallHD's well-known PageBuilder OS. The included 180° tilt arm and pan module enables almost limitless positioning of the monitor on your camera.
The included LP-E6 battery and charger kit features a wall wart charger and two batteries for the monitor. The monitor cage protects your 502 Bright from the rigors of the production day, while the four-sided sun hood protects it from harsh direct light. The included cables enable connecting you monitor to a camera source or outputting to another monitor, while the cleaning cloth helps keep the touchscreen clean from fingerprint buildup. The included case protects your gear during transport and storage. - 502 Bright On-Camera Monitor Based off the original 502 monitor, the SmallHD 502 Bright On-Camera Monitor brings a bright 1000 cd/m² panel to the compact platform. While the 5" display is bright it doesn't sacrifice resolution, yet it won't overwhelm a DSLR or mirrorless camera if secured to the accessory shoe. The 1920 x 1080 panel is sharp and can be used to check critical focus and exposure. The wealth of monitoring tools included with this monitor are easily accessible using the innovative PageBuilder OS which utilizes customizable pages to cycle through monitor inputs and outputs, as well as your favorite tools.The unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. A bumper is included for further protection. At the rear of the display you'll find the SDI and HDMI I/O. Having two of each port allows for cycling two different signals, cross conversion, or sending a signal downstream to another monitor, switcher, or wireless accessory.
- PageBuilder OS
- PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the monitor at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.
Software Features - Pixel Zoom: 2x and 4x with region-of-interest selection via joystick
- Automatic and manual image rotation and image flip
- HDMI/SDI cross conversion
- Peaking and color-edge focus assist
- Histograms with RGB parade
- Import LUTs via SD card (LUTs can be sent downstream)
UPC: 850246006195 - Pan Module for Tilt Arm Add the convenience of panning when positioning your monitor with the SmallHD Pan Module for Tilt Arm. This friction-based pan axis is easily installed on your SmallHD Tilt Arm using the included Allen wrenches and screw. UPC: 855534007656
- LP-E6 Battery and Charger Kit Power your monitor with the SmallHD LP-E6 Battery and Charger Kit, an all-inclusive battery solution for SmallHD monitors. This kit comes with two LP-E6 type batteries and a single-bay charger. The charger has a convenient flip-out USA plug which can be adapted for European use via the included Euro plug. If you're on-the-go, the 12 VDC power connector can also be used to connect the charger. UPC: 850246006317
- Monitor Cage with Four-Sided Sun Hood for 502 Bright Monitor The Monitor Cage with Sun Hood from SmallHD is a milled aluminum monitor cage with a four-sided sun hood. It is designed to add sun shading, viewing privacy, and more mounting points to the 502 Bright monitor.
- Rugged sun hood is easy to take on and off
UPC: 850324007427 - Medium Hard Case for 500/700-Series Monitors Protect your 500 or 700-series monitor with this Medium Hard Case from SmallHD. The inside of the case is comprised of pick-and-pluck foam which can be easily customized to the shape of your monitor and essential accessories you may want to carry alongside your monitor. A rubber gasket seal keeps the case air and water-tight, while an automatic pressure purge system ensures the case is easy to open in pressure-differential situations. Molded-in padlock holes near the latches let you guard your monitor from theft. Once everything is packed up and the case is secured with the locking latches, the molded carry handle provides a comfortable way to transport your equipment.
- Construction
- High-impact molded case with neoprene O-ring seal
- Fully customizable, pick-apart foam insert
- Automatic pressure purge system
UPC: 857497005779 - Thin BNC Cable (24") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 857497005960
- HDMI Cable (3') The 3' HDMI Cable from SmallHD allows you to transmit high-quality digital audio and video on a single cable. This cable features a male HDMI connector on each end, and is compatible with a wide variety of devices such as SmallHD monitors. UPC: 857497005298
- Microfiber Cleaning Cloth Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use. UPC: 850246006126
- FOCUS 180 Degree Tilt Arm Mount for Select On-Camera Monitors

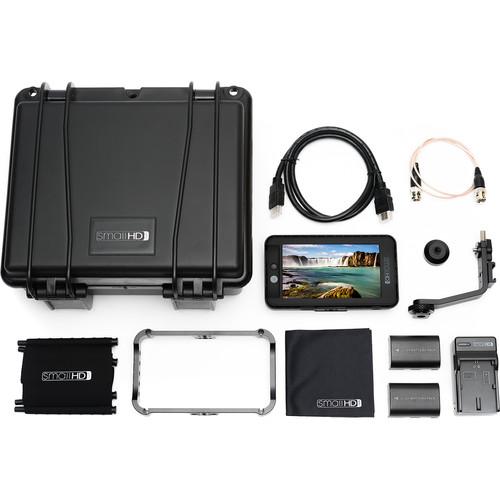

In the Box Bundle Items 502 Bright On-Camera Monitor ddsvwbuw FOCUS 180 Degree Tilt Arm Mount for Select On-Camera Monitors Pan Module for Tilt Arm LP-E6 Battery and Charger Kit - 2 x LP-E6 1300mAh Li-ion Battery with Smart Chip Technology
- 12V Vehicle Power Adapter
Monitor Cage with Four-Sided Sun Hood for 502 Bright Monitor ddsvwbuw - Mounting Cage for 502 Bright Monitor
Medium Hard Case for 500/700-Series Monitors ddsvwbuw Thin BNC Cable (24") HDMI Cable (3') Microfiber Cleaning Cloth Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 502 Bright Value Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 502 Bright On-Camera Monitor
| | | Panel Type | TFT LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 179° | | Maximum Brightness | 1000 cd/m2 | | Contrast Ratio | 1500:1 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 441 ppi | | Color Gamut | 100% Rec. 709 | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform | | | | Video | 1 x BNC (3G-SDI) Output

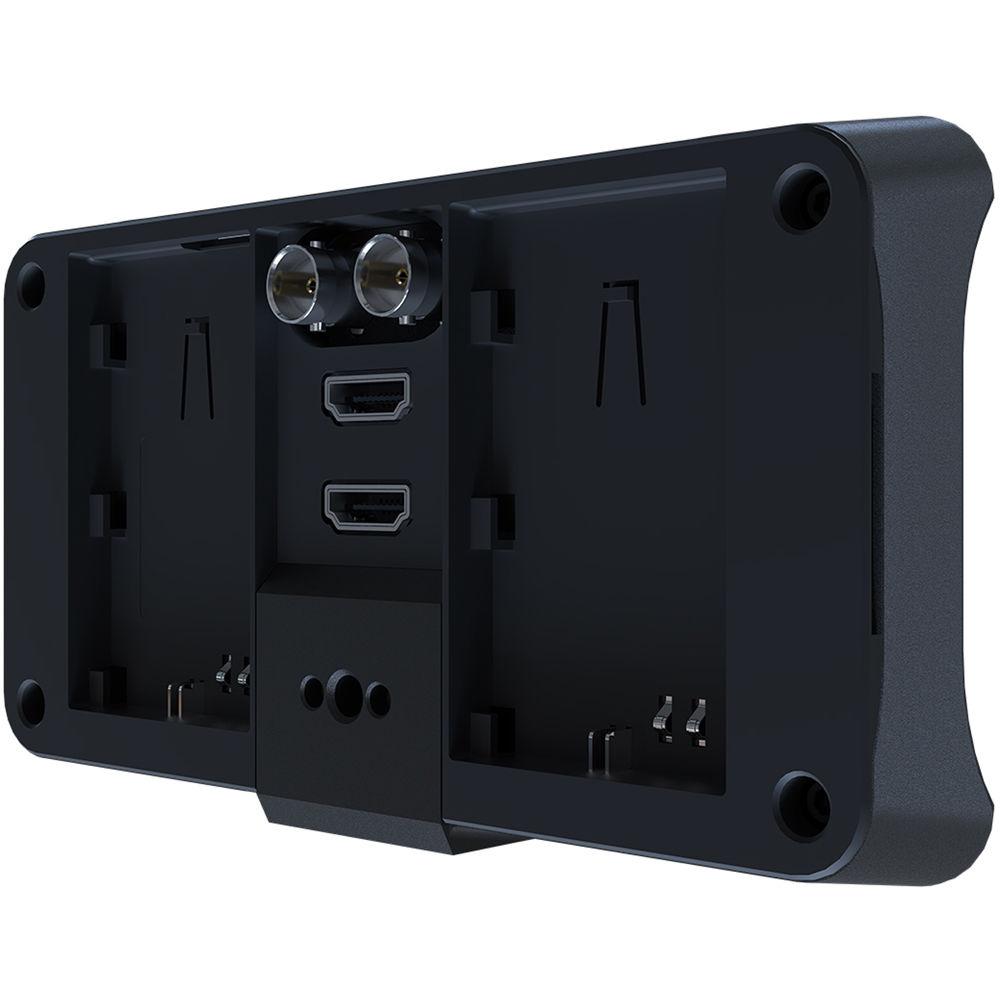

1 x HDMI Type A Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input | | Embedded Audio | HDMI
SDI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Other I/O | 1 x USB 2.0 (Micro-USB) | | Card Slot | 1 x SD | | | | Video Format | SDI (10-Bit 4:2:2)
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080PsF: 30/29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50/30/29.97/25/24/23.98
NTSC
PAL
HDMI (8/10/12-Bit)
1080p: 60/59.94/50/30/25/24/23.98
1080PsF: 30/25/24/23.98
1080i: 60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/25/24/23.98
576p: 100/50
480p: 120/119.88/60/59.94
NTSC: 240/239.76/120/119.88/60/59.94

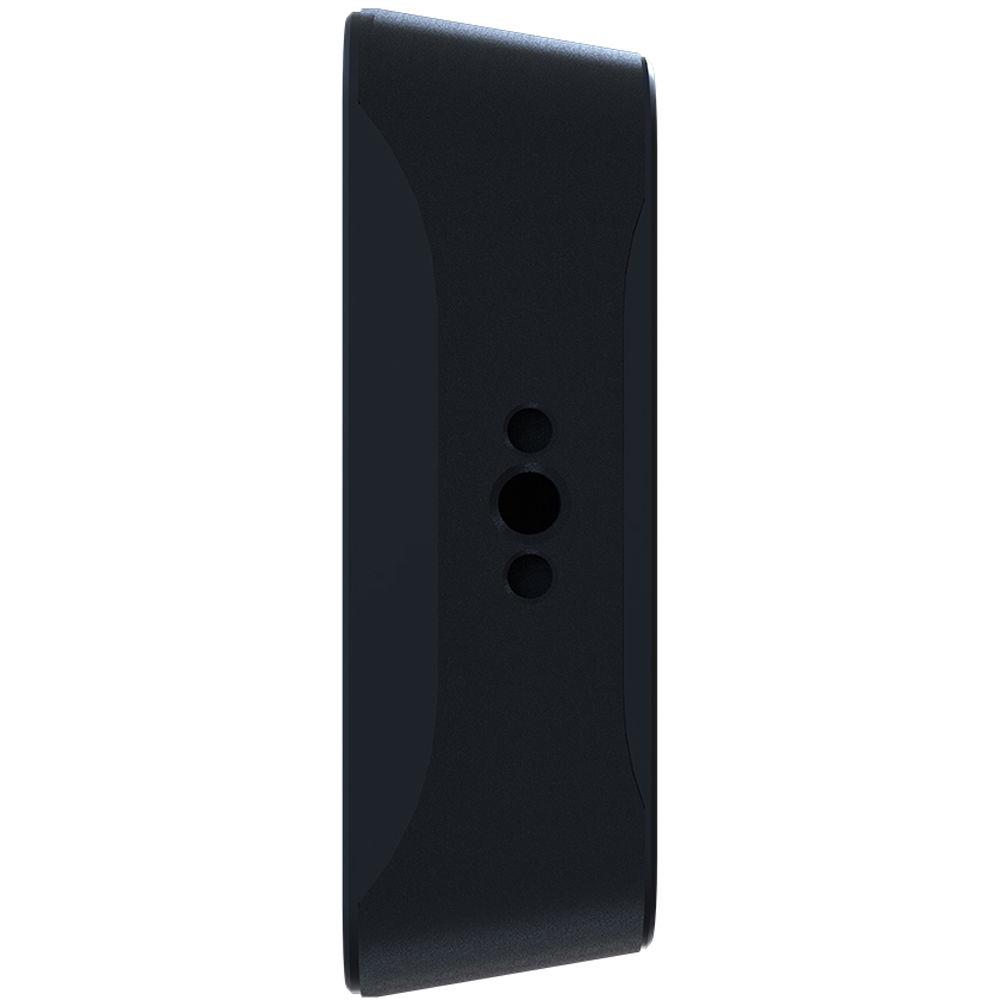

PAL: 200/100/50 | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | 30 to 85°F / -1.1 to 29.4°C | | Storage Temperature | 0 to 120°F / -17.8 to 48.9°C | | | | Dimensions (W x H x D) | 3.4 x 6 x 1.1" / 8.6 x 15.2 x 2.8 cm | | Weight | 9.4 oz / 267 g | | | | Box Dimensions (LxWxH) | 9.5 x 7.05 x 1.95" | - FOCUS 180 Degree Tilt Arm Mount for Select On-Camera Monitors
| | | Box Dimensions (LxWxH) | 6.9 x 2.6 x 1.1" | - Pan Module for Tilt Arm
| Dimensions (Ø x H) | 1.18 x 0.52" / 3 x 1.32 cm | | | | Box Dimensions (LxWxH) | 7.0 x 3.5 x 1.0" | - LP-E6 Battery and Charger Kit
| Voltage | Charger Input: 120 - 240 VAC | | Battery Type | 2 x LP-E6 type | | Battery Chemistry | Lithium-Ion | | Output Voltage | 7.2 VDC | | Battery Capacity | 1300 mAh | | | | Box Dimensions (LxWxH) | 4.8 x 4.2 x 2.25" | - Monitor Cage with Four-Sided Sun Hood for 502 Bright Monitor
| Material | Cage: Milled aluminum | | Dimensions | Hood: 4.63 x 3.63 x 4.63" / 11.76 x 9.22 x 11.76 cm
Cage: 6.25 x 3.81 x 0.94" / 15.88 x 9.68 x 2.39 cm | | Weight | Hood: 3 oz / 85 g
Cage: 3 oz / 85 g | | | | Box Dimensions (LxWxH) | 7.45 x 4.55 x 1.6" | - Medium Hard Case for 500/700-Series Monitors
| Compatibility | SmallHD 500 and 700-series monitors | | Interior Dimensions | 9.6 x 7.4 x 4.0" (24.4 x 18.8 x 10.2 cm) | | Dimensions | 10.8 x 9.9 x 4.9" (27.4 x 25.2 x 12.5 cm) | | Weight | 39.2 oz (1.1 kg) | | | | Box Dimensions (LxWxH) | 10.4 x 9.6 x 4.8" | - Thin BNC Cable (24")
| Cable Length | 2' / 0.6 m | | Weight | 0.1 lb / 0.0 kg | | | | Box Dimensions (LxWxH) | 7.4 x 5.3 x 0.5" | - HDMI Cable (3')
| Connector 1 | HDMI Type-A Male | | Connector 2 | HDMI Type-A Male | | Cable Length | 3' / 0.9 m | | | | Box Dimensions (LxWxH) | 7.05 x 5.75 x 1.65" | - Microfiber Cleaning Cloth
| | | Box Dimensions (LxWxH) | 4.0 x 3.1 x 0.2" |
