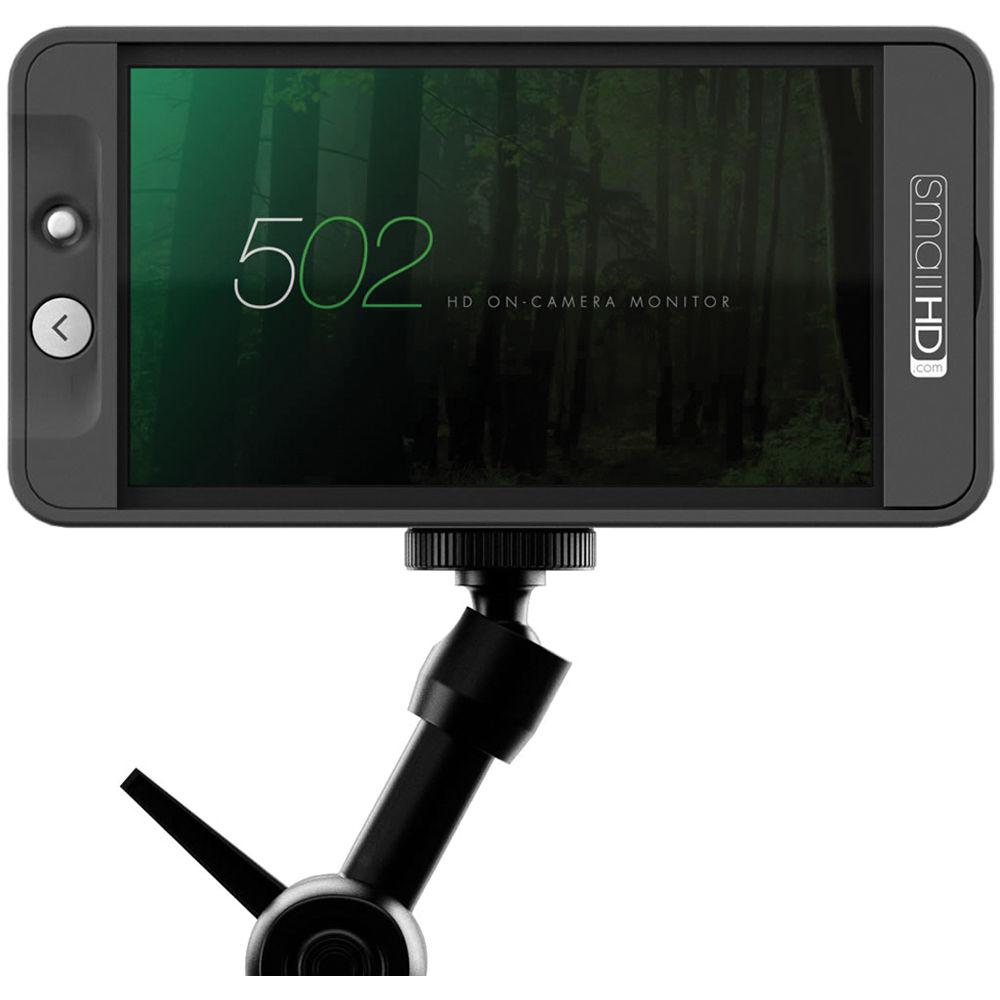

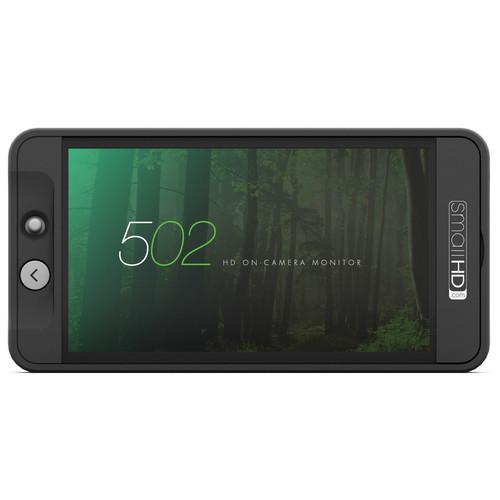

SmallHD's 502 HDMI & SDI On-Camera Monitor with 3D LUT Support brings full HD resolution to a durable lightweight on-camera monitor the size of a smartphone. The screen packs 441 pixels per inch, providing a sharp clear image on such a small screen. It features SDI & HDMI inputs and outputs with cross conversion. With a rubberized aluminum frame, the unit is 3/4" thick and weighs about 9 ounces, so it is light enough to mount to your camera without weighing you down, yet extremely rugged.
Small HD has developed a menu system designed to be easy to navigate with the built-in joystick. Within the system is the Pages system, which allows you to create and store up to 8 preset configurations. You can easily see the effect of your configurations on the image, swiping between the configurations using the joystick. The 502 supports 3D LUTs, and you can save those as a configuration page as well. It is worth pointing out that you can apply a configuration page setting to either the monitor's screen, the output, or both at the same time. You can also assign a different configuration set up to the monitor's screen and the output. You can mount the SmallHD Sidefinder to the 502 to use it as an EVF, SmallHD Sidefinder not included. - Firmware 2.2 Features
-
- HD Waveform, Vectorscope, and Histogram
- Headphone Jack
- Still Image Capture
- Audio Meters
- Custom Zebra
- Peaking
- Custom Scale
- Pixel Zoom
- DSLR Scale
- Anamorphic De-Squeeze
- The SmallHD 502 on-camera monitor features a Full HD, 1920x1080, LCD display, with a pixel density of 441 PPI. The 502's LCD display is able to produce 85% NTSC Color Gamut (greater than the REC. 709 color standard), rivaling the color capabilities of OLED technology.
- The monitor supports HDMI and SDI inputs and outputs, and cross converts between them.
- You can apply a 3D LUT to the monitor and still view your video in real-time.
- The configuration system, Pages, allows you to create and store up to 8 presets. Presets can include focus aids, exposure aids, camera metadata, 3D LUTs. Once created, you can navigate between the presets merely by swiping the built-in joystick. You can see up to three presets displayed on the screen at the same time as you swipe between the presets, which is different than having to engage a menu system and trying to remember what the name of the preset means. You can see the effect of your configuration on the video.
UPC: 857497005694 In the Box SmallHD 502 HDMI & SDI On-Camera Monitor with 3D LUT Support Limited 1-Year Warranty Introducing the SmallHD 501 On-Camera Monitor Steven Gladstone 06/12/2015 cqvfewereb Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 502 HDMI & SDI On-Camera Monitor with 3D LUT Support in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD MON-502 Specs | | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Viewing Angle | Horizontal: 179° | | Maximum Brightness | 400 cd/m2 | | Contrast Ratio | 1500:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 441 ppi | | Color Gamut | 85% NTSC
100% Rec. 709 | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform | | | | Video | 1 x BNC (SDI) Input
1 x HDMI Type A Input
1 x BNC (SDI) Output
1 x HDMI Type A Output | | Audio | None | | Built-In Speaker | None | | Card Slot | None | | | | Mounting | 3 x 1/4"-20 Female | | | | Material of Construction | Aluminum | | Weight | 9.0 oz / 255 g | | | | Package Weight | 0.9 lb | | Box Dimensions (LxWxH) | 6.9 x 4.6 x 2.0" |
