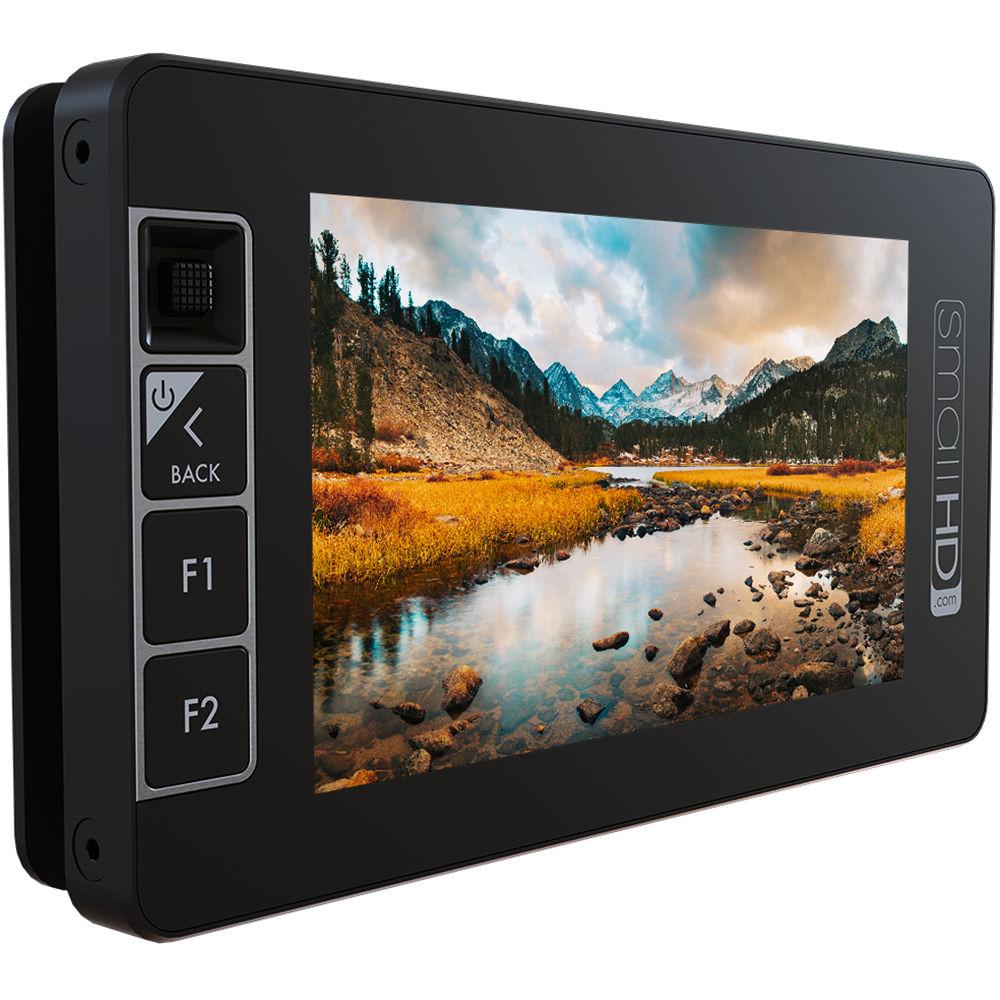

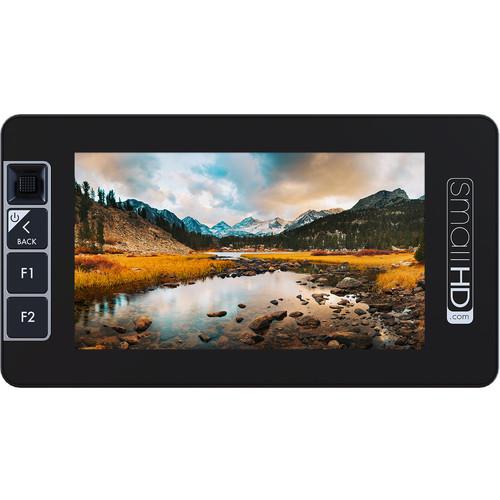

User Manual for SmallHD 503 UltraBright On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the SmallHD 503 UltraBright On-Camera Monitor
- Product category: On Camera Monitors SmallHD
- Brand: SmallHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallHD On Camera Monitors
 |
User manual for the SmallHD 503 UltraBright On-Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallHD product will considerably shorten its lifespan!
|

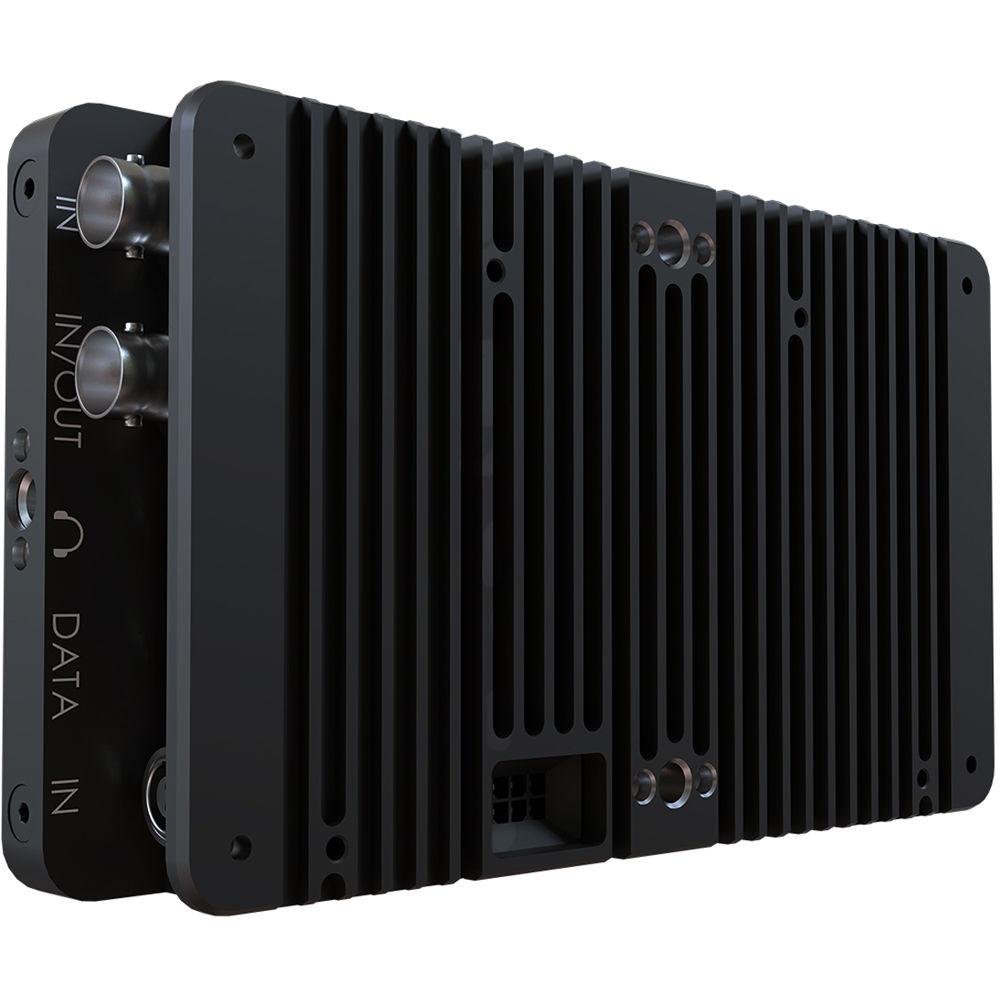

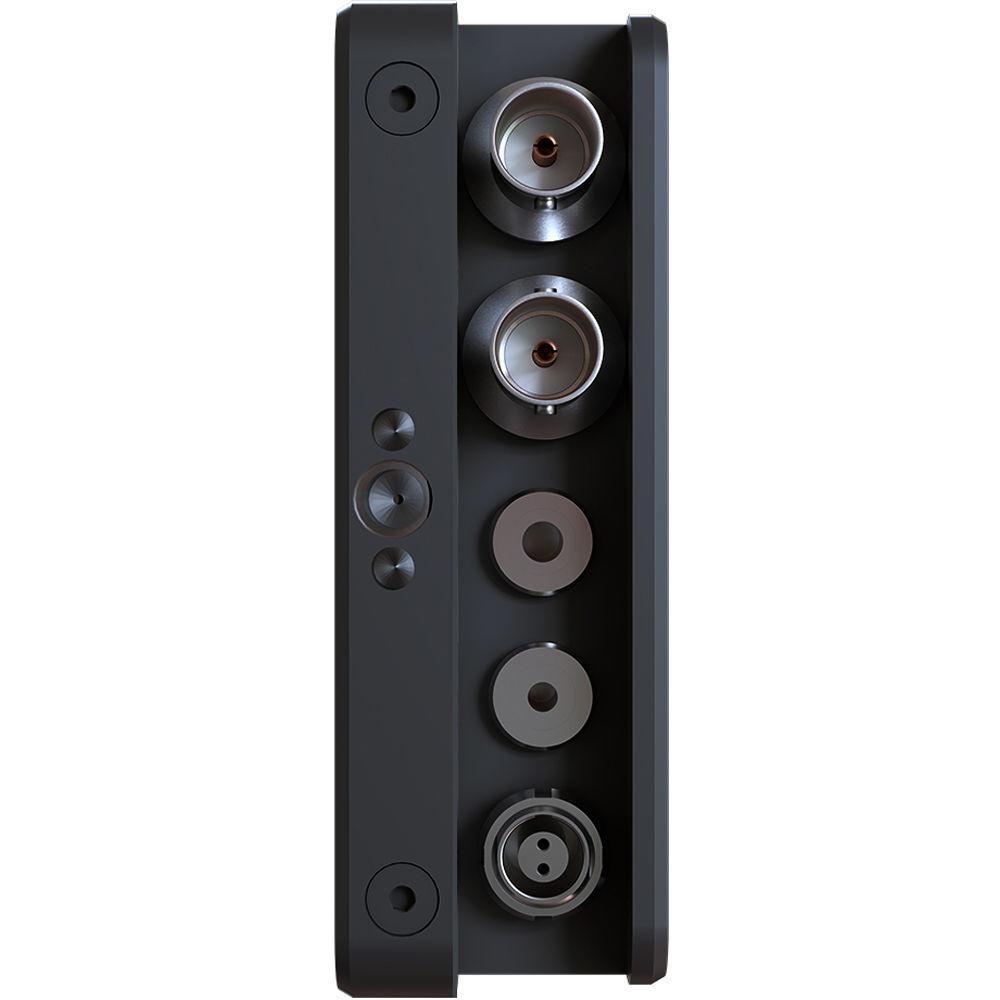

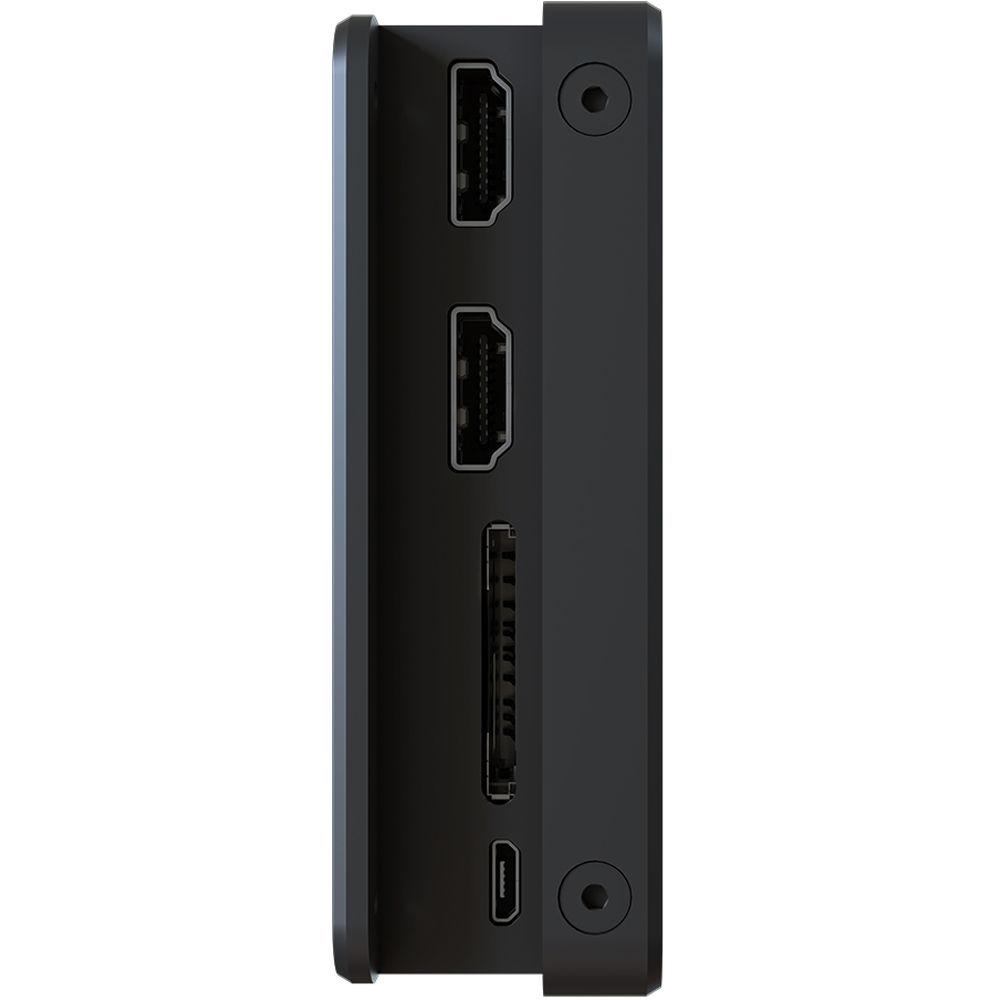

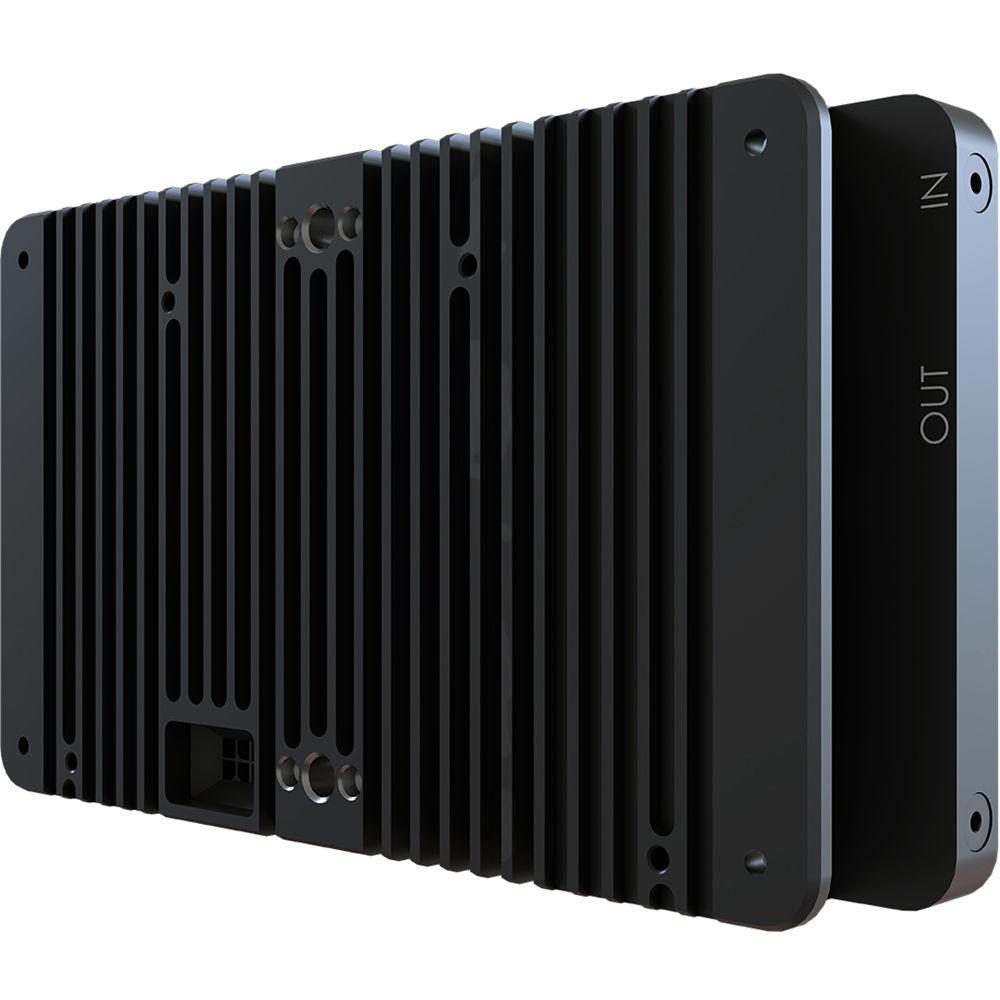

Product description If your video or cinema camera has a monitoring LCD that easily washes out in bright sunlight, the SmallHD 503 UltraBright On-Camera Monitor, with its 2200 cd/m² bright backlight, can be your solution to this environmental difficulty. The 5" 1920 x 1080 LCD provides a sharp image, ideal for focus pulling and image analysis on set and in the field. Another advantage of the high-brightness panel is the monitor's ability to preview HDR content. HDR preview extends the display's dynamic range to portray a greater range of brightness in the image.The 503's form factor is at home on mirrorless cameras and smaller cinema cameras, though it is equally effective on larger cameras as well. A unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. Further adding protection, the LCD panel itself is topped with a layer of optically bonded Gorilla Glass, notable for its transparency and toughness. The optical bonding process ensures that blacks are not washed out while simultaneously reducing the harshness of reflections.On the sides of the display are the SDI and HDMI I/O. Having dual SDI ports allows for A/B viewing of two different SDI signals, or the secondary port can be assigned as an output for sending an SDI signal downstream to another monitor, switcher, or wireless accessory. All the functionality of the monitor is available via the PageBuilder OS, which provides advanced functionality with a simple and efficient graphical user interface. - PageBuilder OS
- PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 503 UltraBright at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.
- ColorFlow 3D LUT Processing
- To keep your images consistent from production through to post-production, ColorFlow allows you to import 3D LUTs and display the treated image side-by-side with the untreated image to correctly gauge exposure while visualizing what is being recorded by the camera. Side-by-side preview can also be used with the HDR preview function. Separate LUT-treated images can be sent downstream over SDI and HDMI so you can have the 503 UltraBright display a log image or LUT-treated image, while the director or client monitors connected to the outputs can receive images treated with a different LUT. An image capture function saves a still frame from the incoming video stream onto an SD card, and records the applied 3D LUT for post-production reference.
- On-Set Problem Solving
- PageBuilder OS has a dedicated "Output Preview" page which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the HDMI or SDI input on the 503 UltraBright, you are not limited by that protocol; the 503 UltraBright cross-converts to ensure compatibility with downstream hardware.
- HD Scopes
- Fill the screen with up to three simultaneous scopes including waveform, vectorscope, and histogram, while still being able to observe the camera feed.
- Exposure Tools
- Exposure Assist supports both ARRI- and Spectrum-based false color, with built-in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.
- Customizable Focus Assist and Peaking Tools
- As recording resolutions increase, so does the importance of focusing precision. With Focus Assist, you can highlight the areas that are in focus with a bright color. These highlights are easily visible on the fly for quick focus confirmation. Focus Peaking increases the sharpness of the image for a subtler focus confirmation without the need for bright outlines. The color and intensity of these tools are adjustable to fit your preference.
- Versatile Frame Guides
- Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays, with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9, and Custom (user-selectable).
- Power Options
- Separately available DV, V-mount, or Gold mount battery plate can be attached to the rear of the display. A mounted battery can power the monitor, as well as attached accessories, through the 12V LEMO pass-through connection.
UPC: 850324007229 In the Box SmallHD 503 UltraBright On-Camera Monitor 2-Pin LEMO to D-Tap Power Cable (36") cvrbxuyzed Limited 1-Year Warranty Quick start Guide PDF 28.9mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 503 UltraBright On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD 503U Specs | | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 178° (89/89)
Vertical: 178° (89/89) | | Maximum Brightness | 2200 cd/m2 | | Contrast Ratio | 1000:1 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 443 ppi | | Color Gamut | 70% NTSC | | Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform | | | | Video | 1 x BNC (3G-SDI) Output
1 x HDMI Type A Output
1 x BNC (3G-SDI) Input
1 x HDMI Type A Input | | Embedded Audio | HDMI
SDI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Card Slot | 1 x SD | | | | Video Format | SDI (10-Bit 4:2:2)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
NTSC
PAL
HDMI (8/10/12-Bit)
1080p: 23.98/24/25/30/50/59.94/60
1080PsF: 23.98/24/25/30
1080i: 50/59.94/60
720p: 23.98/24/25/30/50/59.94/60/100/119.88/120
576p: 50/100
480p: 59.94/60/119.88/120
NTSC: 59.94/60/119.88/120/239.76/240
PAL: 50/100/200 | | | | Mounting | 3 x 1/4"-20 Female | | | | Certifications | CE, FCC, IC, RoHS, as per Manufacturer | | Operating Temperature | 0 to 100°F / -17.8 to 37.8°C | | Storage Temperature | -4 to 120°F / -20 to 48.9°C | | | | Dimensions (W x H x D) | 3.4 x 6.1 x 1.1" / 8.5 x 15.7 x 2.9 cm | | Weight | 15.2 oz / 430.9 g | | | | Package Weight | 1.655 lb | | Box Dimensions (LxWxH) | 9.65 x 7.05 x 2.0" |
