User Manual for SmallHD 701 Lite 7" HDMI On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the SmallHD 701 Lite 7" HDMI On-Camera
- Product category: On Camera Monitors SmallHD
- Brand: SmallHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallHD On Camera Monitors
 |
User manual for the SmallHD 701 Lite 7" HDMI On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallHD product will considerably shorten its lifespan!
|

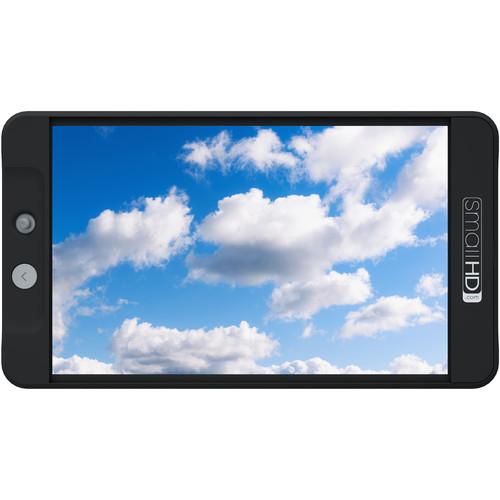

Product description Unveiled: SmallHD 701/702 LITE On-Camera Monitors Plus AC7-OLED Canon Kit Read More SmallHD's 701 Lite 7" HDMI On-Camera Monitor is a rugged and versatile video monitoring solution. Designed for use in the field and in the studio, the 701 Lite is constructed from aluminum and is covered in a rubberized textured finish for a sure grip. With its 450 cd/m², 1200x800 LED-backlit LCD screen, the 701 Lite is designed for monitoring HD video sources. Connectivity-wise, the 701 Lite has HDMI I/O for connecting to video sources and other downstream equipment. For power, either Canon LP-E6 or Sony L-series batteries can be used, without switching plates. Features - Page Builder Interface
- The highlight feature of the 701 Lite monitor is its Page Builder interface. Using customizable "pages" you can easily transition between different monitoring options with different settings. You can easily see the effect of your configurations on the image, swiping between pages using the joystick.
- Focus Assist
- Offering peaking and joystick zoom, the 701 Lite monitor makes pulling focus easier. Using the joystick, you can control the degree of zoom as well as move the zoomed-in area with a single finger.
- Exposure Assist
- To aid in achieving proper exposure, the 701 Lite has built-in tools including waveform, false-color, and zebras. All of these functions can be assigned to various pages for ease-of-access.
- LUT Preview
- If you are shooting using one of the various log profiles, you can monitor a LUT-adjusted image by importing the desired LUT to the monitor using an SD card. Like other settings, LUTs can also be assigned to their own pages. LUTs can also be sent downstream via the monitor's outputs for viewing by directors, clients, etc.
UPC: 850246006218 In the Box SmallHD 701 Lite 7" HDMI On-Camera Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 701 Lite 7" HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD MON-701L Specs | | | Panel Type | TFT LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 179° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 645:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 216 ppi | | Color Gamut | 70% Rec. 709 | | Image Controls | False Color, Focus Peaking, Image Flip, Screen Markers | | | | Video | 1 x HDMI Type A Output
1 x HDMI Type A Input | | Embedded Audio | HDMI
SDI | | Audio | None | | Built-In Speaker | None | | Card Slot | 1 x SD | | | | Video Format | HDMI (8/10/12-Bit 4:4:4 RGB and YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60/100/119.88/120
720p: 23.98/24/25/29.97/30/50/59.94/60
576p: 50/100
480p: 59.94/60/119.88/120 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 2 x LP-E6 or L-Series | | Power Consumption | 4.9 W (Typical)
7 W (Maximum) | | | | Certifications | CE, FCC, IC, as per Manufacturer | | Operating Temperature | 30 to 95°F / 1.1 to 35°C | | Storage Temperature | 0 to 120°F / -17.8 to 48.9°C | | | | Dimensions (W x H x D) | 4.2 x 7.6 x 1" / 107 x 192 x 24 mm | | Weight | 11 oz / 312 g | | | | Package Weight | 1.6 lb | | Box Dimensions (LxWxH) | 9.35 x 6.85 x 1.8" |
