Product description

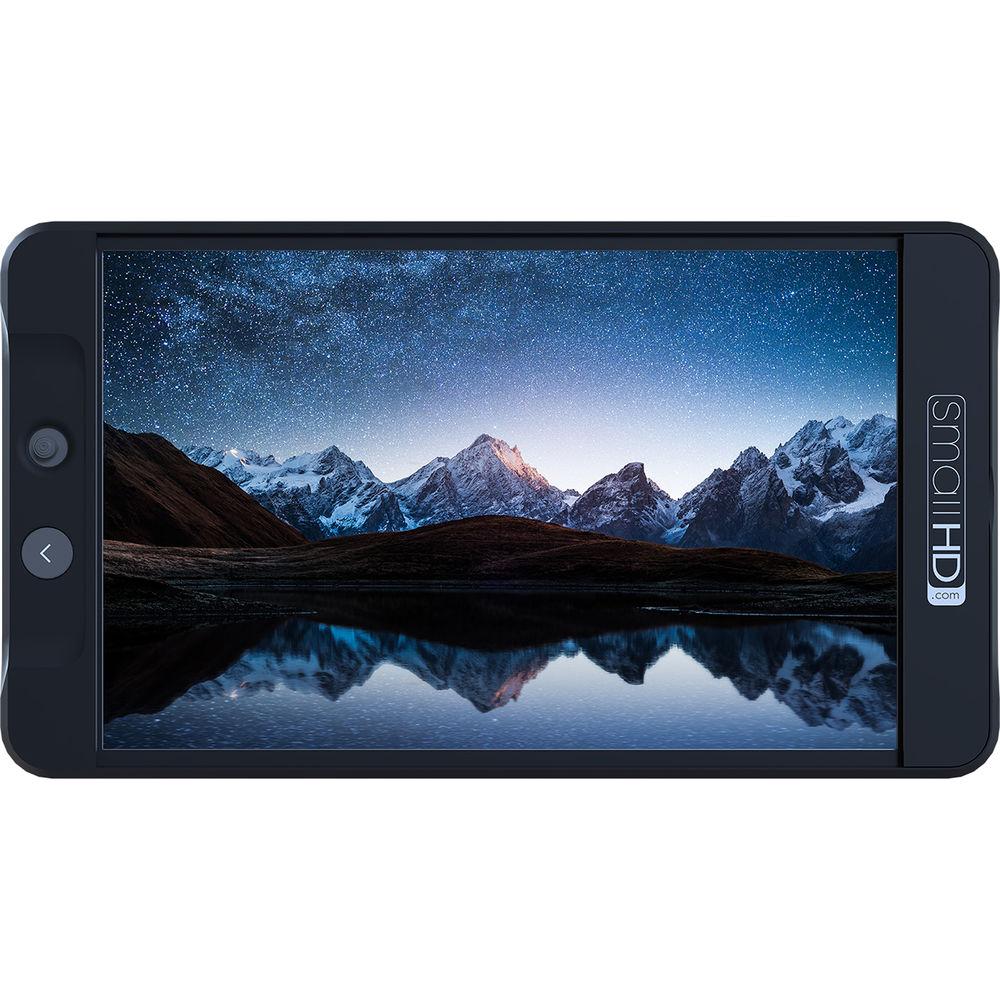

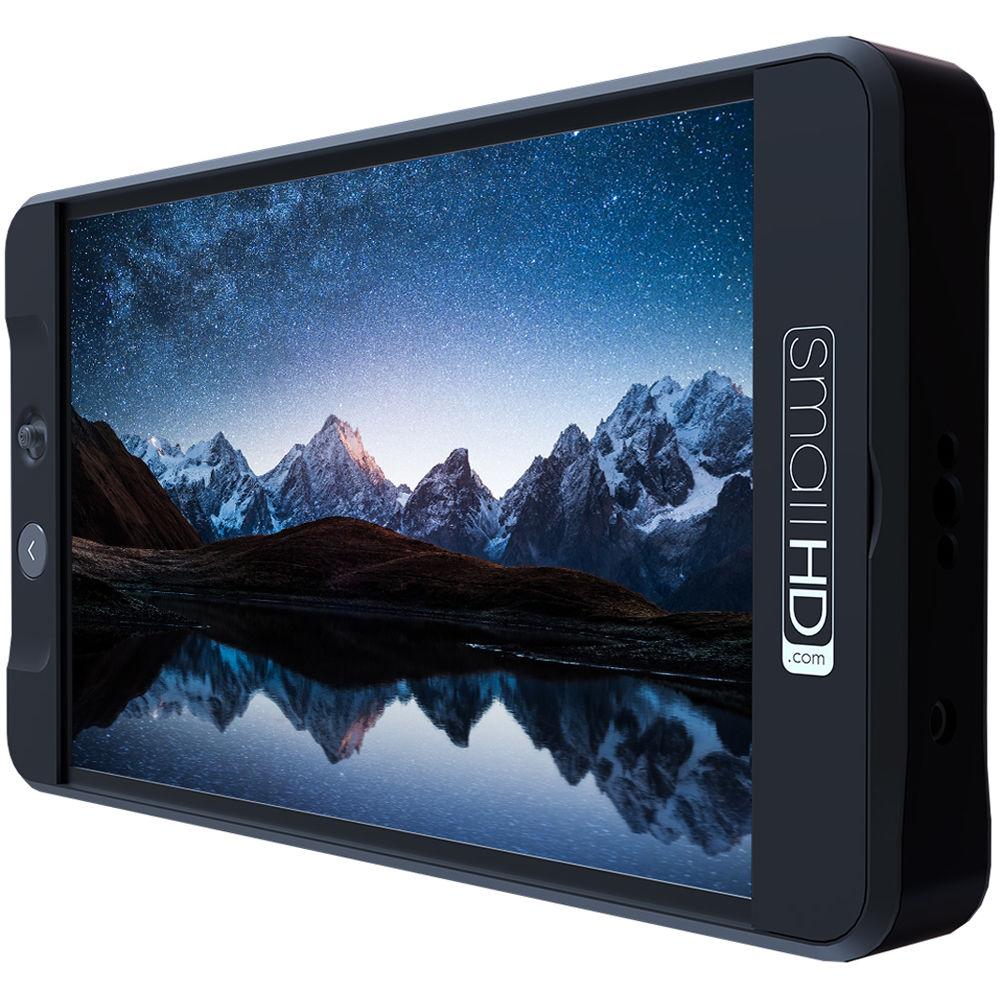

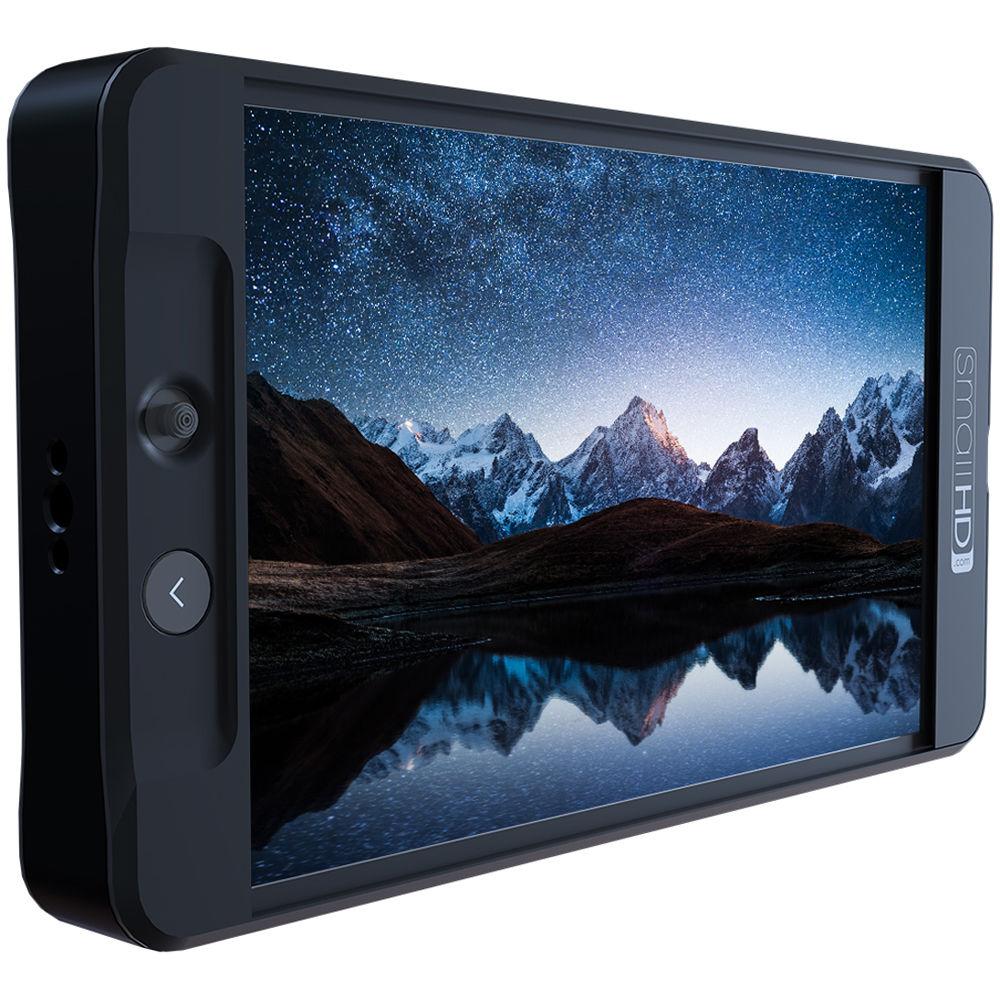

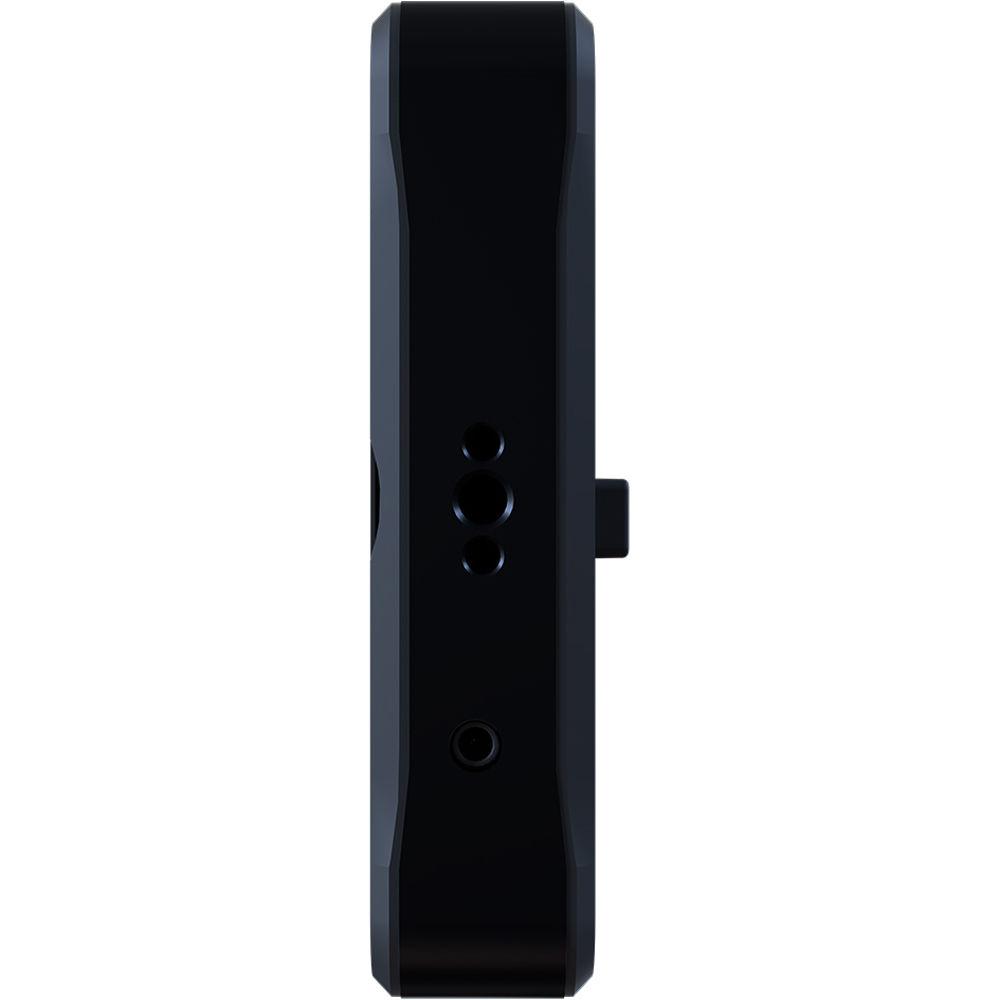

• Limited Edition Black 702 Bright On-Camera Monitor The SmallHD Limited Edition Black 702 Bright On-Camera Monitor is not only very bright (at a 1000 cd/m² brightness) but also very sharp with a Full HD 1080p display and 1000:1 contrast ratio. Moreover, the LCD features optically bonded glass with anti-reflective coating. All this adds up to highly more accurate daylight visibility in high image quality, on a fairly large 7" screen.

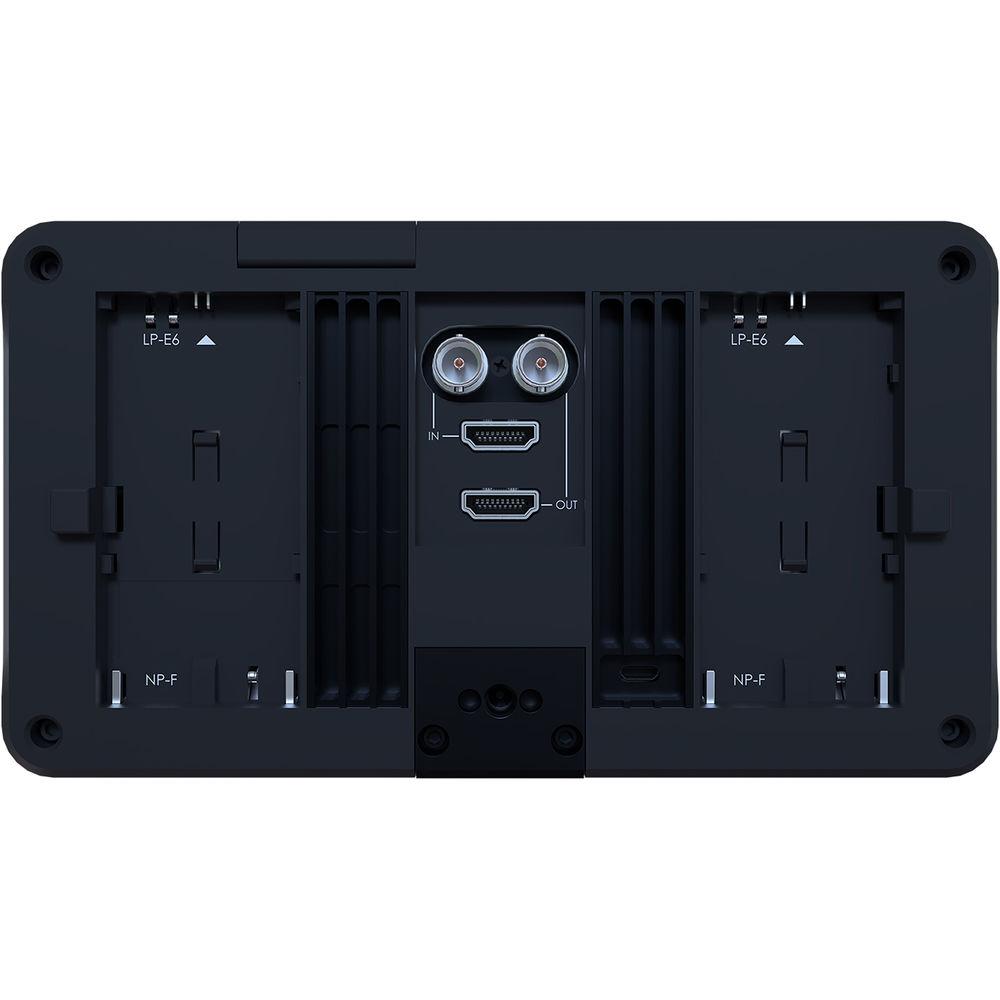

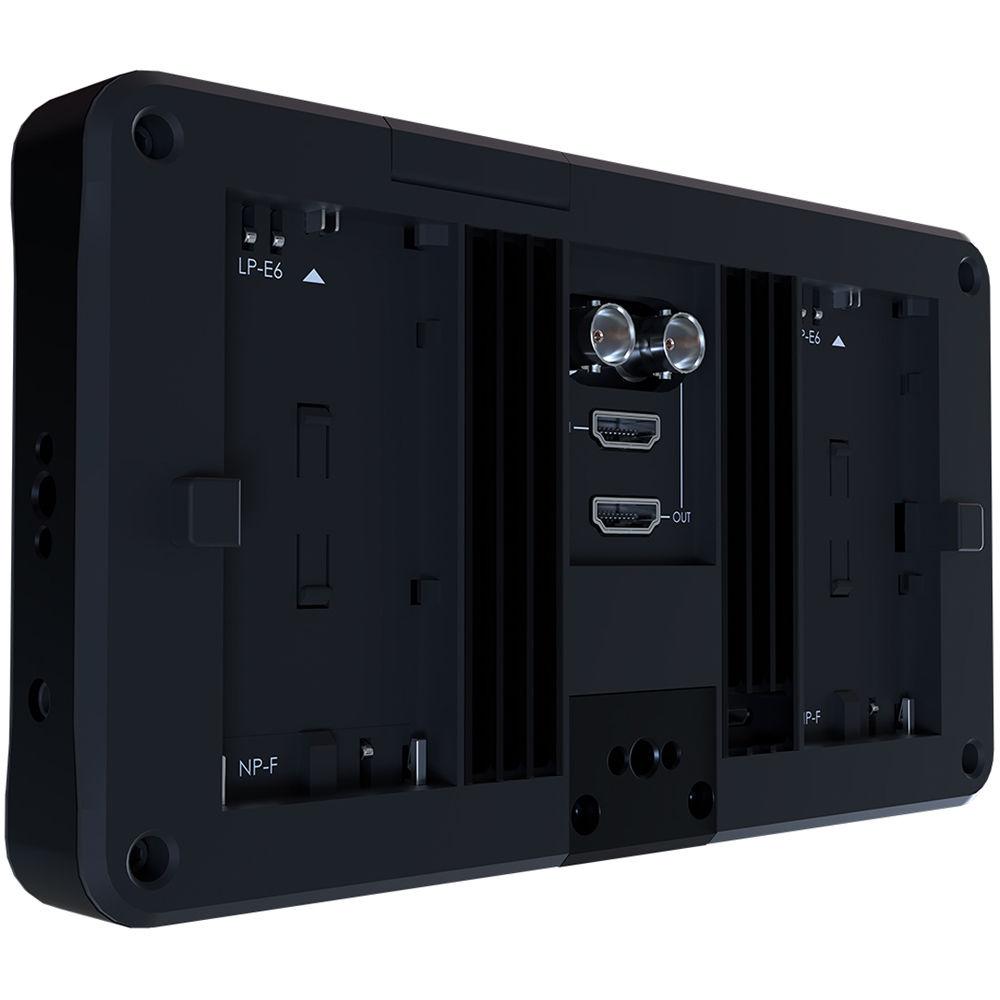

  In addition, the 702 Bright is housed in an aircraft grade aluminum unibody, and has a slim and trendy design. The design also offers an industry-first battery support solution -- dual integrated battery plates each support both Sony L-Series and Canon LP-E6 batteries. If you have an L-Series battery, just snap it at the top of the plate. If you have an LP-E6 battery, snap it in instead at the bottom of the same plate. And feel free to mix and match.

  The 702 Bright offers HD-SDI and HDMI inputs and outputs, as well as a headphone jack for monitoring audio. It also has a store of monitoring features, including Waveform, custom LUT support, anamorphic de-squeeze, and audio meters. On top of everything, it runs on SmallHD's Page Builder OS, which is designed more like a production assistant than operating system. This system allows you to create up to 12 pages of favorite features and to toggle between these pages with the flick of the joystick button.

  More resolution, less reflection, rugged and modern build, powerful processing, and intuitive interaction -- these are the words that describe SmallHD's well-thought-out 702 Bright On-Camera Monitor.
  Key Features
  • • 1000 cd/m² brightness
    • Full HD 1080p display
    • 1000:1 contrast ratio
    • Optically bonded glass with anti-reflective coating
    • 179° viewing angle
    • Custom LUT support
    • Aircraft grade aluminum unibody
    • L-series and LP-E6 battery support via same integrated battery plates
    • HD-SDI and HDMI inputs and outputs
    • Headphone jack
    • Intuitive OS with up to 12 switchable pages of favorite features
  Monitoring Features
  • • Pixel Zoom: 2x and 4x with smooth pan via joystick button
    • Frame Guides
    • DSLR Scale (Canon, Nikon)
    • Custom Scale
    • Anamorphic De-Squeeze
    • Image Rotate (Manual/Automatic)
    • Image Flip (Manual/Automatic): Manual and Auto Flip
    • Cross Conversion
    • Focus Assist (Colors)
    • Peaking
    • False Color
    • Zebra (Multiple)
    • Waveform
    • RGB Parade
    • Histogram
    • Horizon Indicator
    • Image Capture (Individual and Time-Lapse)
    • Custom LUTS
    • LUT Downstream
    • LUT Import
    • Image Overlay
    • Audio Meters
  UPC: 850324007380

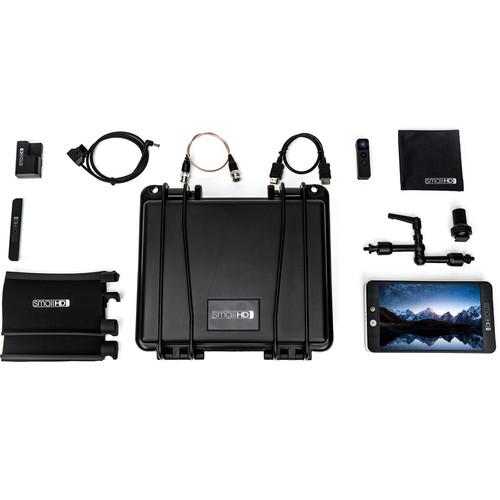

• Medium Hard Case for 500/700-Series Monitors Protect your 500 or 700-series monitor with this Medium Hard Case from SmallHD. The inside of the case is comprised of pick-and-pluck foam which can be easily customized to the shape of your monitor and essential accessories you may want to carry alongside your monitor. A rubber gasket seal keeps the case air and water-tight, while an automatic pressure purge system ensures the case is easy to open in pressure-differential situations. Molded-in padlock holes near the latches let you guard your monitor from theft. Once everything is packed up and the case is secured with the locking latches, the molded carry handle provides a comfortable way to transport your equipment.
  Construction
  • High-impact molded case with neoprene O-ring seal
  • Fully customizable, pick-apart foam insert
  • Airtight and watertight
  • Automatic pressure purge system
  • Molded-in padlock holes
  UPC: 857497005779
• Microfiber Cleaning Cloth Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use. UPC: 850246006126
• StrongArm 7 Articulating Arm The SmallHD StrongArm 7 is a 7" articulating monitor mount for SmallHD field monitors. It can attach directly to a camera's accessory shoe or 1/4"-20 thread mount. A single knob tightens all 3 articulating joints on the arm at once for maximum mobility and efficiency. UPC: 857497005045
• BT-1 Wireless Remote Control for 500/700 Series Monitors The BT-1 Wireless Remote Control from SmallHD can be used with 500 and 700 series on-board monitors. This finger-sized unit is particularly useful when employing the monitor as an EVF (electronic viewfinder) for your camcorder or DSLR. All of the monitor's settings can be accessed through the RC. The BT-1 Wireless Remote Control can be mounted to a handgrip, gimbal, tripod, etc. Up to three units may be paired to the same monitor, eliminating the need to detach the RC and carry it from one rig to another. For ease of use, the BT-1 Wireless Remote Control replicates the same joystick and push-button controls found on the monitor itself. The selection orientation (up/down, L/R, etc.) of the joystick and buttons can be changed to suit how the RC is mounted - upright, upside down, or sideways. An auto-save function kicks in after two minutes of inactivity, saving battery power. The BT-1 Wireless Remote Control's firmware is updated wirelessly from the monitor. Note: The monitor must be updated with the latest firmware in order to work with the BT-1 RC.
  Compatible Monitors
  • SmallHD 500 series
    SmallHD 700 series
  UPC: 857497005991
• Thin-Gauge Mini-HDMI Male Cable (12") Connect your portable devices to HDMI displays with the 12" Thin-Gauge Mini-HDMI Male Cable from smallHD. This RoHS-compliant cable allows you to transfer movies, photos, and videos from devices like smartphones, digital cameras, and video cameras with mini-HDMI connectors to view on your standard HDMI (type-A) television, projector, or computer monitor. UPC: 857497005915
• Thin BNC Cable (12") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 850246006447

• Faux LP-E6 Battery and 36" D-Tap to Barrel Connector Cable
• ProK Screen Protector for 702 OLED Monitor
• Sun Hood for 702 OLED Monitor

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Shoe Mount Adapter

• Limited 1-Year Warranty

• Battery

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• Limited Edition Black 702 Bright On-Camera Monitor

  Panel Type	TFT LCD
  Display Size	7.0" / 17.8 cm
  Screen Resolution	1920 x 1080
  Aspect Ratio	16:10
  Viewing Angle	Horizontal: 179°
  Maximum Brightness	1000 cd/m2
  Contrast Ratio	1000:1
  Bit Depth / Color Support	8-Bit (16.7 Million Colors)
  Pixels Per Inch (ppi)	323 ppi
  Color Gamut	85% NTSC 100% Rec. 709
  Image Controls	Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Underscan, Waveform

  Video	1 x BNC (HD-SDI) Output 1 x HDMI Type A Output 1 x BNC (HD-SDI) Input 1 x HDMI Type A Input
  Embedded Audio	HDMI SDI
  Audio	1 x 3.5 mm Headphone Output
  Built-In Speaker	None
  Power	1 x Micro-USB Output
  Card Slot	1 x SD

  Video Format	SDI (4:4:4 RGB and YCC) 1080p: 23.98/24/25/30/60 1080i: 50/59.94/60 1080PsF: 23.98/24/25/29.97 720p: 60 HDMI (8/10/12-Bit) 1080p: 23.98/24/25/30/50/59.94/60 1080i: 50/59.94/60 1080PsF: 23.98/24/25/30 720p: 50/59.94/60

  DC Input Power	6 to 8.4 VDC
  Battery Type	2 x LP-E6 or L-Series
  Power Consumption	11 W

  Mounting	4 x 1/4"-20 Female

  Certifications	CE, FCC, IC, as per Manufacturer

  Material of Construction	Aluminum
  Dimensions (W x H x D)	4.2 x 7.6 x 1" / 10.8 x 19.3 x 2.5 cm
  Weight	17 oz / 482 g

  Box Dimensions (LxWxH)	9.55 x 7.1 x 2.0"

• Faux LP-E6 Battery and 36" D-Tap to Barrel Connector Cable

  Box Dimensions (LxWxH)	6.75 x 5.5 x 1.25"

• Medium Hard Case for 500/700-Series Monitors

  Compatibility	SmallHD 500 and 700-series monitors
  Interior Dimensions	9.6 x 7.4 x 4.0" (24.4 x 18.8 x 10.2 cm)
  Dimensions	10.8 x 9.9 x 4.9" (27.4 x 25.2 x 12.5 cm)
  Weight	39.2 oz (1.1 kg)

  Box Dimensions (LxWxH)	10.4 x 9.6 x 4.8"

• Microfiber Cleaning Cloth

  Box Dimensions (LxWxH)	4.0 x 3.1 x 0.2"

• ProK Screen Protector for 702 OLED Monitor

  Box Dimensions (LxWxH)	5.45 x 5.4 x 0.3"

• Sun Hood for 702 OLED Monitor

  Box Dimensions (LxWxH)	8.2 x 4.55 x 1.6"

• StrongArm 7 Articulating Arm

  Length	7" (17.8 cm)
  Weight	10 oz (283 g)

  Box Dimensions (LxWxH)	4.6 x 3.7 x 1.75"

• BT-1 Wireless Remote Control for 500/700 Series Monitors

  Weight (without Battery)

  1.6 oz (45.4 g)

  Box Dimensions (LxWxH)	3.7 x 2.55 x 1.25"

• Thin-Gauge Mini-HDMI Male Cable (12")

  Connector 1	HDMI Type-C Male
  Connector 2	HDMI Type-A Male
  Cable Length	12" / 30.5 cm
  Certifications	RoHS, as per Manufacturer
  Outer Diameter	0.2" / 4.5 mm
  Weight	0.6 oz / 17.0 g

  Box Dimensions (LxWxH)	6.45 x 6.3 x 0.6"

• Thin BNC Cable (12")

  Cable Length	12' / 3.7 m
  Weight	0.1 lb / 0.0 kg

  Box Dimensions (LxWxH)	7.05 x 4.95 x 0.55"
