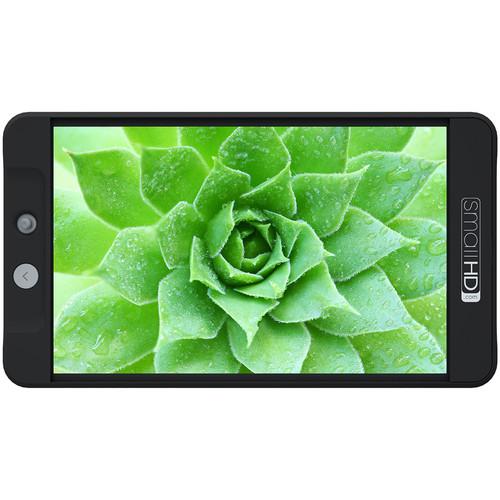

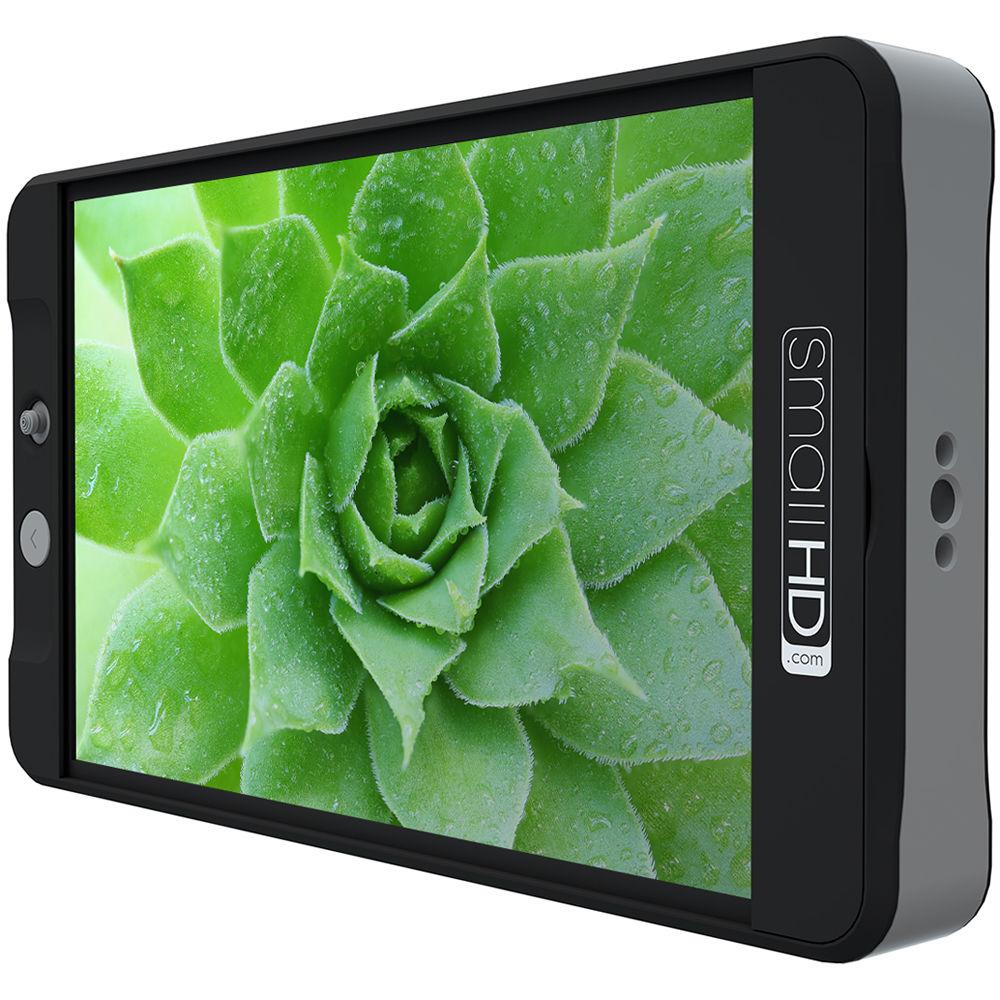

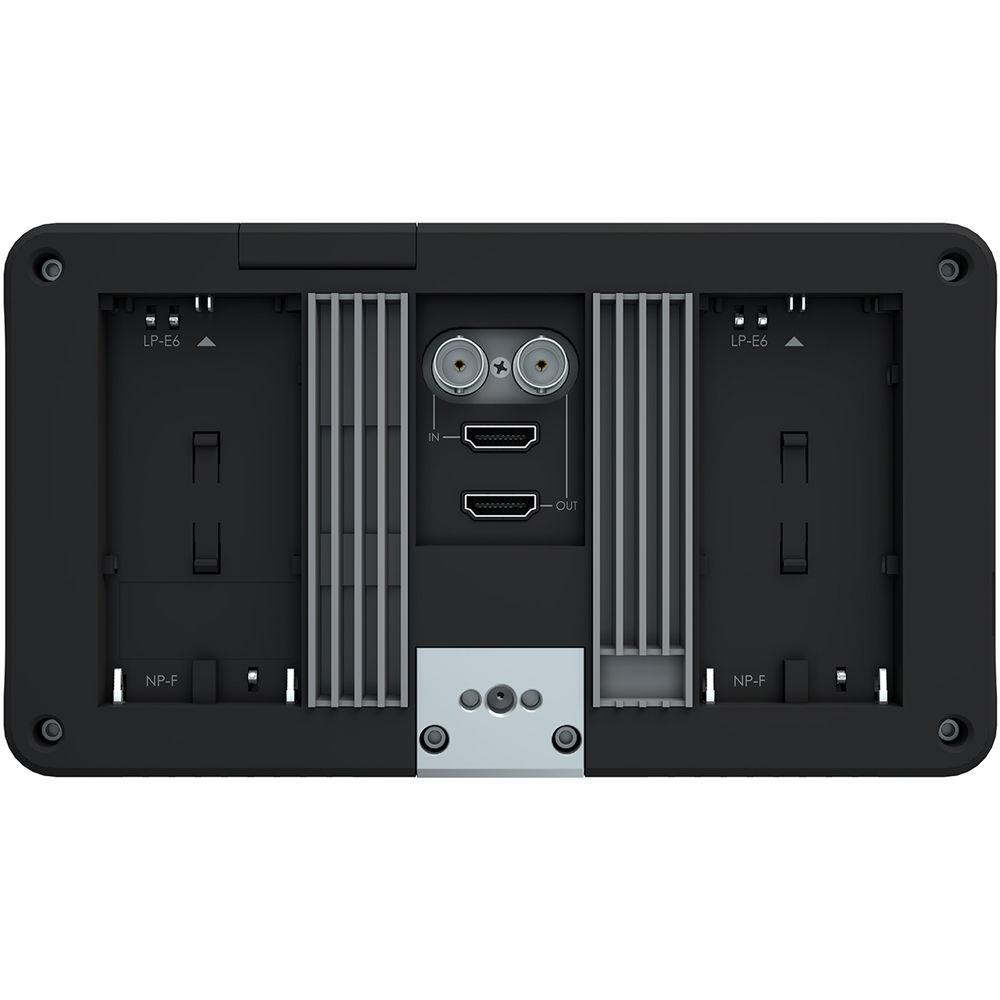

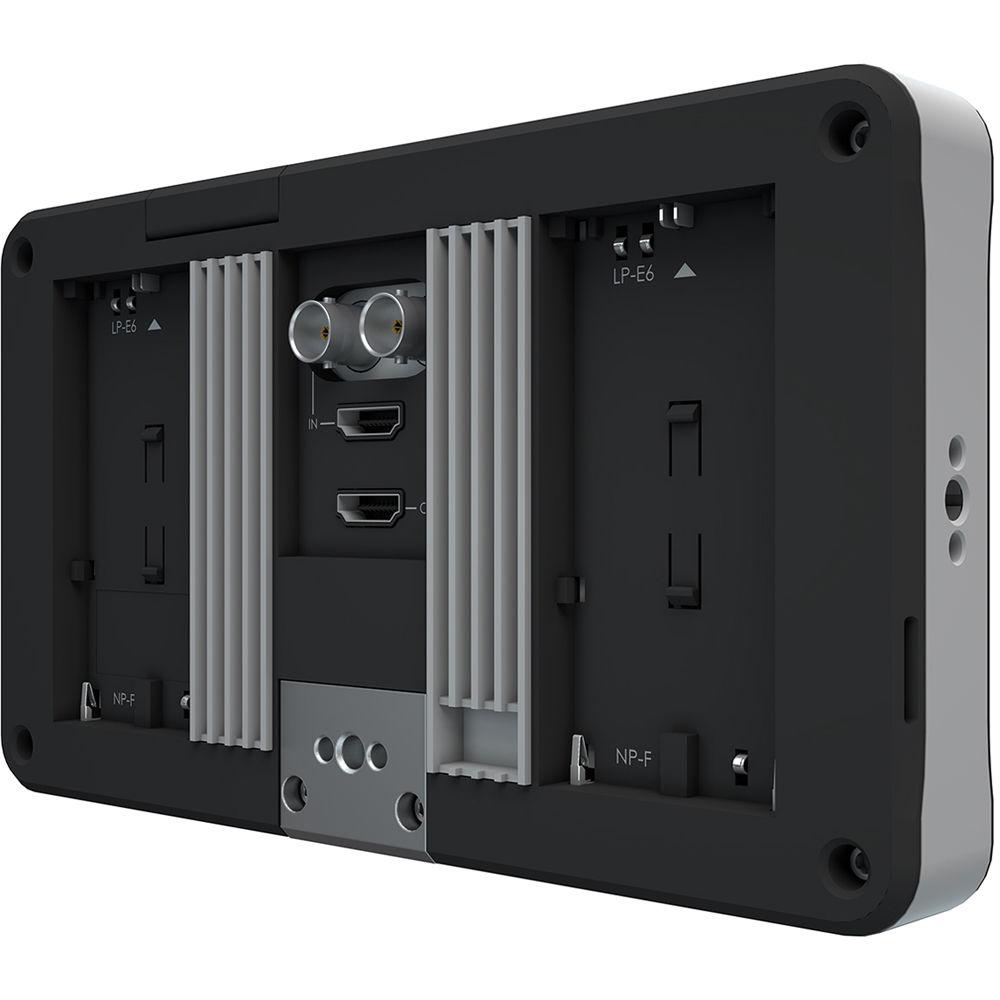

Product description Unveiled: SmallHD 701/702 LITE On-Camera Monitors Plus AC7-OLED Canon Kit Read More SmallHD's 702 Lite 7" SDI and HDMI On-Camera Monitor is a rugged and versatile video monitoring solution. Designed for use in the field and in the studio, the 702 Lite is constructed from aluminum and is covered in a rubberized textured finish for a sure grip. With its 450 cd/m², 1200x800 LED-backlit LCD screen, the 702 Lite is designed for monitoring HD video sources. Connectivity-wise, the 702 Lite has SDI and HDMI I/O for connecting to video sources and other downstream equipment. HDMI to SDI and vice-versa cross conversion can be performed on-board for compatibility across consumer and professional platforms. For power, either Canon LP-E6 or Sony L-series batteries can be used, without switching plates. Features - Page Builder Interface
- The highlight feature of the 702 Lite monitor is its Page Builder interface. Using customizable "pages" you can easily transition between different monitoring options with different settings. You can easily see the effect of your configurations on the image, swiping between pages using the joystick.
- Focus Assist
- Offering peaking and joystick zoom, the 702 Lite monitor makes pulling focus easier. Using the joystick, you can control the degree of zoom as well as move the zoomed-in area with a single finger.
- Exposure Assist
- To aid in achieving proper exposure, the 702 Lite has built-in tools including waveform, false-color, and zebras. All of these functions can be assigned to various pages for ease-of-access.
- LUT Preview
- If you are shooting using one of the various log profiles, you can monitor a LUT-adjusted image by importing the desired LUT to the monitor using an SD card. Like other settings, LUTs can also be assigned to their own pages. LUTs can also be sent downstream via the monitor's outputs for viewing by directors, clients, etc.
UPC: 850246006225 In the Box SmallHD 702 Lite 7" SDI and HDMI On-Camera Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 702 Lite 7" SDI and HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD 702 Lite Specs | | | Panel Type | TFT LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 179° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 645:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 216 ppi | | Color Gamut | 70% Rec. 709 | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform | | | | Video | 1 x BNC (SDI) Output
1 x BNC (SDI) Input
1 x HDMI Type A Input | | Embedded Audio | HDMI
SDI | | Audio | None | | Built-In Speaker | None | | Card Slot | 1 x SD | | | | Video Format | SDI (4:2:2 YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60/100/119.88/120
720p: 23.98/24/25/29.97/30/50/59.94/60
HDMI (8/10/12-Bit 4:4:4 RGB and YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60/100/119.88/120
720p: 23.98/24/25/29.97/30/50/59.94/60
576p: 50/100
480p: 59.94/60/119.88/120 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 2 x LP-E6 or L-Series | | Power Consumption | 4.9 W (Typical)
7 W (Maximum) | | | | Certifications | CE, FCC, IC, as per Manufacturer | | Operating Temperature | 30 to 95°F / 1.1 to 35°C | | Storage Temperature | 0 to 120°F / -17.8 to 48.9°C | | | | Dimensions (W x H x D) | 4.2 x 7.6 x 1" / 107 x 192 x 24 mm | | Weight | 11 oz / 312 g | | | | Package Weight | 1.75 lb | | Box Dimensions (LxWxH) | 9.0 x 6.2 x 1.9" |
