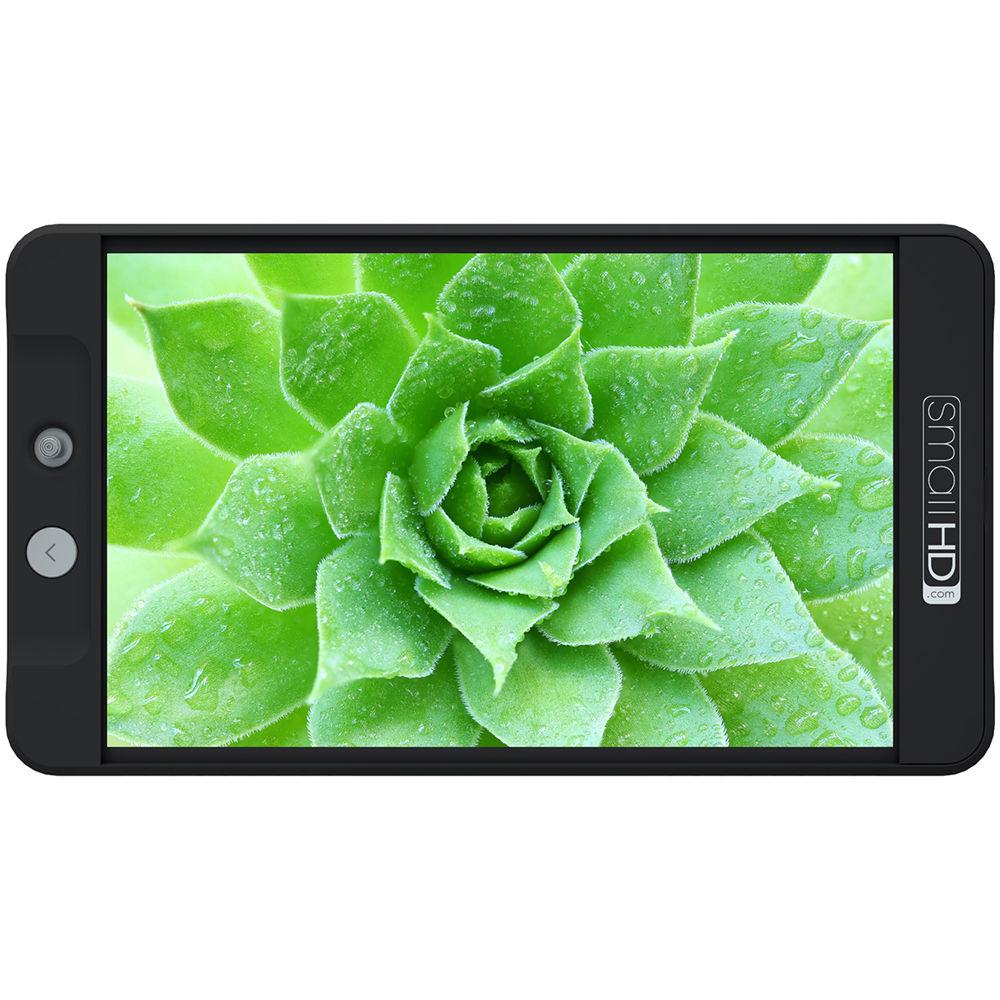

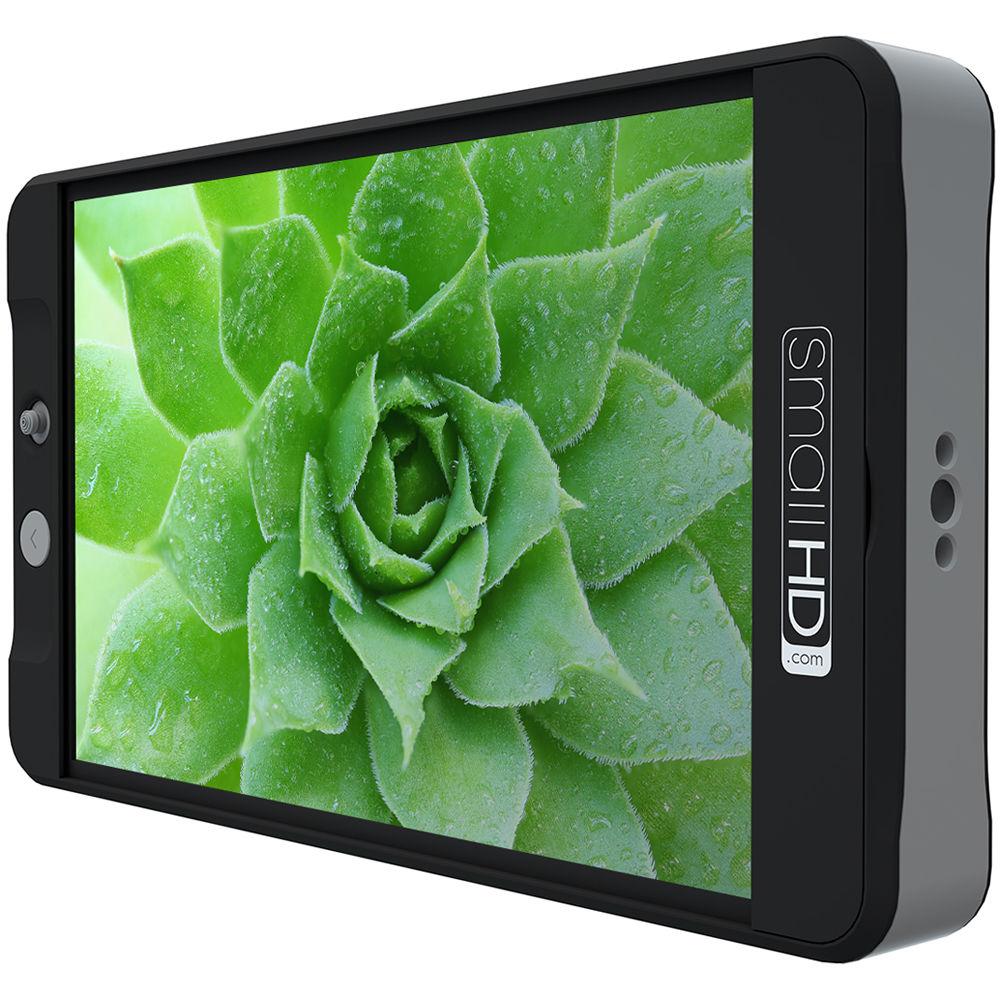

Product description The SmallHD 702 Lite Value Bundle offers a monitor kit that includes the 702 Lite monitor, sun hood, acrylic screen protector, and a hard case. The 702 Lite monitor features 1200 x 800 native resolution, and is well suited for use on interiors or exteriors with the included hood which protects it from harsh direct light. The included acrylic screen protector provides durable protection and can be drawn on without fear of damaging the 702 Lite's screen. The included hard case provides protection for the bundle during transport and storage. - 702 Lite 7" SDI and HDMI On-Camera Monitor SmallHD's 702 Lite 7" SDI and HDMI On-Camera Monitor is a rugged and versatile video monitoring solution. Designed for use in the field and in the studio, the 702 Lite is constructed from aluminum and is covered in a rubberized textured finish for a sure grip. With its 450 cd/m², 1200x800 LED-backlit LCD screen, the 702 Lite is designed for monitoring HD video sources. Connectivity-wise, the 702 Lite has SDI and HDMI I/O for connecting to video sources and other downstream equipment. HDMI to SDI and vice-versa cross conversion can be performed on-board for compatibility across consumer and professional platforms. For power, either Canon LP-E6 or Sony L-series batteries can be used, without switching plates.
Features - Page Builder Interface
- The highlight feature of the 702 Lite monitor is its Page Builder interface. Using customizable "pages" you can easily transition between different monitoring options with different settings. You can easily see the effect of your configurations on the image, swiping between pages using the joystick.
- Focus Assist
- Offering peaking and joystick zoom, the 702 Lite monitor makes pulling focus easier. Using the joystick, you can control the degree of zoom as well as move the zoomed-in area with a single finger.
- Exposure Assist
- To aid in achieving proper exposure, the 702 Lite has built-in tools including waveform, false-color, and zebras. All of these functions can be assigned to various pages for ease-of-access.
- LUT Preview
- If you are shooting using one of the various log profiles, you can monitor a LUT-adjusted image by importing the desired LUT to the monitor using an SD card. Like other settings, LUTs can also be assigned to their own pages. LUTs can also be sent downstream via the monitor's outputs for viewing by directors, clients, etc.
UPC: 850246006225 - Acrylic Screen Protector for 700 Series Monitors Made from hard acrylic, this SmallHD Screen Protector installs without tools on 700 series monitors, protecting the front of the screen. Since it installs using a plastic clip, replacements can easily be done in the field with a minimum of downtime. Note: This protector is not compatible with UltraBright monitors
- Compatible Models
- 701 Lite
702 Lite
702 Bright UPC: 857497005984 - Medium Hard Case for 500/700-Series Monitors Protect your 500 or 700-series monitor with this Medium Hard Case from SmallHD. The inside of the case is comprised of pick-and-pluck foam which can be easily customized to the shape of your monitor and essential accessories you may want to carry alongside your monitor. A rubber gasket seal keeps the case air and water-tight, while an automatic pressure purge system ensures the case is easy to open in pressure-differential situations. Molded-in padlock holes near the latches let you guard your monitor from theft. Once everything is packed up and the case is secured with the locking latches, the molded carry handle provides a comfortable way to transport your equipment.
- Construction
- High-impact molded case with neoprene O-ring seal
- Fully customizable, pick-apart foam insert
- Automatic pressure purge system
UPC: 857497005779 - Sun Hood for 700 Series Monitors Improve your outdoor viewing experience on your 700-series monitor with this Sun Hood from SmallHD. Made from flexible neoprene and rigid plastic, the hood fits over the outside chassis of the monitor and stretches to cover the screen and block out stray reflections. With the reduced glare, the image can be viewed more accurately in harsh lighting situations. Once you're done using the hood, it can be folded flat for easy storage. UPC: 857497005885

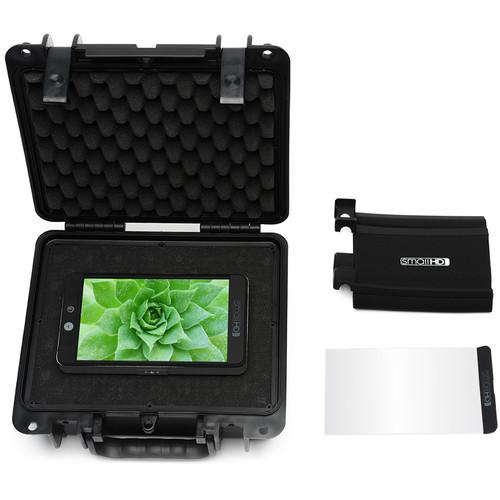

In the Box Bundle Items 702 Lite 7" SDI and HDMI On-Camera Monitor ddsvwbuw Acrylic Screen Protector for 700 Series Monitors Medium Hard Case for 500/700-Series Monitors Sun Hood for 700 Series Monitors Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 702 Lite Value Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 702 Lite 7" SDI and HDMI On-Camera Monitor
| | | Panel Type | TFT LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1280 x 800 | | Aspect Ratio | 16:10 | | Viewing Angle | Horizontal: 179° | | Maximum Brightness | 450 cd/m2 | | Contrast Ratio | 645:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 216 ppi | | Color Gamut | 70% Rec. 709 | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform | | | | Video | 1 x BNC (SDI) Output
1 x BNC (SDI) Input
1 x HDMI Type A Input | | Embedded Audio | HDMI
SDI | | Audio | None | | Built-In Speaker | None | | Card Slot | 1 x SD | | | | Video Format | SDI (4:2:2 YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60/100/119.88/120
720p: 23.98/24/25/29.97/30/50/59.94/60
HDMI (8/10/12-Bit 4:4:4 RGB and YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60/100/119.88/120
720p: 23.98/24/25/29.97/30/50/59.94/60
576p: 50/100
480p: 59.94/60/119.88/120 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 2 x LP-E6 or L-Series | | Power Consumption | 4.9 W (Typical)
7 W (Maximum) | | | | Certifications | CE, FCC, IC, as per Manufacturer | | Operating Temperature | 30 to 95°F / 1.1 to 35°C | | Storage Temperature | 0 to 120°F / -17.8 to 48.9°C | | | | Dimensions (W x H x D) | 4.2 x 7.6 x 1" / 107 x 192 x 24 mm | | Weight | 11 oz / 312 g | | | | Box Dimensions (LxWxH) | 9.0 x 6.2 x 1.9" | - Acrylic Screen Protector for 700 Series Monitors
| | | Box Dimensions (LxWxH) | 9.45 x 5.25 x 0.45" | - Medium Hard Case for 500/700-Series Monitors
| Compatibility | SmallHD 500 and 700-series monitors | | Interior Dimensions | 9.6 x 7.4 x 4.0" (24.4 x 18.8 x 10.2 cm) | | Dimensions | 10.8 x 9.9 x 4.9" (27.4 x 25.2 x 12.5 cm) | | Weight | 39.2 oz (1.1 kg) | | | | Box Dimensions (LxWxH) | 10.4 x 9.6 x 4.8" | - Sun Hood for 700 Series Monitors
| Dimensions (D x H x W) | Installed: 5 x 3 x 7" / 127 x 76 x 178 mm
Folded: 5 x 1 x 1" / 127 x 25 x 25 mm | | | | Box Dimensions (LxWxH) | 7.05 x 5.45 x 1.1" |
