Product description - SmallHD 702 OLED Monitor Overview

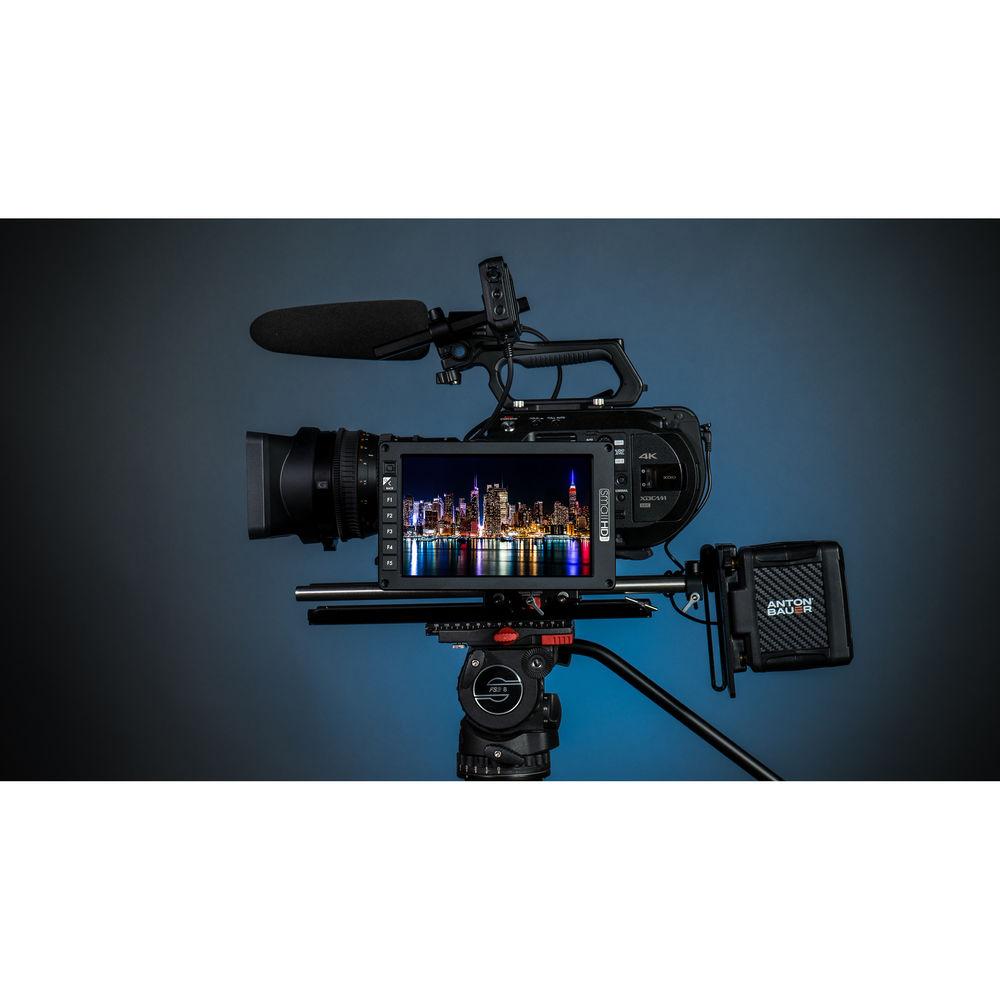

Adding OLED display technology to their 700-series monitors, SmallHD's 702 OLED 7" On-Camera Monitor adds a wide-gamut display solution suitable for DSLRs, mirrorless cameras, ENG camcorders, and cinema cameras. Using an OLED panel offers distinct advantages over standard backlit LCD panels. Since each pixel generates its own light, pure black can be achieved by turning individual pixels off. Pure blacks result in images with higher overall contrast and perceived detail.

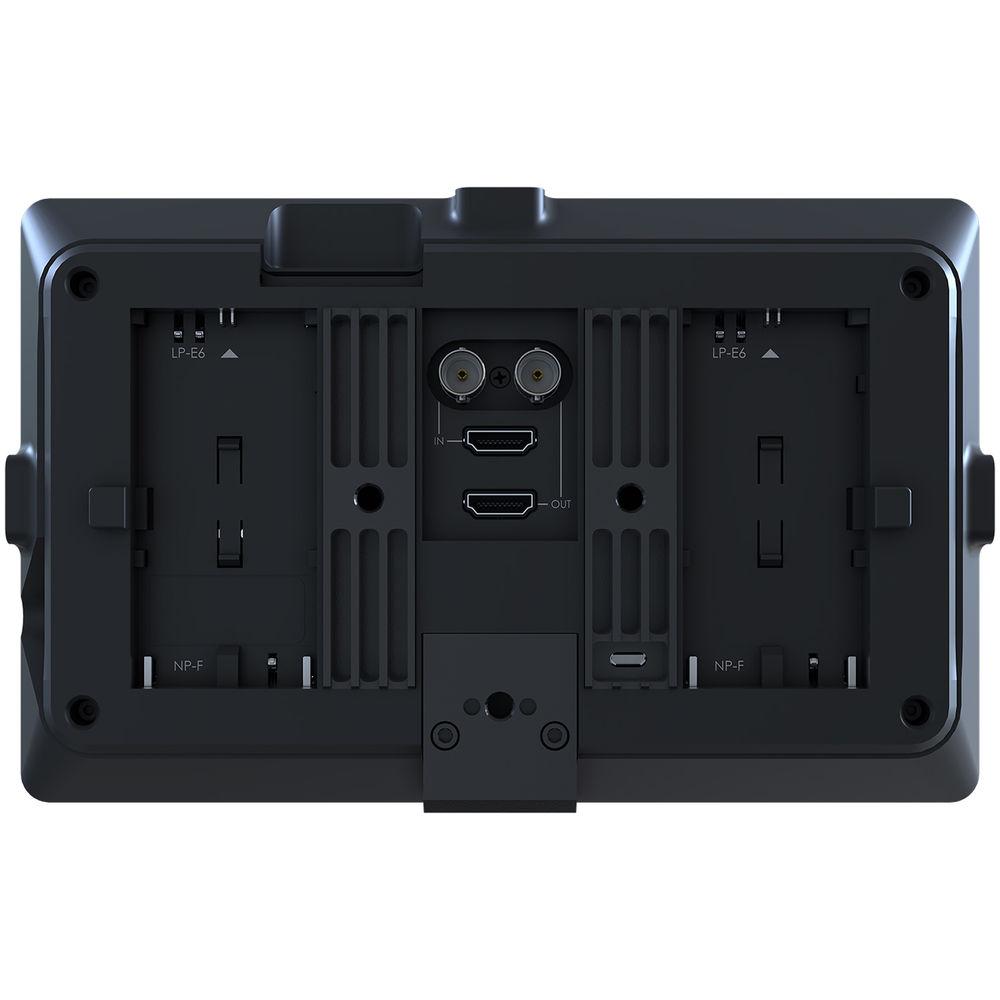

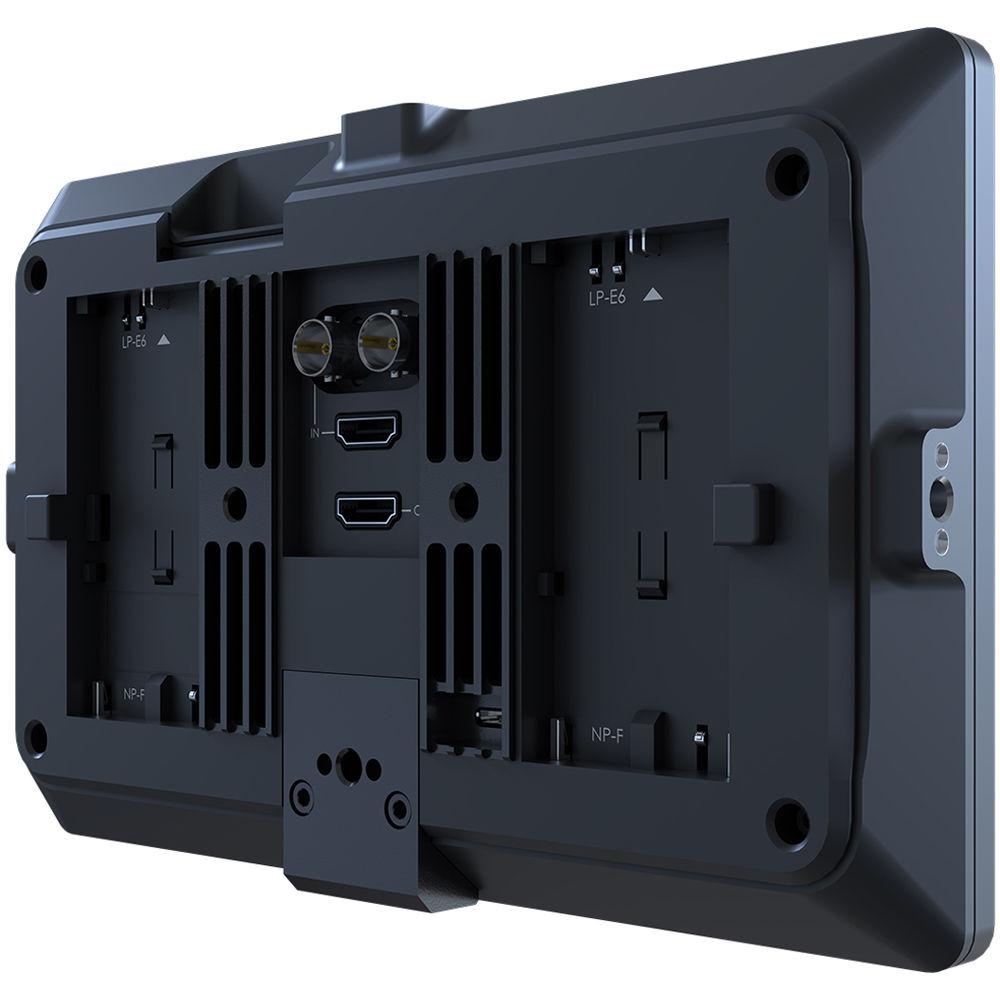

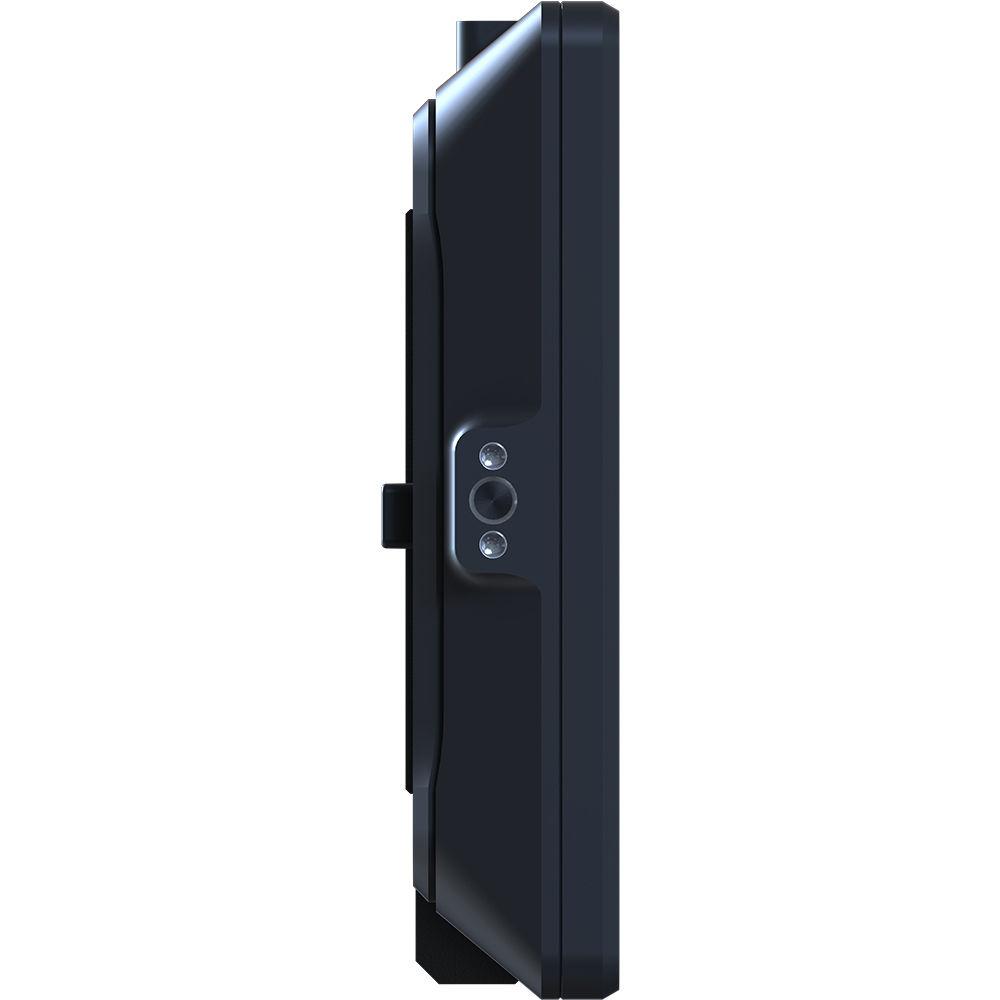

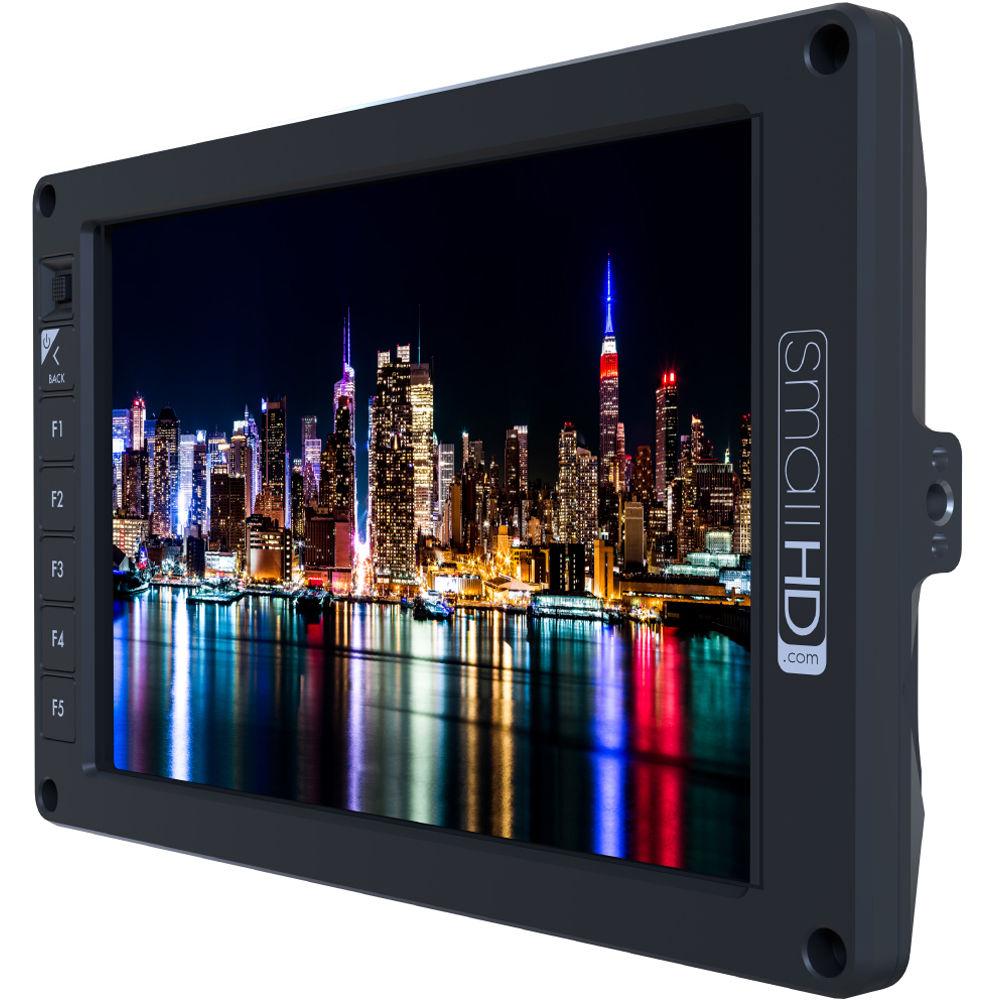

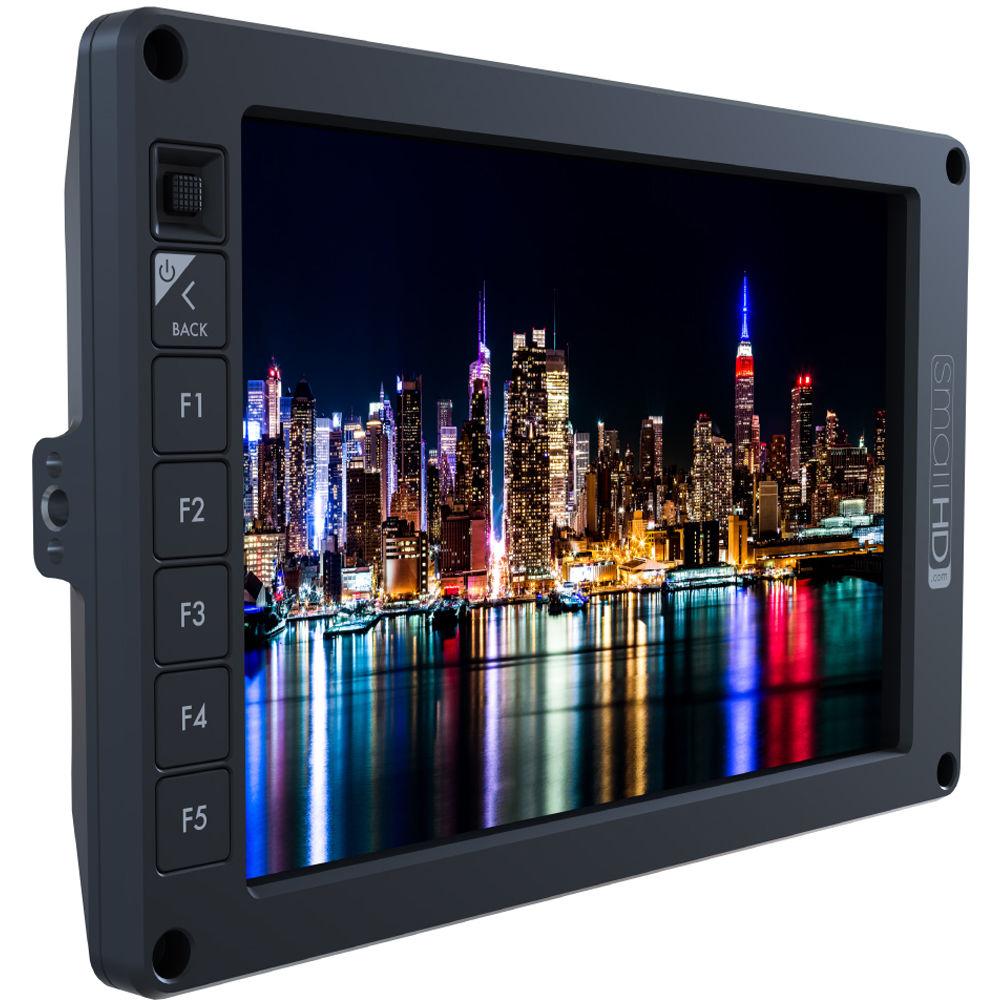

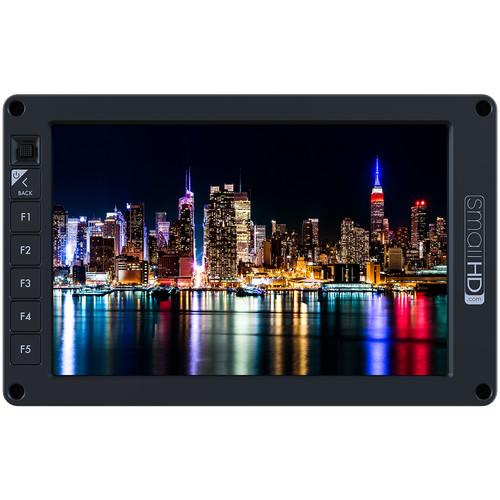

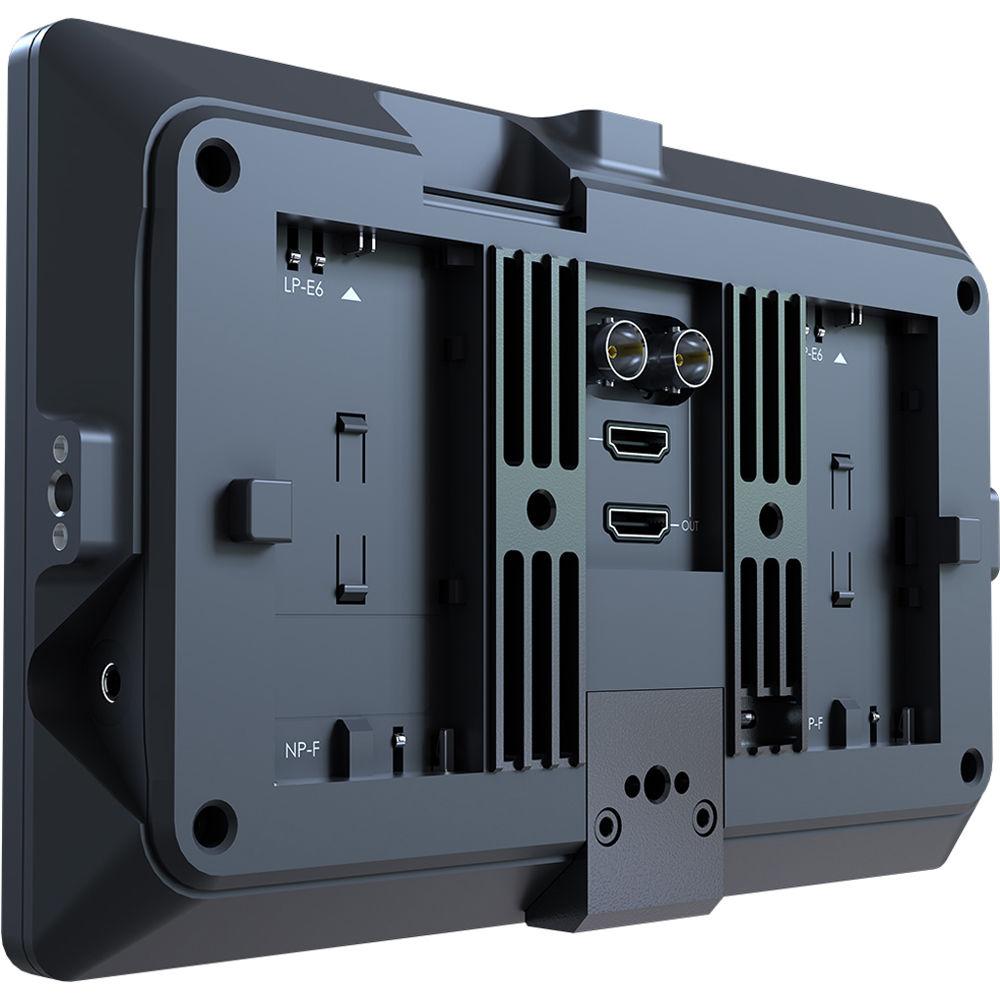

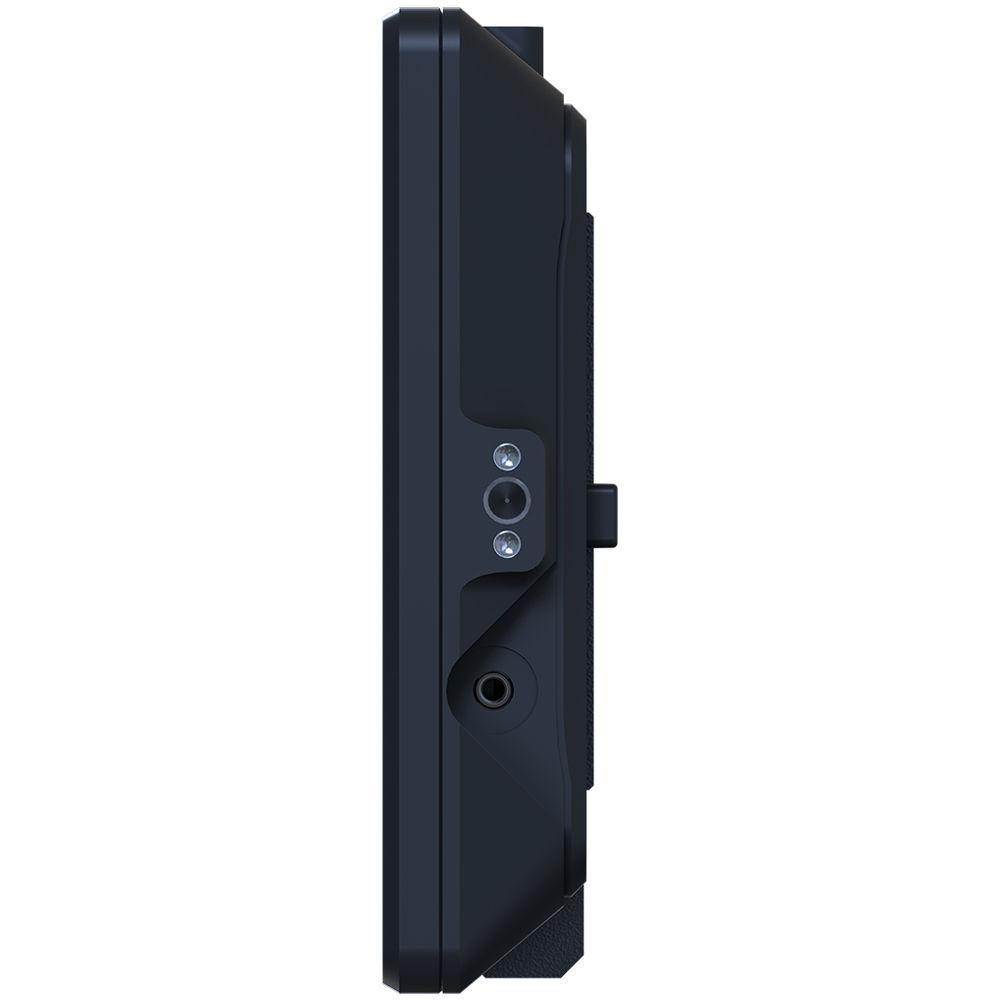

Taking a design cue from their production monitor series, the 702 OLED is encased in a milled aluminum housing and has five custom function buttons, in addition to the joystick and back button for navigating the Page Builder OS. The OLED display itself is protected by a scratch-resistant Gorilla Glass pane, for clear visibility of the dark black levels presented by the OLED display. Around the monitor there are five 1/4"-20 threaded mounting points for attaching the 702 OLED to articulating arms, stands, or securing accessories. At the rear of the chassis are the HDMI and SDI I/O and battery bays. Each bay can take either an LP-E6 or NP-F (L-Series) battery depending on the insertion direction. - Page Builder OS
- Page Builder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 702 OLED at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.
- Factory Calibration
- Able to display a wide color gamut, the 702 OLED comes pre-calibrated from the factory to portray accurate colors. If the display requires further calibration, 3D LUTs from industry standard calibration software, such as Light Illusion's LightSpace CMS, or SpectraCal's CalMAN, can be loaded via SD card.
- On-Set Problem Solving
- Page-Builder OS has a dedicated "Output Preview" page, which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the HDMI or SDI input on the 702 OLED, you are not limited by that protocol; the 702 OLED cross converts to ensure compatibility with downstream hardware.
- HD Scopes
- Fill the screen with up to three simultaneous scopes, including waveform, vectorscope, and histogram while still being able to observe the camera feed.
- Exposure Tools
- Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.
- Versatile Frame Guides
- Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays, with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9, and Custom (user selectable).
UPC: 850324007724 In the Box SmallHD 702 OLED 7" On-Camera Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 702 OLED 7" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD 702 Specs | | | Display | 7.7" / 19.6 cm OLED LCD | | Resolution | 1280 x 800 | | Pixel Density | 191 ppi | | Aspect Ratio | 16:10 native | | Brightness | 300 cd/m² | | Contrast Ratio | 10,000:1 | | Color Gamut | Wide color gamut | | Bit Depth | 8-bit | | Viewing Angle | 160°+ | | Backlight | N/A | | Temperature Adaptive Color | Yes | | | | Inputs | 1 x BNC, HD/3G-SDI
1 x HDMI Type A | | Outputs | 1 x BNC, HD/3G-SDI
1 x HDMI Type A
1 x 3.5 mm stereo headphone | | Input Signal | SDI: RGB/YCC 4:2:2 and 4:4:4
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080i 50/59.94/60 (high-speed: 1080i 100/119.88/120)
720p 23.98/24/25/29.97/30/50/59.94/60
HDMI: 8/10/12-bit color
1080p 23.98/24/25/30/50/59.94/60
1080PsF 23.98/24/25/30
1080i 50/59.94/60
720p 50/59.94/60
Audio:
HDMI and SDI embedded | | Output Signal | SDI: RGB/YCC 4:2:2 and 4:4:4
1080p 23.98/24/25/29.97/30/50/59.94/60
1080PsF 23.98/24/25/29.97/30
1080i 50/59.94/60 (high-speed: 1080i 100/119.88/120)
720p 23.98/24/25/29.97/30/50/59.94/60
HDMI: 8/10/12-bit color
1080p 23.98/24/25/30/50/59.94/60
1080PsF 23.98/24/25/30
1080i 50/59.94/60
720p 50/59.94/60 | | | | Battery Support | 2 x LP-E6/NP-F hybrid battery bays (each bay accepts either type) with battery communication and overload protection | | Storage | SD card slot | | Compliance | CE | | Screen Protection | Gorilla Glass | | Mount Types | 5 x 1/4"-20 threaded holes (bottom, back, and sides) | | Environmental | Operating Temperature: 30 to 90°F / -1 to 32°C
Storage Temperature: 0 to 120°F / -17 to 48°C | | Dimensions | 8.25 x 5.2 x 1.1" / 21 x 13.2 x 2.8 cm | | Weight | 1.6 lb / 0.7 kg | | | | Package Weight | 2.45 lb | | Box Dimensions (LxWxH) | 9.4 x 7.3 x 2.0" |
