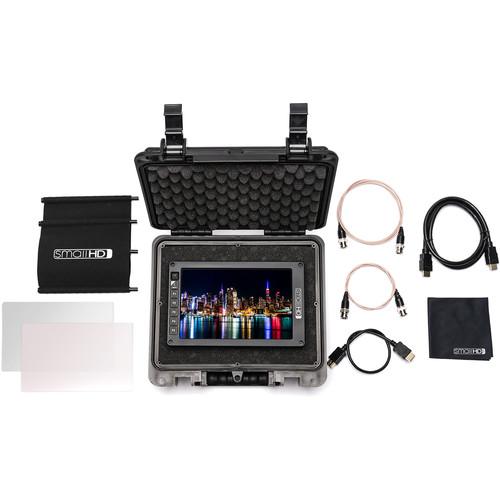

User Manual for SmallHD 702 OLED 7" On-Camera Monitor Kit

• Product category: On Camera Monitors SmallHD
• Brand: SmallHD
• Description and content of package
• Technical information and basic settings
• Frequently asked questions – FAQ
• Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
• Authorized service for SmallHD On Camera Monitors

Product description

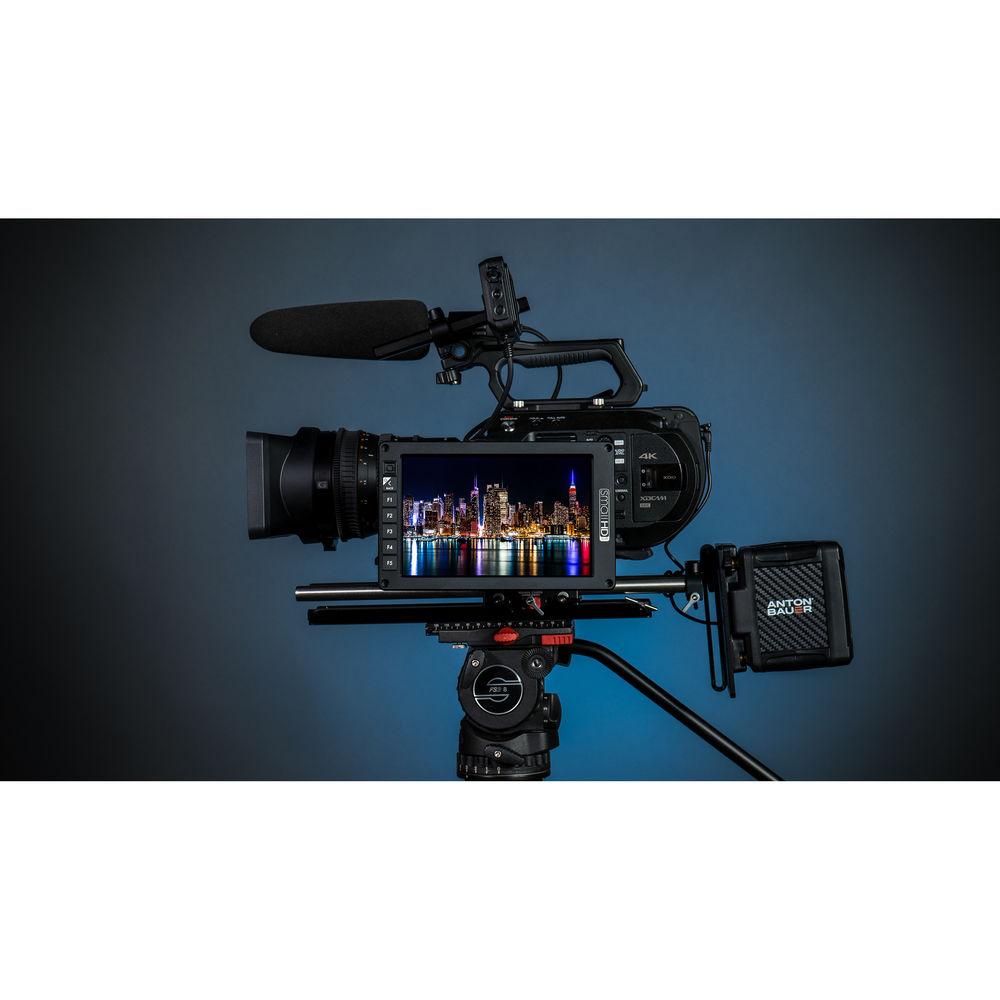

• 702 OLED 7" On-Camera Monitor Adding OLED display technology to their 700-series monitors, SmallHD's 702 OLED 7" On-Camera Monitor adds a wide-gamut display solution suitable for DSLRs, mirrorless cameras, ENG camcorders, and cinema cameras. Using an OLED panel offers distinct advantages over standard backlit LCD panels. Since each pixel generates its own light, pure black can be achieved by turning individual pixels off. Pure blacks result in images with higher overall contrast and perceived detail.

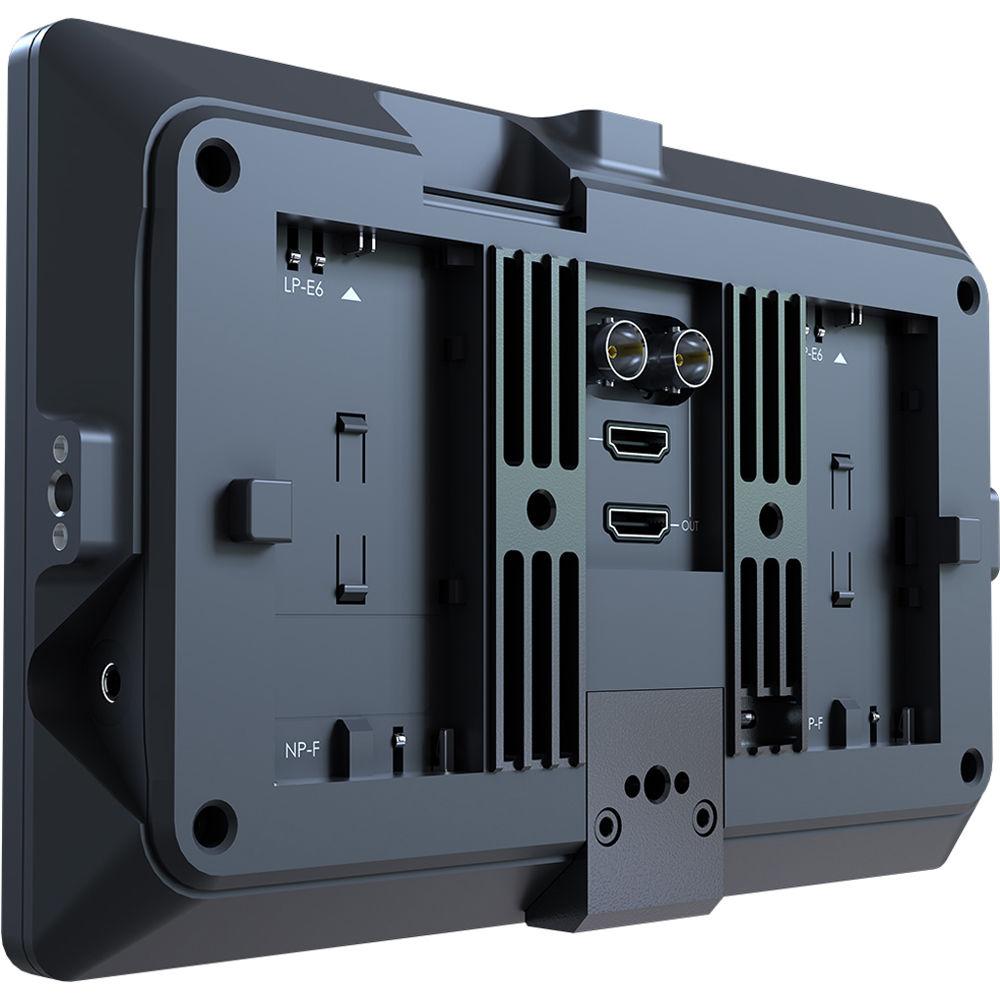

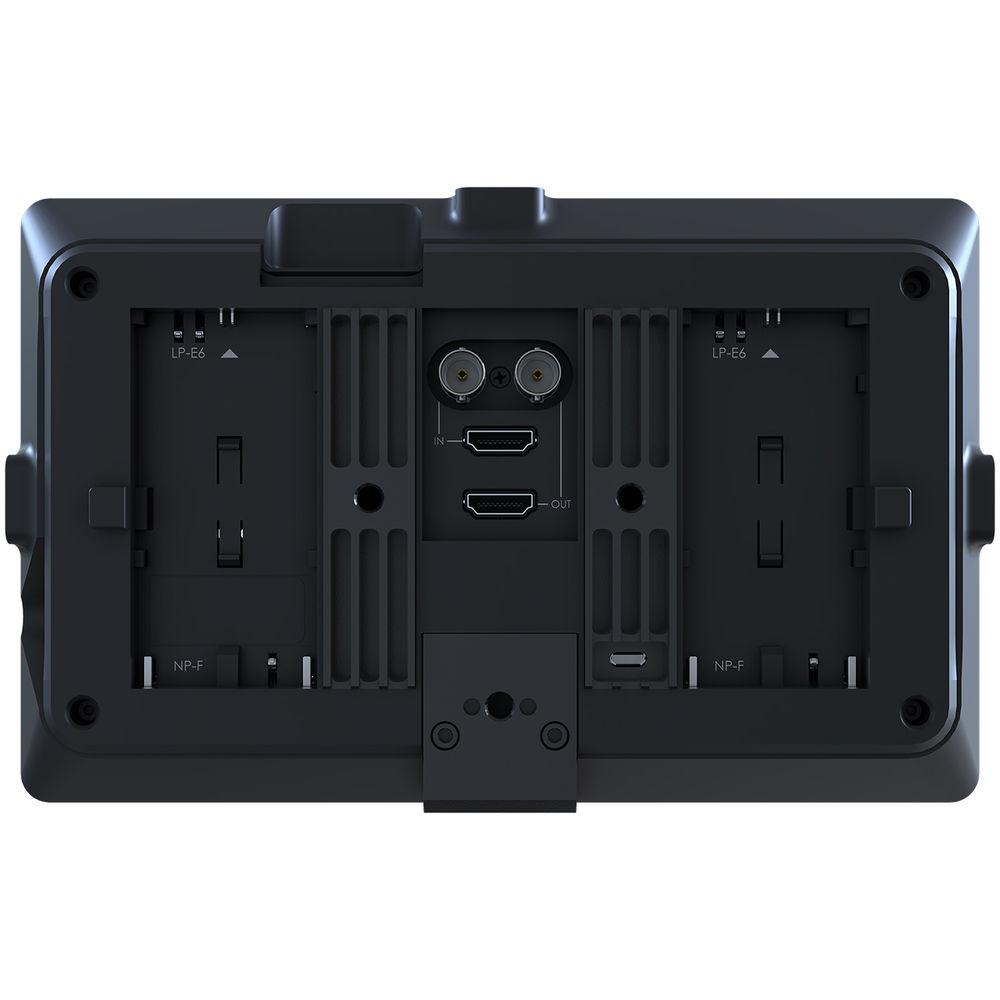

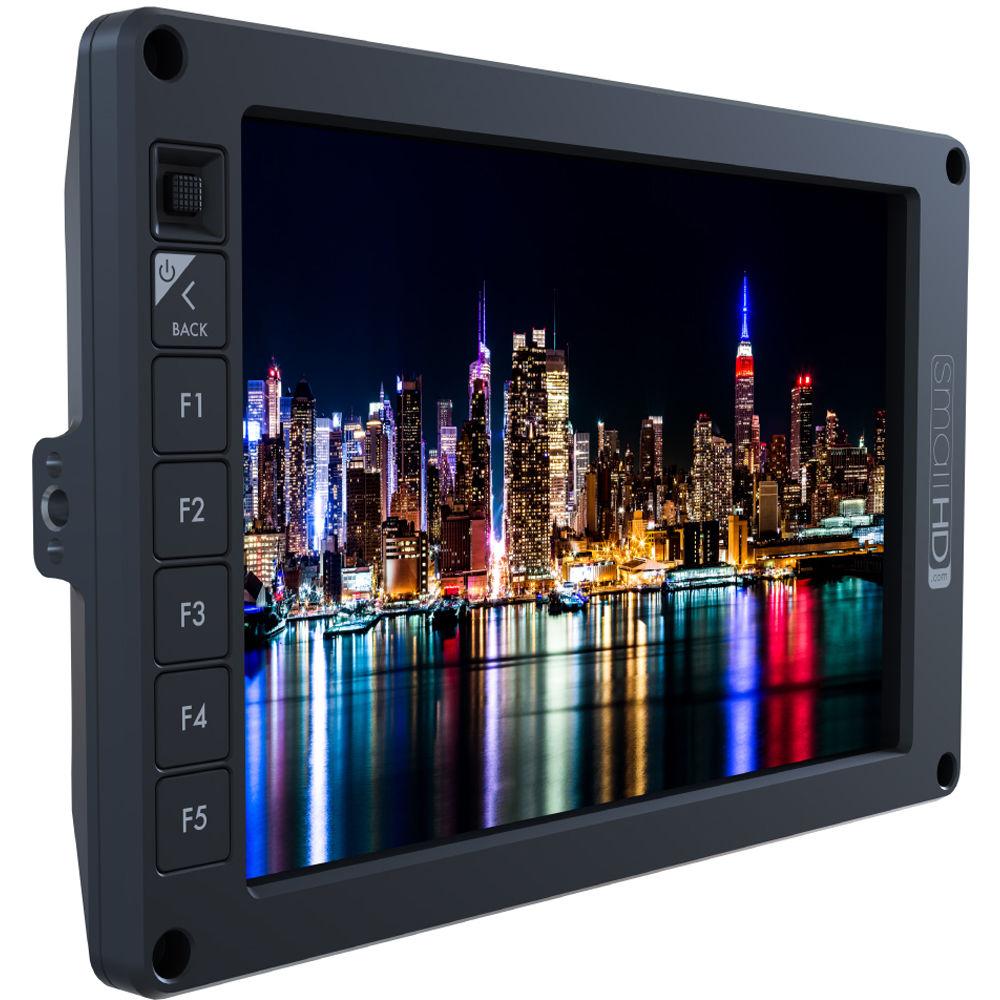

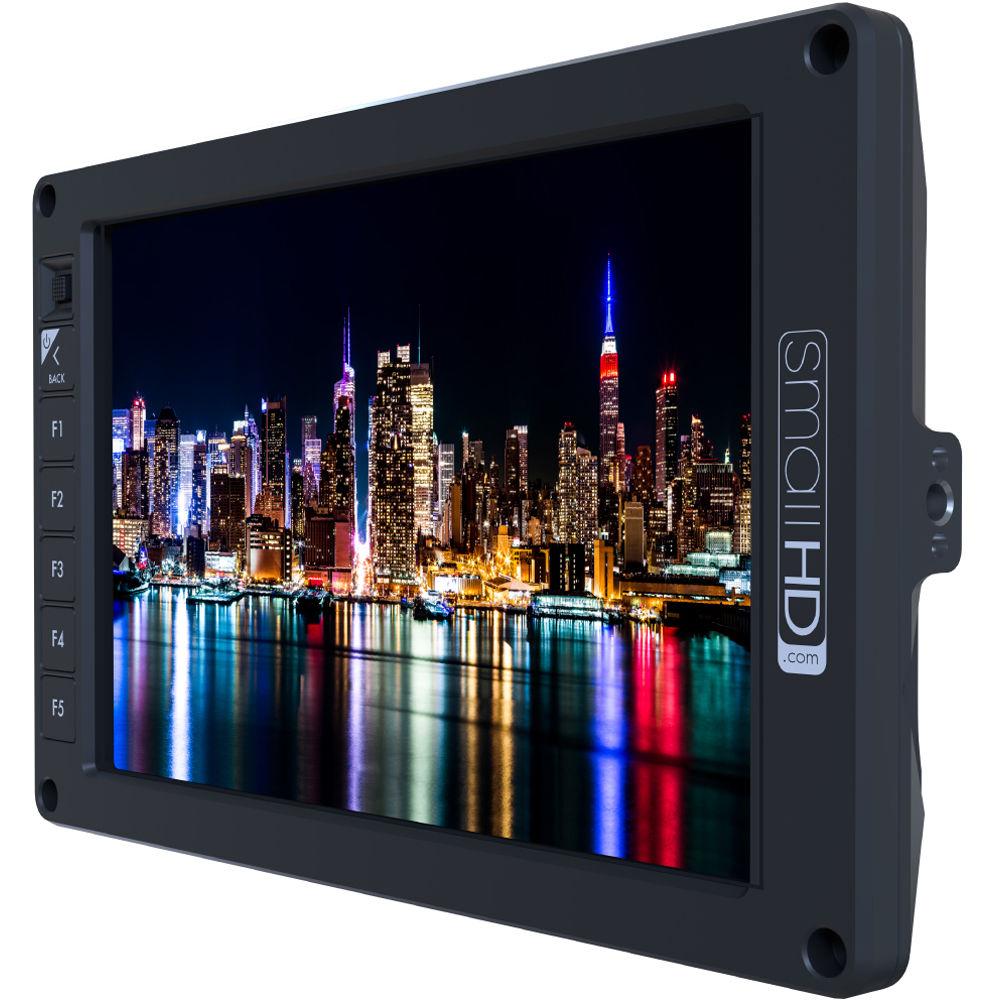

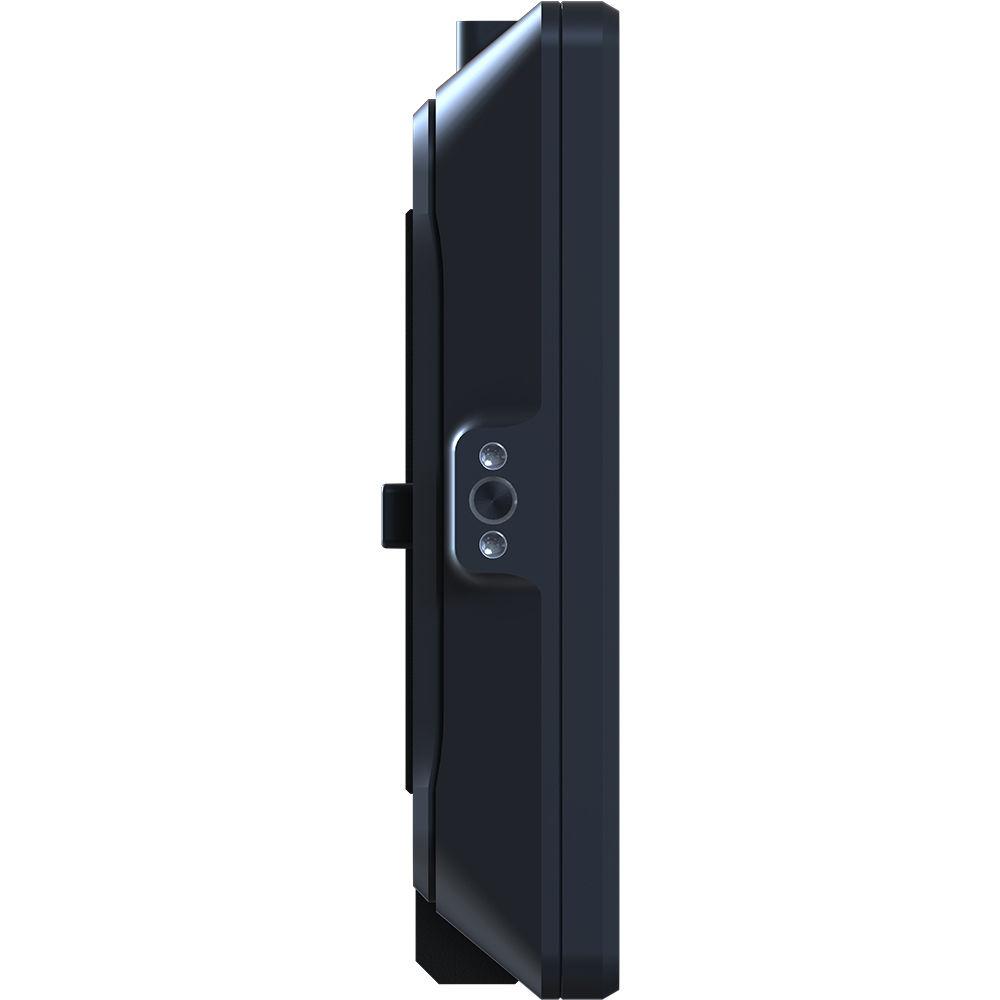

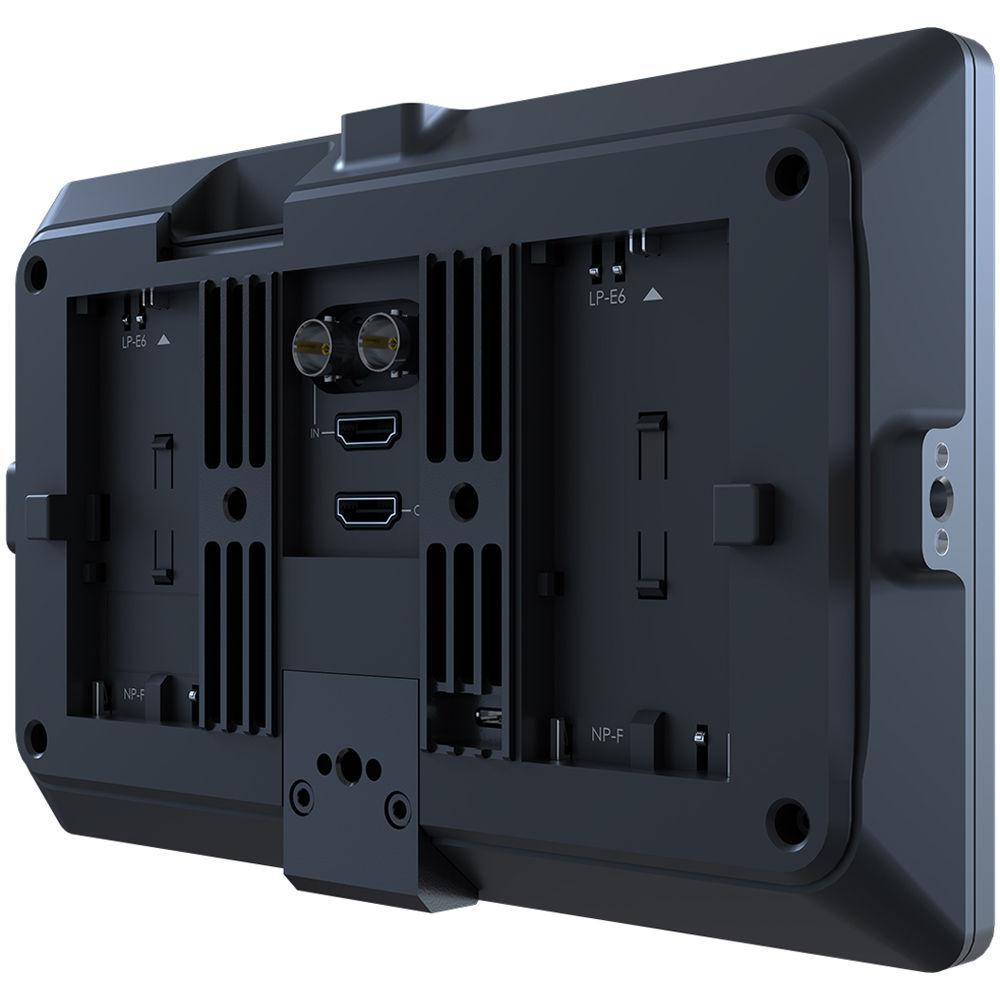

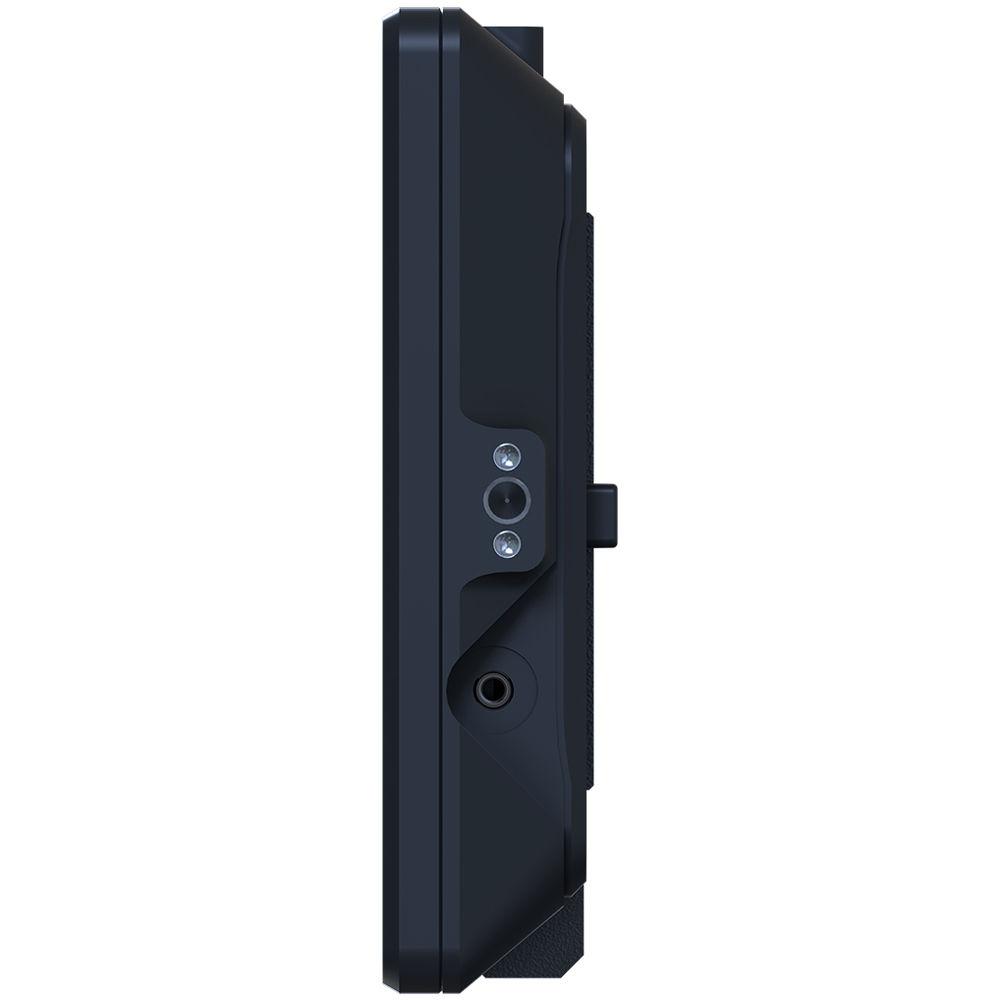

  Taking a design cue from their production monitor series, the 702 OLED is encased in a milled aluminum housing and has five custom function buttons, in addition to the joystick and back button for navigating the Page Builder OS. The OLED display itself is protected by a scratch-resistant Gorilla Glass pane, for clear visibility of the dark black levels presented by the OLED display. Around the monitor there are five 1/4"-20 threaded mounting points for attaching the 702 OLED to articulating arms, stands, or securing accessories. At the rear of the chassis are the HDMI and SDI I/O and battery bays. Each bay can take either an LP-E6 or NP-F (L-Series) battery depending on the insertion direction.
  Page Builder OS
  • Page Builder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 702 OLED at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.
  Factory Calibration
  • Able to display a wide color gamut, the 702 OLED comes pre-calibrated from the factory to portray accurate colors. If the display requires further calibration, 3D LUTs from industry standard calibration software, such as Light Illusion's LightSpace CMS, or SpectraCal's CalMAN, can be loaded via SD card.
  On-Set Problem Solving
  • Page-Builder OS has a dedicated "Output Preview" page, which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the HDMI or SDI input on the 702 OLED, you are not limited by that protocol; the 702 OLED cross converts to ensure compatibility with downstream hardware.
  HD Scopes
  • Fill the screen with up to three simultaneous scopes, including waveform, vectorscope, and histogram while still being able to observe the camera feed.
  Exposure Tools
  • Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.
  Versatile Frame Guides
  • Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays, with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9, and Custom (user selectable).
  UPC: 850324007724
• Microfiber Cleaning Cloth Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use. UPC: 850246006126
• Thin-Gauge HDMI Male Cable (12") Connect your portable devices to HDMI displays with the 12" Thin-Gauge HDMI Male Cable from smallHD. This RoHS-compliant cable allows you to transfer movies, photos, and videos from devices like smartphones, digital cameras, and video cameras with standard HDMI connectors to view on your standard HDMI (type-A) television, projector, or computer monitor. UPC: 857497005908
• HDMI Cable (3') The 3' HDMI Cable from SmallHD allows you to transmit high-quality digital audio and video on a single cable. This cable features a male HDMI connector on each end, and is compatible with a wide variety of devices such as SmallHD monitors. UPC: 857497005298
• Thin BNC Cable (24") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 857497005960
• Thin BNC Cable (48") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 857497005977
• Medium Hard Case for 500/700-Series Monitors Protect your 500 or 700-series monitor with this Medium Hard Case from SmallHD. The inside of the case is comprised of pick-and-pluck foam which can be easily customized to the shape of your monitor and essential accessories you may want to carry alongside your monitor. A rubber gasket seal keeps the case air and water-tight, while an automatic pressure purge system ensures the case is easy to open in pressure-differential situations. Molded-in padlock holes near the latches let you guard your monitor from theft. Once everything is packed up and the case is secured with the locking latches, the molded carry handle provides a comfortable way to transport your equipment.
  Construction
  • High-impact molded case with neoprene O-ring seal
  • Fully customizable, pick-apart foam insert
  • Airtight and watertight
  • Automatic pressure purge system
  • Molded-in padlock holes
  UPC: 857497005779

• ProK Screen Protector for 702 OLED Monitor
• NuShield DayVue Anti-Reflective Scratch Protector for 702 OLED Monitor
• Sun Hood for 702 OLED Monitor

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 702 OLED 7" On-Camera Monitor

  Display	7.7" / 19.6 cm OLED LCD
  Resolution	1280 x 800
  Pixel Density	191 ppi
  Aspect Ratio	16:10 native
  Brightness	300 cd/m²
  Contrast Ratio	10,000:1
  Color Gamut	Wide color gamut
  Bit Depth	8-bit
  Viewing Angle	160°+
  Backlight	N/A
  Temperature Adaptive Color	Yes

  Inputs	1 x BNC, HD/3G-SDI 1 x HDMI Type A
  Outputs	1 x BNC, HD/3G-SDI 1 x HDMI Type A 1 x 3.5 mm stereo headphone
  Input Signal	SDI: RGB/YCC 4:2:2 and 4:4:4 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080i 50/59.94/60 (high-speed: 1080i 100/119.88/120) 720p 23.98/24/25/29.97/30/50/59.94/60 HDMI: 8/10/12-bit color 1080p 23.98/24/25/30/50/59.94/60 1080PsF 23.98/24/25/30 1080i 50/59.94/60 720p 50/59.94/60 Audio: HDMI and SDI embedded
  Output Signal	SDI: RGB/YCC 4:2:2 and 4:4:4 1080p 23.98/24/25/29.97/30/50/59.94/60 1080PsF 23.98/24/25/29.97/30 1080i 50/59.94/60 (high-speed: 1080i 100/119.88/120) 720p 23.98/24/25/29.97/30/50/59.94/60 HDMI: 8/10/12-bit color 1080p 23.98/24/25/30/50/59.94/60 1080PsF 23.98/24/25/30 1080i 50/59.94/60 720p 50/59.94/60

  Battery Support	2 x LP-E6/NP-F hybrid battery bays (each bay accepts either type) with battery communication and overload protection
  Storage	SD card slot
  Compliance	CE
  Screen Protection	Gorilla Glass
  Mount Types	5 x 1/4"-20 threaded holes (bottom, back, and sides)
  Environmental	Operating Temperature: 30 to 90°F / -1 to 32°C Storage Temperature: 0 to 120°F / -17 to 48°C
  Dimensions	8.25 x 5.2 x 1.1" / 21 x 13.2 x 2.8 cm
  Weight	1.6 lb / 0.7 kg

  Box Dimensions (LxWxH)	9.4 x 7.3 x 2.0"

• Microfiber Cleaning Cloth

  Box Dimensions (LxWxH)	4.0 x 3.1 x 0.2"

• Thin-Gauge HDMI Male Cable (12")

  Connector 1	HDMI Type-A Male
  Connector 2	HDMI Type-A Male
  Cable Length	12" / 30.5 cm
  Certifications	RoHS, as per Manufacturer
  Outer Diameter	0.1" / 2.75 mm
  Weight	1 oz / 28.4 g

  Box Dimensions (LxWxH)	7.35 x 4.95 x 0.45"

• HDMI Cable (3')

  Connector 1	HDMI Type-A Male
  Connector 2	HDMI Type-A Male
  Cable Length	3' / 0.9 m

  Box Dimensions (LxWxH)	7.05 x 5.75 x 1.65"

• Thin BNC Cable (24")

  Cable Length	2' / 0.6 m
  Weight	0.1 lb / 0.0 kg

  Box Dimensions (LxWxH)	7.4 x 5.3 x 0.5"

• Thin BNC Cable (48")

  Cable Length	4' / 1.2 m
  Weight	0.1 lb / 0.1 kg

  Box Dimensions (LxWxH)	2.5 x 1.5 x 0.85"

• ProK Screen Protector for 702 OLED Monitor

  Box Dimensions (LxWxH)	5.45 x 5.4 x 0.3"

• NuShield DayVue Anti-Reflective Scratch Protector for 702 OLED Monitor

  Box Dimensions (LxWxH)	7.6 x 2.9 x 0.1"

• Medium Hard Case for 500/700-Series Monitors

  Compatibility	SmallHD 500 and 700-series monitors
  Interior Dimensions	9.6 x 7.4 x 4.0" (24.4 x 18.8 x 10.2 cm)
  Dimensions	10.8 x 9.9 x 4.9" (27.4 x 25.2 x 12.5 cm)
  Weight	39.2 oz (1.1 kg)

  Box Dimensions (LxWxH)	10.4 x 9.6 x 4.8"

• Sun Hood for 702 OLED Monitor

  Box Dimensions (LxWxH)	8.2 x 4.55 x 1.6"
