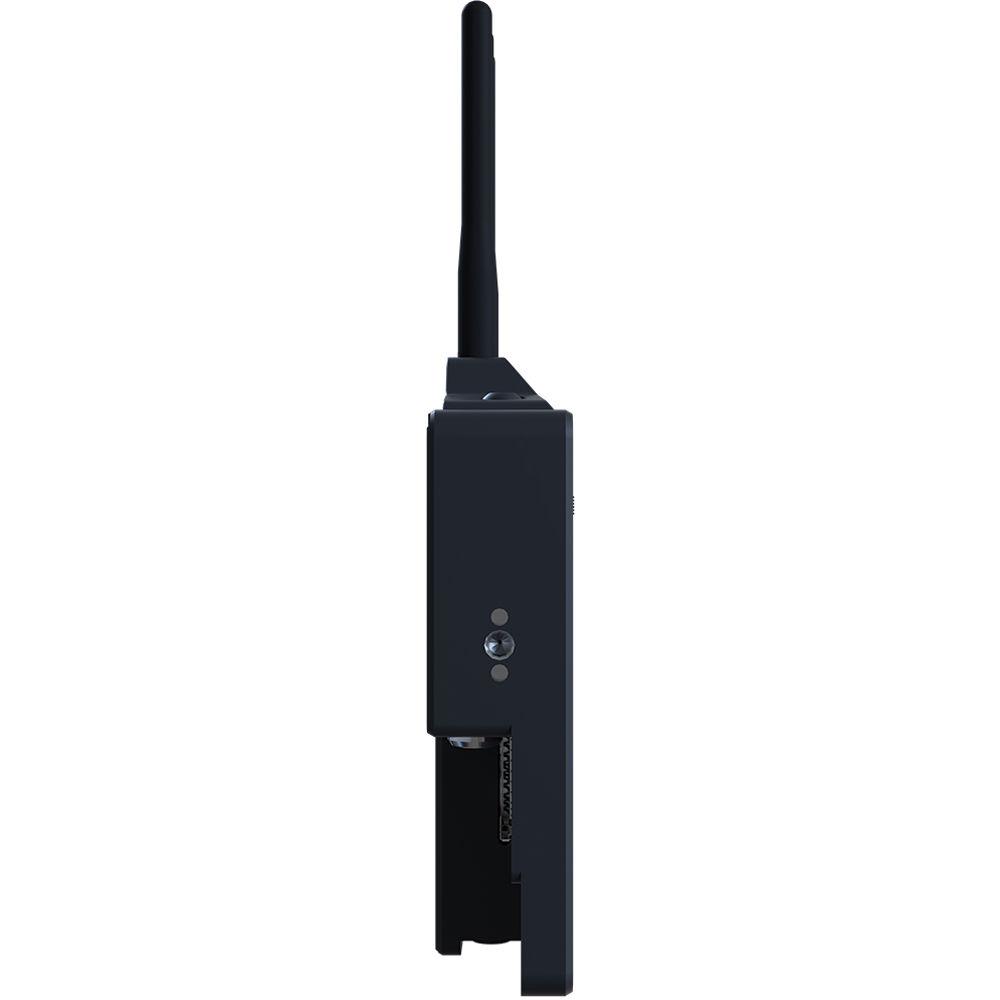

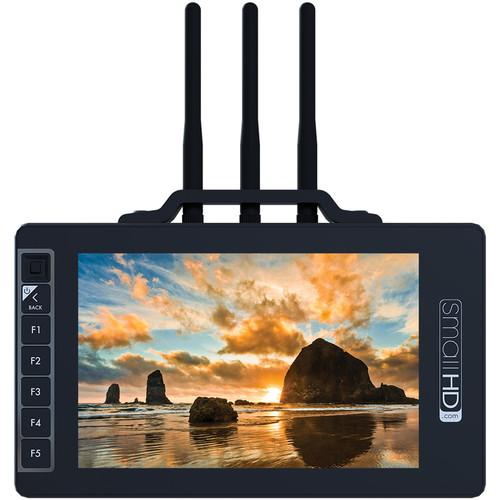

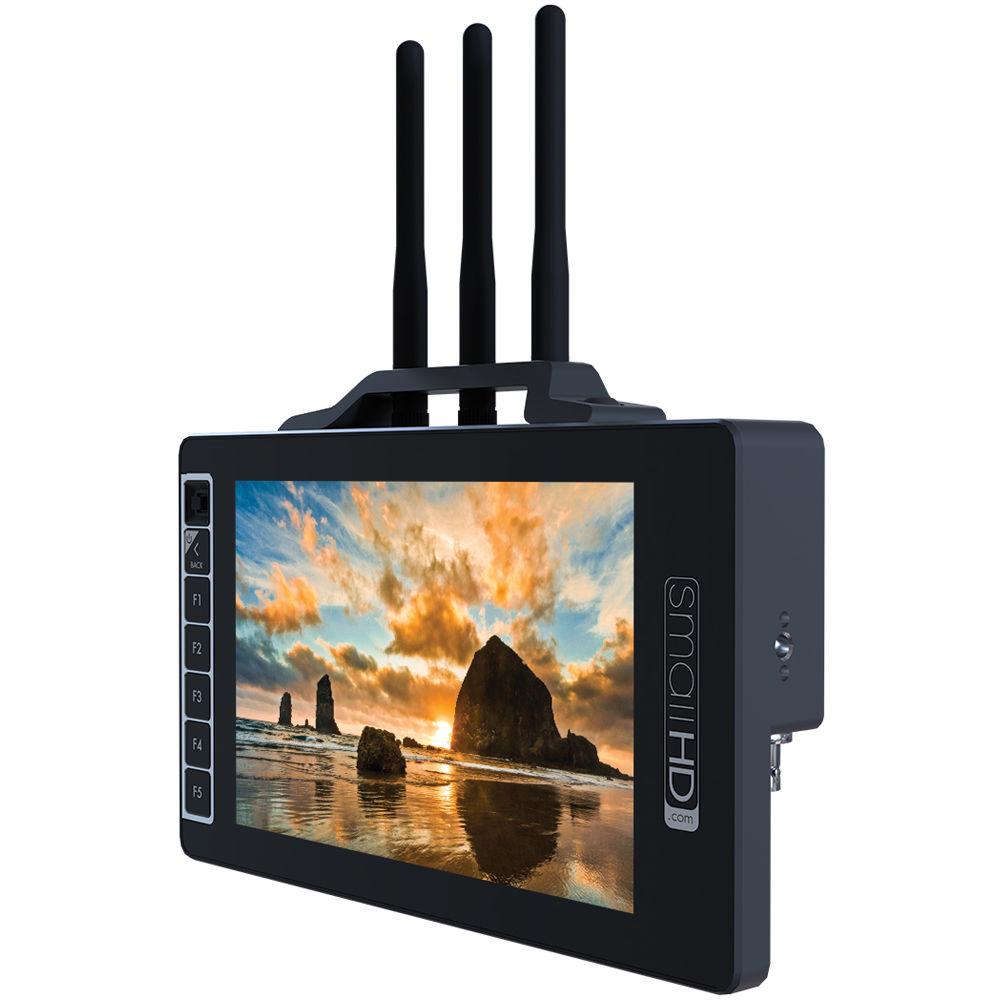

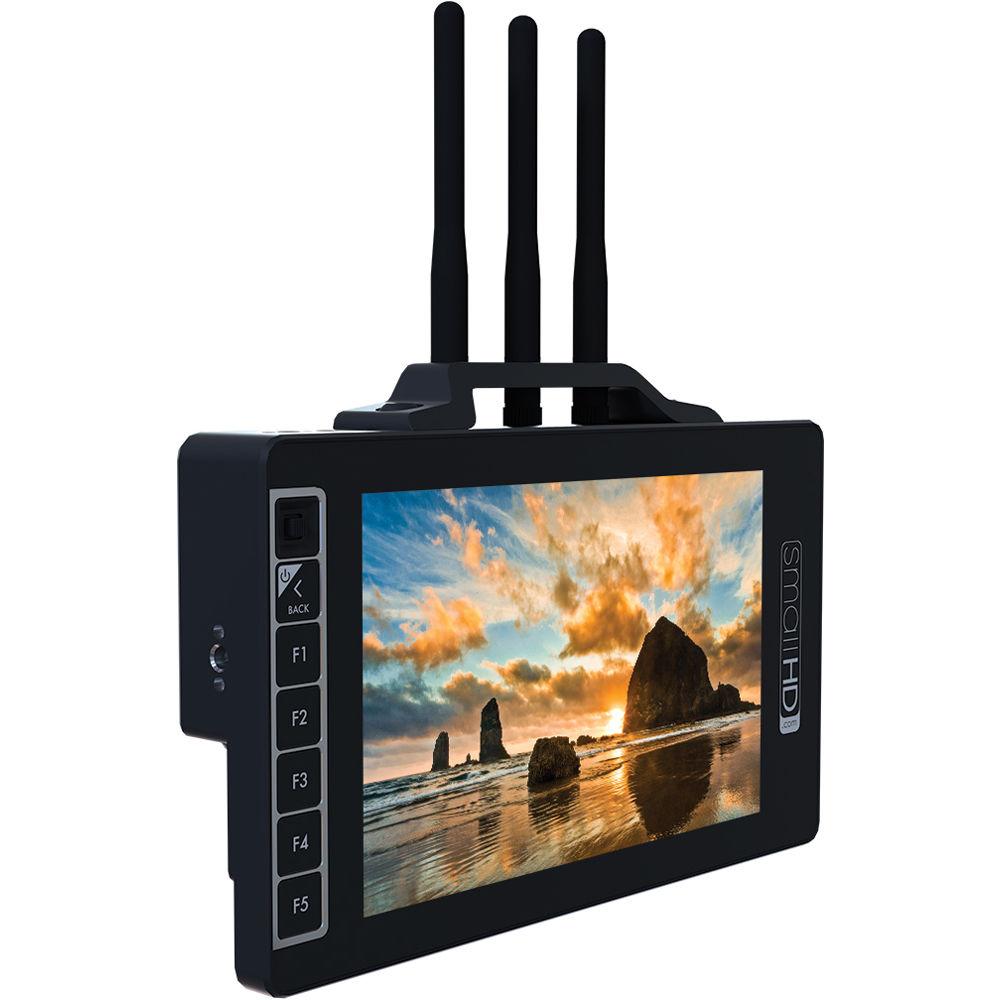

User Manual for SmallHD 703 Bolt 7" Wireless Monitor Click to enlarge the picture
Contents of the user manual for the SmallHD 703 Bolt 7" Wireless Monitor
- Product category: On Camera Monitors SmallHD
- Brand: SmallHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallHD On Camera Monitors
 |
User manual for the SmallHD 703 Bolt 7" Wireless Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallHD product will considerably shorten its lifespan!
|

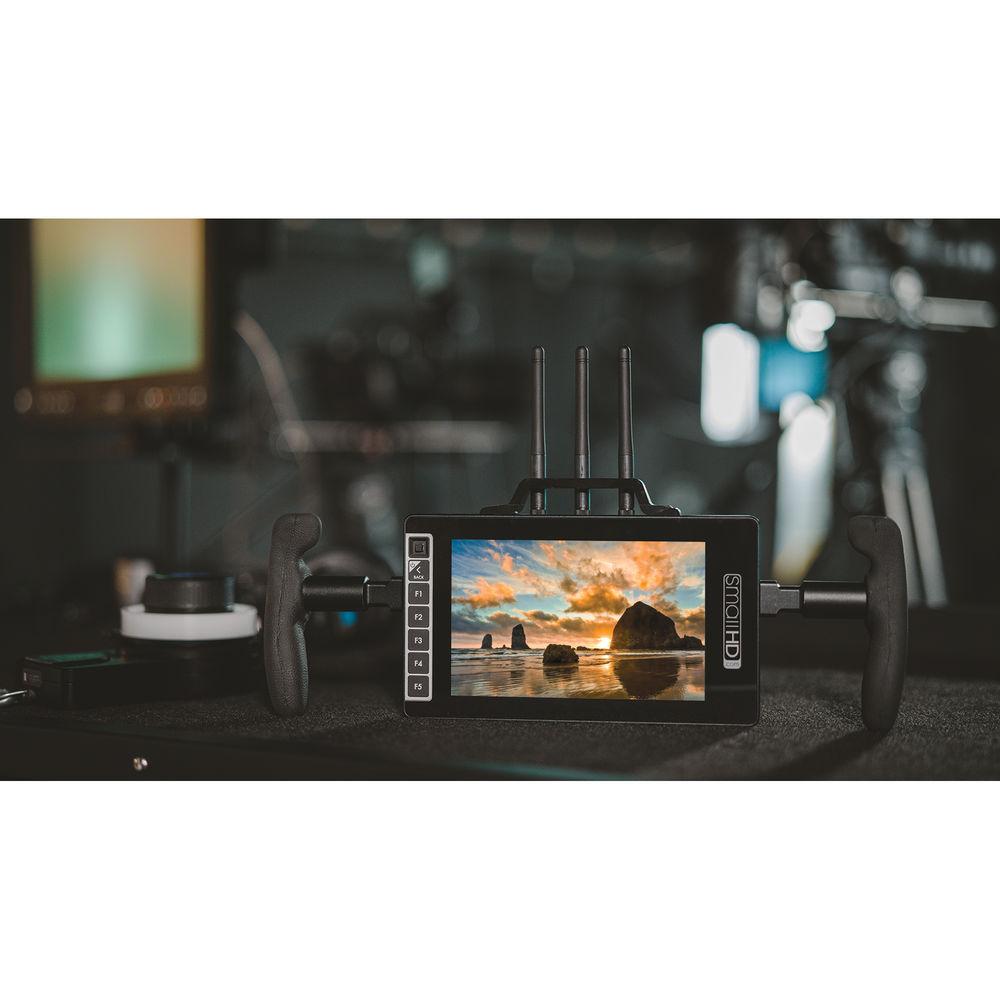

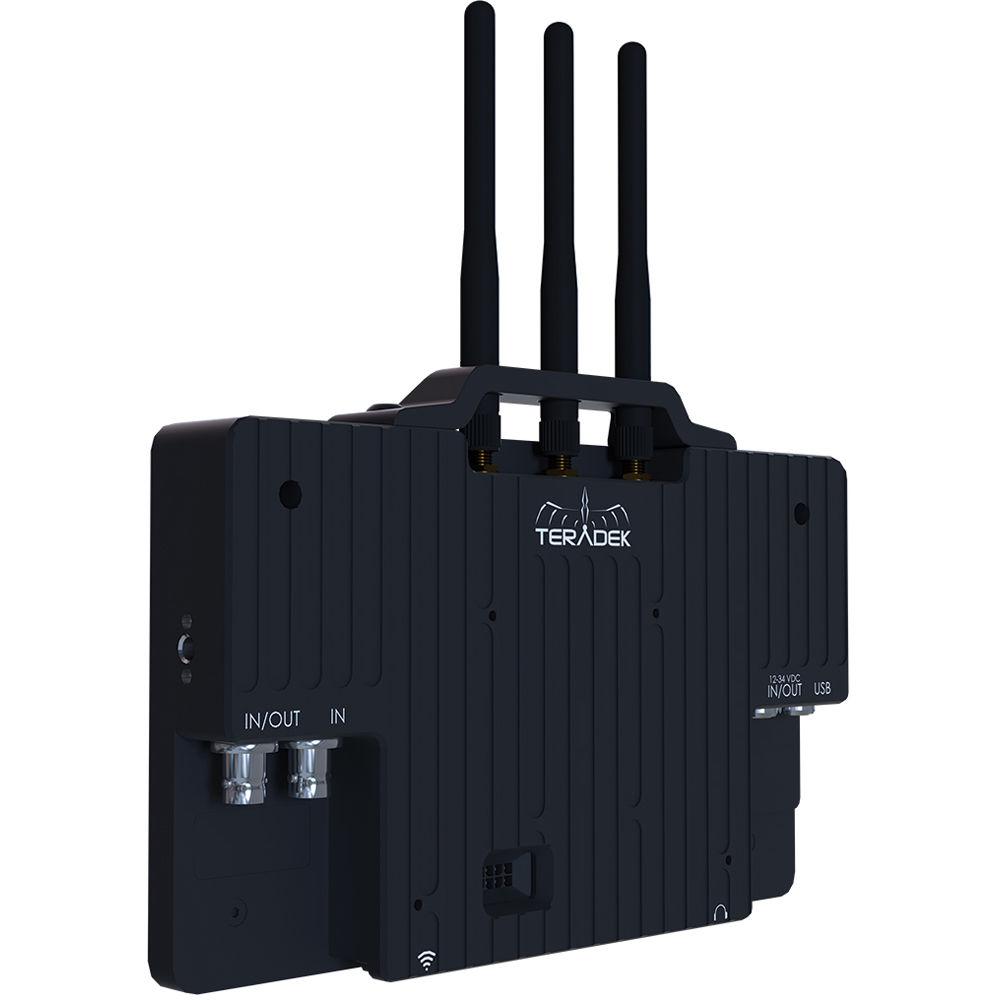

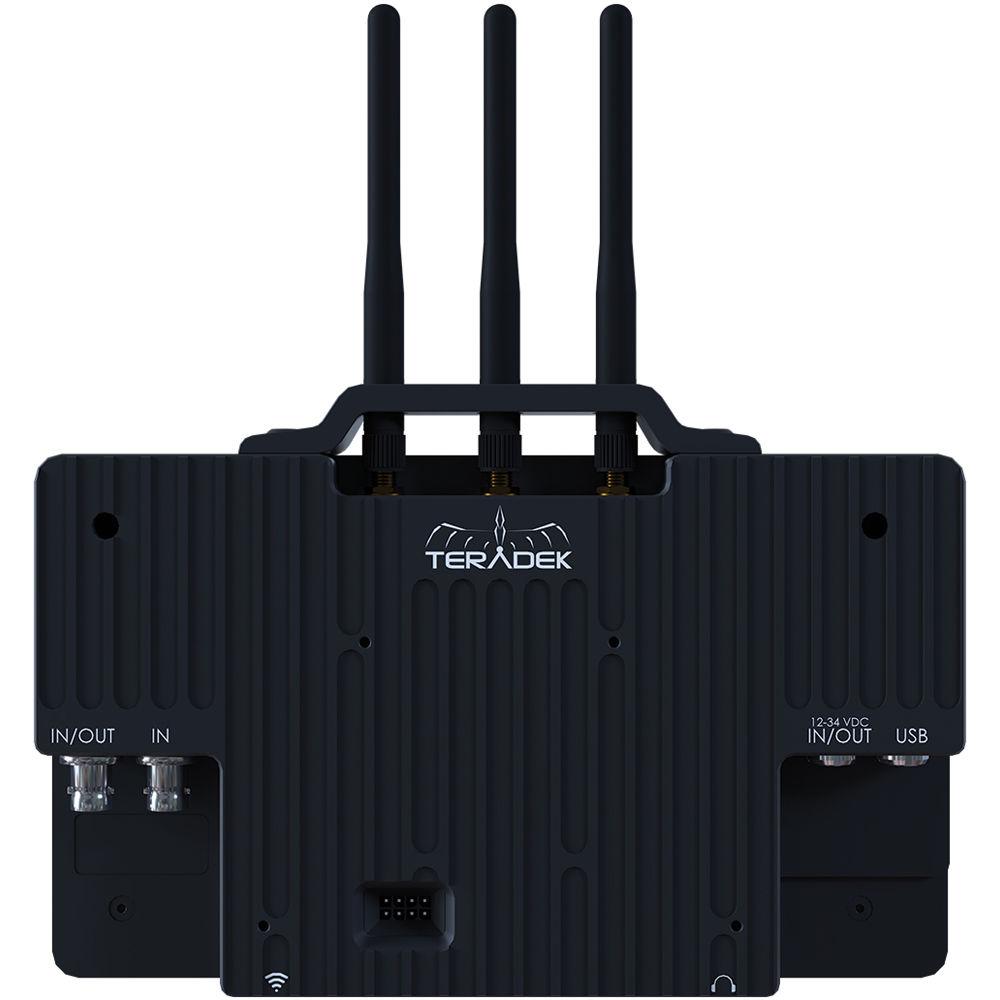

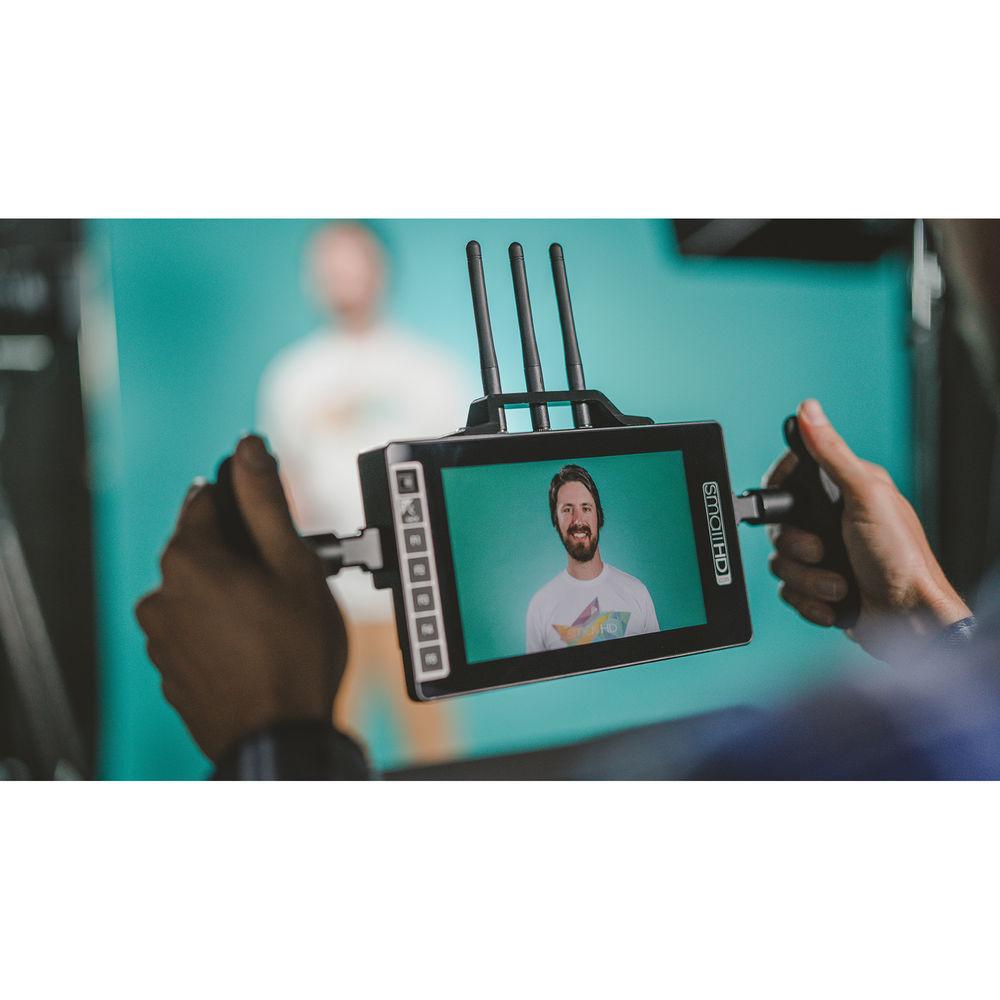

Product description CES 2018: What is the SMALL HD 703 Bolt 3000-NIT Monitor? Read More Combining a wireless video receiver and high-quality HD monitor, the SmallHD 703 Bolt 7" Wireless Monitor is an all-in-one director's monitor solution. Borrowing the wireless technology from Teradek, the 703 Bolt can receive uncompressed HD wireless signals from Bolt 500, 1000, or 3000 transmitters up to 300' away with no perceptible latency. With this feature, anyone can walk around the set while monitoring a camera feed, perfect for directors and camera assistants. Furthermore, despite the presence of a wireless receiver, the 703 Bolt maintains a slim profile similar to on-camera monitors.A unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. The LCD panel itself is protected by a layer of optically-bonded Gorilla Glass, notable for its transparency and toughness. The optical bonding process ensures that blacks are not washed out and reduces the harshness of reflections.On the sides of the display is the SDI I/O. Having dual SDI ports allows for A/B viewing of two different SDI signals, or the secondary port can be assigned as an output for sending an SDI signal downstream to another monitor, switcher, or wireless accessory. All the functionality of the monitor is available via the PageBuilder OS, which provides advanced functionality with a simple and efficient graphical user interface. - PageBuilder OS
- PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 703 Bolt at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.
- ColorFlow 3D LUT Processing
- To keep your images consistent from production through to post-production, ColorFlow allows you to import 3D LUTs and display the treated image side-by-side with the untreated image to correctly gauge exposure while visualizing what is being recorded by the camera. Separate LUT-treated images can be sent downstream over SDI so you can have the 703 Bolt display a log image or LUT-treated image, while the director or client monitors connected to the outputs can receive images treated with a different LUT. An image capture function saves a still frame from the incoming video stream onto an SD card, and records the applied 3D LUT for post-production reference.
- On-Set Problem Solving
- PageBuilder OS has a dedicated "Output Preview" page which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the wireless or SDI inputs on the 703 Bolt, you are not limited by that connection; the 703 Bolt cross-converts to ensure compatibility with downstream hardware.
- HD Scopes
- Fill the screen with up to three simultaneous scopes, including waveform, vectorscope, and histogram, while still being able to observe the camera feed.
- Exposure Tools
- Exposure Assist supports both ARRI and Spectrum-based false color, with built-in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.
- Customizable Focus Assist and Peaking Tools
- As recording resolutions increase, so does the importance of focusing precision. With Focus Assist, you can highlight the areas that are in focus with a bright color. These highlights are easily visible on the fly for quick focus confirmation. Focus Peaking increases the sharpness of the image for a subtler focus confirmation without the need for bright outlines. The color and intensity of these tools are adjustable to fit your preference.
- Versatile Frame Guides
- Select standard markers and safety areas can be overlaid on the display as lines or matte overlays, with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9, and Custom (user-selectable).
UPC: 850324007250 In the Box SmallHD 703 Bolt 7" Wireless Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD 703 Bolt 7" Wireless Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD 703 Bolt Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° | | Maximum Brightness | 3000 cd/m2 | | Contrast Ratio | 1150:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Pixels Per Inch (ppi) | 323 ppi | | Color Gamut | 70% NTSC | | Image Controls | Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform | | | | Video | 1 x BNC (3G-SDI) Input/Output
1 x HDMI Type A Output
1 x BNC (3G-SDI) Input | | Embedded Audio | SDI
Wireless | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x 2-Pin LEMO Input | | Other I/O | 1 x Wireless Receiver | | Card Slot | 1 x SD | | | | Video Format | SDI (10-Bit 4:2:2 YCC)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 23.98/24/25/29.97/30/50/59.94/60
PAL
NTSC
Wireless (10-Bit 4:2:2)
1080p: 23.98/24/25/29.97/30/50/59.94/60
1080PsF: 23.98/24/25/29.97/30
1080i: 50/59.94/60
720p: 50/59.94/60
PAL
NTSC | | | | DC Input Power | 6 to 34 VDC | | Battery Type | None | | Power Consumption | 16 W | | | | Mounting | 4 x 1/4"-20 Female | | | | Certifications | CE, FCC, RoHS, as per Manufacturer | | Operating Temperature | 0 to 100°F / -17.8 to 37.8°C | | Storage Temperature | -4 to 120°F / -20 to 48.9°C | | | | Package Weight | 4.53 lb | | Box Dimensions (LxWxH) | 10.2 x 7.95 x 4.65" |
