Product description

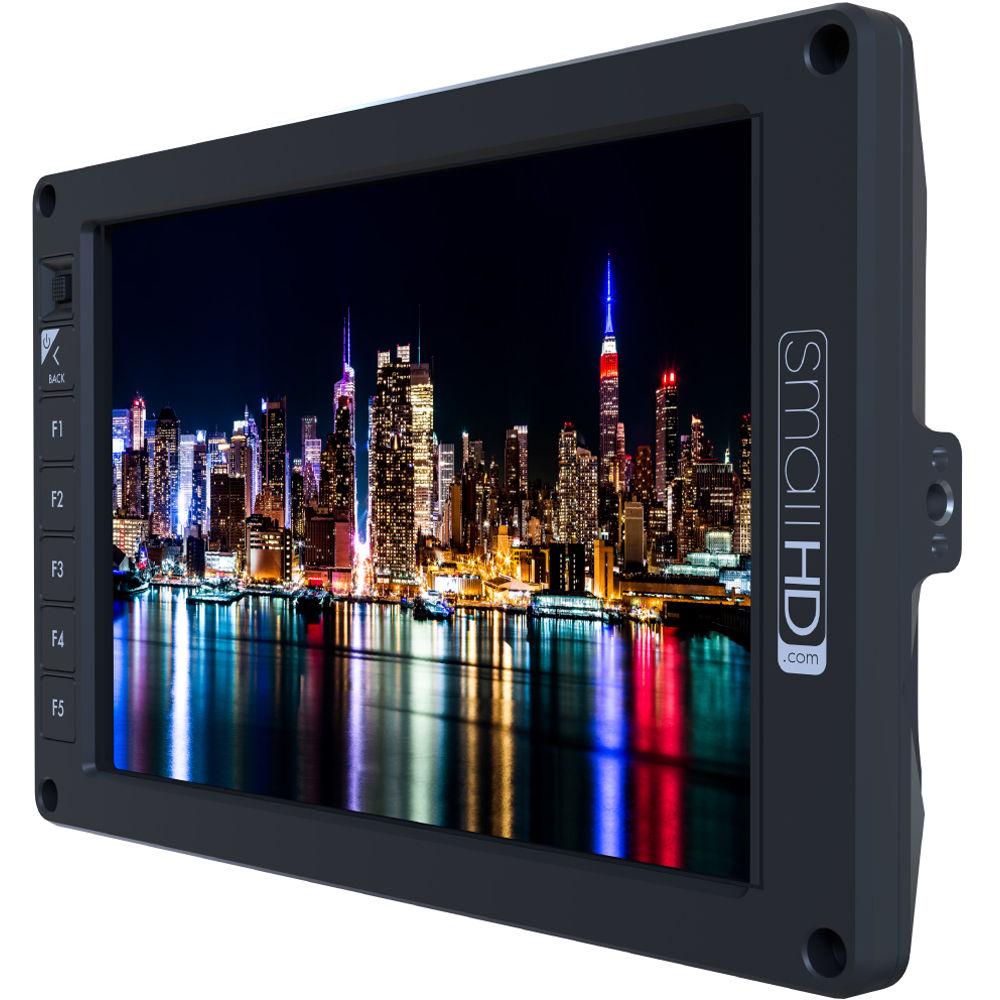

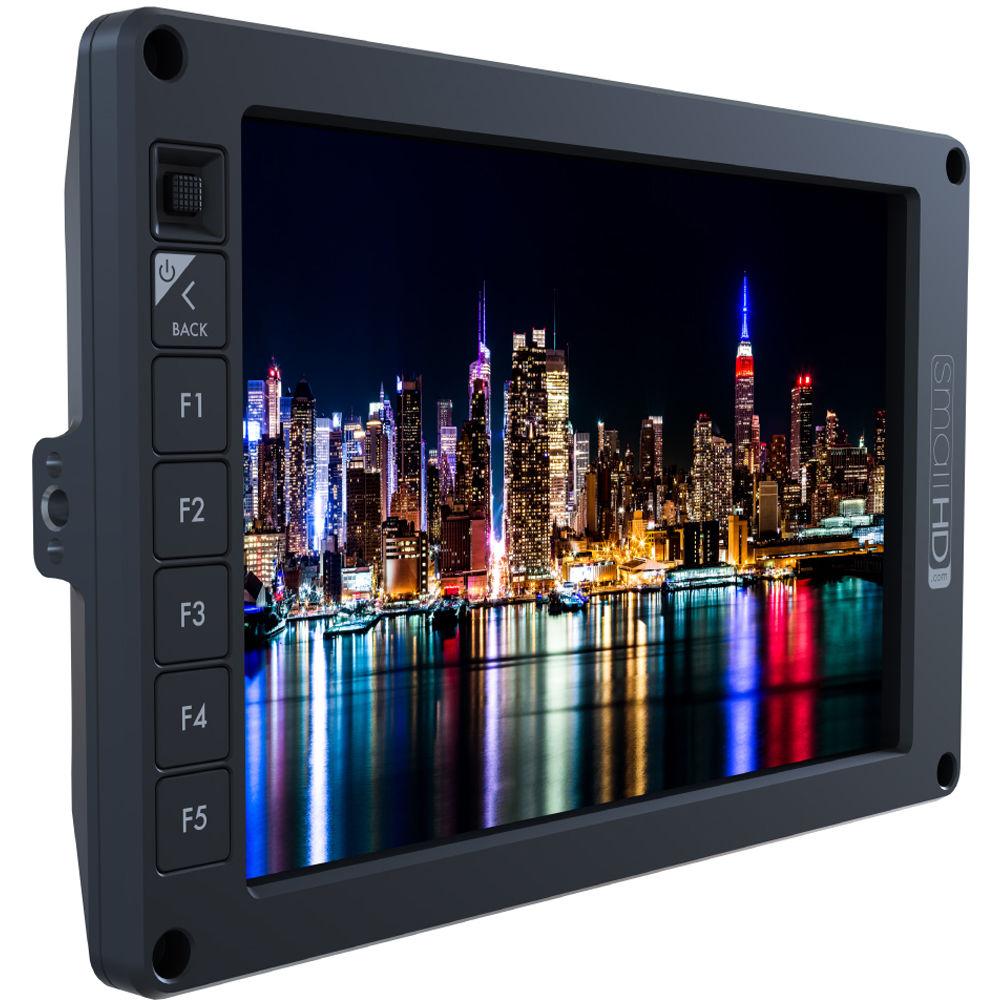

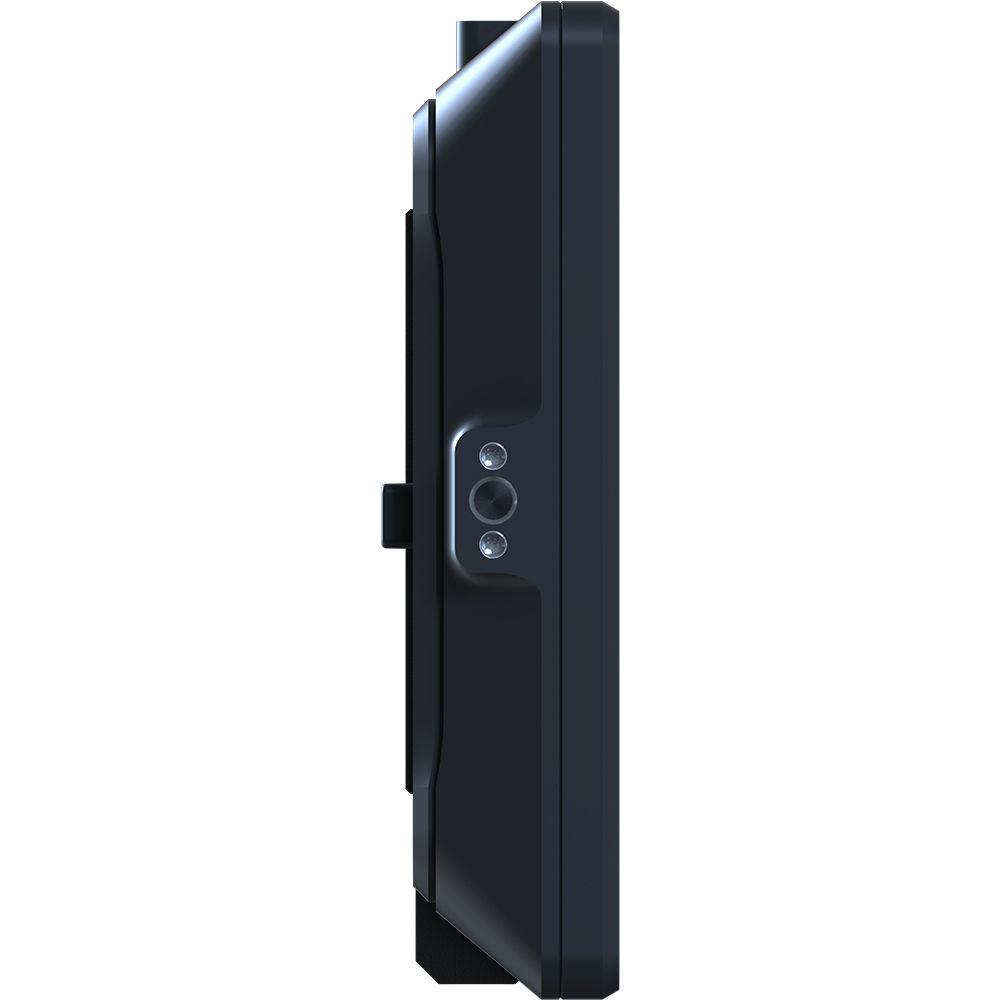

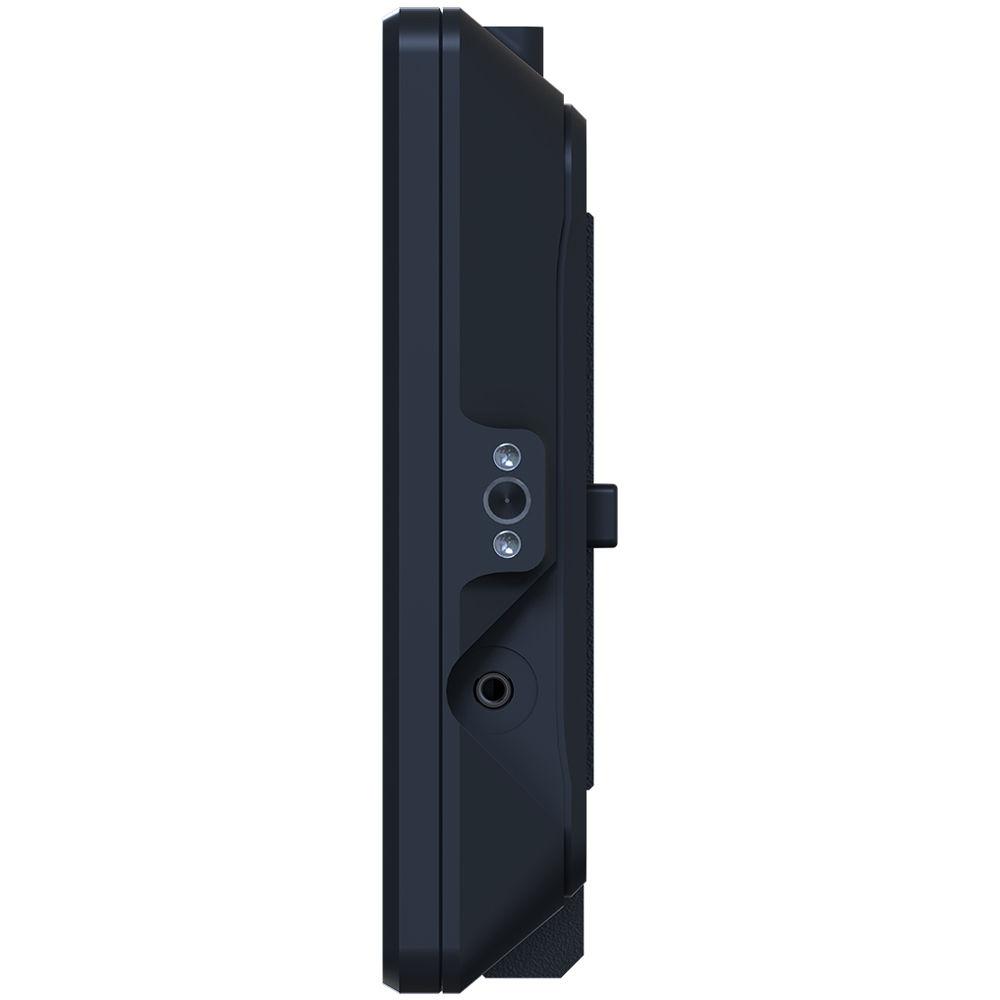

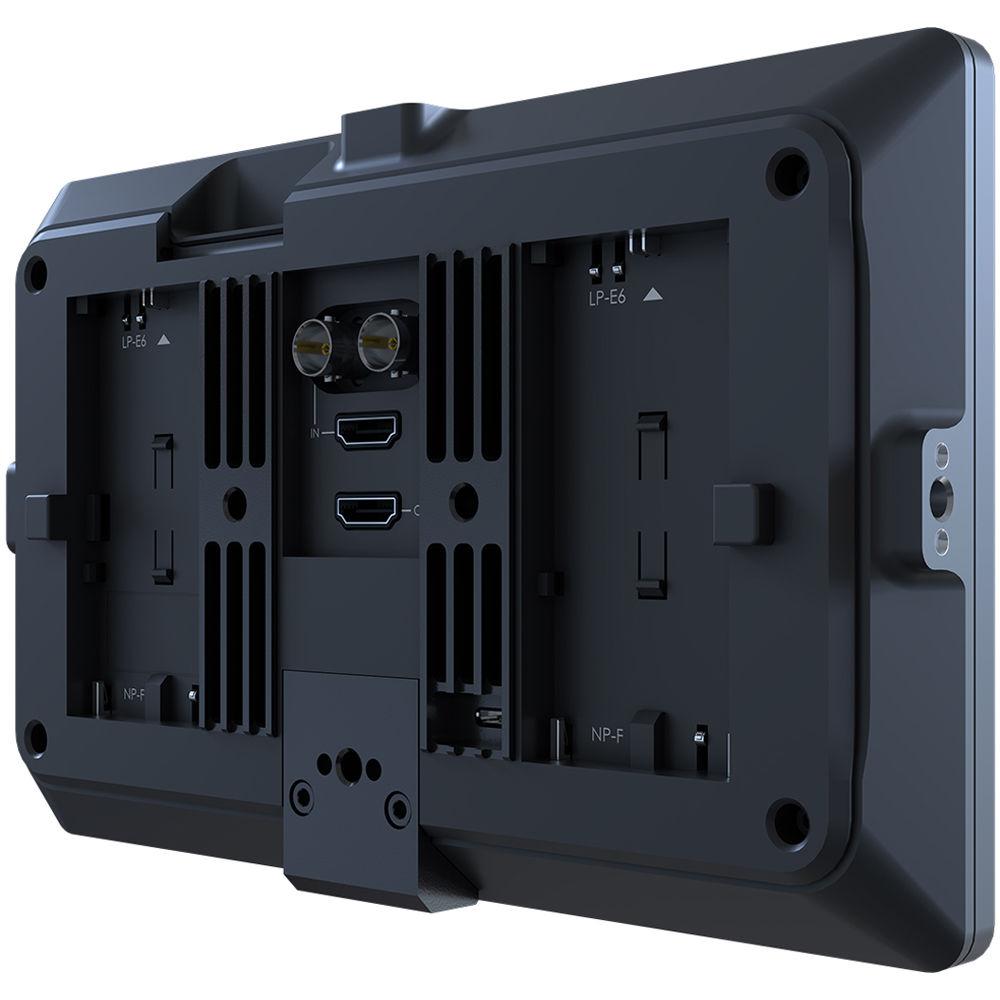

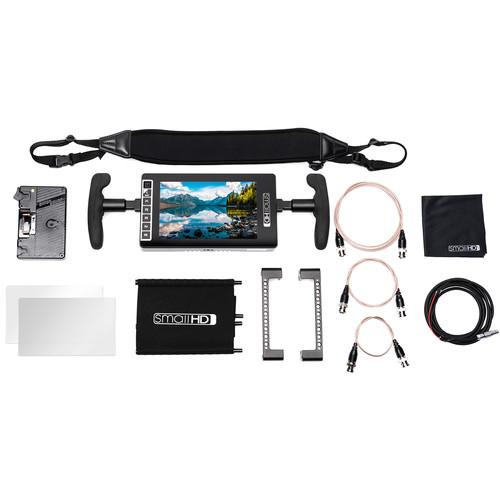

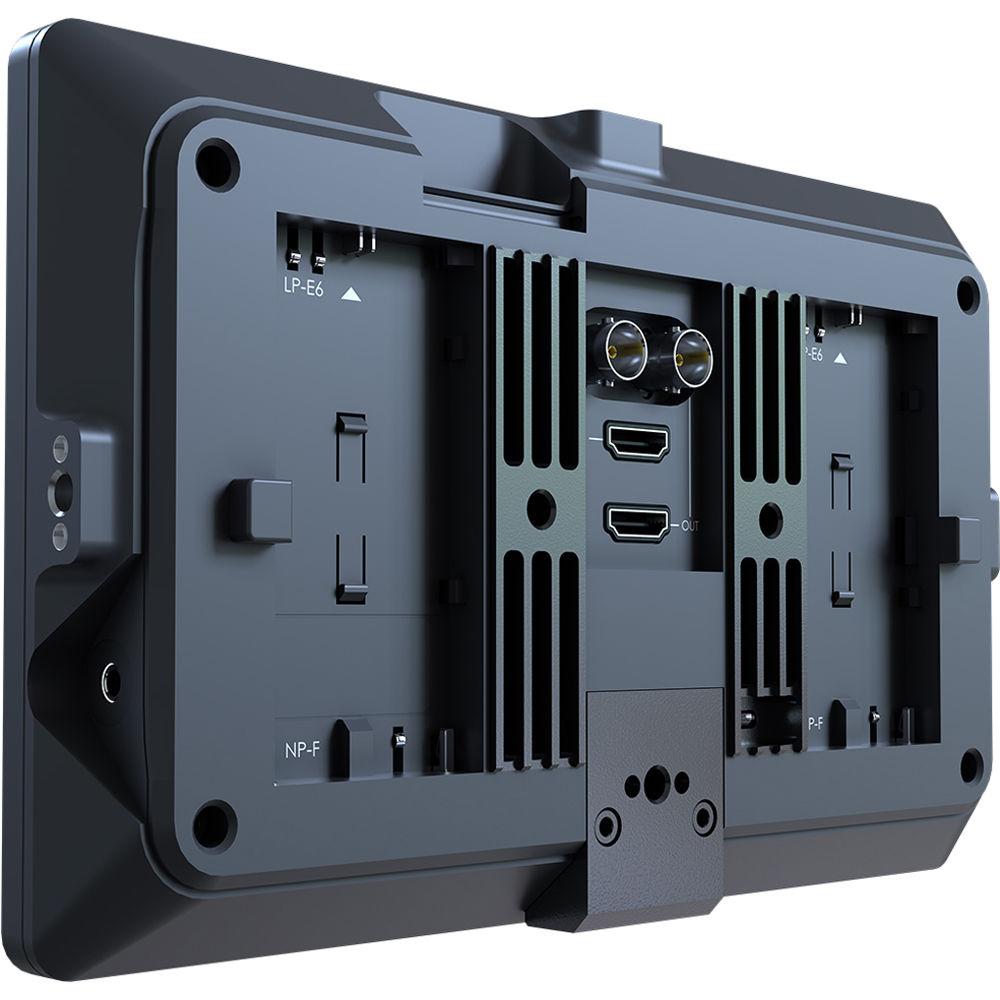

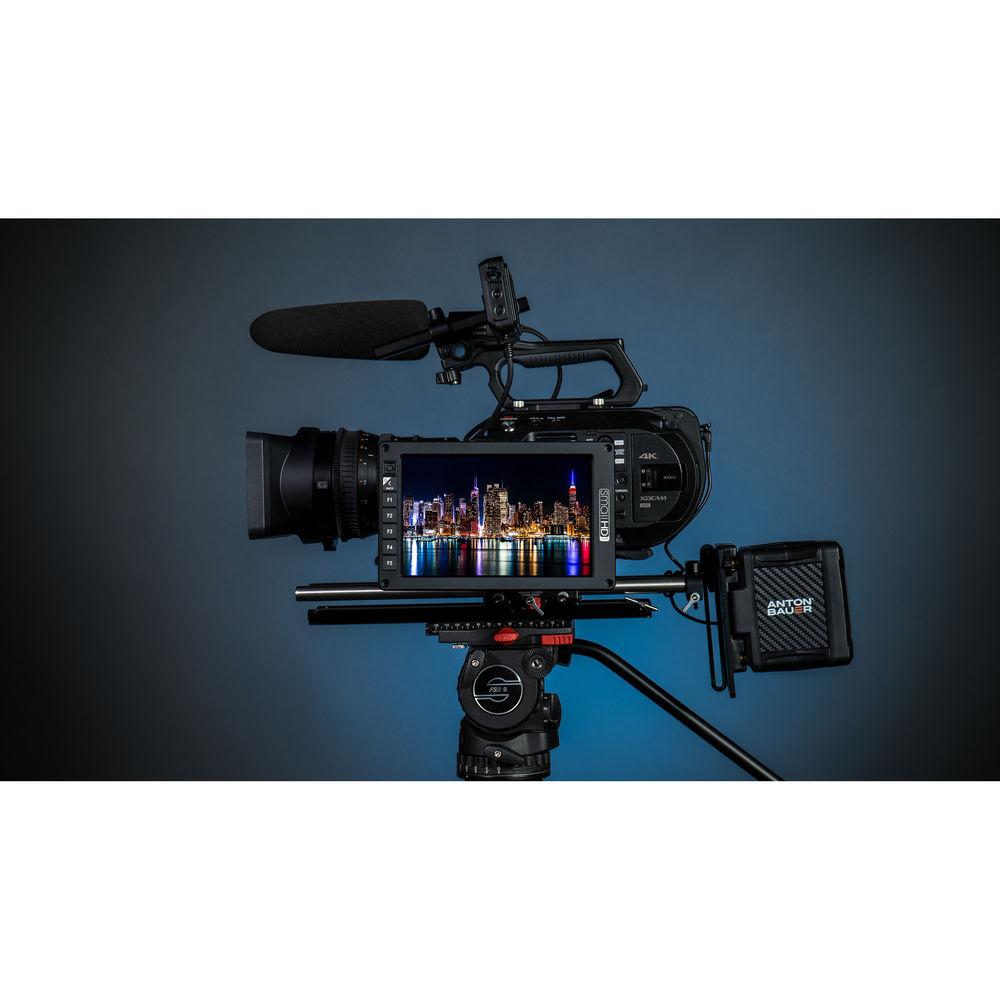

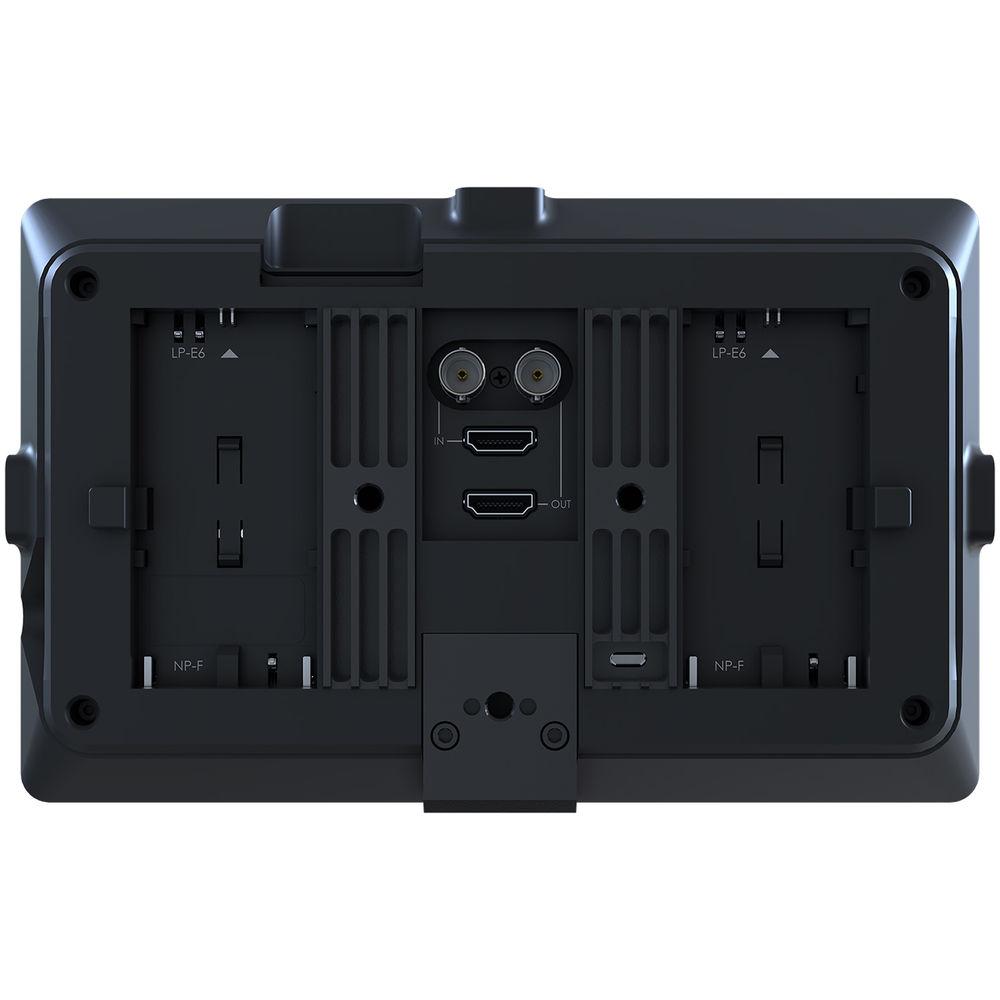

• 703 UltraBright On-Camera Monitor Though monitoring HD video signals outdoors can be difficult, the SmallHD 703 UltraBright On-Camera Monitor, with its 2200 cd/m² bright backlight, overcomes this environmental difficulty. The 7" 1920 x 1080 LCD provides a sharp image, ideal for focus pulling and image analysis on set and in the field. Another advantage of the high-brightness panel is the monitor's ability to preview HDR content. HDR preview extends the display's dynamic range to portray a greater range of brightness in the image.A unibody aluminum exterior keeps the monitor durable yet lightweight, while also acting as a heatsink for the internal electronics. The LCD panel itself is protected by a layer of optically-bonded Gorilla Glass, notable for its transparency and toughness. The optical bonding process ensures that blacks are not washed out and reduces the harshness of reflections.On the sides of the display are the SDI and HDMI I/O. Having dual SDI ports allows for A/B viewing of two different SDI signals, or the secondary port can be assigned as an output for sending an SDI signal downstream to another monitor, switcher, or wireless accessory. All the functionality of the monitor is available via the PageBuilder OS, which provides advanced functionality with a simple and efficient graphical user interface.
  PageBuilder OS
  • PageBuilder OS is an intuitive graphical user interface (GUI) that puts all the advanced functionality of the 703 UltraBright at your fingertips. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, multiview, LUTs, and focusing aids on different "pages". These pages can be easily flipped through using the joystick. The buttons on the front panel can also toggle monitoring tools on and off for each page.
  ColorFlow 3D LUT Processing
  • To keep your images consistent from production through to post-production, ColorFlow allows you to import 3D LUTs and display the treated image side-by-side with the untreated image to correctly gauge exposure while visualizing what is being recorded by the camera. Side-by-side preview can also be used with the HDR preview function. Separate LUT-treated images can be sent downstream over SDI and HDMI so you can have the 703 UltraBright display a log image or LUT-treated image, while the director or client monitors connected to the outputs can receive images treated with a different LUT. An image capture function saves a still frame from the incoming video stream onto an SD card, and records the applied 3D LUT for post-production reference.
  On-Set Problem Solving
  • PageBuilder OS has a dedicated "Output Preview" page which allows you to apply LUTs and other image adjustments specific to the output signal from the monitor. Whether you have your camera connected to the HDMI or SDI input on the 703 UltraBright, you are not limited by that protocol; the 703 UltraBright cross-converts to ensure compatibility with downstream hardware.
  HD Scopes
  • Fill the screen with up to three simultaneous scopes, including waveform, vectorscope, and histogram, while still being able to observe the camera feed.
  Exposure Tools
  • Exposure Assist supports both ARRI and Spectrum based false color, with built in IRE guides for reference. Utilize 2x Zebra to warn you when reaching a brightness level of your choosing. This is great for matching exposure across shots and cameras.
  Customizable Focus Assist and Peaking Tools
  • As recording resolutions increase, so does the importance of focusing precision. With Focus Assist, you can highlight the areas that are in focus with a bright color. These highlights are easily visible on the fly for quick focus confirmation. Focus Peaking increases the sharpness of the image for a subtler focus confirmation without the need for bright outlines. The color and intensity of these tools are adjustable to fit your preference.
  Versatile Frame Guides
  • Select standard markers and safety areas that can be overlaid on the display as lines or matte overlays, with custom opacity level and colors. Default aspect ratios include 4:3, 1.85, 2.39:1, 16:9, and Custom (user selectable).
  Power Options
  • Separately available DV, V-Mount, or Gold Mount battery plates can be attached to the rear of the display. A mounted battery can power the monitor, as well as attached accessories, through the 12V LEMO pass-through connection.
  UPC: 850324007236
• Battery Plate for 503/703 UltraBright On-Camera Monitor (Gold Mount) The Gold mount SmallHD Battery Plate for 503/703 UltraBright On-Camera Monitor is designed to work with and power either the SmallHD 503U or 703U on-camera monitor. The battery plate features a solid locking system that prevents your professional battery from accidentally disconnecting. UPC: 855534007021
• Monitor Handles and Neck Strap These Monitor Handles and Neck Strap from SmallHD give you a comfortable way of holding a compatible monitor. Easy to install, the lightweight black rubber handles attach securely to your monitor's side threaded holes using the included screws. The padded neoprene neck strap is adjustable and fastens onto the handles.
  • Anti-slip rubber handles
  • Woven nylon strap with neoprene padding
  • Anti-spin handle connection
  • Easy to install and hold
  UPC: 850324007700
• Thin BNC Cable (12") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 850246006447
• Thin BNC Cable (24") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 857497005960
• Thin BNC Cable (48") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 857497005977
• 2-Pin LEMO to Bare Wire Cable (72") The 2-Pin LEMO to Bare Wire Cable from SmallHD is used to create your own custom power cable. This 72" cable features a 2-pin LEMO connector on one end and two flying leads on the other. The LEMO connector is a compatible power connector for select SmallHD production and on-board monitors, and select third-party wireless transmitters.
  Compatibility
  • Studio Production Monitors:
    1303 Series
    1703 Series
    2403 Series
    3203 HDR

    Field Production Monitors:
    502
    701 Series
    702 Series
    AC7 Series

    Select third-party wireless transmitters
  UPC: 850246006331
• Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors This SmallHD Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors is flexible and features a clear screen with no anti-reflection properties. It protects your screen from incidental contact, scratches, and wear. However, it does not provide impact protection to your screen. UPC: 850324007373
• Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors This SmallHD Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors is flexible and features anti-reflection properties that minimize glare. It protects your screen from incidental contact, scratches, and wear. However, it does not provide impact protection to your screen. UPC: 850324007366
• Microfiber Cleaning Cloth Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use. UPC: 850246006126

• 703 Cage and Hood Kit

• 2-Pin LEMO to D-Tap Power Cable (36")

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x Mounting Screw

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• 703 UltraBright On-Camera Monitor

  Panel Type	TFT LCD
  Display Size	7.0" / 17.8 cm
  Screen Resolution	1920 x 1080
  Aspect Ratio	16:9
  Viewing Angle	Horizontal: 178° (89/89) Vertical: 178° (89/89)
  Maximum Brightness	2200 cd/m2
  Contrast Ratio	1200:1
  Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
  Pixels Per Inch (ppi)	323 ppi
  Color Gamut	70% NTSC
  Image Controls	Blue Only, False Color, Focus Peaking, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Screen Markers, Waveform

  Video	1 x BNC (3G-SDI) Output 1 x HDMI Type A Output 1 x BNC (3G-SDI) Input 1 x HDMI Type A Input
  Embedded Audio	HDMI SDI
  Audio	1 x 3.5 mm Headphone Output
  Built-In Speaker	None
  Power	1 x 2-Pin LEMO Input 1 x 2-Pin LEMO Output
  Card Slot	1 x SD

  Video Format	SDI (10-Bit 4:2:2) 1080p: 23.98/24/25/29.97/30/50/59.94/60 1080PsF: 23.98/24/25/29.97/30 1080i: 50/59.94/60 720p: 23.98/24/25/29.97/30/50/59.94/60 NTSC PAL HDMI (8/10/12-Bit) 1080p: 23.98/24/25/30/50/59.94/60 1080PsF: 23.98/24/25/30 1080i: 50/59.94/60 720p: 23.98/24/25/30/50/59.94/60/100/119.88/120 576p: 50/100 480p: 59.94/60/119.88/120 NTSC: 59.94/60/119.88/120/239.76/240 PAL: 50/100/200

  DC Input Power	6 to 34 VDC
  Battery Type	None
  Power Consumption	13 W

  Mounting	2 x 1/4"-20 Female

  Certifications	CE, FCC, IC, RoHS, as per Manufacturer
  Operating Temperature	0 to 100°F / -17.8 to 37.8°C
  Storage Temperature	-4 to 120°F / -20 to 48.9°C

  Dimensions (W x H x D)	4.9 x 8.4 x 1.1" / 12.4 x 21.3 x 2.9 cm
  Weight	1.7 lb / 748 g

  Box Dimensions (LxWxH)	9.4 x 7.2 x 2.0"

• Battery Plate for 503/703 UltraBright On-Camera Monitor (Gold Mount)

  Dimensions	2.8 x 0.5 x 4.5" / 7.11 x 1.27 x 11.43 cm
  Weight	3.5 oz / 99.2 g

  Box Dimensions (LxWxH)	7.4 x 4.6 x 1.55"

• 703 Cage and Hood Kit

  Box Dimensions (LxWxH)	7.2 x 5.15 x 1.55"

• Monitor Handles and Neck Strap

  Compatibility	MON-701L, MON-702, MON-702-OLED, MON-702BLK, MON-702L & MON-703BOLT MON-503U & MON-703U via cage (available separately)
  Material	Handles: Rubber Strap: Nylon, neoprene padding
  Compliance	CE
  Dimensions	Neck Strap Total Length: 43.3" / 110 cm Body Length: 21.3" / 54 cm Width: 1.6" / 4 cm Handles/Grips Total Length: 4.7" / 12 cm Crossbar Upper Length: 2.8" / 7.0 cm Crossbar Lower Length: 1.2" / 3.0 cm
  Weight	12 oz / 340.2 g

  Box Dimensions (LxWxH)	10.1 x 6.9 x 3.0"

• Thin BNC Cable (12")

  Cable Length	12' / 3.7 m
  Weight	0.1 lb / 0.0 kg

  Box Dimensions (LxWxH)	7.05 x 4.95 x 0.55"

• Thin BNC Cable (24")

  Cable Length	2' / 0.6 m
  Weight	0.1 lb / 0.0 kg

  Box Dimensions (LxWxH)	7.4 x 5.3 x 0.5"

• Thin BNC Cable (48")

  Cable Length	4' / 1.2 m
  Weight	0.1 lb / 0.1 kg

  Box Dimensions (LxWxH)	2.5 x 1.5 x 0.85"

• 2-Pin LEMO to Bare Wire Cable (72")

  Cable Connectors	2-pin LEMO
  Length	72" (183 cm)

  Box Dimensions (LxWxH)	5.05 x 4.35 x 0.85"

• Clear Screen Protector for 703 Bolt and 703 UltraBright Monitors

  Dimensions

  6.56 x 4.69" / 16.67 x 11.91 cm

  Box Dimensions (LxWxH)	8.8 x 5.7 x 0.1"

• Ultra Matte Screen Protector for 703 Bolt and 703 UltraBright Monitors

  Dimensions

  6.56 x 4.69" / 16.67 x 11.91 cm

  Box Dimensions (LxWxH)	9.0 x 5.85 x 0.1"

• Microfiber Cleaning Cloth

  Box Dimensions (LxWxH)	4.0 x 3.1 x 0.2"
