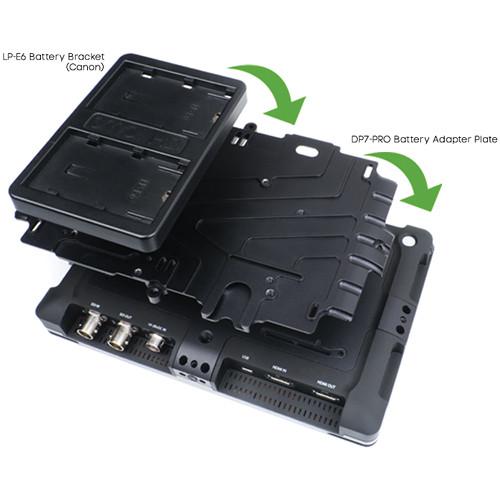

Product description Power your DP7 monitor with easily available LP-E6 batteries using this SmallHD Canon LP-E6 Power Kit. This all-inclusive power solution combines the DP7-PRO Battery Adapter Plate and the LP-E6 Battery Bracket and includes all parts necessary for installation. See below for more information on the individual items in this kit. - Battery Adapter Plate for DP7-PRO Field Monitor The SmallHD Battery Adapter Plate will allow you to attach a SmallHD, Gold Mount, V-Mount, or LP-E6 battery bracket to your DP7-PRO field monitor. The adapter plate is constructed of solid milled aluminum and features multiple mounting points for the SmallHD battery brackets. It also provides additional cooling for your field monitor.
- Mounting option for Gold Mount, V-Mount, or LP-E6 battery bracket
- Solid aluminum construction
UPC: 857497005601 - Canon LP-E6 Battery Bracket for DP7-PRO Series Field Monitor Have spare LP-E6 batteries lying around? Use this SmallHD Canon LP-E6 Battery Bracket to power your DP7-PRO monitor. Mounting on the separately available DP7-PRO Battery Adapter Plate, the LP-E6 Battery Bracket holds two LP-E6 batteries, powering the monitor by running the batteries in series for a 14.8V output. Because of this operation, two batteries must be installed for the monitor to operate. Two fully charged batteries will power the DP7-PRO for approximately 96 minutes.
- Powers a DP7-PRO-OLED field monitor for 1.6 hours off two batteries
- Seats against the back of your DP7 field monitor
UPC: 857497005540 In the Box Bundle Items Battery Adapter Plate for DP7-PRO Field Monitor sqzwteqqetdestxteatbscbzqutbwscdce Canon LP-E6 Battery Bracket for DP7-PRO Series Field Monitor Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD Canon LP-E6 Power Kit for DP7 Field Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Battery Adapter Plate for DP7-PRO Field Monitor
| Dimensions (H x W x D) | Not specified by manufacturer | | Weight | 5 oz (141 g) | | | | Box Dimensions (LxWxH) | 7.7 x 5.1 x 1.7" | - Canon LP-E6 Battery Bracket for DP7-PRO Series Field Monitor
| Battery Type | LP-E6 | | Output Voltage | 14.8 VDC | | Capacity | 28 Wh | | Compatibility | Field Monitors:
DP7-PRO-HIGH-BRIGHT
DP7-PRO-OLED
DP7-PRO-LCD | | Dimensions (H x W x D) | 4.5 x 2.5 x 0.4" (11.4 x 6.3 x 1.0 cm) | | Weight | 1.2 oz (34 g) | | | | Box Dimensions (LxWxH) | 5.1 x 3.05 x 1.0" |
