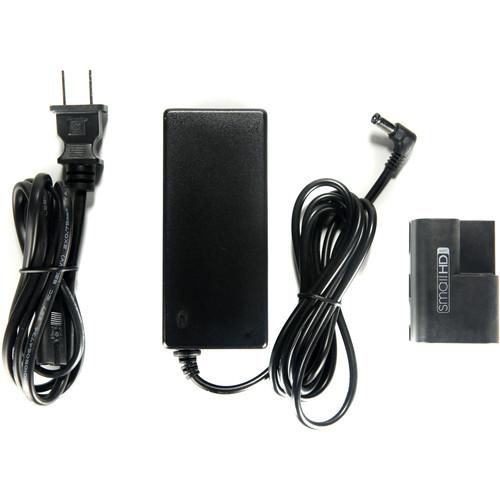

User Manual for SmallHD Faux LP-E6 Barrel Adapter and Power Cable Click to enlarge the picture
Contents of the user manual for the SmallHD Faux LP-E6 Barrel Adapter and
- Product category: Monitors SmallHD
- Brand: SmallHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallHD Monitors
|
User manual for the SmallHD Faux LP-E6 Barrel Adapter and contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallHD product will considerably shorten its lifespan!
|
Product description The Faux LP-E6 Barrel Adapter and Power Cable from SmallHD enables the use of a barrel power source with 500 and 700 series field monitors. The adapter takes the form of an LP-E6 dummy battery and mounts to one of the monitor's battery slots. The included barrel to AC power cable connects the adapter to the barrel output found on many professional batteries, giving you a longer-lasting power source than supplied by LP-E6 batteries. - Faux LP-E6 Battery with DC Barrel Connector The Faux LP-E6 Battery from SmallHD is shaped like a Canon LP-E6 battery, allowing you to power your 500 and 700 series monitors from your professional power source through its DC barrel input connection.
- Uses system power, requiring less battery changes during a shoot
- Draws power from the D-Tap/P-Tap output on a professional battery system such as Anton Bauer, IDX, or BLUESHAPE
- Powers devices designed to use Canon LP-E6 type batteries
UPC: 857497005830 - 12V-2A US Power Supply for Select SmallHD Monitors The 12V-2A US Power Supply from SmallHD is compatible with the DP1, DP1X, DP4, DP4-EVF, DP6 series, and AC7 series monitors. The power supply supports worldwide power standards and comes with a US detachable power plug/outlet cable, which can be swapped out for an international plug/outlet power cable (sold separately).
- Supports the DP1, DP1X, DP4-EVF, DP6, and AC7 series monitors
- Accepts worldwide power, and features an interchangeable AC power cord
- US power cord included—other cords available, but not included
UPC: 609456870207 In the Box Bundle Items Faux LP-E6 Battery with DC Barrel Connector vfwqzcrzxcbueayqsrsywcaw 12V-2A US Power Supply for Select SmallHD Monitors Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD Faux LP-E6 Barrel Adapter and Power Cable in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - Faux LP-E6 Battery with DC Barrel Connector
| Connector | DC female barrel | | Voltage | 6 to 30 V | | Output Voltage | 6.4 VDC | | Dimensions | 2.3 x 1.5 x 1.0" / 5.7 x 3.8 x 2.5 cm | | Weight | 1.4 oz / 39.7 g | | | | Box Dimensions (LxWxH) | 2.55 x 1.7 x 1.1" | - 12V-2A US Power Supply for Select SmallHD Monitors
| Compatibility | DP1, DP1X, DP4, DP4-EVF, DP6 series and AC7 series monitors | | Output | 12 VDC, 2 A | | Input | 110 - 240 VAC, 50/60 Hz | | Plug Style | Output: 5.5 mm DC male barrel (inner diameter 2.1 mm)
Wall: 2-pin (no ground) | | | | Box Dimensions (LxWxH) | 7.25 x 3.85 x 1.55" |
