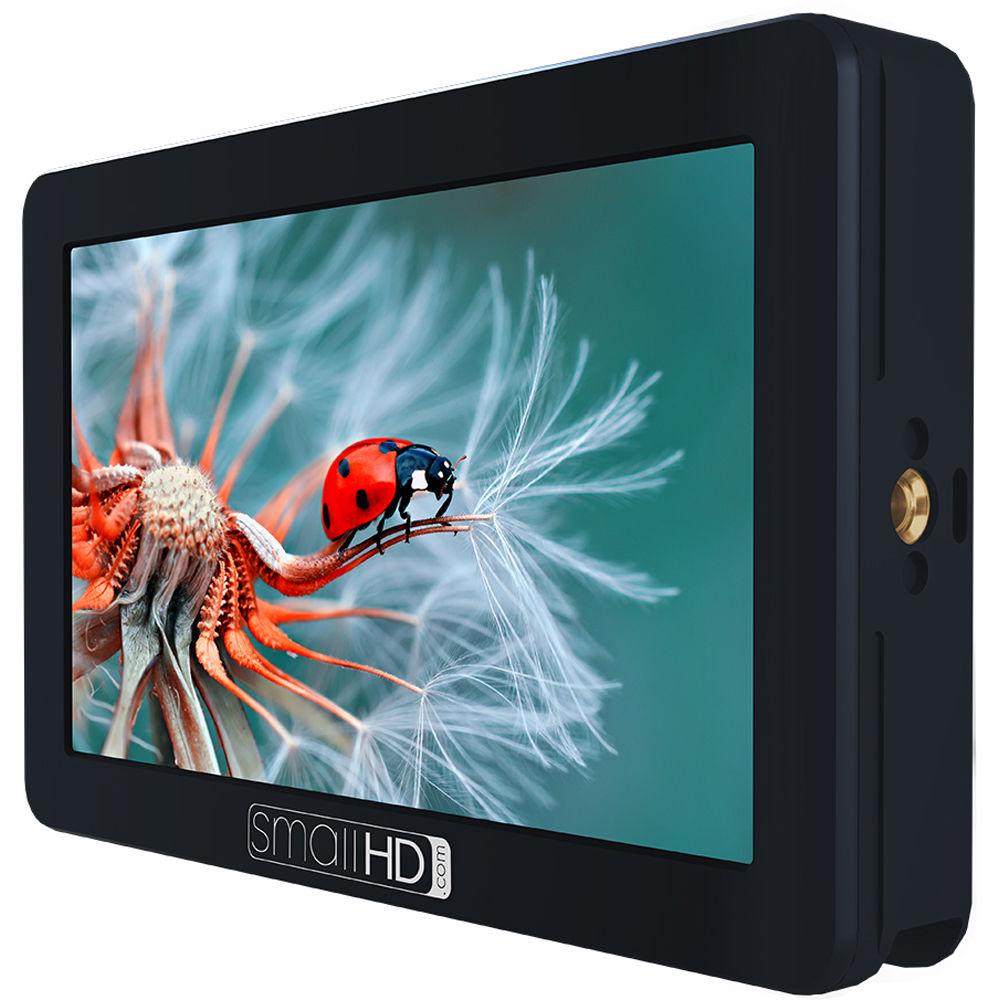

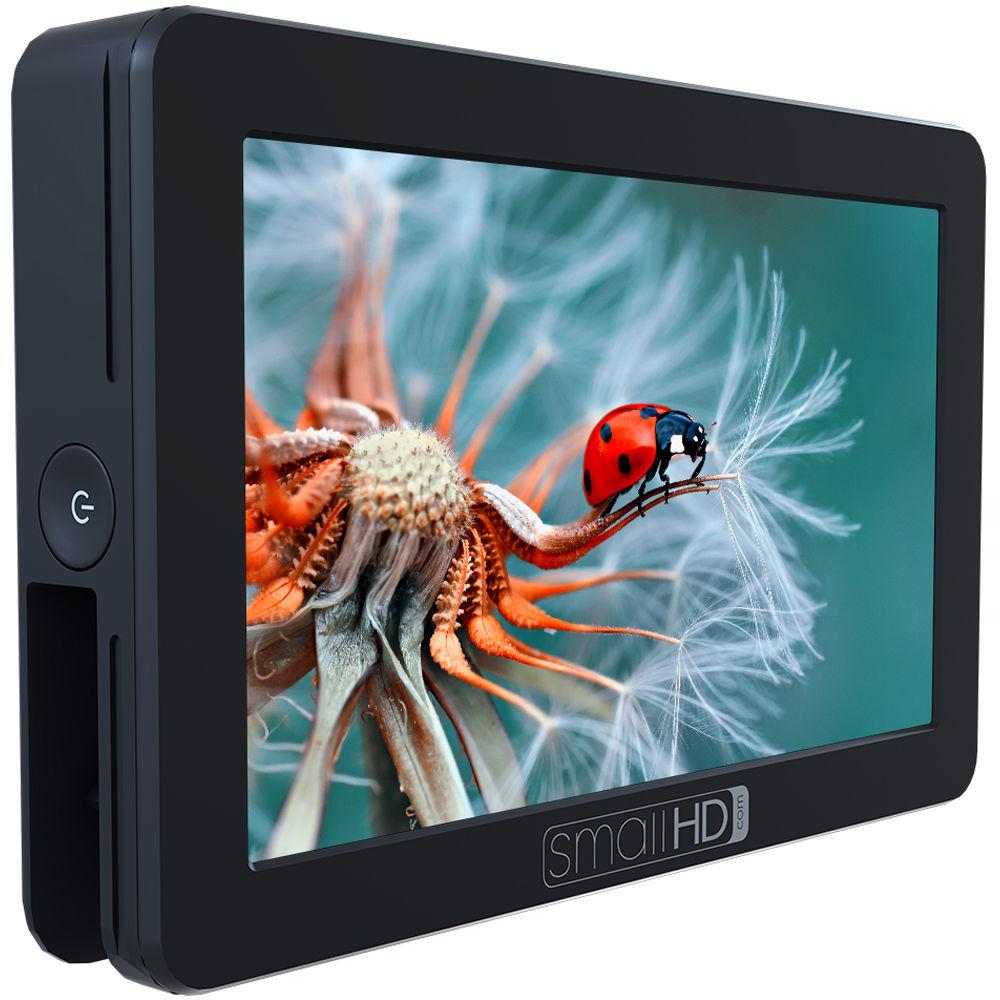

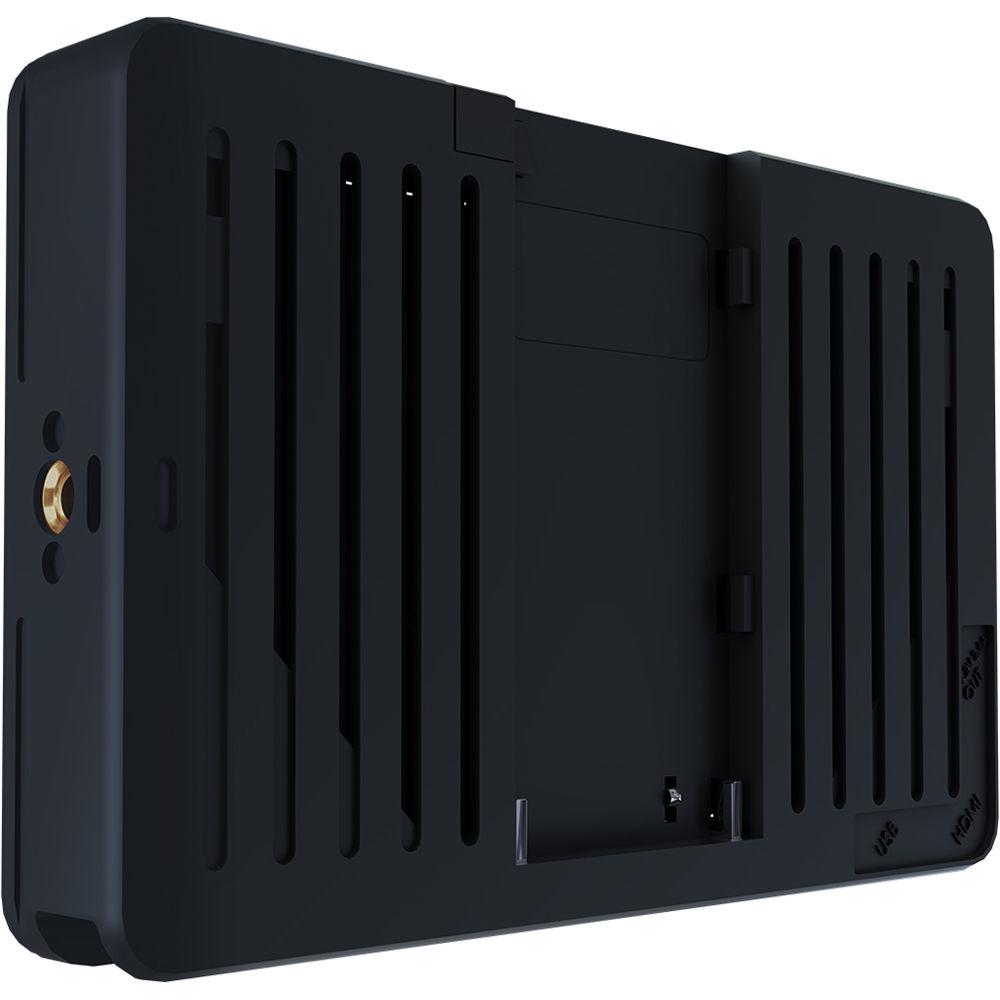

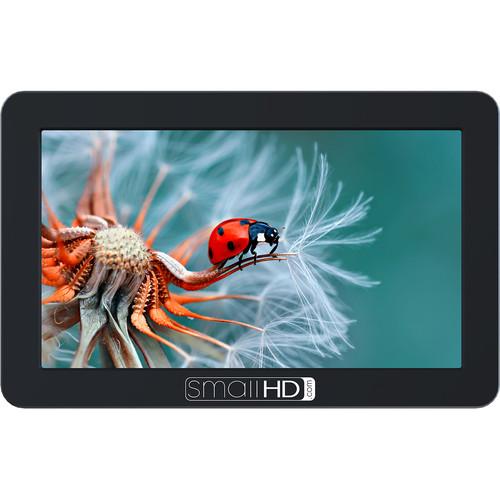

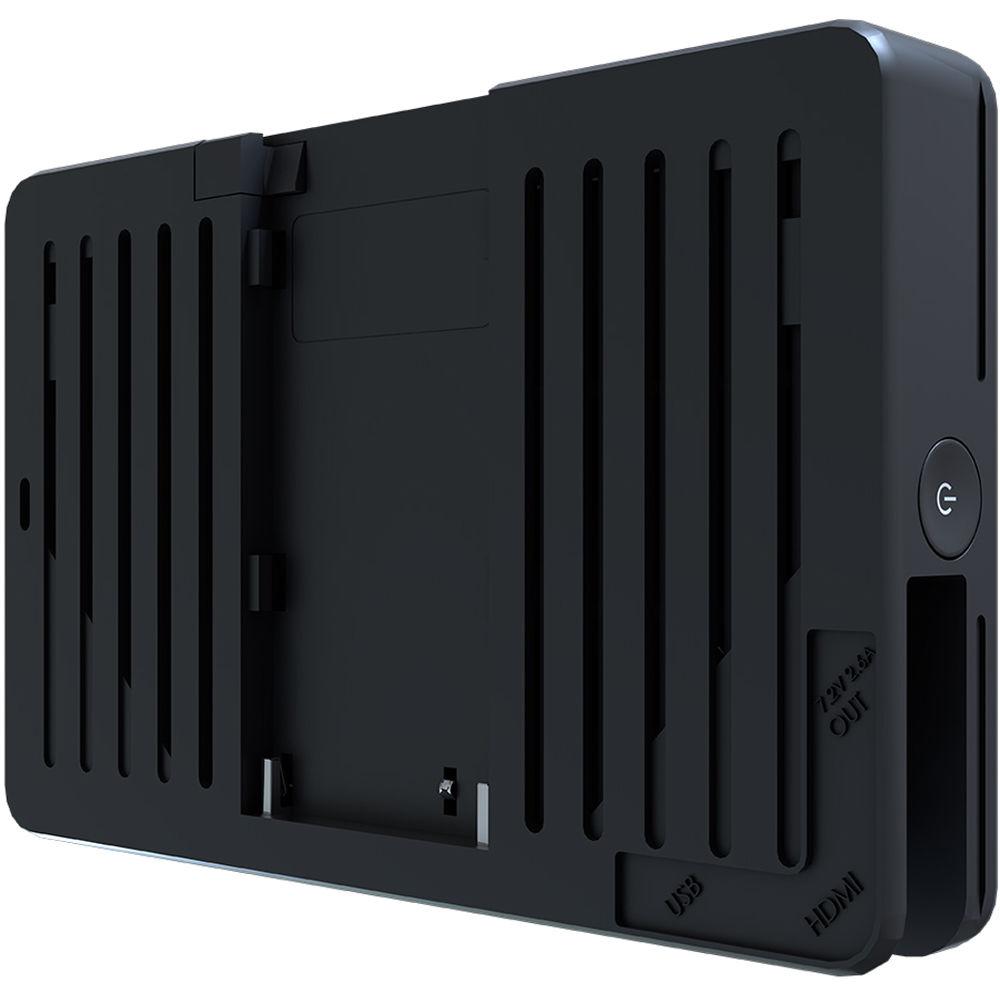

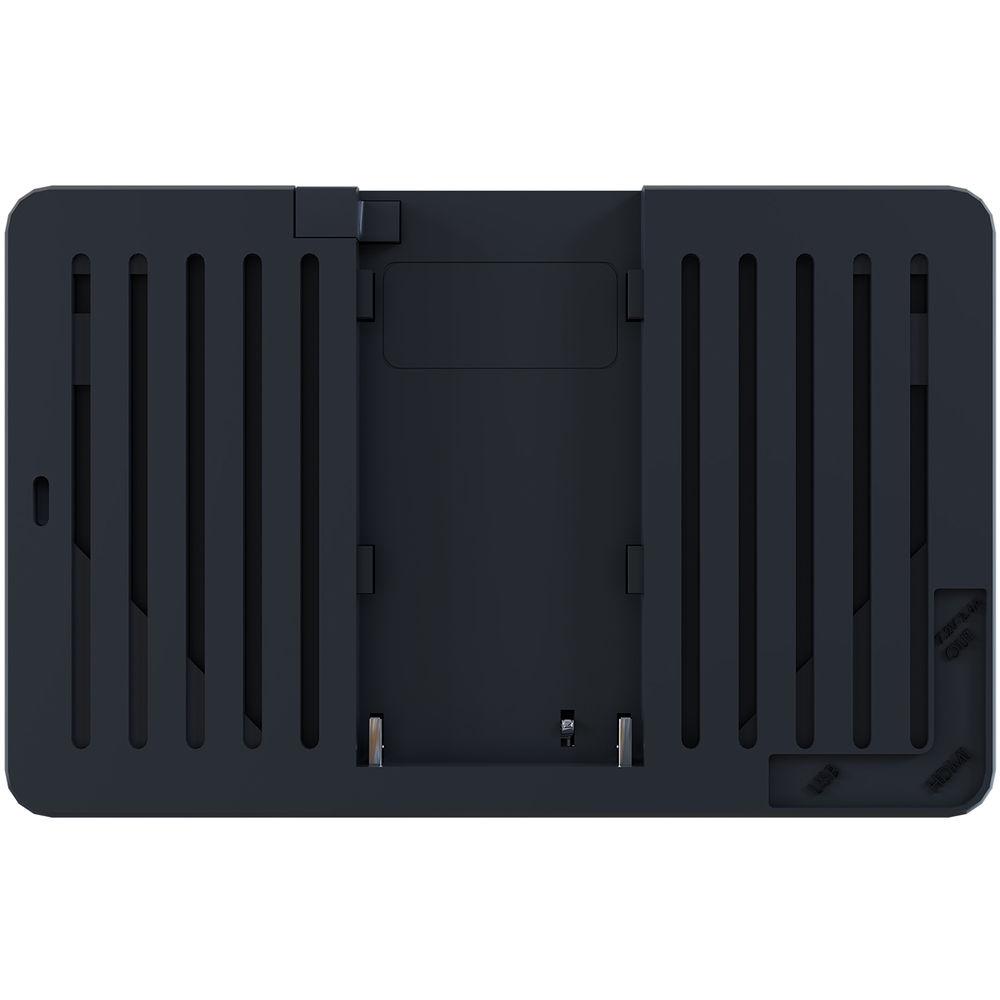

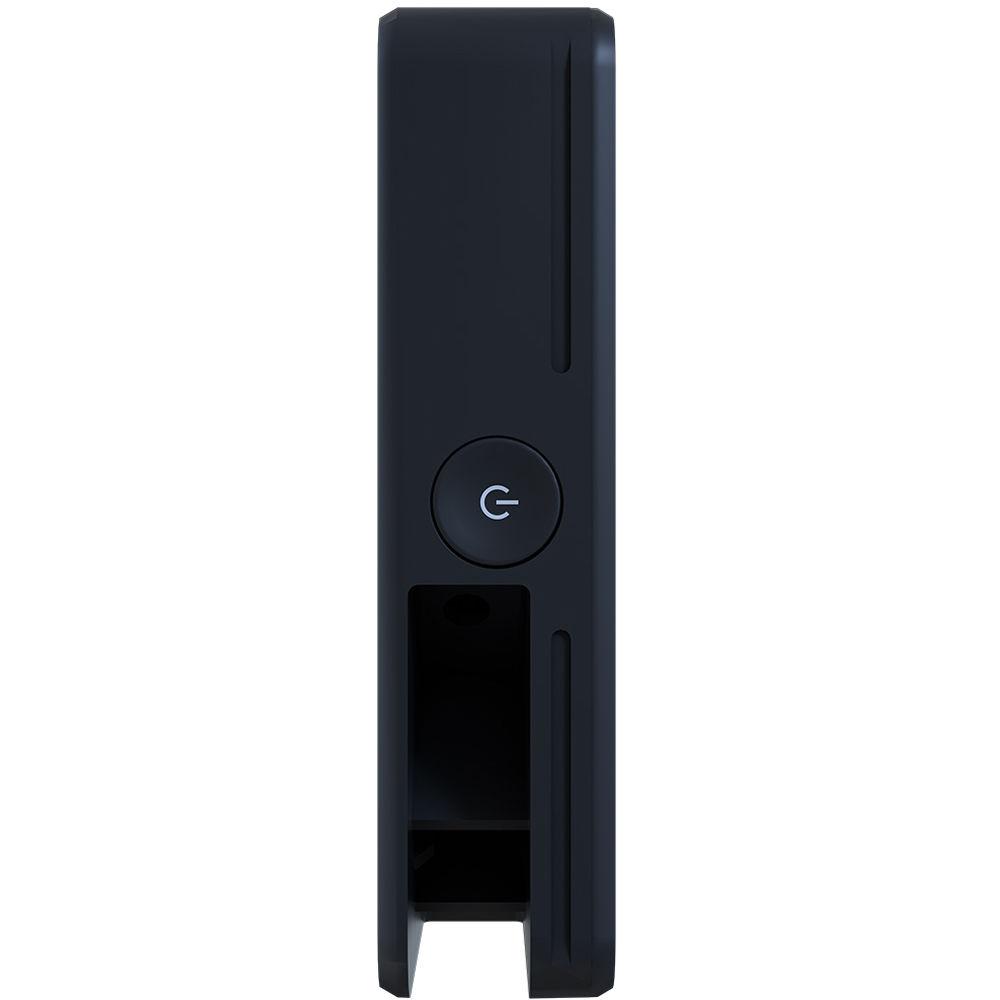

Product description Choose Your Own Accessories with SmallHD's FOCUS Base Monitors Read More rffqfsbtcz Designed to add professional monitoring tools to DSLR and mirrorless cameras, the SmallHD FOCUS 5" Base HDMI On-Camera Monitor is bright, lightweight, and features a sharp display. The 800 cd/m² bright touchscreen, 1280 x 720 IPS LCD panel can be viewed in daylight and is driven by a single micro-HDMI input. Coupling the touchscreen display with SmallHD's intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap on the screen. If your camera outputs UHD 4K over HDMI, the FOCUS will support that input resolution as well as HD and SD. At the rear of the monitor, a single NP-F battery bay accepts a separately available L-series battery for power, while an integrated power output can also power your camera with a separately available DC coupler. - OS3
- Built on SmallHD's intuitive PageBuilder OS, OS3 offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different pages. Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
- Software Features
-
- Pixel zoom: 2x and 4x with smooth pan via pinch zoom gesture
- Frame guides: Preset aspect ratios and customizable
- DSLR scale: Canon 5D Mark II and 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image rotate: Automatic or manual control
- Image flip: Automatic or manual control
- Focus assist: User-adjustable color style and intensity
- Peaking: User-adjustable intensity
- False color spectrum: ARRI-style and user customizable
- Zebra: Dual, user configurable
- Waveform: Luma and RGB style, fully user customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: User customizable
- Histogram: Luma and RGB style
- Image capture: Dedicated button and image gallery
- Custom LUTS: Loadable as looks on pages or as system-wide color calibration via the settings menu
- LUT downstream: Applied on output preview page
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: Up to 8-channel
- Camera Setup Integration
- This monitor complements smaller cameras by providing power output and a headphone jack. The power output lets you power your camera directly from the NP-F battery (sold separately) mounted on the monitor, increasing runtimes over the standard batteries of many mirrorless cameras. If your camera doesn't have a headphone jack, the FOCUS de-embeds the audio from the HDMI stream for real-time feedback of audio.
- Power Output
- Instead of powering your on-camera monitor from your DSLR or mirrorless camera, and quickly draining the camera's internal battery, the FOCUS monitor allows you to power your camera from the monitor instead (requires optional dummy battery for your specific camera). This output is active even if the monitor is turned off.
- Convenient Mounting
- The FOCUS monitor secures to your camera using the optional FOCUS Tilt Arm via shoe mount or 1/4"-20 thread.
UPC: 811786030873 In the Box SmallHD FOCUS 5" Base HDMI On-Camera Monitor Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS 5" Base HDMI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD Focus Specs | | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1280 x 720 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° | | Touchscreen | Yes | | Maximum Brightness | 800 cd/m2 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 294 ppi | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Image Flip, Pixel-to-Pixel Zoom, RGB Parade, Waveform, Zebra, Vectorscope | | | | Video | 1 x HDMI Type D Input | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Other I/O | 1 x USB 2.0 (Micro-USB) | | Card Slot | 1 x SD | | | | Video Format | HDMI (8/10/12-Bit)
UHD 4K: 30/29.97/23.98
1080p: 60/59.94/50/30/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
NTSC: 240/239.76/120/119.88/60/59.94
PAL: 200/100/50 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 1 x L-Series | | | | Dimensions (W x H x D) | 0.75 x 3.3 x 5.25" / 1.91 x 8.38 x 13.34 cm | | Weight | 6.1 oz / 173 g | | | | Package Weight | 0.75 lb | | Box Dimensions (LxWxH) | 6.8 x 4.7 x 1.8" |
