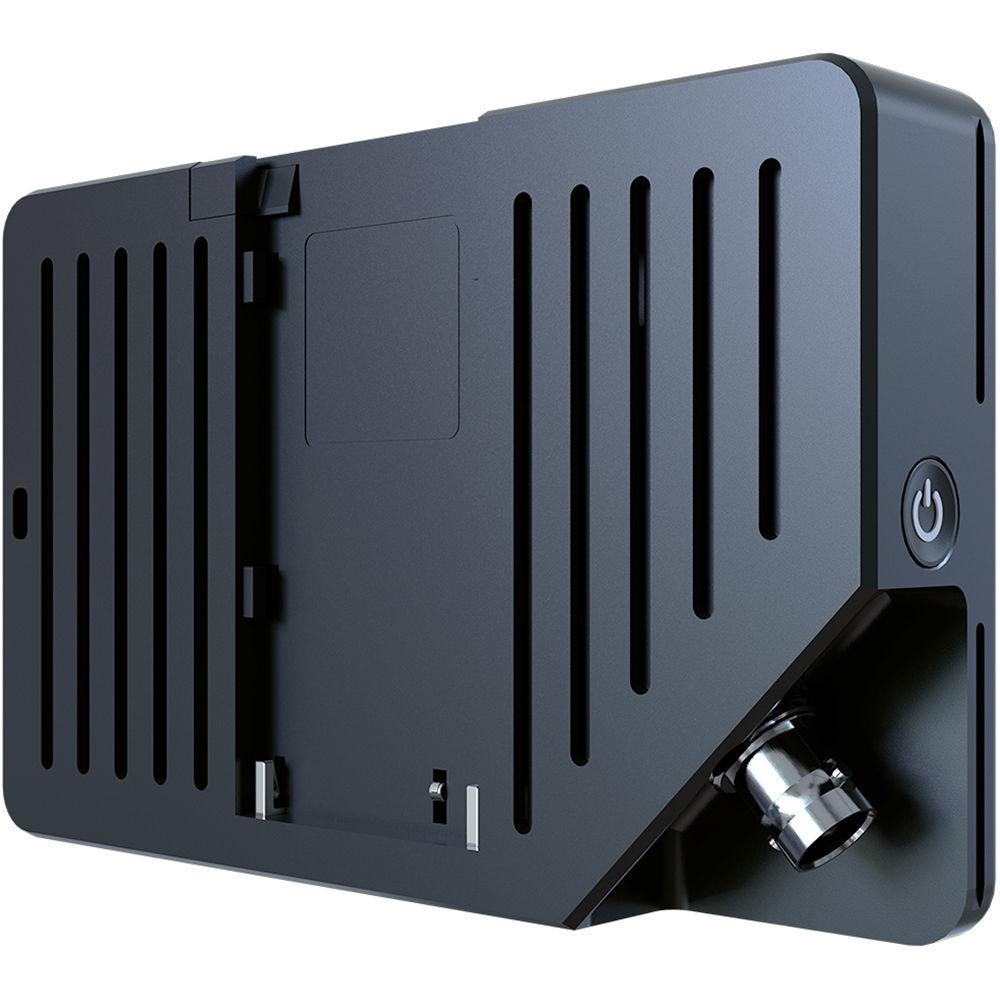

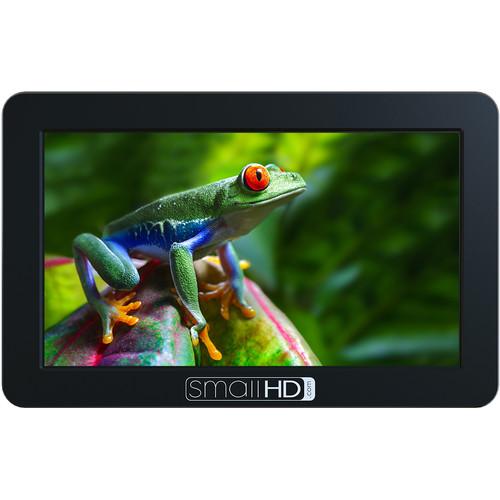

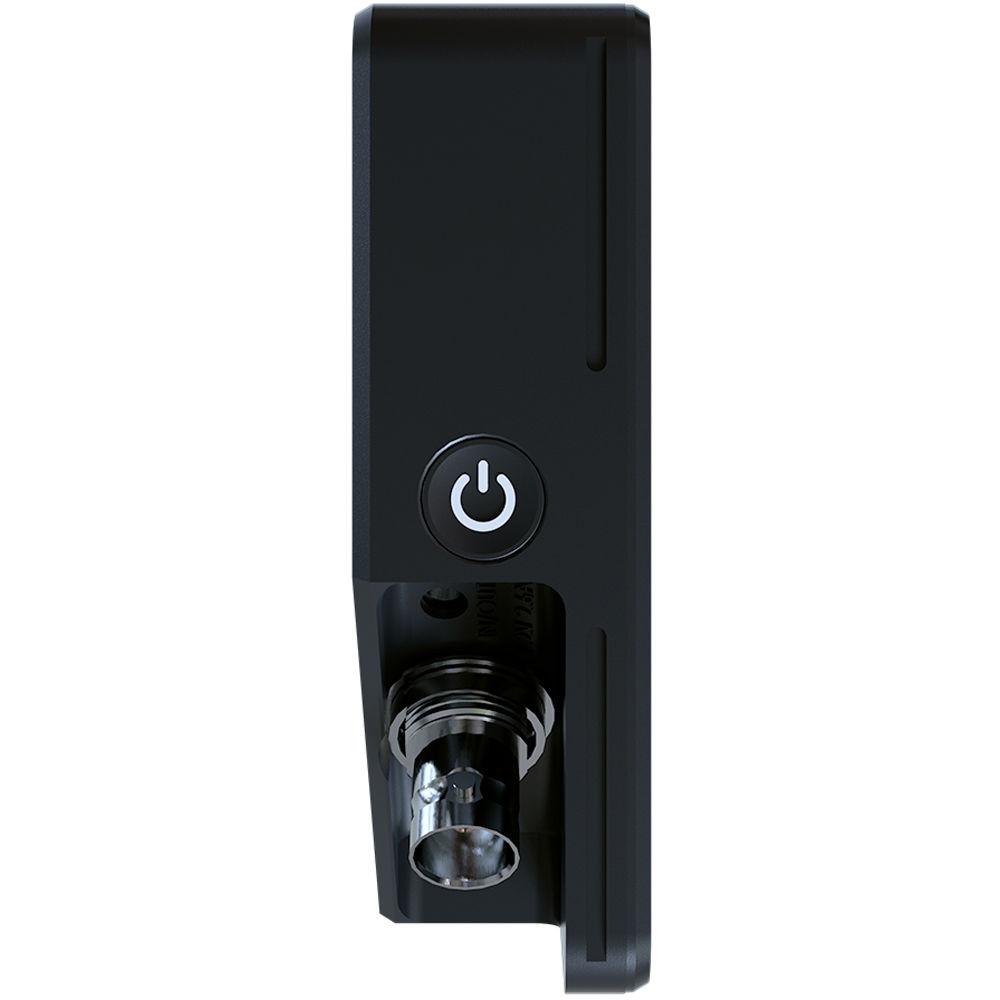

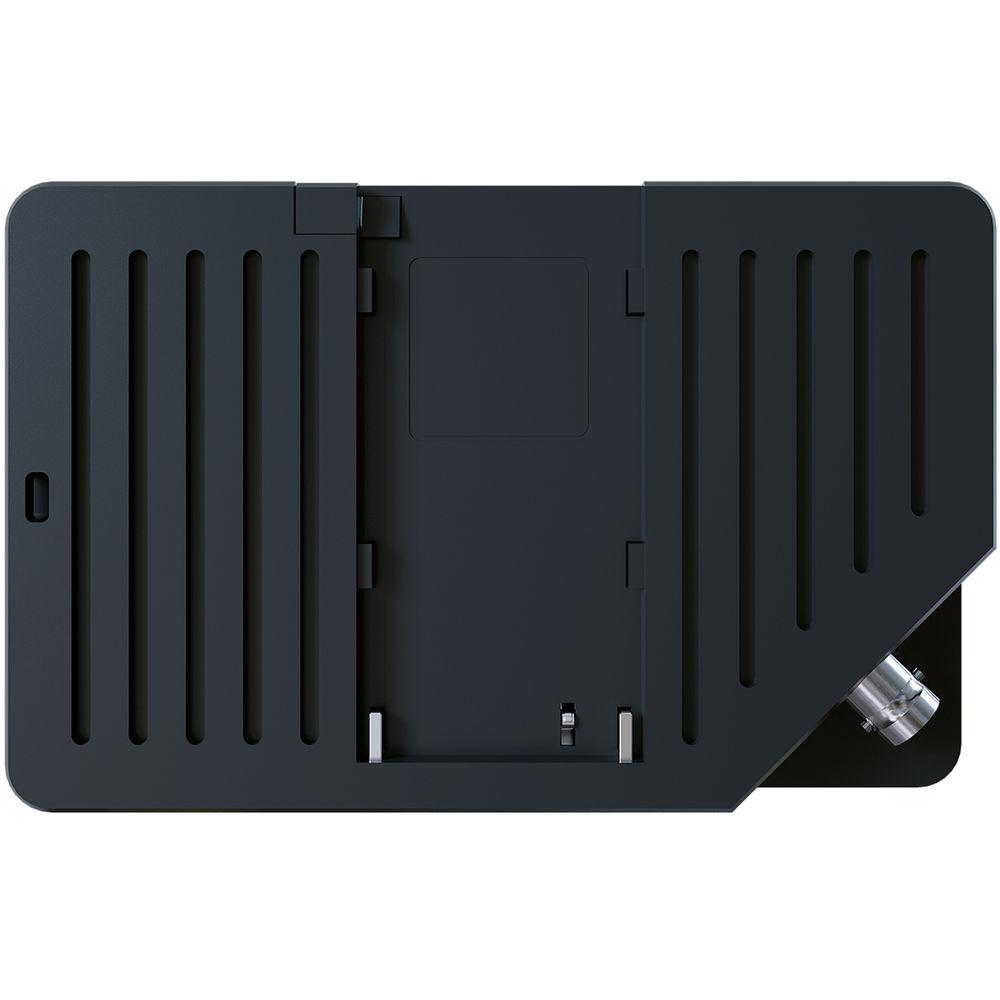

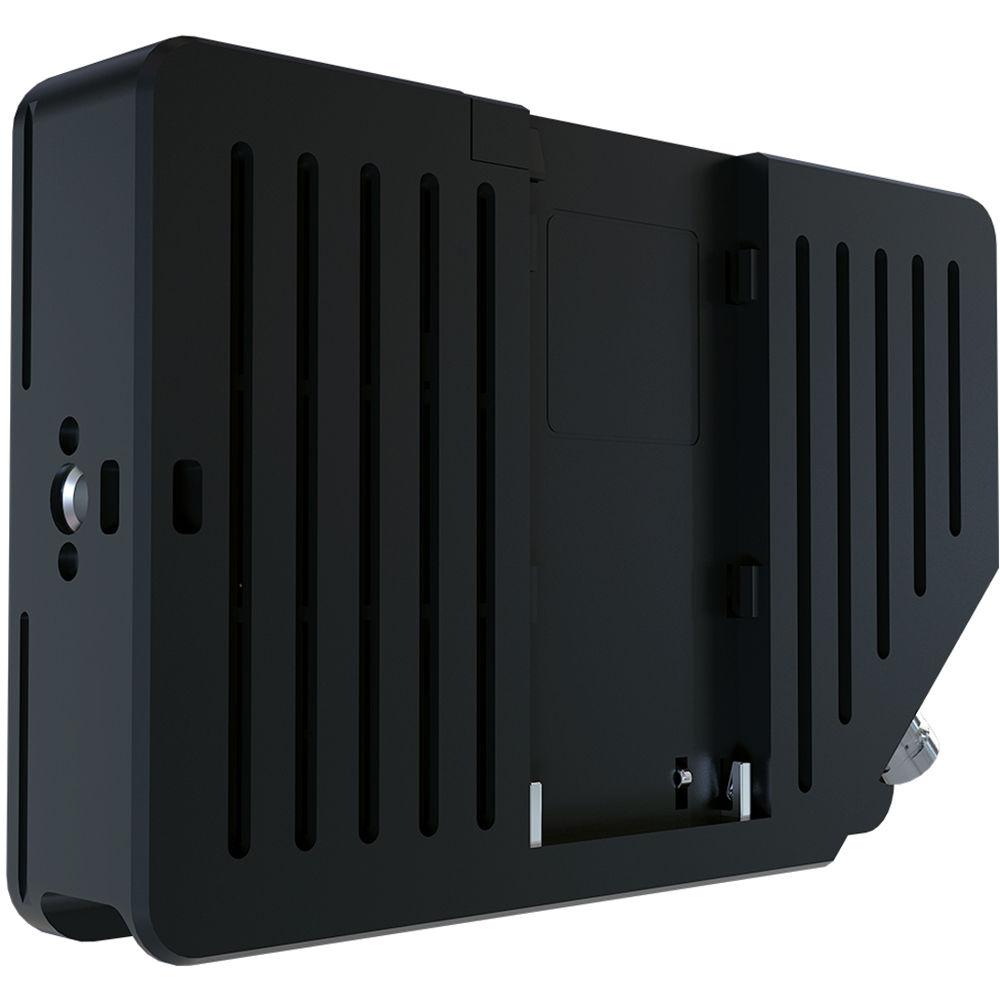

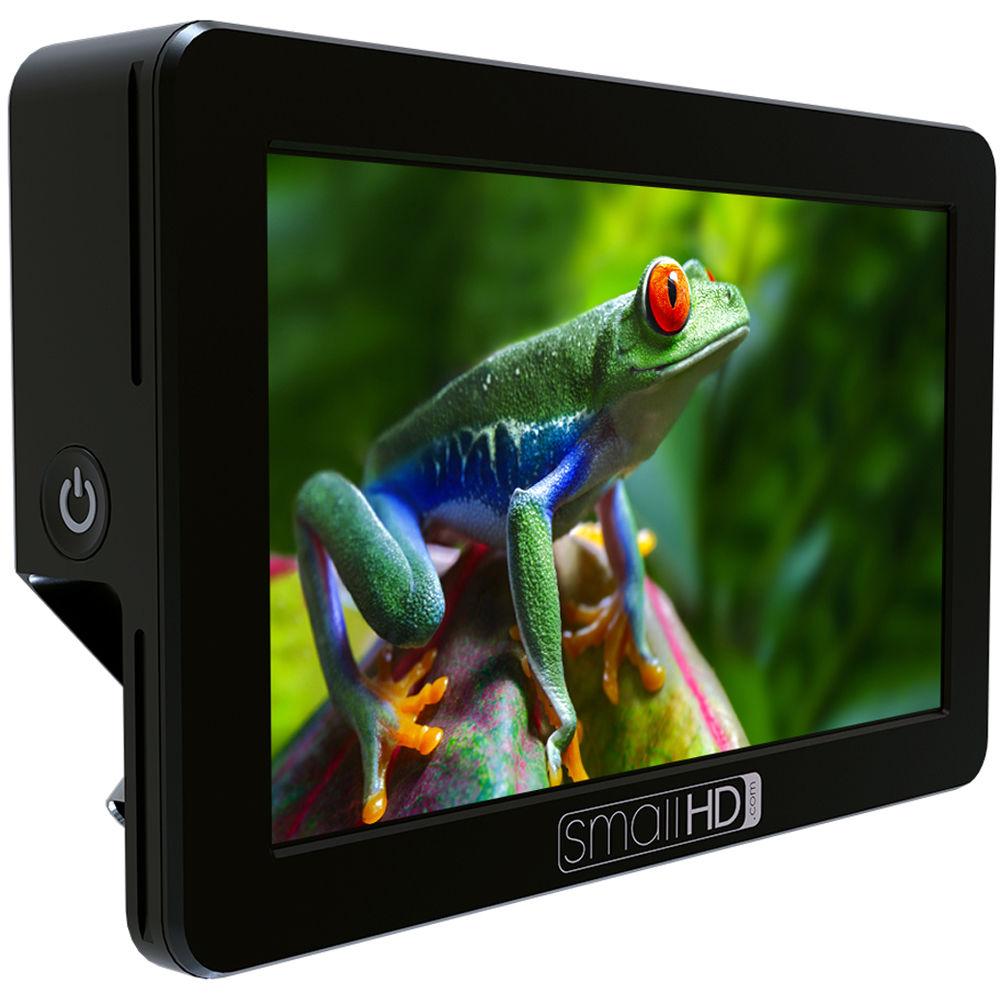

Product description Choose Your Own Accessories with SmallHD's FOCUS Base Monitors Read More The SmallHD FOCUS 5" Base SDI On-Camera Monitor provides a compact, professional SDI monitoring option suitable for use with DSLR and mirrorless cameras. This bright, lightweight onboard monitor features a sharp display that is viewable even in full daylight. The 800 cd/m² bright touchscreen 1280 x 720 IPS LCD panel is fed by a single 3G/HD/SD-SDI (BNC) input and is crisp enough for pulling focus. Powered by a single Sony L-series type battery, this versatile monitor can also supply power to your camera when used with a separately available adapter cable.
Coupling the touchscreen display with SmallHD's intuitive OS3 you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap on the screen. OS3 also allows you to load and save profiles and load custom LUTs. Additional features include a 3.5mm stereo headphone jack and a low 5W power draw. - OS 3
- Built on SmallHD's intuitive PageBuilder OS, OS3 offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different pages. Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
- Software Features
-
- Pixel zoom: 2x and 4x with smooth pan via pinch zoom gesture
- Frame guides: Preset aspect ratios and customizable
- DSLR scale: Canon 5D Mark II and 7D
- Custom scale: Underscan only
- Anamorphic de-squeeze: 1.33x, 1.5x, 1.66x, 2.0x
- Image rotate: Automatic or manual control
- Image flip: Automatic or manual control
- Focus assist: User-adjustable color style and intensity
- Peaking: User-adjustable intensity
- False color spectrum: ARRI-style and user customizable
- Zebra: Dual, user configurable
- Waveform: Luma and RGB style, fully user customizable with region of interest highlighting
- Vectorscope: Yes
- RGB parade: User customizable
- Histogram: Luma and RGB style
- Image capture: Dedicated button and image gallery
- Custom LUTS: Loadable as looks on pages or as system-wide color calibration via the settings menu
- LUT downstream: Applied on output preview page
- LUT import: Via SD card or USB storage device
- Image overlay: Opacity slider and blink setting
- Audio meters: Up to 8-channel
- Display Features
-
- Supports up to UHD 4K video
- SD card slot for loading custom LUTs
- Wide color gamut display
- 2x and 4x pixel zoom
- 1.33x, 1.5x, 1.66x, and 2.0x anamorphic de-squeeze
- Automatic/manual image flip and rotation
- Waveform, zebra, and vectorscope
- Preset and custom frame guides
- Camera Power
- Instead of powering your on-camera monitor from your DSLR or mirrorless camera, and quickly draining the camera's internal battery, the FOCUS monitor allows you to power your camera from the monitor instead (requires optional dummy battery for your specific camera). This output is active even if the monitor is turned off.
- Convenient Mounting
- Attach the FOCUS OLED monitor to your camera's shoe or 1/4"-20 thread using the optional FOCUS Tilt Arm.
UPC: 811786030880 In the Box SmallHD FOCUS 5" Base SDI On-Camera Monitor Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS 5" Base SDI On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD Focus Specs | | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1280 x 720 | | Aspect Ratio | 16:9 | | Viewing Angle | 160° | | Touchscreen | Yes | | Maximum Brightness | 800 cd/m2 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Color Gamut | 70% NTSC | | Real-Time LUT Monitoring | SDR | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Screen Markers, Underscan, Waveform, Zebra, Vectorscope | | | | Video | 1 x BNC (3G-SDI) Input | | Embedded Audio | SDI | | Audio | 1 x 3.5 mm Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Output | | Other I/O | 1 x USB 2.0 (Micro-USB) For future use | | Card Slot | 1 x SD | | | | Video Format | SDI (10-Bit 4:2:2 YCC)
1080p: 60/59.94/50
1080i: 60/59.94/50
NTSC: 29.97
PAL: 50
SDI (4:4:4/4:2:2)
1080p: 60/30/25/24/23.98
1080PsF: 29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 1 x L-Series | | Power Consumption | 5.04 W | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | 32 to 140°F / 0 to 60°C | | | | Dimensions (W x H x D) | 0.75 x 3.3 x 5.25" / 1.91 x 8.38 x 13.34 cm | | Weight | 6.1 oz / 173 g |
