User Manual for SmallHD FOCUS 5" Touchscreen On-Camera Monitor Bundle for Sony a7 III a9 Cameras Click to enlarge the picture
Contents of the user manual for the SmallHD FOCUS 5" Touchscreen On-Camera Monitor
- Product category: On Camera Monitors SmallHD
- Brand: SmallHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallHD On Camera Monitors
 |
User manual for the SmallHD FOCUS 5" Touchscreen On-Camera Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallHD product will considerably shorten its lifespan!
|

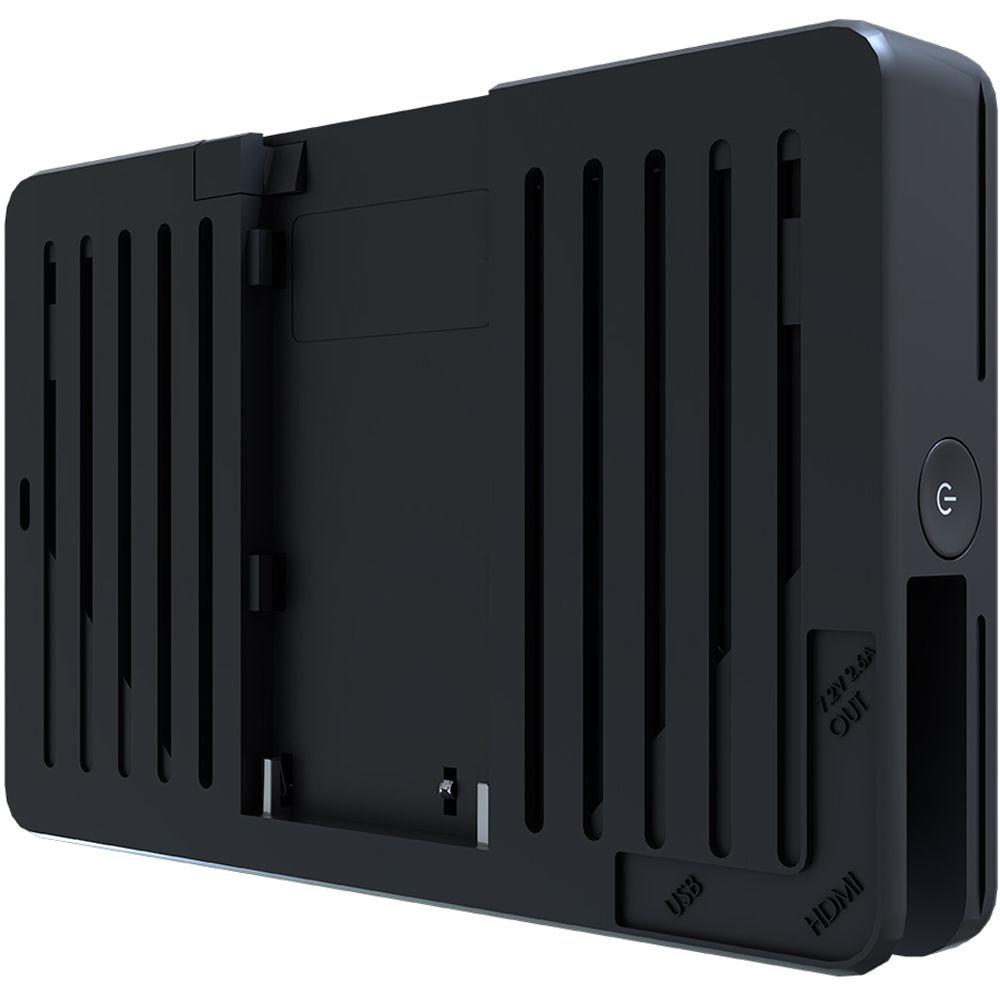

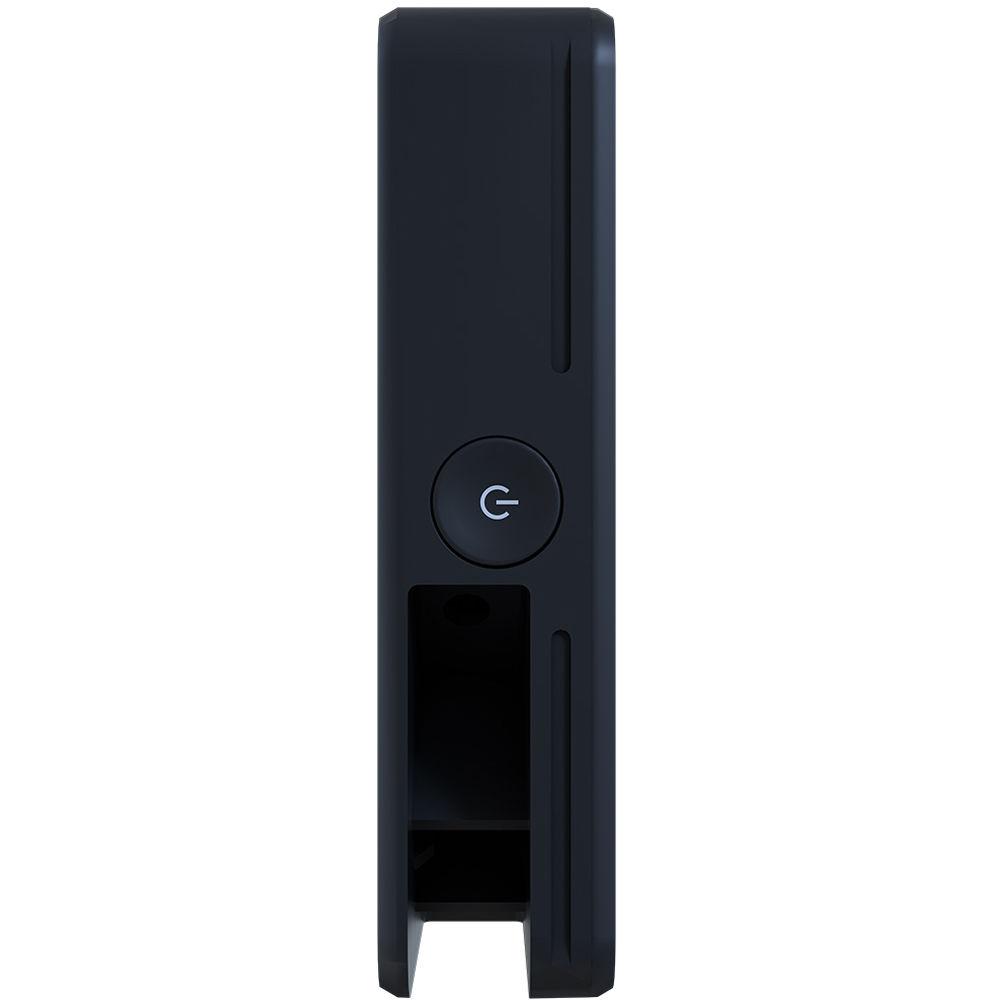

Product description Designed to add professional monitoring tools to Sony a7 III, a7R III, and a9 cameras, this SmallHD FOCUS 5" Touchscreen On-Camera Monitor Bundle includes the SmallHD FOCUS 5" LCD on-camera monitor, a FOCUS tilt arm, a FOCUS to Sony NP-FZ100 battery adapter, an L-series battery, charger with international power adapter, four cable clips, a 12" micro-HDMI cable, a 12" micro-USB cable, a micro-HDMI male to HDMI type A female adapter, and an UltraClear screen protector.

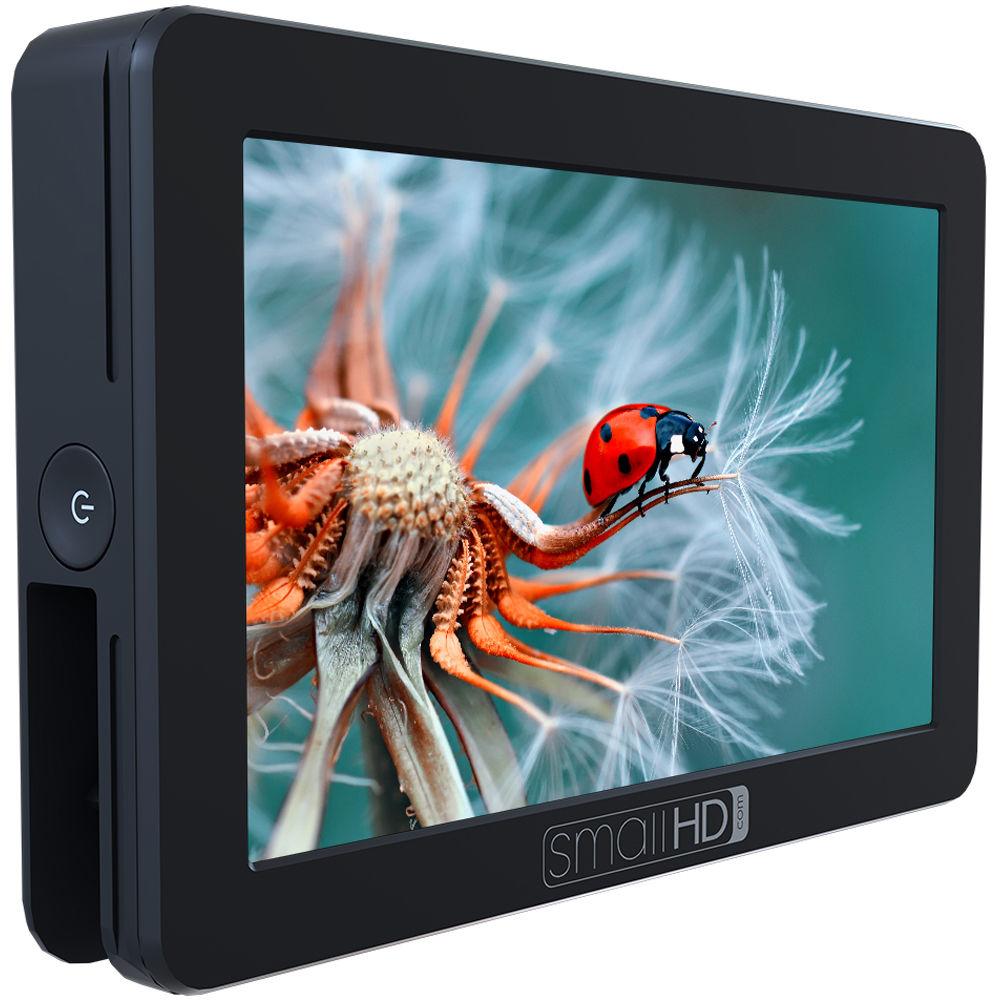

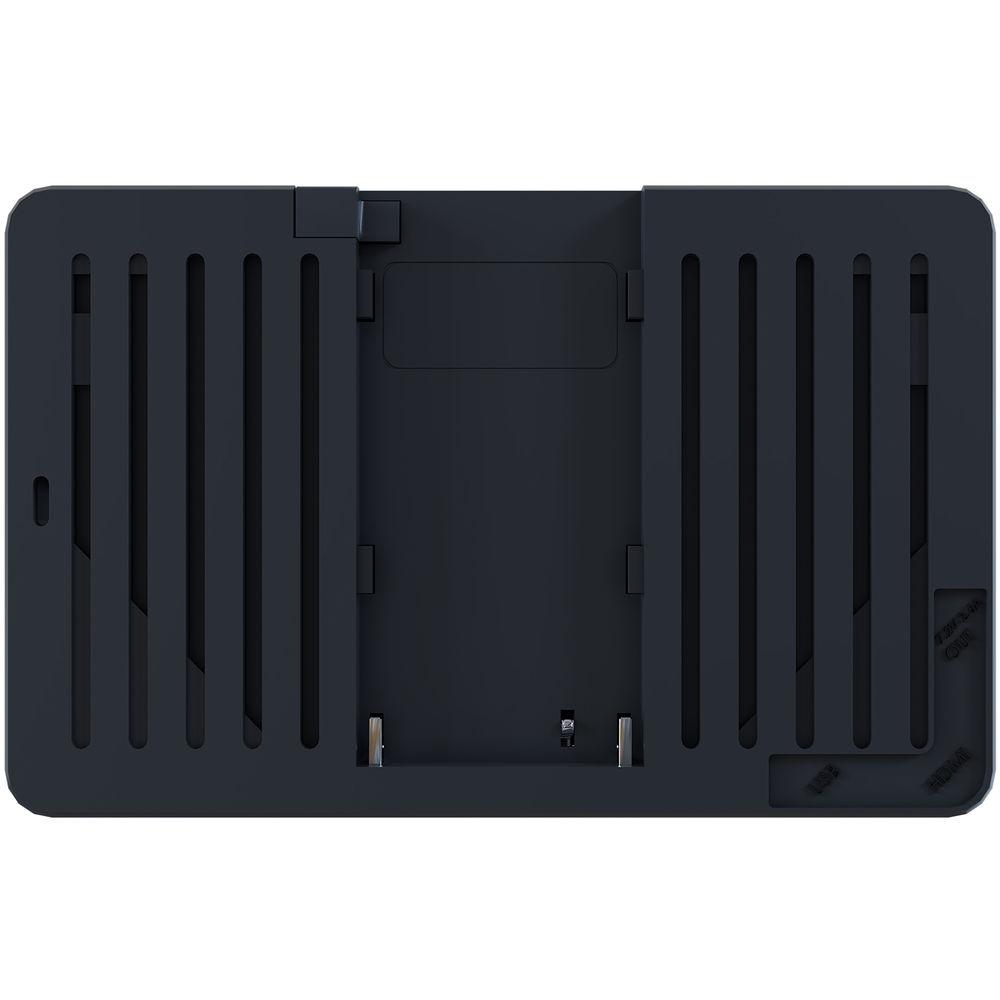

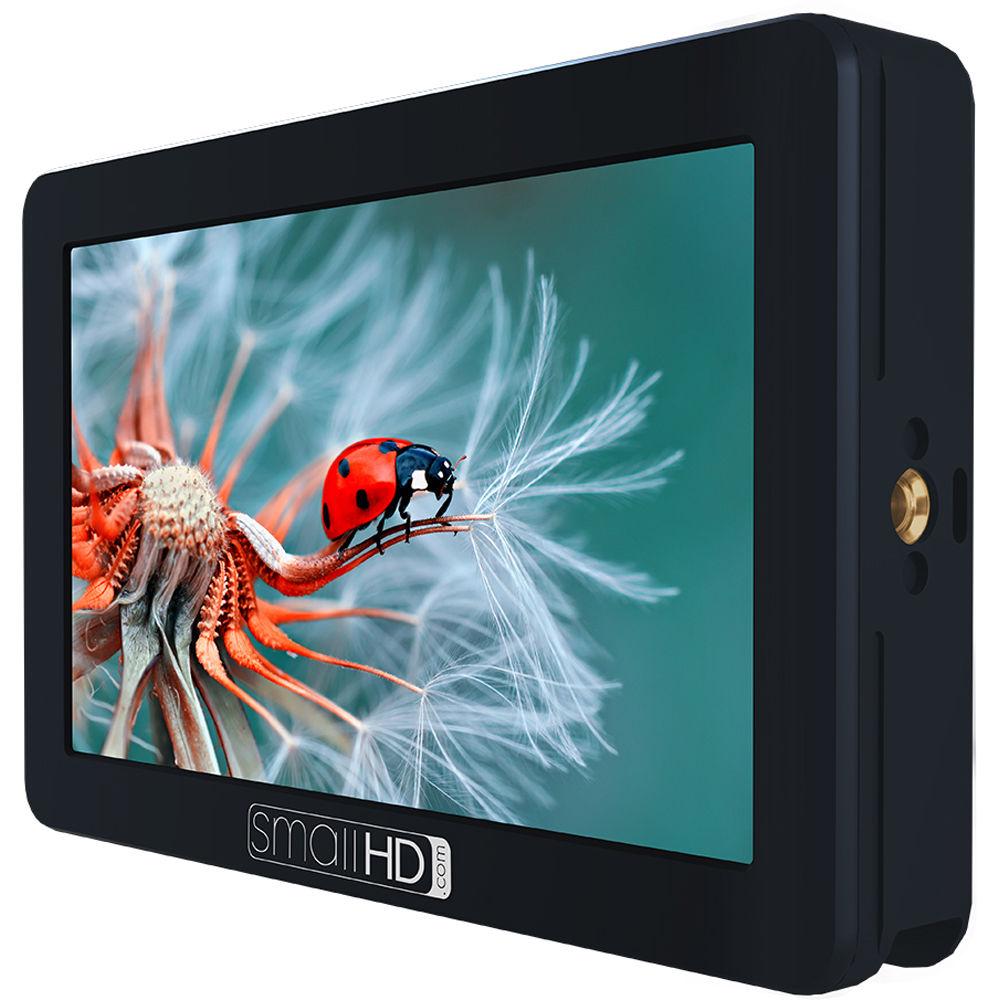

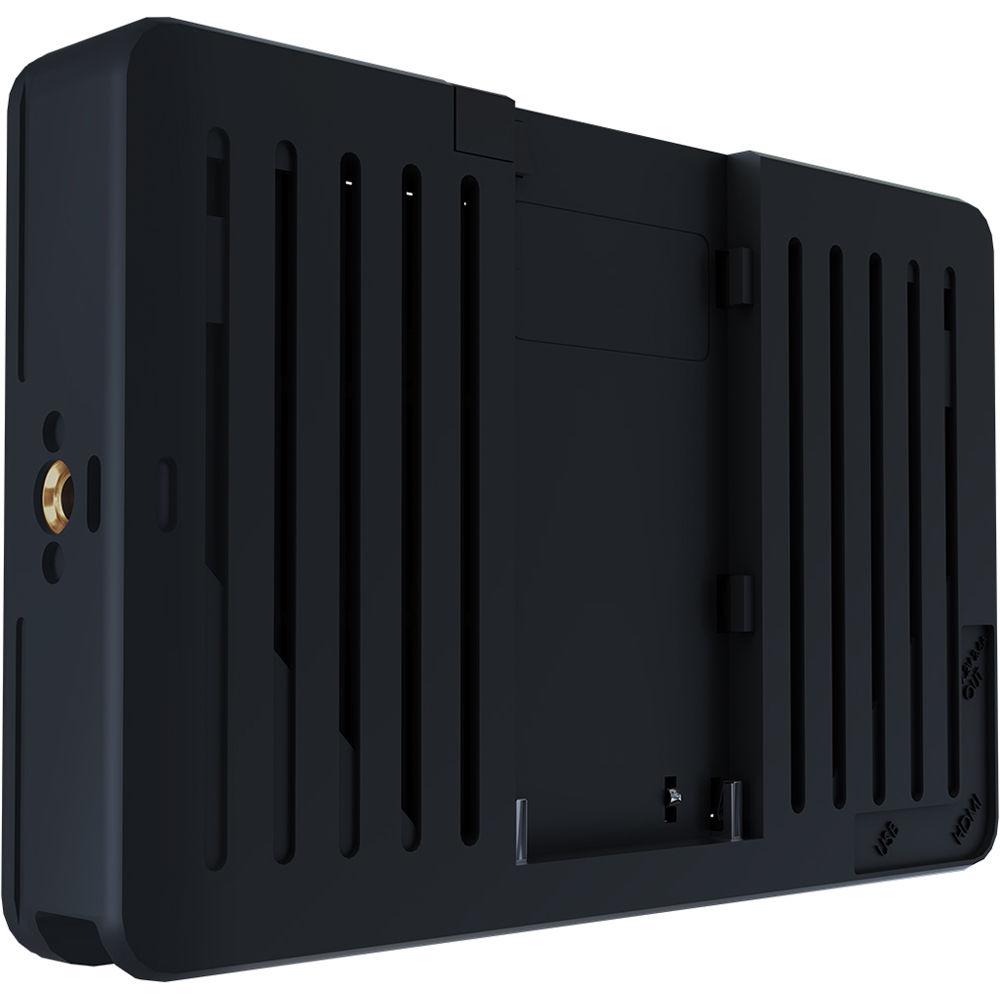

The lightweight FOCUS 5" touchscreen monitor features 800 cd/m² brightness on its 1280 x 720 IPS LCD panel, and it can be viewed clearly in daylight. It's driven by a single micro-HDMI input, and you can utilize various monitoring tools using the Swipe OS touchscreen firmware. The monitor features a single NP-F battery plate. Read more below about the items included in this bundle. - FOCUS 5" On-Camera Monitor Designed to add professional monitoring tools to DSLR and mirrorless cameras, the SmallHD FOCUS 5" On-Camera Monitor is bright, lightweight, and features a sharp display. The 800 cd/m² bright touchscreen 1280 x 720 IPS LCD panel can be viewed in daylight, and is driven by a single micro-HDMI input. Using the intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap. If your camera outputs UHD 4K over HDMI, the FOCUS will support that input resolution as well as HD and SD inputs. At the rear of the monitor, a single NP-F battery bay accepts a separately available L-series battery for power, while an integrated power output can also power your camera with a separately available DC coupler. A stand with tilt adjustment is included with the monitor for mounting atop your camera's accessory shoe or on a 1/4"-20 screw.
- Swipe OS
- Built on SmallHD's intuitive PageBuilder OS, Swipe OS offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
- Camera Setup Integration
- This monitor complements smaller cameras by providing power output and a headphone jack. The power output lets you power your camera directly from the NP-F battery (sold separately) mounted on the monitor, increasing runtimes over the standard batteries of many mirrorless cameras. If your camera doesn't have a headphone jack, the FOCUS de-embeds the audio from the HDMI stream for real-time feedback of audio.
- Convenient Mounting

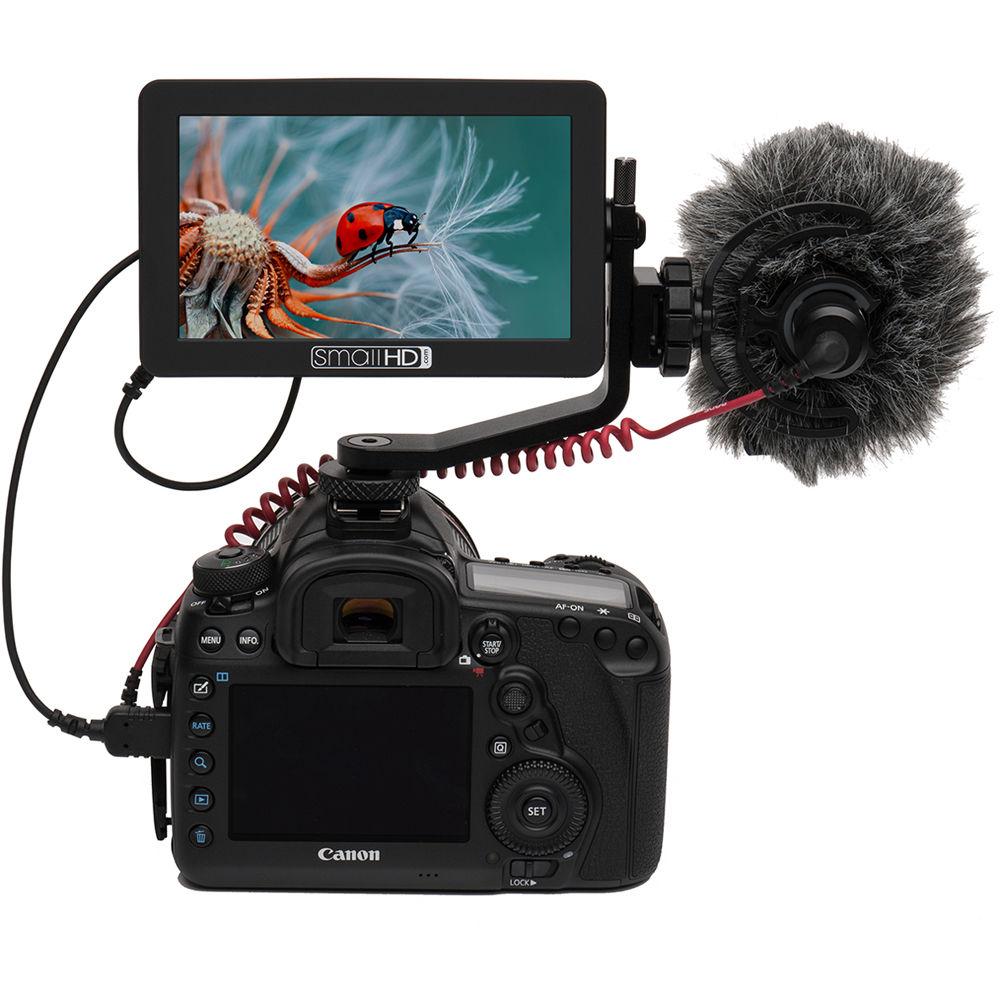

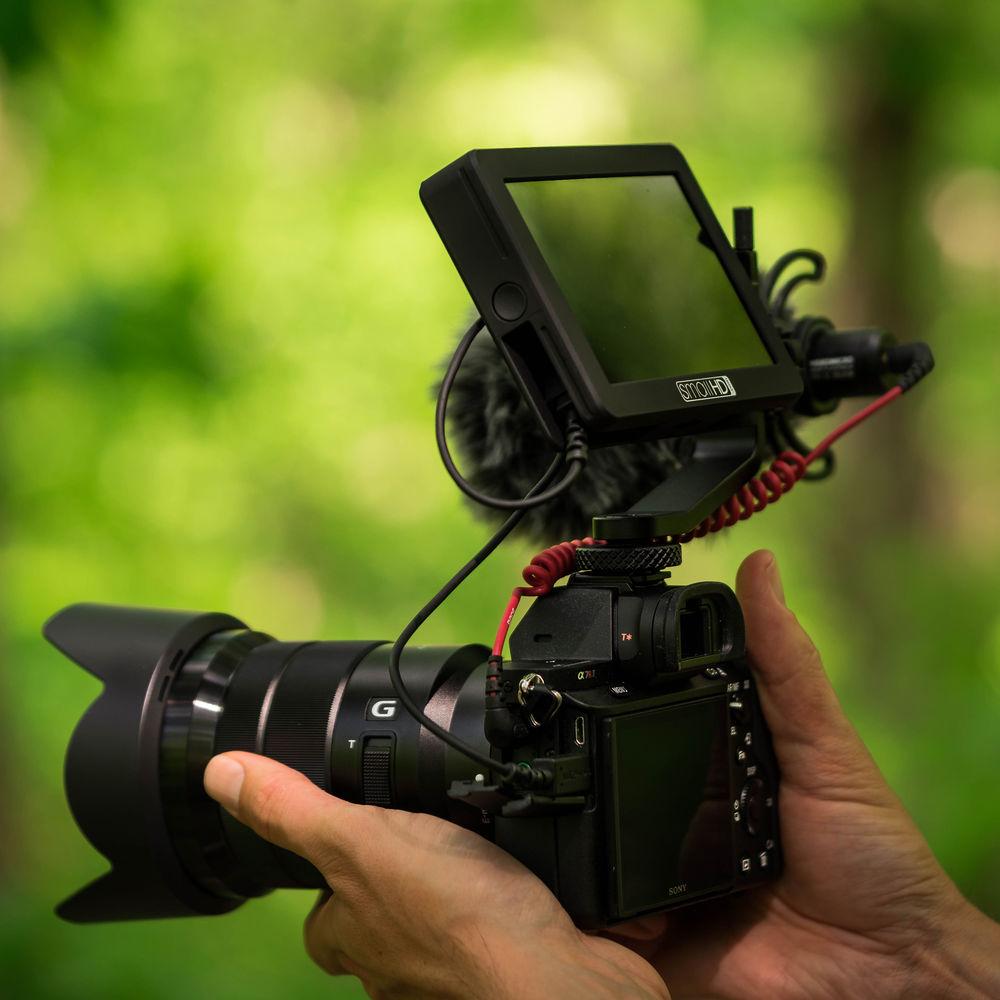

- The FOCUS monitor secures to your camera using the included FOCUS Tilt Arm via shoe mount or 1/4"-20 thread. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe on the Tilt Arm lets you secure equipment (like a microphone, LED light, or wireless receiver) that would otherwise be displaced from the camera's accessory shoe.
UPC: 850324007694 - FOCUS to Sony NP-FZ100 Faux Battery Adapter The FOCUS to Sony NP-FZ100 Faux Battery Adapter from SmallHD enables you to power select Sony Alpha-series mirrorless cameras from your FOCUS onboard monitor.Link the FOCUS monitor to your camera with this adapter to both extend your camera runtime and to save space and weight on your camera rig. Note: Check your camera's manual to ensure compatibility with the dummy battery type.
Compatibility UPC: 811786030088 - SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (1') The 1' SmallHD Micro-HDMI Male to Micro-HDMI Male Cable has been designed to let you connect a FOCUS monitor to a larger display, such as a TV or computer monitor. UPC: 850324007731
- Micro-USB Type-B Male Cable (12") The Micro-USB Type-B Male Cable from SmallHD enables you to connect two micro-USB Type-B compatible products such as a DSLR camera to the FOCUS Camera-Top monitor to directly view your content on a larger display. UPC: 850324007717
- Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8") The 8" SmallHD Micro-HDMI Male to HDMI Type-A Female Adapter Cable has been designed to let you connect a FOCUS monitor to a larger display, such as a TV or computer monitor. Simply connect the micro-HDMI male end to the FOCUS, and the female HDMI Type-A end to your HDMI Type-A Male cable. UPC: 850324007168
- Sony NPF L-Series Battery & Charger
- International Power Supply for Battery Chargers
- UltraClear Screen Protector for Focus Monitor

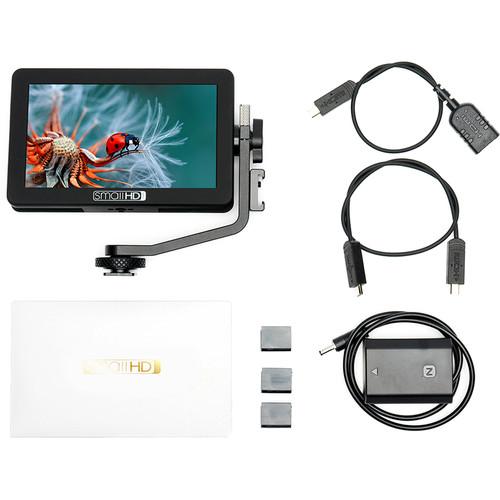

In the Box Bundle Items FOCUS 5" On-Camera Monitor vtxdzrfttdccurcxbssdczftcewczxrz - SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (1')
FOCUS to Sony NP-FZ100 Faux Battery Adapter Sony NPF L-Series Battery & Charger International Power Supply for Battery Chargers SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (1') Micro-USB Type-B Male Cable (12") Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8") UltraClear Screen Protector for Focus Monitor
Also Includes - Set of 4 FOCUS Cable Clips
Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS 5" Touchscreen On-Camera Monitor Bundle for Sony a7 III a9 Cameras in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FOCUS 5" On-Camera Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1280 x 720 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° | | Touchscreen | Yes | | Maximum Brightness | 800 cd/m2 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 294 ppi | | Image Controls | False Color, Focus Peaking, Pixel-to-Pixel Zoom, Waveform | | | | Video | 1 x HDMI Type D Input | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Other I/O | 1 x USB 2.0 (Micro-USB) | | Card Slot | 1 x SD | | | | Video Format | HDMI (8/10/12-Bit)
UHD 4K: 23.98/29.97/30
1080p: 23.98/24/25/30/50/59.94/60
1080i: 50/59.94/60/100/119.88/120
720p: 50/59.94/60/100/119.88/120
576p: 50/100/200
480p: 59.94/60/100/119.88/120/239.76/240
NTSC: 59.94/60/119.88/120/239.76/240
PAL: 50/100/200 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 1 x L-Series | | | | Dimensions (W x H x D) | 3.3 x 0.75 x 5.25" / 8.4 x 1.9 x 13.3 cm | | Weight | 3.75 oz / 106 g | | | | Box Dimensions (LxWxH) | 7.0 x 4.7 x 3.8" | - FOCUS to Sony NP-FZ100 Faux Battery Adapter
| Connector 1 | DC Barrel | | Connector 2 | NP-FZ100 Dummy Battery | | Weight | 6 oz / 170 g | | | | Box Dimensions (LxWxH) | 2.75 x 2.25 x 2.0" | - Sony NPF L-Series Battery & Charger
| | | Box Dimensions (LxWxH) | 10.1 x 6.9 x 3.0" | - SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (1')
| Connector 1 | HDMI Type-D Male | | Connector 2 | HDMI Type-D Male | | Cable Length | 1' / 0.3 m | | | | Box Dimensions (LxWxH) | 4.0 x 1.4 x 1.4" | - Micro-USB Type-B Male Cable (12")
| Connector 1 | USB Micro-B Male | | Connector 2 | USB Micro-B Male | | Cable Type | Cable | | Cable Length | 12" / 30.48 cm | | Variable Length | No | | | | Box Dimensions (LxWxH) | 6.95 x 3.9 x 0.45" | - Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8")
| Connector 1 | HDMI Type-D Male | | Connector 2 | HDMI Type-A Female | | Cable Length | 8" / 20.32 cm | | Weight | 6 oz / 170.1 g | | | | Box Dimensions (LxWxH) | 5.0 x 3.5 x 0.8" | - UltraClear Screen Protector for Focus Monitor
| | | Box Dimensions (LxWxH) | 6.15 x 3.55 x 0.45" | - International Power Supply for Battery Chargers
