User Manual for SmallHD FOCUS 7 Daylight-Viewable 7" Monitor with Bolt 500 Receiver Click to enlarge the picture
Contents of the user manual for the SmallHD FOCUS 7 Daylight-Viewable 7" Monitor
- Product category: Wireless Transmission Systems SmallHD
- Brand: SmallHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallHD Wireless Transmission Systems
 |
User manual for the SmallHD FOCUS 7 Daylight-Viewable 7" Monitor contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallHD product will considerably shorten its lifespan!
|
Product description The SmallHD FOCUS 7 HDMI On-Camera Monitor for Small Cameras Read More - SmallHD Focus 7 Incredible On-Camera Monitor! - Hands-On Review
- FOCUS 7 Overview
- Review of the SmallHD Focus 7 monitor

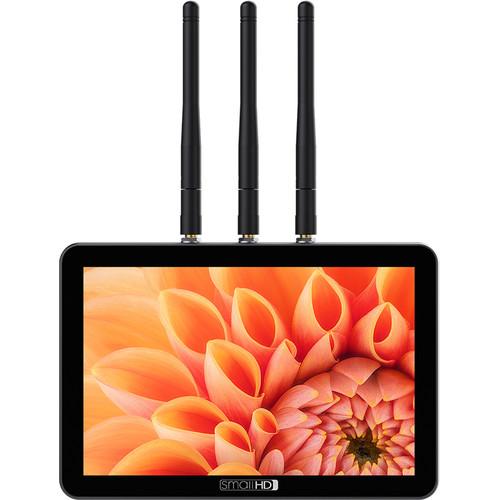

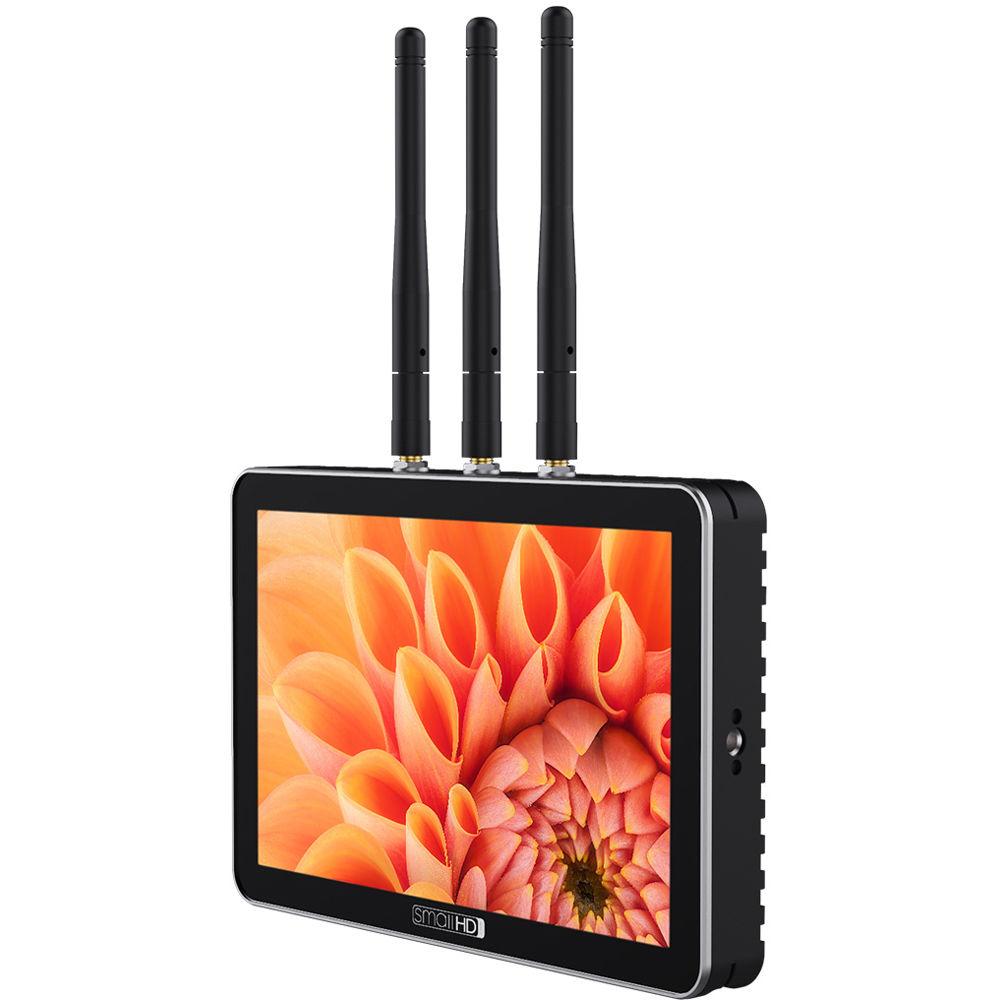

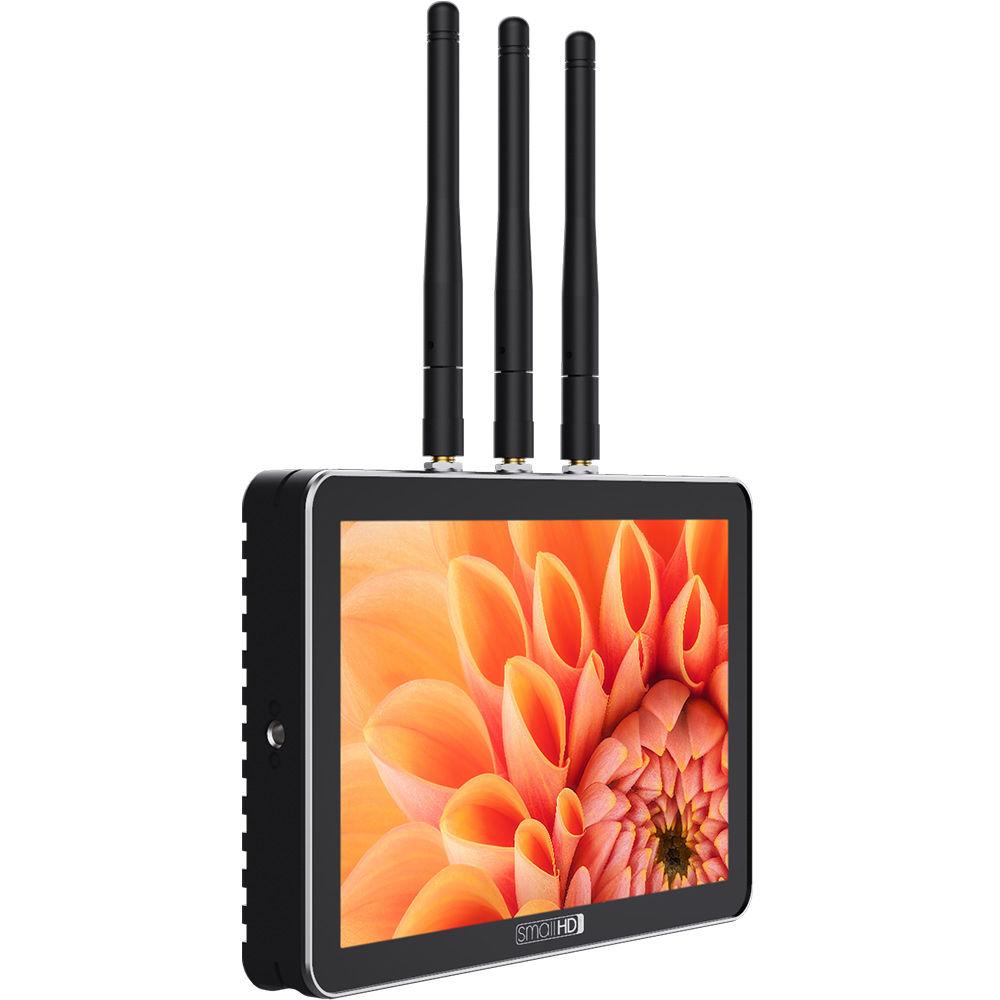

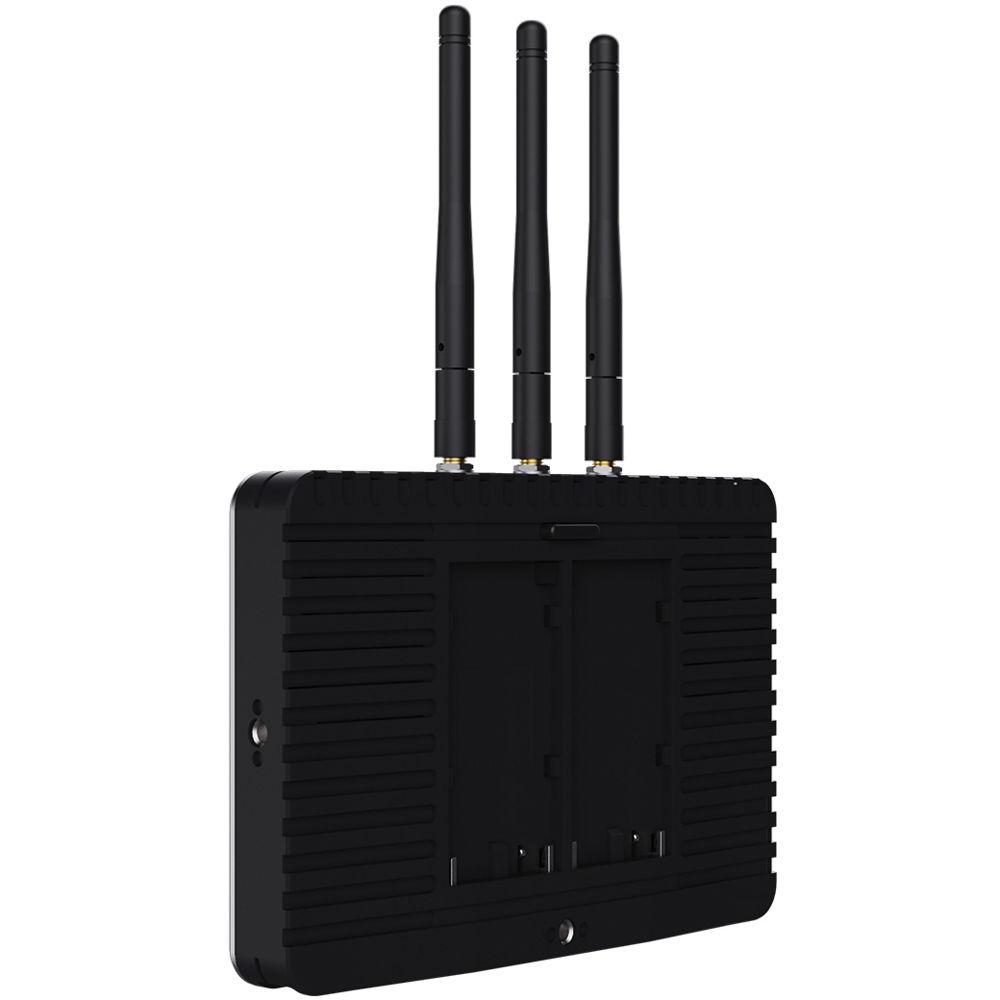

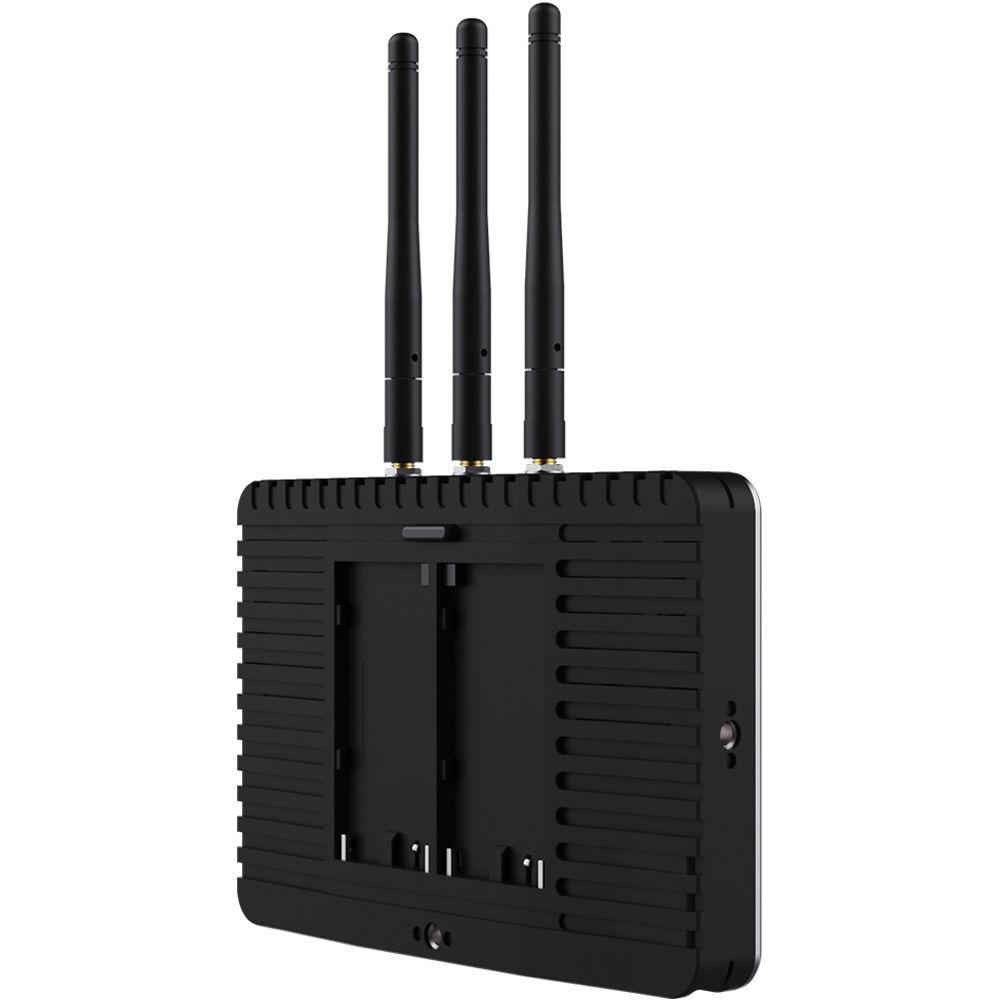

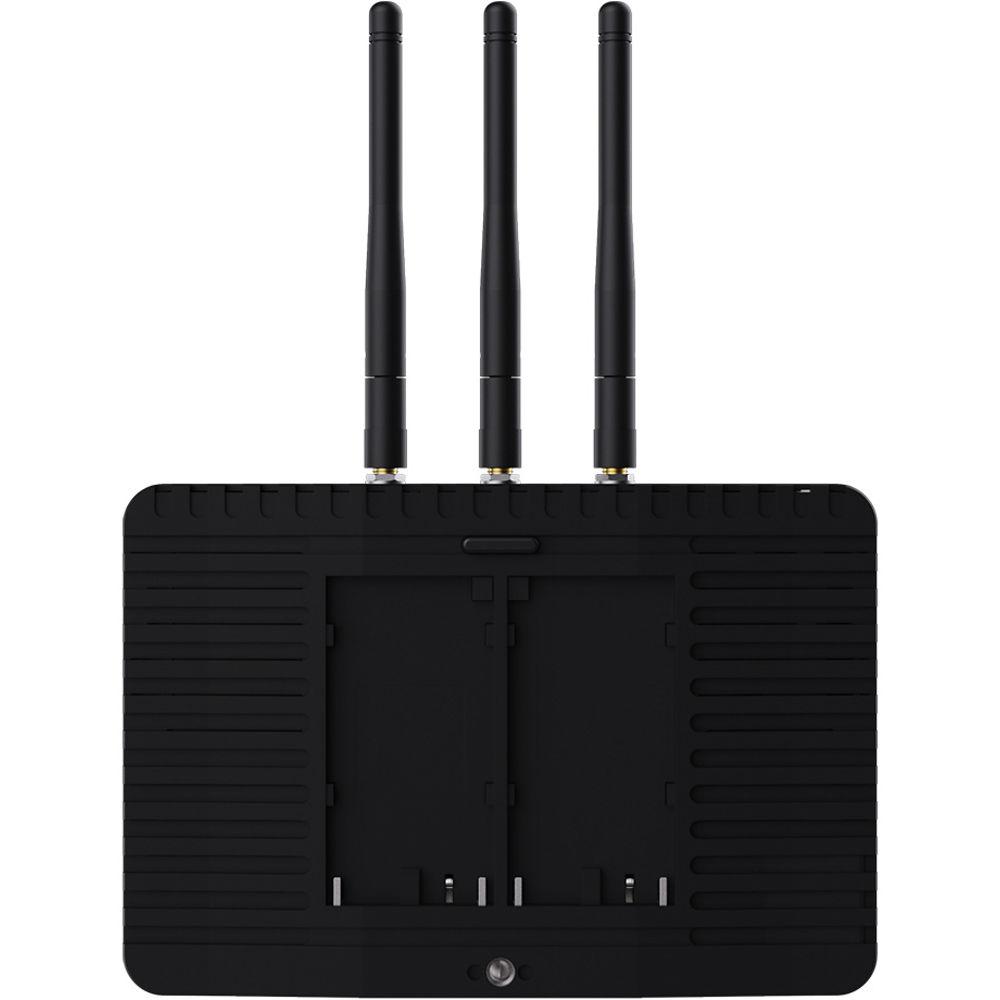

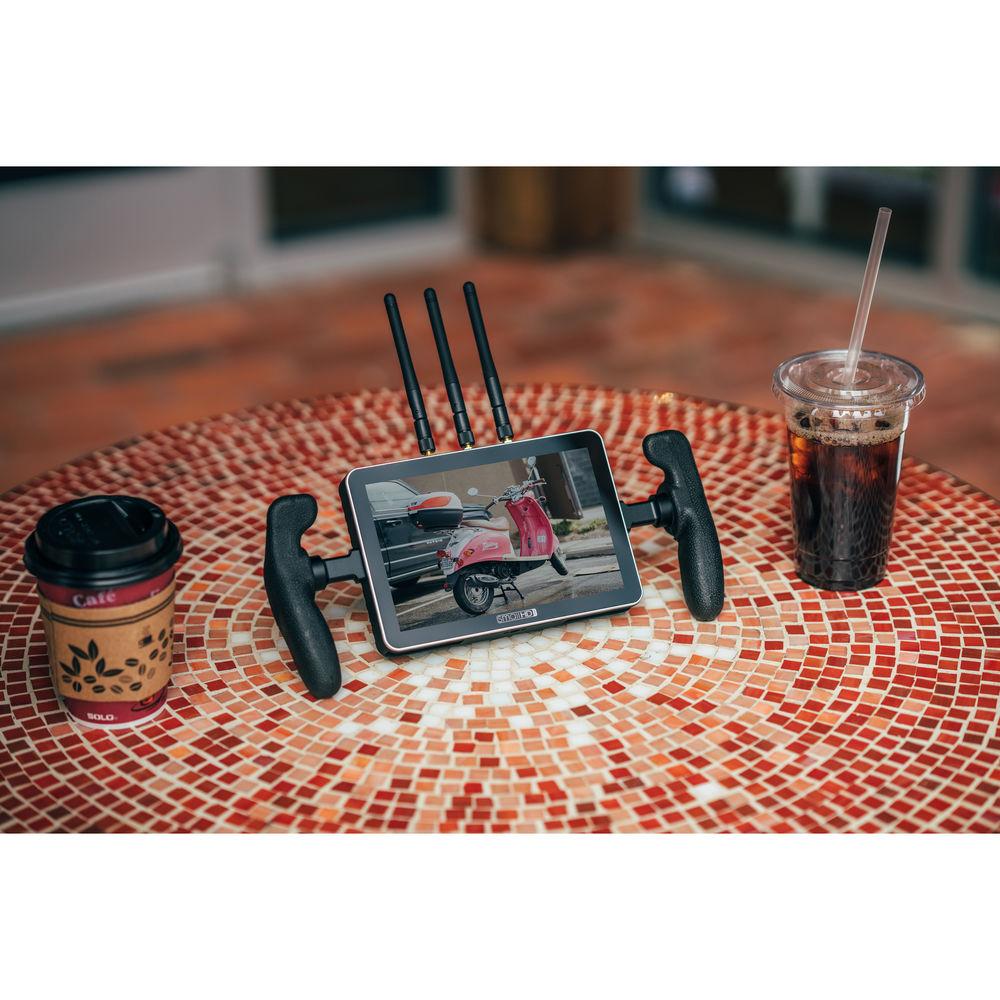

The SmallHD FOCUS 7 On-Camera Monitor with Bolt 500 Receiver integrates Teradek's Bolt 500 wireless receiver with the FOCUS 7 daylight-viewable on-camera monitor. Using the built-in receiver, the FOCUS 7 can receive up to 1080p60 video from Teradek's Bolt 500, Bolt 500 LT or Bolt 500 XT transmitters, or from a SmallHD's FOCUS Bolt 500 TX, with a line-of-sight transmission distance of up to 500'. The included rubberized handgrips and neck strap enable you to comfortably carry the combo unit around the set. An L-series type battery kit, cable clips, matte and glossy screen protectors, and cleaning cloth are also included. Designed with professional monitoring tools, the SmallHD FOCUS 7" On-Camera Monitor is bright, lightweight, and features a sharp 323 ppi display. The 1000 cd/m² bright touchscreen 1920 x 1200 IPS LCD panel is daylight-viewable and supports up to UHD 4K video via its micro-HDMI input. Using the intuitive Swipe OS, you can turn on and save pages of various monitoring tools and focusing aids with a tap. At the rear of the monitor, a dual NP-F battery bay enables you to hot-swap L-series batteries with only one required to power the unit. A 3.5mm barrel DC output can power select cameras with a separately available DC coupler, enabling you to extend your DSLR or mirrorless camera's runtime. A tilt arm is included for mounting the monitor via your camera's accessory shoe or on a 1/4"-20 screw. Features - Daylight viewable, 7" touchscreen on-camera monitor with 1000 cd/m
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS 7 Daylight-Viewable 7" Monitor with Bolt 500 Receiver in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD Focus 7 Specs | | | Panel Type | IPS-Type LCD | | Screen Resolution | 1920 x 1200 | | Active Area | 7.0" / 17.8 cm | | Pixels Per Inch | 323 ppi | | Aspect Ratio | 16:9 | | Maximum Brightness | 1000 cd/m2 | | Color Gamut | 75% DCI-P3 | | Bit Depth | 10-Bit (1.07 Billion Colors) | | Horizontal Viewing Angle | 160° | | Backlight Type | White LED | | Touchscreen | Yes | | LUT Support | Yes | | Image Controls | False Color, Focus Peaking, Histogram

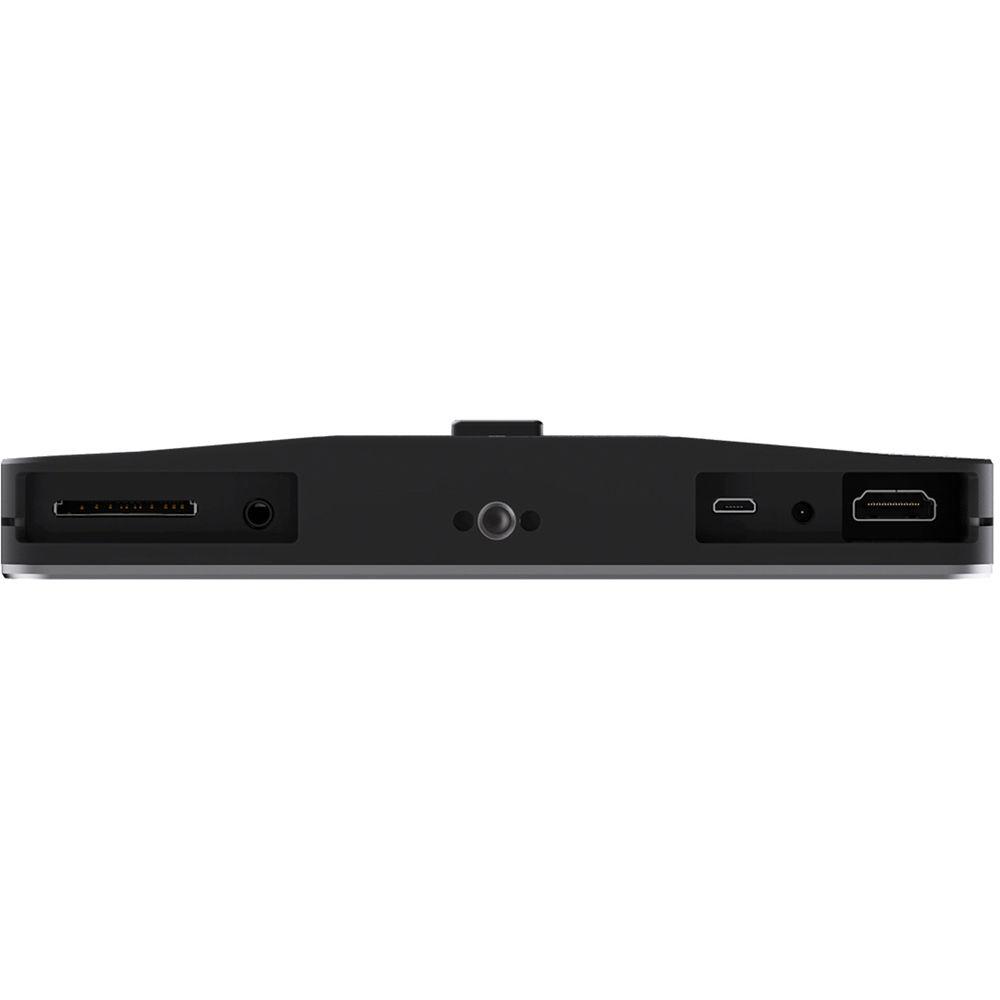

Pixel-to-Pixel Zoom, RGB Parade, Waveform, Zebra, Vectorscope | | Anamorphic De-Squeeze | 1.33x, 1.5x, 1.66x, 2.0x | | Video In | 1 x HDMI Type A | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Headphone Output | | Power | Barrel Output: 1 x 3.5 mm For Powering Select Cameras | | Other Inputs/Outputs | USB 2.0: 1 x Micro-USB | | Card Slot | 1 x SD | | Video Format Support | HDMI (8-/10-/12-Bit):
UHD 4K: 30/29.97/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
NTSC: 240/239.76/120/119.88/100/60/59.94
PAL: 200/100/50 | | | | Delay | < 1 ms (0.001 sec) | | Supported Video Resolutions | 1080p: 60/59.94/50/30/29.97/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
576p: 50
576i: 50
480i: 60/59.94 | | Audio Compression | 48 kHz, 24-Bit PCM | | WiFi Frequency | 5 GHz | | RF Channel Selection | AFS (Automatic Frequency Selection) | | Encryption | AES-128 | | RF Power | 20 dBm EIRP | | Maximum Transmission Distance | 500' / 152.4 m (Line-of-Sight) | | | | DC Power Input | 6 to 8.4 VDC | | Battery Type | 2 x L-Series Type Hot-swappable, dual-battery plate, only 1 x battery is required | | Mounting Threads | 3 x 1/4"-20 | | Operating Temperature | 32 to 113°F / 0 to 45°C | | Dimensions and Weight | Not Specified by Manufacturer | | | | Package Weight | 4.365 lb | | Box Dimensions (LxWxH) | 9.6 x 7.1 x 4.7" |
