Product description The SmallHD FOCUS 7 HDMI On-Camera Monitor for Small Cameras Read More - SmallHD Focus 7 Incredible On-Camera Monitor! - Hands-On Review
- FOCUS 7 Overview
- Review of the SmallHD Focus 7 monitor

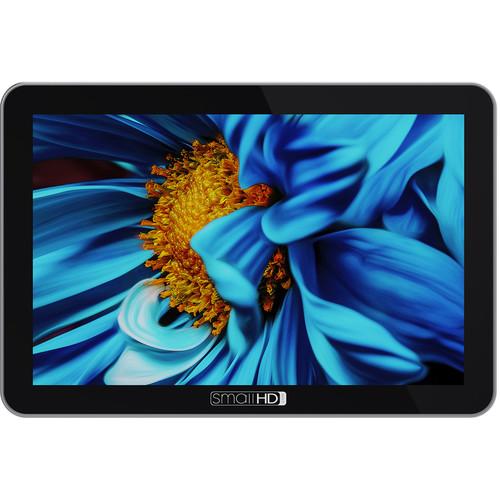

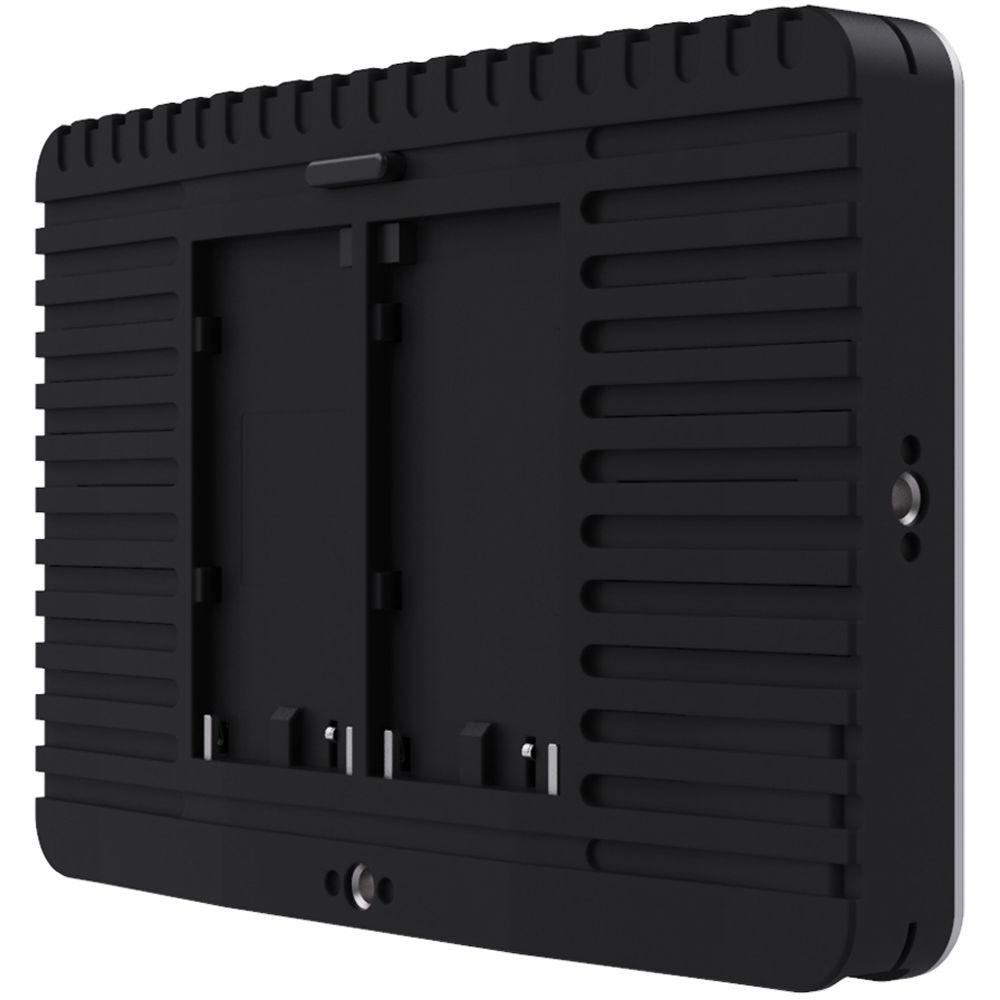

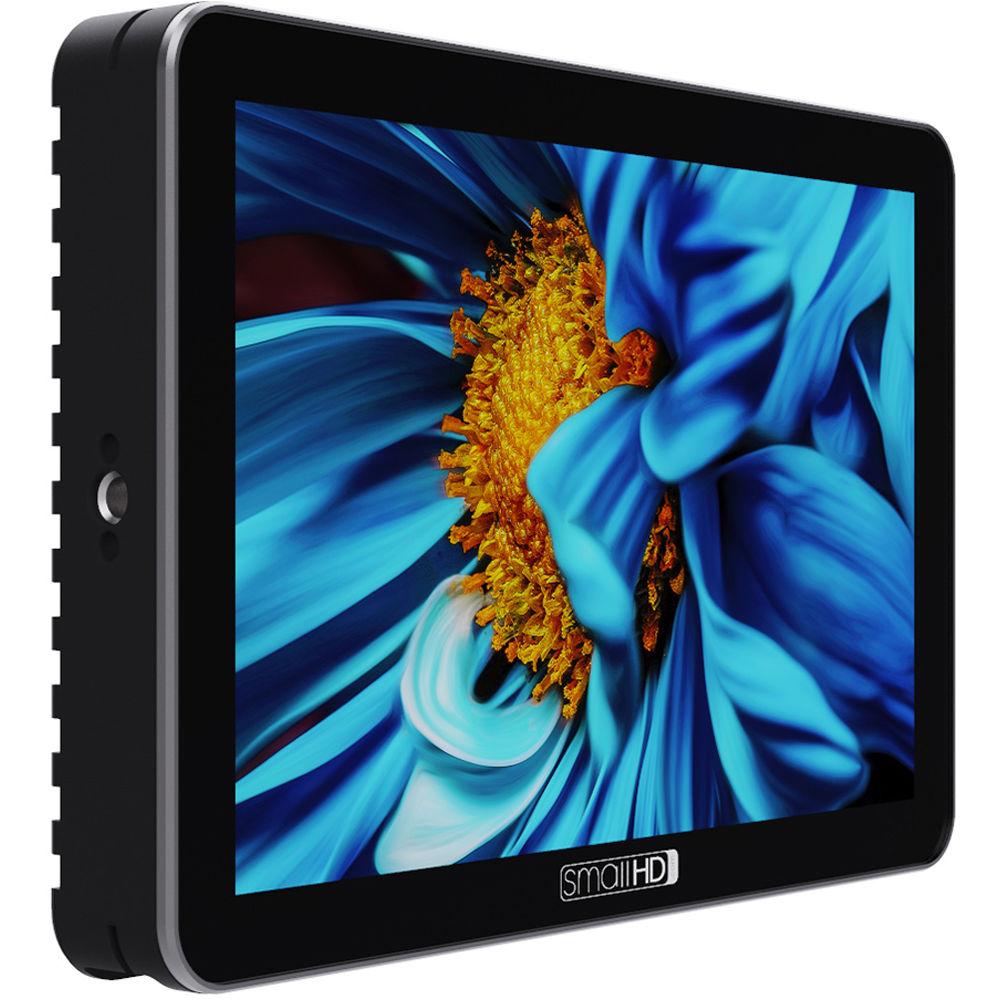

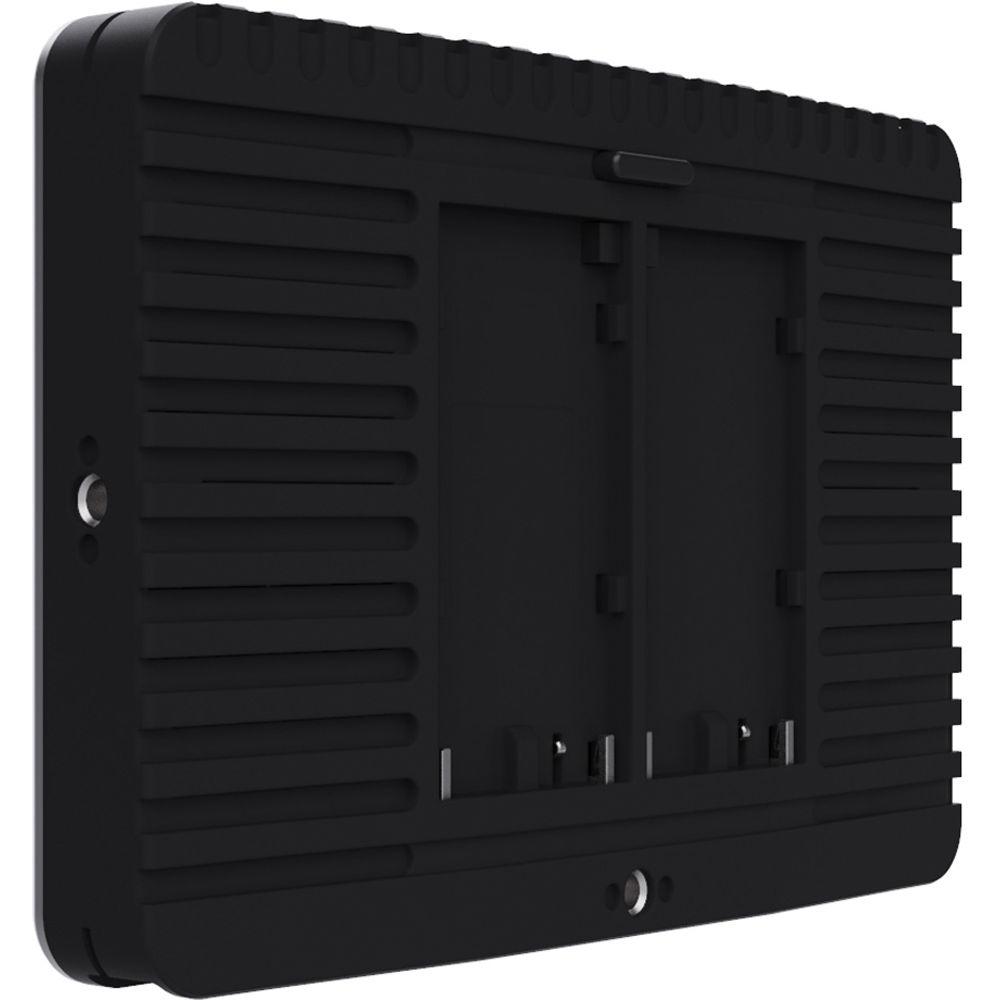

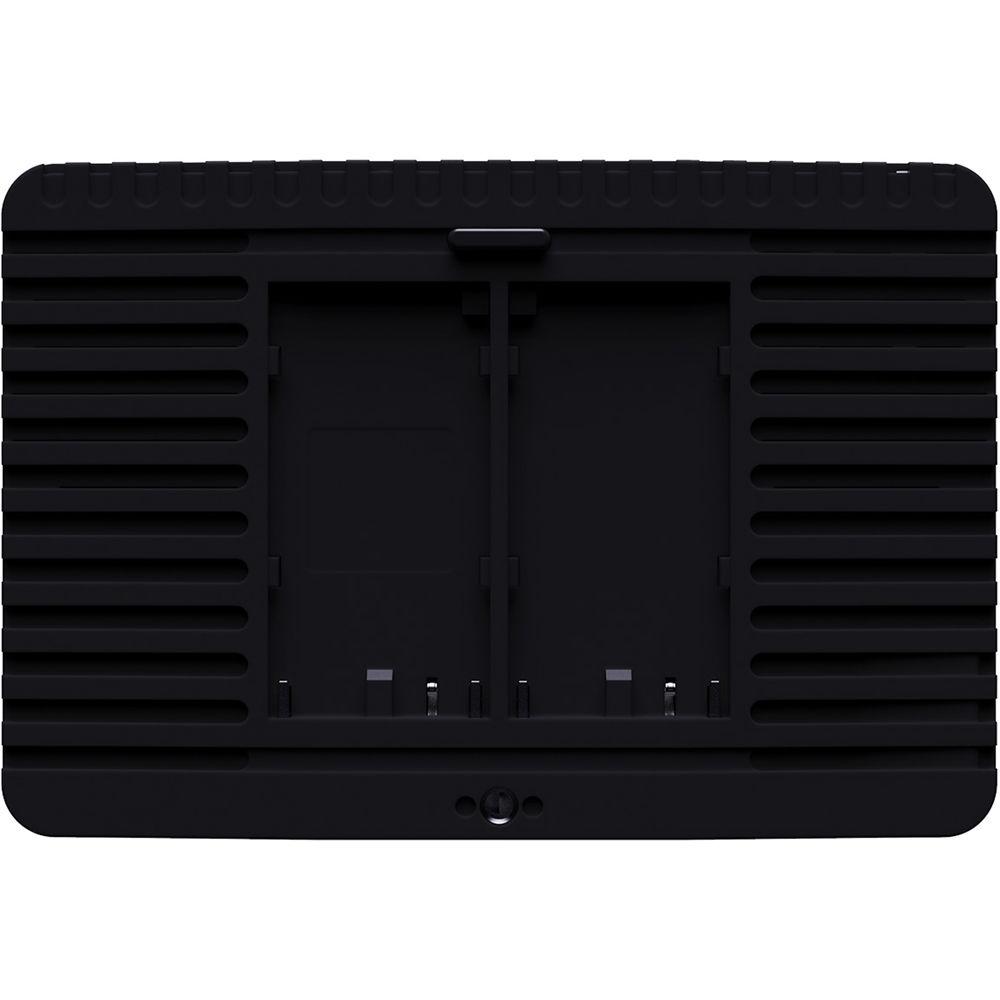

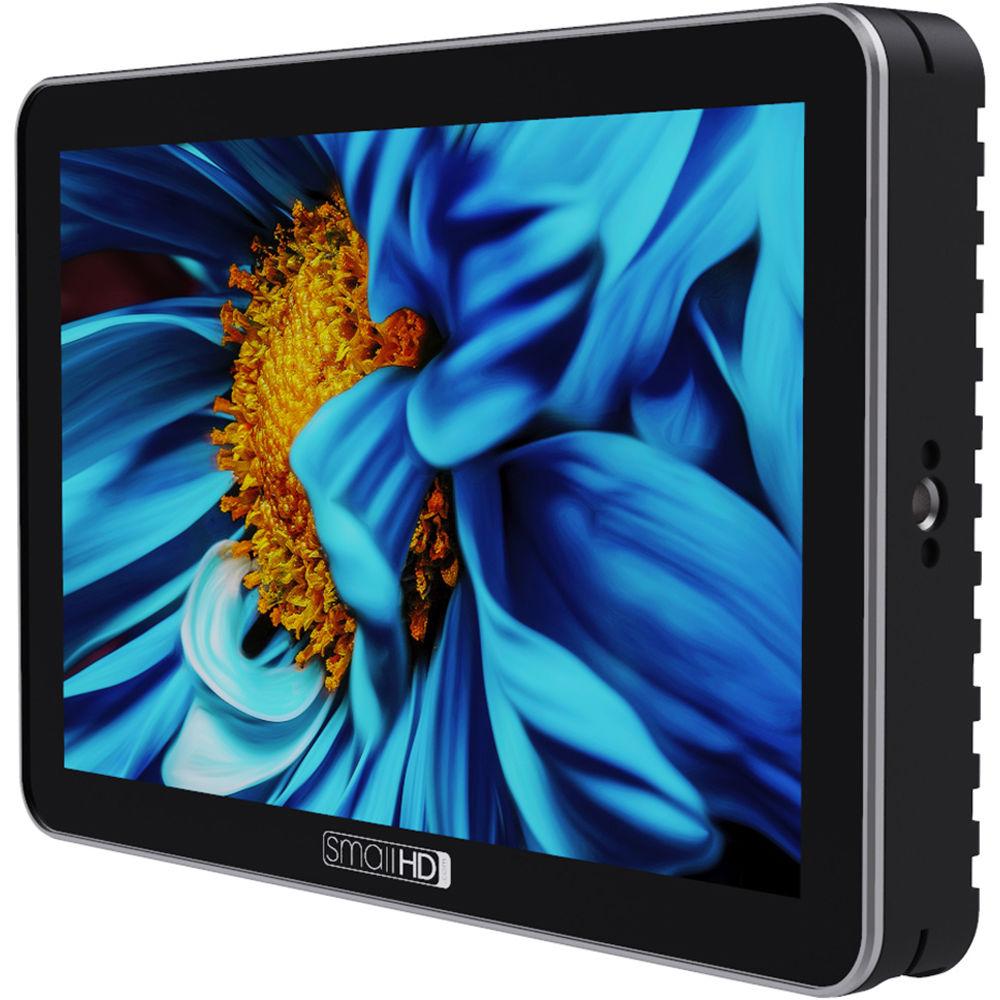

The lightweight SmallHD FOCUS 7 Daylight-Viewable 7" Monitor provides professional monitoring in a sharp 7" display suitable for outdoor use. A 3.5mm-barrel DC output can power select cameras with a separately available DC coupler, enabling you to extend your DSLR or mirrorless camera's runtime. The FOCUS 7 supports up to UHD 4K video as well as various HD and SD formats via a single full-size HDMI input.The FOCUS 7 features a 1000 cd/m² bright, 323 ppi, 1920 x 1200 IPS LCD touchscreen with 3D LUT compatibility. Using the intuitive Swipe OS3, you can turn on and save pages of various monitoring tools and focusing aids with a finger tap. At the rear of the monitor a dual NP-F battery bay enables you to hot swap L-series batteries, with only one battery required to power the unit. Features - Daylight-viewable, 7" touchscreen on-camera monitor with 1000 cd/m
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS 7 Daylight-Viewable 7" On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

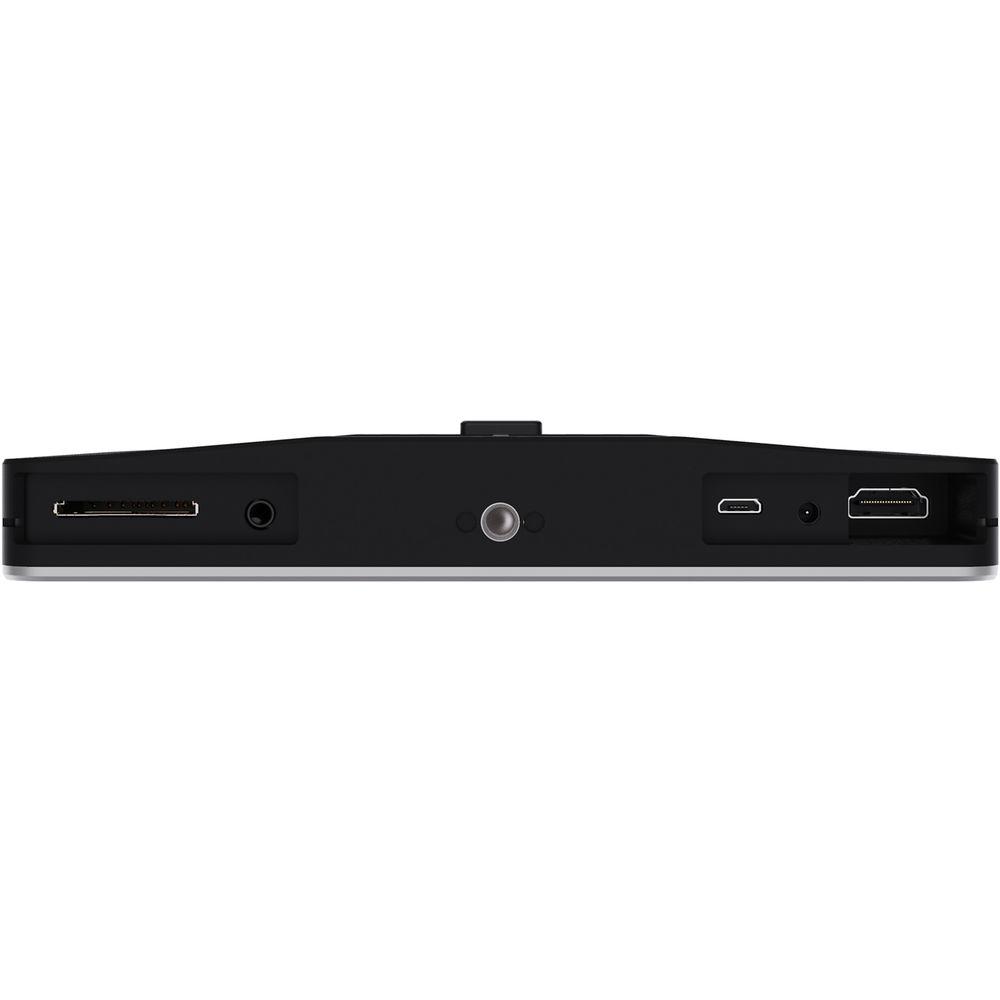

Technical parametersSmallHD Focus 7 Specs | | | Panel Type | IPS-Type LCD | | Display Size | 7.0" / 17.8 cm | | Screen Resolution | 1920 x 1200 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° | | Touchscreen | Yes | | Maximum Brightness | 1000 cd/m2 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 323 ppi | | Color Gamut | 75% DCI-P3 | | Real-Time LUT Monitoring | SDR | | Image Controls | Anamorphic De-Squeeze, False Color, Focus Peaking, Histogram, Pixel-to-Pixel Zoom, RGB Parade, Waveform, Zebra, Vectorscope | | | | Video | 1 x HDMI Type A Input | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Output For Powering Select Cameras | | Other I/O | 1 x USB 2.0 (Micro-USB) | | Card Slot | 1 x SD | | | | Video Format | HDMI (8/10/12-Bit)
UHD 4K: 30/29.97/24/23.98
1080p: 60/59.94/50/30/29.97/25/24/23.98
1080i: 120/119.88/100/60/59.94/50
720p: 120/119.88/100/60/59.94/50/30/29.97/25/24/23.98
576p: 200/100/50
480p: 240/239.76/120/119.88/100/60/59.94
NTSC: 240/239.76/120/119.88/100/60/59.94
PAL: 200/100/50 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 2 x L-Series Only 1 Battery Required; Dual Plate is Hot-Swappable | | | | Mounting | 4 x 1/4"-20 Female | | | | Certifications | CE, as per Manufacturer | | Operating Temperature | 32 to 158°F / 0 to 70°C | | | | Dimensions (W x H x D) | 6.92 x 4.69 x 1.1" / 17.58 x 11.91 x 2.79 cm | | Weight | 13.6 oz / 386 g Without battery. | | | | Package Weight | 1.68 lb | | Box Dimensions (LxWxH) | 9.45 x 7.3 x 2.05" |
