User Manual for SmallHD FOCUS Bolt 500 TX On-Camera Monitor Click to enlarge the picture
Contents of the user manual for the SmallHD FOCUS Bolt 500 TX On-Camera
- Product category: Wireless Transmission Systems SmallHD
- Brand: SmallHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallHD Wireless Transmission Systems
 |
User manual for the SmallHD FOCUS Bolt 500 TX On-Camera contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallHD product will considerably shorten its lifespan!
|

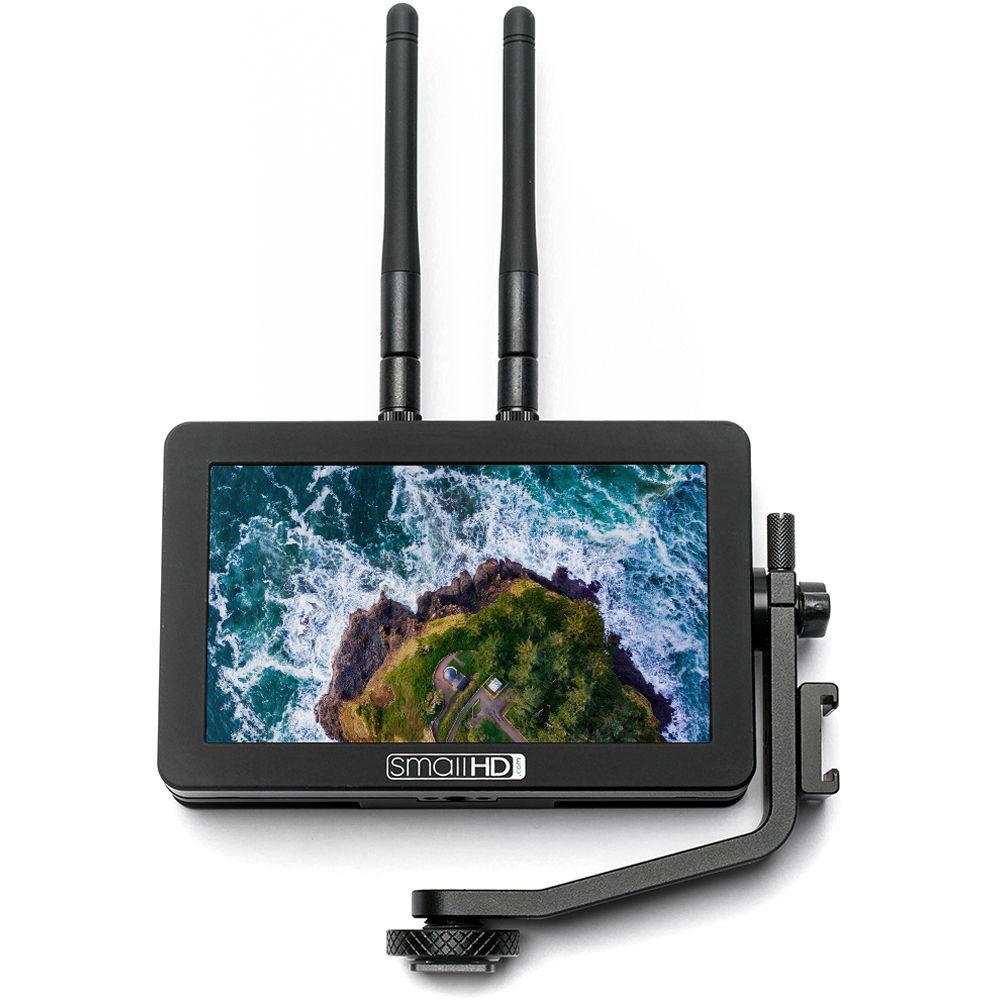

Product description The SmallHD FOCUS Bolt 500 TX On-Camera Monitor combines SmallHD's popular FOCUS monitor with Teradek's Bolt 500 wireless transmitter, all in a single unit. Using the built-in transmission, the Focus Bolt can send uncompressed 10-bit 4:2:2 HD video to a Teradek Bolt 500, Bolt 500 LT, Bolt 500 XT, or Sidekick II receiver, or to a SmallHD FOCUS Bolt 500 RX or 703 Bolt monitor, up to 500' away. What's more is this monitor fits right atop your camera's accessory shoe using the included tilt-arm. An L-series battery kit, cable clips, matte and glossy screen protectors, a cleaning cloth, and an assortment of HDMI cables are included as well.Display-wise, the FOCUS Bolt 500 TX is based off the same display and I/O as the well-regarded standard FOCUS models. The bright, 800 cd/m2, 1280 x 720 touchscreen IPS LCD panel can be viewed in daylight, and is driven by a single micro-HDMI input. Using the intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap. If your camera outputs UHD 4K over HDMI, the FOCUS will support that input resolution as well as HD and SD inputs. At the rear of the monitor, a single NP-F battery bay accepts the included available L-series battery for power, while an integrated power output can also power your camera with a separately available DC coupler. - Swipe OS
- Built on SmallHD's intuitive PageBuilder OS, Swipe OS offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
- Camera Setup Integration
- This monitor complements smaller cameras by providing power output and a headphone jack. The power output lets you power your camera directly from the NP-F battery mounted on the monitor, increasing runtimes over the standard batteries of many mirrorless cameras. If your camera doesn't have a headphone jack, the FOCUS de-embeds the audio from the HDMI stream for real-time feedback of audio.
- Convenient Mounting

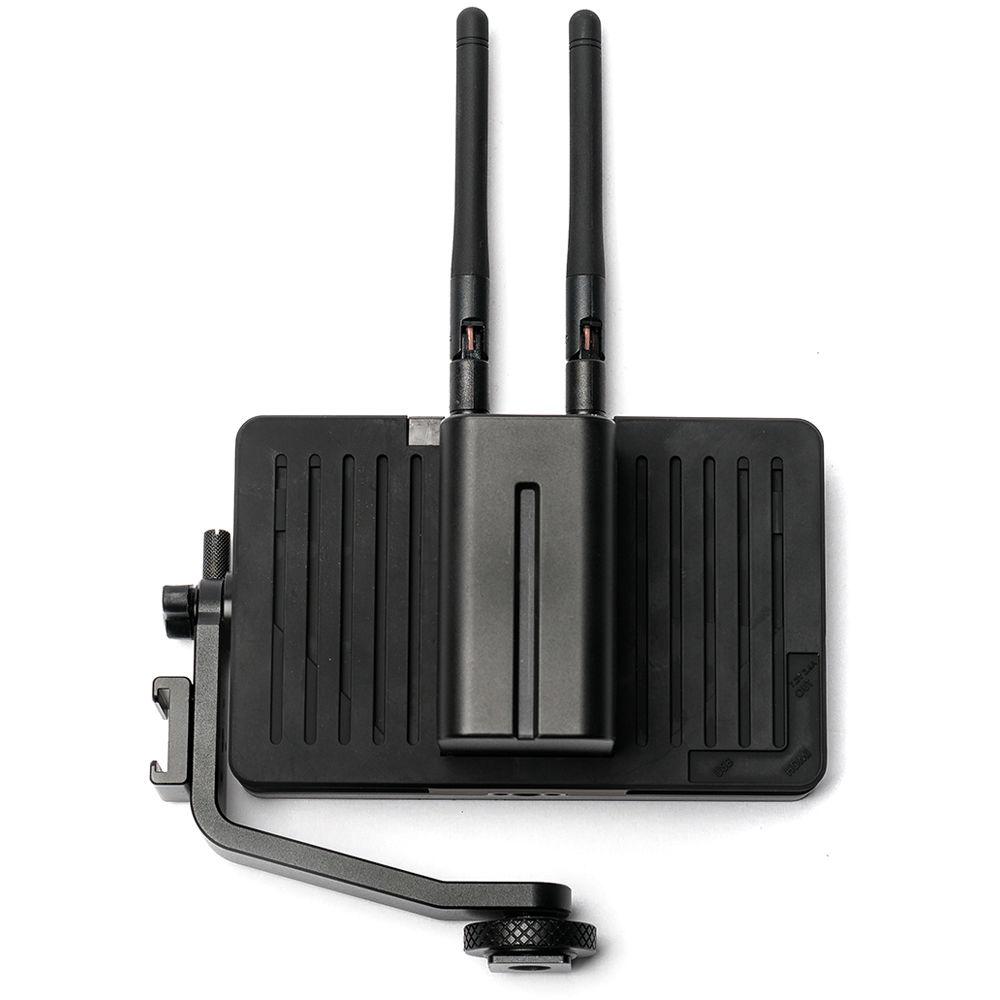

- The FOCUS monitor secures to your camera using the included FOCUS Tilt Arm via shoe mount or 1/4"-20 thread. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe on the Tilt Arm lets you secure equipment (like a microphone, or LED light) that would otherwise be displaced from the camera's accessory shoe.

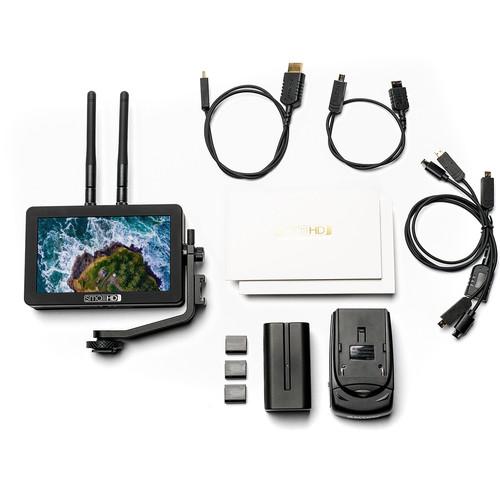

UPC: 855534007984 In the Box SmallHD FOCUS Bolt 500 TX On-Camera Monitor Sony NPF L-Series Battery & Charger Cable Management Clips FOCUS 180 Degree Tilt Arm Mount for Select On-Camera Monitors Flexible Matte Screen Protector for FOCUS Monitors UltraClear Screen Protector for Focus Monitor Microfiber Cleaning Cloth Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8") SmallHD Micro-HDMI Male to HDMI Type-A Male Cable (3') SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (3') SmallHD Micro-HDMI Male to Mini-HDMI Male Cable (3') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS Bolt 500 TX On-Camera Monitor in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD MON-FOCUS-BOLT-500-TX Specs | | | Display | 5" / 12.7 cm IPS LCD | | Resolution | 1280 x 720 | | Pixel Density | 294 PPI | | Aspect Ratio | 16:9 | | Brightness | 800 cd/m² | | Contrast Ratio | Not specified by manufacturer | | Color Gamut | Not specified by manufacturer | | Bit Depth | 10-bit | | Viewing Angle | 160° | | Backlight | White LED | | Temperature Adaptive Color | No | | | | Inputs | 1 x HDMI Type D (micro-HDMI) | | Outputs | 1 x 3.5 mm stereo headphone | | Other I/O | 1 x Micro-USB | | Input Signal | HDMI: 8/10/12-bit color
3840 x 2160 23.98/29.97/30
1080p 23.98/24/25/30/50/59.94/60
1080i 50/59.94/60 (high-speed: 1080i 100/119.88/120)
720p 50/59.94/60 (high-speed: 720p 100/119.88/120)
576p 50 (high-speed: 576p 100/200)
480p 59.94/60 (high-speed: 480p 100/119.88/120/239.76/240)
NTSC (high-speed: 480i 119.88/120/239.76/240)
PAL (high-speed: 576i 100/200)
Audio:
HDMI embedded | | | | Frequency Band | 5 GHz | | RF Power | 22 dBm EIRP | | Range | Up to 500' line-of-sight | | Latency | < 1/1000 second | | Video Resolution | Up to 1080p, 60 fps | | Audio Sampling | 24-bit, 48 kHz | | Channel Selection | AFS (Automatic Frequency Selection) | | Encryption | AES-128 | | | | Battery Support | 1 x NP-F (Sony L) battery bay | | Voltage | 6-8.4 VDC | | Storage | SD card slot | | Dimensions | 3.3 x 0.75 x 5.25" / 8.4 x 1.9 x 13.3 cm | | Weight | 3.75 oz / 106 g (without battery) | | | | Package Weight | 3.395 lb | | Box Dimensions (LxWxH) | 10.0 x 7.2 x 0.9" |
