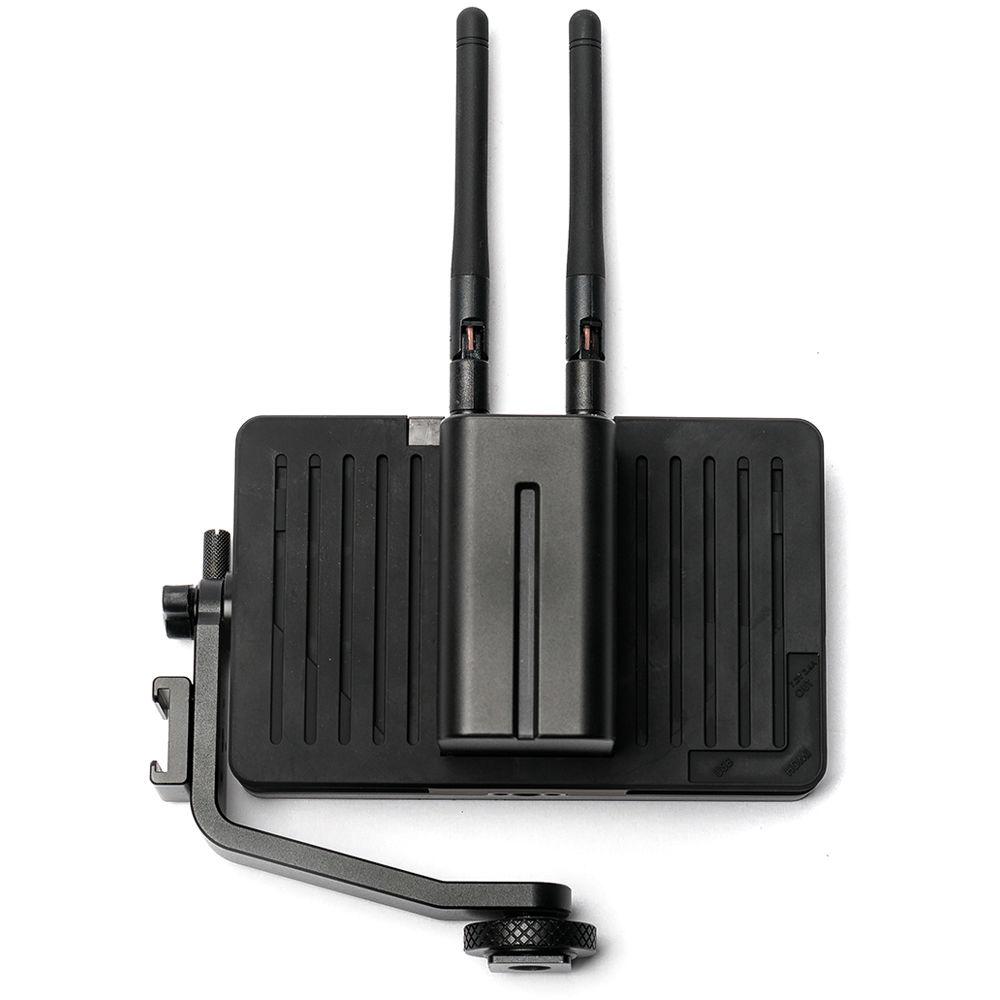

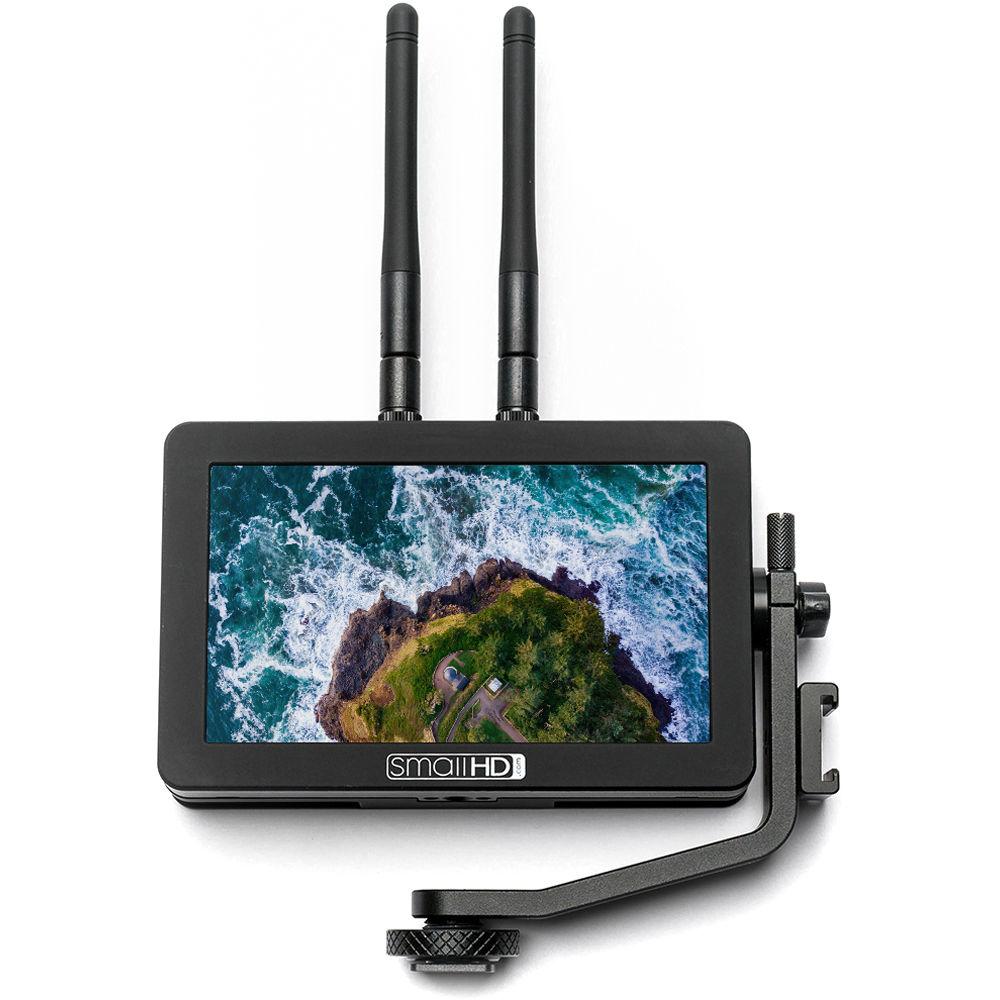

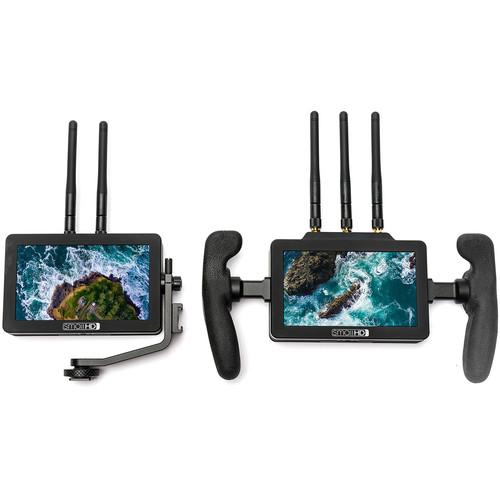

Product description The SmallHD FOCUS Bolt 500 TX-RX Kit combines the two FOCUS Bolt 500 monitors for a full wireless monitoring experience. Connect the FOCUS Bolt 500 TX to your camera and give your director or focus puller the FOCUS Bolt 500 RX and you can view HD video without cables (other than the HDMI connection to the video source). The small sizes of the TX and RX monitors make them easily camera-mountable and handholdable, respectively. With the TX monitor you get the FOCUS tilt arm, and with the RX monitor, rubber handles and a neck strap. For more information on both of these monitors, check the features below. - FOCUS Bolt 500 TX On-Camera Monitor The SmallHD FOCUS Bolt 500 TX On-Camera Monitor combines SmallHD's popular FOCUS monitor with Teradek's Bolt 500 wireless transmitter, all in a single unit. Using the built-in transmission, the Focus Bolt can send uncompressed 10-bit 4:2:2 HD video to a Teradek Bolt 500, Bolt 500 LT, Bolt 500 XT, or Sidekick II receiver, or to a SmallHD FOCUS Bolt 500 RX or 703 Bolt monitor, up to 500' away. What's more is this monitor fits right atop your camera's accessory shoe using the included tilt-arm. An L-series battery kit, cable clips, matte and glossy screen protectors, a cleaning cloth, and an assortment of HDMI cables are included as well.Display-wise, the FOCUS Bolt 500 TX is based off the same display and I/O as the well-regarded standard FOCUS models. The bright, 800 cd/m2, 1280 x 720 touchscreen IPS LCD panel can be viewed in daylight, and is driven by a single micro-HDMI input. Using the intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap. If your camera outputs UHD 4K over HDMI, the FOCUS will support that input resolution as well as HD and SD inputs. At the rear of the monitor, a single NP-F battery bay accepts the included available L-series battery for power, while an integrated power output can also power your camera with a separately available DC coupler.
- Swipe OS
- Built on SmallHD's intuitive PageBuilder OS, Swipe OS offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
- Camera Setup Integration
- This monitor complements smaller cameras by providing power output and a headphone jack. The power output lets you power your camera directly from the NP-F battery mounted on the monitor, increasing runtimes over the standard batteries of many mirrorless cameras. If your camera doesn't have a headphone jack, the FOCUS de-embeds the audio from the HDMI stream for real-time feedback of audio.
- Convenient Mounting
- The FOCUS monitor secures to your camera using the included FOCUS Tilt Arm via shoe mount or 1/4"-20 thread. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe on the Tilt Arm lets you secure equipment (like a microphone, or LED light) that would otherwise be displaced from the camera's accessory shoe.

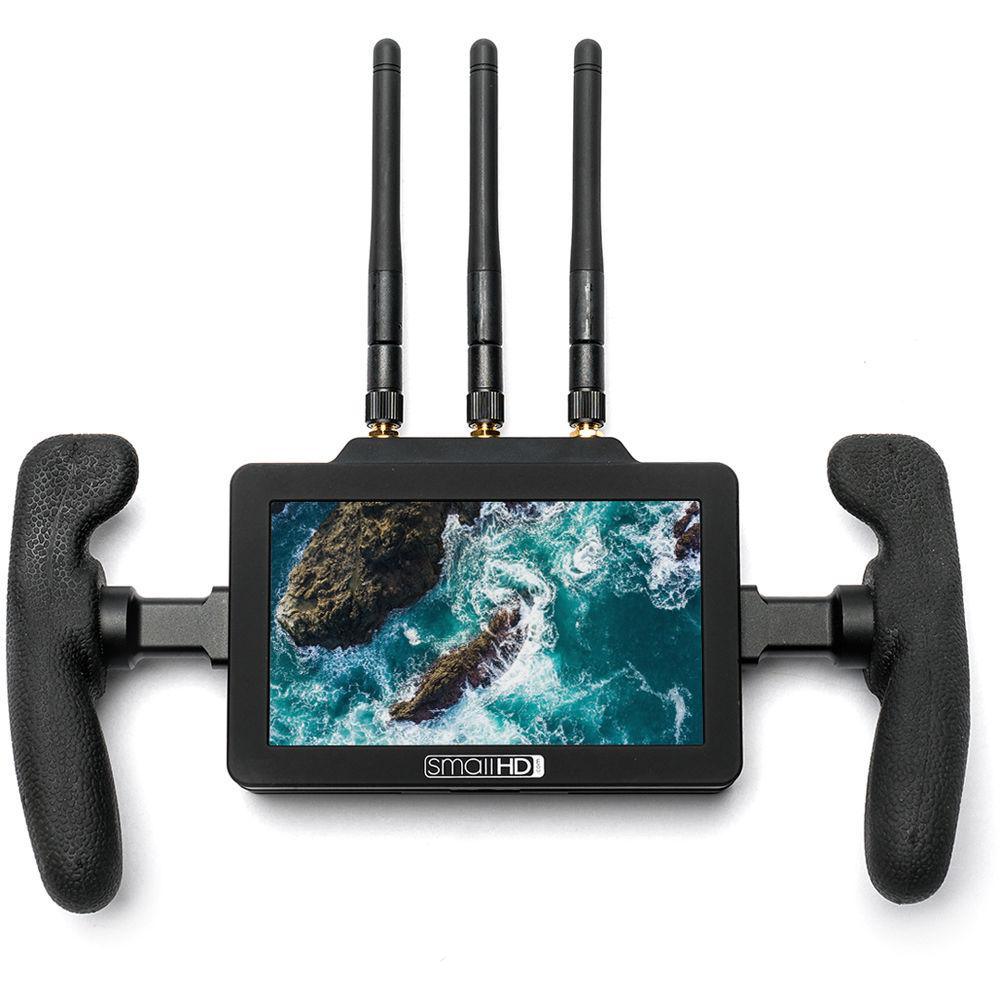

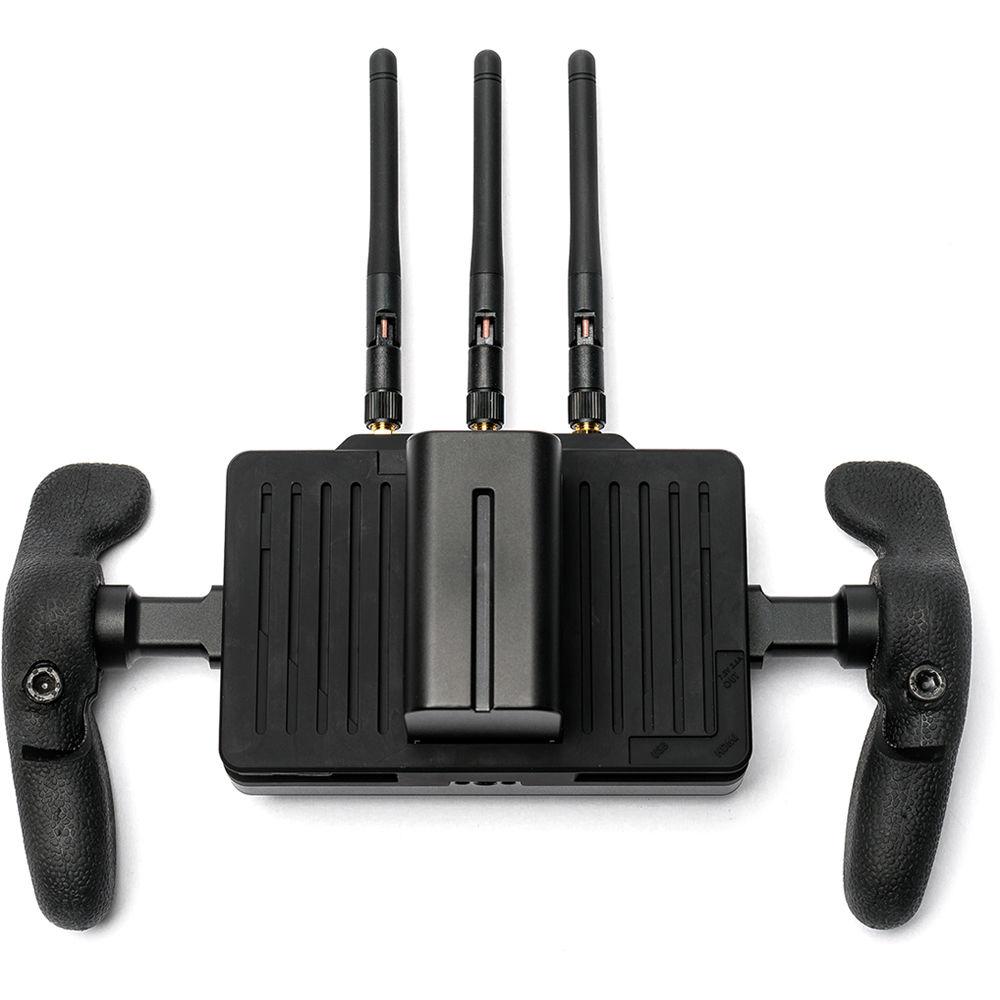

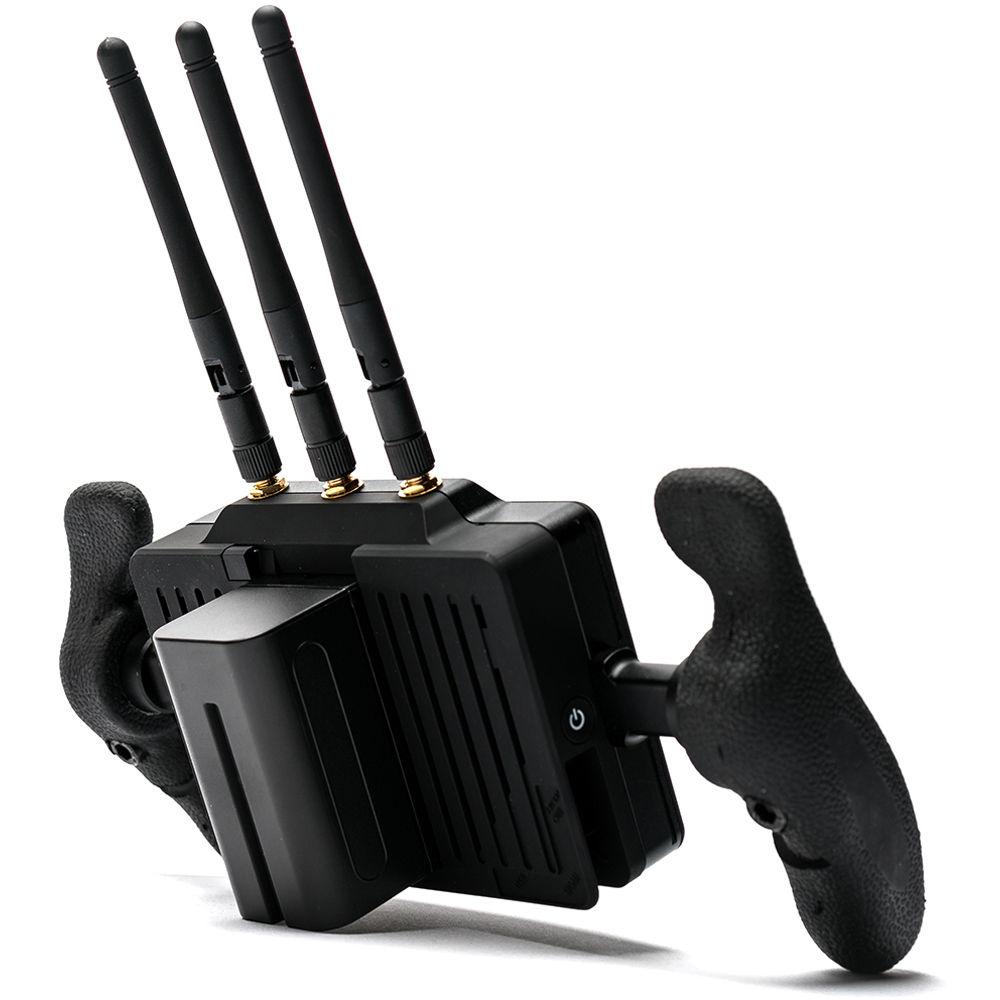

UPC: 855534007984 - FOCUS Bolt 500 RX Wireless Monitor The SmallHD FOCUS Bolt 500 RX Wireless Monitor combines SmallHD's popular FOCUS monitor with Teradek's Bolt 500 wireless receiver, all in a single unit. Using the built-in receiver, the Focus Bolt can receive uncompressed 10-bit 4:2:2 HD video from a Teradek Bolt 500, Bolt 500 LT, Bolt 500 XT transmitters, or a SmallHD FOCUS Bolt 500 TX, from up to 500' away, line-of-sight. Comfortable rubberized handgrips are included along with a neck strap, so you can comfortably hold onto the monitor as you roam around the set. An L-series battery kit for powering the monitor, cable clips, matte and glossy screen protectors, a cleaning cloth, and a micro-HDMI to HDMI adapter are included as well. Display-wise, the FOCUS Bolt 500 RX is based off the same display and I/O as the well-regarded standard FOCUS models. The 800 cd/m² bright touchscreen 1280 x 720 IPS LCD panel can be viewed in daylight and can be driven by either the single micro-HDMI input or the wireless input. Using the intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap. If your camera outputs UHD 4K over HDMI, the FOCUS will support that input resolution as well as HD and SD inputs. The wireless input only supports up to HD resolutions. At the rear of the monitor, a single NP-F battery bay accepts the included L-series battery for power.
- Swipe OS
- Built on SmallHD's intuitive PageBuilder OS, Swipe OS offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
UPC: 855534007960 In the Box Bundle Items FOCUS Bolt 500 TX On-Camera Monitor ubrtsetvyqwyyxab - Sony NPF L-Series Battery & Charger
- FOCUS 180 Degree Tilt Arm Mount for Select On-Camera Monitors
- Flexible Matte Screen Protector for FOCUS Monitors
- UltraClear Screen Protector for Focus Monitor
- Microfiber Cleaning Cloth
- Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8")
- SmallHD Micro-HDMI Male to HDMI Type-A Male Cable (3')
- SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (3')
- SmallHD Micro-HDMI Male to Mini-HDMI Male Cable (3')
FOCUS Bolt 500 RX Wireless Monitor - Sony NPF L-Series Battery & Charger
- Monitor Handles and Neck Strap
- Flexible Matte Screen Protector for FOCUS Monitors
- UltraClear Screen Protector for Focus Monitor
- Microfiber Cleaning Cloth
- Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8")
Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS Bolt 500 TX-RX Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FOCUS Bolt 500 TX On-Camera Monitor
| | | Display | 5" / 12.7 cm IPS LCD | | Resolution | 1280 x 720 | | Pixel Density | 294 PPI | | Aspect Ratio | 16:9 | | Brightness | 800 cd/m² | | Contrast Ratio | Not specified by manufacturer | | Color Gamut | Not specified by manufacturer | | Bit Depth | 10-bit | | Viewing Angle | 160° | | Backlight | White LED | | Temperature Adaptive Color | No | | | | Inputs | 1 x HDMI Type D (micro-HDMI) | | Outputs | 1 x 3.5 mm stereo headphone | | Other I/O | 1 x Micro-USB | | Input Signal | HDMI: 8/10/12-bit color
3840 x 2160 23.98/29.97/30
1080p 23.98/24/25/30/50/59.94/60
1080i 50/59.94/60 (high-speed: 1080i 100/119.88/120)
720p 50/59.94/60 (high-speed: 720p 100/119.88/120)
576p 50 (high-speed: 576p 100/200)
480p 59.94/60 (high-speed: 480p 100/119.88/120/239.76/240)
NTSC (high-speed: 480i 119.88/120/239.76/240)
PAL (high-speed: 576i 100/200)
Audio:
HDMI embedded | | | | Frequency Band | 5 GHz | | RF Power | 22 dBm EIRP | | Range | Up to 500' line-of-sight | | Latency | < 1/1000 second | | Video Resolution | Up to 1080p, 60 fps | | Audio Sampling | 24-bit, 48 kHz | | Channel Selection | AFS (Automatic Frequency Selection) | | Encryption | AES-128 | | | | Battery Support | 1 x NP-F (Sony L) battery bay | | Voltage | 6-8.4 VDC | | Storage | SD card slot | | Dimensions | 3.3 x 0.75 x 5.25" / 8.4 x 1.9 x 13.3 cm | | Weight | 3.75 oz / 106 g (without battery) | | | | Box Dimensions (LxWxH) | 10.0 x 7.2 x 0.9" | - FOCUS Bolt 500 RX Wireless Monitor
| | | Display | 5" / 12.7 cm IPS LCD | | Resolution | 1280 x 720 | | Pixel Density | 294 PPI | | Aspect Ratio | 16:9 | | Brightness | 800 cd/m² | | Contrast Ratio | Not specified by manufacturer | | Color Gamut | Not specified by manufacturer | | Bit Depth | 10-bit | | Viewing Angle | 160° | | Backlight | White LED | | Temperature Adaptive Color | No | | | | Inputs | 1 x HDMI Type D (micro-HDMI) | | Outputs | 1 x 3.5 mm stereo headphone | | Other I/O | 1 x Micro-USB | | Input Signal | HDMI: 8/10/12-bit color
3840 x 2160 23.98/29.97/30
1080p 23.98/24/25/30/50/59.94/60
1080i 50/59.94/60 (high-speed: 1080i 100/119.88/120)
720p 50/59.94/60 (high-speed: 720p 100/119.88/120)
576p 50 (high-speed: 576p 100/200)
480p 59.94/60 (high-speed: 480p 100/119.88/120/239.76/240)
NTSC (high-speed: 480i 119.88/120/239.76/240)
PAL (high-speed: 576i 100/200)
Audio:
HDMI embedded | | | | Frequency Band | 5 GHz | | RF Power | 22 dBm EIRP | | Range | Up to 500' line-of-sight | | Latency | < 1/1000 second | | Video Resolution | Up to 1080p, 60 fps | | Audio Sampling | 24-bit, 48 kHz | | Channel Selection | AFS (Automatic Frequency Selection) | | Encryption | AES-128 | | | | Battery Support | 1 x NP-F (Sony L) battery bay | | Voltage | 6-8.4 VDC | | Storage | SD card slot | | Dimensions | 3.3 x 0.75 x 5.25" / 8.4 x 1.9 x 13.3 cm | | Weight | 12.3 oz / 348.7 g (without battery) | | | | Box Dimensions (LxWxH) | 17.0 x 9.7 x 7.1" |
