Product description

• FOCUS 5" On-Camera Monitor
  • SmallHD FOCUS Monitor | Complete Overview

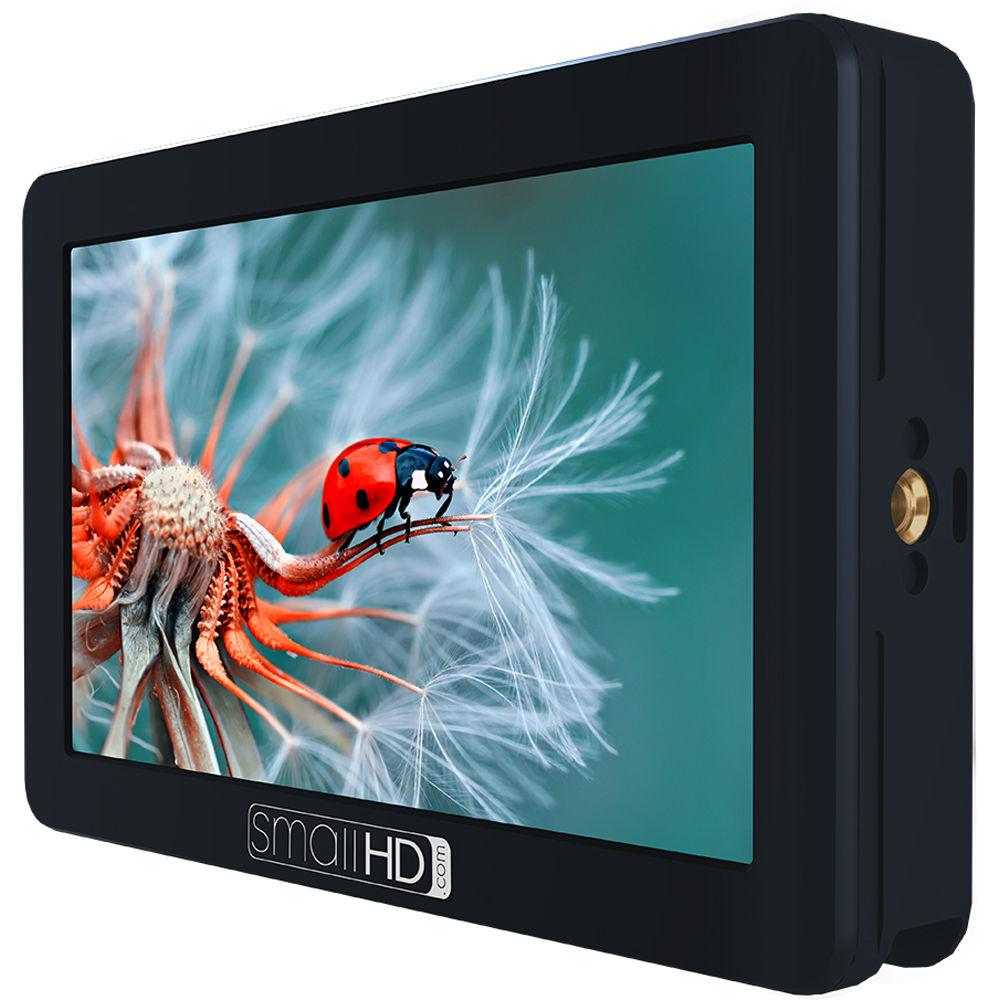

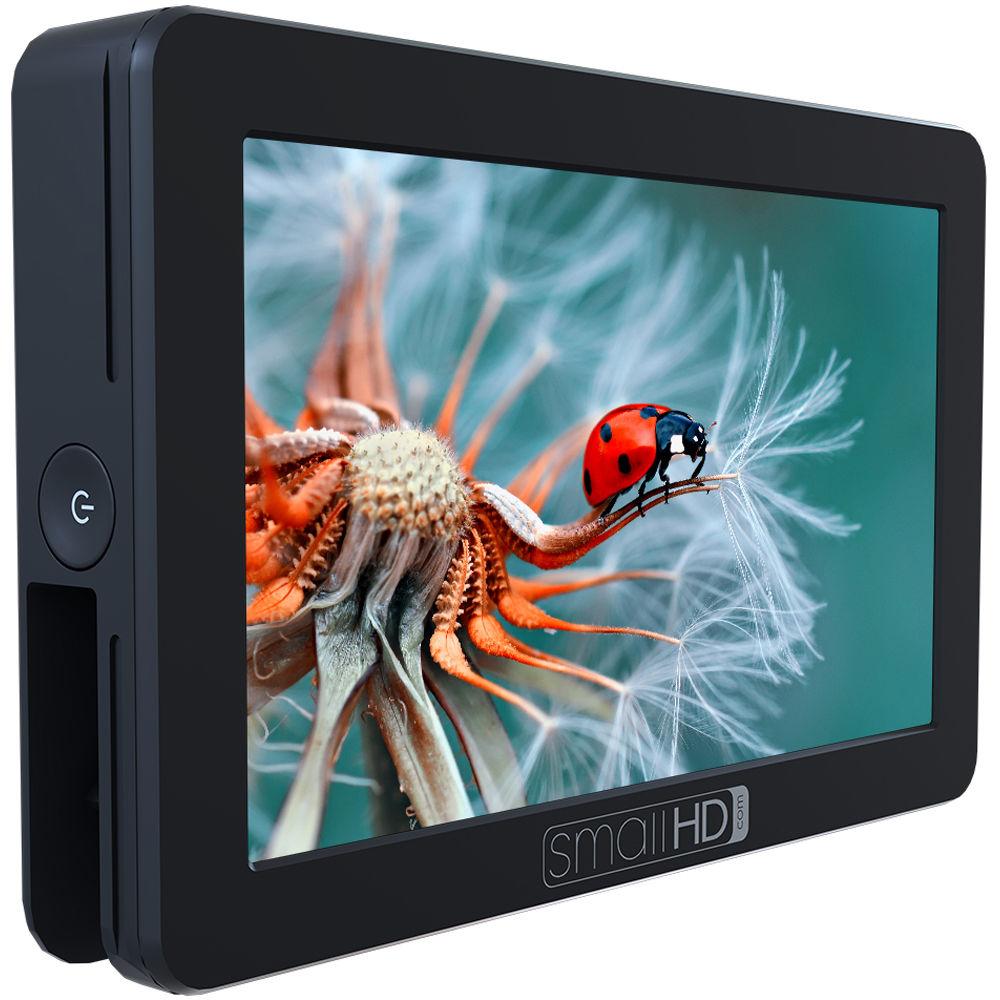

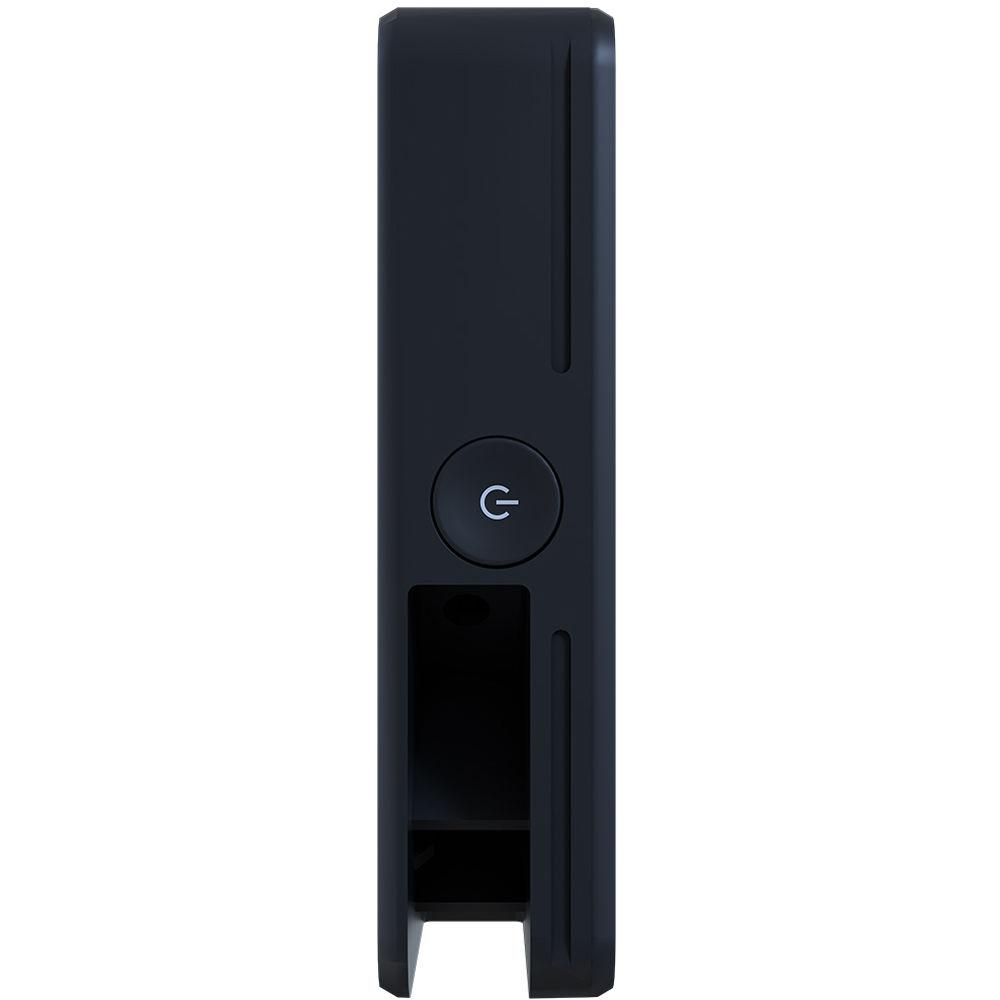

  Designed to add professional monitoring tools to DSLR and mirrorless cameras, the SmallHD FOCUS 5" On-Camera Monitor is bright, lightweight, and features a sharp display. The 800 cd/m² bright touchscreen 1280 x 720 IPS LCD panel can be viewed in daylight, and is driven by a single micro-HDMI input. Using the intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap. If your camera outputs UHD 4K over HDMI, the FOCUS will support that input resolution as well as HD and SD inputs. At the rear of the monitor, a single NP-F battery bay accepts a separately available L-series battery for power, while an integrated power output can also power your camera with a separately available DC coupler. A stand with tilt adjustment is included with the monitor for mounting atop your camera's accessory shoe or on a 1/4"-20 screw.
  Swipe OS
  • Built on SmallHD's intuitive PageBuilder OS, Swipe OS offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
  Camera Setup Integration
  • This monitor complements smaller cameras by providing power output and a headphone jack. The power output lets you power your camera directly from the NP-F battery (sold separately) mounted on the monitor, increasing runtimes over the standard batteries of many mirrorless cameras. If your camera doesn't have a headphone jack, the FOCUS de-embeds the audio from the HDMI stream for real-time feedback of audio.
  Convenient Mounting

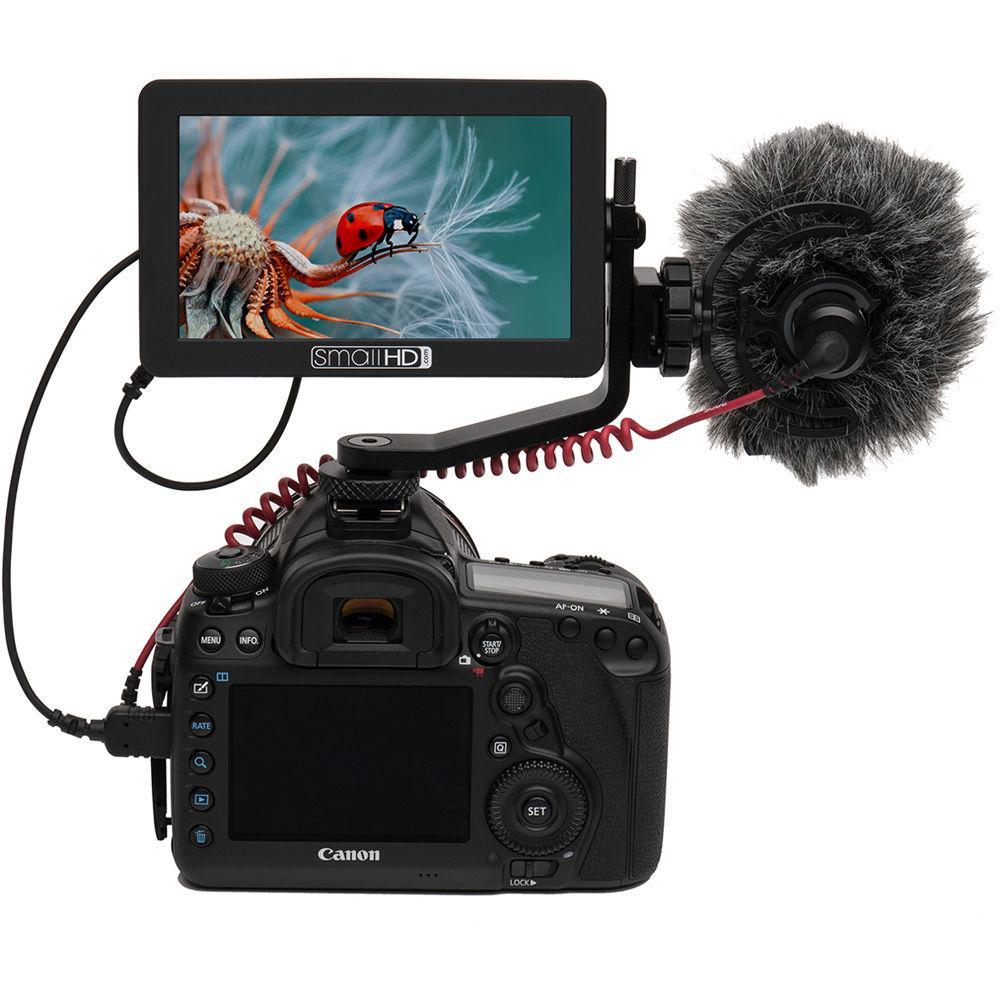

  • The FOCUS monitor secures to your camera using the included FOCUS Tilt Arm via shoe mount or 1/4"-20 thread. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe on the Tilt Arm lets you secure equipment (like a microphone, LED light, or wireless receiver) that would otherwise be displaced from the camera's accessory shoe.
  UPC: 850324007694

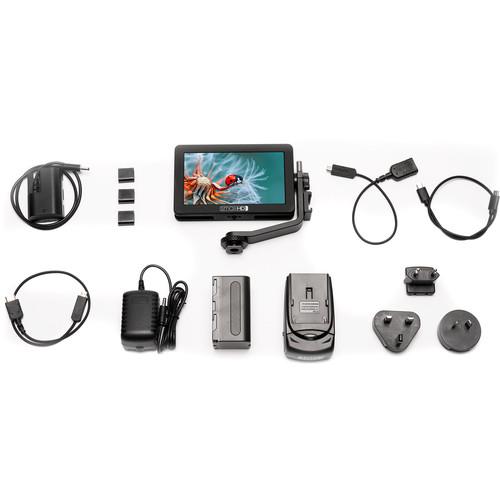

• FOCUS to Canon LP-E6 Power Adapter SmallHD's FOCUS monitors have a power output for smaller cameras, and with this FOCUS to Canon LP-E6 Power Adapter, you can power your Canon 5D-series DSLR camera right off the monitor. Insert the dummy battery end into your camera and connect it up to the FOCUS monitor's output for power. Powering the camera using the montior's battery will result in a simplified power setup and longer shooting times between charges, compared to the standard internal batteries.Note: Check your camera's manual to ensure compatibility with the dummy battery type. UPC: 850324007618
• SmallHD Micro-HDMI Male to Mini-HDMI Male Cable (1') The 1' SmallHD Micro-HDMI Male to Mini-HDMI Male Cable has been designed to let you connect a FOCUS monitor to a larger display, such as a TV or computer monitor. UPC: 850324007748
• Micro-USB Type-B Male Cable (12") The Micro-USB Type-B Male Cable from SmallHD enables you to connect two micro-USB Type-B compatible products such as a DSLR camera to the FOCUS Camera-Top monitor to directly view your content on a larger display. UPC: 850324007717

• Sony NPF L-Series Battery & Charger
• International Power Supply for Battery Chargers

• FOCUS Tilt Arm

• SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (1')

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FOCUS 5" On-Camera Monitor

  Panel Type	IPS-Type LCD
  Display Size	5.0" / 12.7 cm
  Screen Resolution	1280 x 720
  Aspect Ratio	16:9
  Viewing Angle	Horizontal: 160°
  Touchscreen	Yes
  Maximum Brightness	800 cd/m2
  Bit Depth / Color Support	10-Bit (1.07 Billion Colors)
  Pixels Per Inch (ppi)	294 ppi
  Image Controls	False Color, Focus Peaking, Pixel-to-Pixel Zoom, Waveform

  Video	1 x HDMI Type D Input
  Embedded Audio	HDMI
  Audio	1 x 3.5 mm Headphone Output
  Built-In Speaker	None
  Other I/O	1 x USB 2.0 (Micro-USB)
  Card Slot	1 x SD

  Video Format	HDMI (8/10/12-Bit) UHD 4K: 23.98/29.97/30 1080p: 23.98/24/25/30/50/59.94/60 1080i: 50/59.94/60/100/119.88/120 720p: 50/59.94/60/100/119.88/120 576p: 50/100/200 480p: 59.94/60/100/119.88/120/239.76/240 NTSC: 59.94/60/119.88/120/239.76/240 PAL: 50/100/200

  DC Input Power	6 to 8.4 VDC
  Battery Type	1 x L-Series

  Dimensions (W x H x D)	3.3 x 0.75 x 5.25" / 8.4 x 1.9 x 13.3 cm
  Weight	3.75 oz / 106 g

  Box Dimensions (LxWxH)	7.0 x 4.7 x 3.8"

• FOCUS to Canon LP-E6 Power Adapter

  Connector 1	Coaxial power
  Connector 2	LP-E6 dummy battery

  Box Dimensions (LxWxH)	2.9 x 2.45 x 2.0"

• Sony NPF L-Series Battery & Charger

  Box Dimensions (LxWxH)	10.1 x 6.9 x 3.0"

• SmallHD Micro-HDMI Male to Mini-HDMI Male Cable (1')

  Connector 1	HDMI Type-D Male
  Connector 2	HDMI Type-C Male
  Cable Length	1' / 0.3 m

  Box Dimensions (LxWxH)	7.75 x 4.65 x 1.25"

• Micro-USB Type-B Male Cable (12")

  Connector 1	USB Micro-B Male
  Connector 2	USB Micro-B Male
  Cable Type	Cable
  Cable Length	12" / 30.48 cm
  Variable Length	No

  Box Dimensions (LxWxH)	6.95 x 3.9 x 0.45"
