User Manual for SmallHD FOCUS OLED Sony NP-FZ100 Bundle Click to enlarge the picture
Contents of the user manual for the SmallHD FOCUS OLED Sony NP-FZ100 Bundle
- Product category: On Camera Monitors SmallHD
- Brand: SmallHD
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallHD On Camera Monitors
 |
User manual for the SmallHD FOCUS OLED Sony NP-FZ100 Bundle contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallHD product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallHD user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallHD product will considerably shorten its lifespan!
|

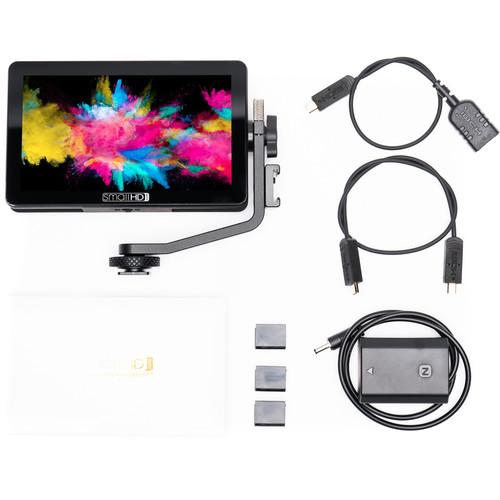

Product description The SmallHD FOCUS OLED Sony NP-FZ100 Bundle includes a 5" FOCUS OLED on-camera monitor, accessory arm, NP-FZ100 adapter, L-series battery and charger, micro-HDMI cable, micro-USB cable, micro-HDMI to HDMI type A cable, screen protector, and four cable clips. The monitor features 1920 x 1280 resolution and can display SD, HD, and UHD 4K. It features SmallHD's OS3 which supports scopes, waveform, false color, focus peaking, and real-time 3D LUT support.

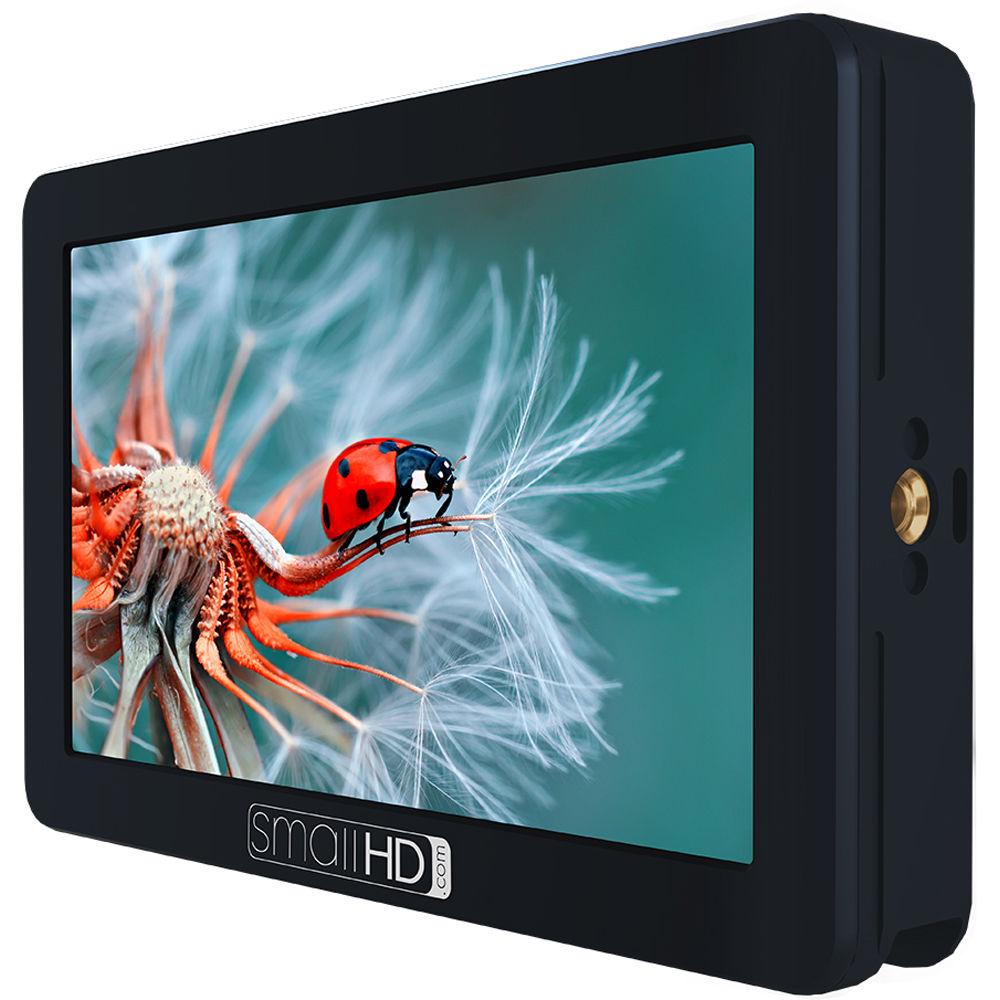

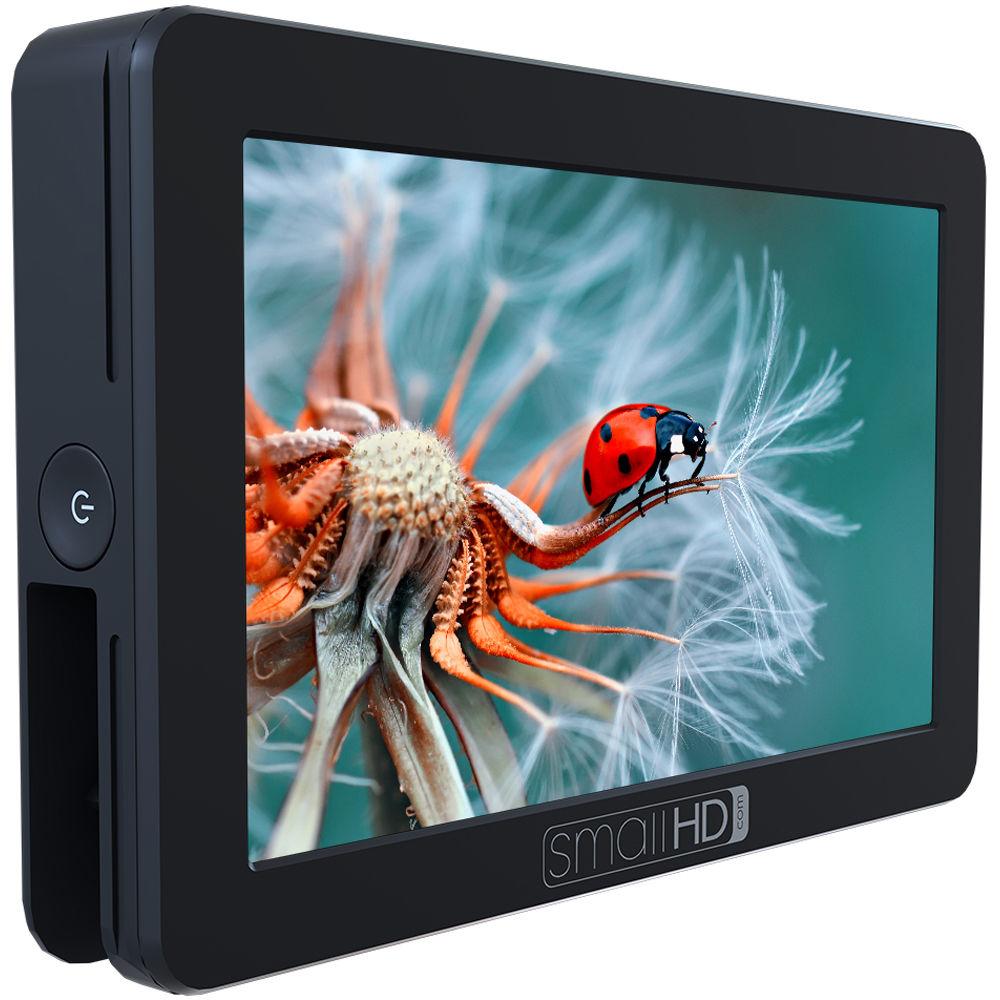

The monitor includes a tilt arm and HDMI cable, and the NP-FZ100 battery included in the bundle powers your camera. Included cables help provide increased connectivity, while the screen protector helps keep your monitor's screen clean and undamaged. Four included cable clips help control your cables so they don't get in the way while you are shooting. - 5.5" FOCUS OLED Monitor (HDMI) The SmallHD 5.5" FOCUS OLED HDMI Monitor combines the accuracy of an OLED display with the ability to power select DSLR and mirrorless cameras. Viewable even in full daylight, this onboard monitor's 350 cd/m² bright 1920 x 1080 OLED panel is crisp enough for pulling focus, and features a single micro-HDMI input. Load custom LUTs and access focus and monitoring tools like waveform, false color, and vectorscope using the touchscreen interface.Powered by a single Sony L-series type battery (not included), this versatile monitor can also supply power to select cameras when used with a separately available adapter cable. Display features include 2x and 4x pixel zoom, multiple anamorphic de-squeeze functions, false color options, image overlay, and up to 8-channel audio metering.A Tilt Arm is included with the monitor for mounting to your camera's accessory shoe or 1/4"-20 threaded hole. The FOCUS OLED's rubberized plastic form includes three 1/4"-20 threaded mounting points. Additional features include SD card storage, a 3.5mm stereo headphone jack, and a low 5.76W power draw.
- Display Features
-
- Supports up to UHD 4K video
- SD card slot for loading custom LUTs
- Wide color gamut display
- 2x and 4x pixel zoom
- 1.33x, 1.5x, 1.66x, and 2.0x anamorphic de-squeeze
- Automatic/manual image flip and rotation
- Waveform, zebra, and vectorscope
- Preset and custom frame guides
- Micro-HDMI
- A micro-HDMI connector is used to display up to a UHD 4K signal. A micro-HDMI to HDMI type A cable, a micro-HDMI cable, and four cable clips are included with the monitor.
- Camera Power

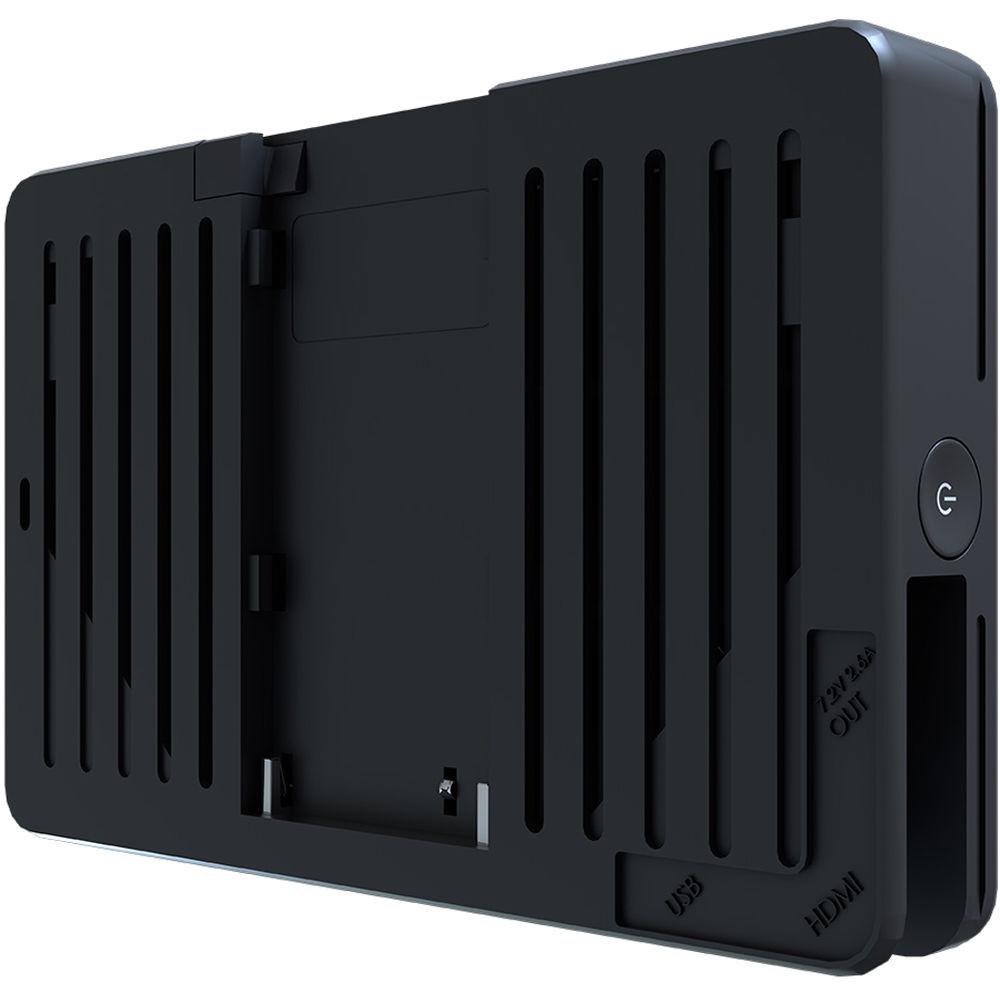

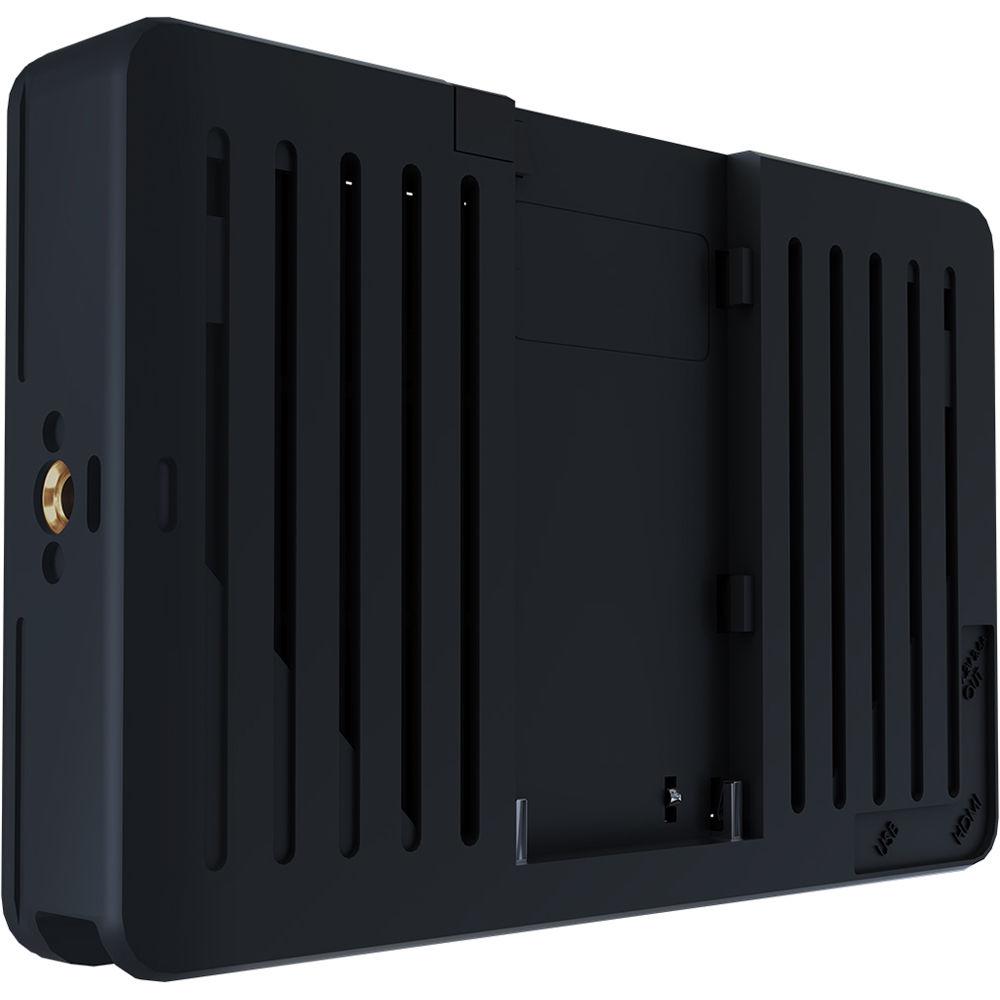

- An output port enables you to power your camera directly from an NP-F L-series battery mounted on the monitor, increasing runtimes over the standard batteries of many DSLR or mirrorless cameras.
- Convenient Mounting

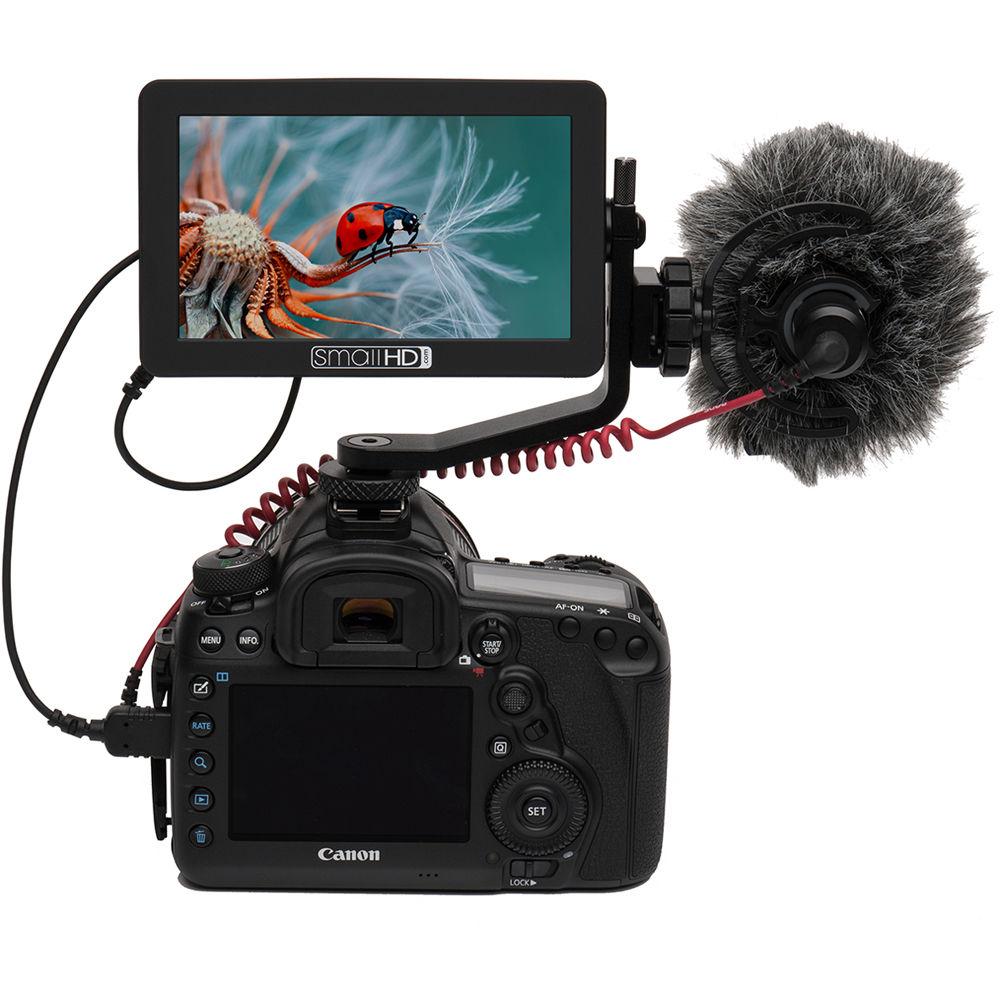

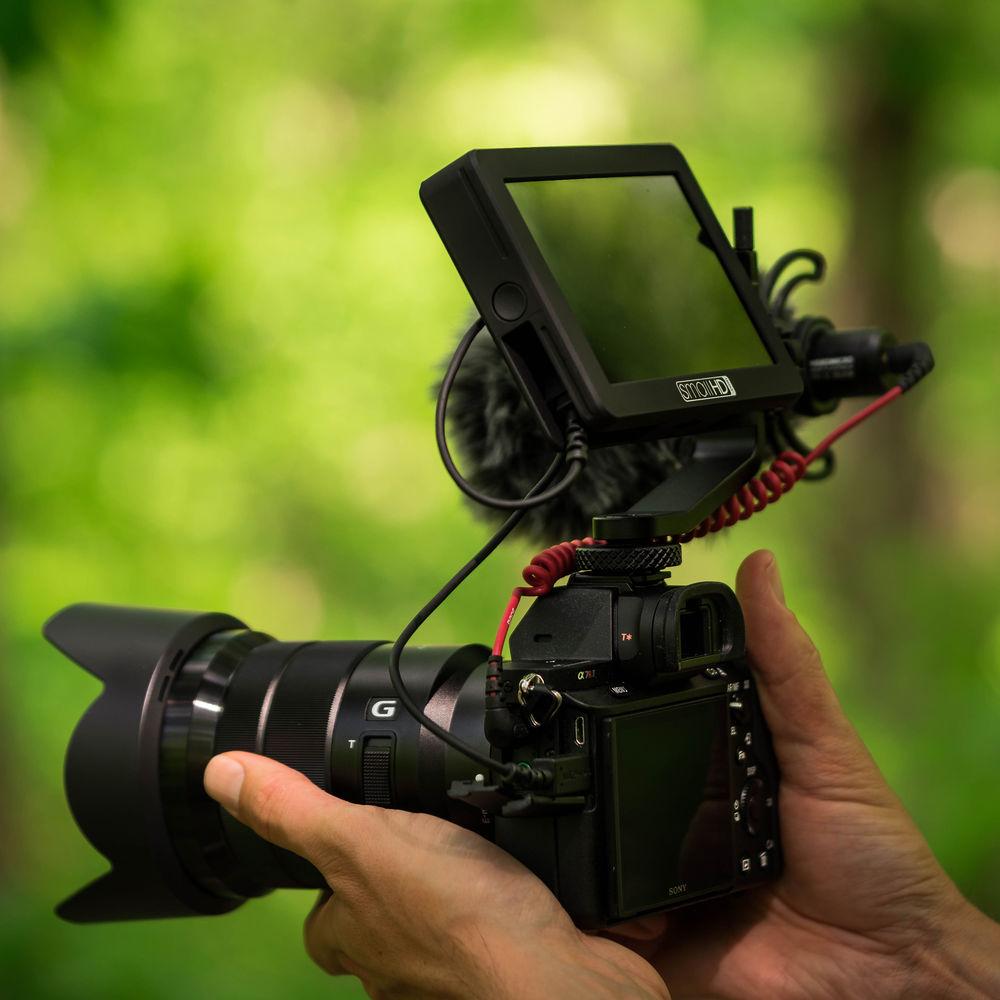

- Attach the FOCUS OLED monitor to your camera's shoe or 1/4"-20 thread using the included FOCUS Tilt Arm. The Tilt Arm enables 180° of tilt for convenient monitoring, and incorporates a cold shoe.
UPC: 855534007588 - FOCUS to Sony NP-FZ100 Faux Battery Adapter The FOCUS to Sony NP-FZ100 Faux Battery Adapter from SmallHD enables you to power select Sony Alpha-series mirrorless cameras from your FOCUS onboard monitor.Link the FOCUS monitor to your camera with this adapter to both extend your camera runtime and to save space and weight on your camera rig. Note: Check your camera's manual to ensure compatibility with the dummy battery type.
Compatibility UPC: 811786030088 - Micro-USB Type-B Male Cable (12") The Micro-USB Type-B Male Cable from SmallHD enables you to connect two micro-USB Type-B compatible products such as a DSLR camera to the FOCUS Camera-Top monitor to directly view your content on a larger display. UPC: 850324007717
- Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8") The 8" SmallHD Micro-HDMI Male to HDMI Type-A Female Adapter Cable has been designed to let you connect a FOCUS monitor to a larger display, such as a TV or computer monitor. Simply connect the micro-HDMI male end to the FOCUS, and the female HDMI Type-A end to your HDMI Type-A Male cable. UPC: 850324007168
- Sony NPF L-Series Battery & Charger
- UltraClear Screen Protector for Focus Monitor
In the Box Bundle Items 5.5" FOCUS OLED Monitor (HDMI) urcbcrqx - FOCUS 180 Degree Tilt Arm Mount for Select On-Camera Monitors
- UltraClear Screen Protector for FOCUS OLED
- Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8")
- SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (1')
- Micro-USB Type-B Male Cable (12")
FOCUS to Sony NP-FZ100 Faux Battery Adapter urcbcrqx Sony NPF L-Series Battery & Charger Micro-USB Type-B Male Cable (12") Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8") UltraClear Screen Protector for Focus Monitor
Also Includes Quick start Guide PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS OLED Sony NP-FZ100 Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 5.5" FOCUS OLED Monitor (HDMI)
| | | Panel Type | OLED | | Display Size | 5.5" / 14.0 cm | | Screen Resolution | 1920 x 1080 | | Aspect Ratio | 16:9 | | Viewing Angle | 160° | | Touchscreen | Yes | | Maximum Brightness | 350 cd/m2 | | Contrast Ratio | 60,000:1 | | Bit Depth / Color Support | 8-Bit (16.7 Million Colors) | | Color Gamut | 105% NTSC | | Real-Time LUT Monitoring | SDR | | Image Controls | Anamorphic De-Squeeze, Blue Only, False Color, Focus Peaking, Histogram, Image Flip, RGB Parade, Screen Markers, Underscan, Vectorscope, Waveform, Zebra | | | | Video | 1 x HDMI Type D (HDMI 1.4a) Input | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Line Input
1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Power | 1 x Barrel Output | | Other I/O | 1 x USB 2.0 (Micro-USB) For future use | | Card Slot | 1 x SD | | | | Video Format | HDMI (8-Bit 4:4:4 RGB, YCC)
UHD 4K: 30
HDMI (12-Bit 4:2:2 YCC)
UHD 4K: 30
HDMI (8/10-Bit 4:4:4 RGB, YCC)
UHD 4K: 24
HDMI (12-Bit 4:2:2 YCC)
UHD 4K: 24
HDMI (8/10/12-Bit 4:4:4/4:2:2/4:2:0 RGB, YCC)
1080p: 24/25/30/50/59.94/60
1080i: 50/59.94/60/100/119.88/120
720p: 24/25/30/50/59.94/60/100/119.88/120
480p: 59.94/60/100/119.88/120/239.76/240
576p: 50/100/200
NTSC: 59.94/60/119.88/120/239.76/240
PAL: 50/100/200 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 1 x L-Series | | | | Mounting | 3 x 1/4"-20 Female | | | | Operating Temperature | 32 to 140°F / 0 to 60°C | | | | Dimensions (W x H x D) | 3.4 x 0.8 x 5.5" / 8.64 x 2.03 x 13.97 cm | | Weight | 9 oz / 255 g | | | | Box Dimensions (LxWxH) | 9.65 x 7.0 x 2.05" | - FOCUS to Sony NP-FZ100 Faux Battery Adapter
| Connector 1 | DC Barrel | | Connector 2 | NP-FZ100 Dummy Battery | | Weight | 6 oz / 170 g | | | | Box Dimensions (LxWxH) | 2.75 x 2.25 x 2.0" | - Sony NPF L-Series Battery & Charger
| | | Box Dimensions (LxWxH) | 10.1 x 6.9 x 3.0" | - Micro-USB Type-B Male Cable (12")
| Connector 1 | USB Micro-B Male | | Connector 2 | USB Micro-B Male | | Cable Type | Cable | | Cable Length | 12" / 30.48 cm | | Variable Length | No | | | | Box Dimensions (LxWxH) | 6.95 x 3.9 x 0.45" | - Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8")
| Connector 1 | HDMI Type-D Male | | Connector 2 | HDMI Type-A Female | | Cable Length | 8" / 20.32 cm | | Weight | 6.0 oz / 170.1 g | | | | Box Dimensions (LxWxH) | 5.0 x 3.5 x 0.8" | - UltraClear Screen Protector for Focus Monitor
| | | Box Dimensions (LxWxH) | 6.15 x 3.55 x 0.45" |
