Product description

• FOCUS SDI Monitor Kit
  • SHD OS3 Auto Calibration
  • SHD OS3 Overview

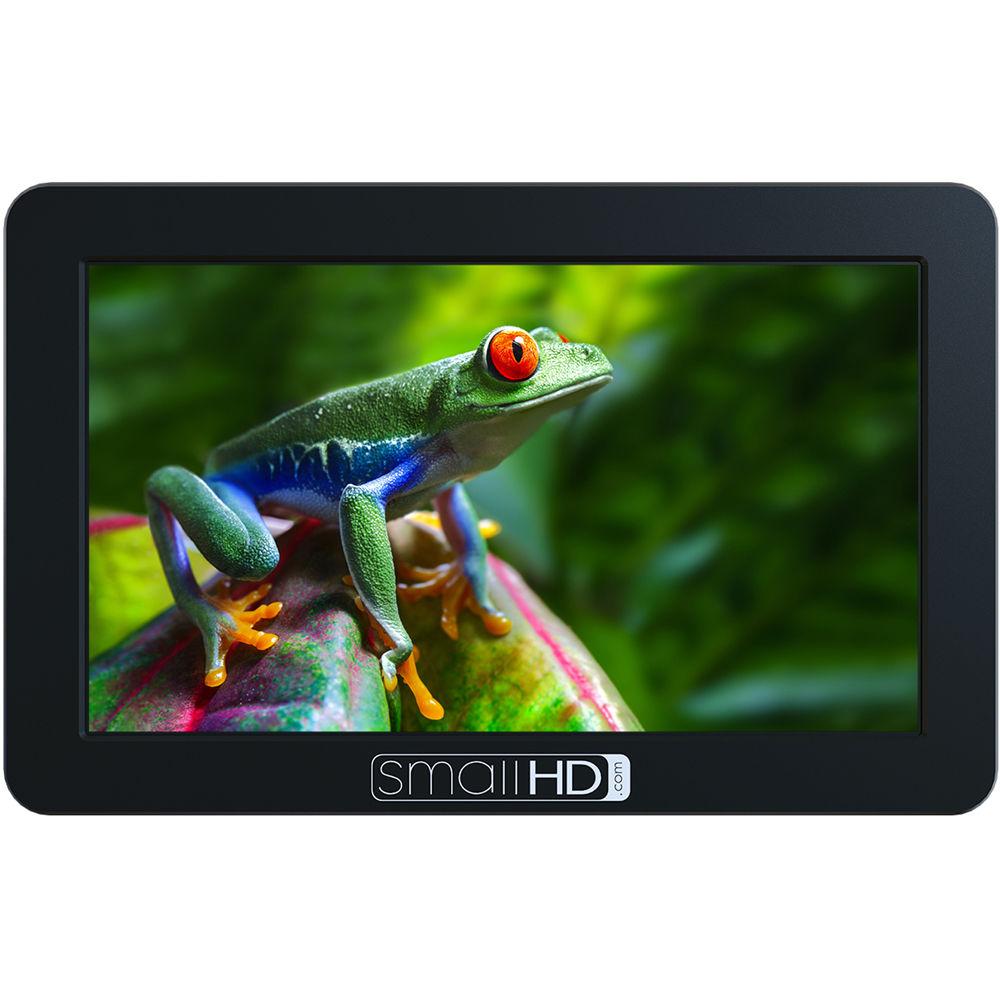

  The SmallHD FOCUS SDI Monitor Kit provides a compact, professional SDI monitoring option suitable for use with DSLR and mirrorless cameras. This bright, lightweight onboard monitor features a sharp display that is viewable even in full daylight. The 800 cd/m² bright touchscreen 1280 x 720 IPS LCD panel is fed by a single 3G/HD/SD-SDI (BNC) input, and is crisp enough for pulling focus. Powered by a single Sony L-series type battery, this versatile monitor can also supply power to your camera when used with a separately available adapter cable for your camera.Use the intuitive Swipe OS to turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking. A Tilt Arm is included with the monitor for mounting to your camera's accessory shoe or 1/4"-20 threaded hole. Additional features include a 3.5mm stereo headphone jack and a low 5W power draw.

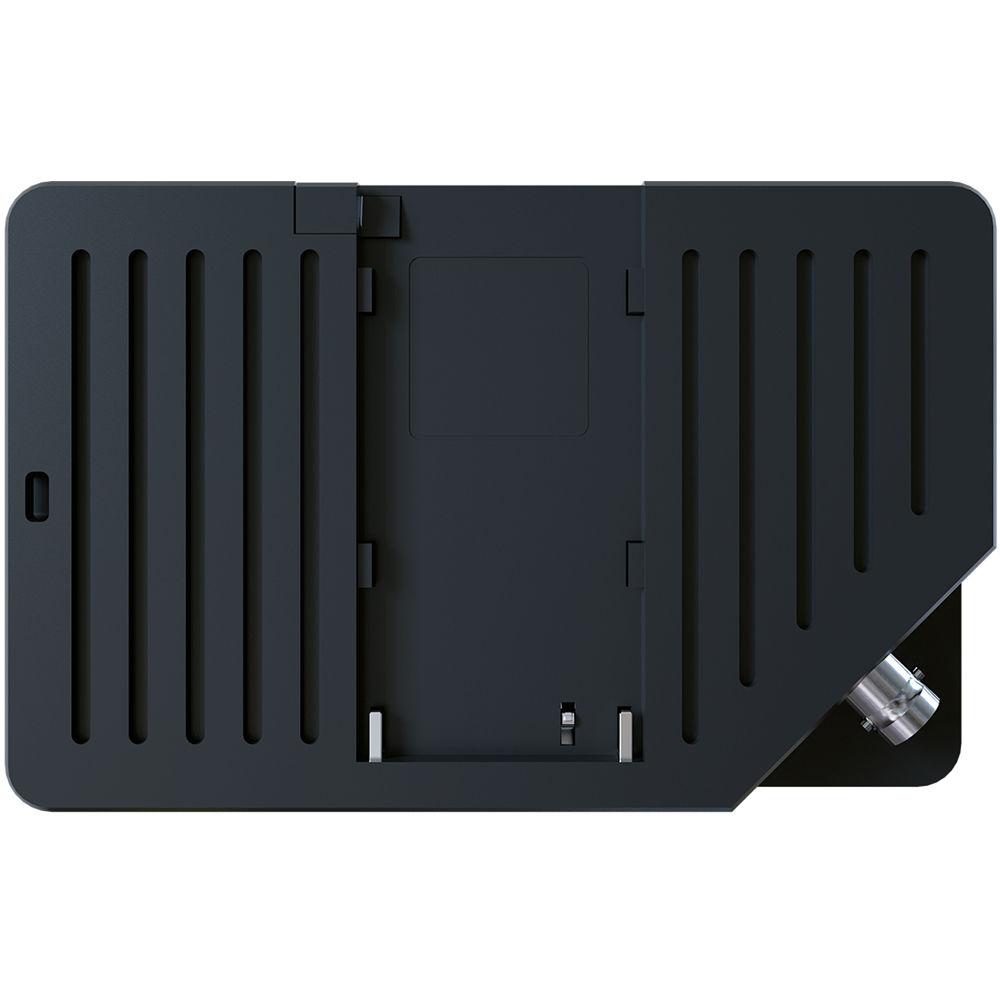

  Full-Sized SDI Input

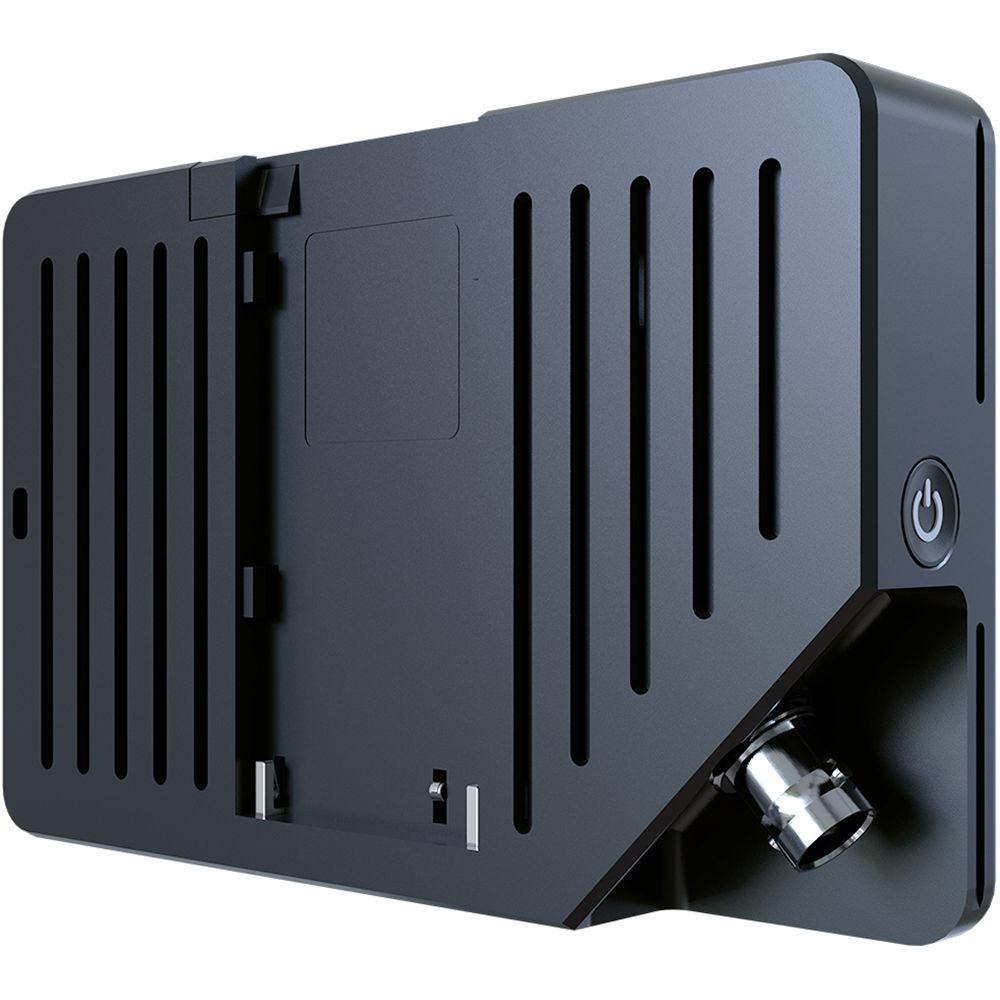

  • A full-sized SDI (BNC) connector is used to display your camera's 3G/HD/SD-SD video signal.

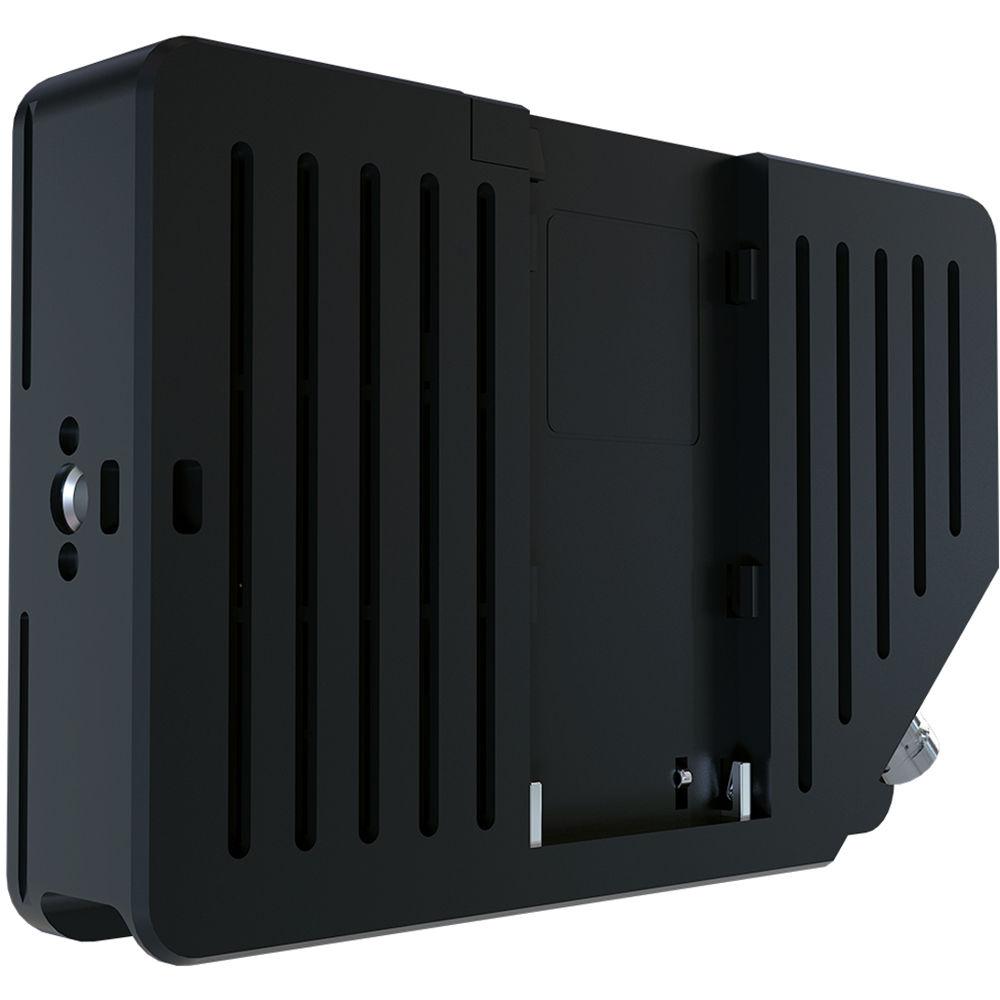

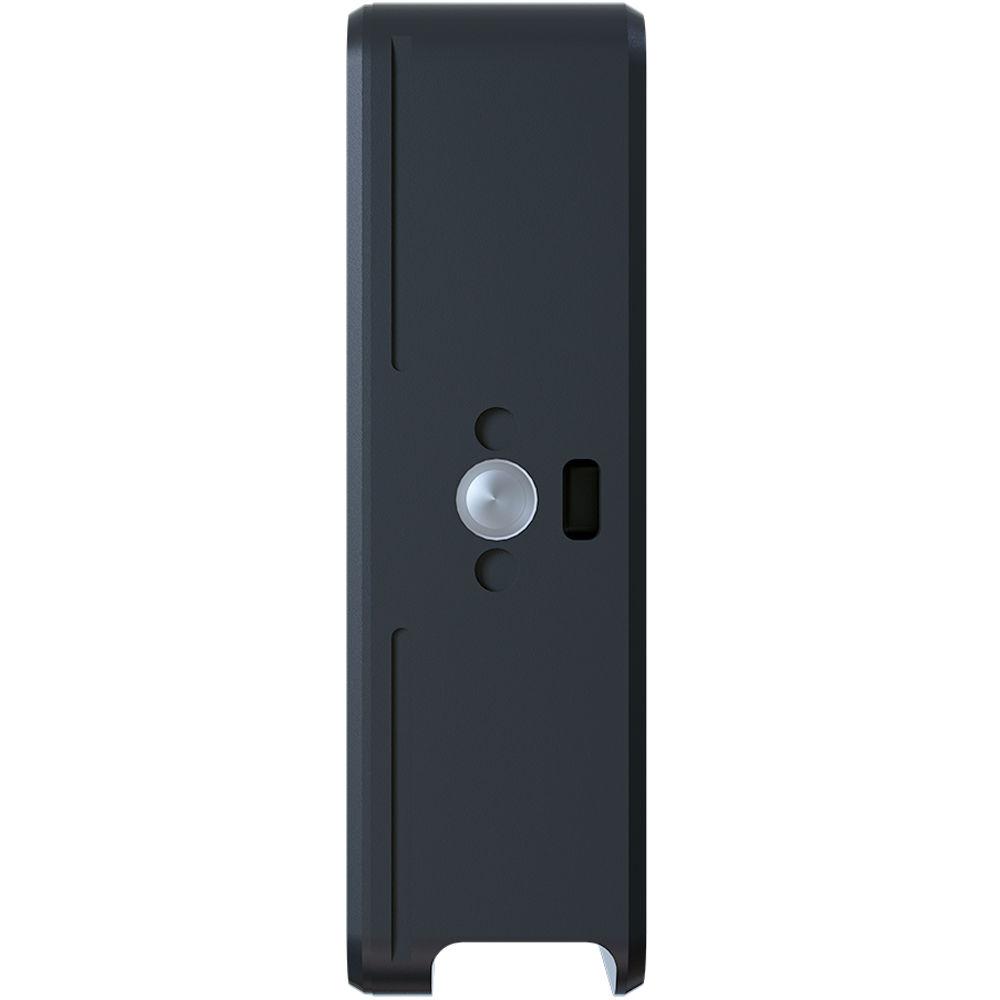

  Camera Power
  • An output port enables you to power your camera directly from an NP-F battery mounted on the monitor, increasing runtimes over the standard batteries of many mirrorless cameras.
  Swipe OS
  • SmallHD's Swipe OS enables you to apply monitoring tools such as waveform, vectorscope, and focusing aids, and swipe through preset pages with the ease of a touchscreen.
  Convenient Mounting
  • Secure the FOCUS SDI monitor to your camera's shoe or 1/4"-20 thread using the included FOCUS Tilt Arm. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe on the Tilt Arm replaces the camera's accessory shoe.

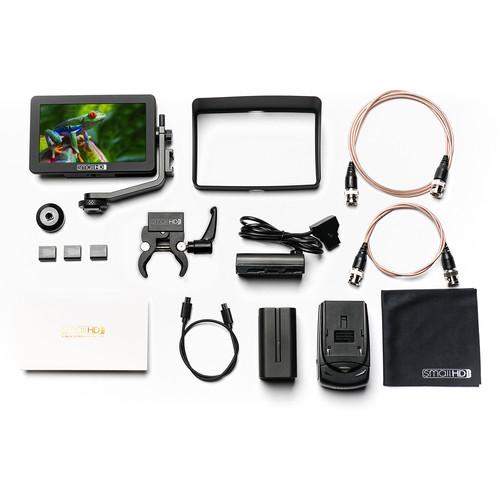

  UPC: 855534007595
• Thin BNC Cable (48") At only 2.75mm in diameter this Thin BNC Cable from SmallHD will snake around nearly any component you have in your rig, perfect for use in compact camera setups with an EVF or on-camera monitor which uses SDI. UPC: 857497005977

• Sony NPF L-Series Battery & Charger
• Sun Hood for FOCUS 5" On-Camera Monitor

• FOCUS 180 Degree Tilt Arm Mount for Select On-Camera Monitors

• UltraClear Screen Protector for Focus Monitor

• 4 x Cable Clip

• Thin BNC Cable (24")

• Micro-USB Type-B Male Cable (12")

• Limited 1-Year Warranty

• Limited 1-Year Warranty

Also Includes

• Gimbal Shoe Clamp
• Limited 1-Year Warranty

Upload User Manual

Please enter here the link to the user manual of this product: OR Enter here the file with the user manual of this product from your computer/phone: (60MB max; Permitted formats: PDF) 0%

Technical parameters

• FOCUS SDI Monitor Kit

  Display	5" / 12.7 cm IPS LCD
  Resolution	1280 x 720
  Pixel Density	294 ppi
  Aspect Ratio	16:9
  Brightness	800 cd/m²
  Contrast Ratio	Not specified by manufacturer
  Color Gamut	70% NTSC
  Bit Depth	10-bit
  Viewing Angle	160°
  Backlight	White LED
  Temperature Adaptive Color	No

  Inputs	1 x BNC, 3G/HD/SD-SDI
  Audio Out	1 x 3.5 mm stereo mini-jack
  Other I/O	1 x Micro-USB
  Input Signal	3G-SDI: YCC 4:2:2 1080p: 60/59.94/50 1080i: 60/59.94/50 HD-SDI: RGB/YCC 4:2:2 and 4:4:4 1080p: 60/30/25/24/23.98 1080PsF: 29.97/25/24/23.98 1080i: 60/59.94/50 720p: 60/59.94/50 SD-SDI: YCC 4:2:2 at 10-bit 576i: 25 480i: 29.97 Audio: SDI

  Pixel Zoom	2x, 4x
  Anamorphic De-Squeeze	1.33x, 1.5x, 1.66x, 2.0x
  Audio Metering	Up to 8 channels

  Power Input	1 x NP-F (Sony L) battery bay
  Power Output	1 x Barrel: 3.5 mm outer, 1.1 mm inner
  Voltage	6-8.4 VDC
  Power Consumption	5.04 W

  Storage	1 x SD card slot
  Mounting Threads	3 x 1/4"-20
  Operating Temperature	32 to 158° F / 0 to 70° C
  Dimensions (HxWxD)	3.34 x 5.24 x 0.98" / 8.48 x 13.31 x 2.49 cm
  Weight	6.6 oz / 187 g (without battery)

  Box Dimensions (LxWxH)	9.4 x 7.25 x 2.0"

• Sony NPF L-Series Battery & Charger

  Box Dimensions (LxWxH)	10.1 x 6.9 x 3.0"

• Sun Hood for FOCUS 5" On-Camera Monitor

  Box Dimensions (LxWxH)	5.7 x 4.15 x 2.2"

• Thin BNC Cable (48")

  Cable Length	4' / 1.2 m
  Weight	0.1 lb / 0.1 kg

  Box Dimensions (LxWxH)	2.5 x 1.5 x 0.85"
