Product description - SHD OS3 Auto Calibration
- SHD OS3 Overview

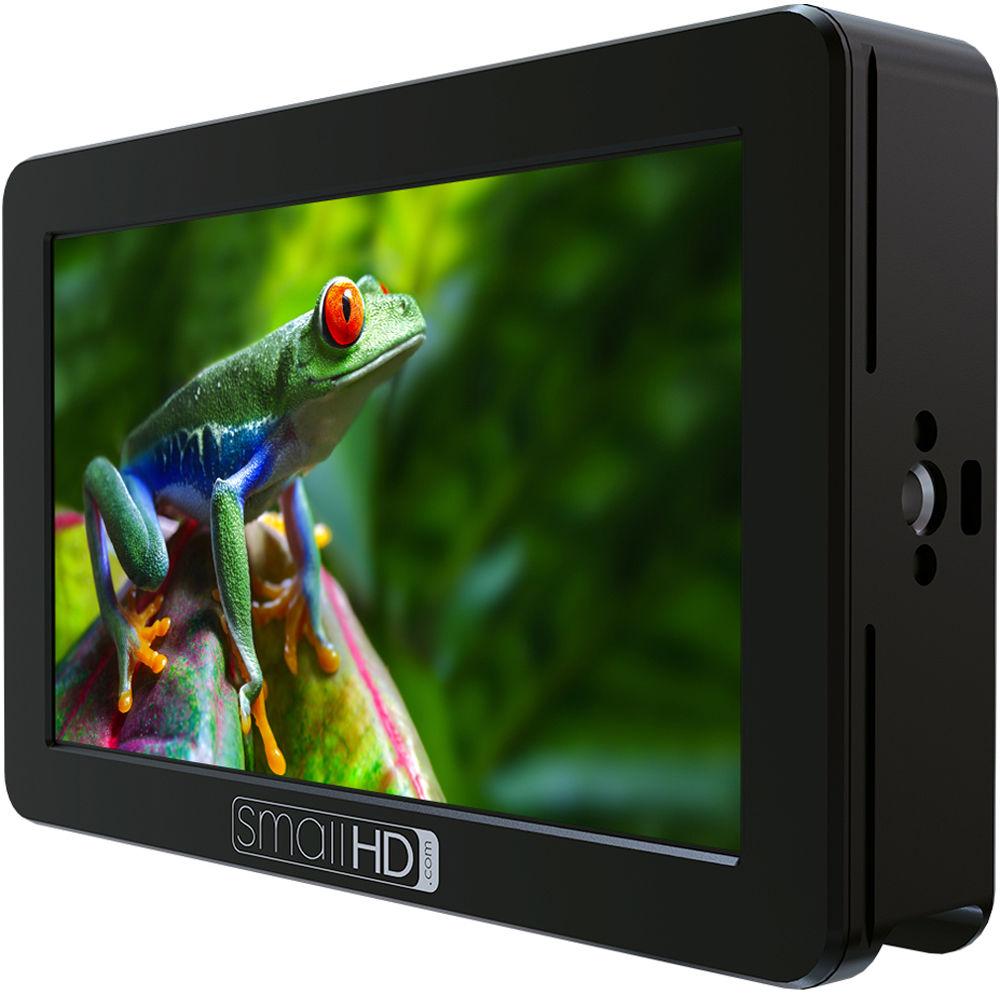

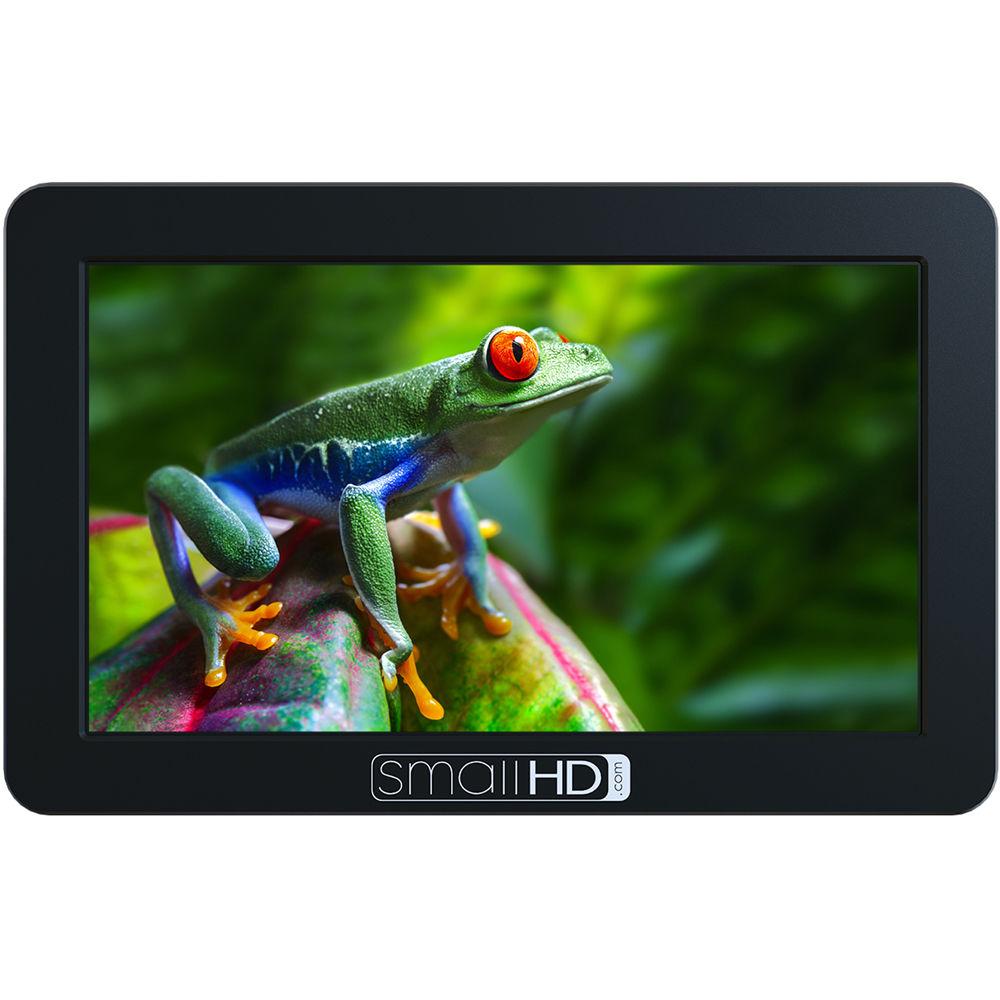

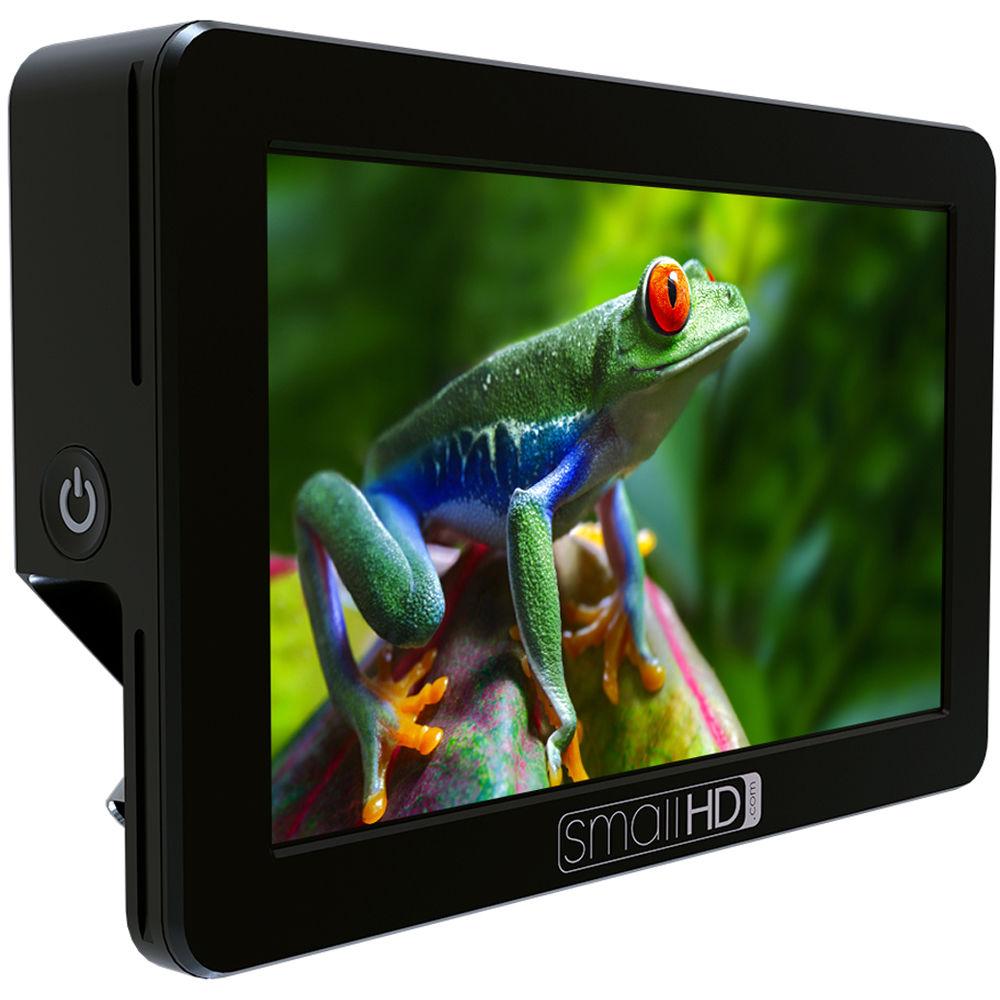

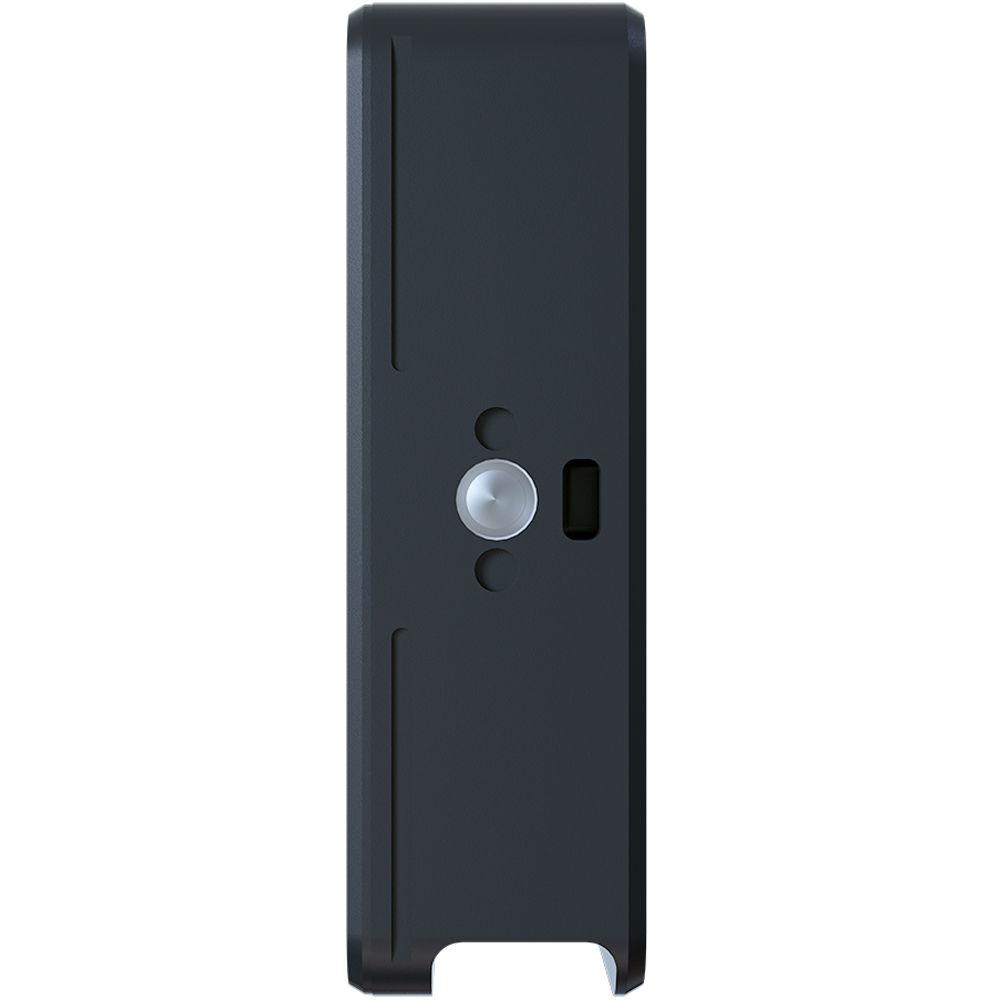

The SmallHD FOCUS SDI Monitor Kit provides a compact, professional SDI monitoring option suitable for use with DSLR and mirrorless cameras. This bright, lightweight onboard monitor features a sharp display that is viewable even in full daylight. The 800 cd/m² bright touchscreen 1280 x 720 IPS LCD panel is fed by a single 3G/HD/SD-SDI (BNC) input, and is crisp enough for pulling focus. Powered by a single Sony L-series type battery, this versatile monitor can also supply power to your camera when used with a separately available adapter cable for your camera.Use the intuitive Swipe OS to turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking. A Tilt Arm is included with the monitor for mounting to your camera's accessory shoe or 1/4"-20 threaded hole. Additional features include a 3.5mm stereo headphone jack and a low 5W power draw. - Full-Sized SDI Input

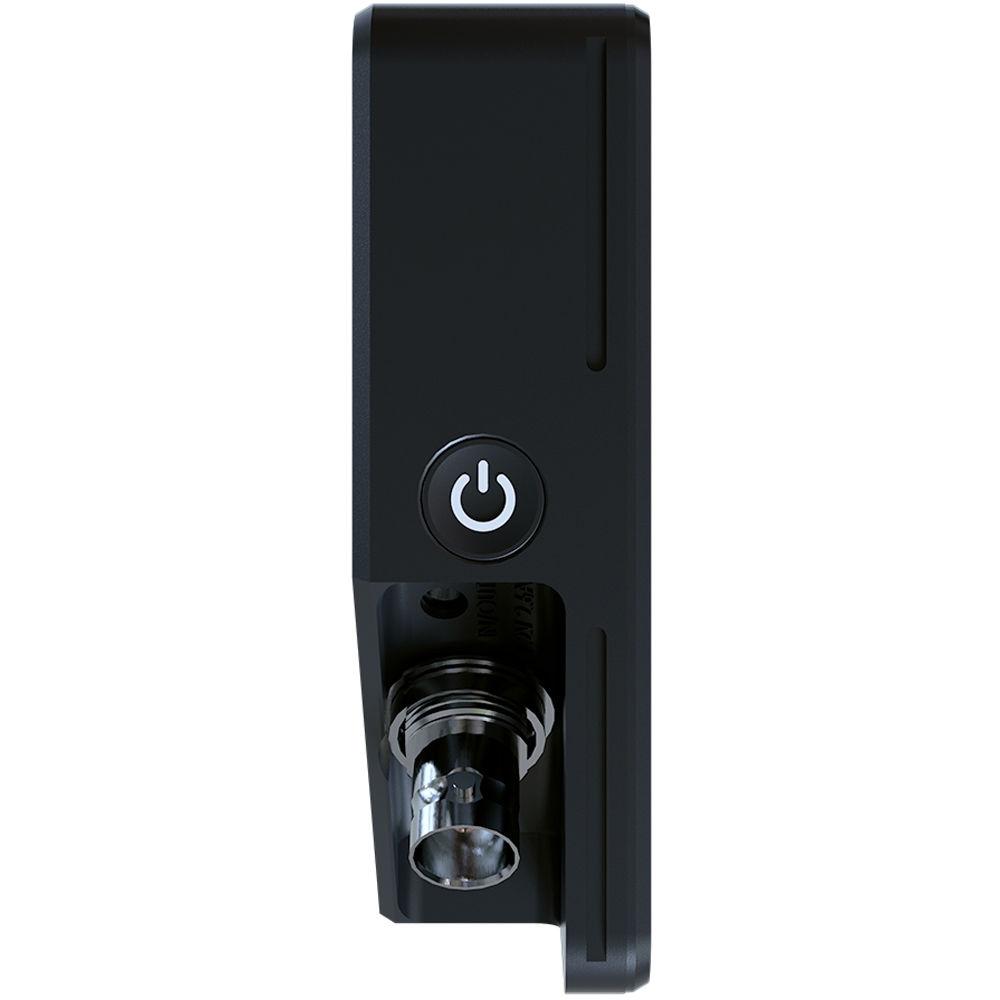

- A full-sized SDI (BNC) connector is used to display your camera's 3G/HD/SD-SD video signal.
- Camera Power

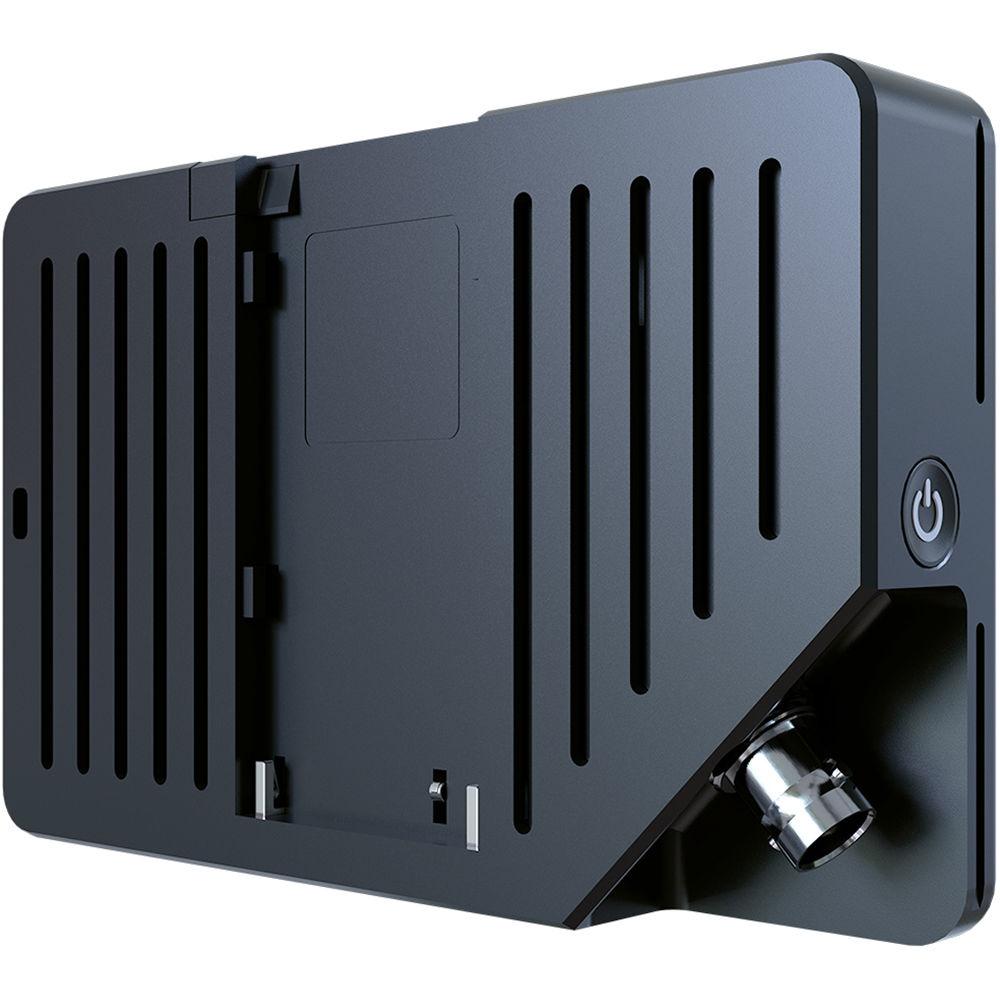

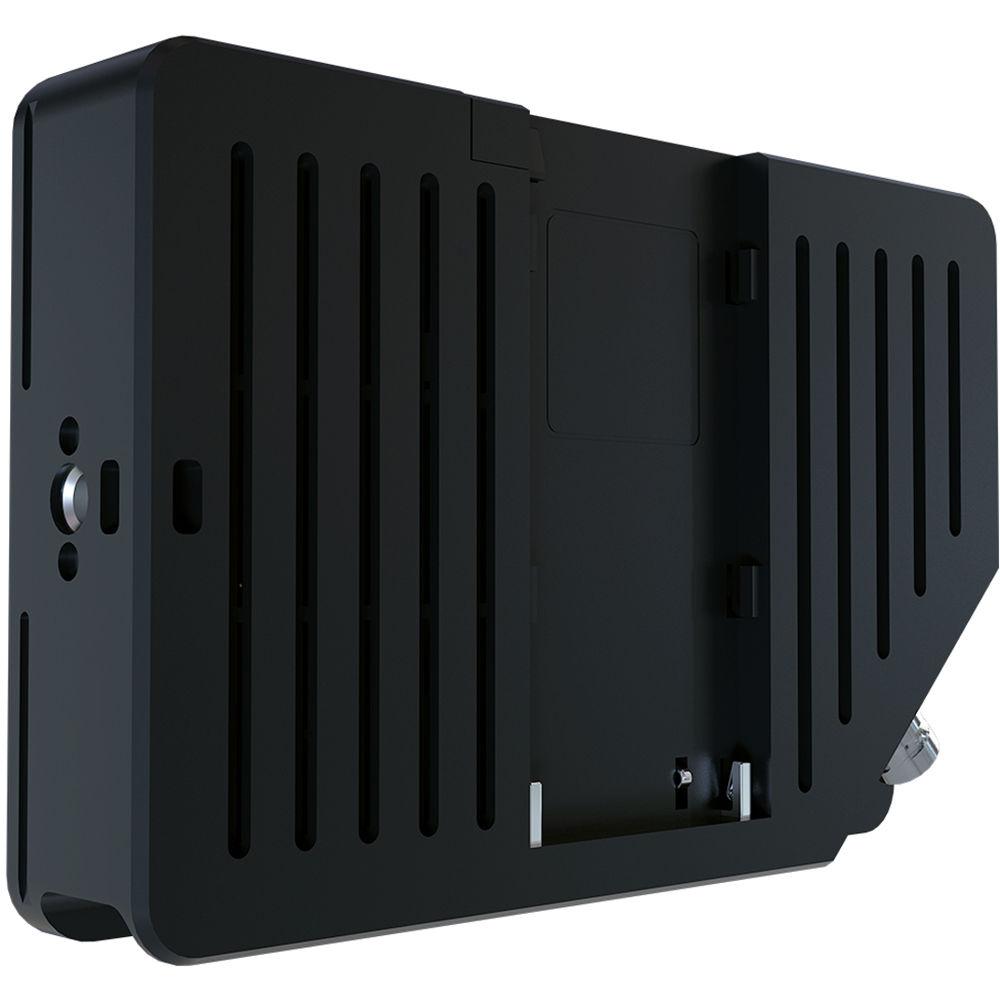

- An output port enables you to power your camera directly from an NP-F battery mounted on the monitor, increasing runtimes over the standard batteries of many mirrorless cameras.
- Swipe OS
- SmallHD's Swipe OS enables you to apply monitoring tools such as waveform, vectorscope, and focusing aids, and swipe through preset pages with the ease of a touchscreen.
- Convenient Mounting
- Secure the FOCUS SDI monitor to your camera's shoe or 1/4"-20 thread using the included FOCUS Tilt Arm. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe on the Tilt Arm replaces the camera's accessory shoe.

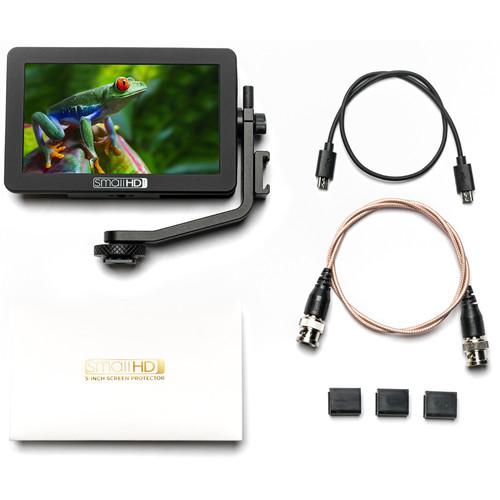

UPC: 855534007595 In the Box SmallHD FOCUS SDI Monitor Kit FOCUS 180 Degree Tilt Arm Mount for Select On-Camera Monitors UltraClear Screen Protector for Focus Monitor 4 x Cable Clip Thin BNC Cable (24") Micro-USB Type-B Male Cable (12") Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS SDI Monitor Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD Focus Specs | | | Display | 5" / 12.7 cm IPS LCD | | Resolution | 1280 x 720 | | Pixel Density | 294 ppi | | Aspect Ratio | 16:9 | | Brightness | 800 cd/m² | | Contrast Ratio | Not specified by manufacturer | | Color Gamut | 70% NTSC | | Bit Depth | 10-bit | | Viewing Angle | 160° | | Backlight | White LED | | Temperature Adaptive Color | No | | | | Inputs | 1 x BNC, 3G/HD/SD-SDI | | Audio Out | 1 x 3.5 mm stereo mini-jack | | Other I/O | 1 x Micro-USB | | Input Signal | 3G-SDI: YCC 4:2:2
1080p: 60/59.94/50
1080i: 60/59.94/50
HD-SDI: RGB/YCC 4:2:2 and 4:4:4
1080p: 60/30/25/24/23.98
1080PsF: 29.97/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
SD-SDI: YCC 4:2:2 at 10-bit
576i: 25
480i: 29.97
Audio:
SDI | | | | Pixel Zoom | 2x, 4x | | Anamorphic De-Squeeze | 1.33x, 1.5x, 1.66x, 2.0x | | Audio Metering | Up to 8 channels | | | | Power Input | 1 x NP-F (Sony L) battery bay | | Power Output | 1 x Barrel: 3.5 mm outer, 1.1 mm inner | | Voltage | 6-8.4 VDC | | Power Consumption | 5.04 W | | | | Storage | 1 x SD card slot | | Mounting Threads | 3 x 1/4"-20 | | Operating Temperature | 32 to 158° F / 0 to 70° C | | Dimensions (HxWxD) | 3.34 x 5.24 x 0.98" / 8.48 x 13.31 x 2.49 cm | | Weight | 6.6 oz / 187 g (without battery) | | | | Package Weight | 1.45 lb | | Box Dimensions (LxWxH) | 9.4 x 7.25 x 2.0" |
