Product description Designed as a unified monitoring and power solution for Panasonic cameras that use DMW-BLF19 batteries, this FOCUS SMPADCBTLF19 Bundle from SmallHD can slim down your rig, while providing increased usability. A power output on the SmallHD FOCUS monitor enables you to power your camera through the monitor via the included DMW-BLF19 dummy battery. The L-series battery with charger included in this kit is used for directly powering the monitor and for powering your camera via the monitor using the battery dummy. For international travelers, this kit includes an international power supply with EU, UK, and AU plug adapters. Check out the features for all the items included in this kit below. - FOCUS 5" On-Camera Monitor
- SmallHD FOCUS Monitor | Complete Overview

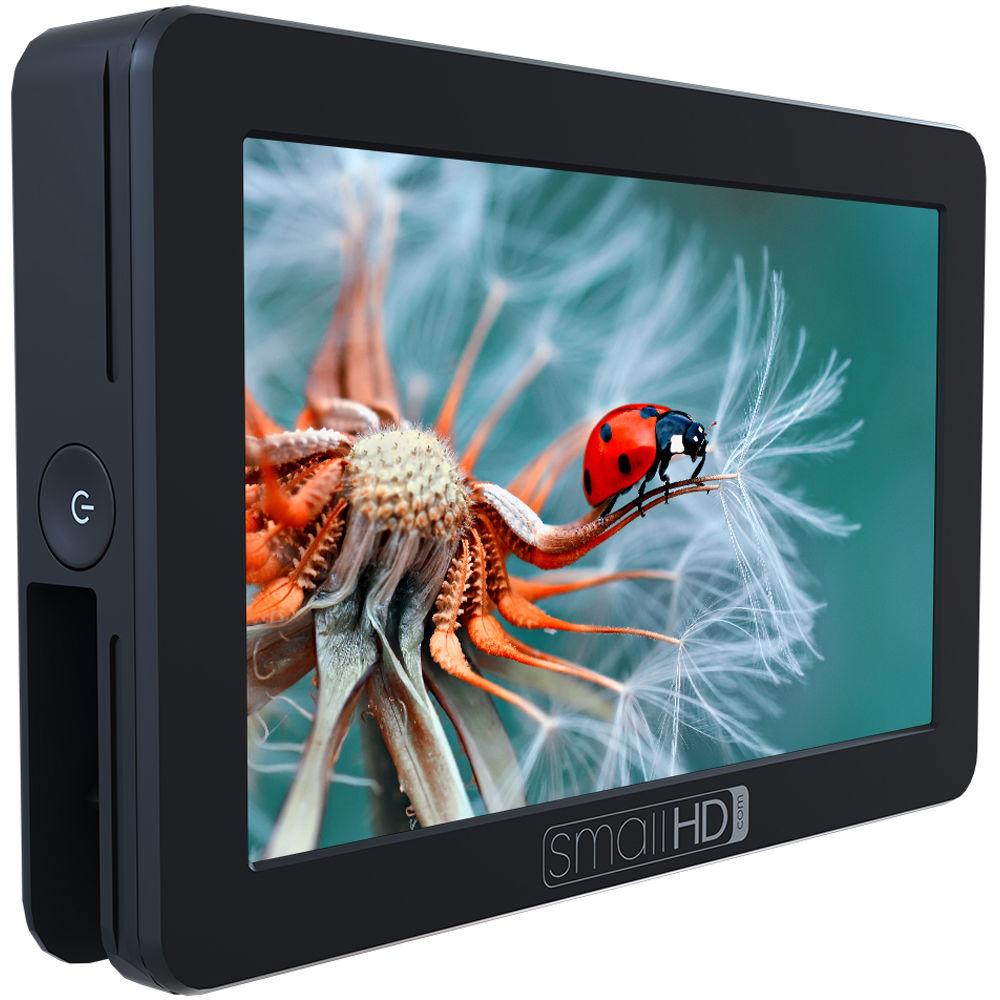

Designed to add professional monitoring tools to DSLR and mirrorless cameras, the SmallHD FOCUS 5" On-Camera Monitor is bright, lightweight, and features a sharp display. The 800 cd/m² bright touchscreen 1280 x 720 IPS LCD panel can be viewed in daylight, and is driven by a single micro-HDMI input. Using the intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap. If your camera outputs UHD 4K over HDMI, the FOCUS will support that input resolution as well as HD and SD inputs. At the rear of the monitor, a single NP-F battery bay accepts a separately available L-series battery for power, while an integrated power output can also power your camera with a separately available DC coupler. A stand with tilt adjustment is included with the monitor for mounting atop your camera's accessory shoe or on a 1/4"-20 screw. - Swipe OS
- Built on SmallHD's intuitive PageBuilder OS, Swipe OS offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
- Camera Setup Integration
- This monitor complements smaller cameras by providing power output and a headphone jack. The power output lets you power your camera directly from the NP-F battery (sold separately) mounted on the monitor, increasing runtimes over the standard batteries of many mirrorless cameras. If your camera doesn't have a headphone jack, the FOCUS de-embeds the audio from the HDMI stream for real-time feedback of audio.
- Convenient Mounting

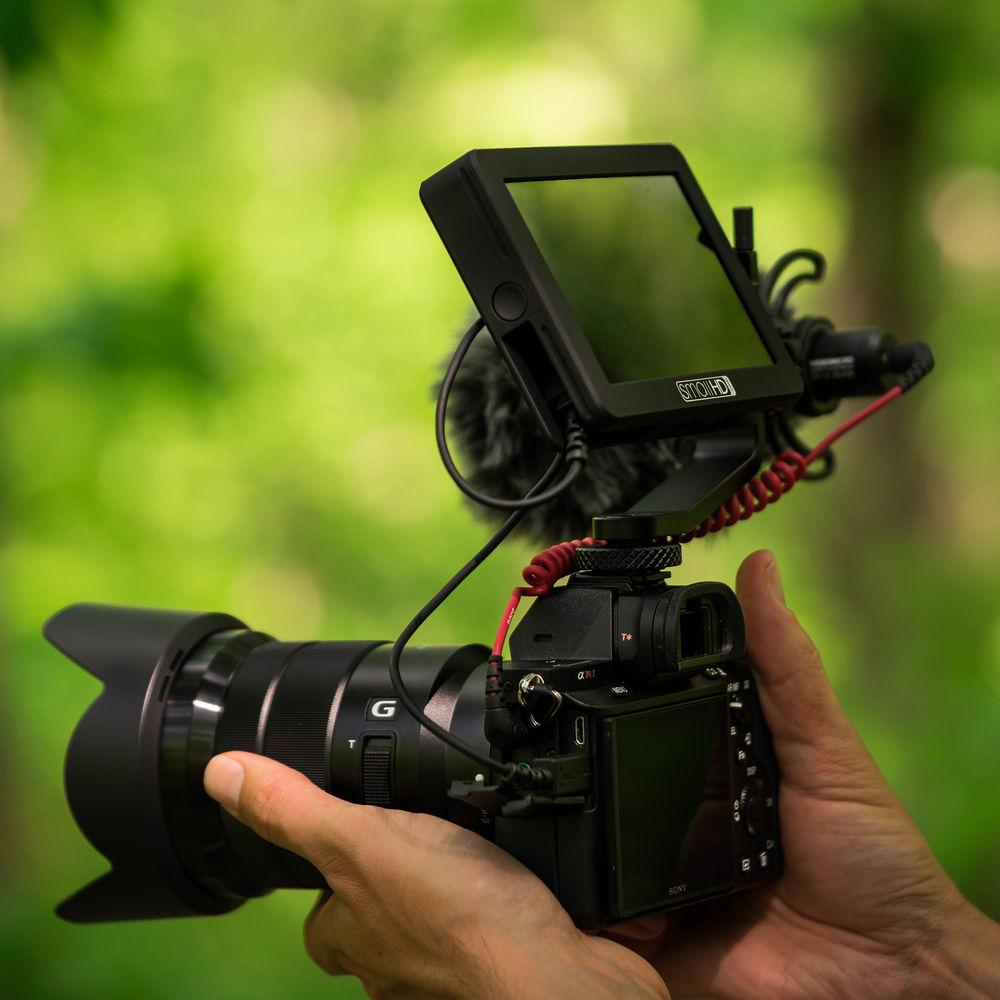

- The FOCUS monitor secures to your camera using the included FOCUS Tilt Arm via shoe mount or 1/4"-20 thread. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe on the Tilt Arm lets you secure equipment (like a microphone, LED light, or wireless receiver) that would otherwise be displaced from the camera's accessory shoe.
UPC: 850324007694 - FOCUS to Panasonic DMW-BLF19 Power Adapter SmallHD's FOCUS monitors have a power output for smaller cameras, and with this FOCUS to Panasonic DMW-BLF19 Power Adapter, you can power your Panasonic GH-series mirrorless camera right off the monitor. Insert the dummy battery end into your camera and connect it up to the FOCUS monitor's output for power. Powering the camera using the montior's battery will result in a simplified power setup and longer shooting times between charges, compared to the standard internal batteries.Note: Check your camera's manual to ensure compatibility with the dummy battery type. UPC: 850324007656
- FOCUS to Panasonic DMW-BLF19 Power Adapter SmallHD's FOCUS monitors have a power output for smaller cameras, and with this FOCUS to Panasonic DMW-BLF19 Power Adapter, you can power your Panasonic GH-series mirrorless camera right off the monitor. Insert the dummy battery end into your camera and connect it up to the FOCUS monitor's output for power. Powering the camera using the montior's battery will result in a simplified power setup and longer shooting times between charges, compared to the standard internal batteries.Note: Check your camera's manual to ensure compatibility with the dummy battery type. UPC: 850324007656
- Micro-USB Type-B Male Cable (12") The Micro-USB Type-B Male Cable from SmallHD enables you to connect two micro-USB Type-B compatible products such as a DSLR camera to the FOCUS Camera-Top monitor to directly view your content on a larger display. UPC: 850324007717
- Sony NPF L-Series Battery & Charger
- International Power Supply for Battery Chargers

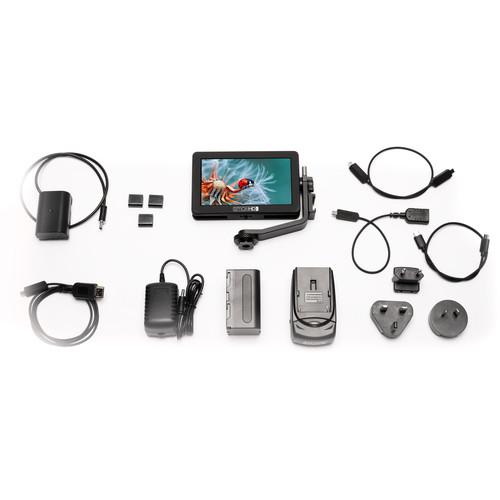

In the Box Bundle Items FOCUS 5" On-Camera Monitor tftvasyfesrzsuxwwvsuewysbvsfacrad - SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (1')
FOCUS to Panasonic DMW-BLF19 Power Adapter tftvasyfesrzsuxwwvsuewysbvsfacrad Sony NPF L-Series Battery & Charger International Power Supply for Battery Chargers FOCUS to Panasonic DMW-BLF19 Power Adapter Micro-USB Type-B Male Cable (12") Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS SMPADCBTLF19 Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FOCUS 5" On-Camera Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1280 x 720 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° | | Touchscreen | Yes | | Maximum Brightness | 800 cd/m2 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 294 ppi | | Image Controls | False Color, Focus Peaking, Pixel-to-Pixel Zoom, Waveform | | | | Video | 1 x HDMI Type D Input | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Other I/O | 1 x USB 2.0 (Micro-USB) | | Card Slot | 1 x SD | | | | Video Format | HDMI (8/10/12-Bit)
UHD 4K: 23.98/29.97/30
1080p: 23.98/24/25/30/50/59.94/60
1080i: 50/59.94/60/100/119.88/120
720p: 50/59.94/60/100/119.88/120
576p: 50/100/200
480p: 59.94/60/100/119.88/120/239.76/240
NTSC: 59.94/60/119.88/120/239.76/240
PAL: 50/100/200 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 1 x L-Series | | | | Dimensions (W x H x D) | 3.3 x 0.75 x 5.25" / 8.4 x 1.9 x 13.3 cm | | Weight | 3.75 oz / 106 g | | | | Box Dimensions (LxWxH) | 7.0 x 4.7 x 3.8" | - FOCUS to Panasonic DMW-BLF19 Power Adapter
| Connector 1 | Coaxial power | | Connector 2 | DMW-BLF19 dummy battery | | | | Box Dimensions (LxWxH) | 3.25 x 2.45 x 1.4" | - Sony NPF L-Series Battery & Charger
| | | Box Dimensions (LxWxH) | 10.1 x 6.9 x 3.0" | - FOCUS to Panasonic DMW-BLF19 Power Adapter
| Connector 1 | Coaxial power | | Connector 2 | DMW-BLF19 dummy battery | | | | Box Dimensions (LxWxH) | 3.25 x 2.45 x 1.4" | - Micro-USB Type-B Male Cable (12")
| Connector 1 | USB Micro-B Male | | Connector 2 | USB Micro-B Male | | Cable Type | Cable | | Cable Length | 12" / 30.48 cm | | Variable Length | No | | | | Box Dimensions (LxWxH) | 6.95 x 3.9 x 0.45" | - International Power Supply for Battery Chargers
