Product description The SmallHD FOCUS Sony NP-FZ100 Bundle includes a 5" FOCUS on-camera monitor, accessory arm, NP-FZ100 adapter, L-series battery and charger, micro-HDMI cable, micro-USB cable, micro-HDMI to HDMI type A cable, screen protector, and four cable clips. The monitor features 1280 x 720 resolution and can display SD, HD, and UHD 4K. The monitor is bright enough to be viewed unshaded in daylight. It features SmallHD's Swipe OS for easy navigation and image adjustment.

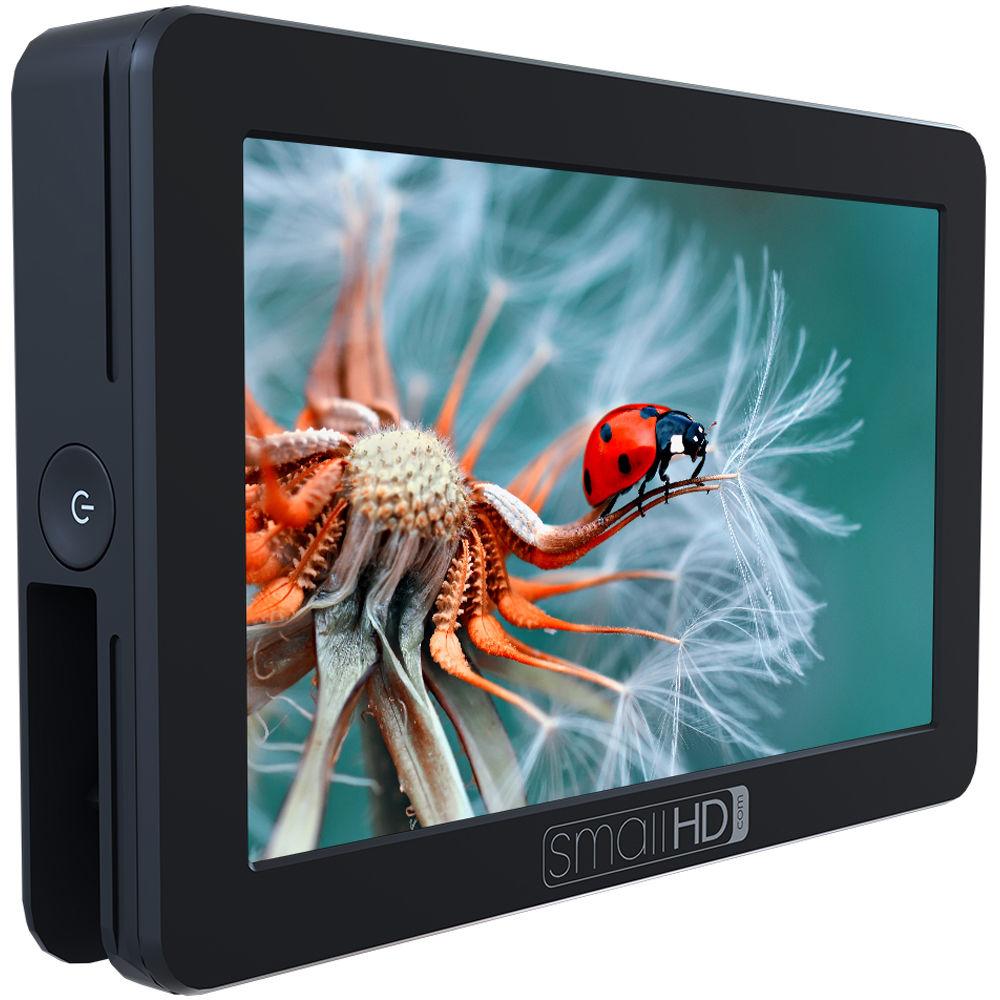

The monitor includes a tilt arm and HDMI cable, and the NP-FZ100 battery included in the bundle powers your camera. Included cables help provide increased connectivity, while the screen protector helps keep your monitor's screen clean and undamaged. Four included cable clips help control your cables so they don't get in the way while you are shooting. - FOCUS 5" On-Camera Monitor Designed to add professional monitoring tools to DSLR and mirrorless cameras, the SmallHD FOCUS 5" On-Camera Monitor is bright, lightweight, and features a sharp display. The 800 cd/m² bright touchscreen 1280 x 720 IPS LCD panel can be viewed in daylight, and is driven by a single micro-HDMI input. Using the intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap. If your camera outputs UHD 4K over HDMI, the FOCUS will support that input resolution as well as HD and SD inputs. At the rear of the monitor, a single NP-F battery bay accepts a separately available L-series battery for power, while an integrated power output can also power your camera with a separately available DC coupler. A stand with tilt adjustment is included with the monitor for mounting atop your camera's accessory shoe or on a 1/4"-20 screw.
- Swipe OS
- Built on SmallHD's intuitive PageBuilder OS, Swipe OS offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
- Camera Setup Integration

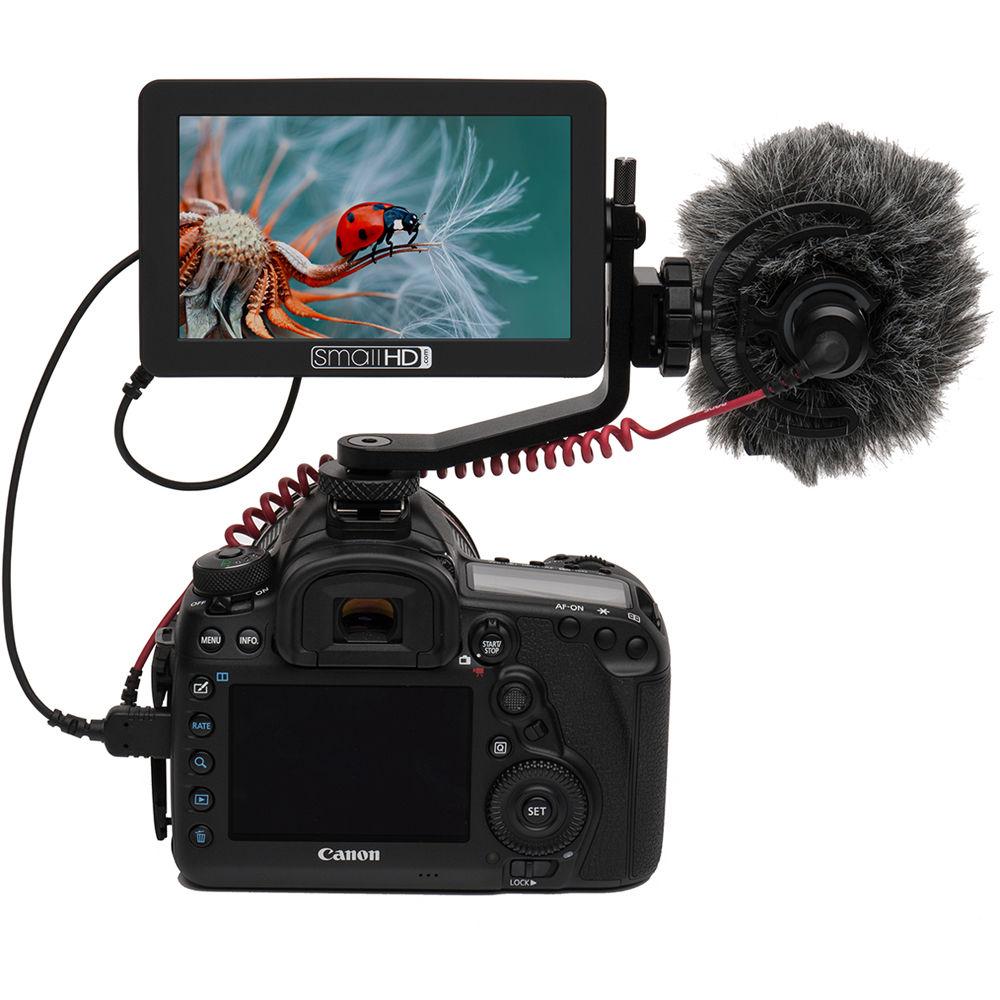

- This monitor complements smaller cameras by providing power output and a headphone jack. The power output lets you power your camera directly from the NP-F battery (sold separately) mounted on the monitor, increasing runtimes over the standard batteries of many mirrorless cameras. If your camera doesn't have a headphone jack, the FOCUS de-embeds the audio from the HDMI stream for real-time feedback of audio.
- Convenient Mounting
- The FOCUS monitor secures to your camera using the included FOCUS Tilt Arm via shoe mount or 1/4"-20 thread. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe on the Tilt Arm lets you secure equipment (like a microphone, LED light, or wireless receiver) that would otherwise be displaced from the camera's accessory shoe.
UPC: 850324007694 - FOCUS to Sony NP-FZ100 Faux Battery Adapter The FOCUS to Sony NP-FZ100 Faux Battery Adapter from SmallHD enables you to power select Sony Alpha-series mirrorless cameras from your FOCUS onboard monitor.Link the FOCUS monitor to your camera with this adapter to both extend your camera runtime and to save space and weight on your camera rig. Note: Check your camera's manual to ensure compatibility with the dummy battery type.
Compatibility UPC: 811786030088 - Micro-USB Type-B Male Cable (12") The Micro-USB Type-B Male Cable from SmallHD enables you to connect two micro-USB Type-B compatible products such as a DSLR camera to the FOCUS Camera-Top monitor to directly view your content on a larger display. UPC: 850324007717
- Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8") The 8" SmallHD Micro-HDMI Male to HDMI Type-A Female Adapter Cable has been designed to let you connect a FOCUS monitor to a larger display, such as a TV or computer monitor. Simply connect the micro-HDMI male end to the FOCUS, and the female HDMI Type-A end to your HDMI Type-A Male cable. UPC: 850324007168
- Sony NPF L-Series Battery & Charger
- UltraClear Screen Protector for Focus Monitor

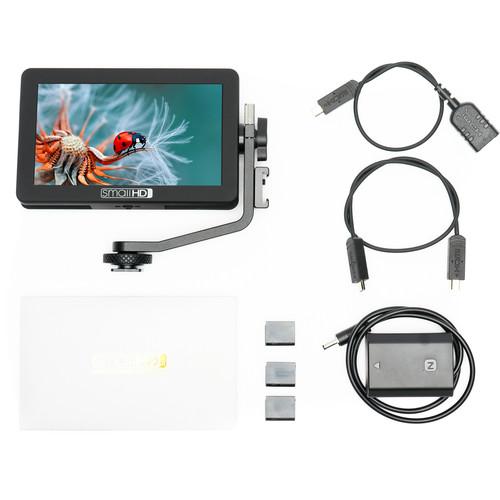

In the Box Bundle Items FOCUS 5" On-Camera Monitor butxyrvssbuftqfufqdffutfr - SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (1')
FOCUS to Sony NP-FZ100 Faux Battery Adapter Sony NPF L-Series Battery & Charger Micro-USB Type-B Male Cable (12") Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8") UltraClear Screen Protector for Focus Monitor butxyrvssbuftqfufqdffutfr
Also Includes Quick start Guide PDF 1.6mb Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD FOCUS Sony NP-FZ100 Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FOCUS 5" On-Camera Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1280 x 720 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° | | Touchscreen | Yes | | Maximum Brightness | 800 cd/m2 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 294 ppi | | Image Controls | False Color, Focus Peaking, Pixel-to-Pixel Zoom, Waveform | | | | Video | 1 x HDMI Type D Input | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Other I/O | 1 x USB 2.0 (Micro-USB) | | Card Slot | 1 x SD | | | | Video Format | HDMI (8/10/12-Bit)
UHD 4K: 23.98/29.97/30
1080p: 23.98/24/25/30/50/59.94/60
1080i: 50/59.94/60/100/119.88/120
720p: 50/59.94/60/100/119.88/120
576p: 50/100/200
480p: 59.94/60/100/119.88/120/239.76/240
NTSC: 59.94/60/119.88/120/239.76/240
PAL: 50/100/200 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 1 x L-Series | | | | Dimensions (W x H x D) | 3.3 x 0.75 x 5.25" / 8.4 x 1.9 x 13.3 cm | | Weight | 3.75 oz / 106 g | | | | Box Dimensions (LxWxH) | 7.0 x 4.7 x 3.8" | - FOCUS to Sony NP-FZ100 Faux Battery Adapter
| Connector 1 | DC Barrel | | Connector 2 | NP-FZ100 Dummy Battery | | Weight | 6 oz / 170 g | | | | Box Dimensions (LxWxH) | 2.75 x 2.25 x 2.0" | - Sony NPF L-Series Battery & Charger
| | | Box Dimensions (LxWxH) | 10.1 x 6.9 x 3.0" | - Micro-USB Type-B Male Cable (12")
| Connector 1 | USB Micro-B Male | | Connector 2 | USB Micro-B Male | | Cable Type | Cable | | Cable Length | 12" / 30.48 cm | | Variable Length | No | | | | Box Dimensions (LxWxH) | 6.95 x 3.9 x 0.45" | - Micro-HDMI Male to HDMI Type-A Female Adapter Cable (8")
| Connector 1 | HDMI Type-D Male | | Connector 2 | HDMI Type-A Female | | Cable Length | 8" / 20.32 cm | | Weight | 6.0 oz / 170.1 g | | | | Box Dimensions (LxWxH) | 5.0 x 3.5 x 0.8" | - UltraClear Screen Protector for Focus Monitor
| | | Box Dimensions (LxWxH) | 6.15 x 3.55 x 0.45" |
