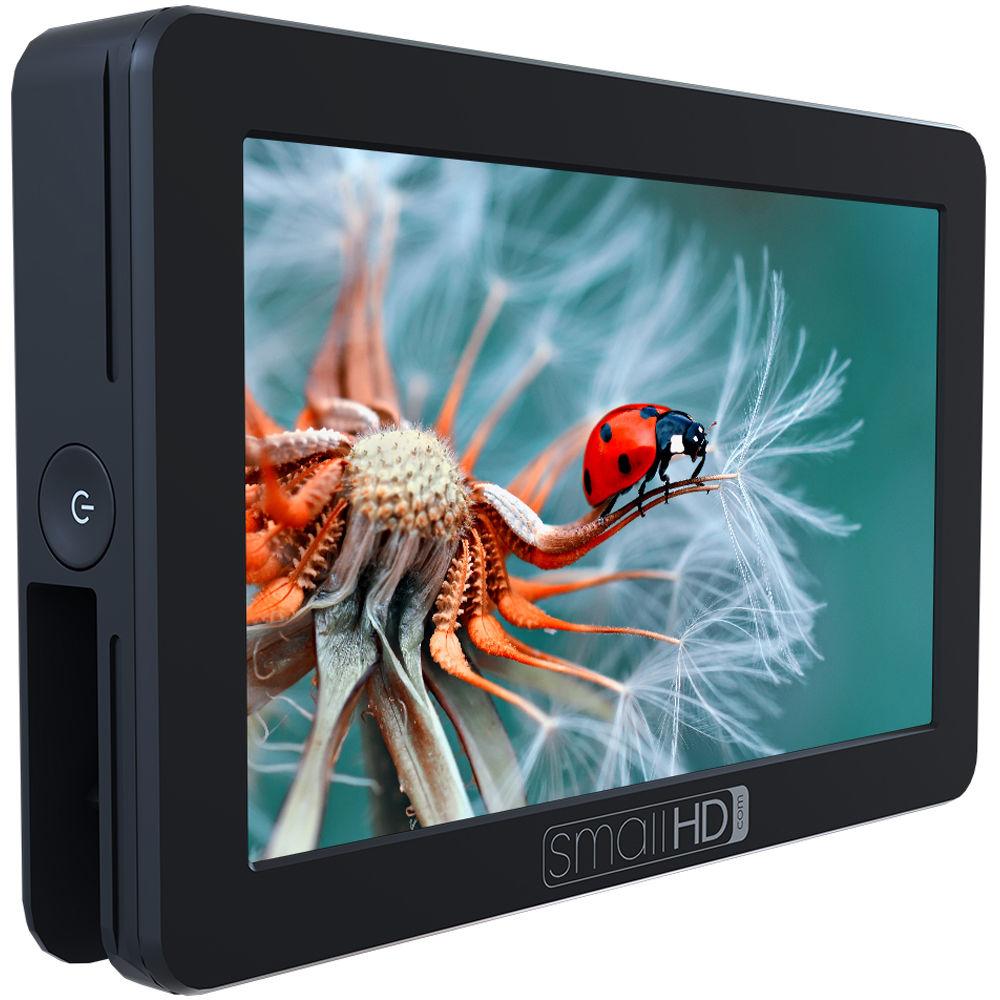

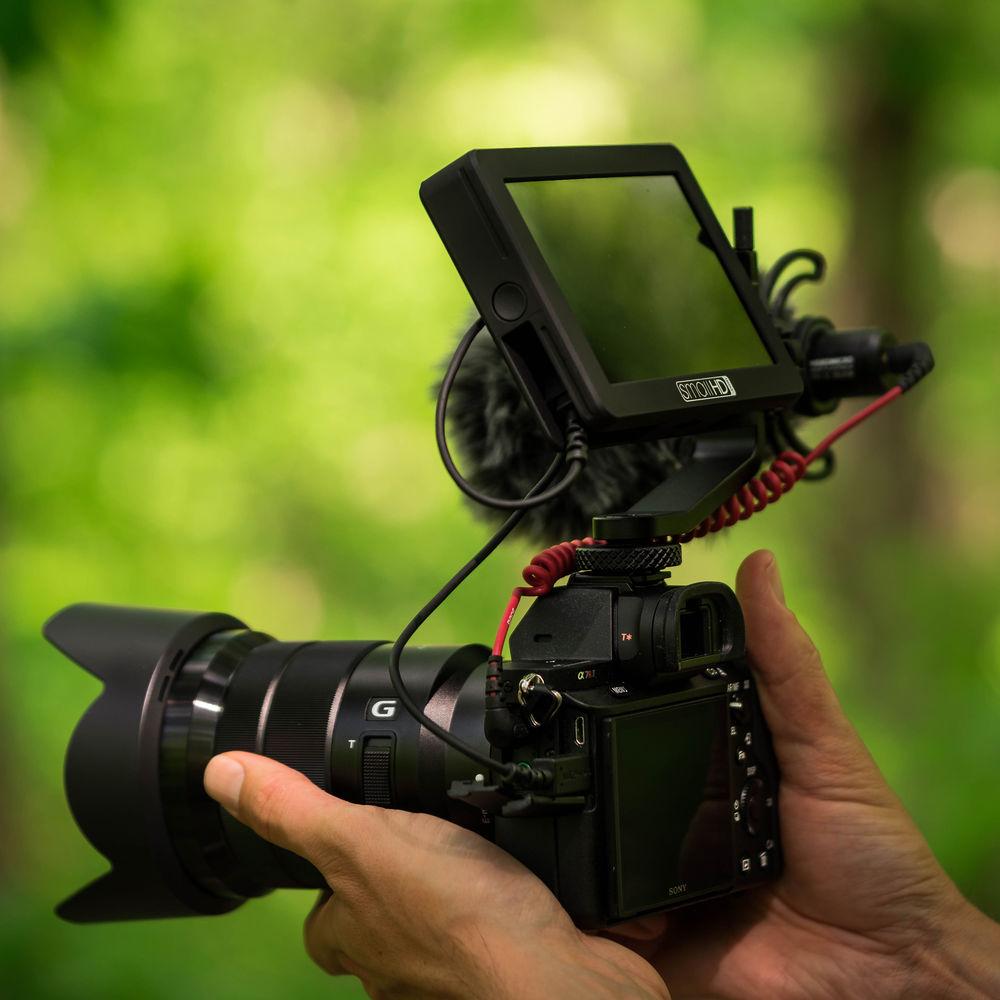

Product description The SmallHD Focus Value Bundle includes the Focus 5" on-camera monitor, a sun hood, flexible matte screen protector. L-series battery. and microfiber cleaning cloth. The monitor features a 1280 x 720 touchsreen display with a micro-HDMI input and supports UHD, HD, and SD inputs. It sports an eight hundred cd/m? brightness and displays your signal n 10-bits for fine color reproduction. The hood helps shade the monitor from glare either from lights or when used outside on exterior shoots. The bundle includes a SmallHD branded L-series battery and microfiber cleaning cloth. - FOCUS 5" On-Camera Monitor Designed to add professional monitoring tools to DSLR and mirrorless cameras, the SmallHD FOCUS 5" On-Camera Monitor is bright, lightweight, and features a sharp display. The 800 cd/m² bright touchscreen 1280 x 720 IPS LCD panel can be viewed in daylight, and is driven by a single micro-HDMI input. Using the intuitive Swipe OS, you can turn on various monitoring tools like waveform, false color, and vectorscope, as well as focusing aids like peaking, with a tap. If your camera outputs UHD 4K over HDMI, the FOCUS will support that input resolution as well as HD and SD inputs. At the rear of the monitor, a single NP-F battery bay accepts a separately available L-series battery for power, while an integrated power output can also power your camera with a separately available DC coupler. A stand with tilt adjustment is included with the monitor for mounting atop your camera's accessory shoe or on a 1/4"-20 screw.
- Swipe OS
- Built on SmallHD's intuitive PageBuilder OS, Swipe OS offers the same intuitiveness of a graphical user interface (GUI), though with touchscreen navigation. Rather than have confusing menus, this GUI allows you to selectively apply monitoring tools such as waveform, vectorscope, and focusing aids to up to 12 different "pages". Using the touchscreen, swipe through different preset pages and toggle monitoring tools on or off with ease.
- Camera Setup Integration

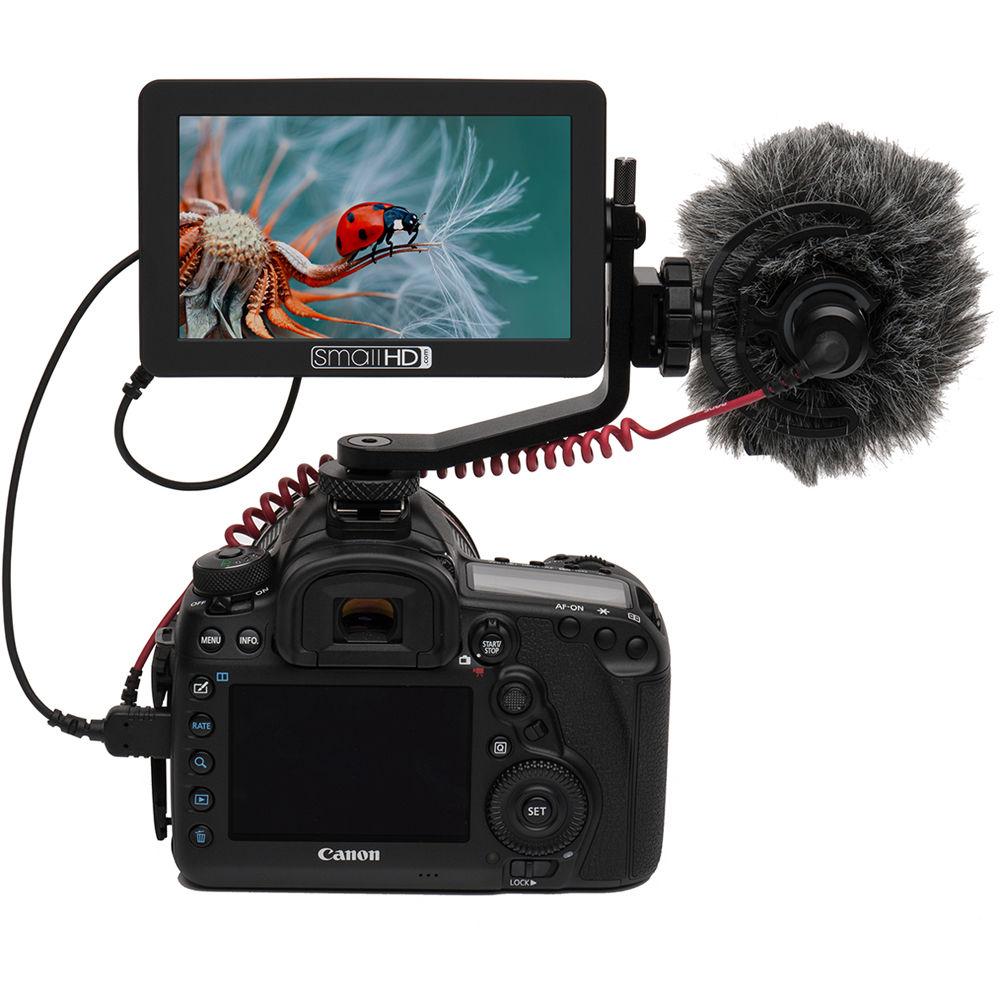

- This monitor complements smaller cameras by providing power output and a headphone jack. The power output lets you power your camera directly from the NP-F battery (sold separately) mounted on the monitor, increasing runtimes over the standard batteries of many mirrorless cameras. If your camera doesn't have a headphone jack, the FOCUS de-embeds the audio from the HDMI stream for real-time feedback of audio.
- Convenient Mounting
- The FOCUS monitor secures to your camera using the included FOCUS Tilt Arm via shoe mount or 1/4"-20 thread. The Tilt Arm enables 180° of tilt for convenient monitoring at nearly any angle. A cold shoe on the Tilt Arm lets you secure equipment (like a microphone, LED light, or wireless receiver) that would otherwise be displaced from the camera's accessory shoe.
UPC: 850324007694 - Flexible Matte Screen Protector for FOCUS Monitors Install the SmallHD Flexible Matte Screen Protector for FOCUS Monitors to protect your monitor's screen while reducing glare from harsh light sources. UPC: 850324007144
- Microfiber Cleaning Cloth Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use. UPC: 850246006126
- Sun Hood for FOCUS 5" On-Camera Monitor

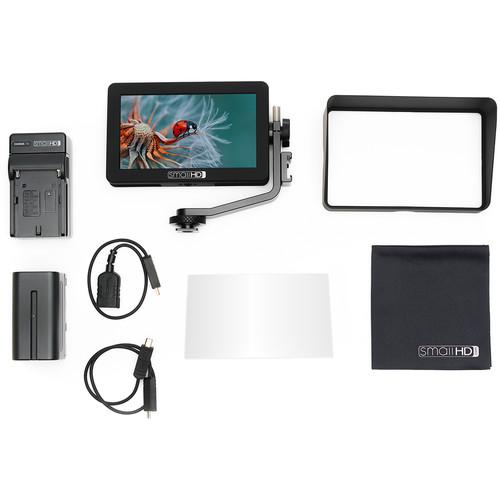

In the Box Bundle Items FOCUS 5" On-Camera Monitor scqydduxffdyuwufxqyuuzbscbac - SmallHD Micro-HDMI Male to Micro-HDMI Male Cable (1')
Sun Hood for FOCUS 5" On-Camera Monitor Flexible Matte Screen Protector for FOCUS Monitors Microfiber Cleaning Cloth
Also Includes Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD Focus Value Bundle in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - FOCUS 5" On-Camera Monitor
| | | Panel Type | IPS-Type LCD | | Display Size | 5.0" / 12.7 cm | | Screen Resolution | 1280 x 720 | | Aspect Ratio | 16:9 | | Viewing Angle | Horizontal: 160° | | Touchscreen | Yes | | Maximum Brightness | 800 cd/m2 | | Bit Depth / Color Support | 10-Bit (1.07 Billion Colors) | | Pixels Per Inch (ppi) | 294 ppi | | Image Controls | False Color, Focus Peaking, Pixel-to-Pixel Zoom, Waveform | | | | Video | 1 x HDMI Type D Input | | Embedded Audio | HDMI | | Audio | 1 x 3.5 mm Headphone Output | | Built-In Speaker | None | | Other I/O | 1 x USB 2.0 (Micro-USB) | | Card Slot | 1 x SD | | | | Video Format | HDMI (8/10/12-Bit)
UHD 4K: 23.98/29.97/30
1080p: 23.98/24/25/30/50/59.94/60
1080i: 50/59.94/60/100/119.88/120
720p: 50/59.94/60/100/119.88/120
576p: 50/100/200
480p: 59.94/60/100/119.88/120/239.76/240
NTSC: 59.94/60/119.88/120/239.76/240
PAL: 50/100/200 | | | | DC Input Power | 6 to 8.4 VDC | | Battery Type | 1 x L-Series | | | | Dimensions (W x H x D) | 3.3 x 0.75 x 5.25" / 8.4 x 1.9 x 13.3 cm | | Weight | 3.75 oz / 106 g | | | | Box Dimensions (LxWxH) | 7.0 x 4.7 x 3.8" | - Sun Hood for FOCUS 5" On-Camera Monitor
