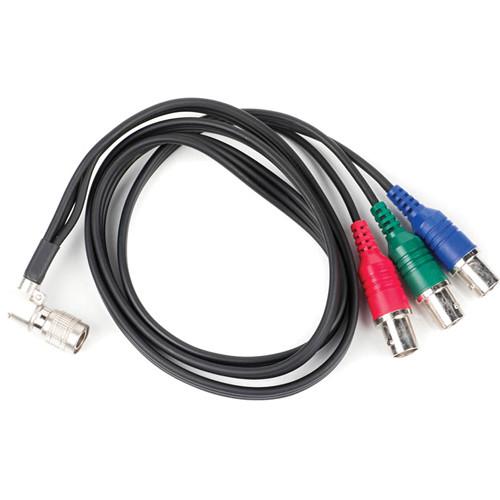

Product description The 3' Hirose to BNC Component/Composite Breakout Cable for DP7-PRO from SmallHD allows you to use your camera's composite or component output video source into the DP7-PRO field monitor video input. The cable's Hirose connector will lock into the Hirose connector on the side of the field monitor. The green BNC connector of the breakout cable can be used for a composite video source or the green, blue, and red BNC connectors for a component video source. UPC: 857497005281 In the Box SmallHD Hirose to BNC Component/Composite Breakout Cable for DP7-PRO (3') Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallHD Hirose to BNC Component Composite Breakout Cable for DP7-PRO in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallHD CBL-SGL-BNC-HIRO-36 Specs | Connector 1 | 1 x 4-pin locking Hirose | | Connector 2 | 1 x BNC red, component
1 x BNC green, component/composite
1 x BNC blue, component | | Length | 3' (91 cm) | | | | Package Weight | 0.15 lb | | Box Dimensions (LxWxH) | 4.2 x 3.4 x 0.5" |
