Product description

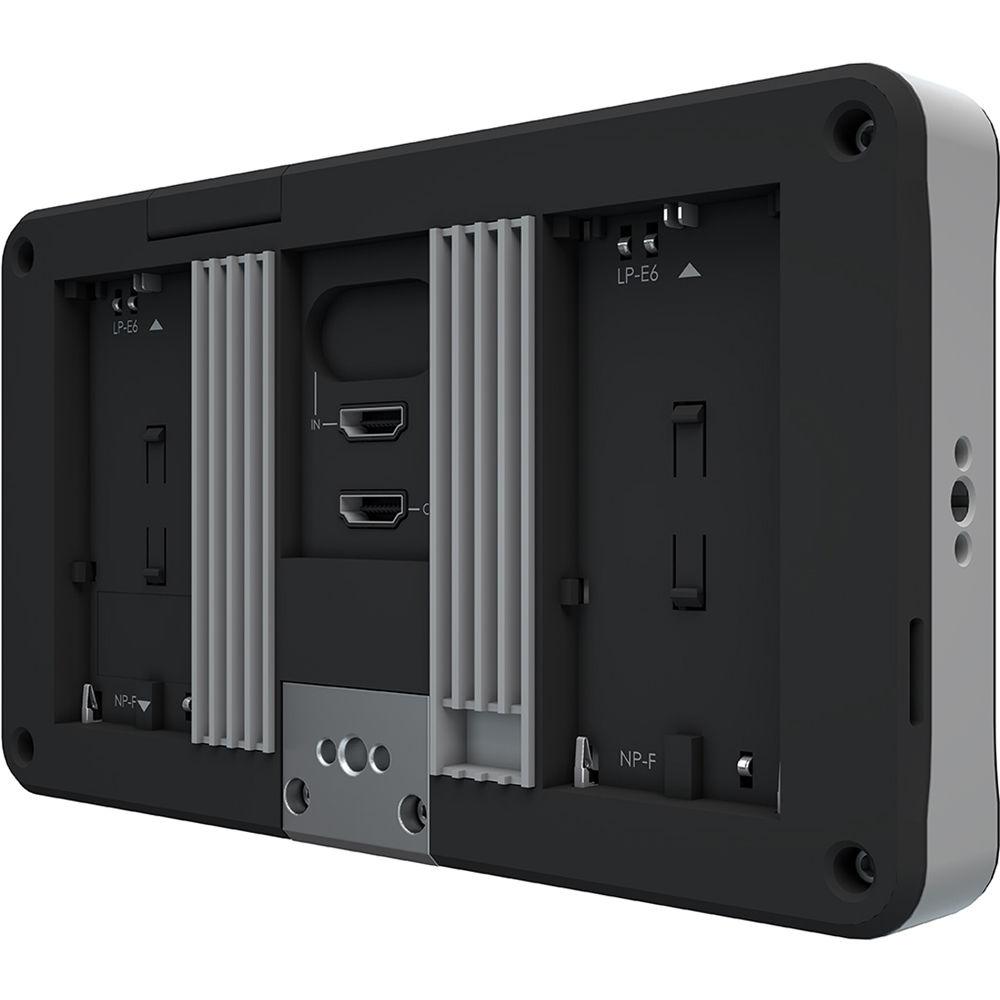

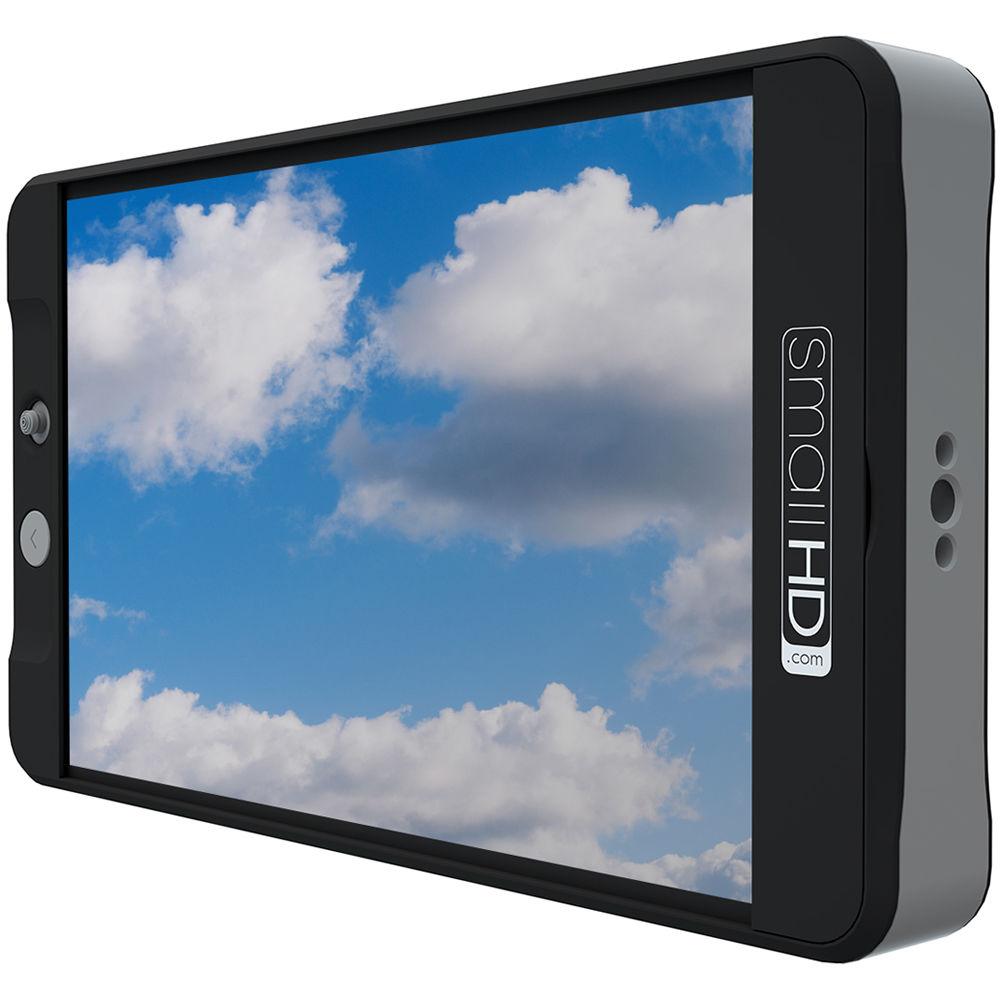

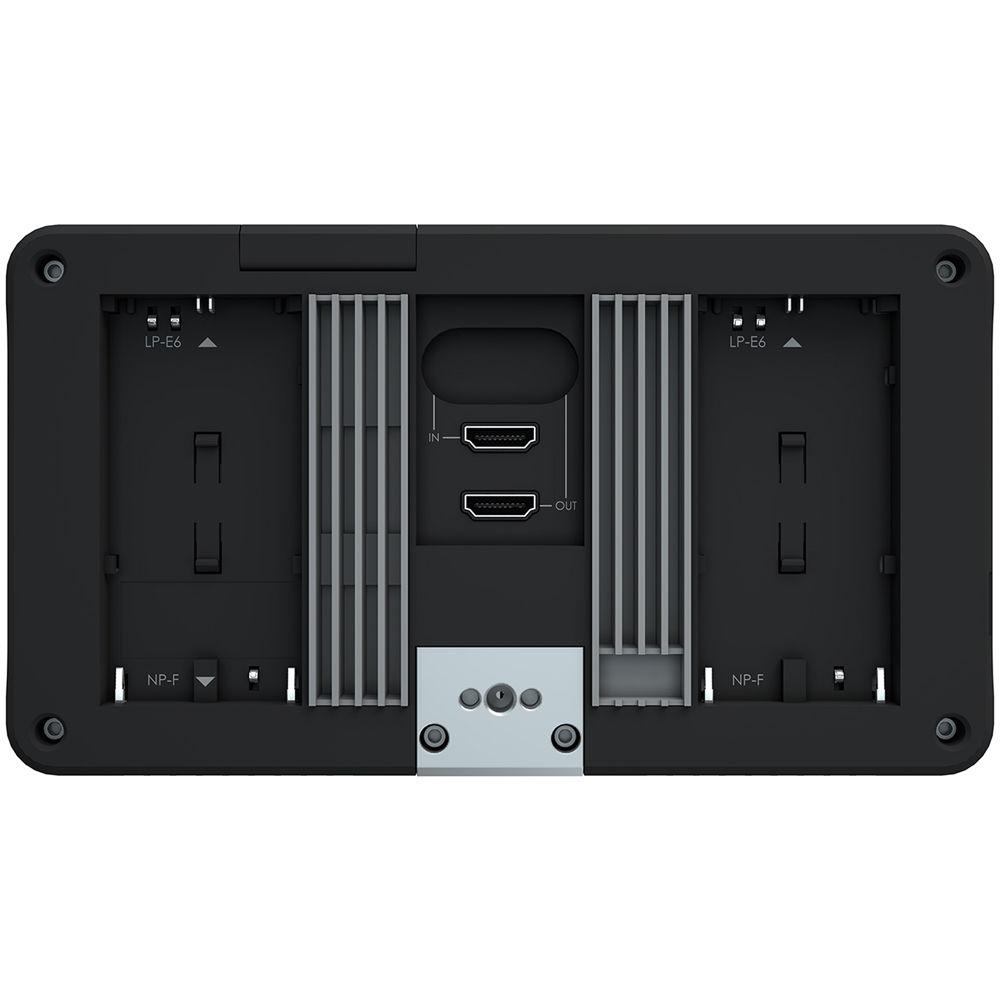

• 701 Lite 7" HDMI On-Camera Monitor SmallHD's 701 Lite 7" HDMI On-Camera Monitor is a rugged and versatile video monitoring solution. Designed for use in the field and in the studio, the 701 Lite is constructed from aluminum and is covered in a rubberized textured finish for a sure grip. With its 450 cd/m², 1200x800 LED-backlit LCD screen, the 701 Lite is designed for monitoring HD video sources. Connectivity-wise, the 701 Lite has HDMI I/O for connecting to video sources and other downstream equipment. For power, either Canon LP-E6 or Sony L-series batteries can be used, without switching plates.

  Features

  Page Builder Interface
  • The highlight feature of the 701 Lite monitor is its Page Builder interface. Using customizable "pages" you can easily transition between different monitoring options with different settings. You can easily see the effect of your configurations on the image, swiping between pages using the joystick.
  Focus Assist
  • Offering peaking and joystick zoom, the 701 Lite monitor makes pulling focus easier. Using the joystick, you can control the degree of zoom as well as move the zoomed-in area with a single finger.
  Exposure Assist
  • To aid in achieving proper exposure, the 701 Lite has built-in tools including waveform, false-color, and zebras. All of these functions can be assigned to various pages for ease-of-access.
  LUT Preview
  • If you are shooting using one of the various log profiles, you can monitor a LUT-adjusted image by importing the desired LUT to the monitor using an SD card. Like other settings, LUTs can also be assigned to their own pages. LUTs can also be sent downstream via the monitor's outputs for viewing by directors, clients, etc.
  UPC: 850246006218
• Medium Hard Case for 500/700-Series Monitors Protect your 500 or 700-series monitor with this Medium Hard Case from SmallHD. The inside of the case is comprised of pick-and-pluck foam which can be easily customized to the shape of your monitor and essential accessories you may want to carry alongside your monitor. A rubber gasket seal keeps the case air and water-tight, while an automatic pressure purge system ensures the case is easy to open in pressure-differential situations. Molded-in padlock holes near the latches let you guard your monitor from theft. Once everything is packed up and the case is secured with the locking latches, the molded carry handle provides a comfortable way to transport your equipment.
  Construction
  • High-impact molded case with neoprene O-ring seal
  • Fully customizable, pick-apart foam insert
  • Airtight and watertight
  • Automatic pressure purge system
  • Molded-in padlock holes
  UPC: 857497005779
• Microfiber Cleaning Cloth Made from a non-abrasive material, this Microfiber Cleaning Cloth from SmallHD is a safe option for cleaning glass surfaces and coatings on a monitor or camera. It measures approximately 7 x 7" and is easily stored in a bag or pocket when not in use. UPC: 850246006126
• Sun Hood for 700 Series Monitors Improve your outdoor viewing experience on your 700-series monitor with this Sun Hood from SmallHD. Made from flexible neoprene and rigid plastic, the hood fits over the outside chassis of the monitor and stretches to cover the screen and block out stray reflections. With the reduced glare, the image can be viewed more accurately in harsh lighting situations. Once you're done using the hood, it can be folded flat for easy storage. UPC: 857497005885
• StrongArm 7 Articulating Arm The SmallHD StrongArm 7 is a 7" articulating monitor mount for SmallHD field monitors. It can attach directly to a camera's accessory shoe or 1/4"-20 thread mount. A single knob tightens all 3 articulating joints on the arm at once for maximum mobility and efficiency. UPC: 857497005045
• BT-1 Wireless Remote Control for 500/700 Series Monitors The BT-1 Wireless Remote Control from SmallHD can be used with 500 and 700 series on-board monitors. This finger-sized unit is particularly useful when employing the monitor as an EVF (electronic viewfinder) for your camcorder or DSLR. All of the monitor's settings can be accessed through the RC. The BT-1 Wireless Remote Control can be mounted to a handgrip, gimbal, tripod, etc. Up to three units may be paired to the same monitor, eliminating the need to detach the RC and carry it from one rig to another. For ease of use, the BT-1 Wireless Remote Control replicates the same joystick and push-button controls found on the monitor itself. The selection orientation (up/down, L/R, etc.) of the joystick and buttons can be changed to suit how the RC is mounted - upright, upside down, or sideways. An auto-save function kicks in after two minutes of inactivity, saving battery power. The BT-1 Wireless Remote Control's firmware is updated wirelessly from the monitor. Note: The monitor must be updated with the latest firmware in order to work with the BT-1 RC.
  Compatible Monitors
  • SmallHD 500 series
    SmallHD 700 series
  UPC: 857497005991
• Acrylic Screen Protector for 700 Series Monitors Made from hard acrylic, this SmallHD Screen Protector installs without tools on 700 series monitors, protecting the front of the screen. Since it installs using a plastic clip, replacements can easily be done in the field with a minimum of downtime. Note: This protector is not compatible with UltraBright monitors
  Compatible Models
  • 701 Lite
    702 Lite
    702 Bright
  UPC: 857497005984
• Thin-Gauge HDMI Male Cable (12") Connect your portable devices to HDMI displays with the 12" Thin-Gauge HDMI Male Cable from smallHD. This RoHS-compliant cable allows you to transfer movies, photos, and videos from devices like smartphones, digital cameras, and video cameras with standard HDMI connectors to view on your standard HDMI (type-A) television, projector, or computer monitor. UPC: 857497005908
• LP-E6 Battery and Charger Kit Power your monitor with the SmallHD LP-E6 Battery and Charger Kit, an all-inclusive battery solution for SmallHD monitors. This kit comes with two LP-E6 type batteries and a single-bay charger. The charger has a convenient flip-out USA plug which can be adapted for European use via the included Euro plug. If you're on-the-go, the 12 VDC power connector can also be used to connect the charger. UPC: 850246006317

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Shoe Mount Adapter

• Limited 1-Year Warranty

• Battery

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• Limited 1-Year Warranty

• 2 x LP-E6 1300mAh Li-ion Battery with Smart Chip Technology

• LP-E6 Battery Charger

• 12V Vehicle Power Adapter

• Limited 1-Year Warranty
