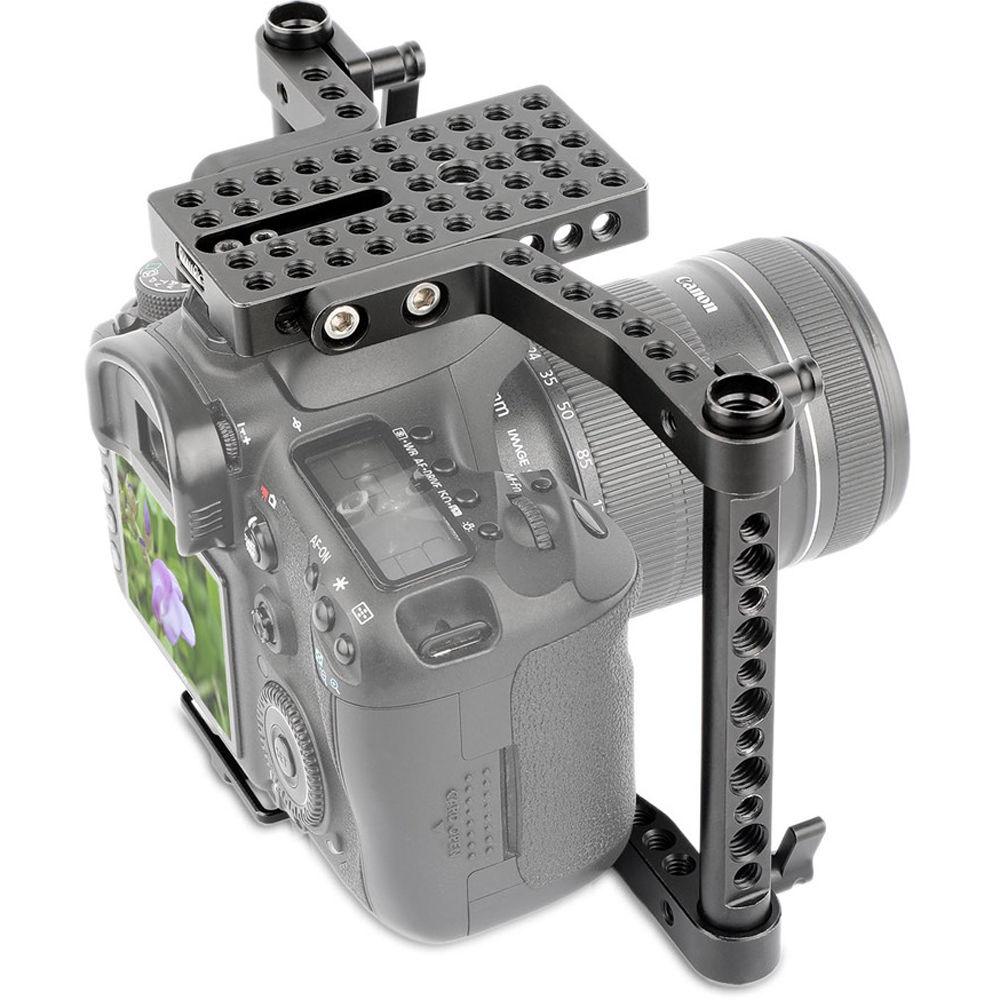

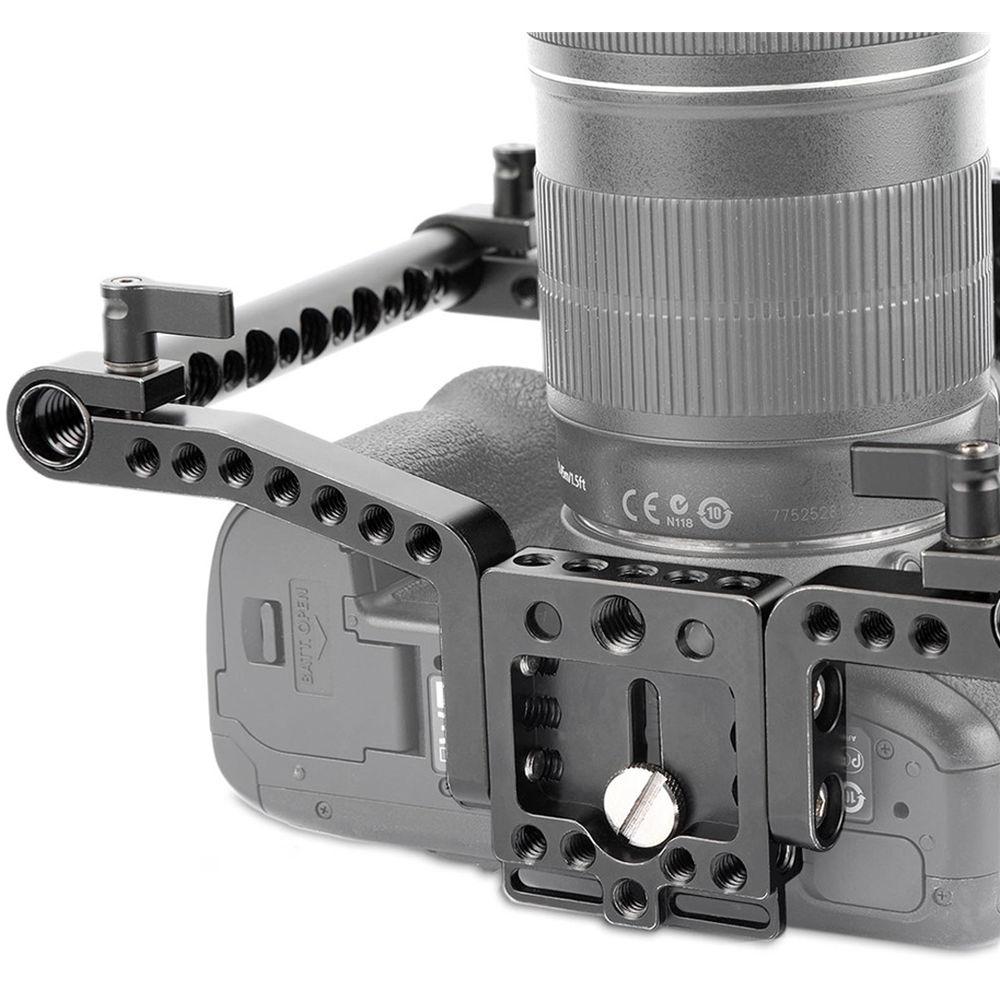

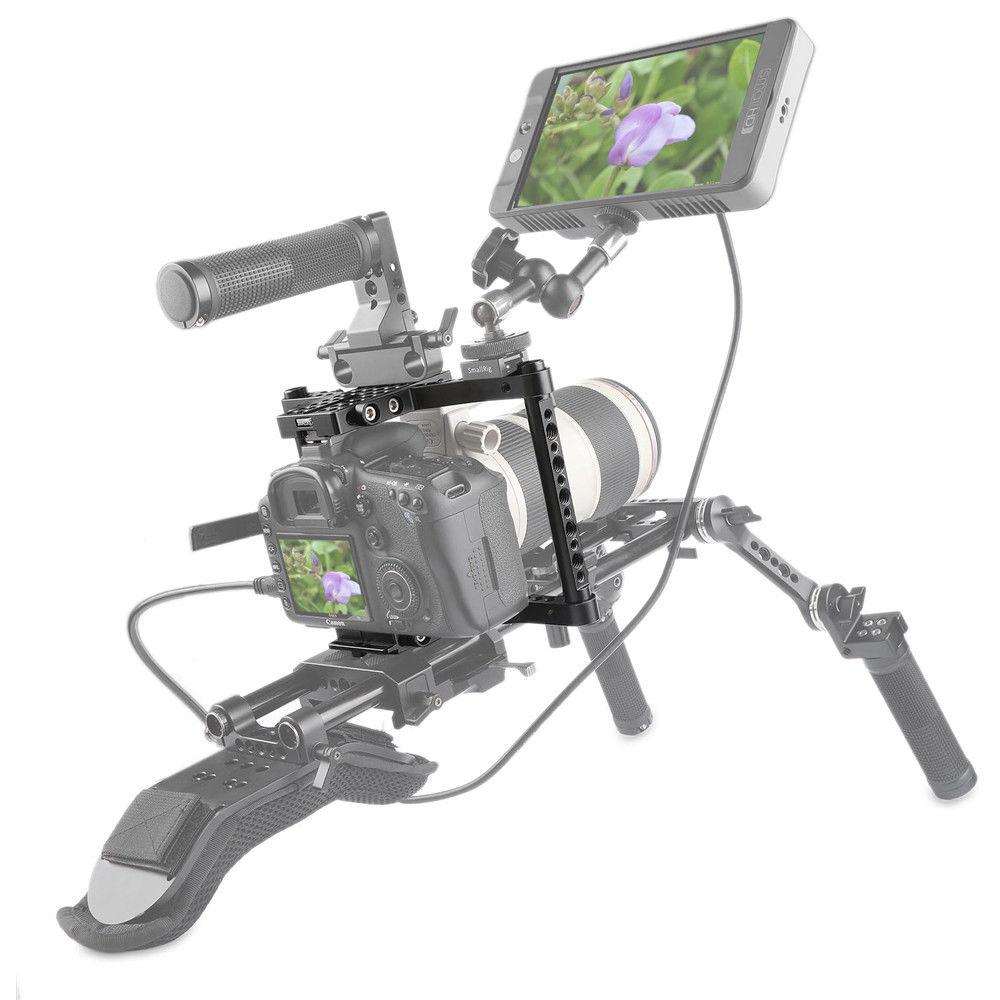

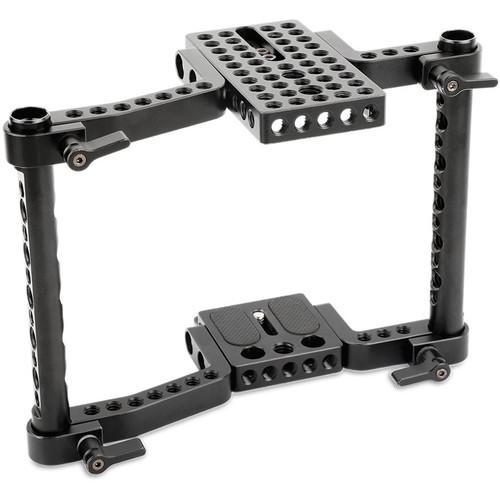

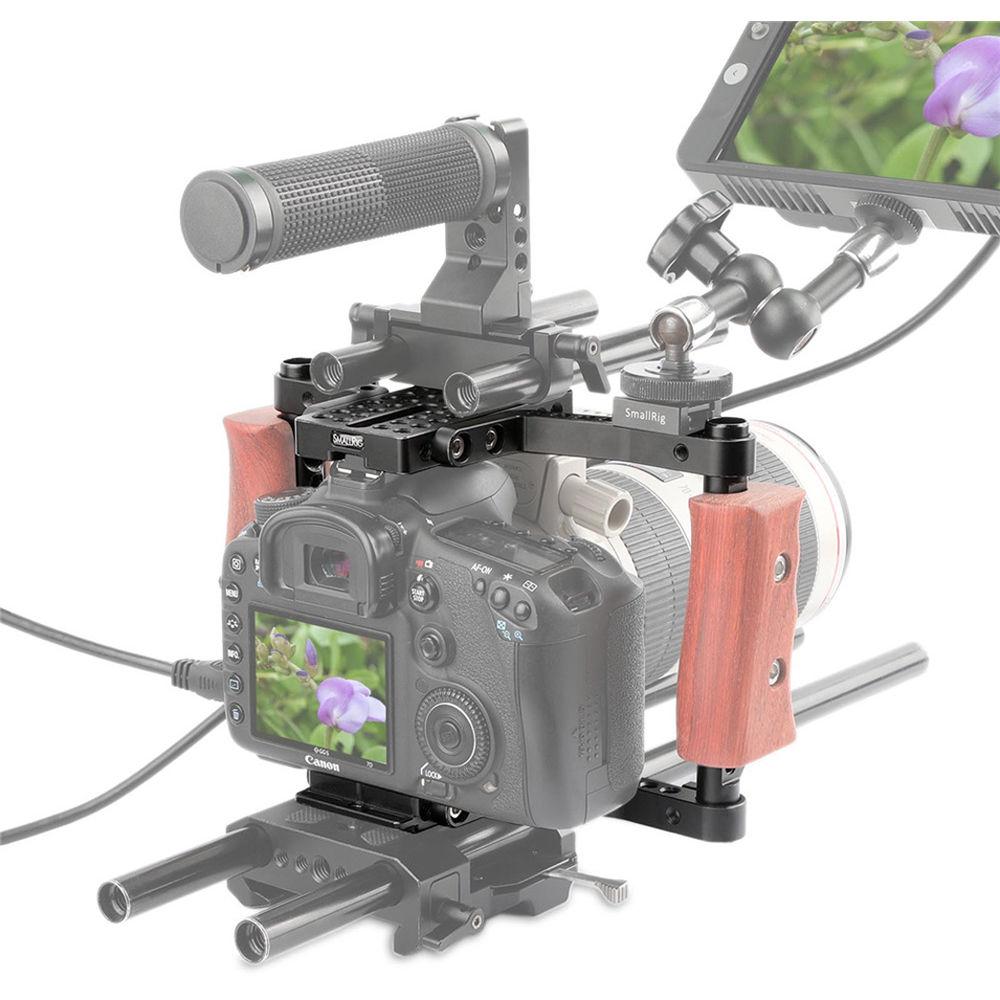

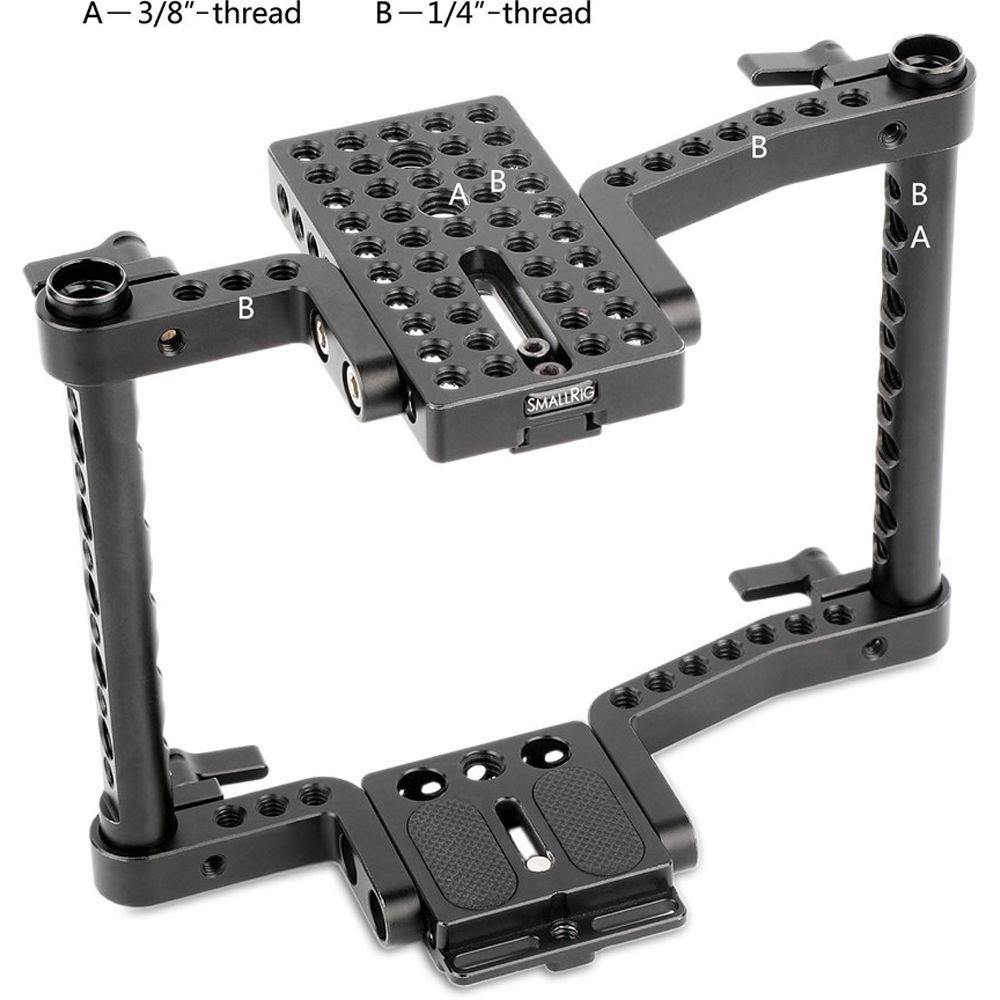

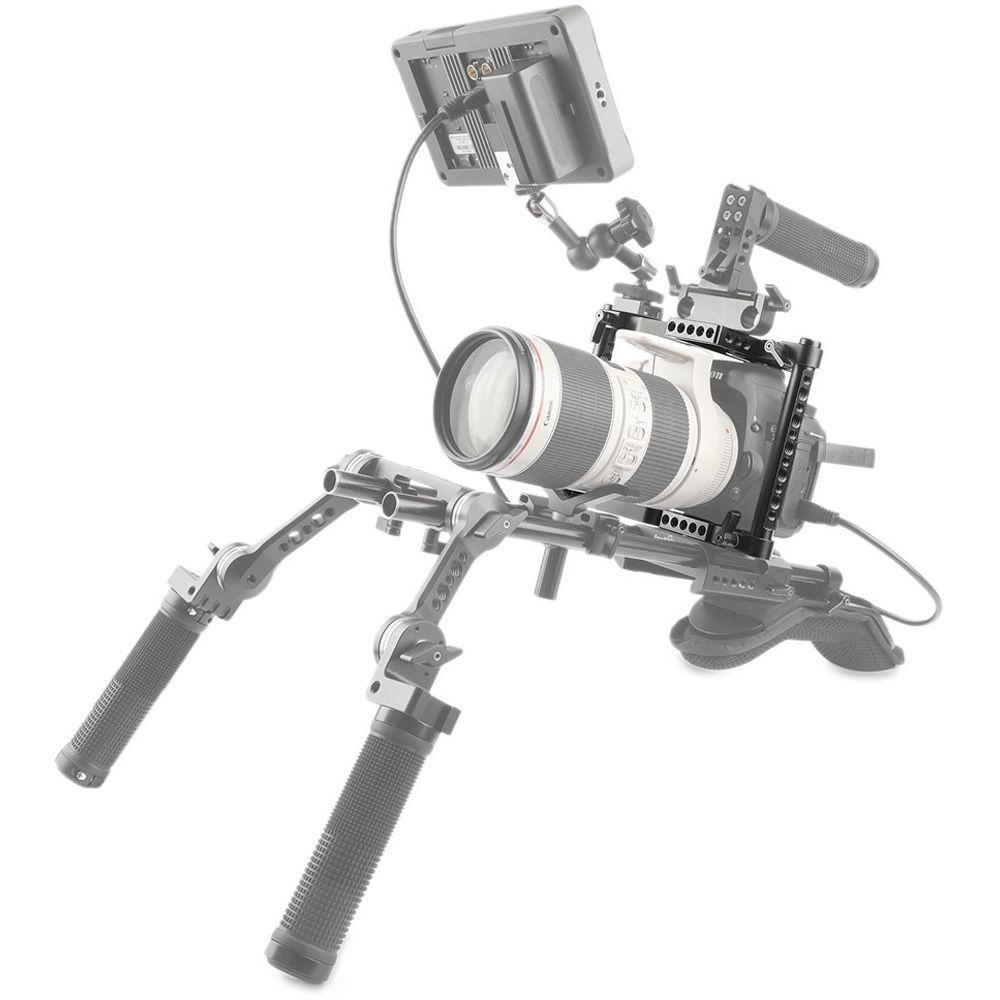

Product description Add accessory mounting, a convenient dual grip, and more to your DSLR with the 1584 VersaFrame Cage from SmallRig. This full cage adjusts height and width-wise, offering compatibility with select Canon and Nikon DSLRs. Constructed from durable aluminum, the cage consists of a top cheese plate, a camera plate, two side cheese plate rods, and two pairs of horizontal arms. The 1584 VersaFrame Cage firmly attaches to your camera using both a camera plate with a 1/4"-20 screw and a hot shoe connector. Multiple 1/4"-20 and 3/8"-16 threaded holes along the top, side, and bottom enable you to mount a variety of camera accessories on the cage. Compatibility - Select DSLR cameras including:
- Canon EOS 80D, 70D, 60D, 50D, 40D, and 30D
- Canon EOS 7D, 7D Mark II, 6D, 5D Mark II, 5D Mark III, 5DS, and 5DS R
- Nikon D7000, D7100, D7200, D300S, D610, and DF
- Sony Alpha a99
- Select other medium-sized DSLR cameras

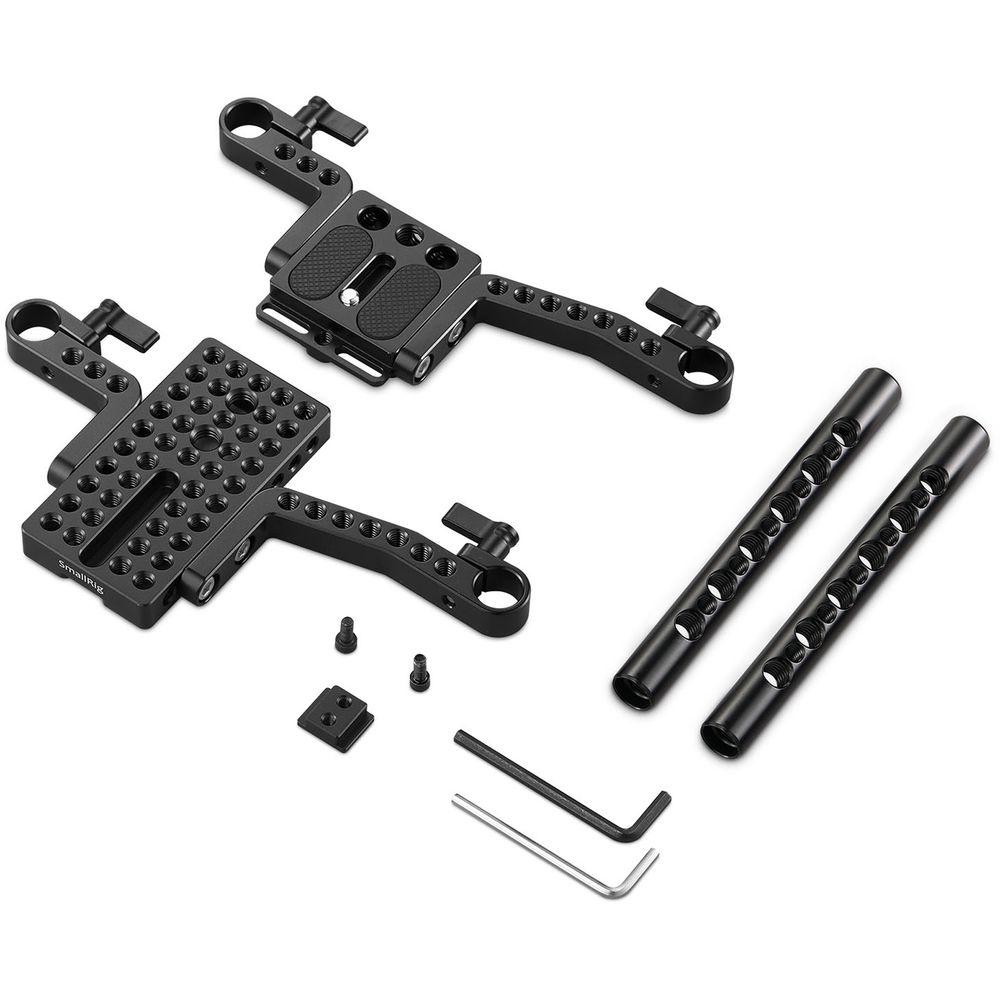

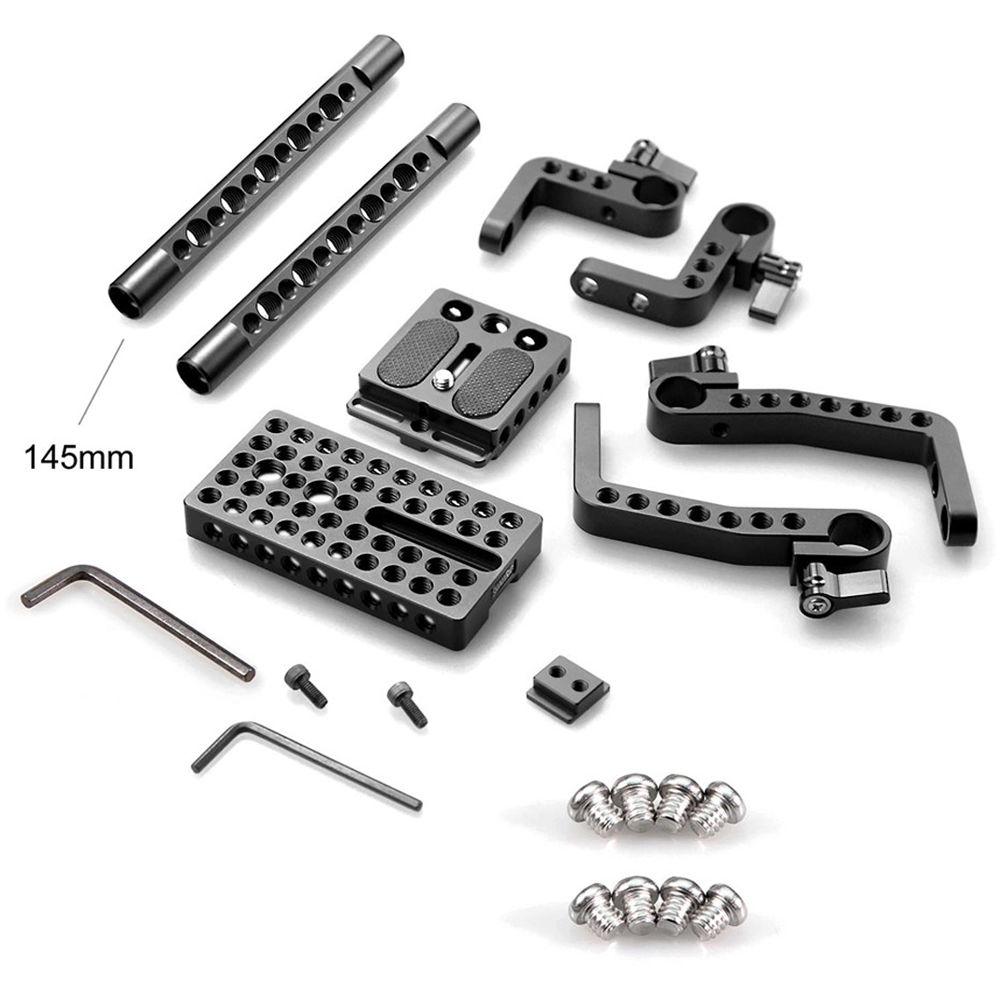

In the Box SmallRig 1584 VersaFrame Cage for Select Canon & Nikon DSLRs 2 x 15mm Cheese Rod (M12, 6") 2 x Short Arms 2 x 1643 Long Arms 1657 Baseplate with 1/4" Mounting Screws Top Plate Hot Shoe Connector 2 x M4 Screws 8 x 1/4" Screws 2 x Allen Wrenches Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallRig 1584 VersaFrame Cage for Select Canon & Nikon DSLRs in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

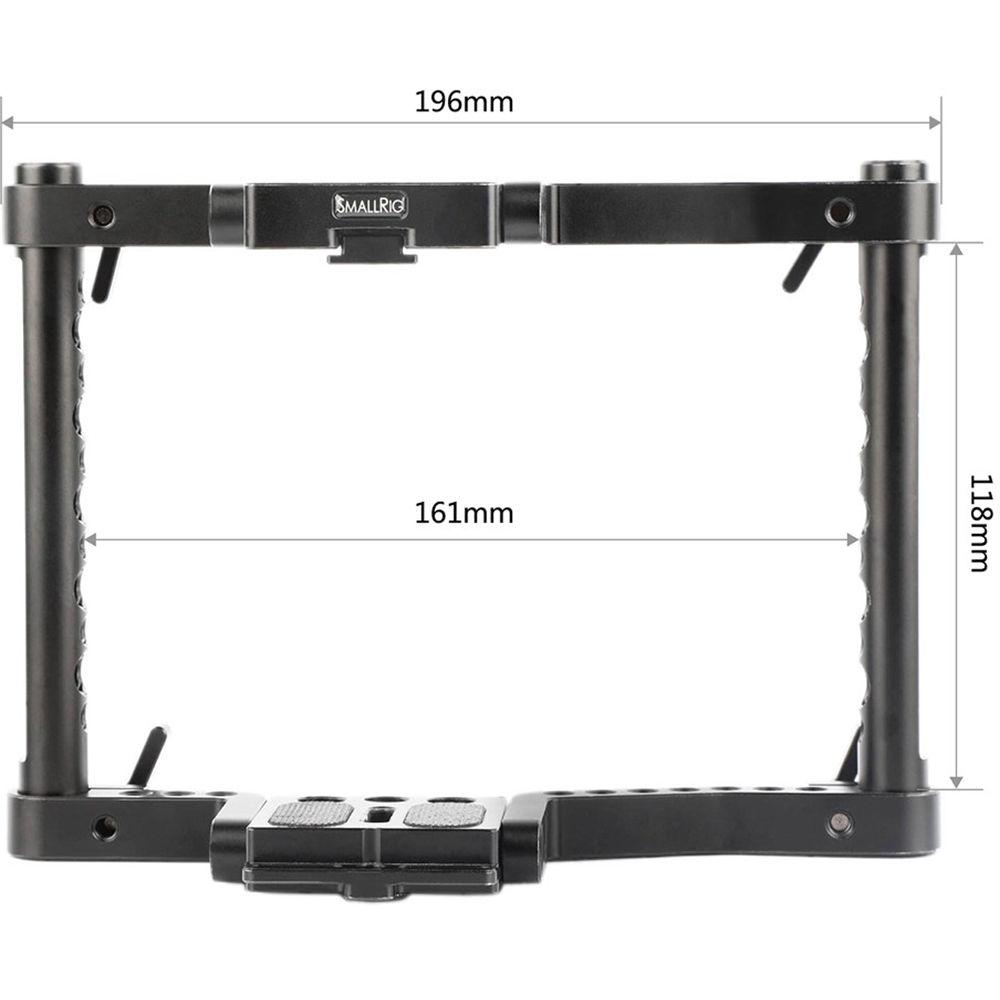

Technical parametersSmallRig 1584 Specs | Camera Screw | 1/4"-20 | | Accessory Mounting Threads | 1/4"-20, 3/8"-16 | | Material of Construction | Aluminum Alloy | | Dimensions | Interior (W x H):
6.3 x 4.6" / 161 x 118 mm
Exterior Width:
7.7" / 196 mm | | Weight | 14.1 oz / 400 g |
