User Manual for SmallRig 15mm LWS Baseplate for Blackmagic Pocket Cinema Camera 4K Click to enlarge the picture
Contents of the user manual for the SmallRig 15mm LWS Baseplate for Blackmagic
- Product category: Camcorder Supports & Rigs SmallRig
- Brand: SmallRig
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallRig Camcorder Supports & Rigs
 |
User manual for the SmallRig 15mm LWS Baseplate for Blackmagic contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallRig product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallRig user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallRig product will considerably shorten its lifespan!
|

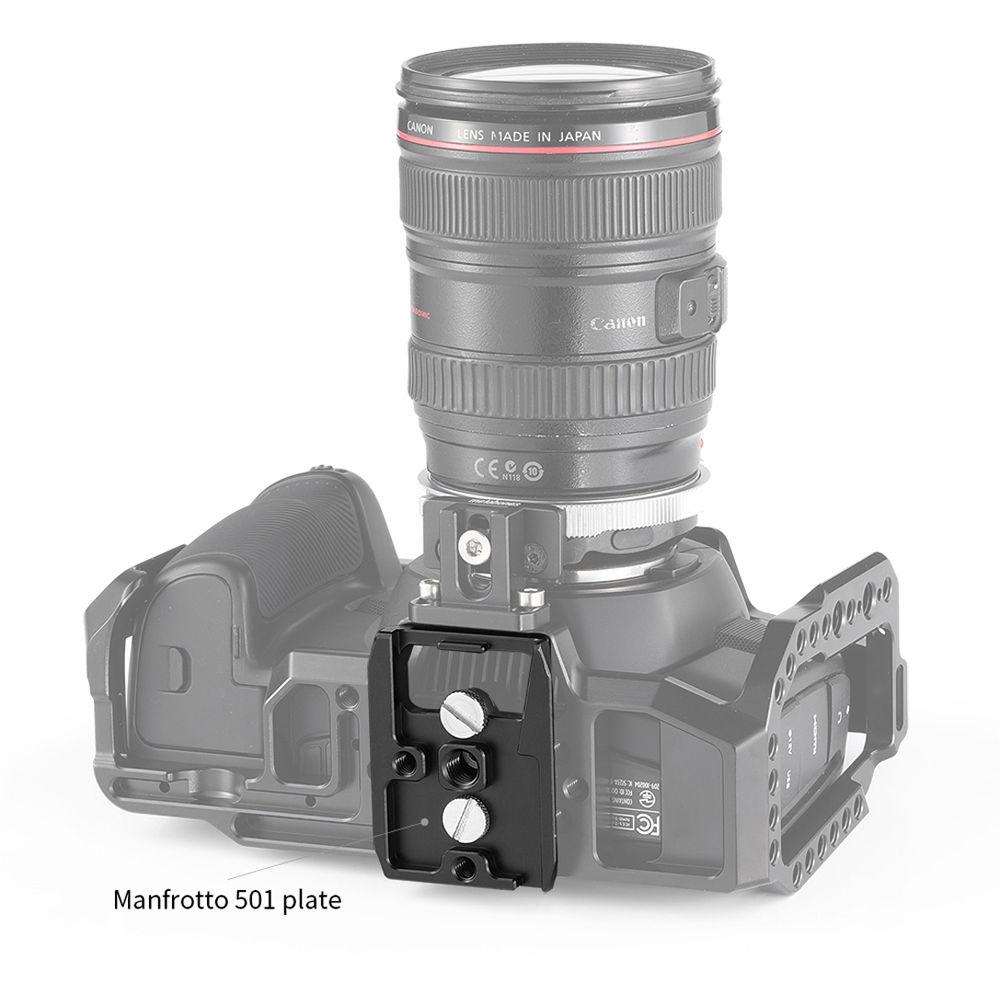

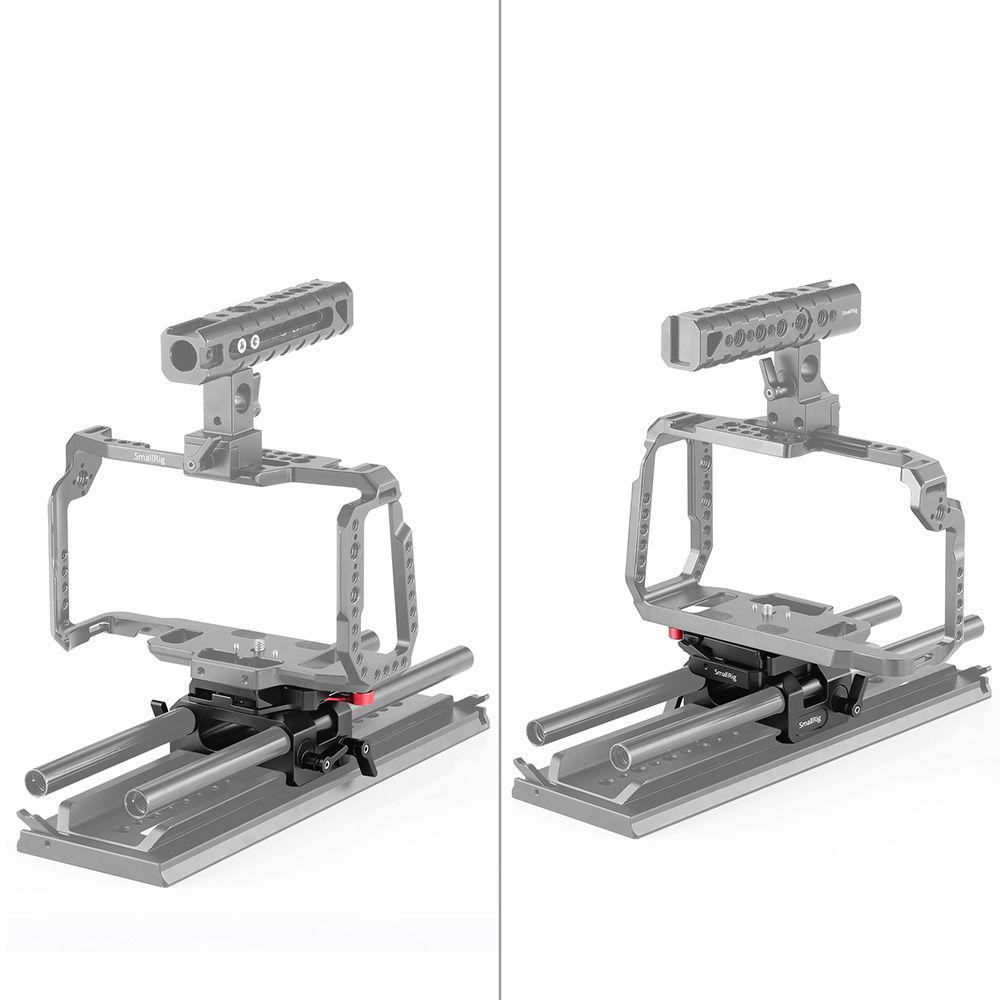

Product description The 15mm LWS Baseplate from SmallRig provides 15mm rod-based accessory support for the Blackmagic Design Pocket Cinema Camera 4K. The Manfrotto 501PL-type plate and clamp provides quick release capability to transfer your camera between rigs.

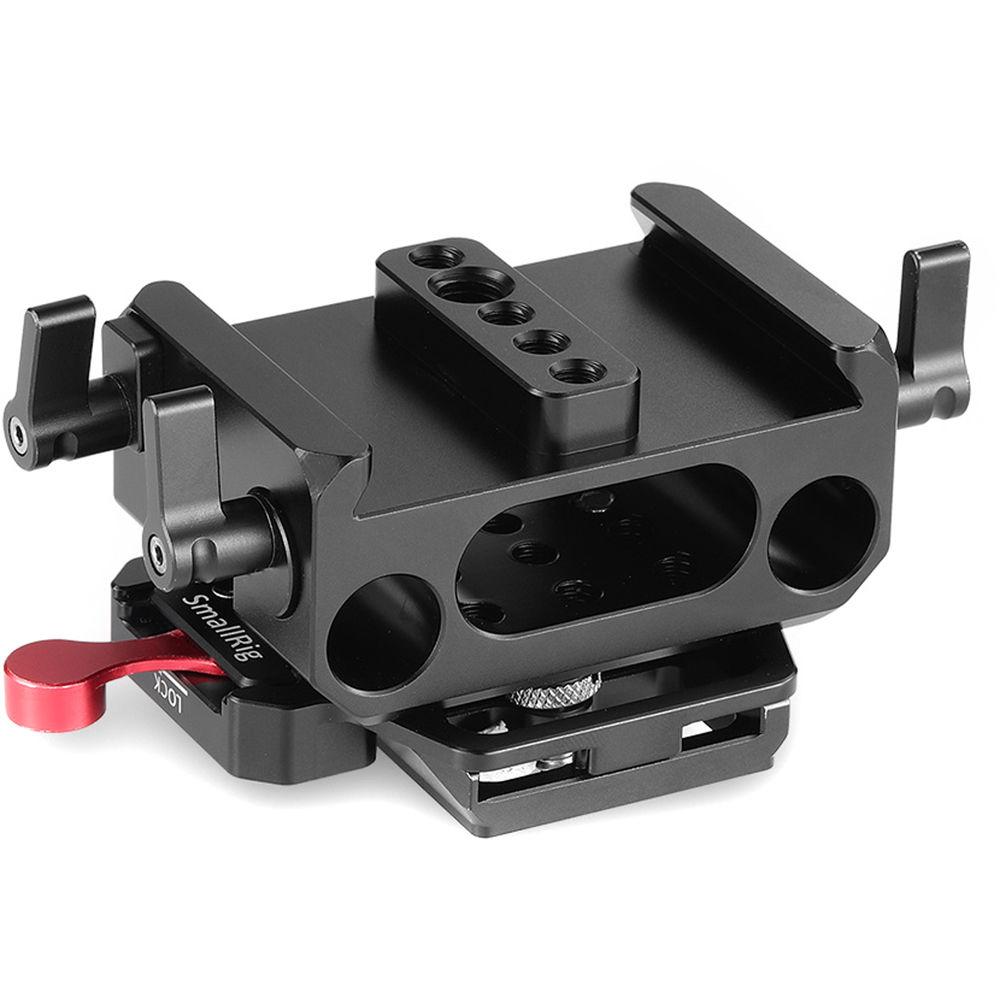

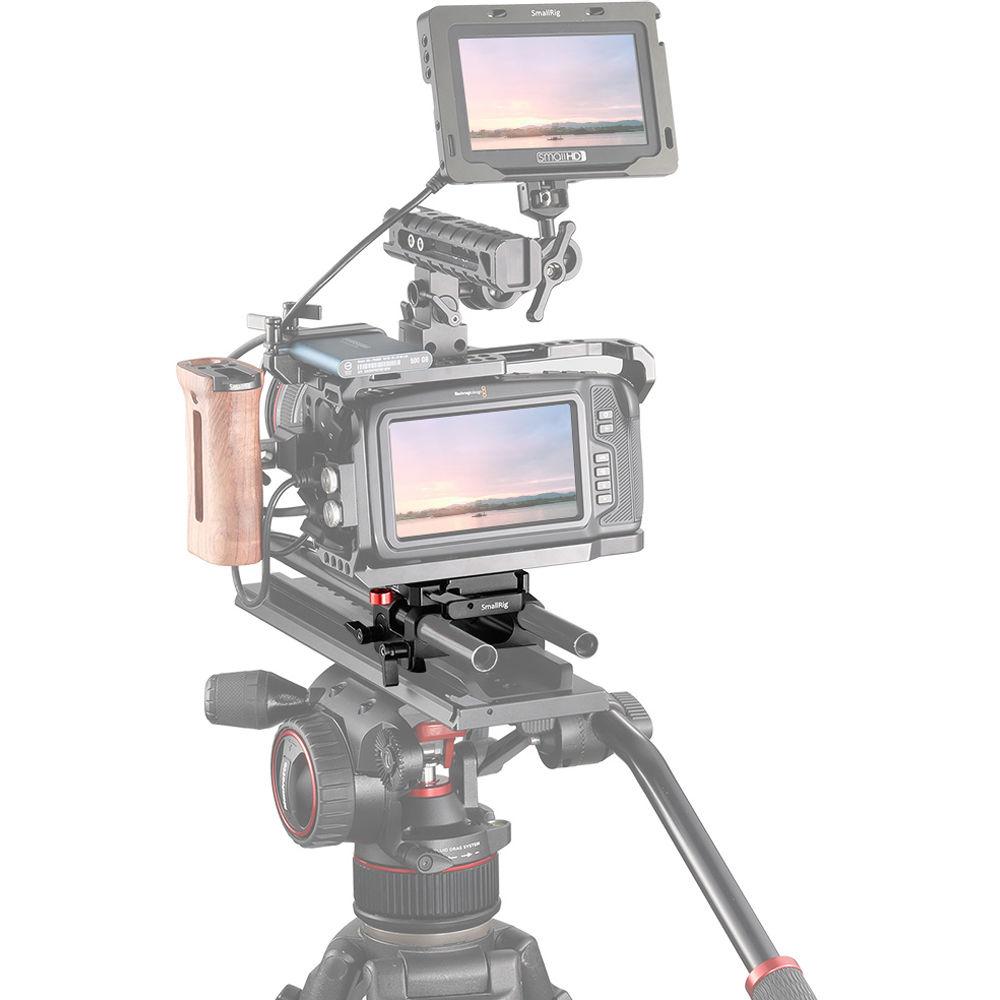

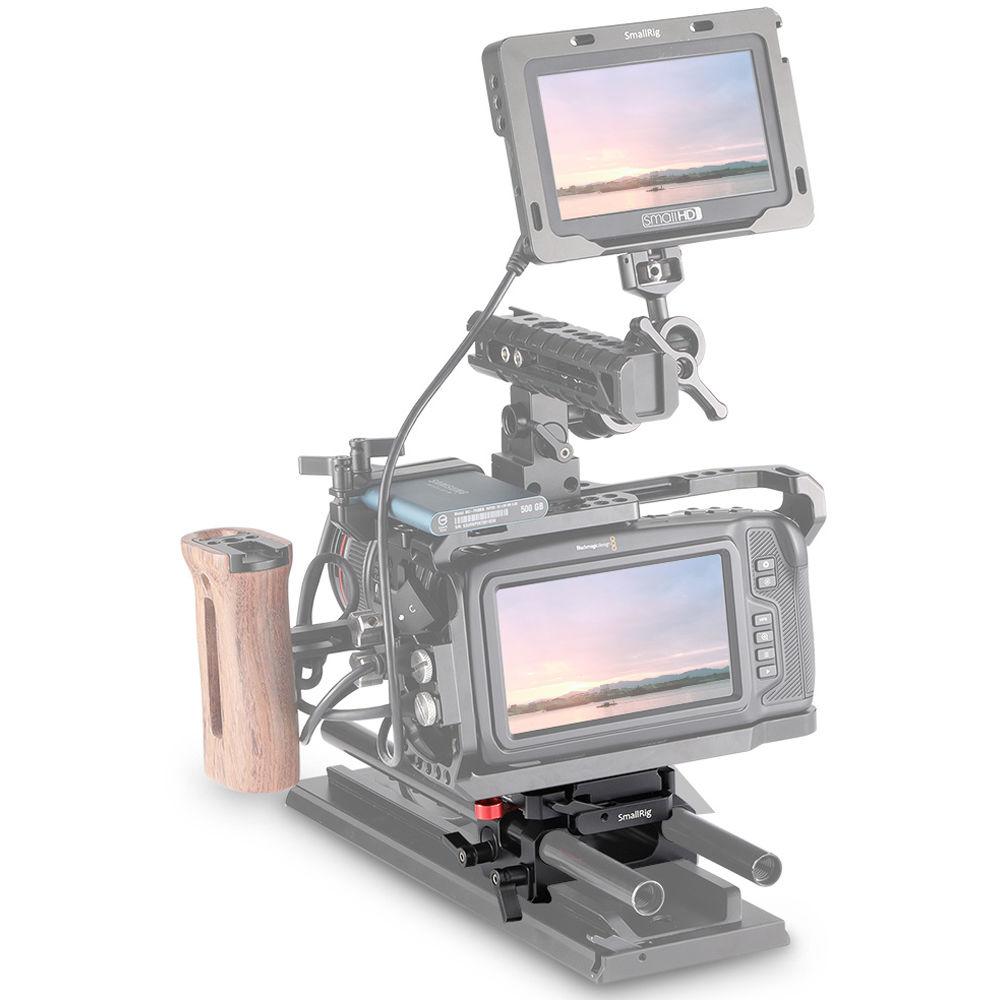

This baseplate system features 1/4"-20 and 3/8"-16 tripod threads and thumb-lever locks. The integrated 15mm rod clamp allows you to mount the baseplate on a standard 15mm LWS rod system, or you can use the mounting threads to attach different plates on the bottom. There is also a standard ARRI-style dovetail mount on the bottom for an alternate mounting method. - Mounting Compatibility
-
- Blackmagic Design Pocket Cinema Camera 4K

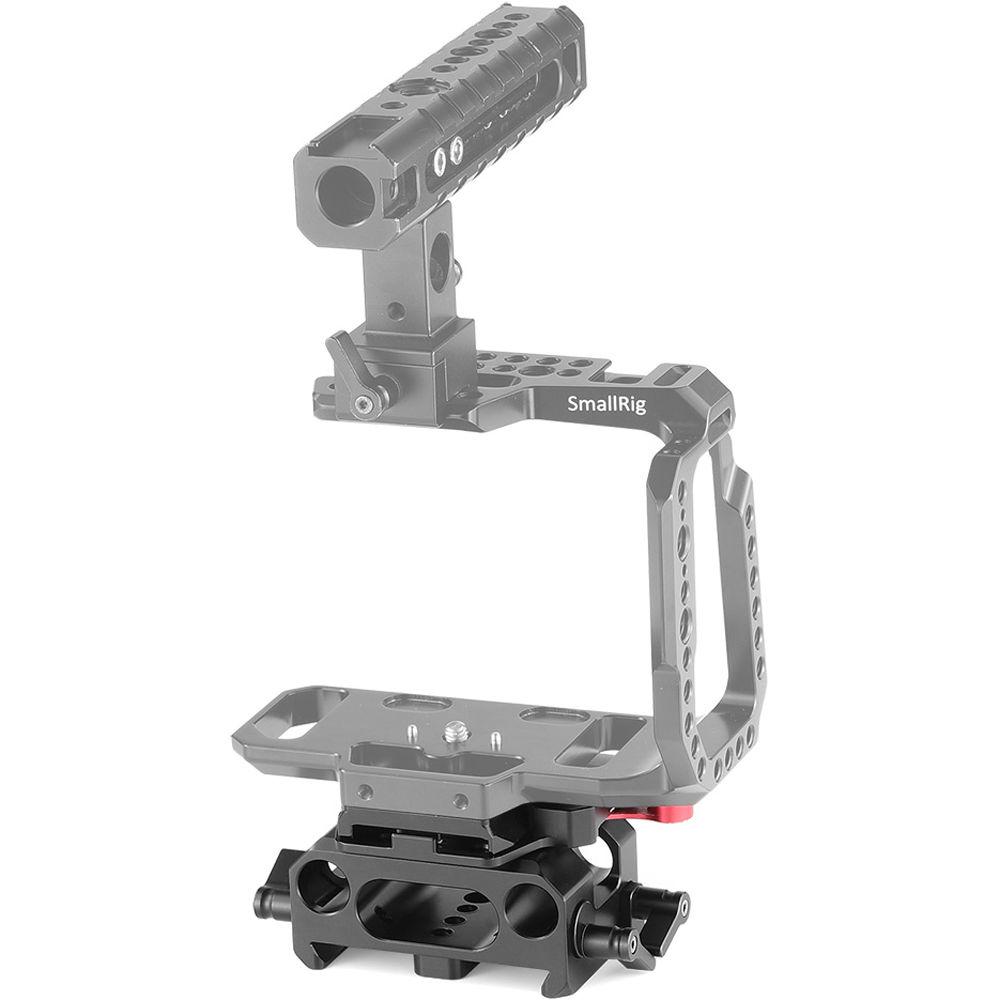

- SmallRig cage 2203
- SmallRig cage 2254

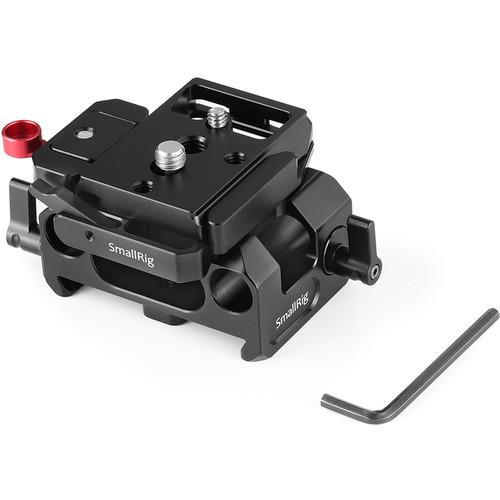

In the Box SmallRig 15mm LWS Baseplate for Blackmagic Pocket Cinema Camera 4K (Manfrotto 501PL-Type) Allen Wrench Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallRig 15mm LWS Baseplate for Blackmagic Pocket Cinema Camera 4K in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallRig DBM2266 Specs | Material of Construction | Aluminum | | Mount Type | Manfrotto 501PL-Type | | Rod Standard | 15mm LWS

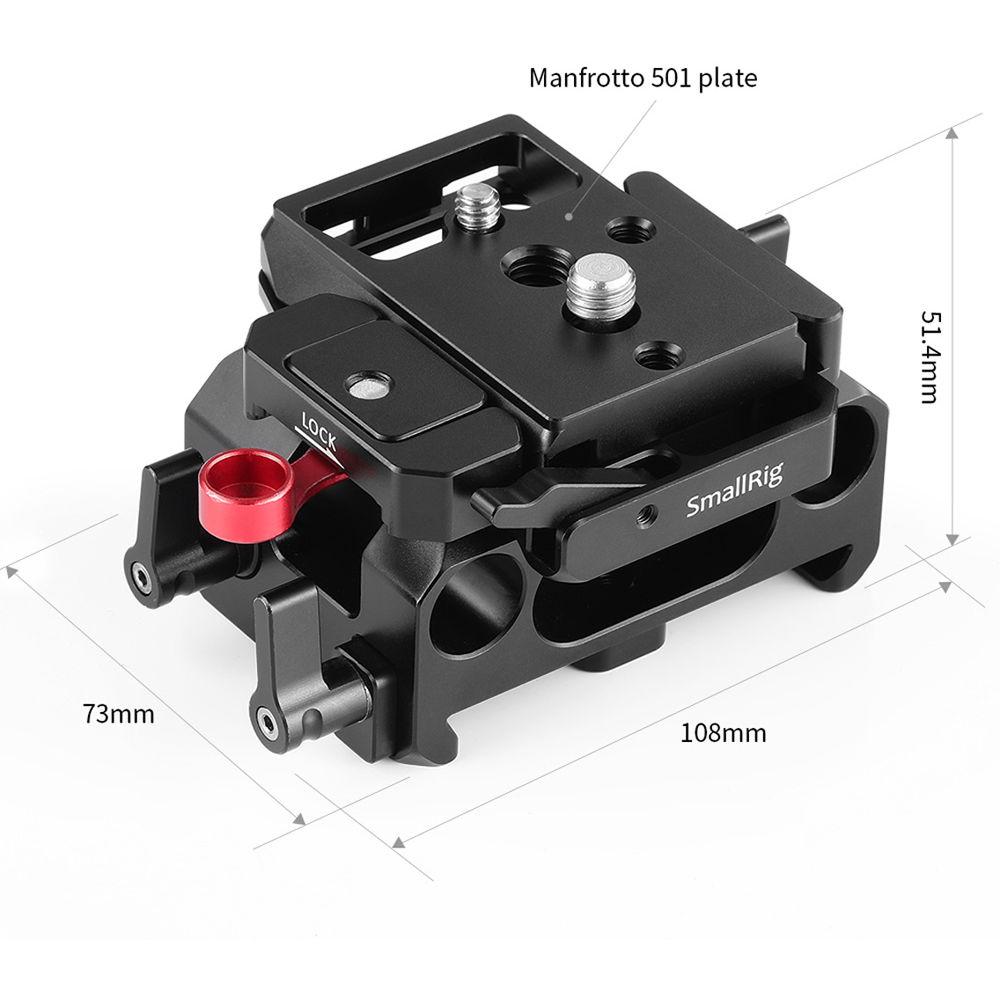

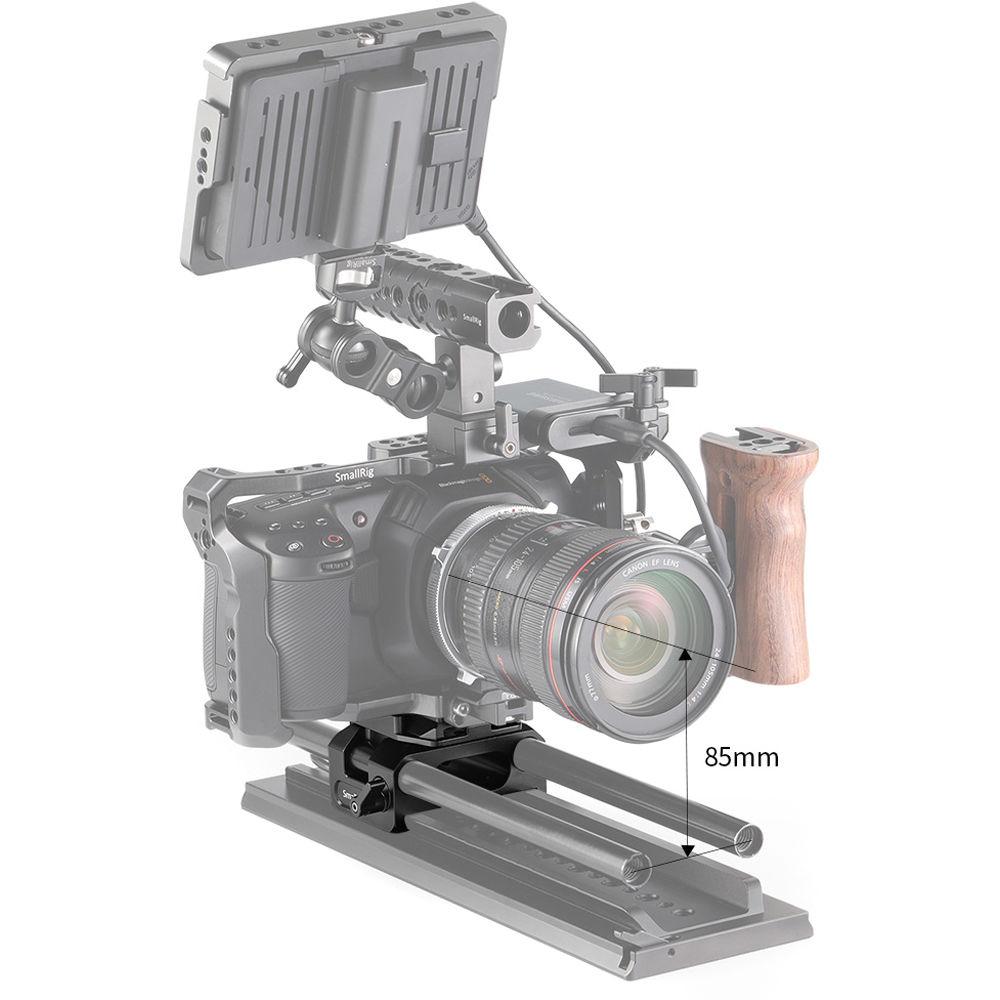

3.3" / 85 mm Rod Height | | Mounting Threads | 1/4"-20 and 3/8"-16 | | Dimensions | 4.3 x 2.9 x 2.2" / 10.8 x 7.3 x 5.2 cm | | Weight | 11.3 oz / 321 g | | | | Package Weight | 0.865 lb | | Box Dimensions (LxWxH) | 5.1 x 4.4 x 3.5" |
