User Manual for SmallRig 2006 Drop-In Baseplate Click to enlarge the picture
Contents of the user manual for the SmallRig 2006 Drop-In Baseplate
- Product category: Quick Release Assemblies SmallRig
- Brand: SmallRig
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallRig Quick Release Assemblies
 |
User manual for the SmallRig 2006 Drop-In Baseplate contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallRig product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallRig user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallRig product will considerably shorten its lifespan!
|

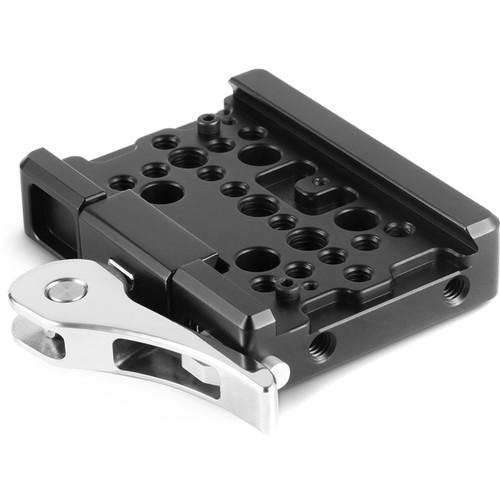

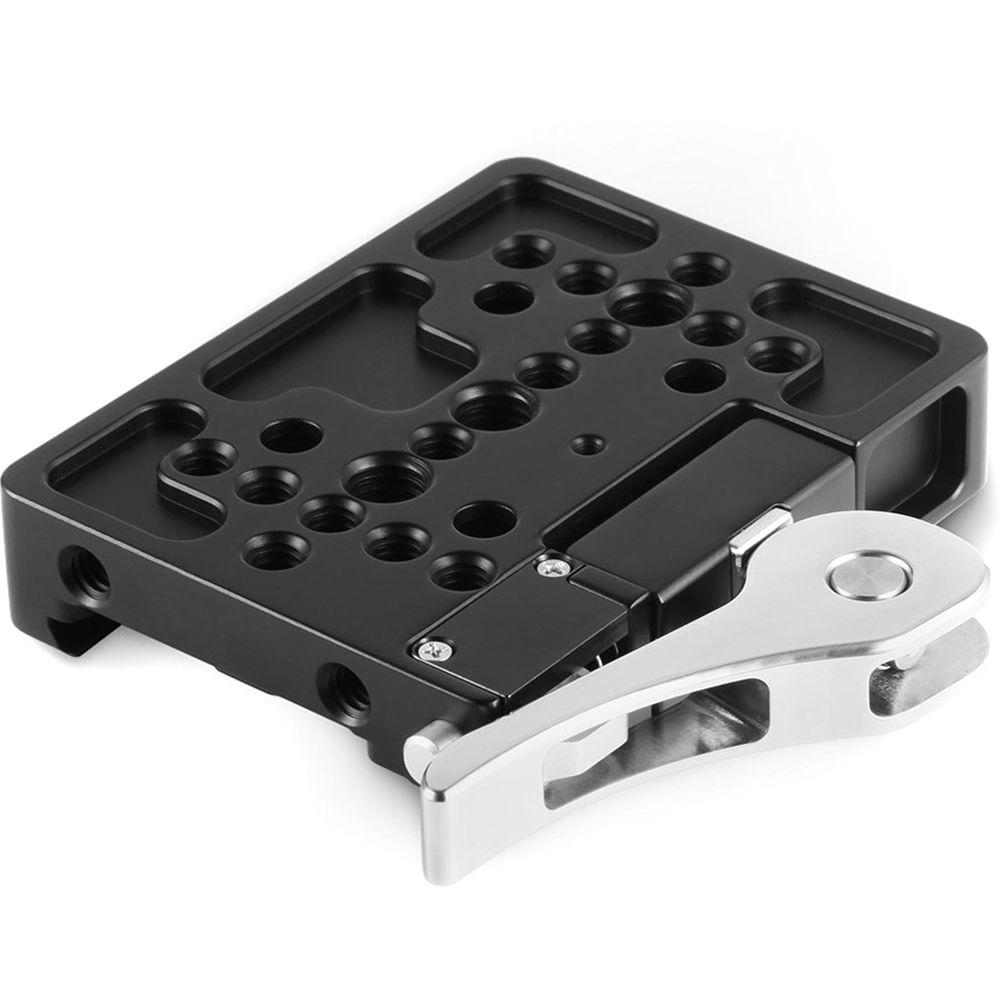

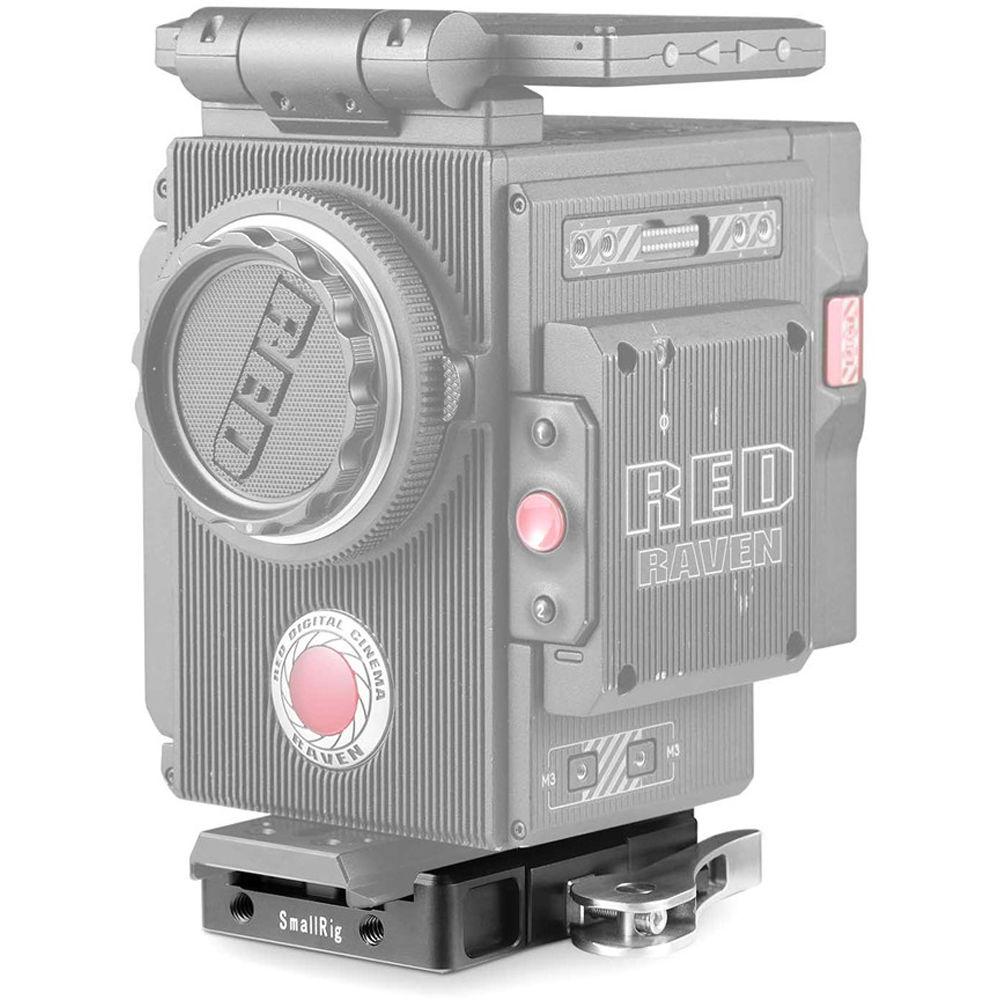

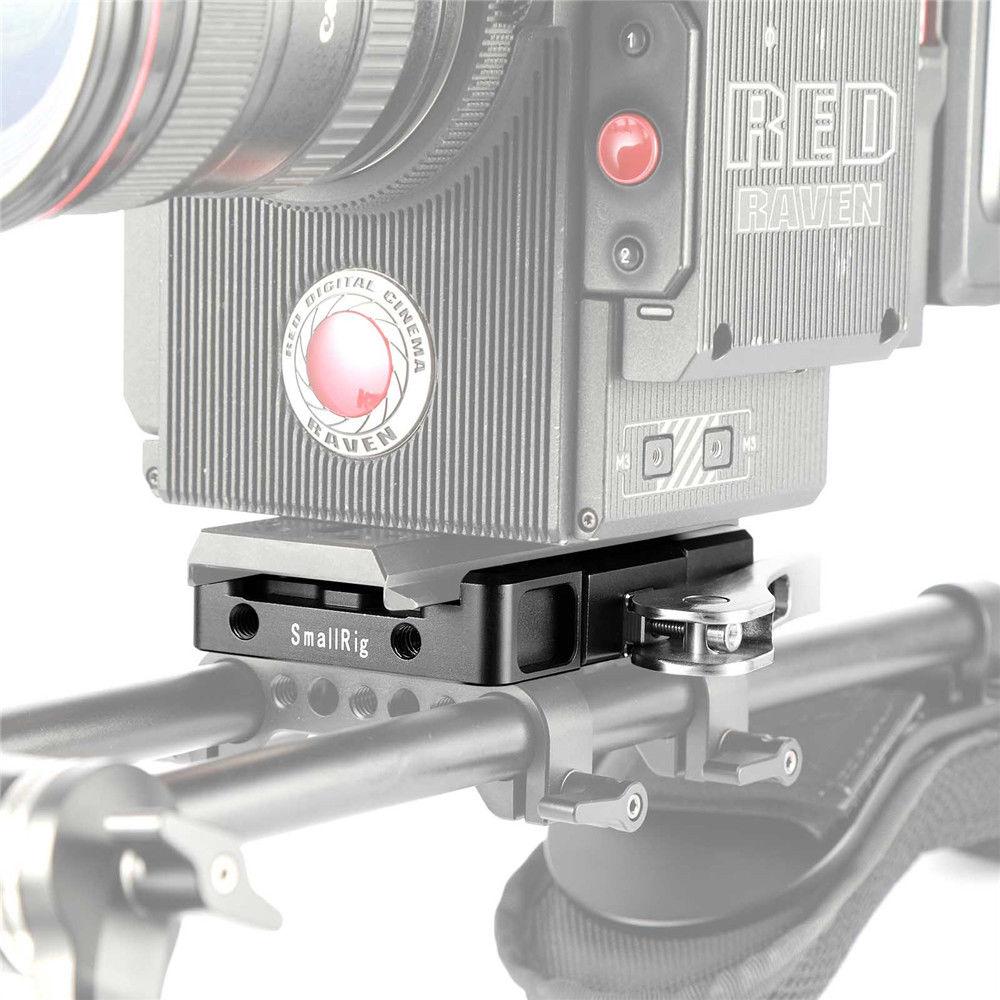

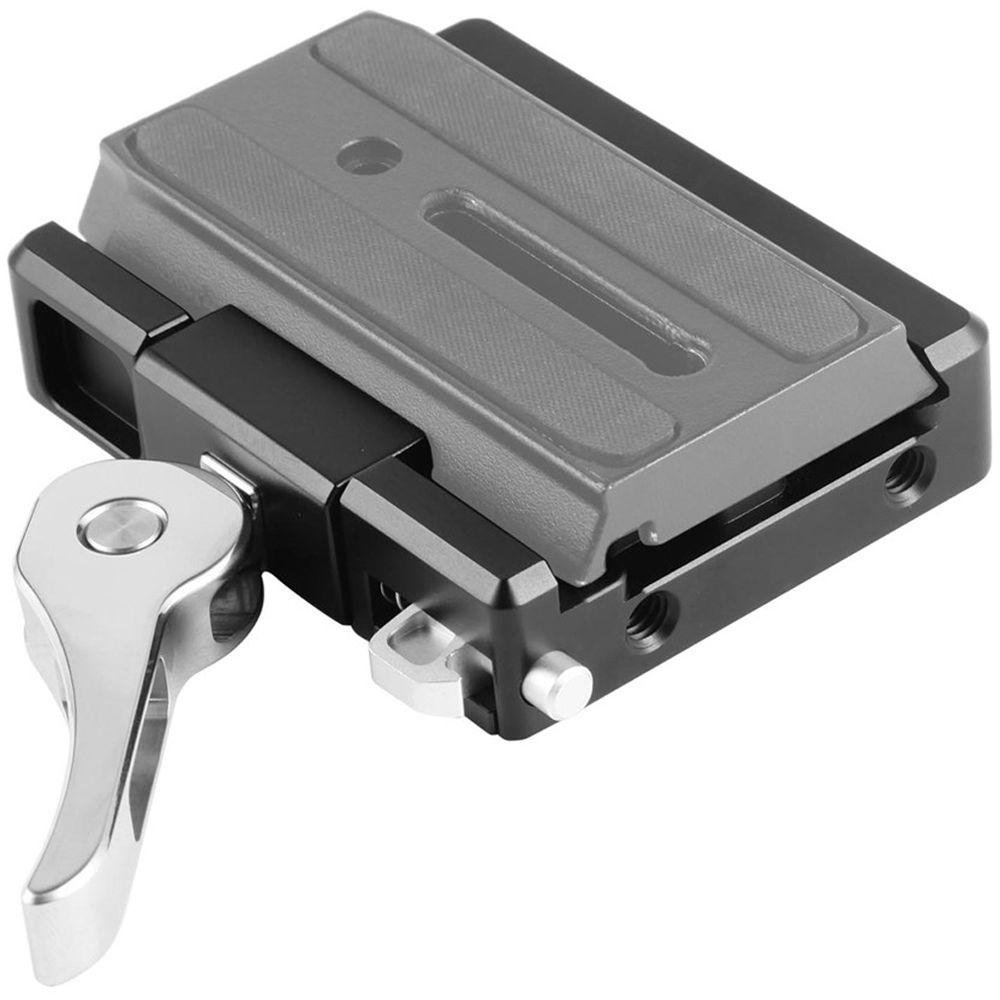

Product description For fast transitions from tripod to shoulder rig, use this 2006 Drop-In Baseplate from SmallRig which is compatible with a separately available Manfrotto 501PL or 504PL quick release plate. The quick release plate drops, rather than slides, into the baseplate for fast mounting and unmounting.
The sturdy aluminum baseplate features two M3 safety screws to prevent the 501PL or 504PL plate from sliding out, and it tightens with a locking lever that secures with its own quick release buckle. There are multiple 1/4"-20 and 3/8"-16 threaded holes around the plate for mounting options. The 1/4"-20 threads on the front and back of the plates allow for mounting rail clamps or other accessories. Two Allen wrenches are included for adjusting the safety screws. In the Box SmallRig 2006 Drop-In Baseplate (Manfrotto 501PL or 504PL QR Plate Compatible) 2 x Allen Wrench Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallRig 2006 Drop-In Baseplate in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

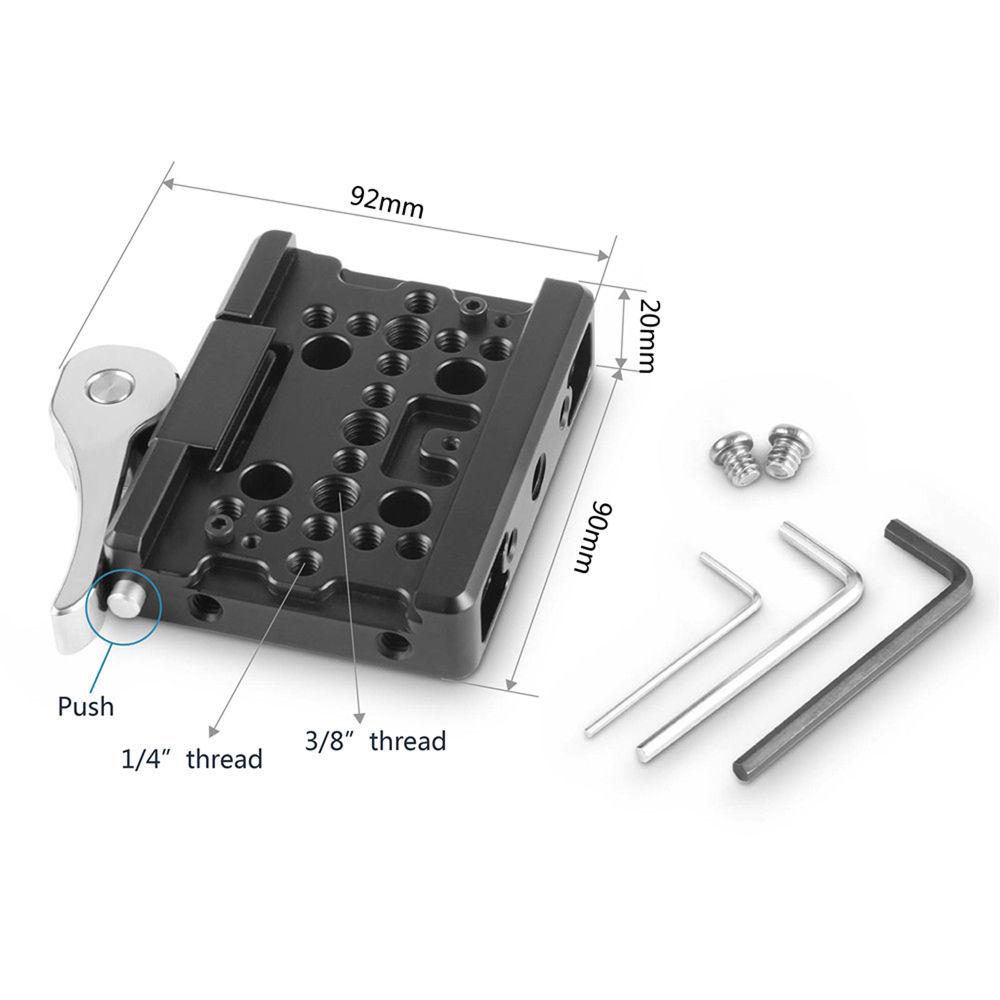

Technical parametersSmallRig 2006 Specs | Compatibility | Manfrotto 501PL or 504PL Style Quick Release Plates | | Material of Construction | Aluminum | | Mounting Threads | 1/4"-20 and 3/8"-16 | | Screw Type | 2 x M3 (Safety Screws) | | Dimensions | 3.5 x 2.8 x 0.8" / 9 x 7 x 2 cm | | Weight | 7.9 oz / 225 g | | | | Package Weight | 0.68 lb | | Box Dimensions (LxWxH) | 4.9 x 4.0 x 1.6" |
Rating20% users recommend this product to others. And what about you?
This product has already been rated by 21 owners. Add your rating and experience with the product.
