User Manual for SmallRig 2027 NATO Top Handle Accessory Kit Click to enlarge the picture
Contents of the user manual for the SmallRig 2027 NATO Top Handle Accessory
- Product category: Handles & Grips SmallRig
- Brand: SmallRig
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallRig Handles & Grips
 |
User manual for the SmallRig 2027 NATO Top Handle Accessory contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallRig product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallRig user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallRig product will considerably shorten its lifespan!
|

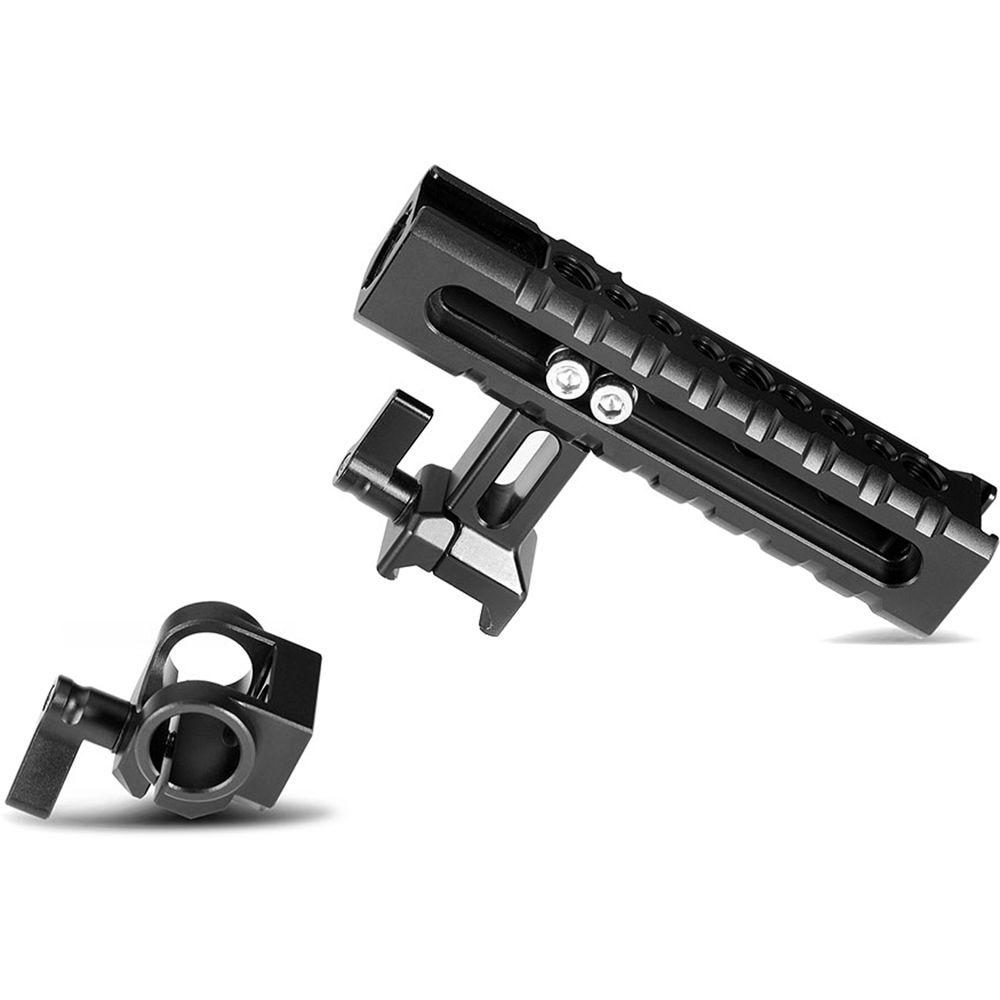

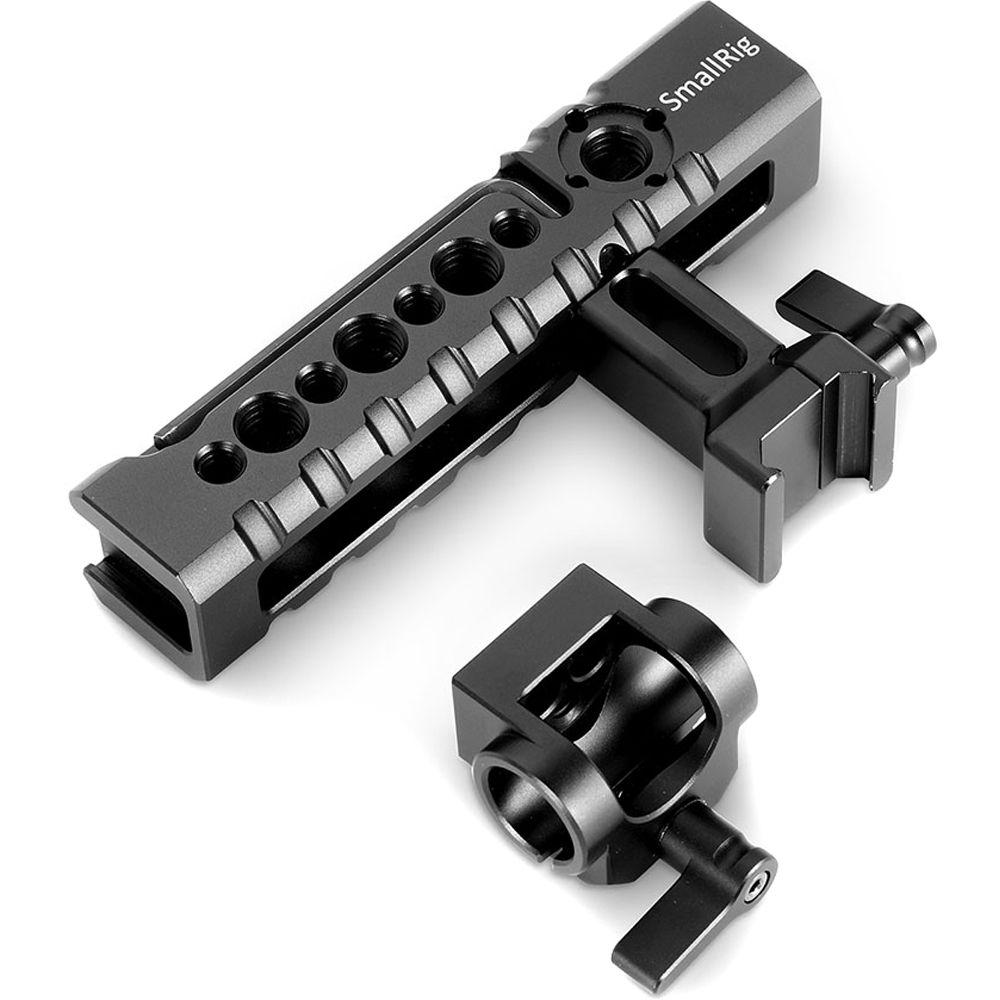

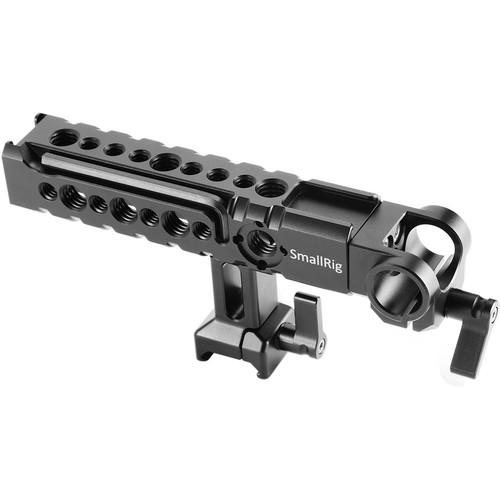

Product description The SmallRig 2027 NATO Top Handle Accessory Kit pairs the 1955 NATO Handle with the 1995 Single 15mm Rod Bracket. This kit also includes an Allen wrench used for adjusting the handle's front/back position. - DSLR Action NATO Handle The versatile DSLR Action NATO Handle from SmallRig quickly mounts to a standard NATO rail to provide a balanced gripping point for your camera or camcorder. The handle features both forward-to-back and side-to-side adjustment to help balance your camera rig. Additional features include two cold shoe adapters, multiple 1/4"-20 and 3/8"-16 threads, and two ARRI-style anti-twist accessory mounts.

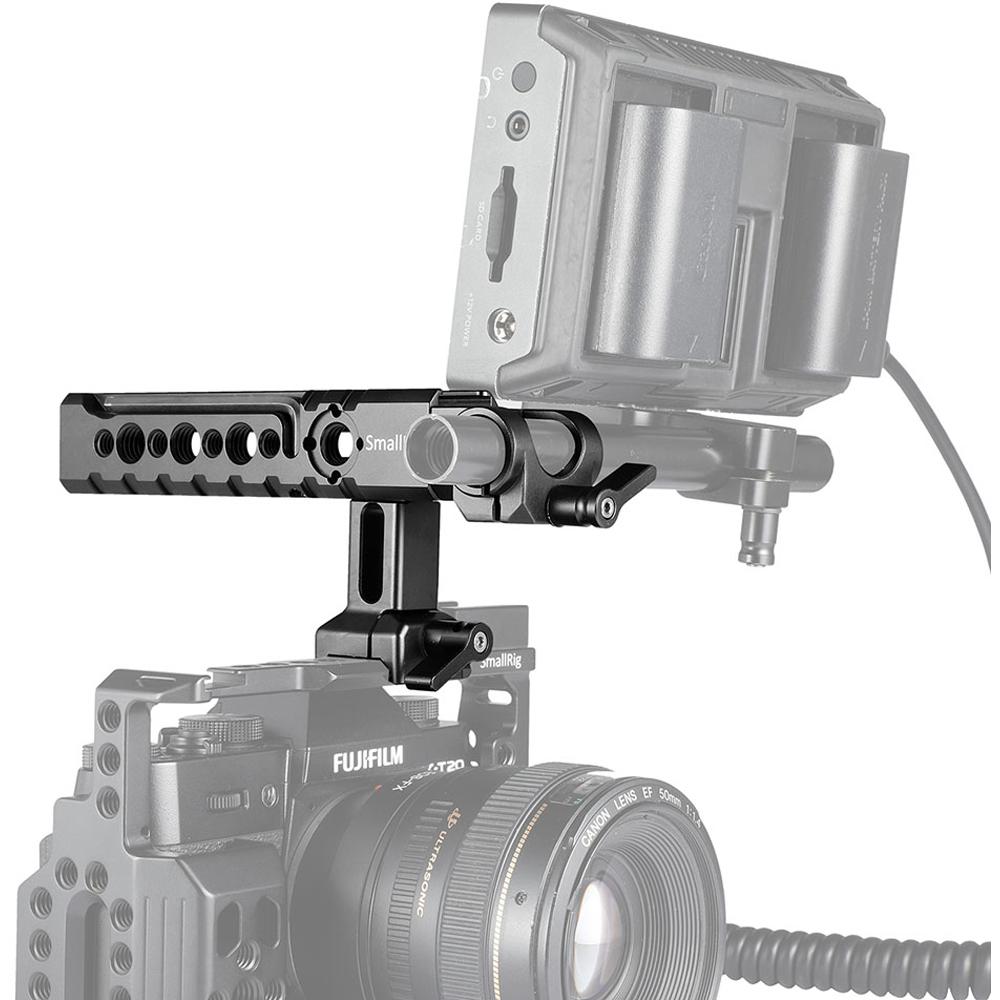

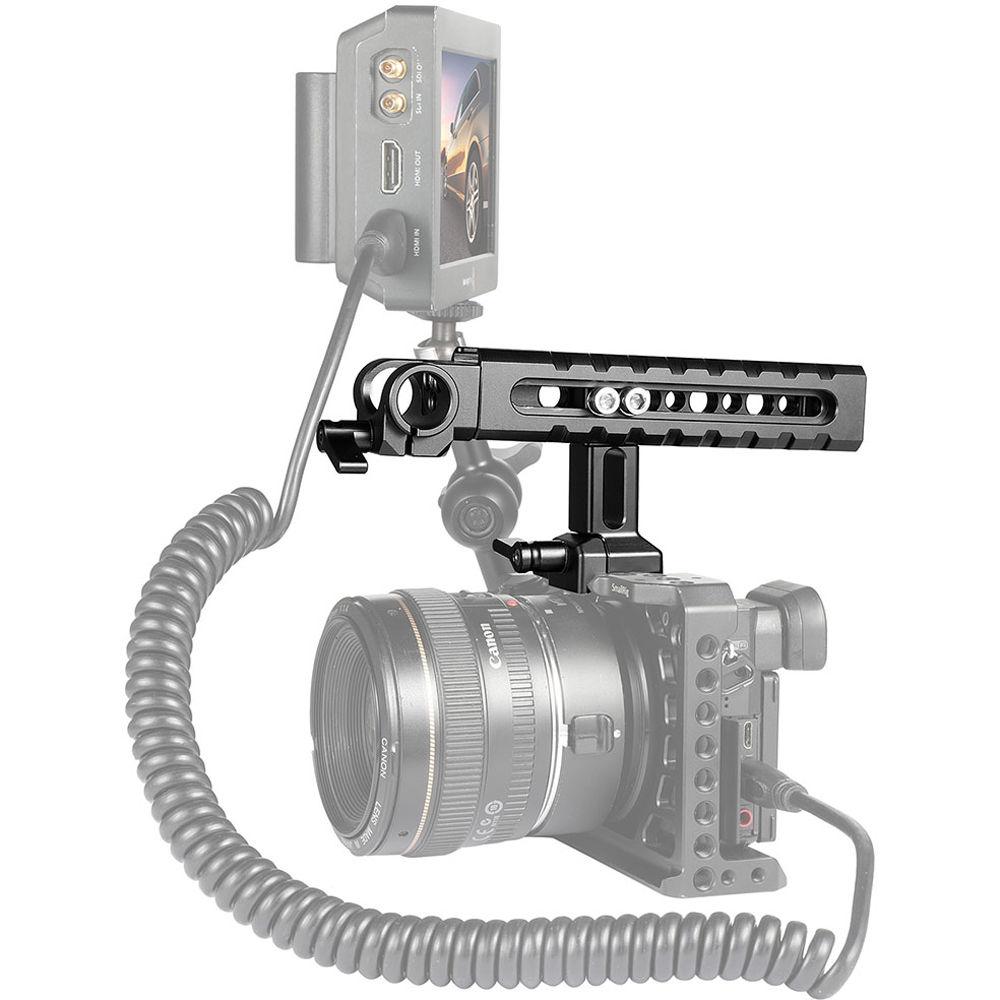

- 15mm Rod Clamp The 15mm Rod Clamp from SmallRig is equipped with two counterbore holes and a 1/4"-20 threaded hole. It can attach to the SmallRig Camera Stabilizer Handles via two M4 screws and attach the Microphone Support to a 15mm rod. Furthermore, the clamp works with the SmallRig Single RailBlock and Mini Mounting Plate. The 1/4"-20 threaded hole can attach to the 15mm Micro Rods for rotating a mounted monitor in different directions.

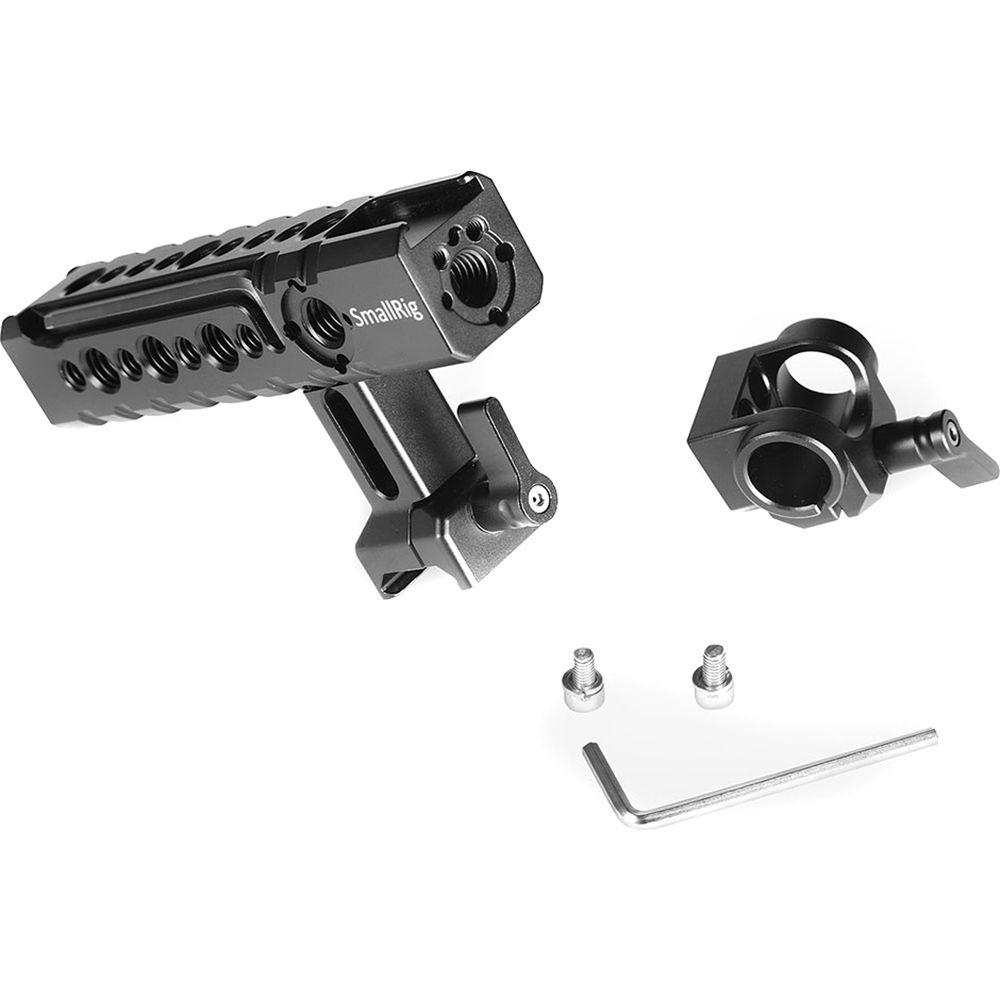

In the Box Bundle Items DSLR Action NATO Handle 15mm Rod Clamp
Also Includes - Allen Wrench
- Limited 2-Year Warranty
Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallRig 2027 NATO Top Handle Accessory Kit in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - DSLR Action NATO Handle
| Mounting | Standard NATO rail | | Accessory Mounting | 1/4"-20, 3/8"-16 Threads: Multiple
ARRI-Style Accessory Mounts: x 2
Cold Shoes: x 2 | | Material of Construction | Aluminum alloy | | Dimensions (WxHxD) | 4.6 x 2.6 x 1" / 118 x 66 x 25 mm | | Weight | 5.3 oz / 151 g | | | | Box Dimensions (LxWxH) | 6.0 x 3.3 x 1.7" | - 15mm Rod Clamp
| Rod Compatibility | 15 mm | | Mounting Hole | 2 x Counterbore holes
1 x 1/4"-20 threaded hole | | Material | Aluminum alloy | | Dimensions | 1.6 x 1.3 x 1.0" / 41 x 33 x 26 mm | | Weight | 1.7 oz / 48 g | | | | Box Dimensions (LxWxH) | 2.6 x 2.0 x 1.65" |
