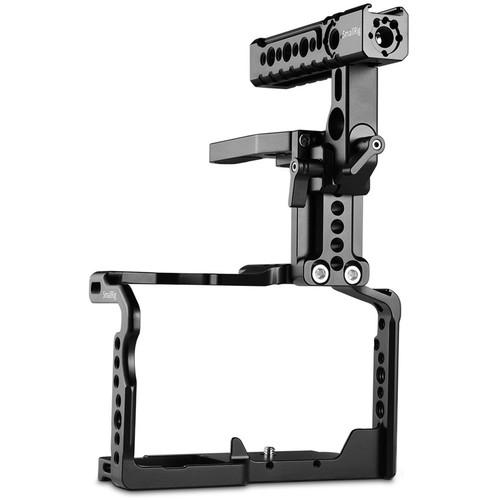

User Manual for SmallRig 2052 Cage with Helmet Kit for Panasonic LUMIX GH5 5S & DMW-XLR1 Click to enlarge the picture
Contents of the user manual for the SmallRig 2052 Cage with Helmet Kit
- Product category: DSLR Video Supports & Rigs SmallRig
- Brand: SmallRig
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallRig DSLR Video Supports & Rigs
 |
User manual for the SmallRig 2052 Cage with Helmet Kit contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallRig product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallRig user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallRig product will considerably shorten its lifespan!
|

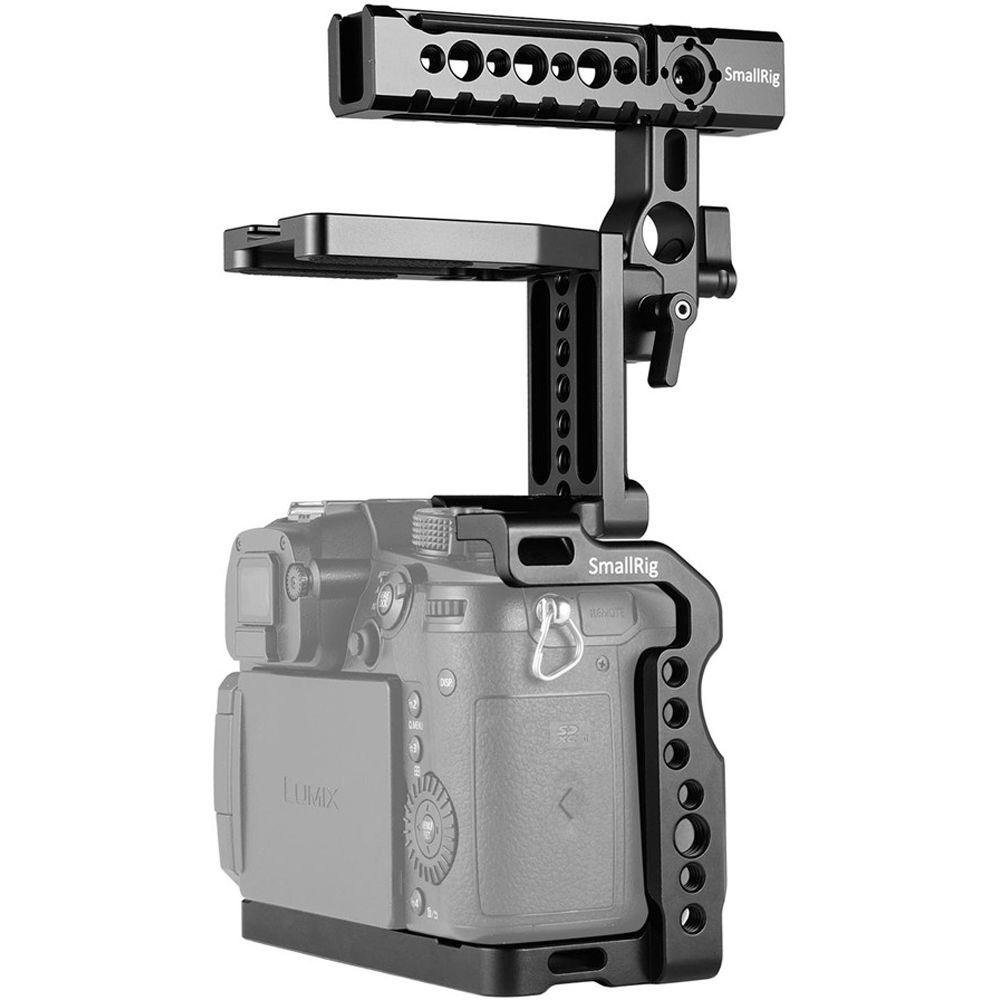

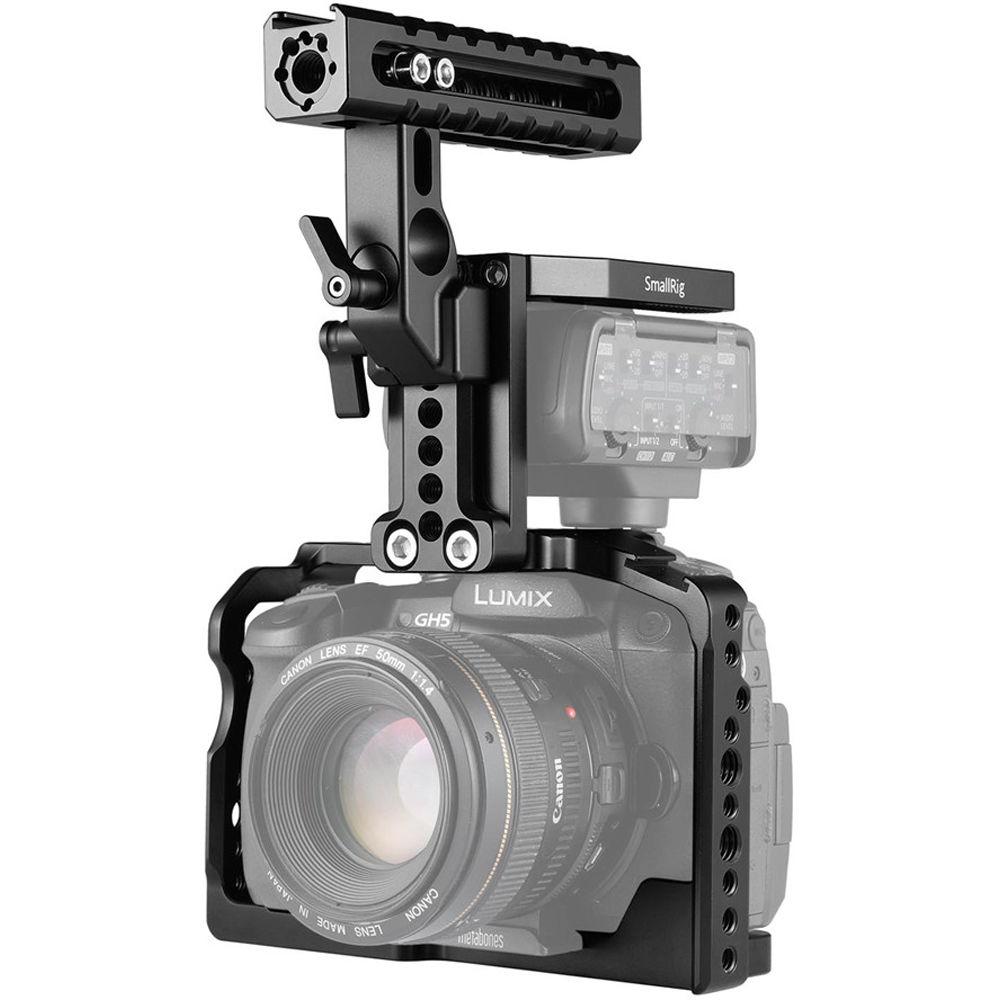

Product description The 2052 Cage with Helmet Kit for Panasonic LUMIX GH5/GH5S from SmallRig bundles the 2049 GH5 Cage with the 2017 Helmet Kit. This kit protects both your camera and an attached DMW-XLR1 audio adapter while offering a variety of accessory mounting options. - 2049 Cage for Panasonic GH5/GH5S The formfitting 2049 Cage for Panasonic GH5/GH5S from SmallRig is a protective frame featuring a variety of options for mounting accessories to your camera. One cold shoe and multiple 1/4"-20 and 3/8"-16 accessory threads are built into the cage, and a NATO rail is integrated into the left side.The 2049 cage maintains access to the camera's controls, slots, connectors, and original shoe interface when mounted to your Panasonic GH5 or GH5S camera. Threads on the cage front enable you to attach a separately available lens adapter support. Constructed from an aluminum alloy, the cage is designed to eliminate any twisting of the camera within the frame and to allow for heat dispersion.
- Compatibility
- Panasonic LUMIX GH5/GH5S

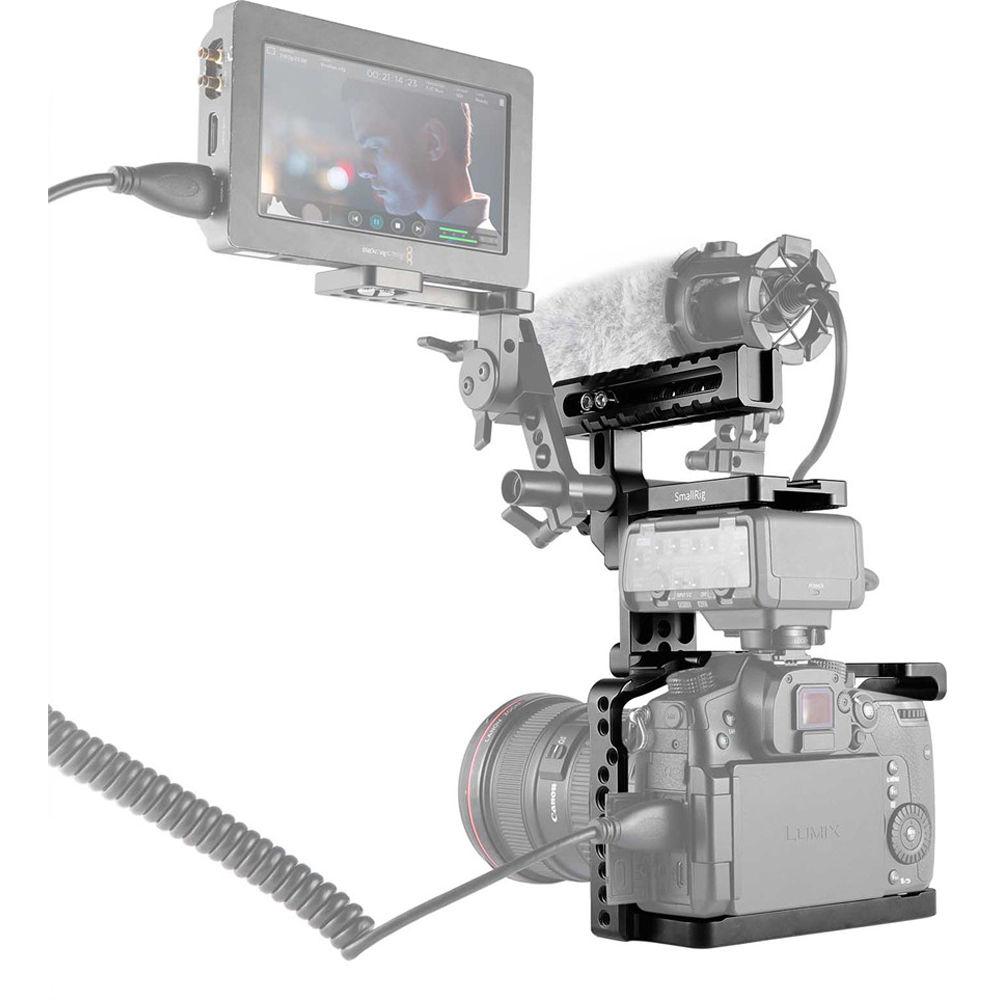

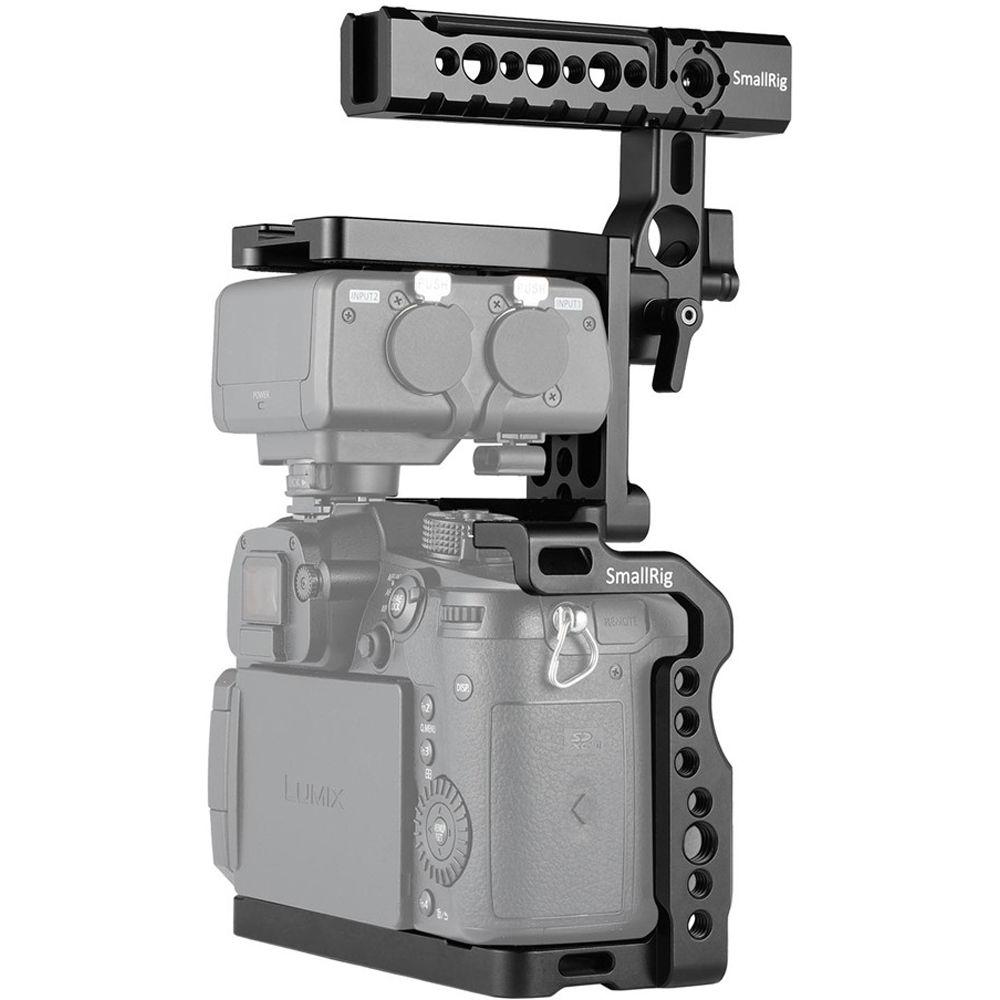

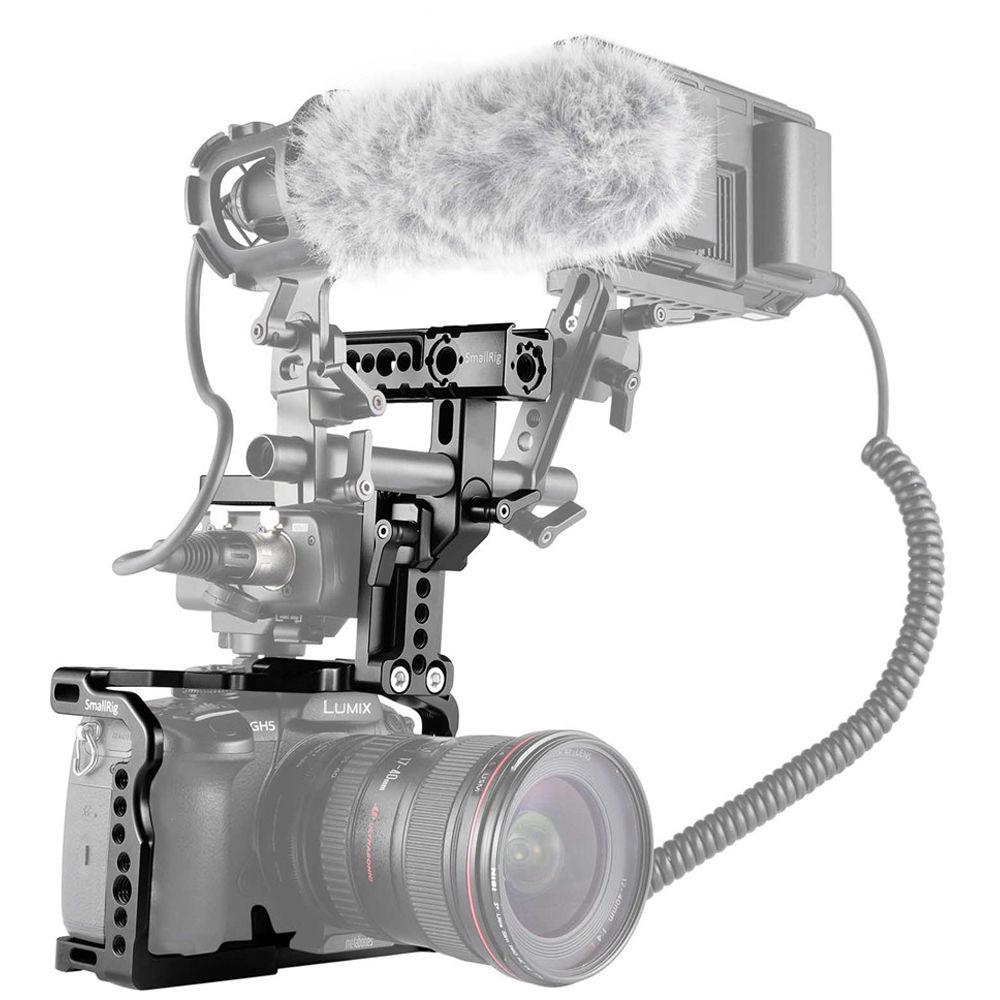

- 2017 Helmet Kit for Panasonic LUMIX GH5/GH5S & DMW-XLR1 Mic Adapter The SmallRig 2017 Helmet Kit for Panasonic LUMIX GH5/GH5S protects and adds multiple accessory mounts to your DMW-XLR1 adapter-equipped GH5/GH5S camera. This aluminum alloy helmet mounts on the separately available SmallRig Cage 20449.The Helmet Kit provides multiple 1/4"-20, 3/8"-16, and ARRI anti-twist threads for attaching accessories, as well as a total of three cold shoe mounts. The single 15mm rod support can be used for mounting a microphone, monitor, or other component. The top handle is detachable and attaches easily to the helmet's NATO rail.

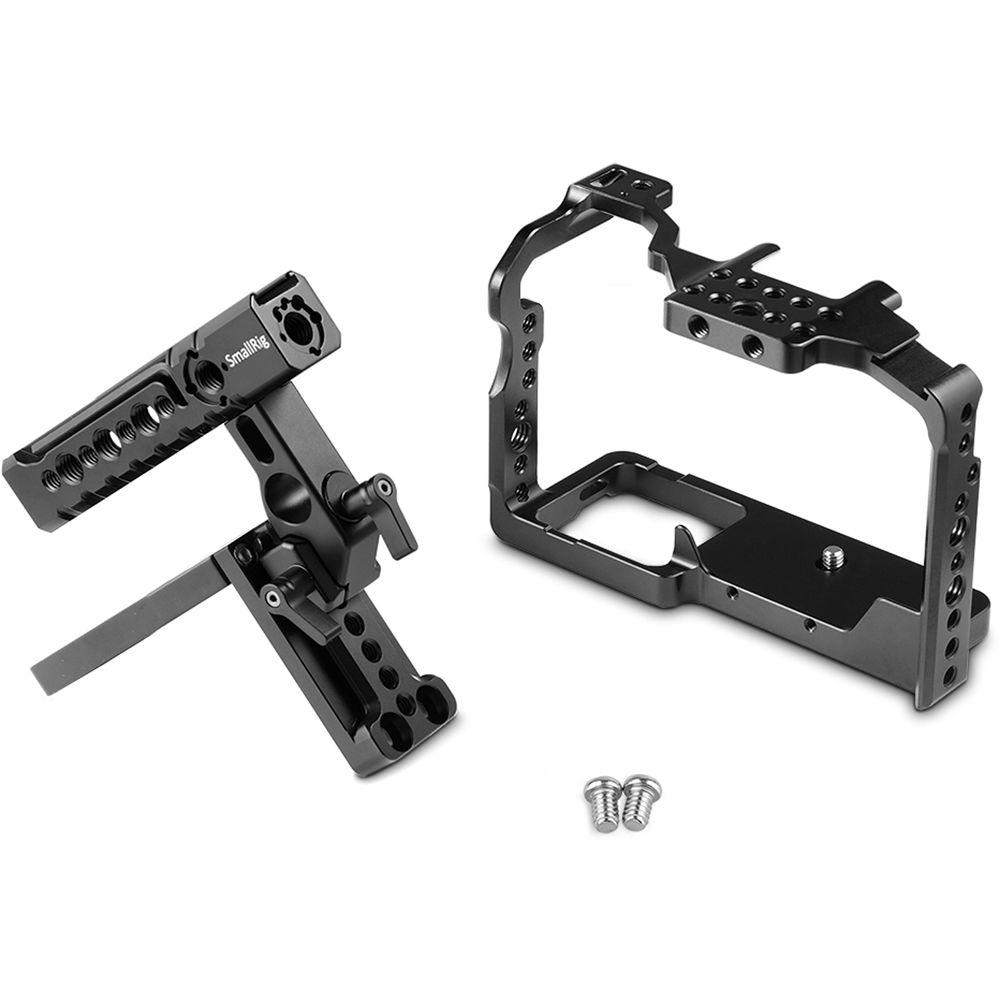

In the Box Bundle Items 2049 Cage for Panasonic GH5/GH5S 2017 Helmet Kit for Panasonic LUMIX GH5/GH5S & DMW-XLR1 Mic Adapter Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallRig 2052 Cage with Helmet Kit for Panasonic LUMIX GH5 5S & DMW-XLR1 in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2049 Cage for Panasonic GH5/GH5S
| Accessory Mounting | Multiple 1/4"-20 and 3/8"-16 threads
1 x NATO rail
1 x Cold shoe | | Material of Construction | Aluminum alloy | | Dimensions (WxHxD) | 6.1 x 4.3 x 2.8" / 15.4 x 10.9 x 7.1 cm | | Weight | 6.9 oz / 195 g | | | | Box Dimensions (LxWxH) | 8.6 x 5.0 x 2.6" | - 2017 Helmet Kit for Panasonic LUMIX GH5/GH5S & DMW-XLR1 Mic Adapter
| Accessory Mounting | Multiple 3/8"-16 and 1/4"-20 Threads
Multiple ARRI Accessory Mounts
3 x Cold Shoes | | Rod Mount | 1 x 15 mm | | Material of Construction | Aluminum Alloy | | Dimensions | 5.2 x 4 x 2.2" / 132 x 102 x 55 mm | | Weight | 11.2 oz / 318 g | | | | Box Dimensions (LxWxH) | 6.3 x 4.9 x 2.8" |
