User Manual for SmallRig 2136 Cage Kit for FUJIFILM X-H1 Camera with Battery Grip Click to enlarge the picture
Contents of the user manual for the SmallRig 2136 Cage Kit for FUJIFILM
- Product category: DSLR Video Supports & Rigs SmallRig
- Brand: SmallRig
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallRig DSLR Video Supports & Rigs
 |
User manual for the SmallRig 2136 Cage Kit for FUJIFILM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallRig product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallRig user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallRig product will considerably shorten its lifespan!
|

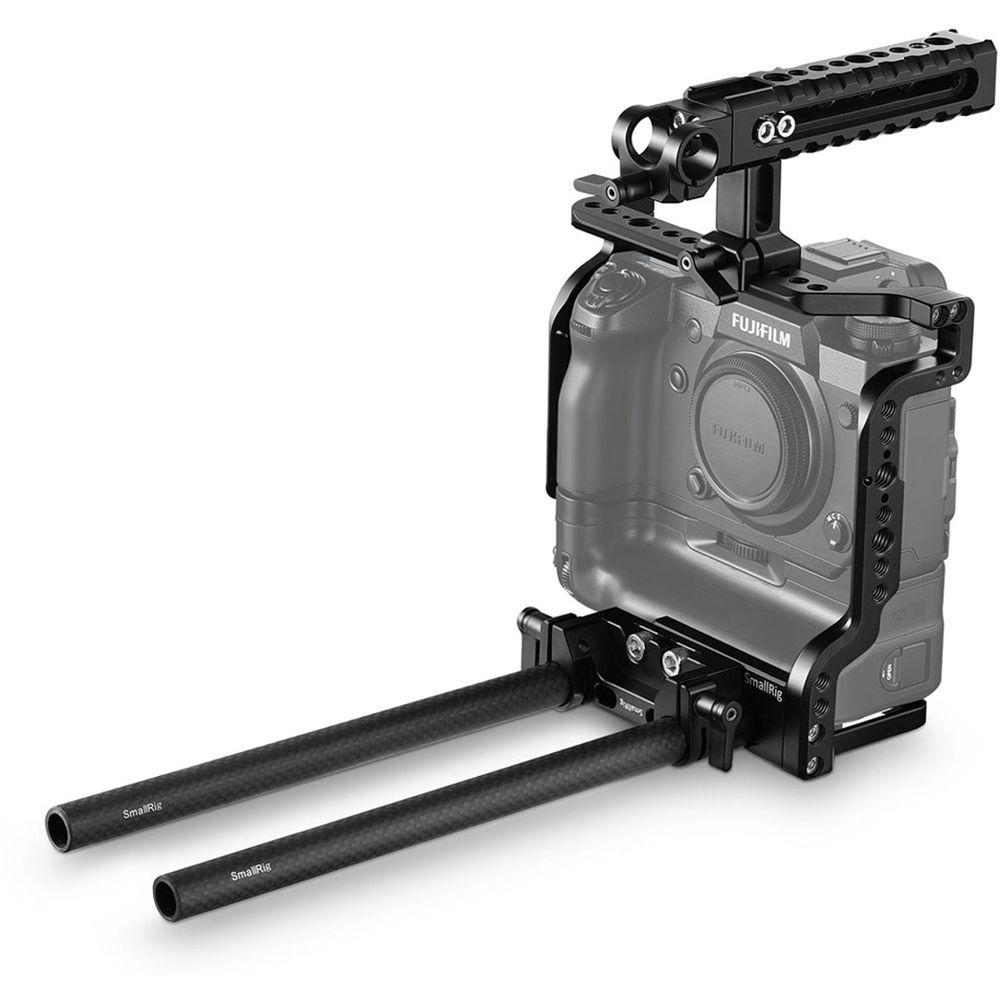

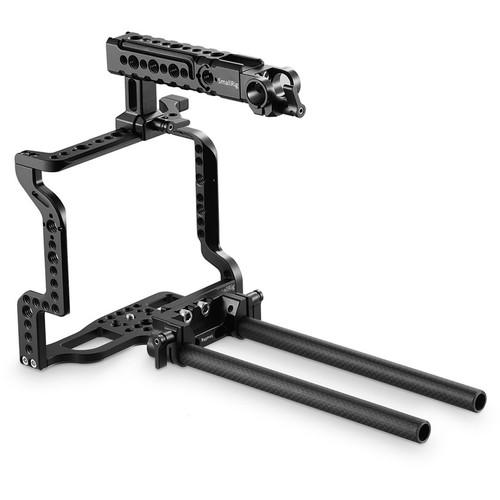

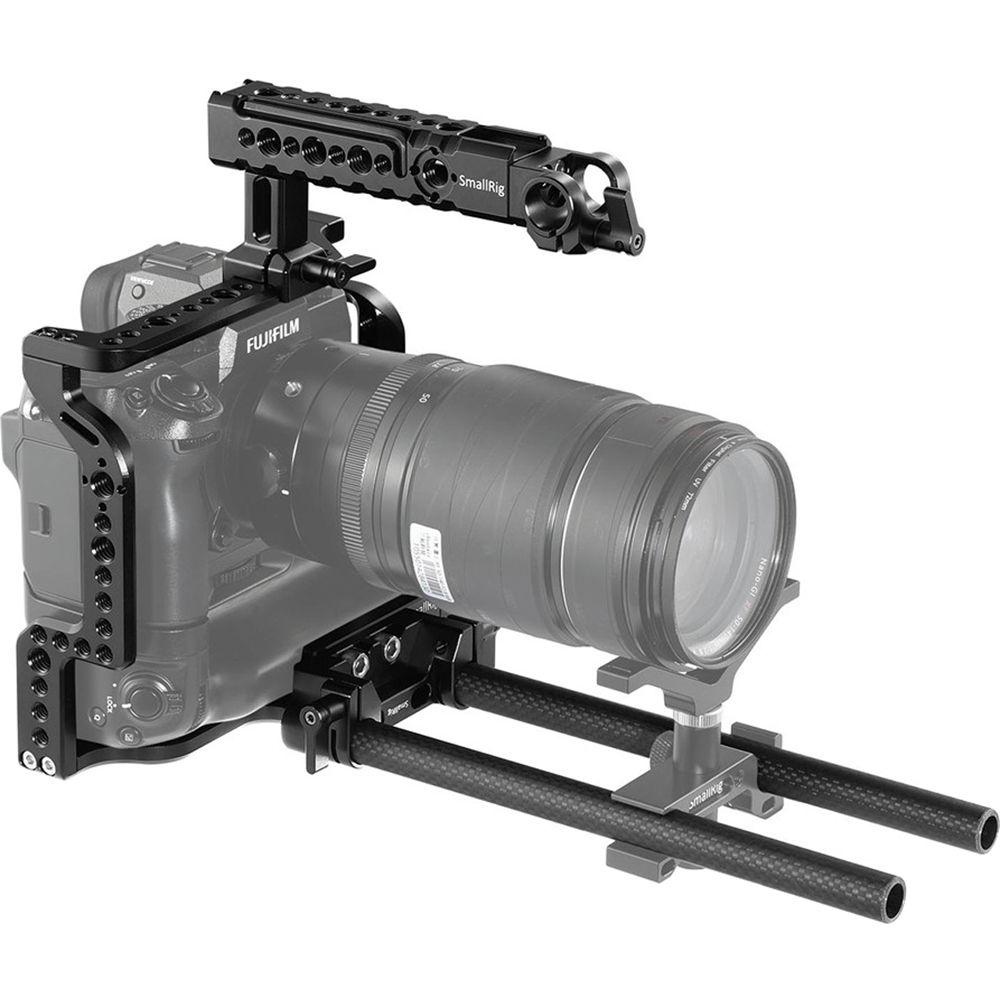

Product description The 2136 Cage Kit for FUJIFILM X-H1 from SmallRig rounds out the 2124 Cage with a top handle and 15mm LWS rod support. Use the rods to mount accessories like a lens support, follow focus, matte box, and/or zoom motor. - 2124 Cage for FUJIFILM X-H1 Camera with Battery Grip The SmallRig 2124 Cage for FUJIFILM X-H1 Camera provides accessory mounting and protection for an X-H1 equipped with a VPB-XH1 vertical battery grip. This formfitting cage maintains access to the camera's controls and features a variety of accessory mounting options. In addition to multiple 1/4"-20, 3/8"-16, and ARRI-style threads, the 2124 cage features three NATO rails suitable for mounting handgrips or other accessories. The front of the cage is threaded to accept the optional 1943 15mm LWS Rod Clamp.
- Compatibility
- FUJIFILM X-H1 camera with VPB-XH1 vertical battery grip
- 2027 NATO Top Handle Accessory Kit The SmallRig 2027 NATO Top Handle Accessory Kit pairs the 1955 NATO Handle with the 1995 Single 15mm Rod Bracket. This kit also includes an Allen wrench used for adjusting the handle's front/back position.
- 1943 Dual 15mm Rod Bracket The 1943 Dual 15mm Rod Bracket from SmallRig provides 15mm LWS rod support for mounting camera accessories such as a lens support, follow focus system, matte box, or zoom motor. This bracket mounts to your camera rig via 1/4"-20 threads and features thumb-lever rod fasteners and aluminum construction.
- 15mm Carbon Fiber Rod Set (9") This 15mm Carbon Fiber Rod Set from SmallRig lets you attach 15mm rod-mounted accessories to your rig. These carbon fiber rods are 9" in length and, with the appropriate baseplate, will conform to the 15mm LWS rod standard for accessory mounting. The carbon fiber construction keeps these rods lightweight, while allowing them to maintain the rigidity necessary for accessory support.

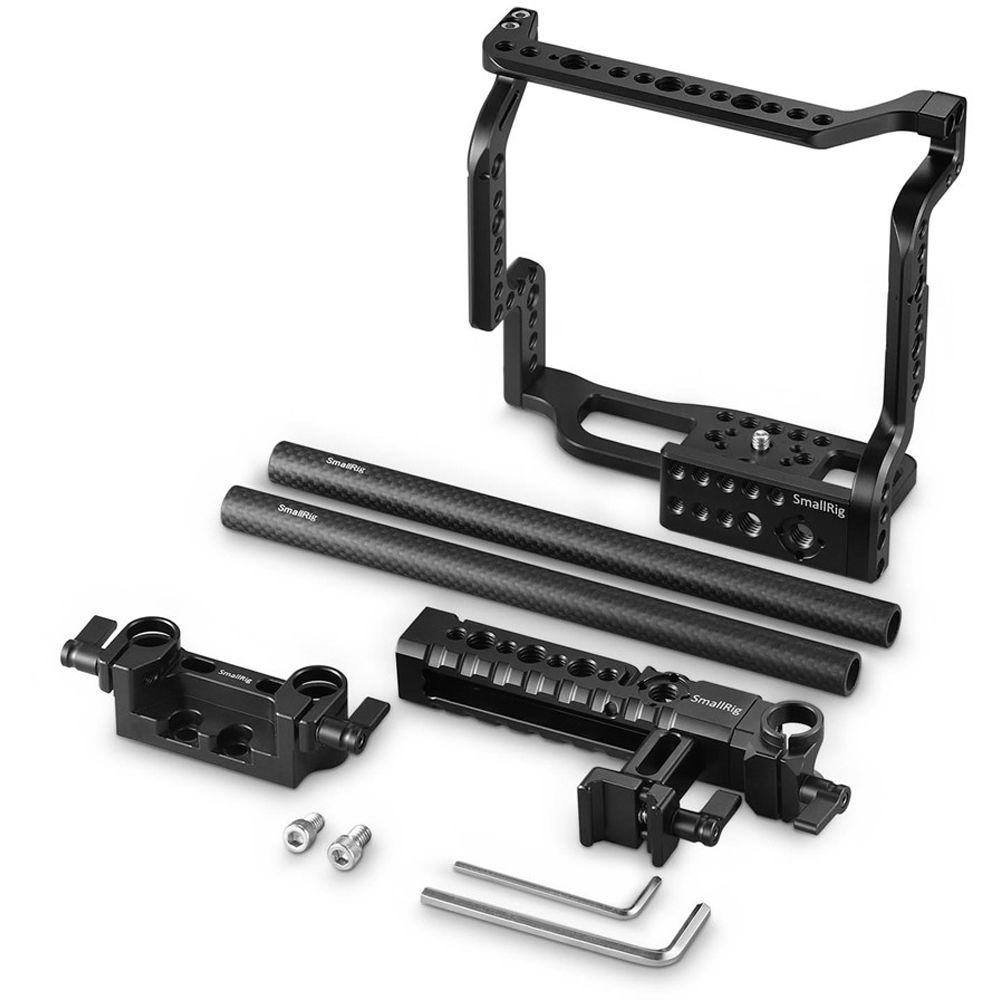

In the Box Bundle Items 2124 Cage for FUJIFILM X-H1 Camera with Battery Grip 2027 NATO Top Handle Accessory Kit 1943 Dual 15mm Rod Bracket 15mm Carbon Fiber Rod Set (9") Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallRig 2136 Cage Kit for FUJIFILM X-H1 Camera with Battery Grip in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 2124 Cage for FUJIFILM X-H1 Camera with Battery Grip
| Accessory Mounting Threads | 1/4"-20, 3/8"-16, ARRI-Style | | Rails | 3 x NATO | | Material of Construction | Aluminum Alloy | | Dimensions (WxH) | 6.2 x 6.1 x 2.7" / 158 x 154 x 69 mm | | Weight | 13 oz / 370 g | | | | Box Dimensions (LxWxH) | 7.3 x 7.2 x 1.2" | - 2027 NATO Top Handle Accessory Kit
| | | Box Dimensions (LxWxH) | 7.1 x 4.1 x 1.6" | - 1943 Dual 15mm Rod Bracket
| Rod Compatibility | 15mm LWS | | Mounting Threads | 1/4"-20 | | Material | Aluminum Alloy | | Dimensions | 4.2 x 1.2 x 1.1" / 107.1 x 30 x 28 mm | | Weight | 2.9 oz / 83 g | | | | Box Dimensions (LxWxH) | 4.8 x 4.05 x 1.6" | - 15mm Carbon Fiber Rod Set (9")
| Diameter | 15 mm | | Length | 9" / 22.8 cm | | Weight | 2 oz / 56 g | | | | Box Dimensions (LxWxH) | 10.1 x 1.5 x 0.9" |
