User Manual for SmallRig 2150 Accessory Kit for Sony a7 II a7R II a7S II Click to enlarge the picture
Contents of the user manual for the SmallRig 2150 Accessory Kit for Sony
- Product category: DSLR Video Supports & Rigs SmallRig
- Brand: SmallRig
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallRig DSLR Video Supports & Rigs
 |
User manual for the SmallRig 2150 Accessory Kit for Sony contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallRig product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallRig user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallRig product will considerably shorten its lifespan!
|

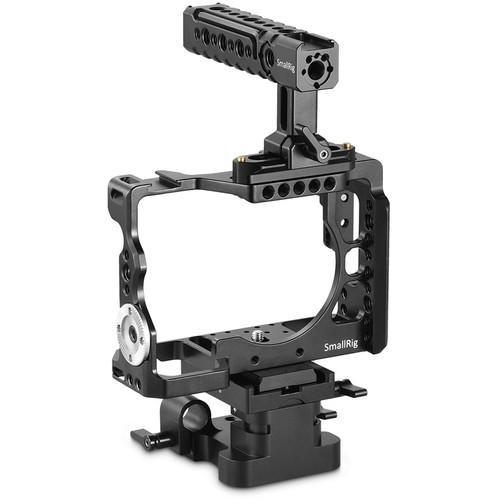

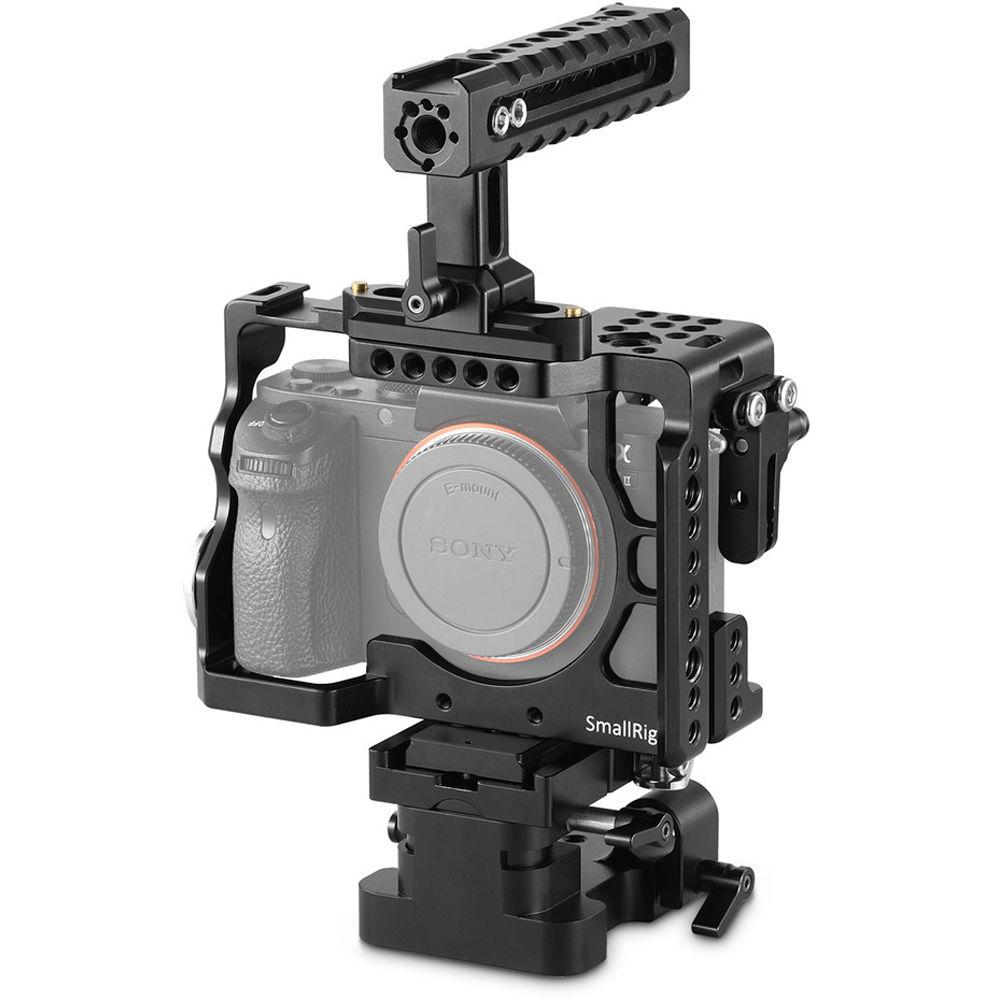

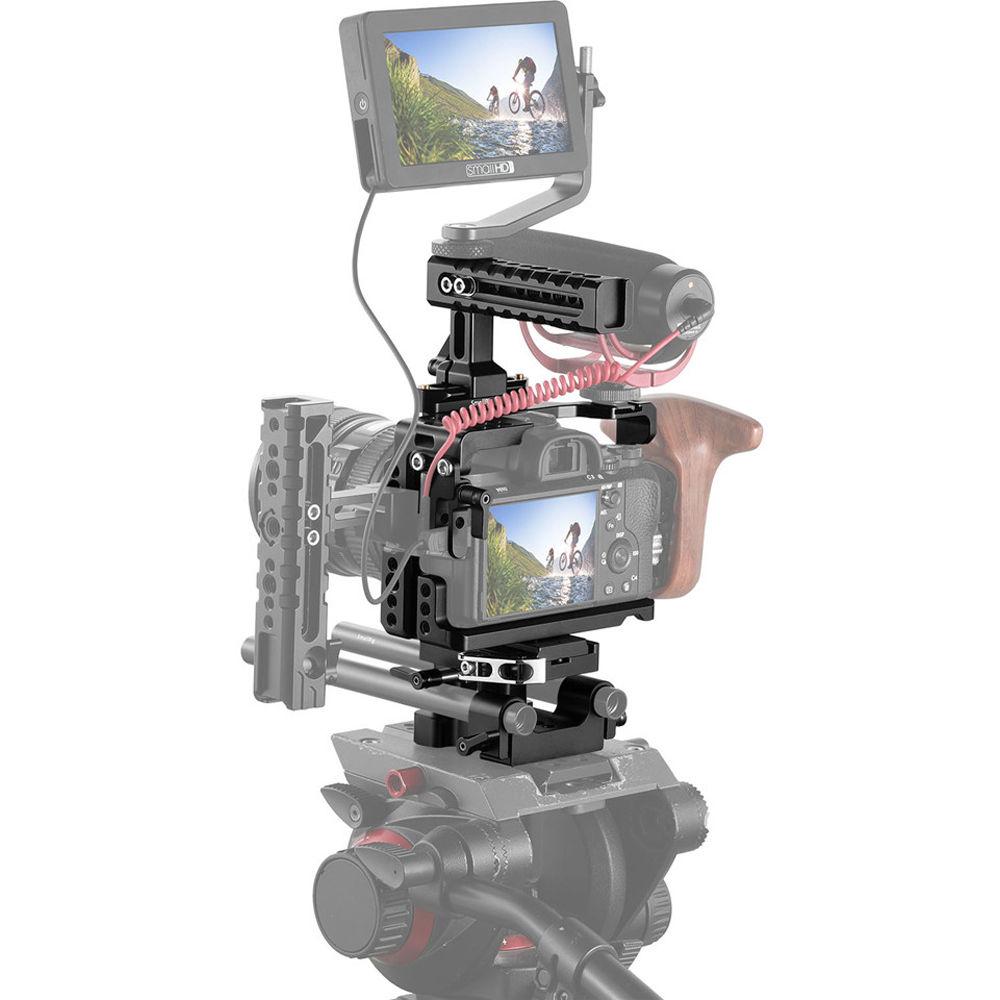

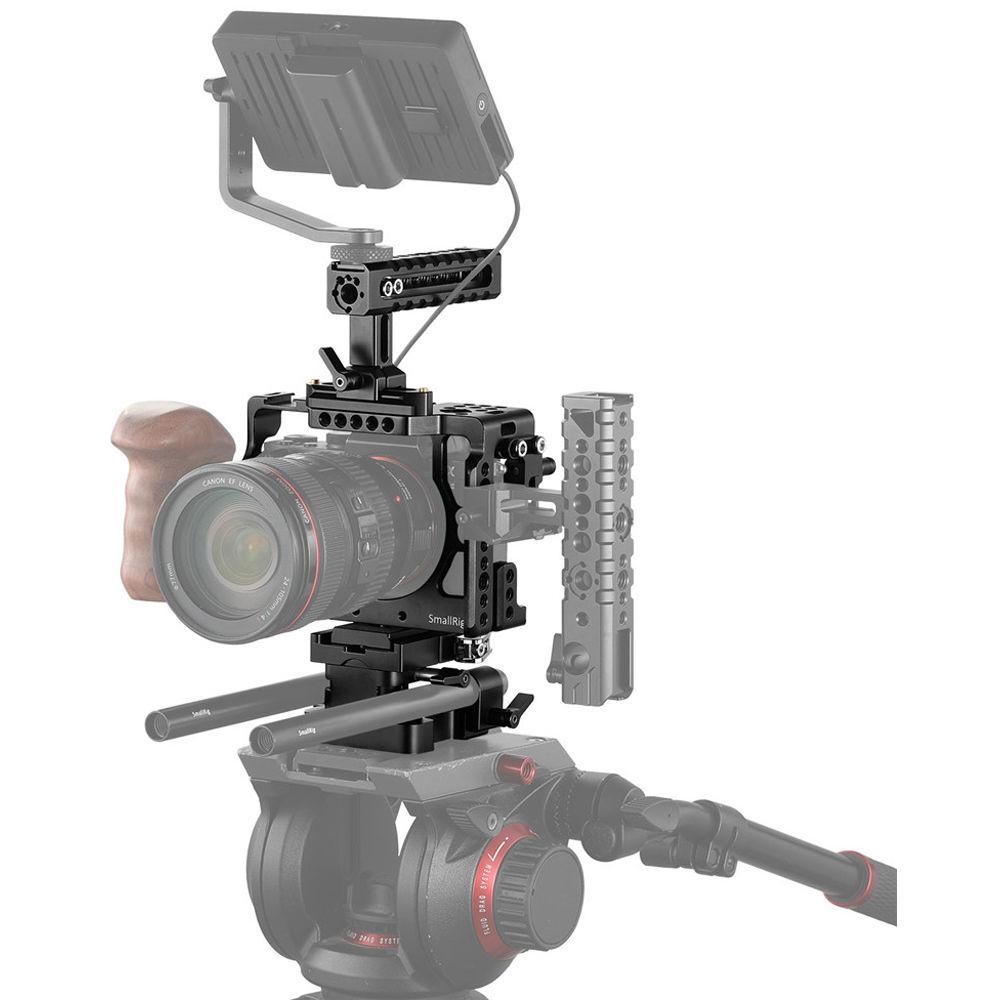

Product description The lightweight 2150 Accessory Kit for Sony a7 II/a7R II/a7S II from SmallRig provides protection and accessory mounting for your Sony a7 II series mirrorless camera. This kit pairs the 1982 Cage with a quick release baseplate, 15mm LWS rod support, a quick release top handle, a removable NATO rail, and an HDMI cable clamp. - 1982 Cage for Sony a7 II Series Cameras The formfitting 1982 Cage for Sony a7 II Series Cameras from SmallRig features an HDMI cable clamp and several options for mounting accessories to your a7 II series mirrorless camera. For easier handling, various optional handgrips can be attached using the NATO rail on the cage's left side and the ARRI-style rosette on the right.A cold shoe, multiple 1/4"-20 and 3/8"-16 accessory threads, and carrying strap slots are built into the cage's top and sides. The 1982 Cage maintains access to the both the camera controls and ports, and mounts onto the camera using a 1/4"-20 screw.
- Compatibility
- Sony a7 II, a7R II, a7S II
- Universal 15mm LWS Support Baseplate with Quick Release Plate The Universal 15mm LWS Support Baseplate from SmallRig provides an Arca-Swiss style, non-slip quick release plate and 15mm rod-based accessory support for your mirrorless or small cine-style camera. This baseplate system features 1/4"-20 and 3/8"-16 tripod threads and thumb-lever locks. Four vertical rods allow for an adjustable vertical range of 2.3", enabling optimal positioning of your camera accessories. The integrated 15mm rod clamps allow you to mount the baseplate on a standard 15mm LWS rod system, or you can use the mounting threads to attach a quick release plate on the bottom.
- Compatibility
- Including but not limited to:
- Blackmagic Design Pocket Cinema Camera
- Fujifilm X-T2
- Panasonic GH5/GH4/GH3/G85/GX85/G80/G7
- Sony a7RIII/a7II//a7/a9/a6500/a6300/a6000
- NATO Handle The SmallRig NATO Handle is a flexible solution for holding your camera and mounting accessories. This handle secures to your rig via a separately available NATO rail. 1/4"-20 and 3/8"-16 threaded holes are placed along the length of the handle for securing articulating arms, while 15mm rod clamps are available for rigging EVFs or microphones. Additionally, two cold shoe mounts can be used for lights or wireless receivers. Using the included hex wrench, the handle can be adjusted fore and aft to achieve desired balance.
- Quick Release NATO Rail (2.75) This 2.75" SmallRig Quick Release NATO Rail fits on your camera cage or to a cheese plate for securing NATO-compatible accessories such as handles, clamps, and articulating arms. Accessories can slide along the length of the rail, and when it's time to pack up, disengage one of the spring-loaded pins at either end of the rail and slide your accessories off. 1/4"-20 mounting screws are included, as is a hex wrench for installing the rail.

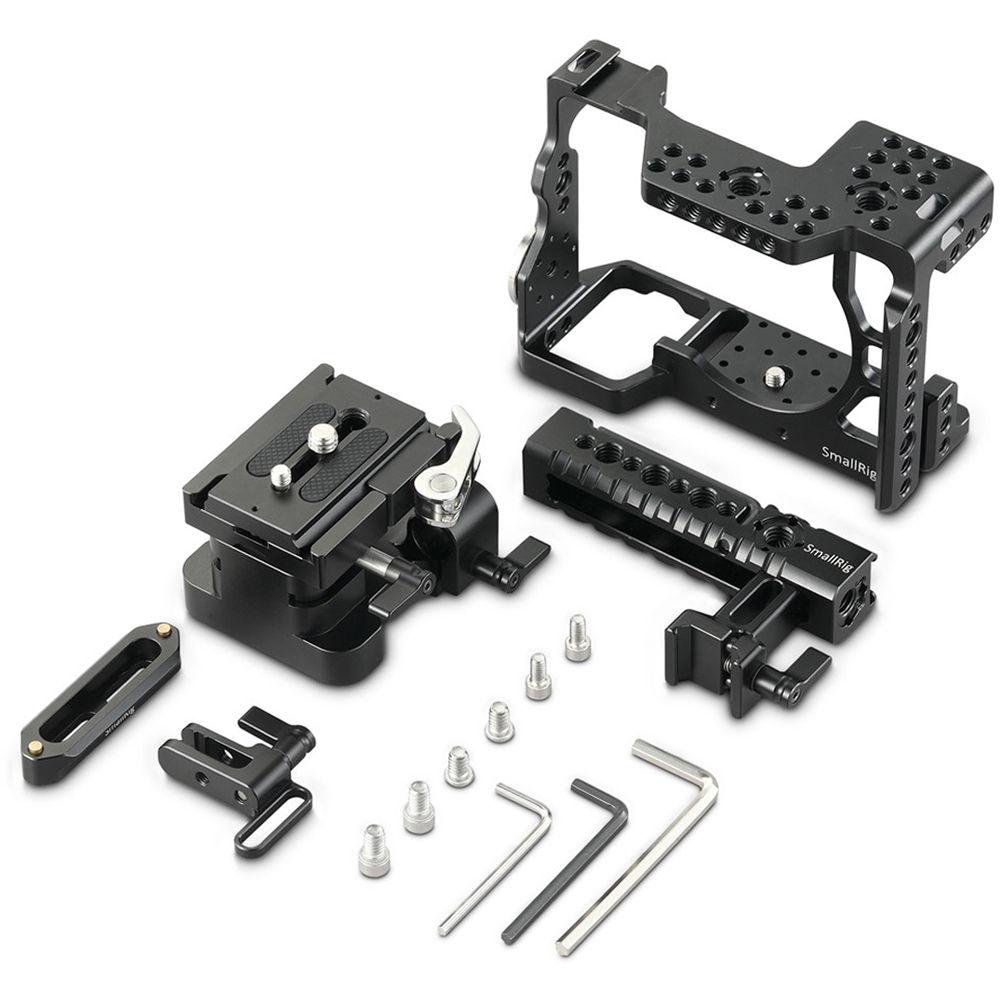

In the Box Bundle Items 1982 Cage for Sony a7 II Series Cameras rvazwdccyffdfc - HDMI Cable Clamp for Sony a7II/a7RII/a7SII Cage
Universal 15mm LWS Support Baseplate with Quick Release Plate NATO Handle Quick Release NATO Rail (2.75) rvazwdccyffdfc Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallRig 2150 Accessory Kit for Sony a7 II a7R II a7S II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parameters - 1982 Cage for Sony a7 II Series Cameras
| Accessory Mounting | Multiple 1/4"-20 and 3/8"-16 threads
2 x ARRI-style accessory mounts
1 x ARRI-style rosette
1 x NATO rail (left side)
1 x Cold shoe | | Material of Construction | Aluminum alloy | | Dimensions (WxHxD) | 5.7 x 4.2 x 2.5" / 145 x 107.5 x 64 m | | Weight | 13 oz / 370 g | | | | Box Dimensions (LxWxH) | 6.95 x 5.05 x 2.75" | - Universal 15mm LWS Support Baseplate with Quick Release Plate
| Rod Standard | 15 mm LWS | | Vertical Adjustment | 2.3" / 57.6 mm range | | Material of Construction | Aluminum alloy | | Dimensions | 4.3 x 2.8 x 2.2" / 108 x 72 x 57 mm | | Weight | 14.6 oz / 415 g | | | | Box Dimensions (LxWxH) | 5.1 x 4.5 x 1.5" | - NATO Handle
| | | Box Dimensions (LxWxH) | 7.0 x 4.1 x 1.7" | - Quick Release NATO Rail (2.75)
| | | Box Dimensions (LxWxH) | 1.0 x 1.0 x 1.0" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 17 owners. Add your rating and experience with the product.
