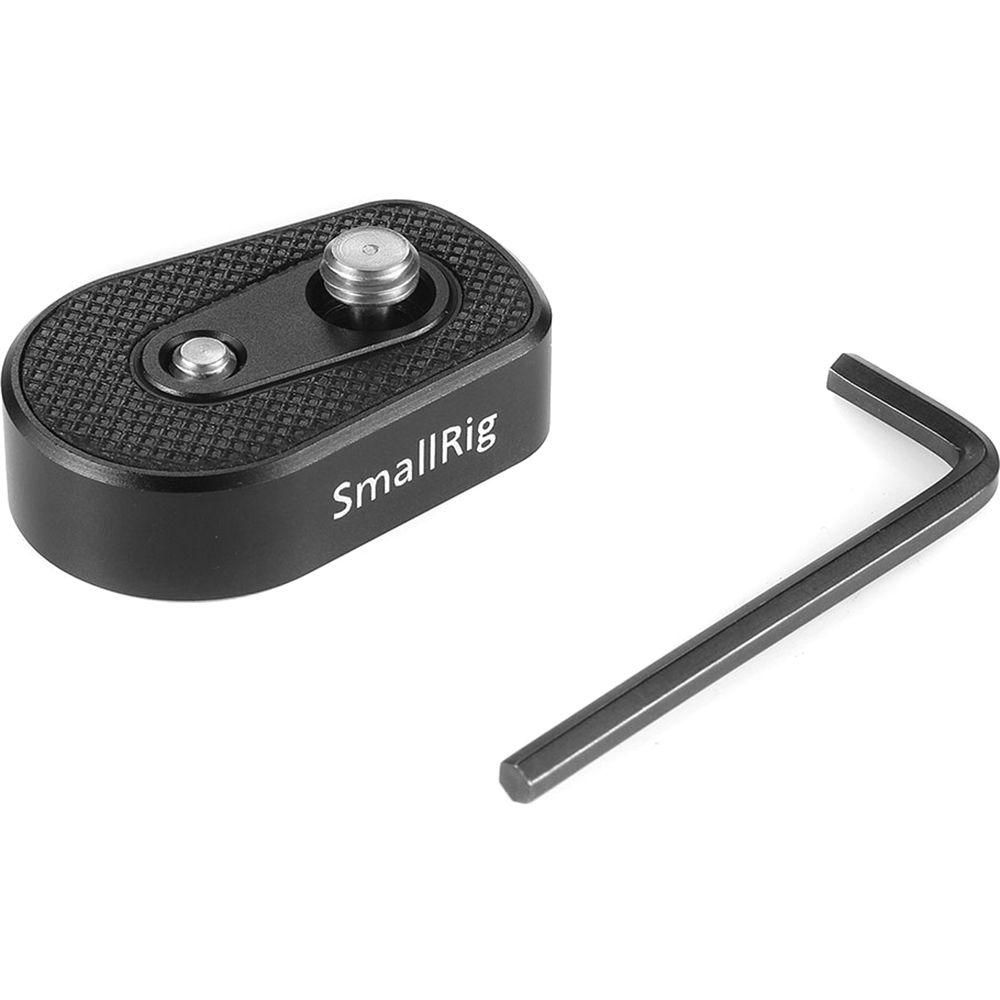

User Manual for SmallRig 2263 Heli-Coil Insert Protection Mounting Plate for DJI Ronin-S Click to enlarge the picture
Contents of the user manual for the SmallRig 2263 Heli-Coil Insert Protection Mounting
- Product category: Stabilizers & Gimbals SmallRig
- Brand: SmallRig
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallRig Stabilizers & Gimbals
 |
User manual for the SmallRig 2263 Heli-Coil Insert Protection Mounting contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallRig product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallRig user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallRig product will considerably shorten its lifespan!
|

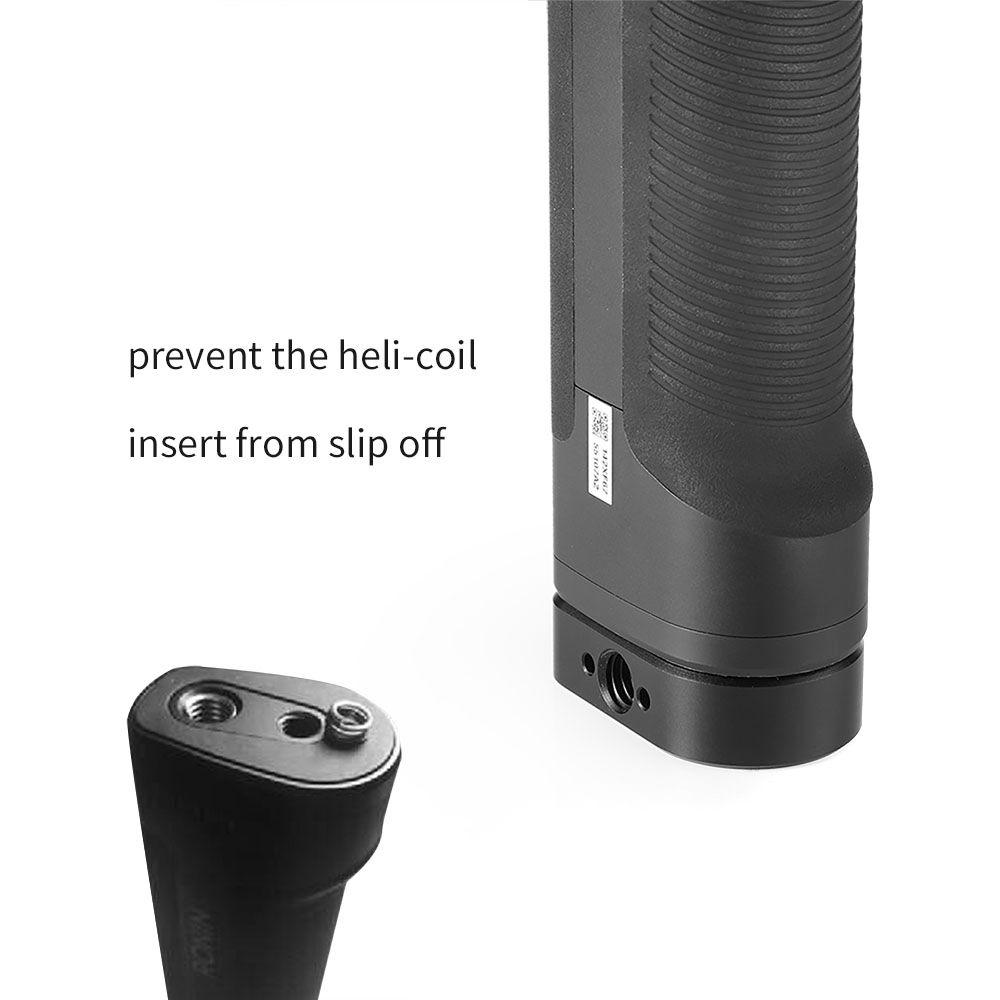

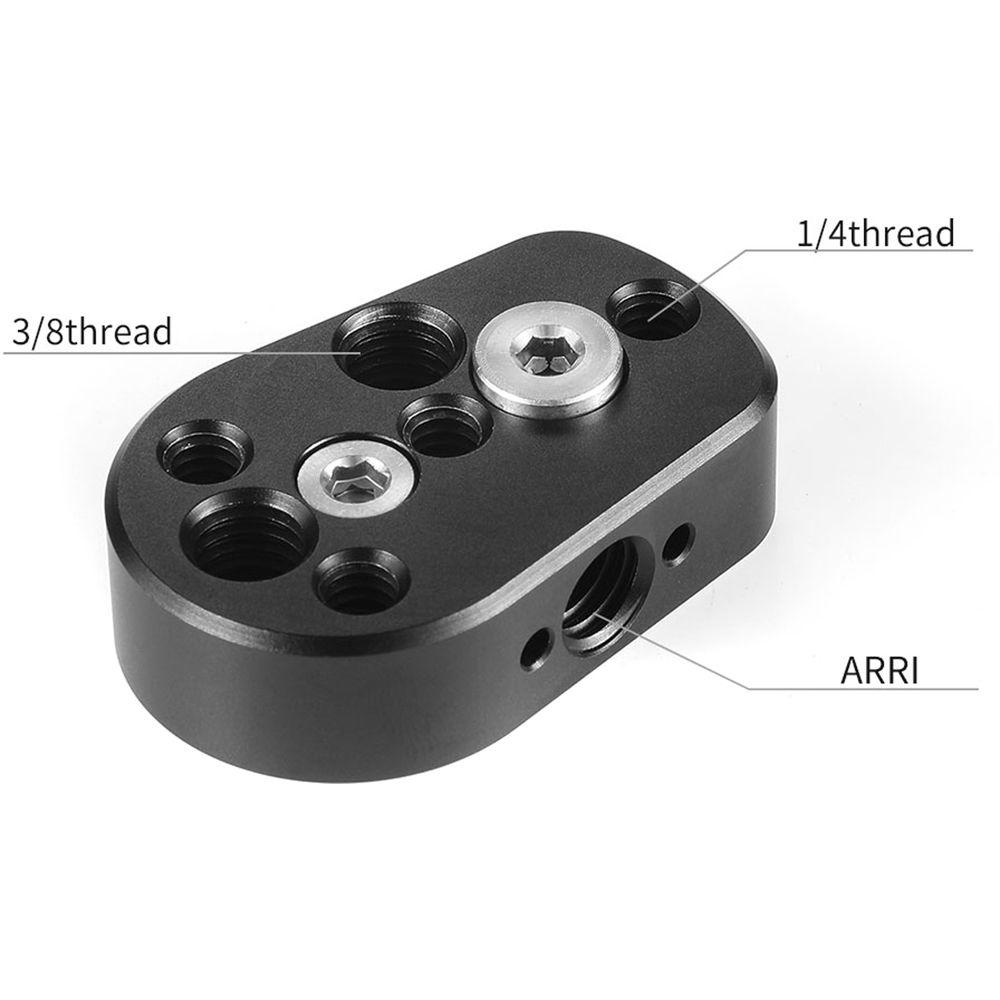

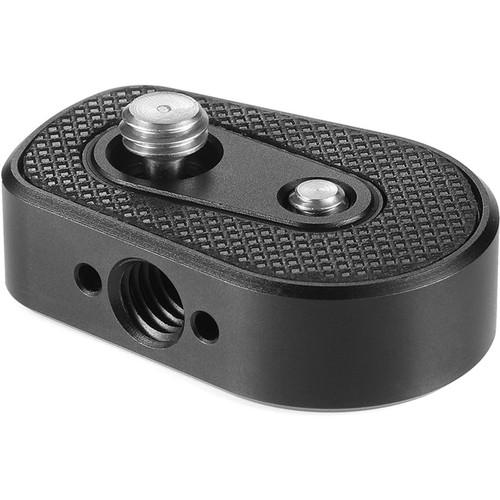

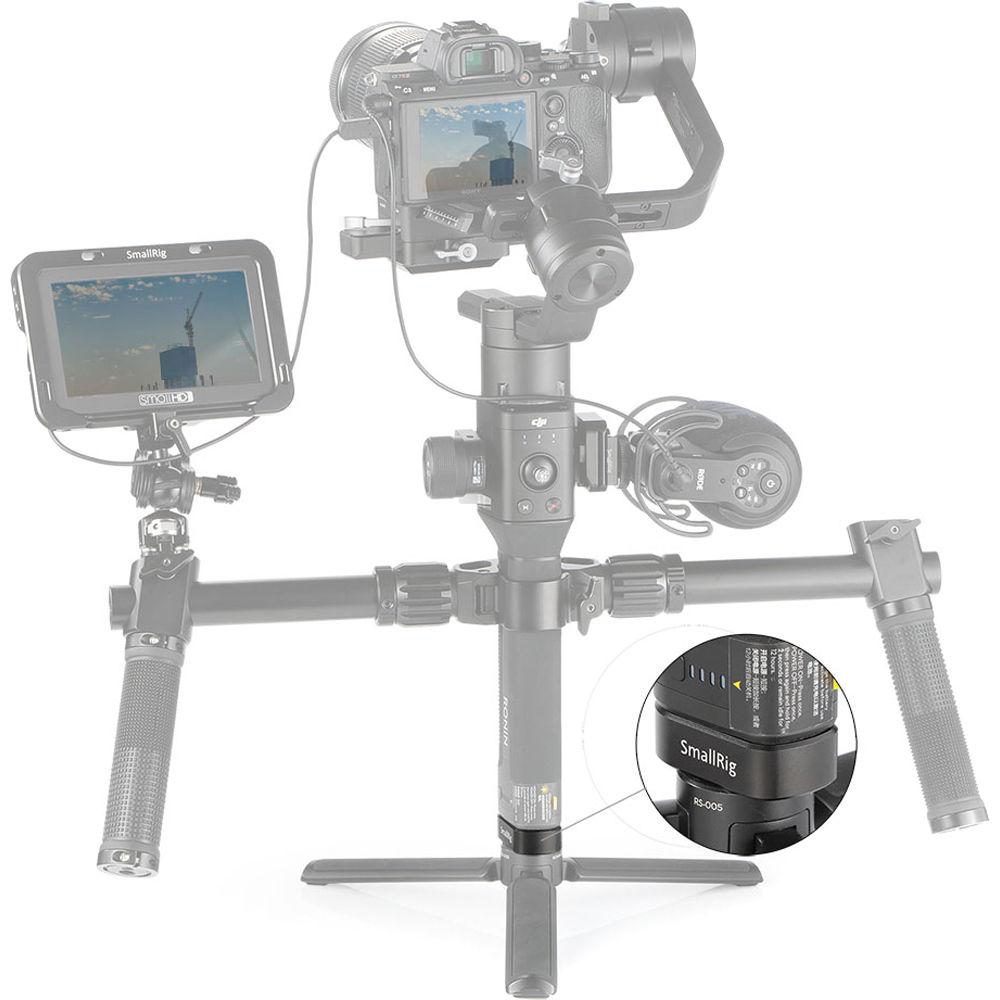

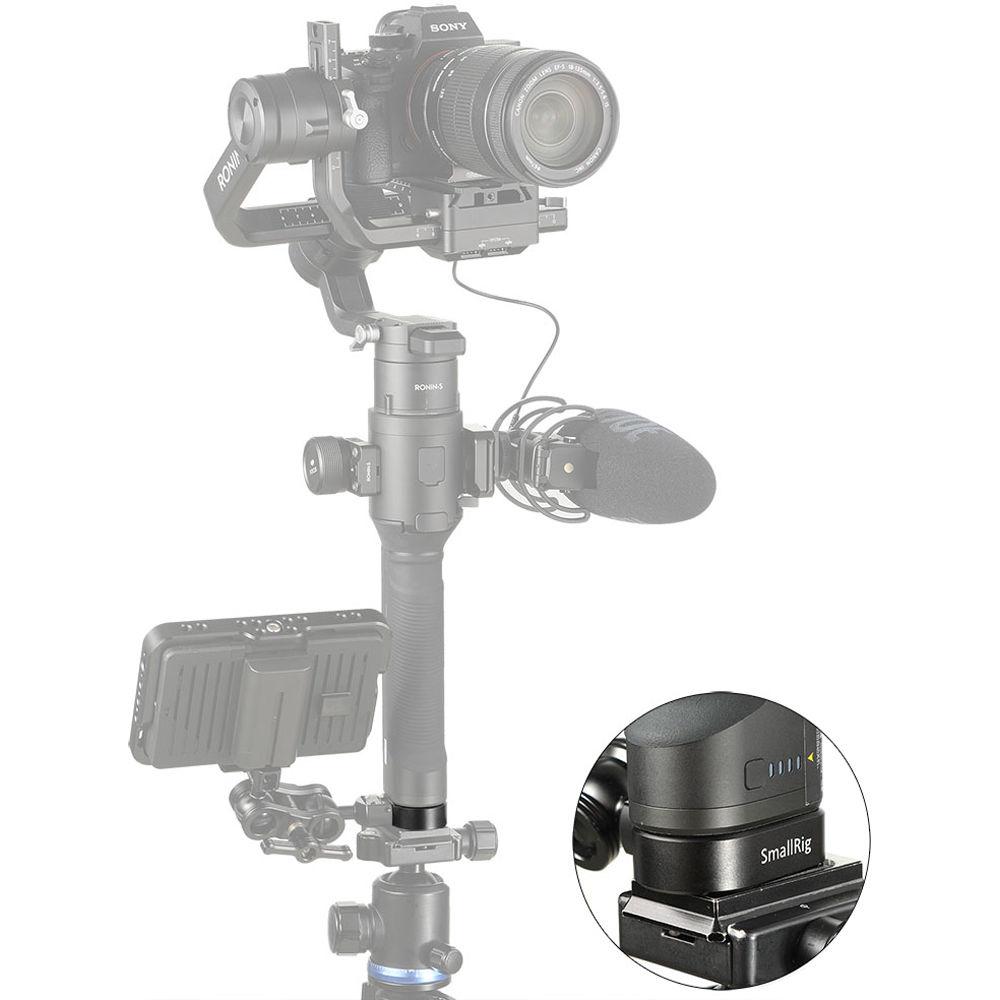

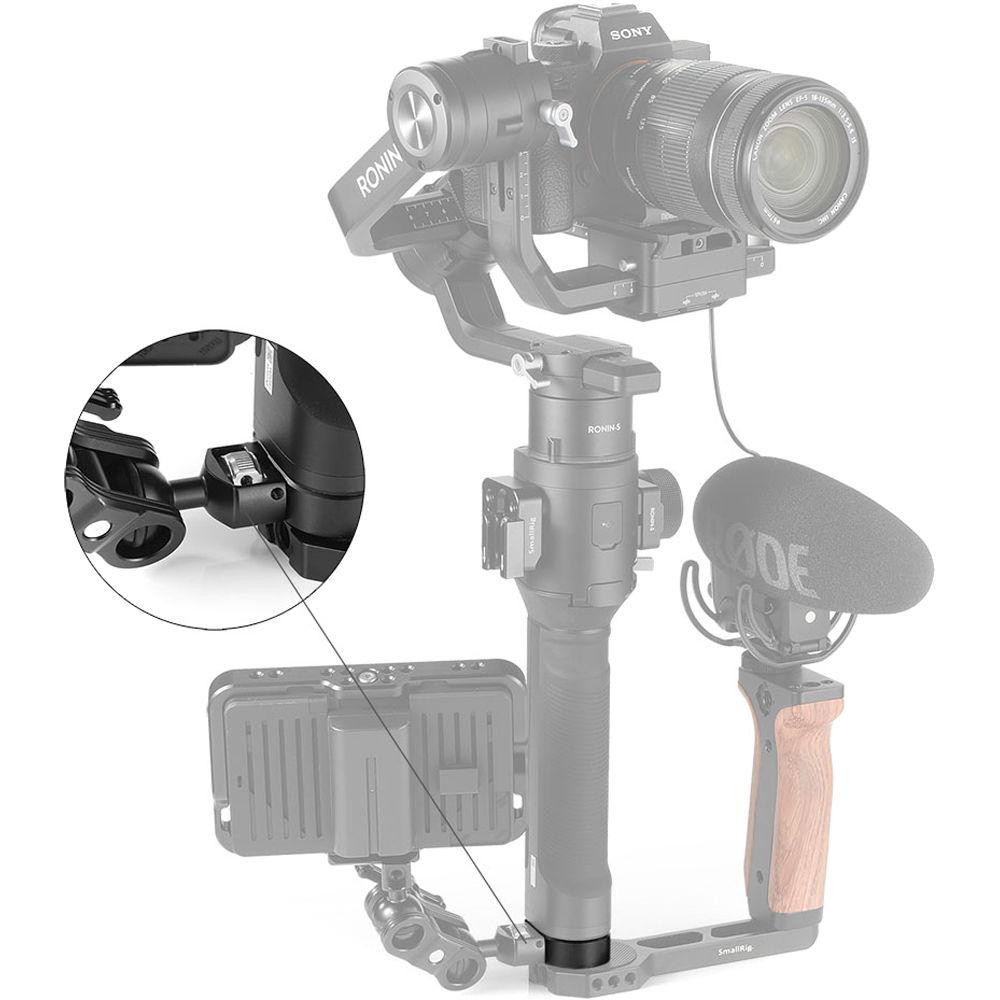

Product description Expand your Ronin-S setup while preventing the Heli-Coil insert on the bottom of your gimbal from slipping off with the 2263 Heli-Coil Insert Protection Mounting Plate from SmallRig. This plate attaches to the bottom of your Ronin-S via two screws, a 1/4"-20 and 3/8"-16, ensuring a safe and solid bond. The bottom of the plate features 1/4"-20 and ARRI 3/8"-16 threaded holes for connection to optional accessories such as tripod plates, NATO rails, and NATO handles. The side of the plate has ARRI locating holes, enabling you to mount a magic arm that can in turn hold a field monitor (both available separately) for real-time viewing of footage. - Mounting plate's design prevents Heli-Coil insert on bottom of DJI Ronin-S from slipping off
- Various 1/4"-20 and 3/8"-16 threaded holes for accessories
- ARRI locating holes for mounting optional magic arm via ARRI locating pins
- Compatible with original Ronin-S tripod and 2222 Side Handle
- Rubber-padded to prevent scratching gimbal
UPC: 697207062483 In the Box SmallRig 2263 Heli-Coil Insert Protection Mounting Plate for DJI Ronin-S Allen Key Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallRig 2263 Heli-Coil Insert Protection Mounting Plate for DJI Ronin-S in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmallRig BSS2263 Specs | Compatibility | DJI Ronin-S Gimbal Stabilizer | | Interface | 1 x 1/4"-20 Screw
1 x 3/8"-16 Screw | | Accessory Mounting | Bottom: 1/4"-20 and ARRI 3/8"-16 Threaded Holes
Side: ARRI Locating Holes | | Material | Aluminum Alloy

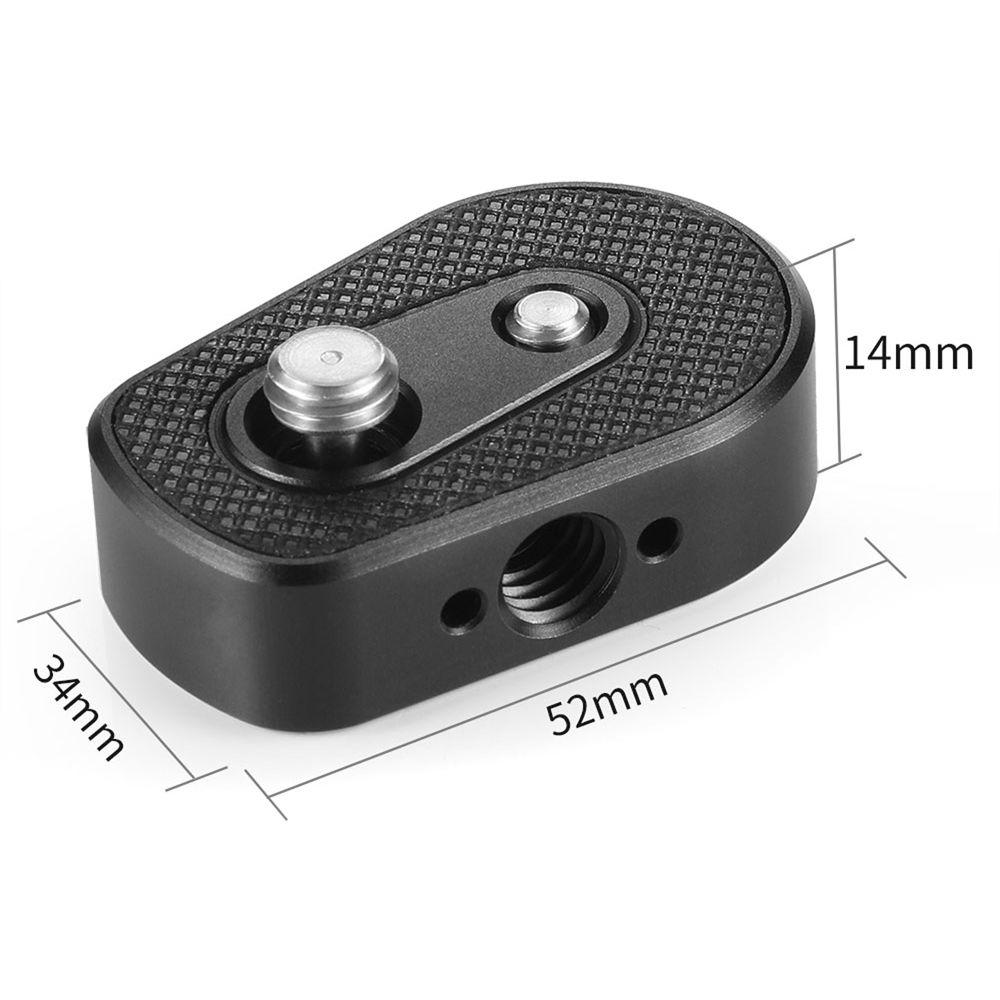

Rubber Padding | | Dimensions | 2.0 x 1.3 x 0.6" / 52.0 x 34.0 x 14.5 mm | | Weight | 2 oz / 56 g | | | | Package Weight | 0.185 lb | | Box Dimensions (LxWxH) | 2.9 x 2.6 x 1.6" |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 07 owners. Add your rating and experience with the product.
