User Manual for SmallRig 2278 L-Bracket for Sony a7 II, a7R II, and a7S II Click to enlarge the picture
Contents of the user manual for the SmallRig 2278 L-Bracket for Sony a7
- Product category: Tripods & Support SmallRig
- Brand: SmallRig
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for SmallRig Tripods & Support
 |
User manual for the SmallRig 2278 L-Bracket for Sony a7 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any SmallRig product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official SmallRig user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a SmallRig product will considerably shorten its lifespan!
|

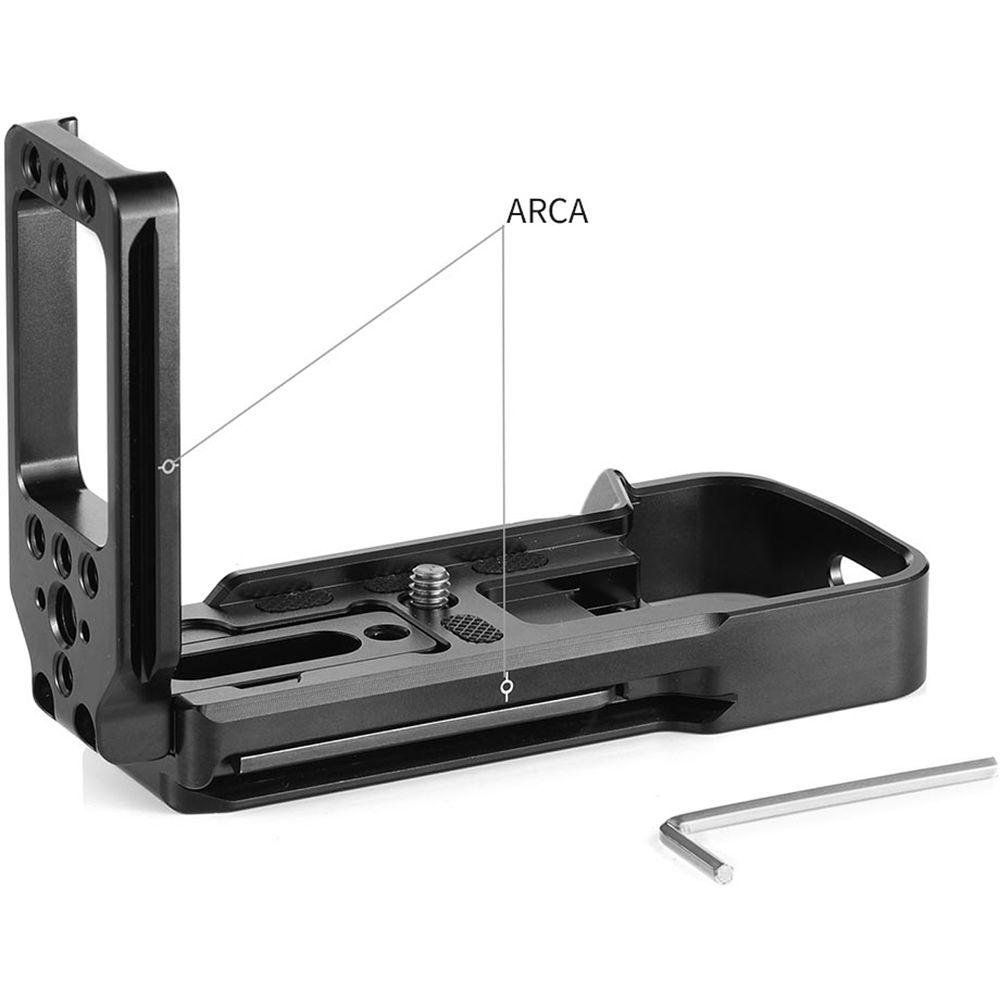

Product description The 2278 L-Bracket from SmallRig is made to custom fit the Sony a7 II, a7R II, and a7S II cameras and has Arca-type dovetails that allow you to mount the bracket into a compatible clamp vertically or horizontally. The aluminum bracket's side plate is machined to have access to the camera's ports, and the modular design of the bracket can separate both components to have greater access to the camera. The bottom plate is also machined for access to the battery door. Additionally, the side plate has several 1/4"-20, 3/8"-16, and ARRI Locating sockets for accessories. Center marks are in the middle of each axis of the L-bracket for centering the camera on a mounted head, and the included hex spanner stores inside the bottom plate when not in use. In the Box SmallRig 2278 L-Bracket for Sony a7 II, a7R II, and a7S II Limited 2-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the SmallRig 2278 L-Bracket for Sony a7 II, a7R II, and a7S II in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

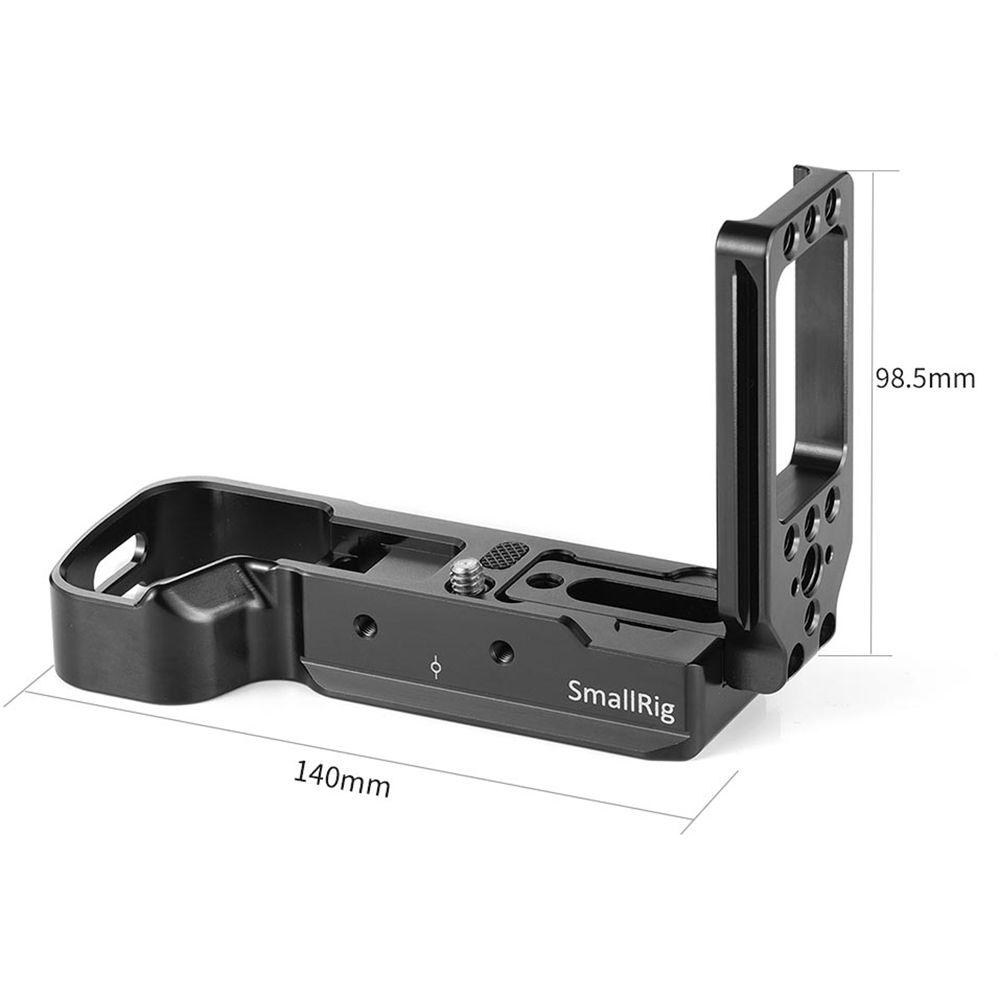

Technical parametersSmallRig APL2278 Specs | Mounting Screw | 1 x 1/4"-20 Male | | Tripod Mounting Thread | 1 x 1/4"-20 Female
1 x 3/8"-16 Female | | Bubble Level | No | | Strap Loop | No | | Quick Release Plate Type | Arca-Type | | Material of Construction | Aluminum | | Length | 5.51" / 140.00 mm | | Width | 2.36" / 60.00 mm | | Height | 3.88" / 98.5 mm | | Weight | 5.6 oz / 158 g |
Rating80% users recommend this product to others. And what about you?
This product has already been rated by 97 owners. Add your rating and experience with the product.
