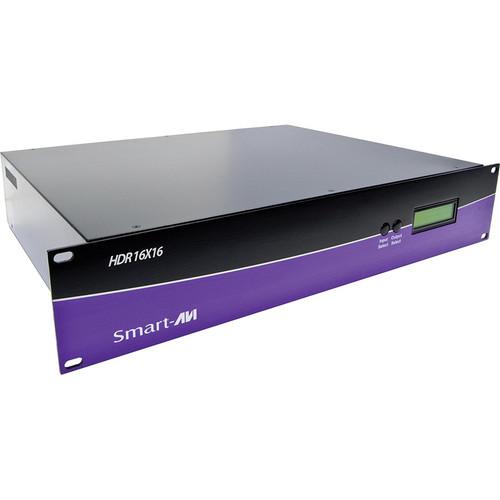

Product description The Smart-AVI 16-port HDMI 1.3 Matrix Switch (IR, RS-232) allows switching of 16 HDMI sources to 16 HDMI displays and supports high definition video resolutions of 480p, 720p, 1080i, and 1080p, and 7.1 Digital Surround Sound Audio. You can control the switcher via RS-232 port, infrared, USB, and TCP/IP. The unit is compatible with HDCP and HDMI signals, and comes with the EDID (Extended Display Identification Data) feature that enables it to recognize the kind of monitor connected to it. It also includes a PS5VD3A power supply unit. - Allows switching of 16 HDMI sources to 16 HDMI displays
- Sources can be routed independently to displays
- Supports high definition video resolutions of 480p, 720p, 1080i, and 1080p, and 7.1 Digital Surround Sound Audio
- You can control the switcher via RS-232 port, Infrared, USB, and TCP/IP
- Compatible with HDCP and HDMI signals
- Comes with the EDID feature that enables it to recognize the kind of monitor connected to it
- Includes a PS5VD3A power supply unit
UPC: 813280015493 In the Box Smart-AVI 16-port HDMI 1.3 Matrix Switch (IR, RS-232) Power Supply (PS5VD3A) 1 Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 16-port HDMI 1.3 Matrix Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI HDR16X16S Specs | Signal Connectors | (HDMI Type A 19 pin female)
16x HDMI in
16x HDMI out | | Bandwidth | Video Amplifier Bandwidth: 165MHz | | Video Signal | Input Video Signal: 1.2 volts p-p | | Display Data Channel | Input DDC Signal: 5 volts p-p (TTL) | | Resolution | HDTV Resolutions: 480p, 720p, 1080i, 1080p
TV Resolution: 480i | | Control | Direct: 2 front panel buttons
IR: 3.5mm connector with 38khz
DB9: Female RS232 or RS422 @ 9600bps | | Power | Requirements: 5V DC
Connector: 2.1mm DC jack | | Dimensions (WxHxD) | 19 x 3.5 x 13" (483 x 89 x 330mm) | | Weight | 10 lbs (4.5kg) | | | | Package Weight | 22.2 lb | | Box Dimensions (LxWxH) | 20.0 x 15.9 x 12.4" |
