User Manual for Smart-AVI 2-port Cross-platform DVI-D Switch Click to enlarge the picture
Contents of the user manual for the Smart-AVI 2-port Cross-platform DVI-D Switch
- Product category: Routers & Switchers Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI Routers & Switchers
 |
User manual for the Smart-AVI 2-port Cross-platform DVI-D Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

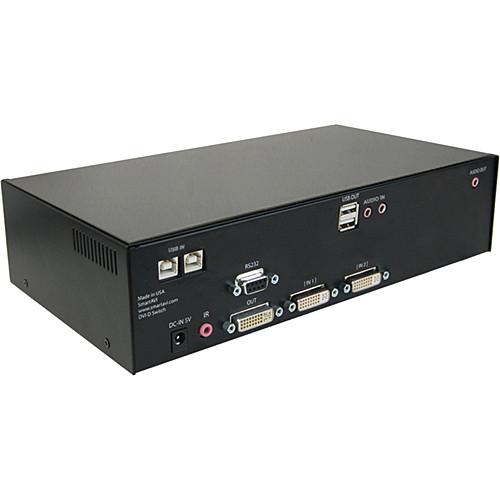

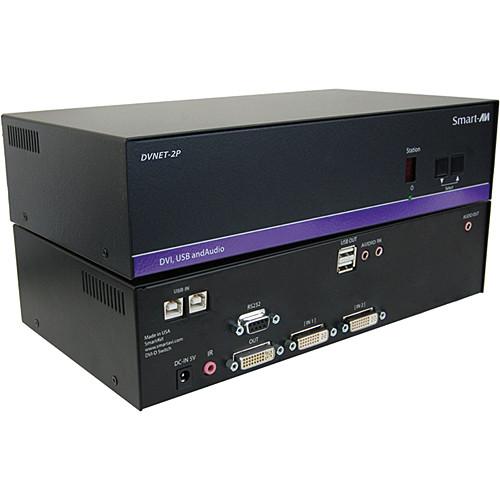

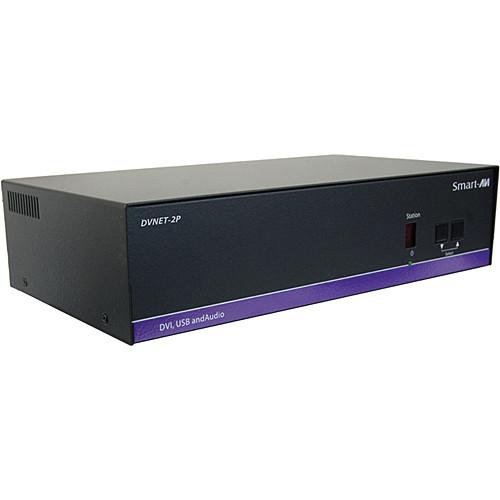

Product description The Smart-AVI 2-port Cross-platform DVI-D Switch (USB 2.0, Stereo Audio) can control up to 2 computers (PC/Mac/Linux/Sun DVI) via a single shared DVI monitor. Also included are USB 2.0 capabilities that allow the connection of all USB 2.0 devices such as a keyboard and a mouse or a printer. TMDS signal correction incorporated within the 2-port Cross-platform DVI-D Switch provides zero pixel loss. The KVM switch also integrates remote control IR and RS-232 compliance capabilities via the SmartControl software. High-resolution support is offered for 1920 x 1200 60Hz WUXGA. You can also take advantage of the balanced stereo audio capabilities that are included in the 2-port Cross-platform DVI-D Switch, and leverage the audio switching capabilities integrated within the switch. An LED indicator-based tactile switch located on the front panel allows easy control. Remote operation capabilities up to 20' are possible with connection from computer to the switch and from switch to the display. Applications of the 2-port Cross-platform DVI-D Switch include the medical or industrial field where placement of adjacent CPUs is not considered safe. Other areas of application of the switch include server collocation, digital signage, airports, dealer rooms, control rooms, audio/visual presentations, shopping centers, hotels/resorts, and KVM switches. - Controls up to 2 computers (PC/Mac/Linux/Sun DVI) via a single shared DVI monitor
- Includes USB 2.0 capabilities that allow the connection of all USB 2.0 devices such as a keyboard and a mouse or a printer
- Provides TMDS signal correction resulting in zero pixel loss
- Integrates remote control IR and RS-232 compliance capabilities via the SmartControl software
- Offers high-resolution support for 1920 x 1200 60Hz WUXGA
- Provides balanced stereo audio capabilities
- Offers audio switching capabilities
- Includes an LED indicator-based tactile switch located on the front panel for easy control
- Offers remote connection capabilities up to 20' are possible with connection from computer to the switch and from switch to the display
- Application areas include medical or industrial field where placement of adjacent CPUs is not considered safe
- Other areas of application - server collocation, digital signage, airports, dealer rooms, control rooms, audio/visual presentations, shopping centers, hotels/resorts, and KVM switches
UPC: 813280017237 In the Box Smart-AVI 2-port Cross-platform DVI-D Switch (USB 2.0, Stereo Audio) PS5VD2A 5V 2A Power Supply bstytfwycs 1 Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 2-port Cross-platform DVI-D Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Smart-AVI 2-port Cross-platform DVI-D Switch can be downloaded in PDF format at the link stated below.
Technical parametersSmart-AVI DVN-2PS Specs | Video Format | DVI-D Single Line | | Clock | Maximum Pixel Clock: 165 MHz | | Interface | Input Interface: (2) DVI-D 29-pin female
Output Interface: (1) DVI-D 29-pin female | | Resolution | Up to 1920 x 1200 @ 60Hz | | Display Data Channel | DDC: 5 volts p-p (TTL) | | Equalization | Input Equalization: Automatic | | Cable Length | Input Cable Length: Up to 20' (6m)
Output Cable Length: Up to 20' (6m) | | Audio Frequency Response | 20 Hz ~ 20 KHz | | Audio Impedance | 600 ohm | | Audio Level | Nominal Level: 0-1.0V | | Audio Mode | Common Mode: Rejection at 60dB | | Audio Interface | Input Interface: (2) 3.5mm Stereo Audio
Output Interface: (1) 3.5mm Stereo Audio | | USB | Signaling: USB 2.0, 1.1 and 1.0 w/ Internal Hub
Input Interface: (2) USB Type B
Output Interface: (2) USB Type A | | Control | Front Panel: Tact Switch
RS232: Via Software @ 9600 bps
IR: Via Remote Control with IR-EYE Type 3 | | Power | External 100-240 VAC/5VDC2A @ 10W | | Approvals | UL, CE, ROHS Compliant | | Operating Temperature | 32 ~ 131°F (0 ~ 55°C) | | Storage Temperature | -4 ~ 185°F (-20 ~ 85°C) | | Humidity | Up to 95% | | Emulation | No keyboard or mouse emulation | | Dimensions (WxHxD) | 10.5 x 1.9 x 6" (267 x 48 x 152mm) | | Weight | 5 lbs (2.3kg) | | | | Package Weight | 1.15 lb | | Box Dimensions (LxWxH) | 7.85 x 5.45 x 4.35" |
Rating100% users recommend this product to others. And what about you?
This product has already been rated by 04 owners. Add your rating and experience with the product.
