User Manual for Smart-AVI 4-Port DisplayPort-to-HDMI KVM Switch with USB 2.0 Hub Click to enlarge the picture
Contents of the user manual for the Smart-AVI 4-Port DisplayPort-to-HDMI KVM Switch with
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI 4-Port DisplayPort-to-HDMI KVM Switch with contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

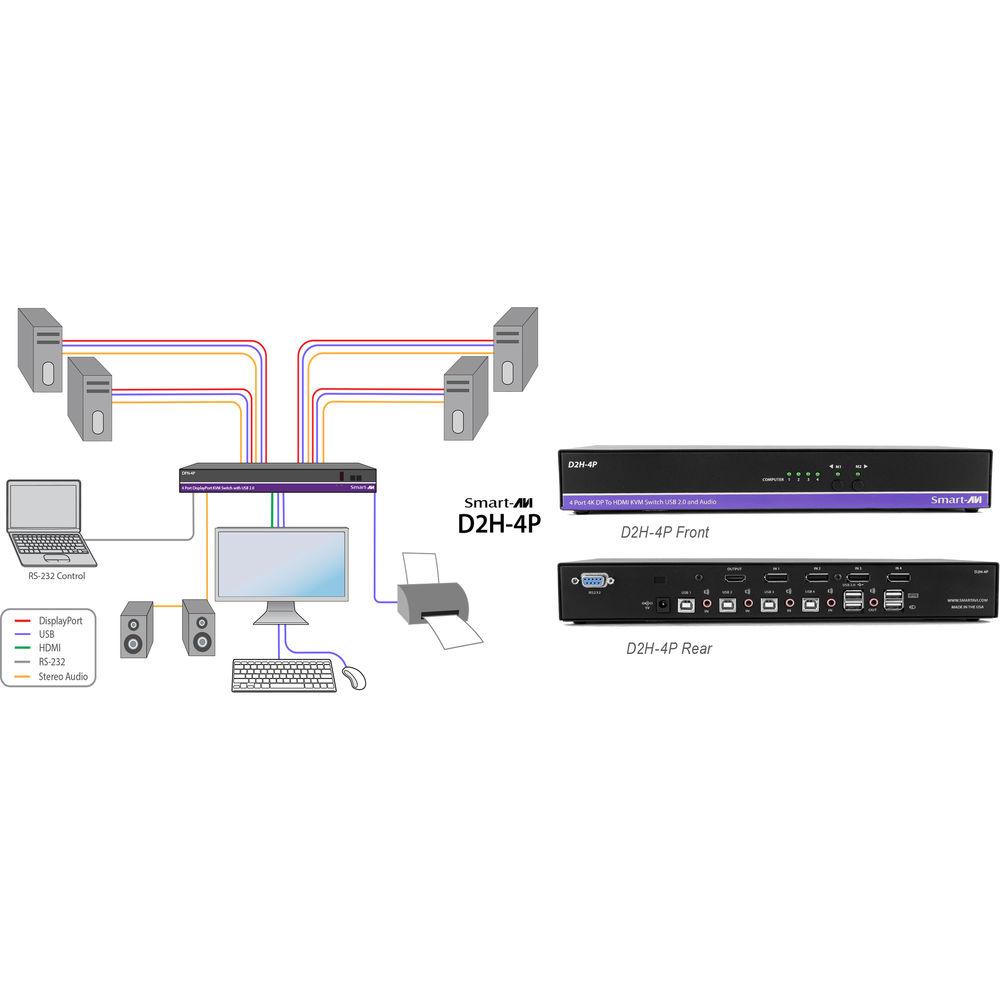

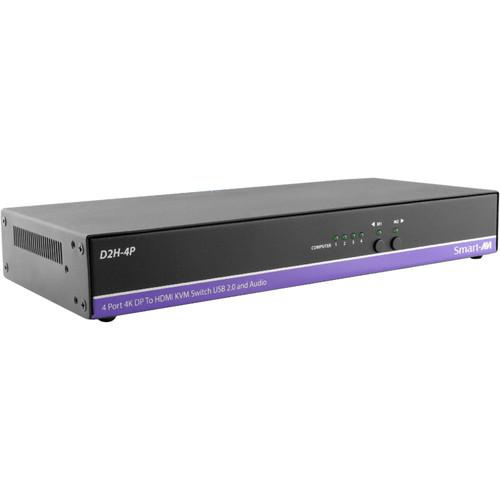

Product description Multi-Monitors: Maximizing Multitasking Read More stcswvwv Simplify your multi-system workflow with the 4-Port DisplayPort-to-HDMI KVM Switch from Smart-AVI. The switch can manage up to four DisplayPort-outfitted computers using a single console, which includes an HDMI-enabled monitor, a keyboard, a mouse, and a set of useful USB peripherals. This switch supports screen resolutions of up to 3840 x 2160 and is compatible with Windows, Mac, and Linux systems. With EDID video emulation support, digital workspaces and screen resolutions are saved for responsive reconnects. Switching between your four systems can be easily accomplished via hot key commands or front-panel keys. Moreover, the switch is equipped with a 2-port USB hub, allowing you to scan a document and save it in another computer. - EDID video emulation via HDMI output
- KVM control between four connected computers from a single workstation
- Supports resolutions of up to 4K (3840 x 2160 @ 30 Hz)
- DisplayPort 1.2 and HDMI compliant
- Zero-pixel loss with TMDS signal correction
- Supports USB 2.0 devices, including keyboard and mouse
- Rack-mountable with optional kit
- Hot key commands for quick channel selection
- Independent (asynchronous) switching of KVM and peripheral USB ports (users can scan a document and save in another computer)
- KVM emulation for error-free booting

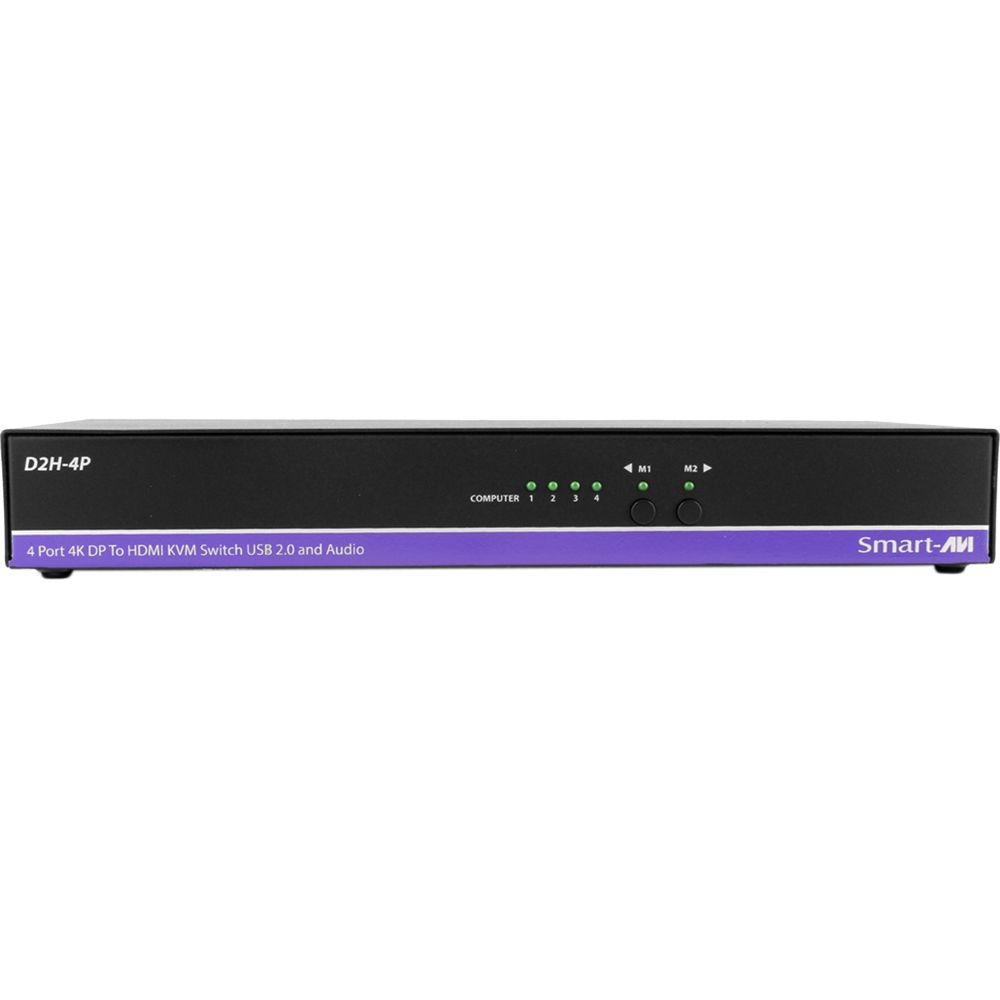

- Front panel keys for manual switching
- HDMI support and backwards compatible with prior DisplayPort versions
UPC: 813280020688 In the Box Smart-AVI 4-Port DisplayPort-to-HDMI KVM Switch with USB 2.0 Hub Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port DisplayPort-to-HDMI KVM Switch with USB 2.0 Hub in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

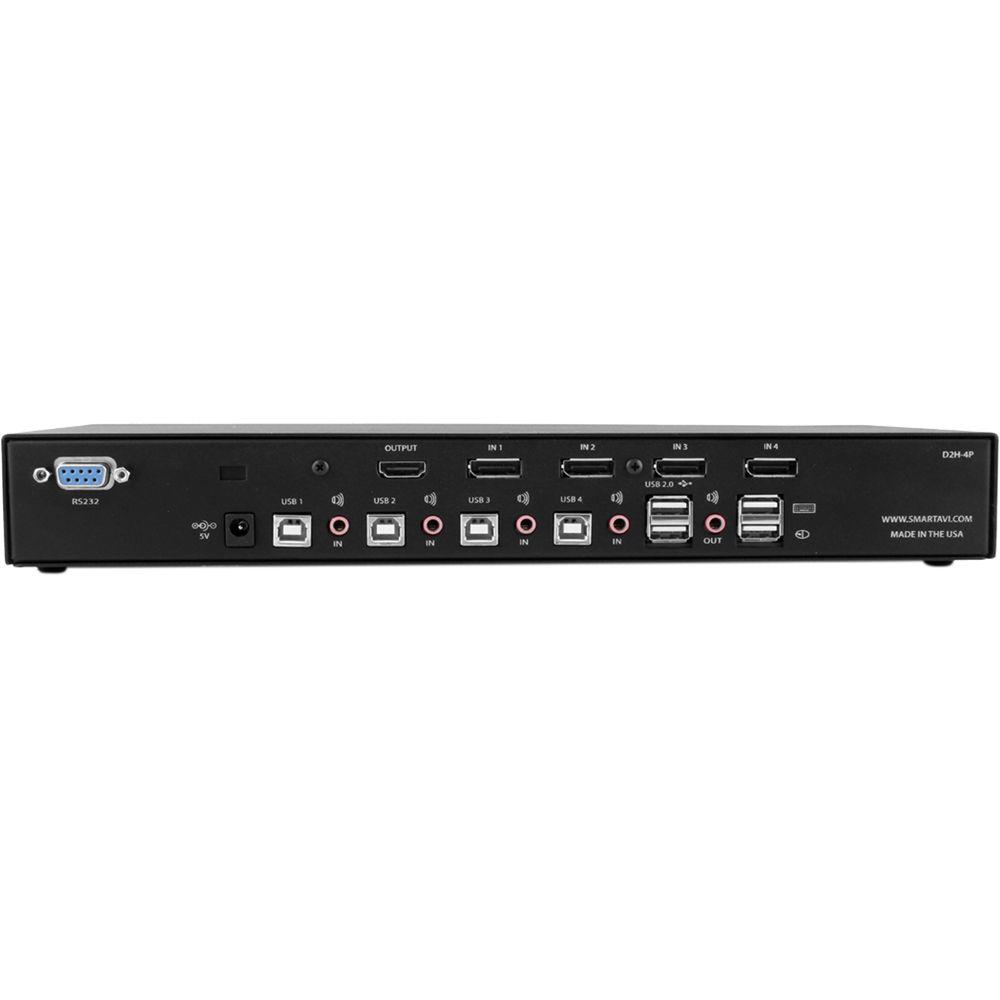

Technical parametersSmart-AVI D2H-4P-S Specs | Maximum Link Rate | 5.4 Gb/s | | Inputs | 4 x DisplayPort 1.2 (female)
4 x USB Type-B (female)
1 x RS-232 via SmartControl @ 9600 bps | | Outputs | 1 x HDMI (female)
2 x USB 1.1 Type-A
2 x USB 2.0 Type-A | | Resolution | Up to 3840 x 2160 @ 30 Hz | | Input Equalization | Automatic | | Bandwidth | 10.2 Gb/s | | Control | Tactile switch and hot key support via keyboard | | Emulation | Keyboard, video, and mouse | | Supported Operating Systems | Windows, Mac, and Linux | | Voltage | 100 to 240 VAC | | Power Supply | 5 VDC, 2 A | | Approvals | UL, CE, RoHS | | Operating Temperature | 23 to 95°F / -5 to 35°C | | Humidity | 5 to 90% | | Dimensions (H x D x W) | 2.0 x 5.8 x 12.8" / 5.1 x 14.7 x 32.5 cm | | Weight | 3.6 lb / 1.6 kg | | | | Package Weight | 4.9 lb | | Box Dimensions (LxWxH) | 15.4 x 11.5 x 3.9" |
