User Manual for Smart-AVI 4-Port Dual-Head HDMI 2.0 KVM Switch with USB 2.0 and Audio Click to enlarge the picture
Contents of the user manual for the Smart-AVI 4-Port Dual-Head HDMI 2.0 KVM
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI 4-Port Dual-Head HDMI 2.0 KVM contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

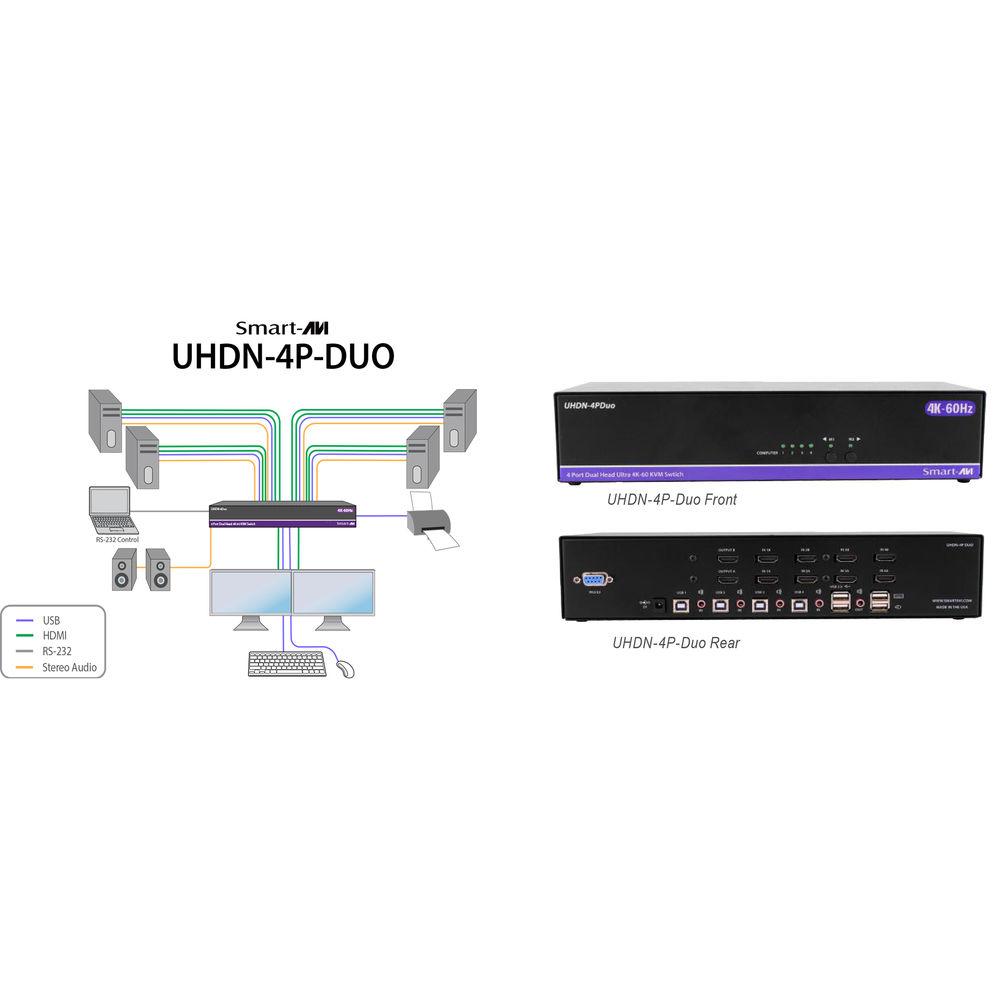

Product description Multi-Monitors: Maximizing Multitasking Read More Simplify your multi-system workflow with the 4-Port Dual-Head HDMI 2.0 KVM Switch from Smart-AVI. The switch can manage up to four HDMI-outfitted computers using a single console, which includes a pair of HDMI-enabled monitors, a keyboard, a mouse, and a set of speakers and useful USB peripherals. With HDMI 2.0 support, the switch can deliver screen resolutions of up to 3840 x 2160 at 60 Hz. Additionally, it offers EDID video emulation support, which enables digital workspaces and screen resolutions to be saved for responsive reconnects.
To complete the multimedia setup, one 3.5mm audio output and four 3.5mm audio inputs are on board. Switching between your four systems can be easily accomplished via hot key commands or front-panel buttons. Moreover, the switch is equipped with a 2-port USB hub, allowing you to scan a document and save it in another computer. - Supports up to 3840 x 2160 @ 30/50/60Hz
- Supports LPCM, Dolby-AC3, DTS 7.1, and DSD/Dolby TrueHD/DTS-HD master audio
- HDMI 1.3, 1.4, and 2.0 compatible
- Control up to four computers with a single KVM
- EDID HDMI video emulation
- Zero pixel loss with TMDS signal correction
- Supports USB Keyboard/Mouse emulation
- Hot-key commands for quick channel selection
- Independent (asynchronous) switching of KVM and peripheral USB ports (users can scan a document and save in another computer)
- KVM emulation for error-free booting
- Easy switching via front panel, RS-232, or hot keys
UPC: 813280024143 In the Box Smart-AVI 4-Port Dual-Head HDMI 2.0 KVM Switch with USB 2.0 and Audio Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port Dual-Head HDMI 2.0 KVM Switch with USB 2.0 and Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

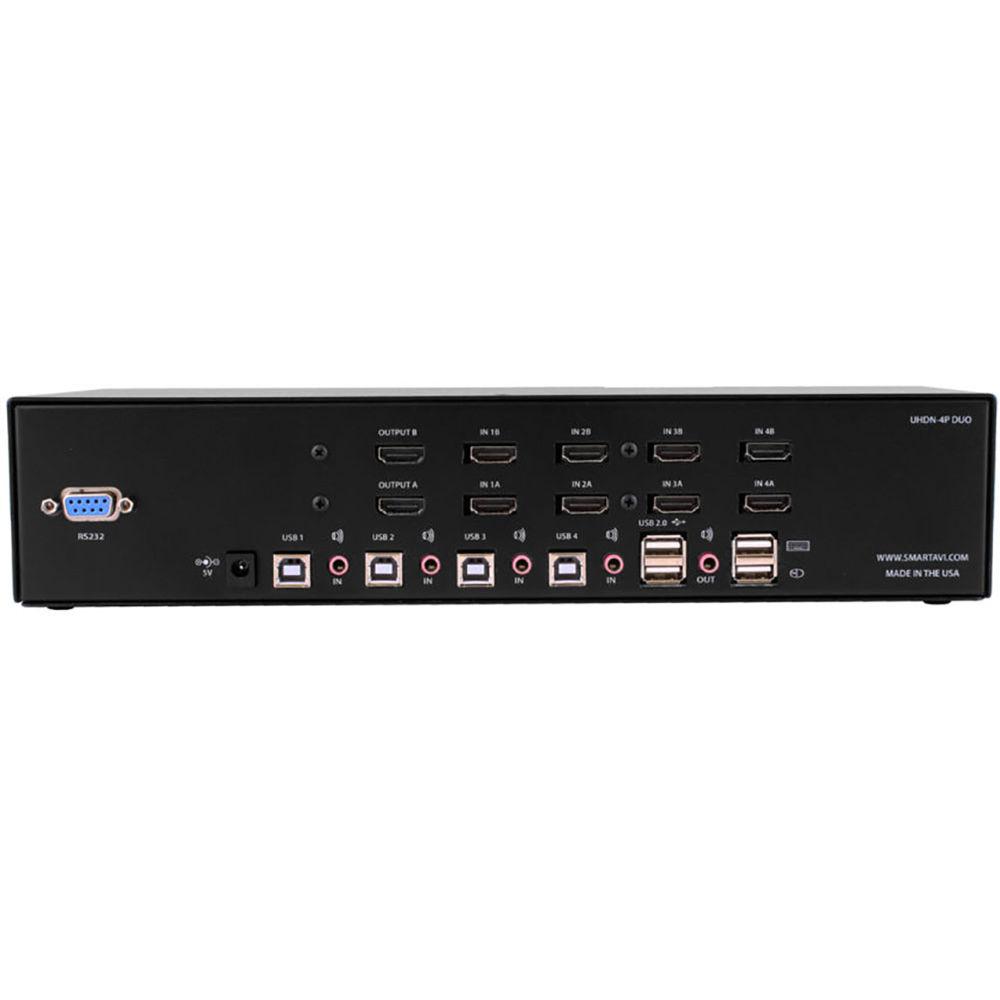

Technical parametersSmart-AVI UHDN-4P-DUOS Specs | Link | 5.4 Gb/s | | Inputs | 8 x HDMI 2.0 (female)
4 x USB Type-B
4 x 3.5 mm
1 x RS-232 via SmartControl @ 9600 bps | | Outputs | 2 x HDMI 2.0 (female)
2 x USB 1.1 Type-A (female)
2 x USB 2.0 Type-A
1 x 3.5 mm | | Resolution | Up to 3840 x 2160 @ 60 Hz | | Input Equalization | Automatic | | Bandwidth | 300 MHz, 10.2 Gb/s | | HDCP Compliant | Yes | | Maximum Cable Length Supported | 40' / 12.2 m | | Frequency Response | 20 Hz to 20 KHz | | Nominal Level | 0 to 1 V | | Common Mode | Rejection @ 60 dB | | Control | Buttons and hot-key support via keyboard | | Emulation | Keyboard, mouse, and video | | Voltage | 100 to 240 VAC | | Power Supply | 5 VDC, 4 A | | Approvals | UL, CE, RoHS | | Operating Temperature | 23 to 95°F / -5 to 35°C | | Humidity | 5 to 90% | | Dimensions (H x D x W) | 2 x 5.8 x 12.8" / 5.1 x 14.6 x 32.5 cm | | Weight | 3.5 lb / 1.6 kg | | | | Package Weight | 5.25 lb | | Box Dimensions (LxWxH) | 16.9 x 12.2 x 4.0" |
