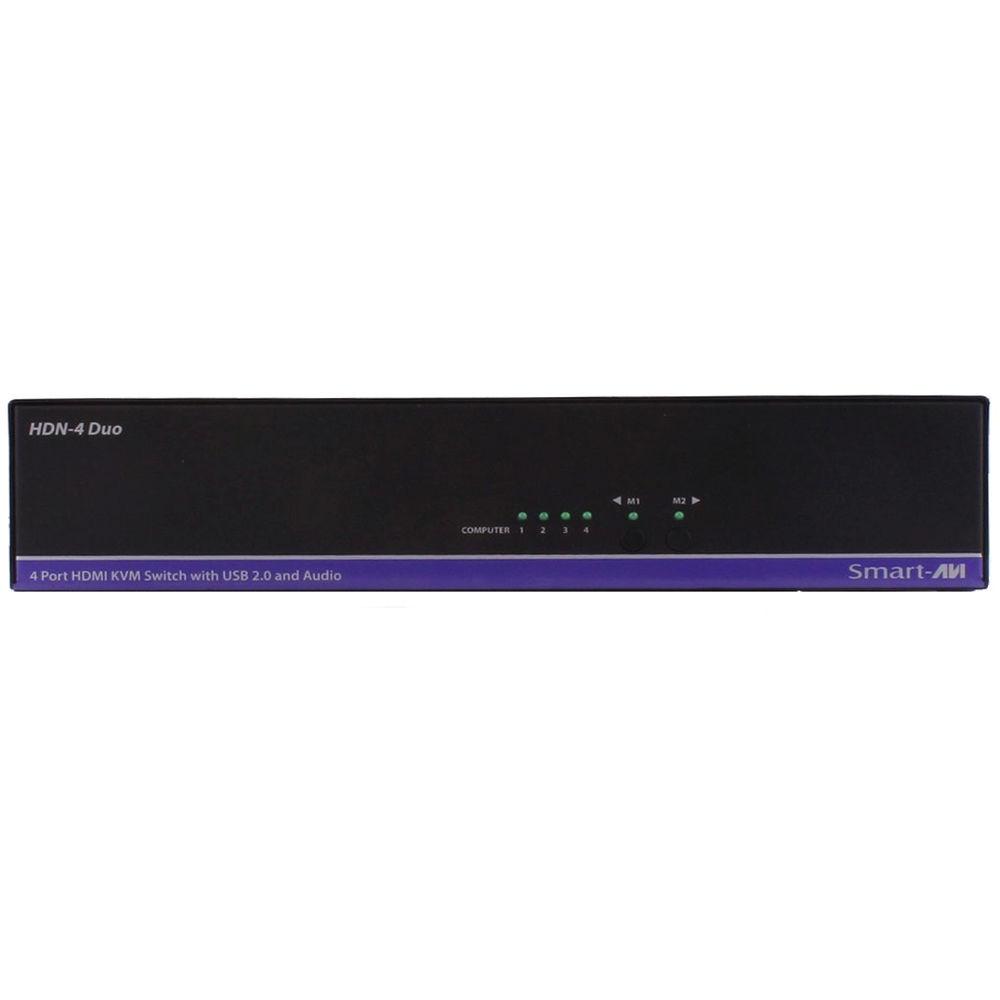

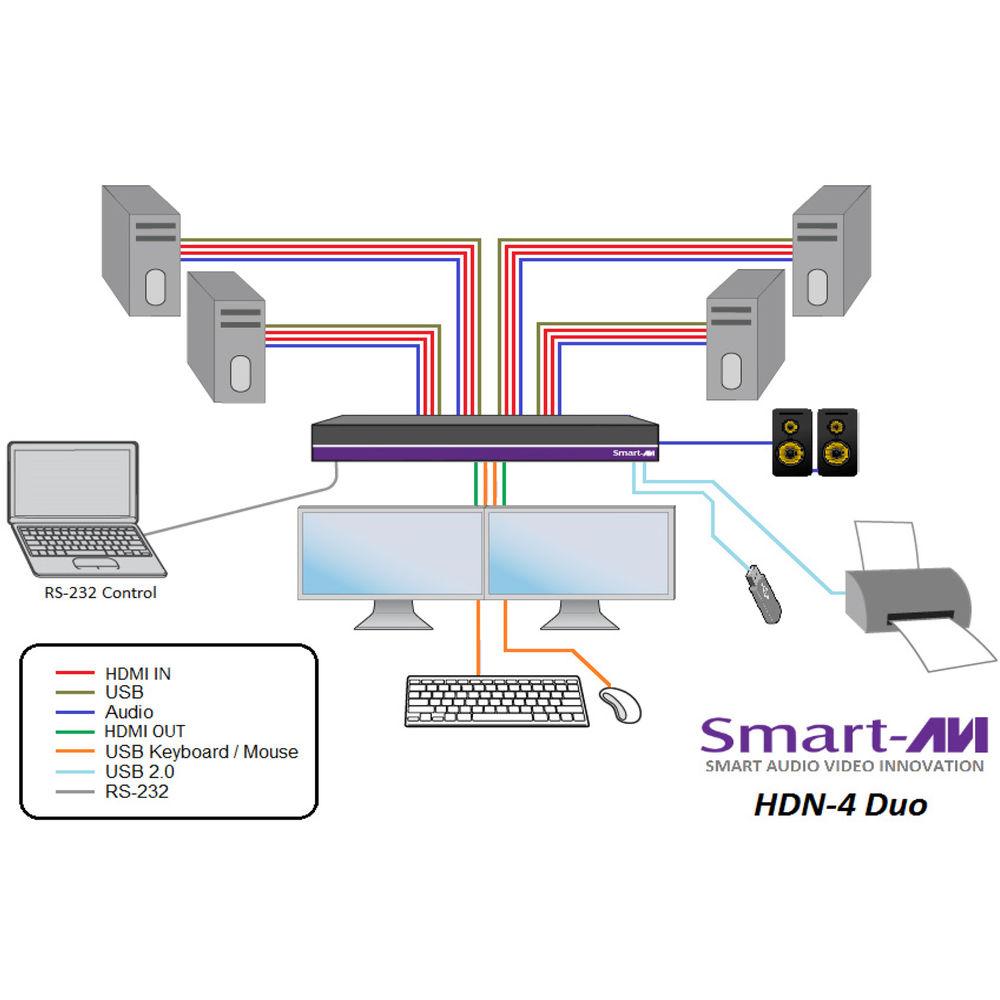

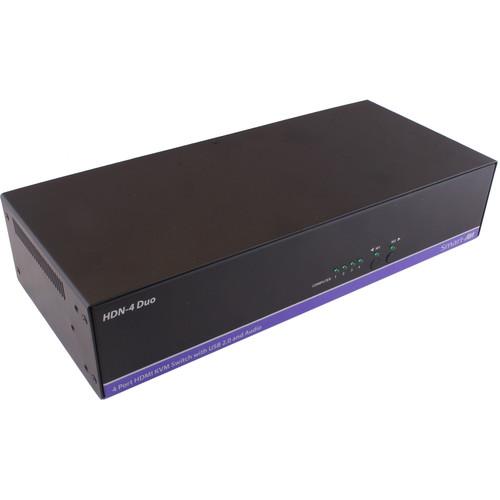

Product description Multi-Monitors: Maximizing Multitasking Read More zbryccdyuycfwwuqvwbcav The Smart-AVI 4-Port, Dual-Head HDMI KVM Switch enables you to control up to four systems from a single workstation that consists of two HDMI-enabled monitors, one keyboard, and one mouse. The KVM switch has an integrated 2-port USB 2.0 hub, allowing you to share scanners and printers across connected systems. The switch connects to Windows, Mac, and Linux systems featuring HDMI, USB, and 3.5mm ports, using a set of optional cables. Once connected, it can deliver resolutions of up to 3840 x 2160. Switching between the four host systems can be easily accomplished via physical buttons, hot-key commands, and RS-232 signals. In addition, the switch features keyboard/mouse emulation and EDID pass-through technology for smooth switching capabilities. - Control on four connected computers from one workstation with two HDMI monitors
- Supports resolutions of up to 3840 x 2160 (@ 30 Hz)
- Zero-pixel loss with TMDS signal correction
- Supports USB 2.0 devices, including keyboard and mouse
- Rack-mountable in a 19" rack
- Hot-key commands for quick channel selection
- Independent (asynchronous) switching of KVM and peripheral USB ports, so users can scan a document and save in another computer
- Keyboard emulation for error free booting

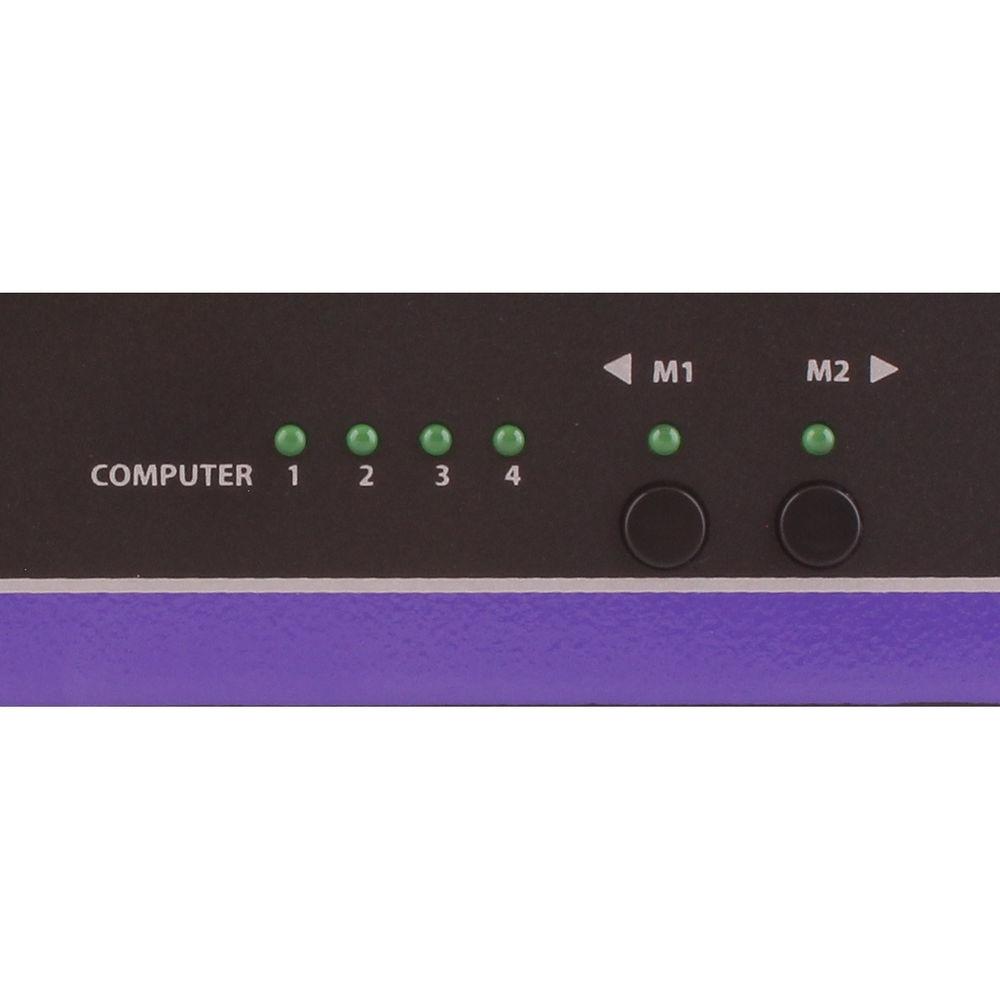

- Front panel keys for manual switching
- DP and DVI supported with adaptors, backwards compatible with prior HDMI versions
UPC: 813280024181 In the Box Smart-AVI 4-Port Dual-Head HDMI KVM Switch Power Adapter Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port Dual-Head HDMI KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

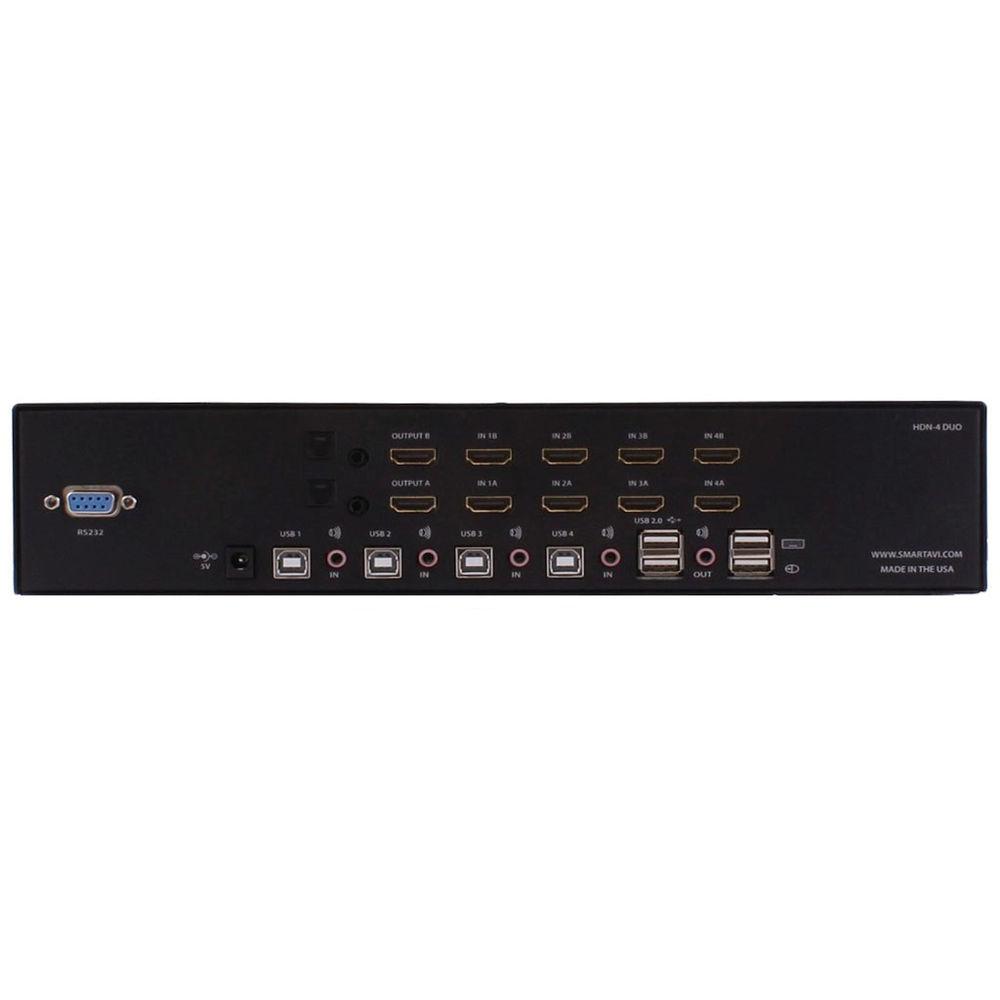

Technical parametersSmart-AVI HDN-4DUO-S Specs | Input | 8 x HDMI 1.4
4 x 3.5 mm stereo
4 x USB 2.0 Type-B
1 x RS-232 (DB9, female - 9600 N,8,1, no flow control) | | Output | 2 x HDMI 1.4
1 x 3.5 mm stereo
2 x USB 1.1 Type-A
2 x USB 2.0 Type-A | | Supported Resolutions | Up to 3840 x 2160 @ 30 Hz | | DDC | 5 V p-p (TTL) | | Input Equalization | Automatic | | Supported Cable Lengths | Input/Output: 20' / 6.1 m | | Impedance | 600 Ohm | | Frequency Response | 20 Hz to 20 kHz | | Nominal Level | 0 to 1 V | | Common Mode | Rejection at 60 dB | | Controls | Source selection buttons or hot key commands via USB keyboard | | Supported Operating Systems | Windows, Mac, and Linux | | Voltage | 100 to 240 VAC | | Power Supply | 5 VDC, 4 A | | Operating Temperature | 23 to 95°F / -5 to 35°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | 0 to 95% | | Dimensions (H x D x W) | 3 x 5.8 x 12.8" / 7.6 x 14.6 x 32.4 cm | | Weight | 4 lb / 1.8 kg |
