User Manual for Smart-AVI 4-Port Duo DisplayPort-HDMI KVM Switch with USB 2.0 and Audio Click to enlarge the picture
Contents of the user manual for the Smart-AVI 4-Port Duo DisplayPort-HDMI KVM Switch
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI 4-Port Duo DisplayPort-HDMI KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

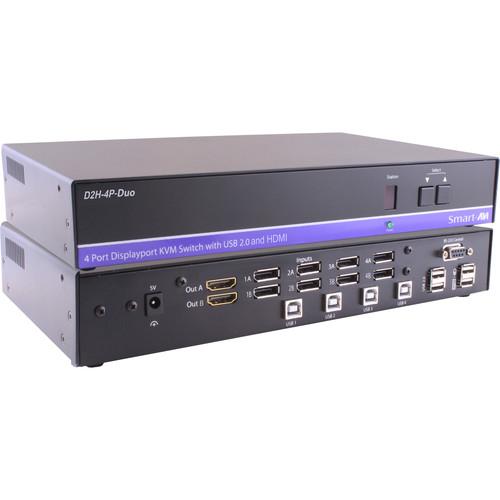

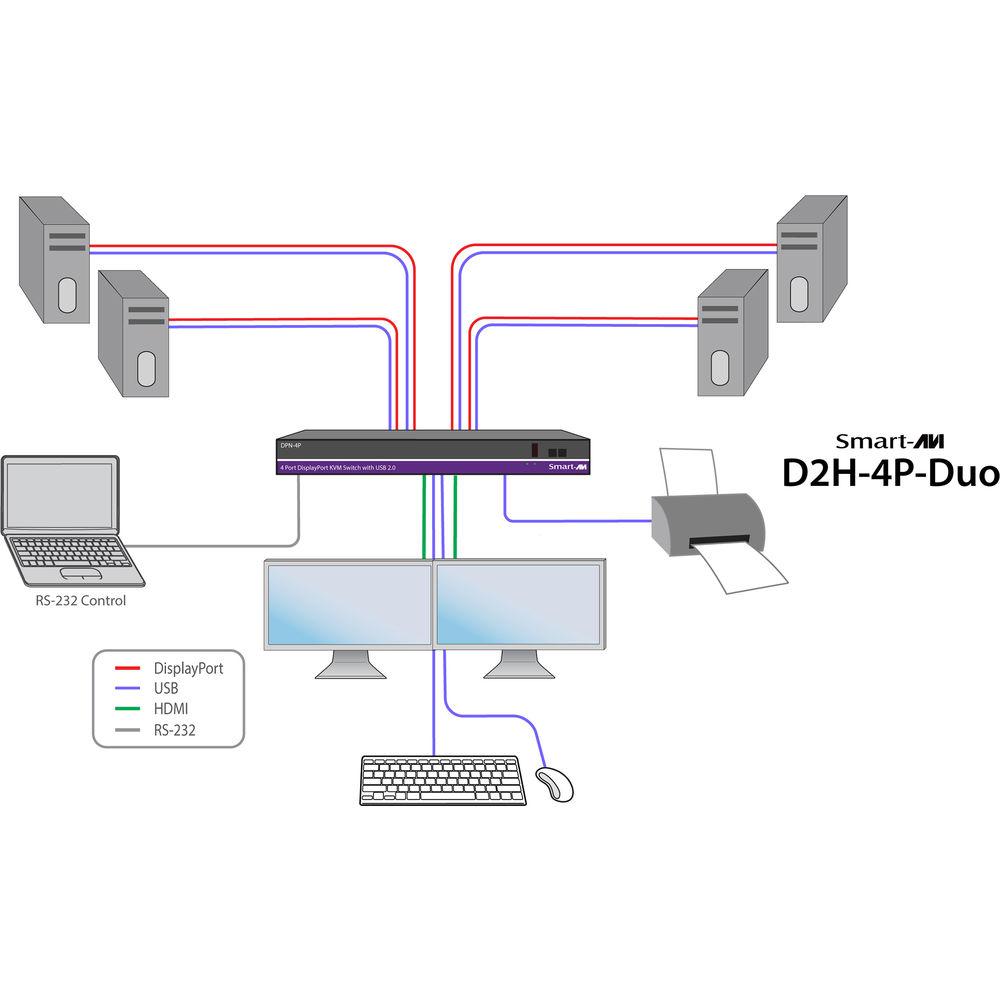

Product description Multi-Monitors: Maximizing Multitasking Read More cqbctfqbwf The 4-Port Duo DisplayPort-HDMI KVM Switch from Smart-AVI lets you manage four DisplayPort-equipped computers with a single workstation that consists of up to two HDMI-enabled monitors. The switch comes with four sets of two DisplayPort female inputs to support a dual-monitor setup for each computer. It supports resolutions of up to 3840 x 2160 and video emulation directly from the source, enabling digital workspaces and screen resolutions to be saved for quick reconnects.
In addition to multimedia, four USB Type-B ports along with two USB 1.1 Type-A and two USB 2.0 Type-A ports allow you to control and share peripherals with four systems. The USB 1.1 ports are for your keyboard and mouse, while the USB 2.0 ports support printers. You can easily switch between each of the four systems by using physical buttons or hot key commands. Moreover, a RS-232 port is available for controls. - EDID video emulation via HDMI outputs for dual displays
- KVM control between four connected computers from a single workstation with two local monitors
- Supports resolutions of up to 3840 x 2160 @ 30 Hz
- DisplayPort 1.2 and HDMI compliant
- Zero pixel loss with TMDS signal correction
- Supports USB 2.0 devices, including keyboard and mouse
- Rack-mountable with optional kit
- Hot-key commands for quick channel selection
- Independent (asynchronous) switching of KVM and peripheral USB ports (users can scan a document and save in another computer)
- KVM emulation for error-free booting

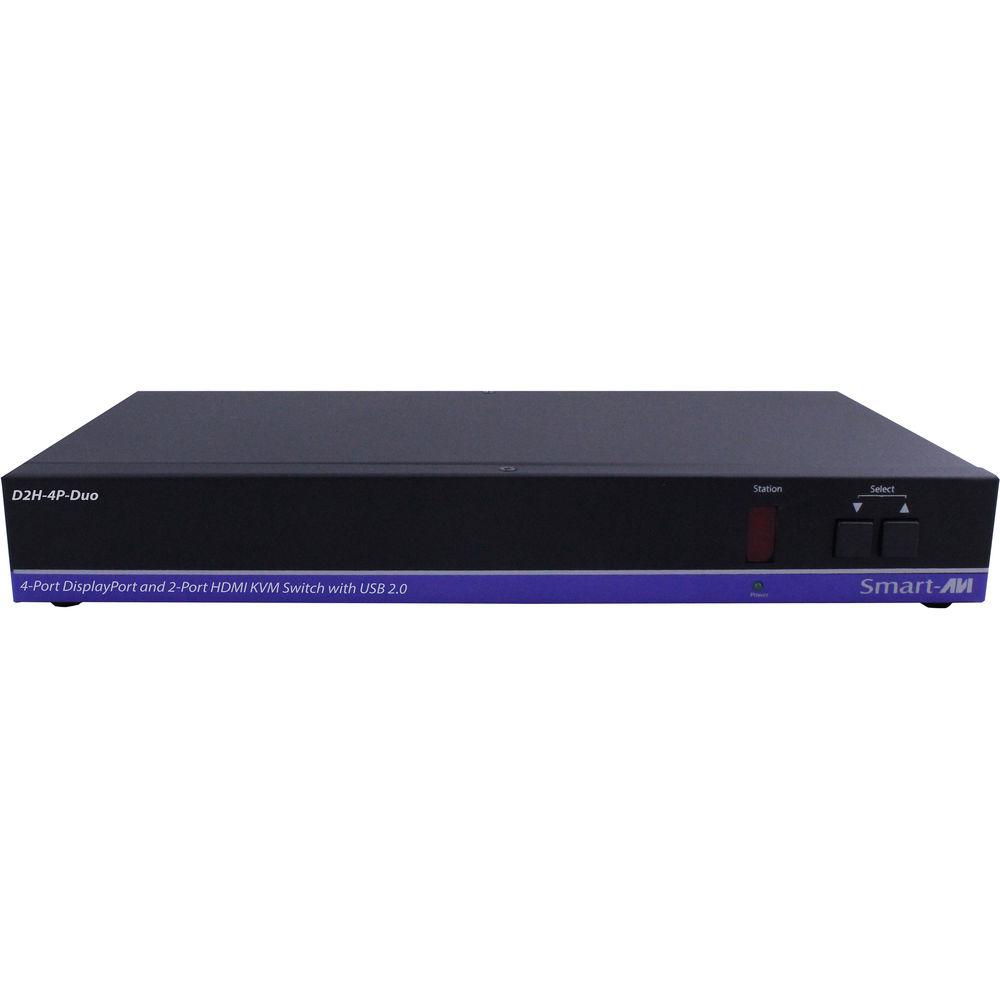

- Front panel keys for manual switching
- HDMI support and backwards compatible with previous DisplayPort versions
UPC: 813280020671 In the Box Smart-AVI 4-Port Duo DisplayPort-HDMI KVM Switch with USB 2.0 and Audio Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port Duo DisplayPort-HDMI KVM Switch with USB 2.0 and Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

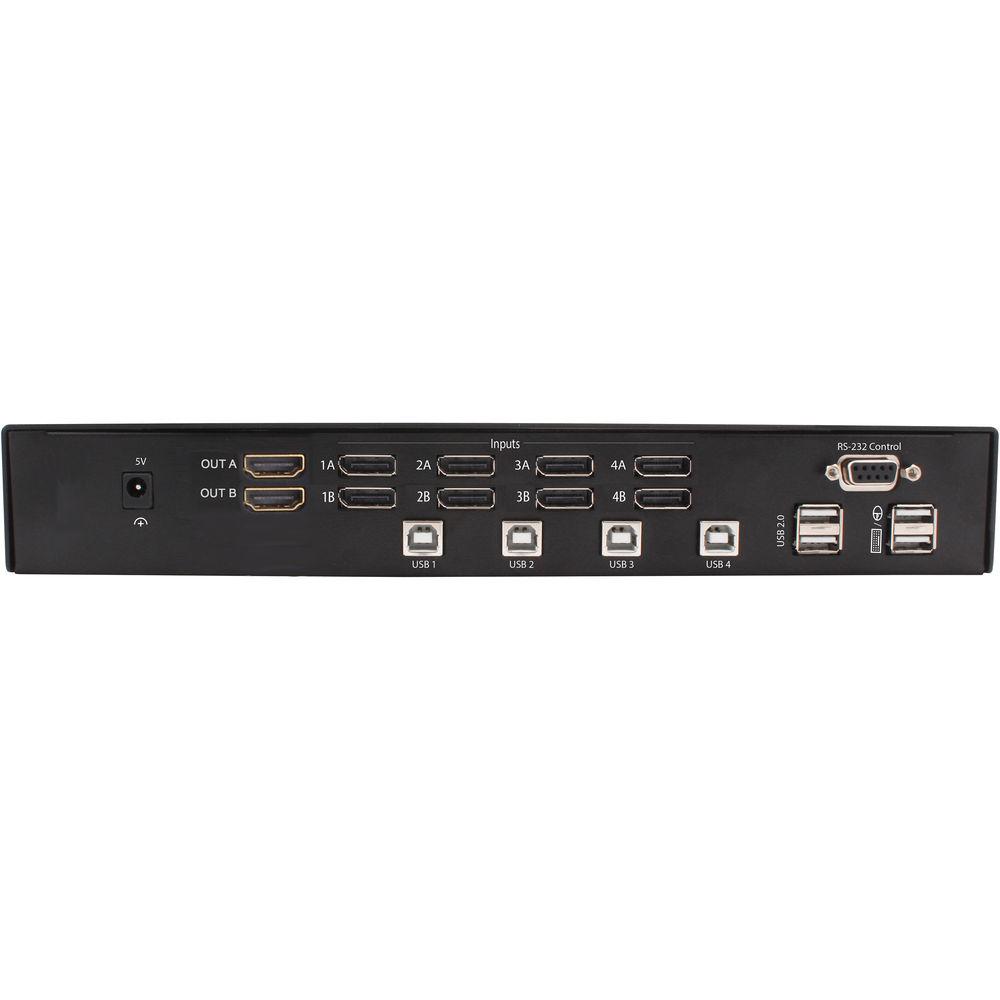

Technical parametersSmart-AVI D2H-4P-DUO-S Specs | Link | 5.4 Gb/s/lane | | Inputs | 8 x DisplayPort 1.2 (female)
4 x USB Type-B
1 x RS-232 | | Outputs | 2 x HDMI (female)
2 x USB 1.1 Type-A (female)
2 x USB 2.0 Type-A | | Resolution | Up to 3840 x 2160 @ 30 Hz | | DDC | Faux transaction mode option over Aux channel | | Input Equalization | Automatic | | Bandwidth | 10.2 Gb/s | | Control | Tactile switches and hot-key support via keyboard | | Emulation | Keyboard, mouse, and video | | Supported Operating Systems | Windows, Mac, and Linux | | Voltage | 100 to 240 VAC | | Power Supply | 5 VDC, 4 A @ 20 W | | Power Consumption | 20 W | | Approvals | UL, CE, RoHS | | Operating Temperature | 23 to 95°F / -5 to 35°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | 5 to 90% | | Dimensions (H x D x W) | 1.8 x 6 x 12" / 4.6 x 15.2 x 30.5 cm | | Weight | 3.5 lb / 1.6 kg |
