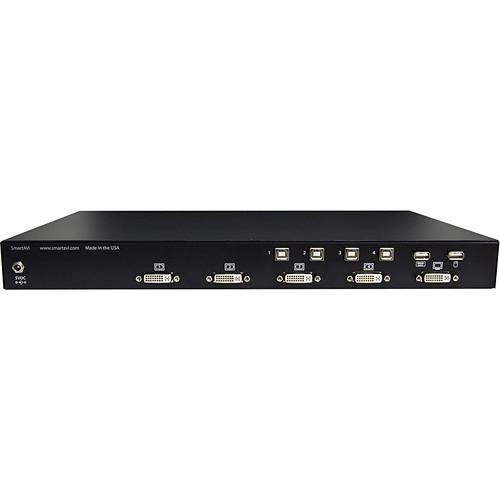

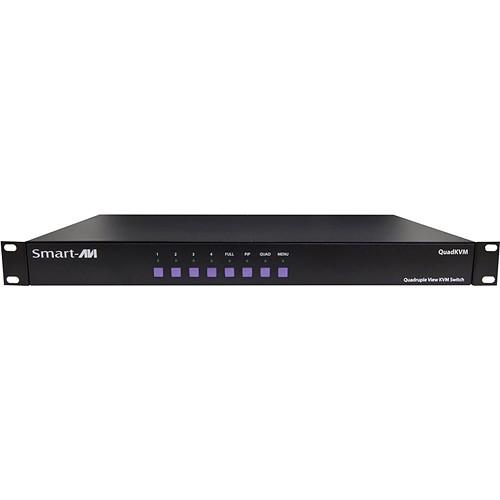

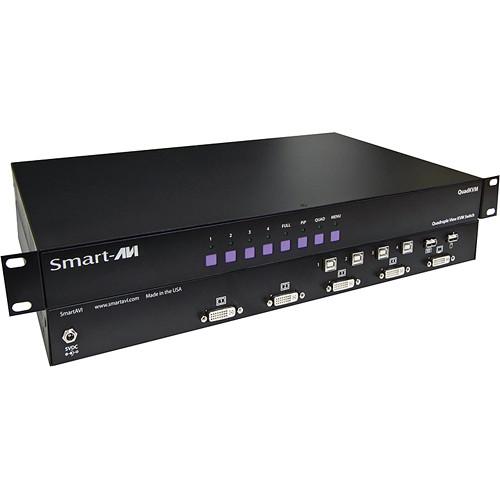

User Manual for Smart-AVI 4-Port DVI USB 1.1 1.0 QuadKVM Switch Click to enlarge the picture
Contents of the user manual for the Smart-AVI 4-Port DVI USB 1.1 1.0
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI 4-Port DVI USB 1.1 1.0 contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|
Product description Multi-Monitors: Maximizing Multitasking Read More The Smart-AVI 4-Port DVI USB 1.1/1.0 QuadKVM Switch is designed to monitor and control 4 analog and digital video sources through a single display and a set of interface controls. It is suitable for applications that require you to monitor up to 4 computers at the same time. You can choose from 4 advanced screen settings that include Quad Mode, Dual Mode, Full-screen Mode and Picture-in-Picture Mode to view multiple sources simultaneously. All the video sources can be accessed and controlled via the USB keyboard and mouse. You can also control QuadKVM switch via keyboard hot-keys that make the functions switch available at the console keyboard. The KVM switch supports DVI-D resolution up to 1900 x 1200 and VGA resolution up to 1600 x 1200, allowing you to view clean and crisp high-resolution images. Functions - Allows you to monitor and control 4 video sources through a single display and a set of interface controls
- Supports 1900 x 1200 DVI-D resolution and 1600 x 1200 VGA resolution at 60 Hz
- Facilitates control of any video source while monitoring the rest
- Used in corporate or educational presentations, financial institutions, call centers, industries, airport installations, recording theaters, and KVM extension applications
Advanced Viewing Settings - Quad-mode divides the screen to show the output of four video sources on one screen
- Dual-mode splits the screen to show the output of two video sources on one screen
- Full-screen mode shows the output of only one video source on the screen
- PiP mode allows you to control one computer while simultaneously monitoring the other 3 sources
Controls - Can be accessed and controlled via USB keyboard, mouse, front-panel buttons, or RS-232 commands
- On-screen display (OSD) simplifies set up and switching functions
- Keyboard hot-keys make the functions switch available at the console keyboard
In the Box Smart-AVI 4-Port DVI USB 1.1/1.0 QuadKVM Switch 1-Year Warranty Guides & Manuals Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port DVI USB 1.1 1.0 QuadKVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Download User ManualThe user manual for the Smart-AVI 4-Port DVI USB 1.1 1.0 QuadKVM Switch can be downloaded in PDF format at the link stated below.
Technical parametersSmart-AVI QuadKVM Specs | | | Format | DVI-D Single Line | | Maximum Pixel Clock | 165 MHz | | Input/Output Interface | 4 x DVI-D 29-pin female / 1 x DVI-D 29-pin female | | Resolution | Up to 1920 x 1200 at 60 Hz | | DDC | 5 V p-p (TTL) | | Input Equalization | Automatic | | Cable Length | Input/Output: Up to 20' (6 m) | | | | Signal Type | USB 1.1 and 1.0 | | Input Interfaces (TX) | 4 x USB Type B (Female) | | Output Interfaces (RX) | 2 x USB Type A (Female) | | | | Keyboard | Hot Keys with OSD | | Front Panel | Tact Switch with OSD | | RS-232 | RS-232 Commands | | | | External Power Supply | 100 - 240 VAC / 5 VDC 4 A at 20 W | | Operating Temperature | 32 to 131° F (0 to 55° C) | | Humidity | Up to 95% | | Approvals | UL, CE, ROHS Compliant | | Dimensions (W x H x D) | 17 x 1.7 x 10.2" (43 x 4.4 x 26 cm) | | Weight | 5 lb (2 kg) |
