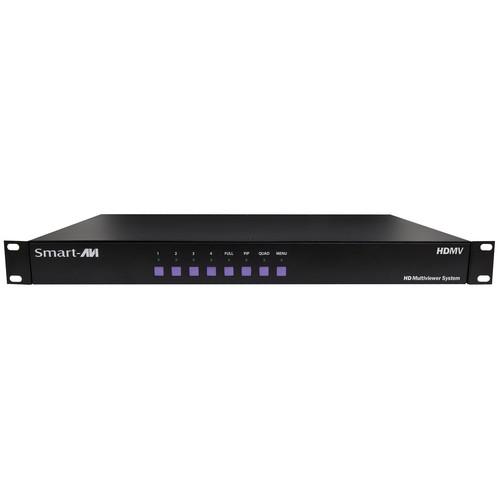

Product description The 4-Port HDMI Real-Time Multiviewer with PiP / Dual / Quad / Full Modes from Smart-AVI is a part of the HD Multiviewer series of products that allow you to view up to 4 different HD digital video sources on 1 display device simultaneously. Connections to video sources are managed via HDMI or DVI connectors, with advanced viewing options such as dual-mode, quad-mode, full-screen mode, and PiP (Picture in Picture) mode.
In the dual-mode, the screen is split into 2 fields of equal size with each video source or computer being displayed in each of the fields. In quad-mode, the screen is split into 4 fields of equal size with the 4 video sources or computers being displayed in each of these fields. In the full-screen mode, 1 of the 4 video sources is displayed in full screen size and maximum resolution. In the PiP mode, the full screen displays 1 of the 4 video sources and is accompanied by 3 smaller images (thumbnails) containing the other video sources on the right-hand margin of the screen, allowing simultaneous monitoring.
Switching between the display modes is simple. You can use the buttons on the front-panel, the programmable keyboard hotkeys, RS-232 commands, or use the built-in OSD (On Screen Display). The OSD is accessible at the press of a button and features controls for all of the multiviewer’s functions. The multiviewer is easily programmable through the setup function of the OSD. Use this device to simplify the management of multiple video sources by accessing and controlling them from a single set of controls on one display.
The HD Multiviewer can be used in many applications that require real-time monitoring of multiple devices, like HDTV, DVD players, cameras, and computers. It is a suitable solution in situations where you need to monitor several sources at the same time. In Air Traffic Control environments, several computers are required to monitor the progress of flights and flight information. With the multiviewer you are to manage each computer and monitor the progress without having to switch between sources, making it a suitable solution for multitasking. - View up to 4 sources on a single monitor at the press of a button
- OSD (On Screen Display) makes setup and switching easy
- Display each computer with clean and crisp high-resolution video
- Supports DVI-D input resolutions up to 1900 x 1200
- Supports 1080p HDMI output (1920 x 1080)
- Control any 1 computer or device while monitoring 3 others
- Delivers uncompressed digital video with zero signal loss
- HDCP and HDMI 1.4 compliant
- Supports EDID for total control of compliant displays
- Outputs HDMI up to 40' (12.2m)
- 1920 x 1080 HDMI or DVI-D
- Change views by pressing the tact switches, keyboard hotkeys, and RS-232
- Quad-mode splits the screen to show 4 sources on 1 screen
- Dual-mode splits the screen to show 2 sources on 1 screen
- PiP-mode displays 1 device in full screen with 3 thumbnail views
- Power Supply Approvals: UL, CE, CSA, CEC, RoHS
- Applications:
Corporate or educational presentations
Financial (remote servers / user control)
Call centers for technical support
Industrial (long-range workstation isolation)
Airport installations (air traffic control / passenger information)
Medical (remote operation away from sensitive / magnetic equipment)
Recording (for large studios where editing / mixing stations are compact and / or require complete silence) UPC: 813280019668 In the Box Smart-AVI 4-Port HDMI USB Real-Time Multiviewer with PiP / Dual / Quad / Full Modes Limited 1-Year Warranty on Parts & Labor Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port HDMI USB Real-Time Multiviewer with PiP Dual Quad Full Modes in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI SM-HDMV-S Specs | Video Bandwidth | Single-link 340 MHz (10.2 Gb/s) | | Resolution | HDTV: 480i, 480p, 720i, 720p, 1080i, 1080p
PC: 800 x 600, up to 1920 x 1200 | | Input Signal | Video: 1.2 V
DDC: 5 V | | Single Link Range | 1080p | | Format | HDMI 1.4 | | DVI Compliance | Single-link DVI-D 2.0 | | HDCP Compliance | 1.0 / 2.0 | | Interface | Input: 4 x HDMI
Output: 1 x HDMI | | Connector | Type A (19-pin female) | | Control | Front Panel: Tact switch with OSD (On Screen Display)
RS-232: DB9 (female) | | Power Requirements | Internal 100 to 240 VAC | | Dimensions (H x W x D) | 1.7 x 17.0 x 10.2" (43.2 x 431.8 x 259.0 mm) Height is of 1U. | | Weight | 4.05 lb (1.84 kg) | | | | Box Dimensions (LxWxH) | 22.0 x 16.0 x 7.0" |
