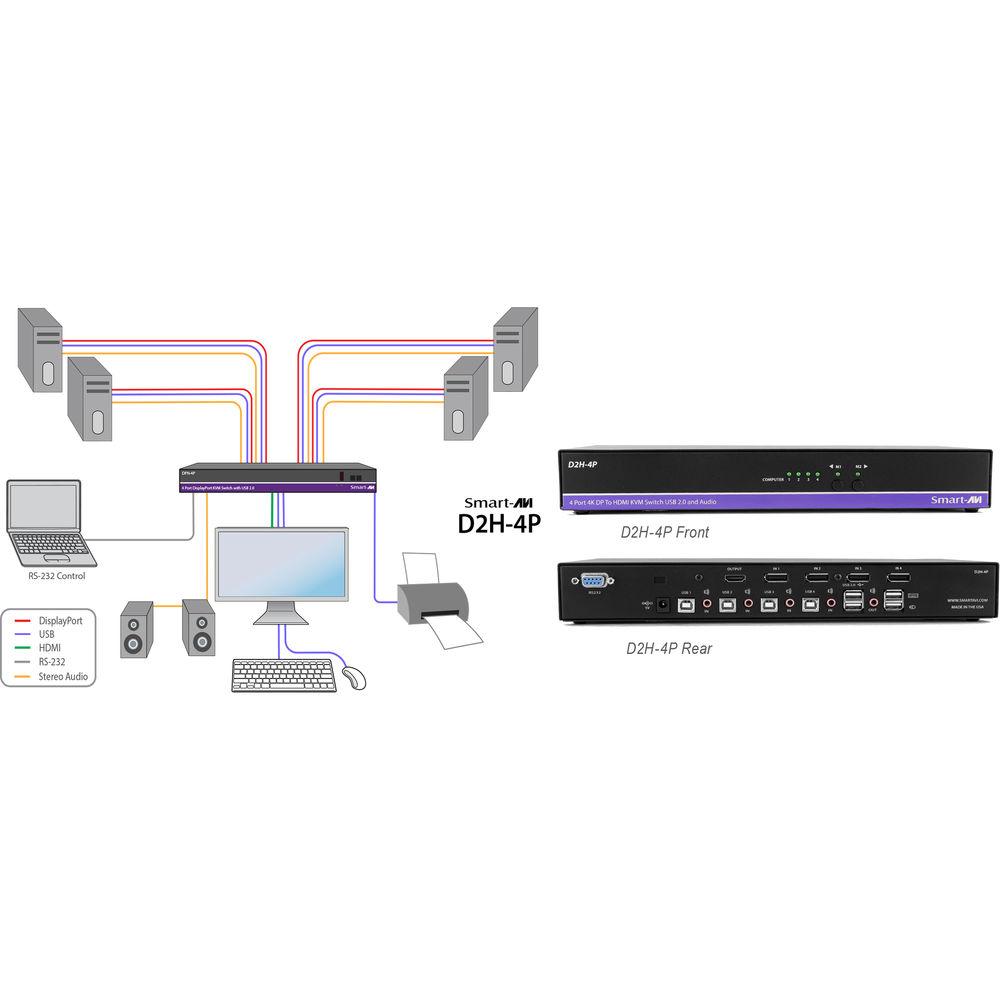

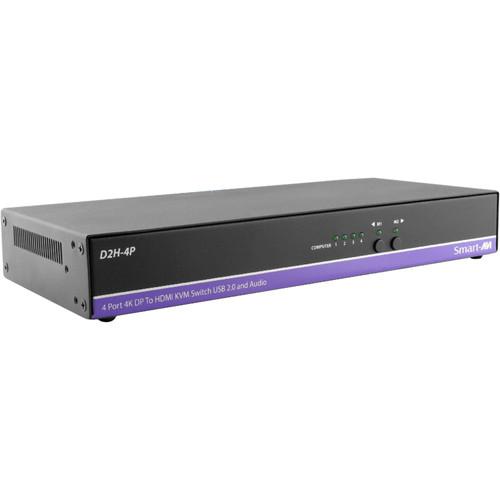

Product description Multi-Monitors: Maximizing Multitasking Read More The 4-Port Quad DisplayPort-HDMI KVM Switch from Smart-AVI lets you manage four DisplayPort-equipped computers with a single workstation that consists of up to four HDMI-enabled monitors. The switch comes with four sets of four DisplayPort female inputs to support a quad-monitor setup. It supports resolutions of up to 3840 x 2160 and video emulation directly from the source, enabling digital workspaces and screen resolutions to be saved for quick reconnects. To complete the multimedia experience, it provides four 3.5mm audio inputs as well as one 3.5mm audio output for your speakers.
In addition to multimedia, four USB Type-B ports along with two USB 1.1 Type-A and two USB 2.0 Type-A ports allow you to control and share peripherals with four systems. The USB 1.1 ports are for your keyboard and mouse, while the USB 2.0 ports support printers. You can easily switch between each of the four systems by using physical buttons or hot key commands. Moreover, an RS-232 port is available for controls. - EDID video emulation via HDMI outputs for four displays
- KVM control between four connected computers from a single workstation with four local monitors
- Supports resolutions of up to 3840 x 2160 @ 30 Hz
- Quad-head DisplayPort 1.2 and HDMI compliant
- Zero pixel loss with TMDS signal correction
- Supports USB 2.0 devices, including keyboard and mouse
- Rack-mountable with optional kit
- Hot key commands for quick channel selection
- Independent (asynchronous) switching of KVM and peripheral USB ports (users can scan a document and save in another computer)
- KVM emulation for error-free booting

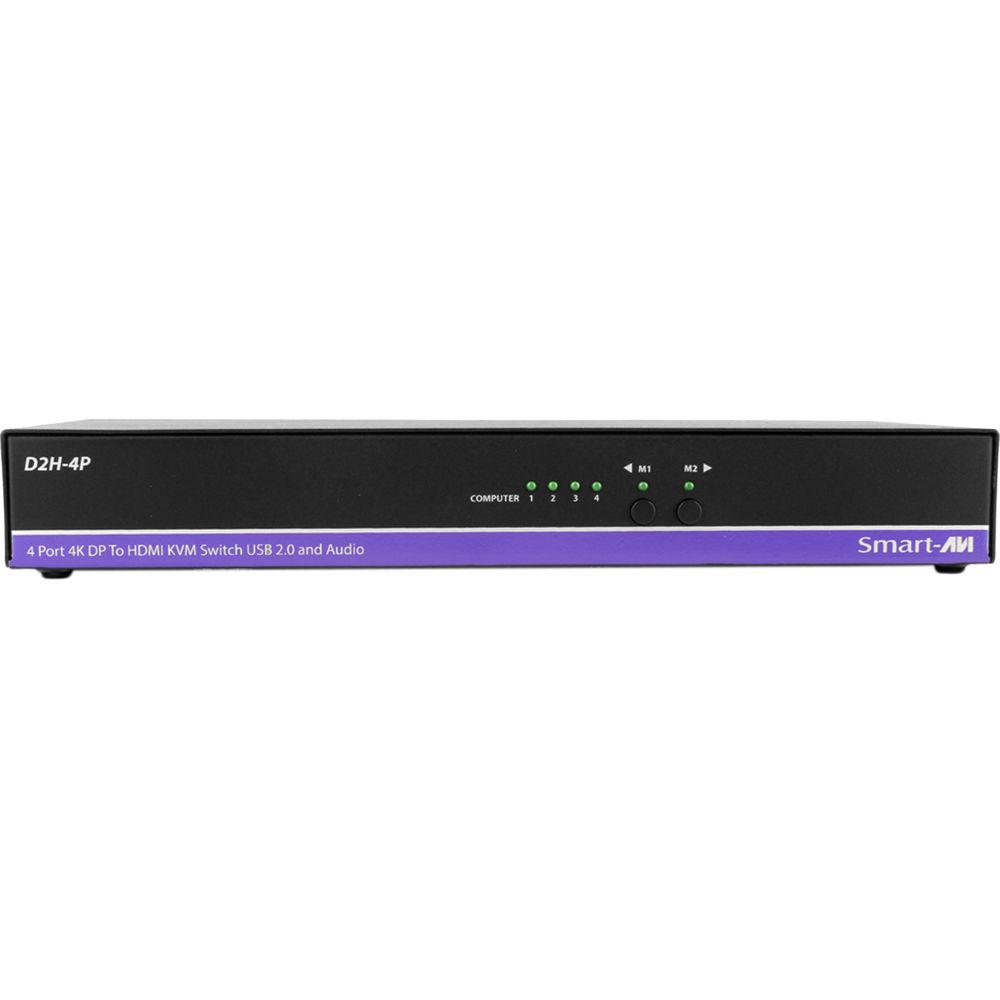

- Front panel keys for manual switching
- HDMI support and backwards compatible with previous DisplayPort versions
UPC: 813280020664 In the Box Smart-AVI 4-Port Quad DisplayPort-HDMI KVM Switch with USB 2.0 and Audio Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port Quad DisplayPort-HDMI KVM Switch with USB 2.0 and Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

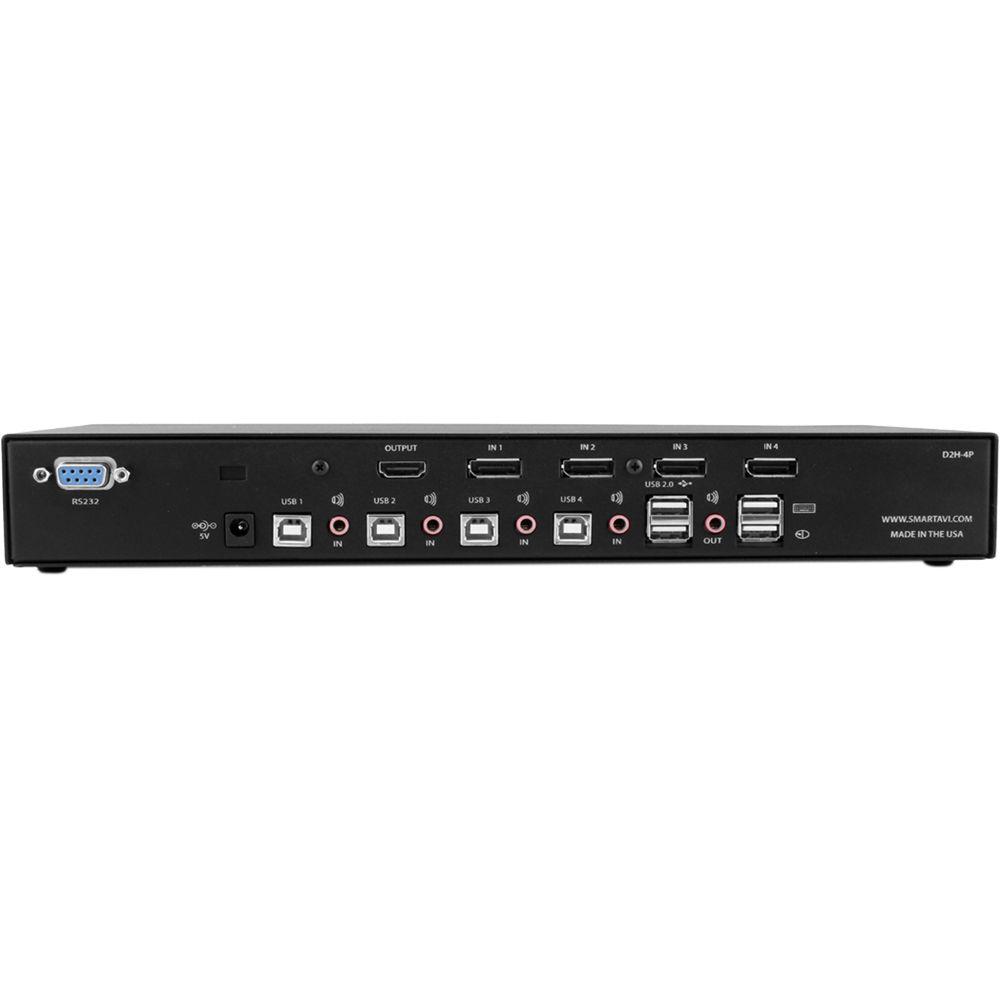

Technical parametersSmart-AVI D2H-4P-QUAD-S Specs | Link | 5.4 Gb/s/lane | | Inputs | 16 x DisplayPort 1.2 (female)
4 x USB Type-B
4 x 3.5 mm
1 x RS-232 | | Outputs | 4 x HDMI 1.4 (female)
2 x USB 1.1 Type-A (female)
2 x USB 2.0 Type-A
1 x 3.5 mm | | Resolution | Up to 3840 x 2160 @ 30 Hz | | HDCP Compliant | Yes | | Input Equalization | Automatic | | Bandwidth | Single-link 340 MHz (10.2 Gb/s) | | Control | Select buttons and hot key support via keyboard | | Emulation | Keyboard, mouse, and video | | Supported Operating Systems | Windows, Mac, and Linux | | Voltage | 100 to 240 VAC | | Power Supply | 5 VDC, 4 A @ 20 W | | Power Consumption | 20 W | | Approvals | UL, CE, RoHS | | Operating Temperature | 23 to 95°F / -5 to 35°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | 5 to 90% | | Dimensions (H x D x W) | 4.5 x 5.8 x 12.8" / 11.4 x 14.7 x 32.5 cm | | Weight | 5.8 lb / 2.6 kg |
