User Manual for Smart-AVI 4-Port Quad-Head DisplayPort KVM Switch with USB 2.0 Hub and Audio Click to enlarge the picture
Contents of the user manual for the Smart-AVI 4-Port Quad-Head DisplayPort KVM Switch
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI 4-Port Quad-Head DisplayPort KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

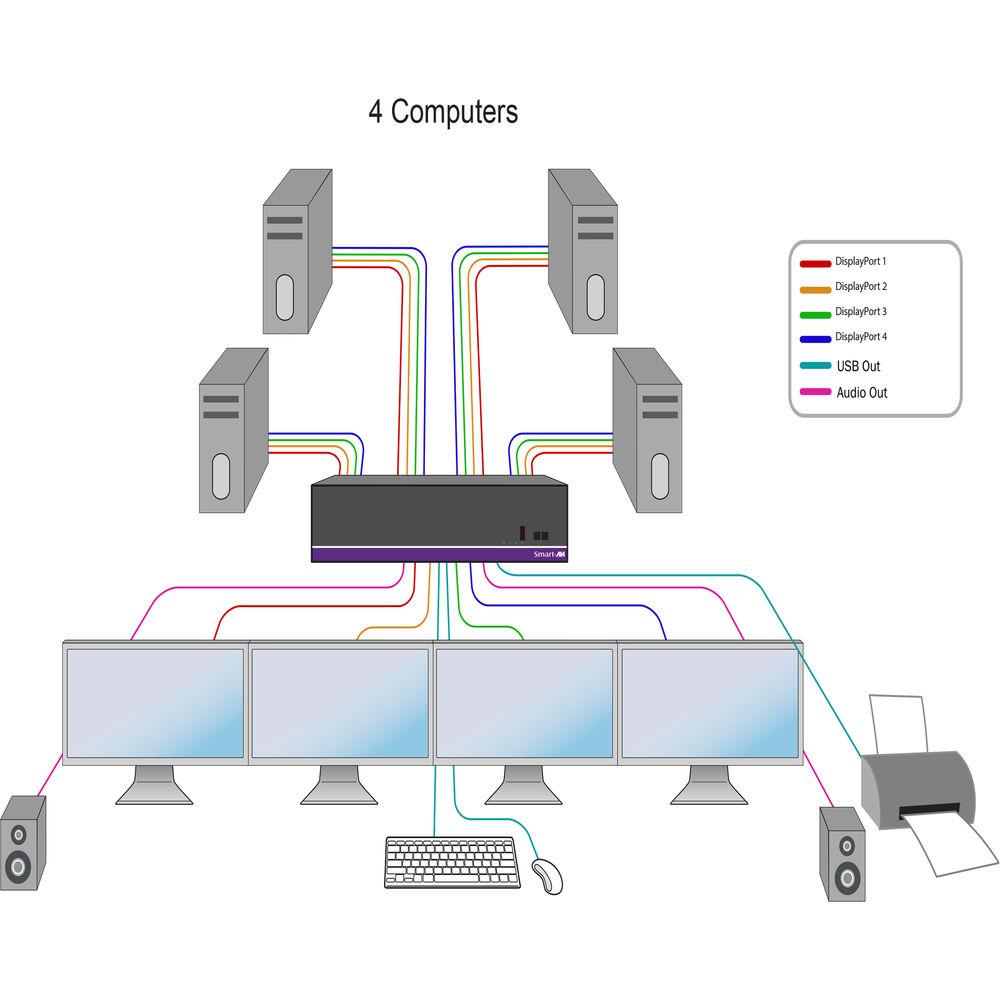

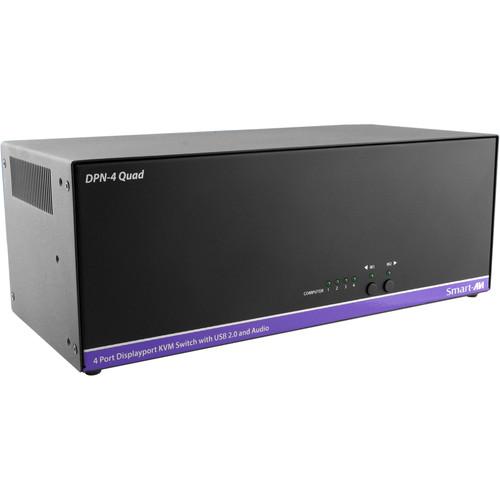

Product description Multi-Monitors: Maximizing Multitasking Read More The Smart-AVI 4-Port Quad-Head DisplayPort KVM Switch lets you use a single workstation, consisting of a pair of speakers, keyboard, mouse, and printer as well as up to four DisplayPort-enabled monitors to control up to four DisplayPort-outfitted systems. The switch has four sets of four DisplayPort inputs, four USB Type-B ports, and four 3.5mm jacks and is compatible with systems running a Windows, Mac, Sun, or Linux/Unix operating system. This switch offers a 2-port USB 2.0 hub and supports resolutions of up to 3840 x 2160. With USB emulation technology on board, it provides immediate hotkey source switching through a remote USB keyboard and mouse. Moreover, it comes with TMDS signal correction for zero pixel loss. - Supports 4K (3840 x 2160 @ 30 Hz) resolution
- Quad-head DisplayPort video (supports 4 local monitors)
- Control Sun, Mac, or Windows computers from a single KVM console

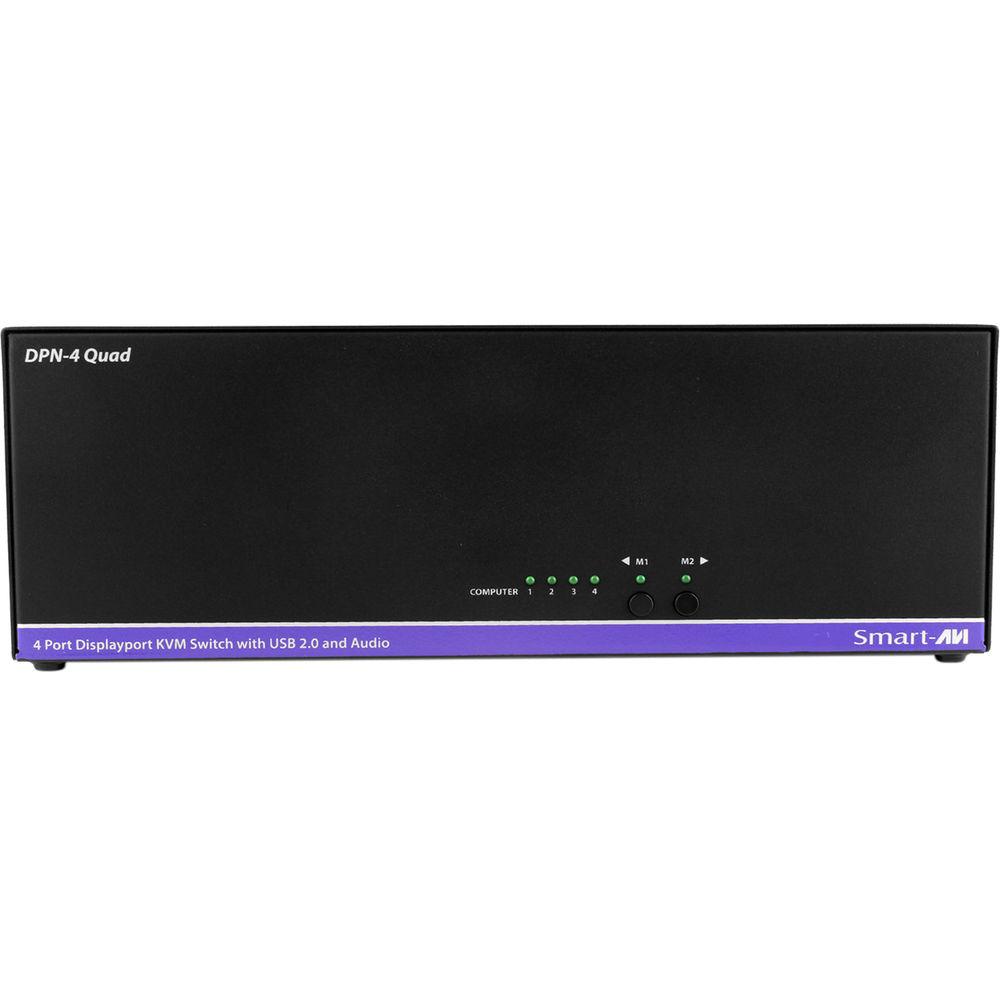

- Front panel buttons for source switching
- Balanced stereo audio output
- Optional TCP/IP web-based control interface
- Hot-key commands for quick channel selection.
- Independent switching between KVM and peripheral USB/audio ports.
UPC: 813280020879 In the Box Smart-AVI 4-Port Quad-Head DisplayPort KVM Switch with USB 2.0 Hub and Audio Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port Quad-Head DisplayPort KVM Switch with USB 2.0 Hub and Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.
Technical parametersSmart-AVI DPN-4QUAD-S Specs | Maximum Pixel Clock | 165 MHz | | Inputs | 16 x DisplayPort 1.2

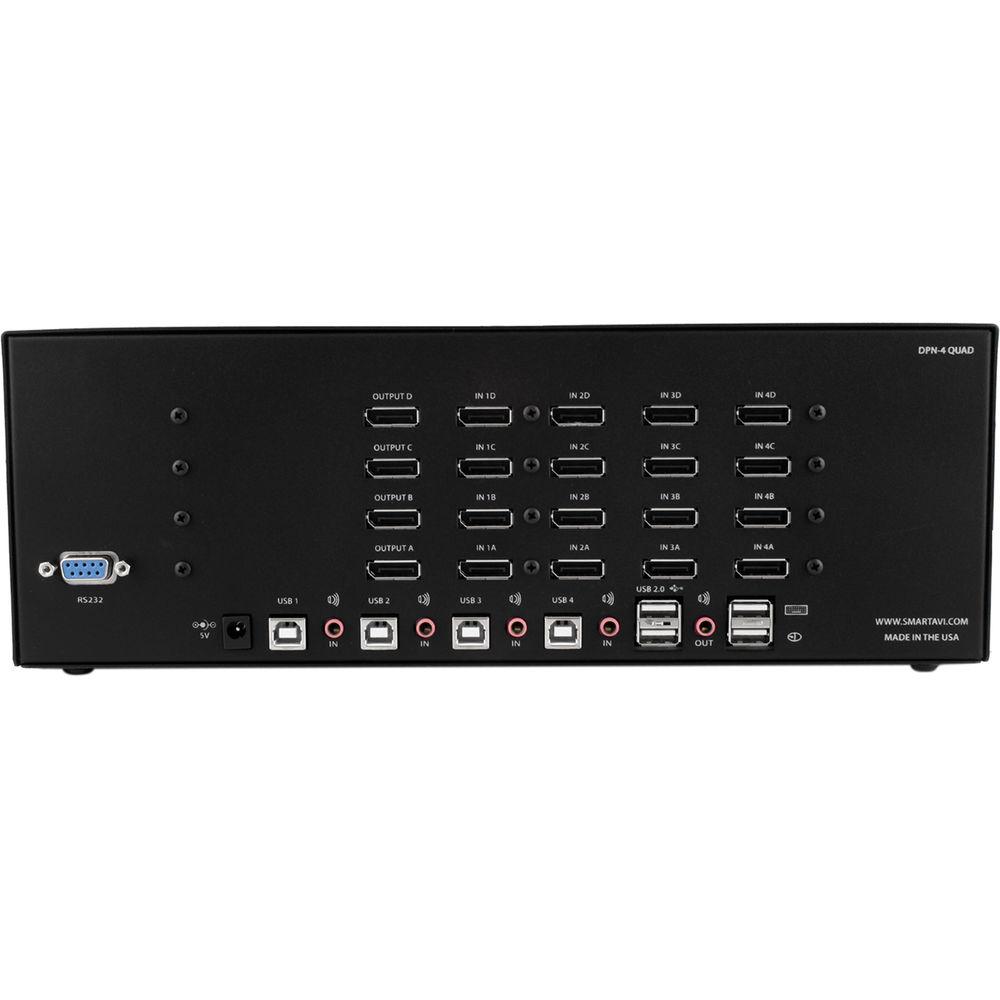

4 x USB Type-B
4 x 3.5 mm
1 x DB-9 female | | Outputs | 4 x DisplayPort
2 x USB 1.1 Type-A
2 x USB 2.0 Type-A
1 x 3.5 mm | | Resolution | Up to 3840 x 2160 @ 30 Hz | | DDC | 5 V p-p (TTL) | | Input Equalization | Automatic | | Supported Cable Lengths | Input/Output: 20' / 6.1 m | | Data Rate | 1.65 Gb/s (per color) | | Impedance | 600 Ohm | | Frequency Response | 20 Hz to 20 kHz | | Nominal Level | 0 to 1 V | | Common Mode | Rejection at 60 dB | | Control | Tactile switch and hot key support via keyboard | | Display | 2 x 20 characters | | Emulation | Keyboard and mouse | | Supported Operating Systems | Windows, Mac, Linux, Sun, Unix | | Voltage | 100 to 240 VAC | | Power Supply | 5 VDC, 4 A | | Approvals | UL, CE, RoHS | | Operating Temperature | 23 to 95°F / -5 to 35°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | Up to 95% | | Dimensions (H x D x W) | 4.5 x 6 x 12.8" / 11.4 x 15.2 x 32.4 cm | | Weight | 5.6 lb / 2.5 kg | | | | Package Weight | 7.35 lb | | Box Dimensions (LxWxH) | 15.2 x 10.4 x 6.2" |
