User Manual for Smart-AVI 4-Port Quad-Head HDMI KVM Switch Click to enlarge the picture
Contents of the user manual for the Smart-AVI 4-Port Quad-Head HDMI KVM Switch
- Product category: KVM Switches Smart-AVI
- Brand: Smart-AVI
- Description and content of package
- Technical information and basic settings
- Frequently asked questions – FAQ
- Troubleshooting (does not switch on, does not respond, error message, what do I do if...)
- Authorized service for Smart-AVI KVM Switches
 |
User manual for the Smart-AVI 4-Port Quad-Head HDMI KVM Switch contain basic instructions
that need to be followed during installation and operation.
Before starting your appliance, the user manual should be read through carefully.
Follow all the safety instructions and warnings, and be guided by the given recommendations.
User manual is an integral part of any Smart-AVI product,
and if it is sold or transferred, they should be handed over jointly with the product.
Following the instructions for use is an essential prerequisite for protecting
health and property during use, as well as recognition of liability on the part of the manufacturer
for possible defects should you make a warranty claim. Download an official Smart-AVI user manual in which you will find instructions on how to install, use, maintain and service your product.
And do not forget – unsuitable use of a Smart-AVI product will considerably shorten its lifespan!
|

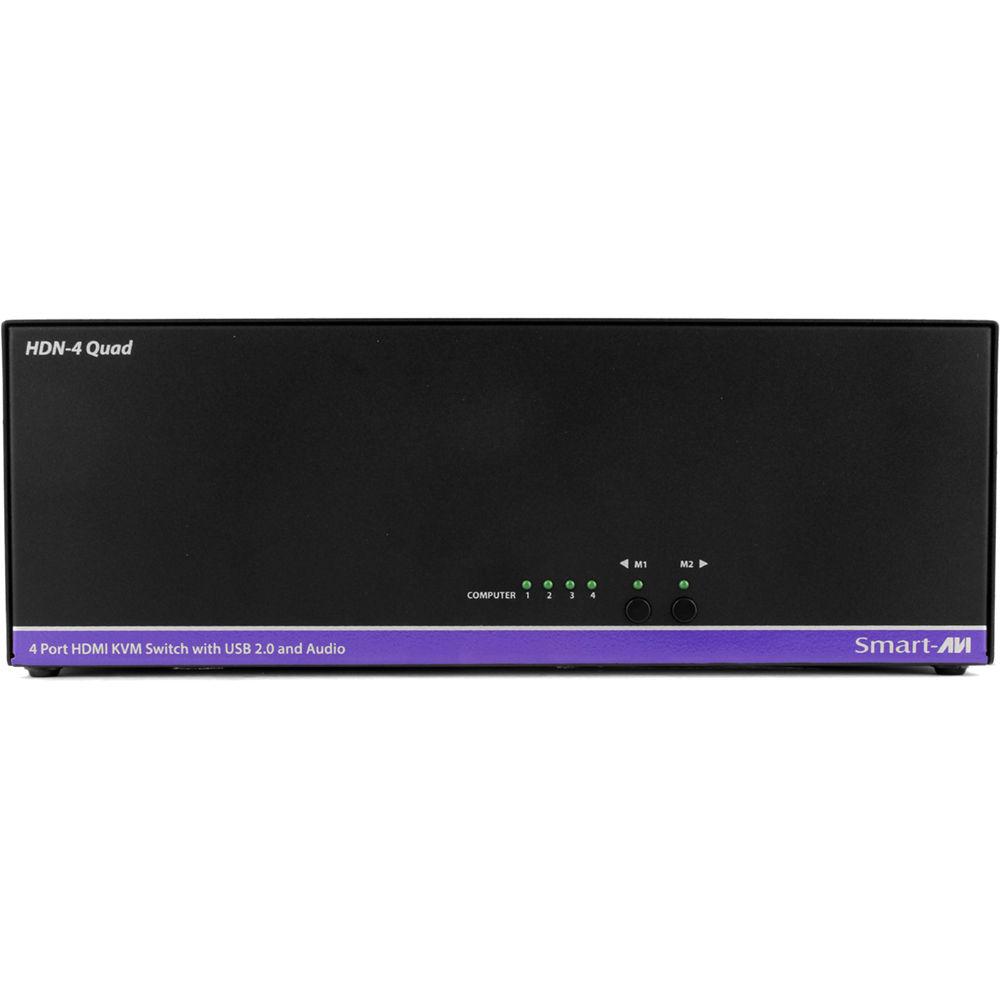

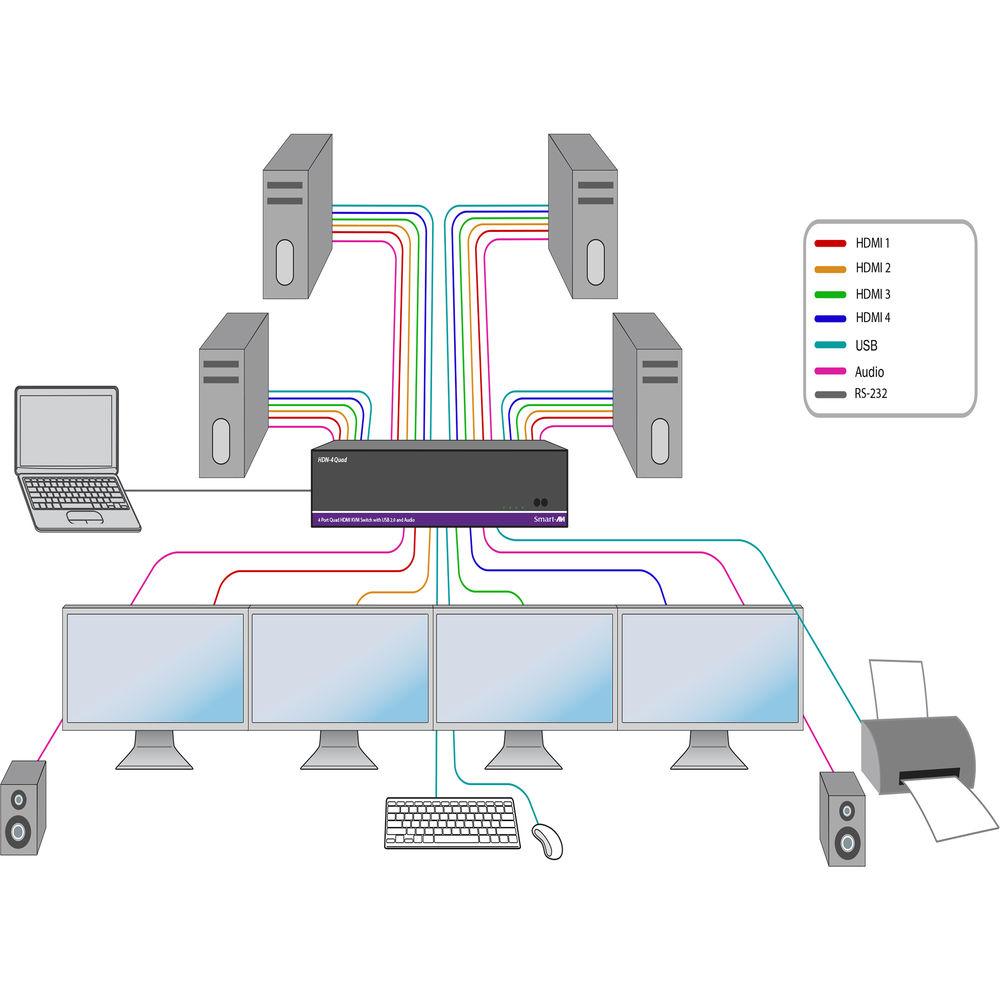

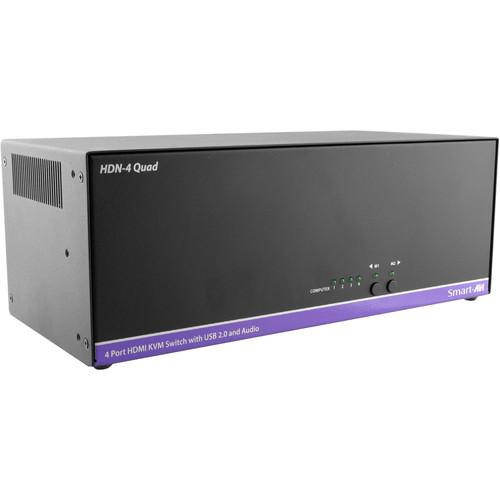

Product description Multi-Monitors: Maximizing Multitasking Read More The 4-Port Quad-Head HDMI KVM Switch from Smart-AVI lets you control up to four HDMI-enabled systems with a single set of control peripherals, which include four HDMI-outfitted displays along with a keyboard, mouse, pair of speakers, and printer. The switch provides four sets of four HDMI ports and supports resolutions of up to 1920 x 1080. For controls, it comes equipped with four USB 2.0 Type-B outputs and two USB 1.1 Type-A and two USB 2.0 Type-A inputs. Aside from inputs and outputs, you can quickly switch between the four systems using front-panel buttons or hot-key commands. - 4-port KVM switching; access and control keyboard/video/mouse functions on up to 4 remote computers
- Supports USB 2.0 devices (keyboard, mouse, and peripherals)
- Quad-head HDMI connectors for up to 4 local monitors
- Up to 1080p (1920 x 1080 @ 60 Hz) Full-HD resolution emulation
- Front-panel buttons for easy operation
- Optional keyboard hot-key command
- Optional TCP/IP web-console command
UPC: 813280020862 In the Box Smart-AVI 4-Port Quad-Head HDMI KVM Switch Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port Quad-Head HDMI KVM Switch in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

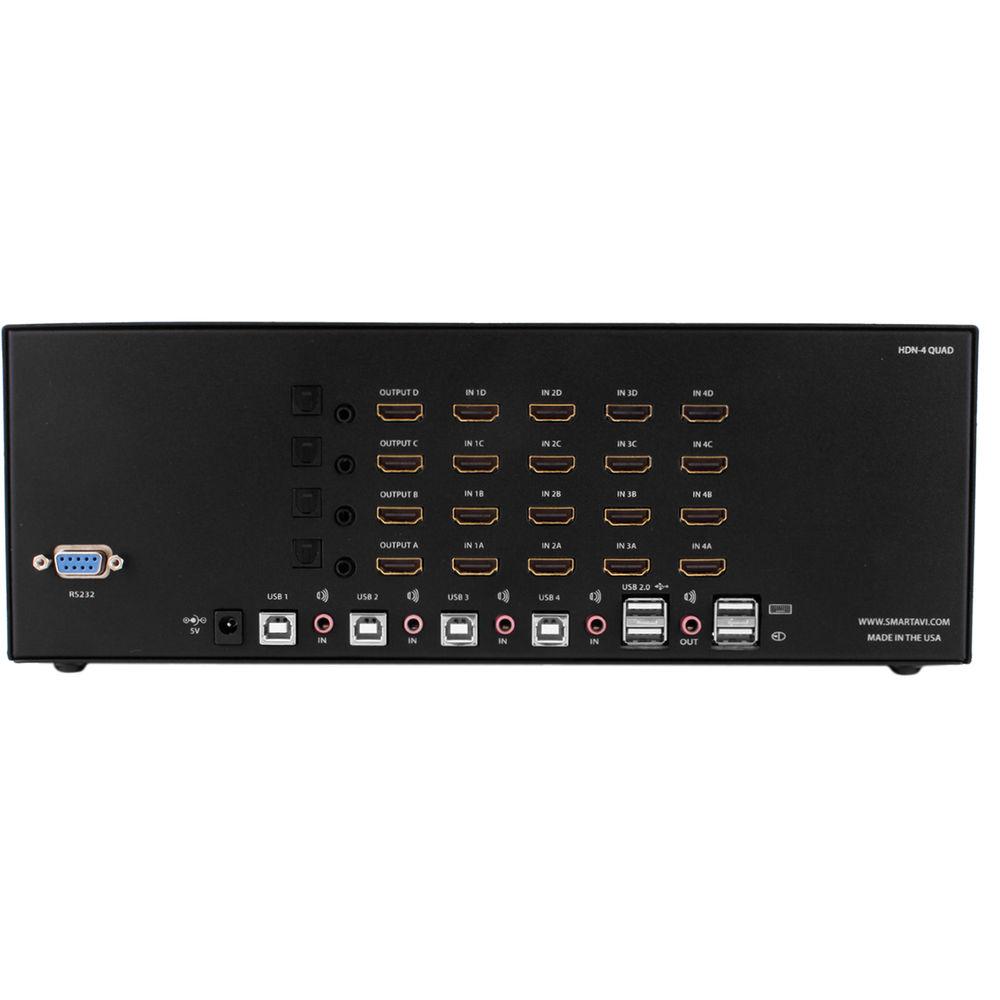

Technical parametersSmart-AVI HDN-4QUADS Specs | Maximum Pixel Clock | 165 MHz | | Inputs | 16 x HDMI 2.0
4 x 3.5 mm
4 x USB 2.0 Type-B | | Output | 4 x HDMI 2.0
1 x 3.5 mm
2 x USB 1.1 Type-A
2 x USB 2.0 Type-A | | Resolution | 1920 x 1080 @ 30 Hz | | DDC | 5 V p-p (TTL) | | Input Equalization | Automatic | | Cable Lengths Supported | Input/Output: 20' / 6.1 m | | Data Rate | 1.65 Gb/s per color | | Impedance | 600 Ohm | | Frequency Response | 20 Hz to 20 kHz | | Nominal Level | 0 to 1 V | | Common Mode | Rejection at 60 dB | | Controls | < M1||M2 > source selection buttons and hot-keys via USB keyboard | | TCP/IP | Web-based control console | | Voltage | 100 to 240 VAC | | Power Supply | 5 VDC, 4 A @ 20 W | | Approvals | UL, CE, RoHS | | Emulation | Keyboard and mouse | | Operating Temperature | 32 to 131°F / 0 to 55°C | | Storage Temperature | -4 to 185°F / -20 to 85°C | | Humidity | Up to 95% | | Dimensions (W x H x D) | 12.5 x 4.3 x 6.4" / 31.8 x 10.9 x 16.3 cm | | Weight | 4.9 lb / 2.2 kg |
