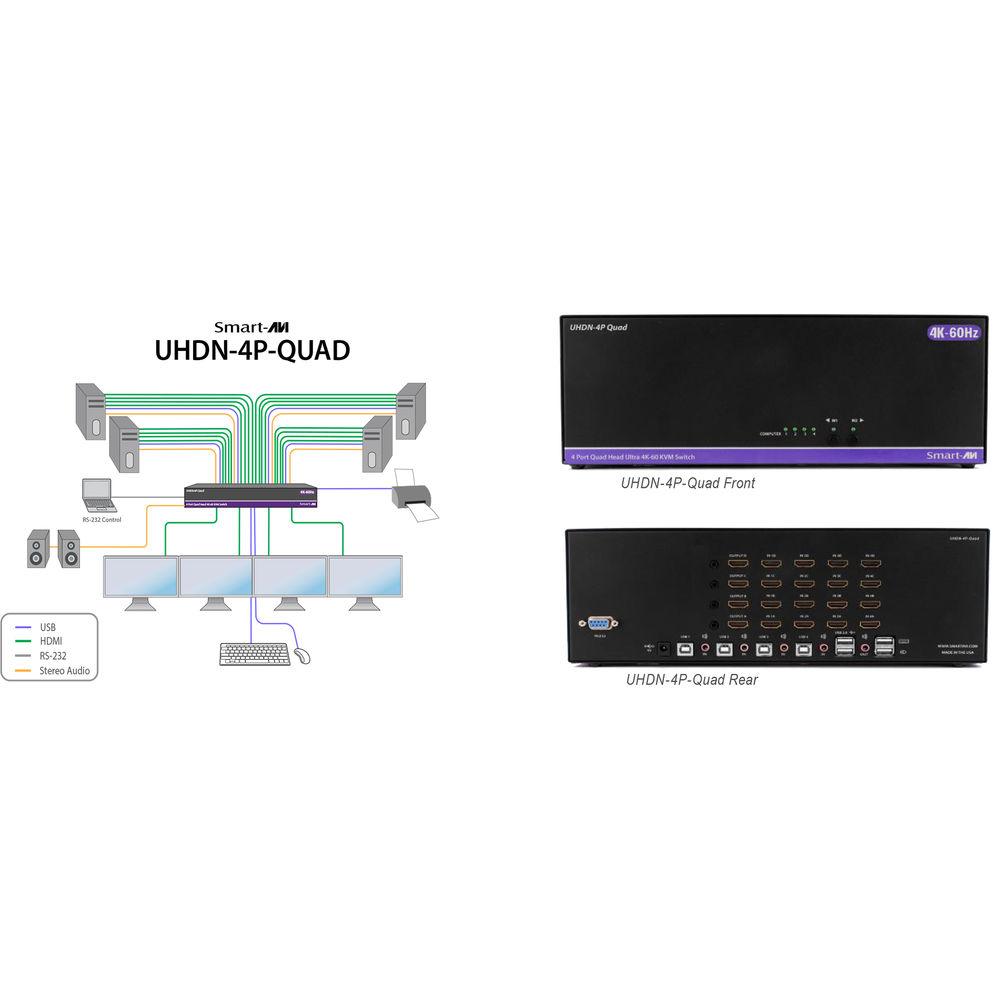

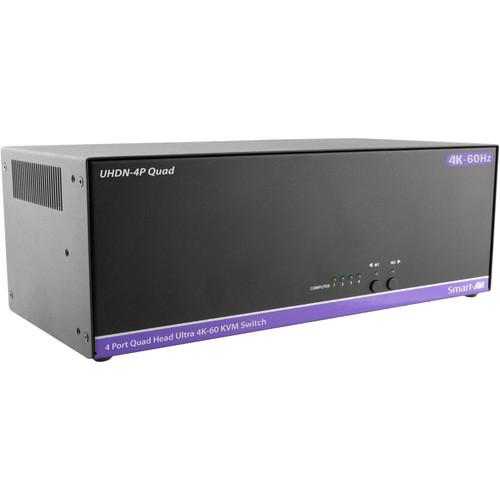

Product description Multi-Monitors: Maximizing Multitasking Read More ruazacrtzfzxztyy Simplify your multi-system workflow with the 4-Port Quad-Head HDMI KVM Switch from Smart-AVI. The switch can manage up to four HDMI-outfitted computers using a single console, which includes four HDMI-enabled monitors along with a keyboard, a mouse, and a set of speakers and useful USB peripherals. The switch is equipped with HDMI 1.4 ports that deliver screen resolutions of up to 3840 x 2160 at 60 Hz. Moreover, it offers EDID video emulation support, which enables digital workspaces and screen resolutions to be saved for responsive reconnects.
To complete the multimedia setup, one 3.5mm audio output and four 3.5mm audio inputs are on board. Switching between your four systems can be easily accomplished via hot-key commands or front-panel buttons. Moreover, the switch is equipped with a 2-port USB hub, allowing you to scan a document and save it in another computer. - Supports up to 3840 x 2160 @ 30/50/60Hz
- Supports LPCM, Dolby-AC3, DTS 7.1, and DSD/Dolby TrueHD/DTS-HD master audio
- HDMI 1.3, 1.4, and 2.0 compatible
- Control up to four computers with a single KVM
- EDID HDMI video emulation
- Zero pixel loss with TMDS signal correction
- Supports USB Keyboard/Mouse emulation
- Hot-key commands for quick channel selection
- Independent (asynchronous) switching of KVM and peripheral USB ports (users can scan a document and save in another computer)
- KVM emulation for error-free booting

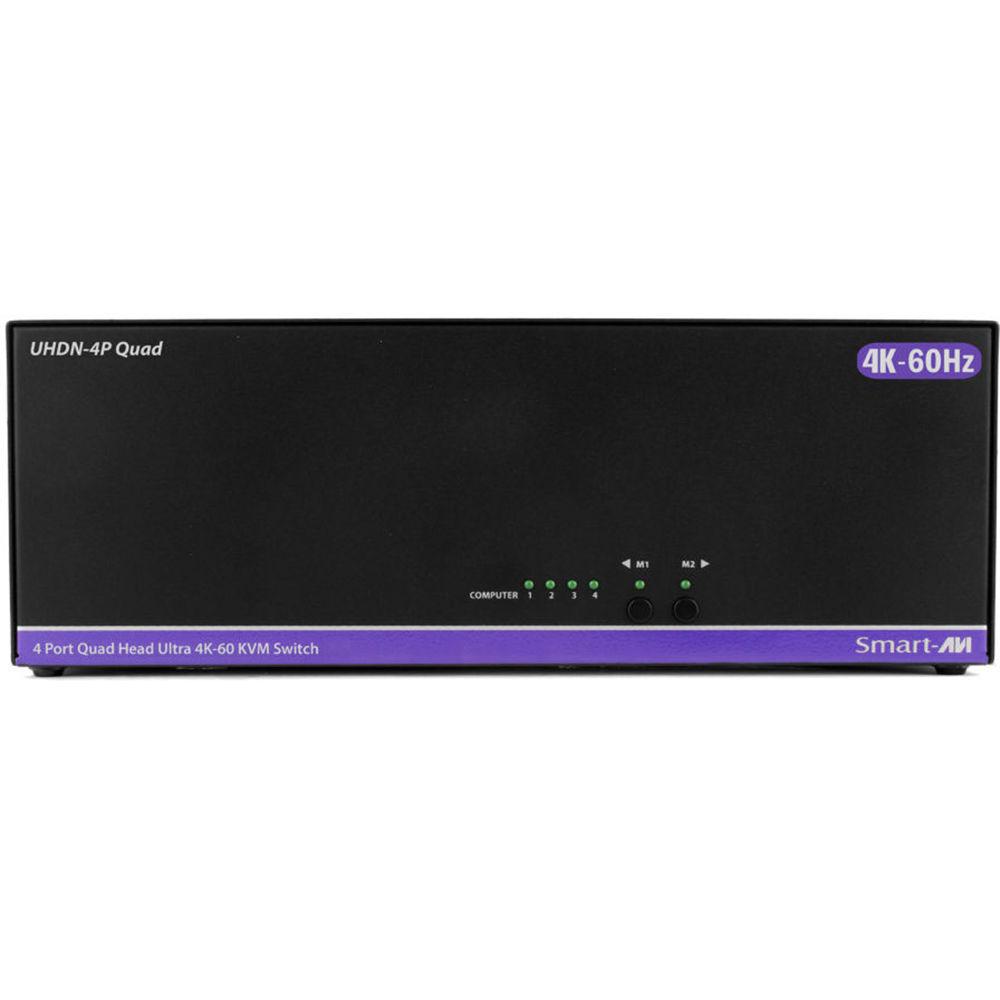

- Easy switching via front-panel, RS-232, or hot-keys
UPC: 813280024150 In the Box Smart-AVI 4-Port Quad-Head HDMI KVM Switch with USB 2.0 and Audio Power Supply Limited 1-Year Warranty Table of Contents
|
Upload User Manual
Have you got an user manual for the Smart-AVI 4-Port Quad-Head HDMI KVM Switch with USB 2.0 and Audio in electronic form? Please send it to us and help us expand our library of instruction manuals.
Thank you, too, on behalf of other users.
To upload the product manual, we first need to check and make sure you are not a robot. After that, your "Submit Link" or "Upload File" will appear.

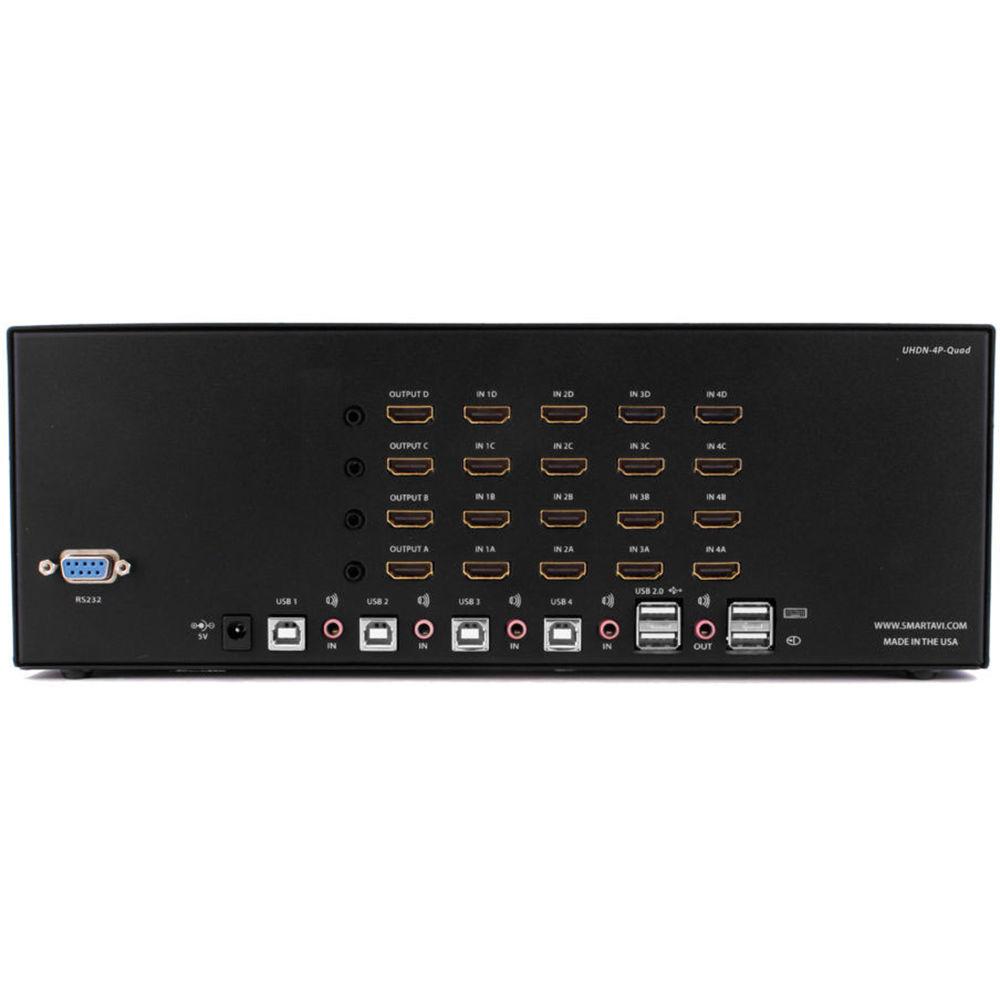

Technical parametersSmart-AVI UHDN-4P-QUADS Specs | Link | 5.4 Gb/s | | Inputs | 16 x HDMI 1.4 (female)
4 x USB Type-B (female)
4 x 3.5 mm
1 x RS-232 via SmartControl @ 9600 bps | | Outputs | 4 x HDMI 1.4 (female)
2 x USB 1.1 Type-A (female)
2 x USB 2.0 Type-A
1 x 3.5 mm | | Resolution | Up to 3840 x 2160 @ 60 Hz | | Input Equalization | Automatic | | Bandwidth | 300 MHz, 10.2 Gb/s | | HDCP Compliant | Yes | | Maximum Cable Length Supported | 40' / 12.2 m | | Frequency Response | 20 Hz to 20 KHz | | Nominal Level | 0 to 1 V | | Common Mode | Rejection @ 60 dB | | Control | Buttons and hot-key support via keyboard | | Emulation | Keyboard, mouse, and video | | Voltage | 100 to 240 VAC | | Power Supply | 5 VDC, 4 A @ 20 W | | Power Consumption | 20 W maximum | | Approvals | UL, CE, RoHS | | Operating Temperature | 23 to 95°F / -5 to 35°C | | Humidity | 5 to 90% | | Dimensions (H x D x W) | 4.5 x 5.8 x 12.8" / 11.4 x 14.6 x 32.5 cm | | Weight | 5.8 lb / 2.6 kg | | | | Package Weight | 7.4 lb | | Box Dimensions (LxWxH) | 15.1 x 10.8 x 6.2" |
